IK Multimedia Safe Spacer User manual
Wearable social distance monitor
TABLE OF CONTENTS
1 SAFETY INSTRUCTIONS 3
1.1 Repair and modifications 4
1.2 Battery safety and disposal 4
2 OVERVIEW 5
3 INSTALLATION 6
3.1 Lanyard 7
3.2 Wristband 8
3.3 Belt loop 9
4 RESET BUTTON 10
5 BATTERY LEVEL AND CHARGING 11
5.1 Battery level alerts 11
5.2 Charging 11
5.3 Battery level status 12
6 SOCIAL DISTANCE WARNING 13
7 CONTACT DATA LOG 14
7.1 Error messages 14
8 CARE INFORMATION 15
8.1 Cleaning the wristband or belt loop 15
8.2 Cleaning the device casing 15
8.3 Allergy information 15
9 SPECS 16
Safe Spacer 16
10 SAFE SPACER SOFTWARE – QUICK START GUIDE 17

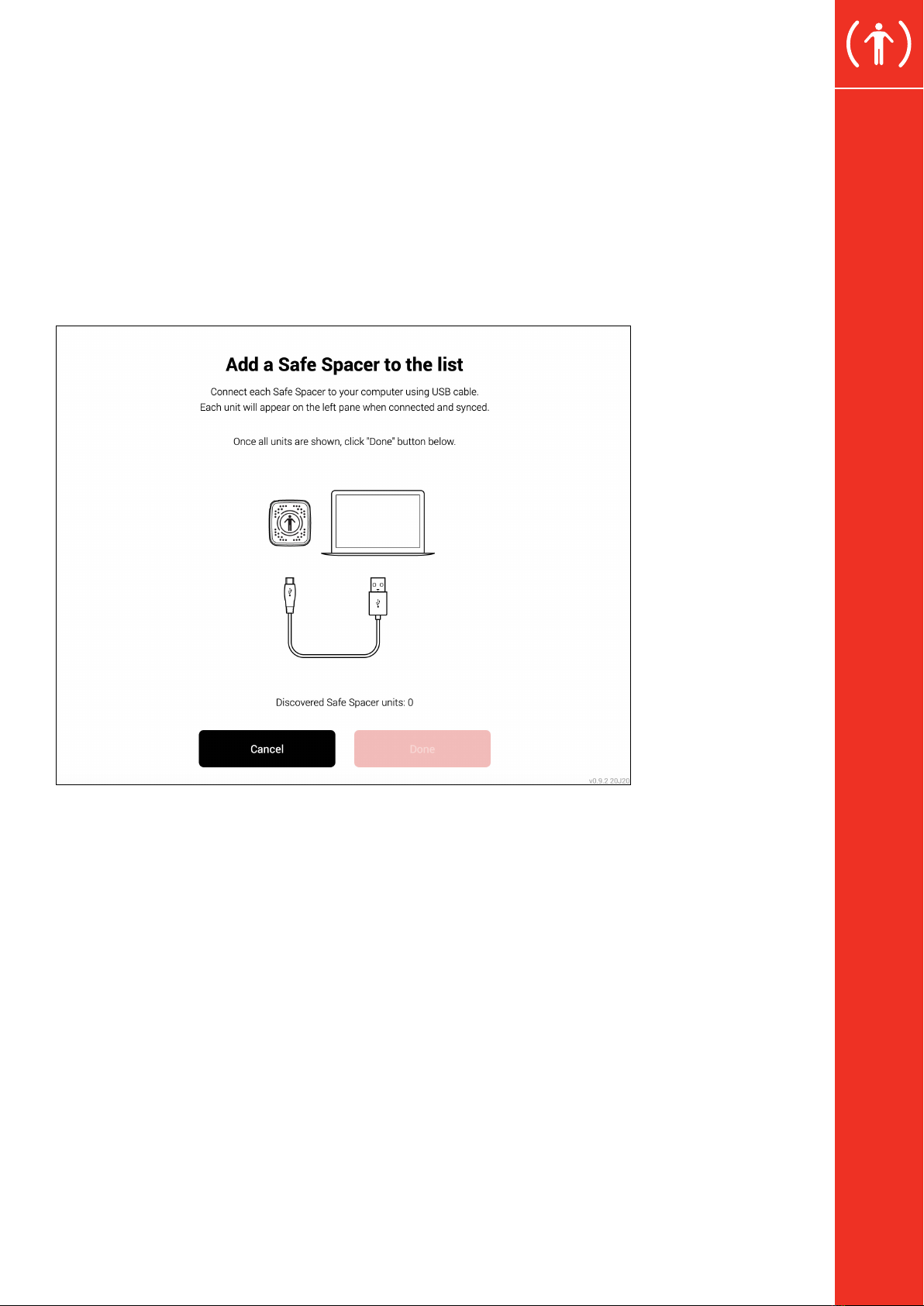

10.1 Add a new Safe Spacer 18

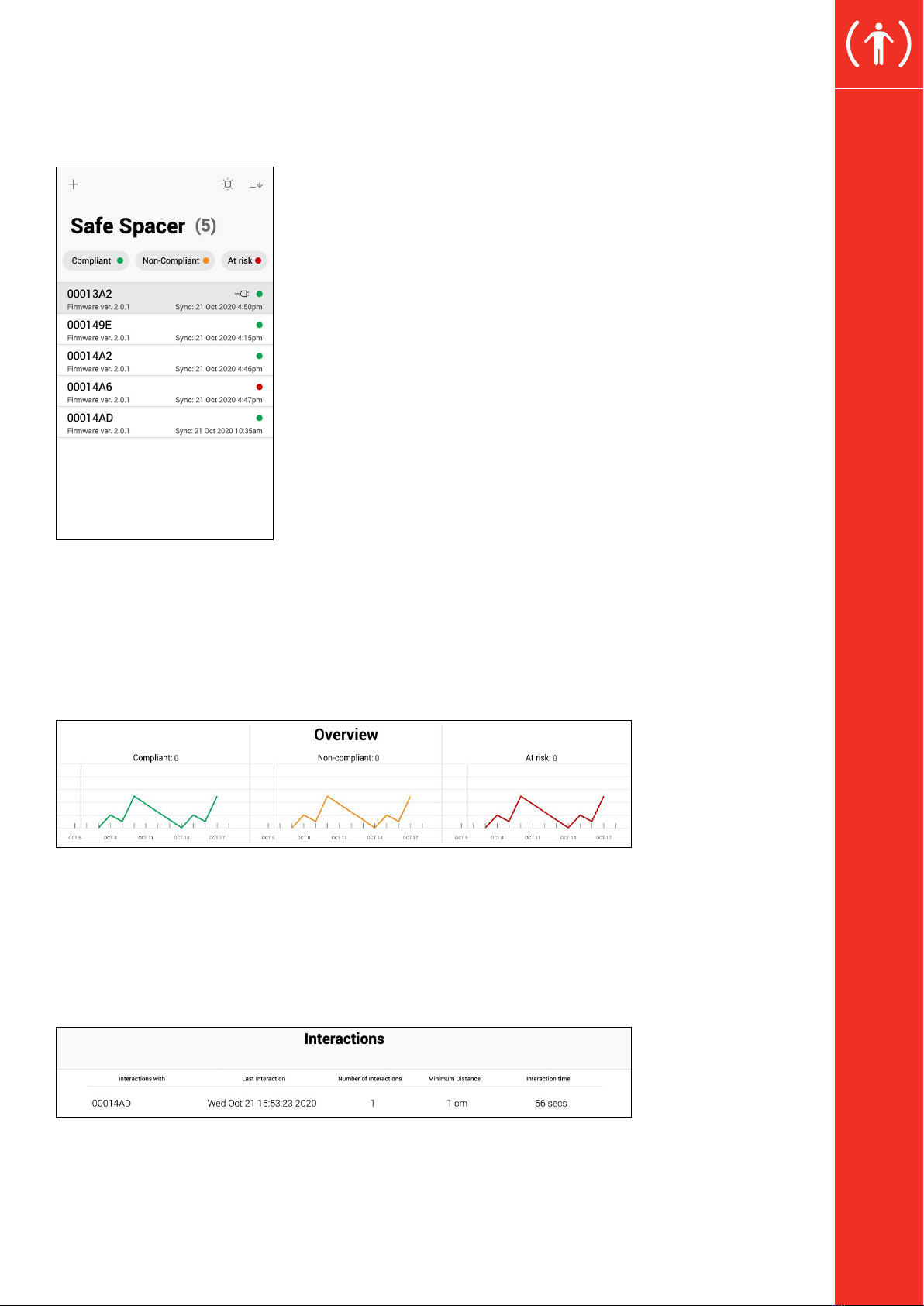

10.2 Safe Spacer Pane 19
10.3 Device Settings 20
10.4 Global Settings 21
10.5 Pair a new S-Bridge 22
10.6 S-Bridge settings 23
10.7 Quit the Safe Spacer Application 24
REGULATORY 25
2
1 SAFETY INSTRUCTIONS
Before using this product, carefully read this user manual. Failure to follow these safety instructions could result in fire, electric shock, injury,
or damage to Safe Spacer or other property. Do not dispose of this manual. Ensure that this information is retained and used appropriately by
the product user.
• Users must fully understand and strictly observe the instructions. Use the product only for the purposes specified in this document.
Comply with all local and national rules and regulations associated with this product.
• Users of Safe Spacer must be familiar with the relevant safety concepts of the industrial environment they are operating in, as well as
applicable standards and other regulations. Always obey site-specific signs and instructions.
RF EXPOSURE AND INTERFERENCE
Safe Spacer uses radio signals to connect to wireless networks and other devices. It is designed, tested, and manufactured to comply with
regulations governing radio frequency emissions. Even so, radio-signal emitting devices can negatively affect the operation of other electronic
equipment, causing them to malfunction.
POSSIBLE MEDICAL DEVICE INTERFERENCE
Safe Spacer contains components that emit electromagnetic fields. This may interfere with medical devices, such as pacemakers and
defibrillators. Consult your physician and medical device manufacturer for information specific to your medical device and whether you need
to maintain a safe distance of separation between your medical device and Safe Spacer.
If you suspect Safe Spacer is interfering with your medical device, stop using it immediately and consult your physician.
SAFE SPACER IS NOT A MEDICAL DEVICE
Safe Spacer is not a medical device and should not be used as a substitute for professional medical judgement. It is not designed or intended
for use in the diagnosis of disease or other conditions, or in the cure, mitigation, treatment, or prevention of any condition or disease.
NOT FOR USE IN A POTENTIALLY EXPLOSIVE ENVIRONMENT
Charging or using Safe Spacer in any area with a potentially explosive atmosphere, such as areas where the air contains high levels of
flammable chemicals, vapors, or particles (such as grain, dust, or metal powders), may be hazardous.
Exposing Safe Spacer to environments having high concentrations of industrial chemicals may damage or impair Safe Spacer functionality.
3
1.1 REPAIR AND MODIFICATIONS
• Only trained and competent personnel are permitted to inspect, repair and service Safe Spacer.
• Use only original parts and accessories for using and maintaining this product. Otherwise, the correct functioning of the product could be
impaired.
CAUTION: Modifications to any component of Safe Spacer are not permitted, as they can endanger your safety or damage the
device. Disassembling Safe Spacer may cause damage, result in loss of water resistance, and may cause injury to the user.
1.2 BATTERY SAFETY AND DISPOSAL
WARNING: Safe Spacer contains a non-user replaceable lithium-ion battery. It should be serviced only by IK Multimedia.
Don’t incinerate or damage the battery. This could cause overheating and injury.
EUROPEAN UNION—DISPOSAL INFORMATION
The symbol above means that according to local laws and regulations your product and/or its battery shall be
disposed of separately from household waste. When this product reaches its end of life, take it to a collection
point designated by local authorities. The separate collection and recycling of your product and/or its battery at
the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects
human health and the environment.
4
2 OVERVIEW
LANYARD HOLE
RESET BUTTON MICRO USB
PORT
LED LIGHTS
5
3.1 LANYARD
• Use the lanyard to wear Safe Spacer as a necklace.
• Insert the loop of the lanyard into one of the holes and push the
loop in until it comes out of the other hole.
• Thread the lanyard cable
through the loop, then pull
the lanyard cable to secure it
in place.
7
3.2 WRISTBAND
• Put the Safe Spacer into the wristband with the logo facing
outwards.
• Put the wristband around
either wrist and push the
clasp firmly through the hole
most comfortable to wear.
Put the loose end of the top
strap through the loop until
both straps lie flat.
• It is possible to remove
the Safe Spacer from the
wristband in order to access
either the push-button or the
micro-USB port.
8
3.3 BELT LOOP
• Put the Safe Spacer into the belt loop with the logo facing
outwards.
• Put the belt loop around
the belt and push the clasp
firmly through the hole.
• It is possible to remove the
Safe Spacer from the belt
loop.
9
4 RESET BUTTON
• Put the Safe Spacer to
SLEEP by pushing the button
on the back of the unit.
BLUE
• The lights on the unit will flash blue once and emit a single
vibration accompanied by a tone when the unit has turned off.
ON
GREEN BLUE
• Turn the Safe Spacer ON by pushing the button on the back of
the unit. The unit will turn on and the lights will blink green/blue
alternatively for 10 seconds.
• To trigger a reset, push and hold the button on the back of the
unit for more than 5 seconds.
SLEEP
10
5 BATTERY LEVEL AND CHARGING

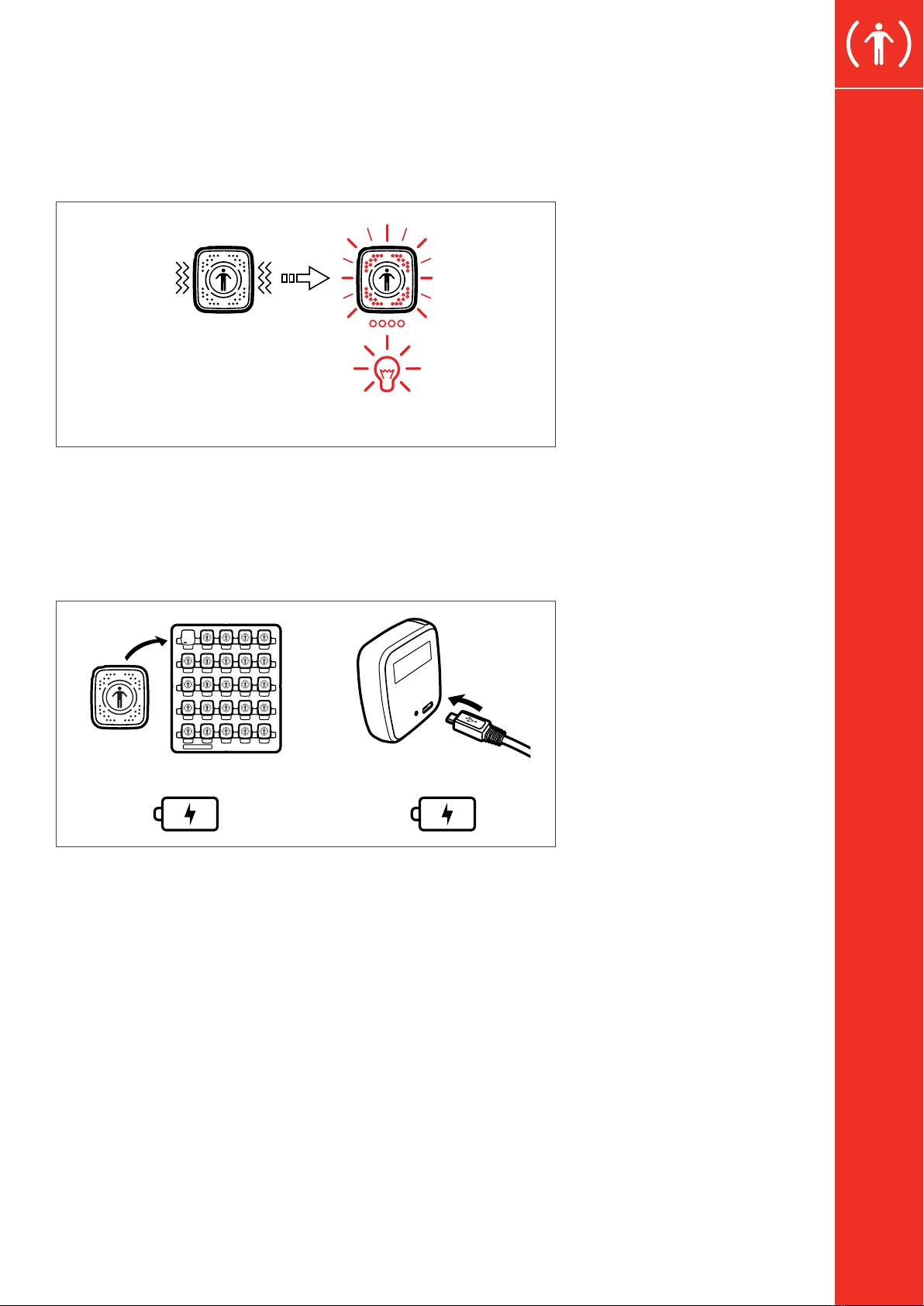

5.1 BATTERY LEVEL ALERTS
RED
• When the battery level is below 5%, the unit will vibrate with two
short pulses and the LED lights will flash red 4 times, every 30
seconds. Charge the device as soon as possible.
5.2 CHARGING
• It is possible to use the dedicated S-Charger bay or any
micro-USB power supply capable of 5VDC and 1A.
11
5.3 BATTERY LEVEL STATUS
While the Safe Spacer is charging, the lights on the unit will show you
the battery level status:
when the battery level is
below 70% the LED will glow
a steady red;
when the battery level is
above 70% the LED will turn
orange;
when the battery is fully
charged the LED will turn
green;
• On removing the Safe Spacer from the micro-USB power supply,
the unit will turn ON and the lights will blink an alternating green
& blue for 10 seconds.
CAUTION: Keep Safe Spacer and the power adapter in a dry, well-ventilated area when
charging. Don’t use a charging cable or power adapter that is damaged or modified. Failure
to do so may cause fire, electric shock, injury, or damage to Safe Spacer or other property.
Don’t wear Safe Spacer on your body or under clothing when charging the device.
RED
ORANGE
GREEN
12
6 SOCIAL DISTANCE WARNING
Social distancing between workers is ensured by alerting them if
they come too close to each other.

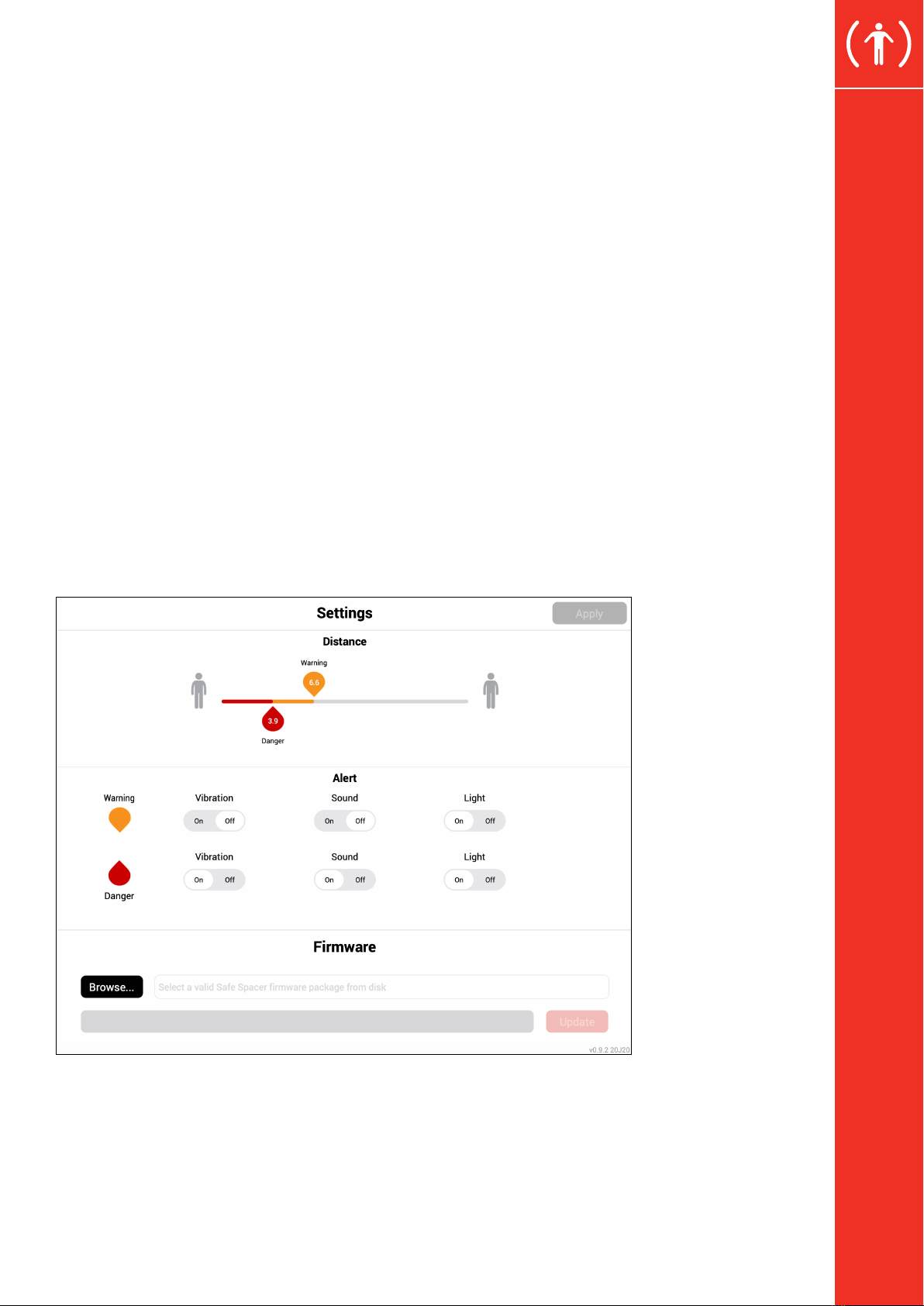

The social distancing warning thresholds can be configurated with
dedicated software or the command line interface (CLI).
Default threshold values:
2m / 6.56ft
1.2m / 3.94ft
RED
• ALERT 1: When the distance between two or more units is
between 1.2m / 3.94ft and 2m / 6.56ft, the lights on the unit will
flash red and the unit will vibrate every 2 seconds.
1.2m / 3.94ft
RED
• ALERT 2: When the distance between two or more units falls
below 1.2m / 3.94ft, the lights will flash red and the unit will
vibrate every second, accompanied by an intermittent sound alert
(IK141-108 version only).
13
7 CONTACT DATA LOG
The Safe Spacer can work as a proximity alarm and/or a contact
tracing device.
The two features can be anabled or disabled independently.
When contact tracing is active, each device that comes within 2
meters is logged, regardless of the alarm status and the alarm
threshold settings.
The idea is to log the most reliable contact tracing data possible,
independent of distance and/or time thresholds that may change.
It is possible to enable/disable the contact data log via the dedicated
software or command line interface.
• By default, the contact data log is disabled: to turn it ON,
connect the unit to a computer: the Safe Spacer software
can automatically set date and time and turn on contact data
logging. Alternatively, you can use the command line interface
(CLI) to set date and time and then turn contact data logging on
manually.
7.1 ERROR MESSAGES
Once data logging is enabled, it is advisable to download the data
regularly to prevent the internal memory from filling up.
If the internal memory
becomes full, or date and
time are not valid, the Safe
Spacer will blink purple
rapidly every 2 seconds until
the data log is downloaded
or date and time is properly
set.
PURPLE
14
8 CARE INFORMATION
8.1 CLEANING THE WRISTBAND OR BELT LOOP
• Clean the wristband regularly. The wristband is made of
thermoplastic elastomer, and can be cleaned with a mild soap
solution and warm water.
• Do not use abrasive cleaners or silicone-oil based products on
the wristband, as it can deteriorate the material.
• The strap can be sanitized by wiping it with isopropyl alcohol.
Remove the Safe Spacer casing from the wristband before doing
so.
• After cleaning, dry the wristband with a clean, lint-free cloth and
let it air dry before using it again.
8.2 CLEANING THE DEVICE CASING
• Clean the casing of Safe Spacer with a damp cloth or a mild
soap solution. Don’t use abrasive cleaners.
• The casing of Safe Spacer can be sanitized by wiping it with
isopropyl alcohol. Do not boil or autoclave the casing of Safe
Spacer, as this may cause permanent damage to the device.
• After cleaning, dry the casing of Safe Spacer with a clean, lint-
free cloth and let it air dry before using it again.
NOTICE: As the effectiveness of certain cleaning products and disinfectants against COVID-19 are not
yet fully known by health authorities, IK Multimedia recommends checking the latest guidelines, which
can be found on www.ecdc.europa.eu.
8.3 ALLERGY INFORMATION
• Safe Spacer is designed to the highest safety standards and
manufactured from high-purity materials.
• As with all things worn close to the body, moisture and bacteria
can cause irritation when wearing a wet or dirty wristband for
extended periods of time. If you have known skin sensitivities,
please take special care when wearing Safe Spacer. Clean the
band and wrist regularly, especially after intense sweating or
working in very dirty environments. Be aware that products
such as lotions, perfume, soap or insect repellants are known to
get trapped under items as jewelry and wristbands and cause
irritation.
• Do not use aggressive products to clean the wristband.
Keeping Safe Spacer and the band clean and dry will reduce the
possibility of skin irritation.
• Take off the safety wearable when not using it, to allow your skin
to breathe. If you experience redness, swelling, itchiness, or other
irritation on your skin around Safe Spacer, remove the device and
consult your physician.
15
16
9 SPECS
Safe Spacer
Wireless technology UWB - Channel 5
Bluetooth®
Sensors Acceleration, Gyro
Indicators Multicolor LED, sound buzzer, vibration feedback
Battery Lithium Polymer battery, 3.7V, 200mAh
Battery duration Up to 20 hours of continuous operation
Re-charge time Approx. 3 hours (using optional S-Charger docking station)
Power supply 5V, 1A max. through micro USB connector
Water resistant option IP67 rated (IK141-100)
Operation -20°C to 55°C, 0 % to 98 % relative humidity
Storage -20°C to 55°C, 0 % to 98 % relative humidity
Certification FCC, IC, CE, CE-RED
Data Matrix Unique Data Matrix for each unit
Indentification label 25x10 mm free space for identification label
Casing material PA polyamide
Casing dimensions and weight 47 mm x 42 mm x 16 mm, 25 g
Power Supply Unit (PSU) available separately
Power rating 5V 130 mA max (with USB connection)
RF Power
Bluetooth: -8.5 dBm (max measured power)
UWB: -41.3 dBm/Mhz (e.i.r.p. power spectral density) / 0dBm / 50MHz (peak e.i.r.p. power)
Operational RF Bands
Bluetooth: 2402MHz-2480MHz (Bandwidth=80MHz)
UWB: Nominal frequency 6489.6MHz (Bw=499.2MHz)
17
10 SAFE SPACER SOFTWARE – QUICK START GUIDE
TheSafe Spacer softwarefor Mac/PC allows you to control Safe Spacer settings and access contact
tracing information. The convenient interface gives you essential data at a glance, so you can ensure
employees are respecting social distancing and easily adjust the device settings.
When opening the app for the first time, you will be asked to fill out a simple form with your personal
information and set a password to protect contact tracing data.
PLEASE NOTE: remember to store your password safely, if you lose it you will no longer be able to
access the contact tracing data.
Click “Done” to complete the process.
The Safe Spacer software interface is divided into several sections:
• Top Bar: use it to navigate through the sections of the software. Click on the different icons to
access to the main Safe Spacer pane, the device settings, and the user menu, which includes the
Global Settings menu.
• Safe Spacer pane: use this pane to monitor your devices, the interactions between devices, and to
look at the 3 charts graphically showing the device’s status history.
• Device Settings pane: from here you can easily change the settings for each device individually, or
for all of them simultaneously.
18
10.1 ADD A NEW SAFE SPACER
To add a new device to the device list, proceed as follow:
• Plug one or more Safe-Spacer to your Mac or PC via USB.
• From the Safe Spacer pane, click on the + icon positioned at the top-left corner of the interface, a
simple wizard will appear.
• Wait for the device to be discovered. When the device is discovered click “Done”, the Safe Spacer will
be added to the Device List on the left of the Safe Spacer pane.
• Repeat the procedure each time you need to add a new device.
Via the Safe Space software, you can choose whether to set your device as a contact tracing device or
as a proximity alarm. If you use it as a contact tracer, the application will store the logs, otherwise it will
just work as a proximity alarm with sound, light and vibration alerts.
To set your device as a contact tracer or proximity alarm, flag the corresponding option in the global
settings menu (see the global settings paragraph for more information).
19
10.2 SAFE SPACER PANE
The Safe Spacer pane lets you manage all your device at a glance. It is divided into 3 tabs:
Device List: On the left, the device list shows you all the registered
devices. Each device displays a serial number, firmware version,
last sync date and status icons. The status icons tell if a device is
compliant (green icon), non-compliant (yellow icon) or at risk (red
icon) in a period of time of your choice that you can select from
the dropdown menu above the graphics. “Compliant” means the
device is respecting the default security distance of 2 meters (6.6
feet), “non-compliant” means the device crossed the threshold of
2 meters and it is not in a safe area anymore, while “at risk” means
the device is in a risk position, closer than 1.2 meters (3.9 feet). It
is also possible to filter the device list “by status” or simply use the
sorting options to re-arrange the list. In addition, if you want to flash
the synced devices to make them recognizable, just click on the
blinking icon positioned on top of the device list.
Charts: On top of the Safe Spacer pane, 3 charts display the Compliant, Non-Compliant and At-Risk
devices on a graphic timeline. You can set a time scale and choose from: last 24 hours, last 7 days and
last 14 days. The selected time scale will affect the charts and the device list on the left of the interface.
On top of each chart, the number of compliant, non-compliant and at-risk devices based on the selected
time scale is shown.
Interaction Pane: On the device list, click on a device and the Interaction Pane will appear at the center
of the interface. From here you can see the list of interactions between the selected device and all the
other registered devices. You can set the arrangement of the list by:
“Interactions with”, “Last interaction”, “Number of interactions”, “Minimum Distance” and “Interaction
Time”.
20
10.3 DEVICE SETTINGS
From the top bar, click on the settings icon to access the settings panel. Now select one or more devices
from the device list (multiple selection: command + click on macOS and ctrl + click on Windows) to
display the settings.
Distance: You can use the slider to set “Warning” and “Danger” status on your device. Move the slider
to set a distance range for each status. By default, the “Warning” status is set to 2 meters (6.6 feet) and
the “Danger” status is set to 1.2 meters (3.9 feet). From the Global Settings menu, you can set the unit of
measure (meters or feet) you want to display for the distance settings.
Alert: Set the vibration, sound and light for the Warning and Danger status
Firmware: Click on the “Browse” button to upload a firmware update file and proceed to update firmware
on the devices
Always click “Apply” in order to complete the edit of the settings.
PLEASE NOTE: All settings will be applied to the next device synchronization.
PLEASE NOTE: Alert settings cannot be applied to multiple devices simultaneously.
Table of contents
