Ikan V8000 User manual

INTRODUCTION
Thank you for purchasing the ikan V8000 LCD Monitor. We know you will be satisfied with our “V” series monitors.
Please visit www.ikancorp.com for more information on our current and future products including our award-winning
fluorescent studio lights and light accessories.
PACKAGE INCLUDES
V8000 LCD Monitor
AC Power Adapter
A/V Cable
VGA Cable
Remote Control
GETTING STARTED
1. Getting power to the monitor.
a) Plug the AC adapter into the power jack on the bottom left of the rear of the monitor.
2. Connecting the A/V (audio/Video)
a) Plugging up the A/V cable to the bottom of the monitor gives you many modes for video input.
(You can switch from these modes by pressing the “PC/AV” button on the monitor)
Checked by
MENU
AV/PC

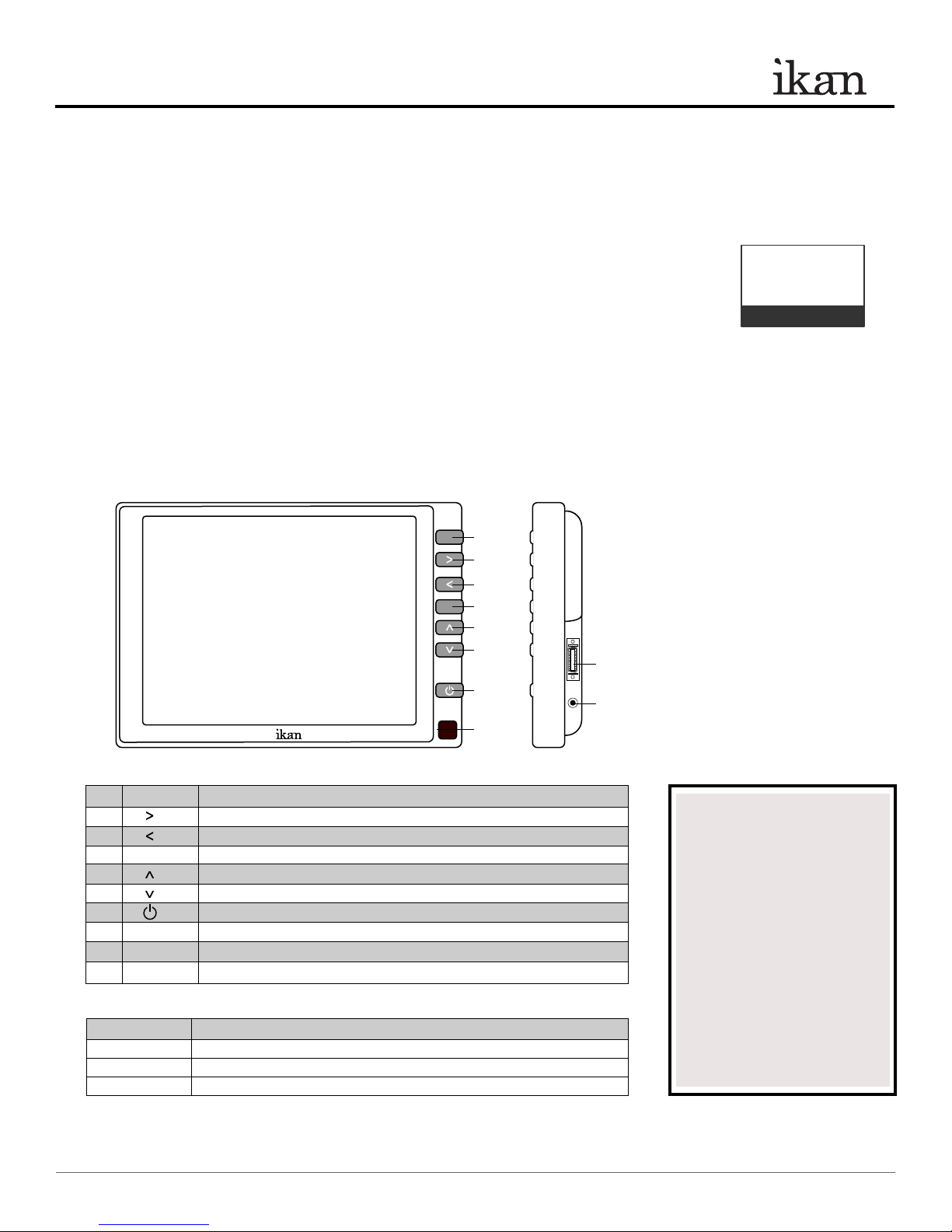

QUICK START GUIDE / V8000 8”LCD Monitor
3903 Stoney Brook Dr. Houston TX 77063 | +1.713.272.8822 | www.ikancorp.com | [email protected] | © 2009 ikan Corporation. All right reserved.
1. AV/PC Switch between AV or PC modes.
2. Volume up; adjust the value of setting function.
3. Volume down; adjust the value of setting function.
4. MENU Access to all monitor settings: Color, Function, OSD and etc.
5. Selection key; adjust the value of setting function.
6. Selection key; adjust the value of setting function.
7. Power on/off.
8. Infrared receiving window.
9. AV input jack
10. DC 12V input jack
Video Modes Description
Video-1 The yellow AV cable is your Video-1
Video-2 The red AV cable is your Video-2
VGA-Mode Using the VGA cable enables you to use you computer as a video source.
1
2
3
4
5
6
7
8
9
10
NOTE:
Image Flip Instruction
► Go to FUNCTION under MENU
setting
■ Reset
Back to original setting
■ LR Rotation
Flip image horizontally
■ UD Rotation
Flip image vertically

A/V CABLE
CONNEC TO R
AUDIO L
AUDIO R
POWER
TO R
F O R V G A CAB LE
DIN CONNE C
RCA CABLES (male)
*not included
VIDE O 1
CAMERA 1
AUDIO L
AUDIO R VIDE O 1
AUDIO VIDEO 1VIDEO 2
POWER
AC ADAPTER
WALL OUTLET
CAMERA 2
VGA OUT
USB
AUDIO
VIDEO 2 VIDE O 1
USB PORT
POWER
FOR TOUCH SCREEN MODEL ONLY
NOTEBOOK COMPUTER
V8000
MENU
AV/PC
