Ikan V17e-FK User manual

V17e-FK
17 inch HD Monitor Field Kit QUICKSTART GUIDE
www.ikancorp.com
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
3903 Stoney Brook Dr. Houston TX 77063
1.713.272.8822
[email protected]
© 2010 ikan Corporation. All right reserved
What’s included
Checked by
 V17 HD Monitor
 Rack Ear (Pair)
 9mm x 3mm Screw (8)
 Table Stand
 10mm x 4mm Screw (4)
 AC Power Cord
 SH17 Sunhood
 SP17 Screen Protector
 YK17 Monitor Yoke
 Pro Battery Kit (check one): [ V17PBK- A ] [ V17PBK-S ]

V17e-FK
17 inch HD Monitor Field Kit QUICKSTART GUIDE
www.ikancorp.com 713-272-8822

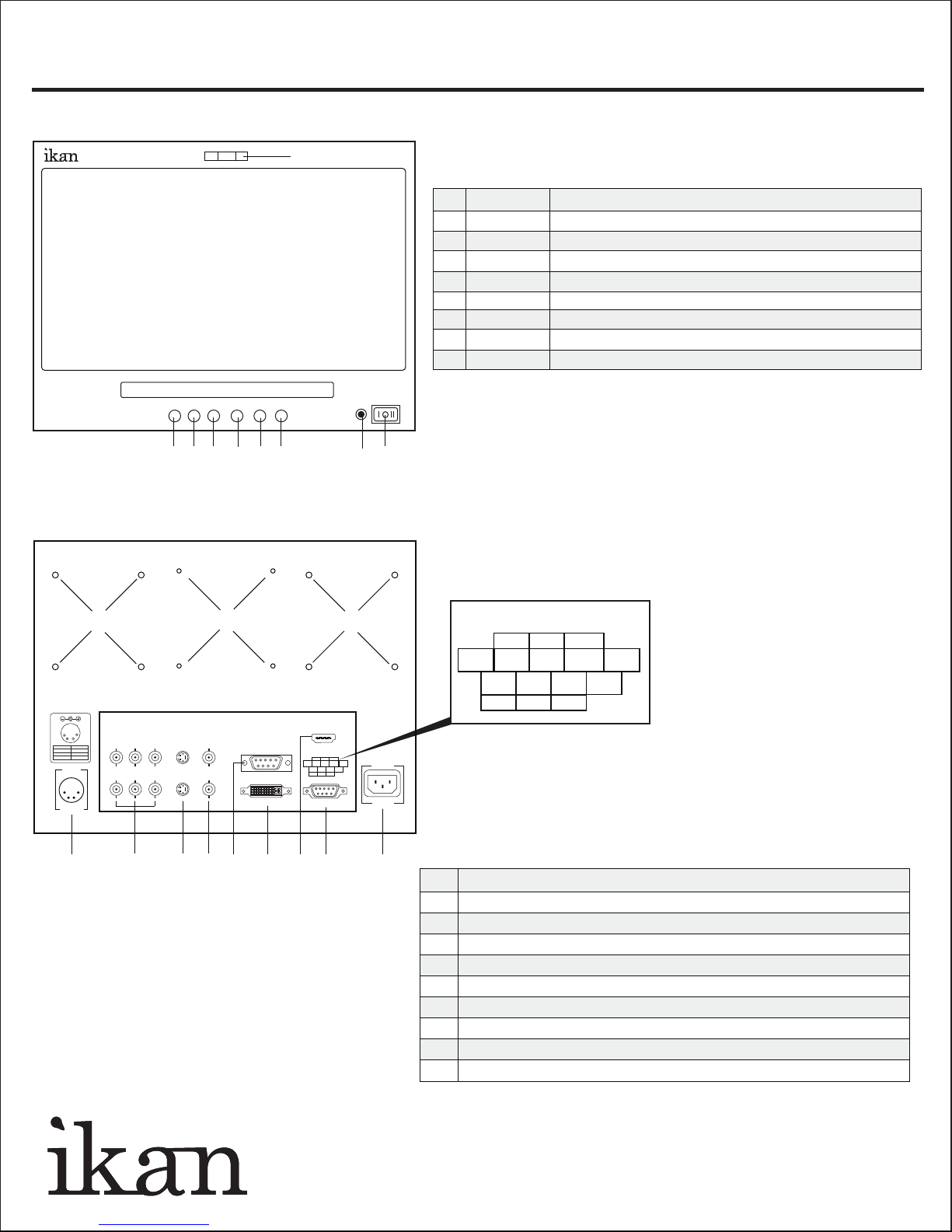

1. POWER Power switch (I = AC On, O = Off, II = DC On)
2. LAMP Power signal indicator
3. GUIDES On-screen guide: 4:3 or 16:9
4. ASPECT Aspect ratio: 4:3 or 16:9
5. INPUT A/V (Composite), S-Video, SD/HD Component, HDMI
6. > While in MENU mode, toggle as up adjust setting
7. MENU Access to all monitor settings: Brightness, Hue, etc.
8. < While in MENU mode, toggle as down adjust setting
9. LAMP Tally Lights
1
2
345678
9
[ Labeling Box ]
V17e
< MENU > INPUT ASPECT GUIDE
1. AC 110V-220V Power Connection
2. Tally
3. HDMI Input
4. DVI Connection
5. VGA Connection
6. A/V - I/O for standard definition composite signal
7. S-Video - I/O for standard definition S-Video signal
8. Component - I/O for standard definition, 720p, and 1080i HD signals
9. DC 12V-24V Power Connection
10. 100mm Holes for Vesa Mount / Pro Battery Mounting Plates
1
2
3
4
5
6
7
89
10 10
10
59 8 7 6 4
RED GREEN YELLOW
GND GND GND
3 2 1
Tally Light - Pin Configurations
Tally Light Operation
• Do not provide power to tally connections.
• Tally light system is unpowered and works by closing
the contact between any of the grounding pins and the
pin for the desired LED color.
VIDEO
S-VIDEO
YPb Pr
HDMI
12V-24V
DC IN
110~220v
59 8 7 6 4
RED GREEN YELLOW
GND GND GND
3 2 1
TALLY AC IN
1
2 3
4
Pin number Signal
1
2,3
4
GND
+12V
_
VGA
DVI

Assemble the rack ears
Assemble the table stand
V17e-FK
17 inch HD Monitor Field Kit QUICKSTART GUIDE
www.ikancorp.com 713-272-8822
