IKEA KULINARISK User manual

KULINARISK
$8

ENGLISH 4
Please refer to the last page
of this manual for the full list
of IKEA appointed Authorized
Service Centre and relative
national phone number

4 ENGLISH
Contents
Safety information 4
Product description 9
Care and cleaning 10
What to do if... 11

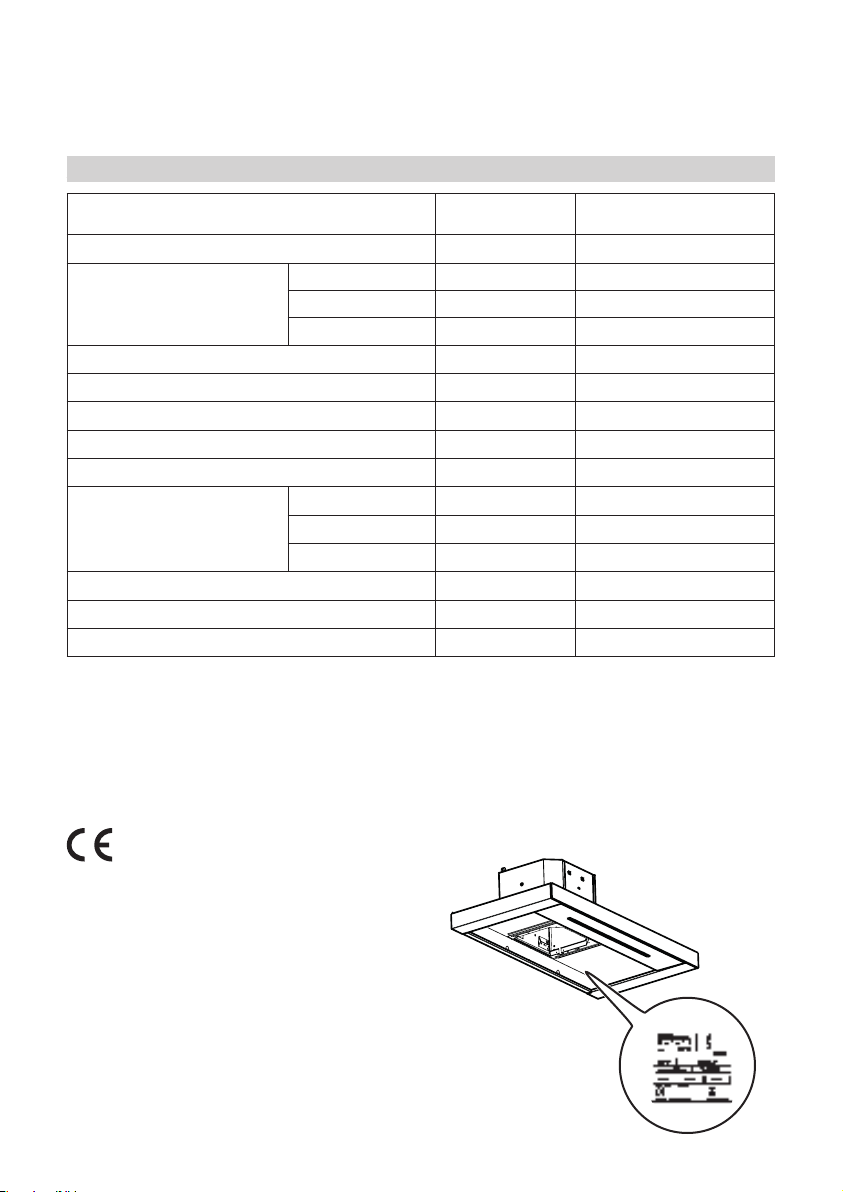

Technical data 12
Energy efficiency 13
Environment concerns 14
IKEA GUARANTEE 14
Safety information
For your safety and correct operation of the appliance, read
this manual carefully before installation and use. Always
keep these instructions with the appliance even if you move or
sell it. Users must fully know the operation and safety features
of the appliance.
The wire connection has to be done by specialized
technician.
• This appliance is intended to be used in household and
similar applications such as:
• Farm houses.
• By clients in serviced apartments, holiday apartments and
other residential type environments.
• The manufacturer will not be held liable for any damages
resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and
the extractor hood is: for electrical hob 500mm and for gas
hob 650mm.
• If the instructions for installation for the gas hob specify a
greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated
on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply
guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of

5 ENGLISH
minimum diameter 120 mm. The route of the flue must be as
short as possible.
• Do not connect the extractor hood to exhaust ducts carrying
combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical
appliances (e.g. gas burning appliances), a sufficient degree
of aeration must be guaranteed in the room in order to
prevent the backflow of exhaust gas. When the cooker hood
is used in conjunction with appliances supplied with energy
other than electric, the negative pressure in the room must
not exceed 0,04 mbar to prevent fumes being drawn back
into the room by the cooker hood.
• The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other
fuels.
• If the supply cord is damaged, it must be replaced from the
manufacturer or its service agent.
• Connect the plug to a socket complying with current
regulations, located in an accessible place.
• With regards to the technical and safety measures to be
adopted for fume discharging it is importat to closely follow
the regulations provided by the local authorities.
WARNING: Before installing the Hood, remove the
protective films.
• Use only screws and small parts in support of the hood.
WARNING: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
• Connect the hood to the power net by using a bipolar switch
having a contact gap of at least 3 mm.
• Do not look directly at the light through optical devices
(binoculars, magnifying glasses…).
• Do not flambè under the range hood; risk of fire.

6 ENGLISH
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
• Children should be supervised to ensure that they do not
play with the appliance.
• The appliance is not to be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction
Accessible parts may become hot when used with cooking
appliances.
• Clean and/or replace the Filters after the specified time
period (Fire hazard).
• There shall be adequate ventilation of the room when the
range hood is used at the same time as appliances burning
gas or other fuels (not applicable to appliances that only
discharge the air back into the room)

7 ENGLISH
Use
• Switch off or unplug the appliance
from the mains supply before
carrying out any maintenance work.
• The top of the hood must not to be used
as a shelf.
• The extractor hood has been
designed exclusively for domestic
use to eliminate kitchen smells.
• Never use the hood for purposes
other than for which it has been
designed.
• Never leave high naked flames under
the hood when it is in operation.
• Adjust the flame intensity to direct
it onto the bottom of the pan only,
making sure that it does not engulf
the sides.
• Deep fat fryers must be continuously
monitored during use: overheated oil
can burst into flames.
Care and cleaning
• Grease filters must be cleaned every
2 months of operation, or more
frequently for particularly heavy
usage, and can be washed in a
dishwasher.
• Clean the hood using a damp cloth
and a neutral liquid detergent.
Care and cleaning long life Charcoal
filter (Green)
• The anti-odour Filter can be washed
and regenerated every 3-4 months
(or more frequently if the hood is
subject to intensive use), up to a
Max. of 8 regeneration cycles (in
case of particularly intensive use it
is recommended that you do not
exceed 5 cycles).
Regeneration procedure:
• Wash in the dishwasher at a MAX
temperature of 70° or hand wash in hot
water without using abrasive sponges
(do not use detergents!)
• Dry in the oven at a MAX temperature
of 70° for 2 hours or dry at room
temperature, standing the Filter in a
vertical position to facilitate drainage.

8 ENGLISH
Installation modes
The hood has been designed to be installed
and used either as a “Exhaust mode”, or as
a “Recirculation mode”.
Exhaust mode (see symbol
9
in
installation booklet)
Cooking steam is sucked and
channelled outside the house through
a discharge duct (not supplied), fitted to
the hood steam outlet.
Ensure that the discharge duct is
correctly fitted to the air outlet, unit
using an appropriate connection
system.
Recirculation mode (see symbol
9
in installation booklet)
The air is filtered through one or more
the charcoal filters, and then resent into
room.
Important: Ensure appropriate air
circulation around the hood.
Important: If the hood is supplied
without charcoal filters and installed on
recirculation mode, these must be fitted
before the hood can be used. Filters are
available in shops.
The hood should be installed away from
particularly dirty areas, windows, doors
and heat sources.
The accessories for wall fixing are not
included because wall made of different
materials require different types of
fixing accessories. Use fixing systems
suitable for the walls of your home and
the weight of the appliance. For more
details, contact a specialized dealer.
Keep this booklet for future
consultation.
Filters Alarm.
When the filter alarm is activated, the
following messages will appear over
time:
Grease filter must be cleaned:
“A” key flashes once per second. For
maintenance see paragraph Care and
cleaning.
Anti-odour filter must be cleaned:
“A” key flashes twice per second. For
maintenance see paragraph Care and
cleaning.
Once the filters have been regenerated
reset the alarm signal (see paragraph
Control Panel).

9 ENGLISH
Product description
Upper chimney
Lower chimney
Hood body
LED Lighting
Grease filter
Control panel
Control Panel
"
#
$
%
&
"
Speed
Turns the motor on/o at speed one.
Attention: the product is with the lter alarm disabled.
Press and hold the button for approximately 2 seconds, with all the loads turned o (Motor+Lights), to turn the grease lter alarm on. LED
(B) ashes twice to conrm.
To turn the alarm o, press the button again and hold for at least 2 seconds. The relevant LED (B) ashes once.
#
Speed
Turns the motor on at speed two / Activate charcoal lter alarm.
Attention: the product is with the lter alarm disabled.
Press and hold the button for approximately 2 seconds, with all the loads turned o (Motor+Lights), to turn the Activated Charcoal Filter
alarm on. LED (A) ashes twice to conrm.
To turn the alarm o, press the button again and hold for at least 2 seconds.The relevant LED ashes once (A). Only for recirculation mode.
$
Speed
Turns the Motor on at speed three / Reset alarm lter saturation.
Press and hold the button for approximately 2 seconds, with all the loads turned o (Motor+Lights), to reset the grease lter
saturation alarm or charcoal lter alarm. LED (A) ashes three times.
%
Speed
Turns the motor on at Booster speed.
This speed is timed to run for 6 minutes. At the end of this time, the system returns automatically to the speed that was set before. If it is
activated with the motor turned o, it will switch to OFF at the end of the time. To deactivate it, press button D or press button A.
&
Light
Press briey: Turns the lighting system on and o at maximum intensity.
Press and hold to change the lighting intensity up or down.

10 ENGLISH
Care and cleaning
Switch off or unplug the appliance
from the mains supply before carrying out
any maintenance work.
IMPORTANT Clean the hood using a damp
cloth and a neutral liquid detergent.
Long Life Charcoal Filter
The anti-odour Filter can be washed and
regenerated every 3-4 months (or more
frequently if the hood is subject to inten-
sive use), up to a Max. of 8 regeneration
cycles (in case of particularly intensive use
it is recommended that you do not exceed
5 cycles).
Grease Filters
Clean or replace the filters continuously
according to below time intervals, to main-
tain good performance of the hood and to
prevent a potential fire hazard, caused by
excessive grease build-up.
The grease filters must be cleaned every 2
months of operation, or more frequently
for particularly heavy usage, and can be
washed in a dishwasher.
Replacing the lamps
For Replacement please contact an Au-
thorized Service Center.
• Switch ON the hood at minimum speed when you start cooking and kept it running for
few minutes after cooking is finished.
• Increase the speed only in case of large amount of smoke and vapour and use boost
speed(s) only in extreme situations.
• Replace the charcoal filter(s) when necessary to maintain a good odour reduction ef-
ficiency.
• Clean the grease filter(s) when necessary to maintain a good grease filter efficiency.
• Use the maximum diameter of the ducting system indicated in this manual to optimize
efficiency and minimize noise.
General hints

11 ENGLISH
What to do if...
If there is a fault, first try to find a solution
to the problem yourself. If you cannot find a
solution to the problem yourself, contact an
authorized service center.
If you operated the appliance wrongly,
or the installation was not carried out
according to the Assembly instructions, the
visit from the Authorized Service Centre
technician may not take place free of
charge, even during the warranty period.
Before contacting the Authorized Service Centre:
Switch the appliance on again to see if the problem has disappeared. If not, switch it off
again and repeat the operation after an hour.
If your appliance still does not work properly after carrying out the checks listed in the trou-
bleshooting guide and switching the appliance on again, contact the Authorized Service
Centre, clearly explaining the problem and specifying:
• the type of fault;
• the model;
• the type and serial number of the appliance (given on the rating plate).
PROBLEM POSSIBLE CAUSE SOLUTION
Appliance not stable. The appliance is not correctly
installed.
Follow the Installation instruction enclosed to the ap-
pliance.
Appliance is not in horizon-
tal position.
The appliance is not correctly
installed.
Follow the Installation instruction enclosed to the ap-
pliance.
Performance in terms of oil
capture are not satisfying.
Oil and grease on metal lters or
charcoal lters.
Follow the cleaning frequency of lters as described in
the user manual.
Appliance does not work. The appliance is not correctly con-
nected.
Verify that the main cable is connected to the motor
group or the plug is connected to the socket.
The light does not work. The LED is broken. For replacement, contact the Authorized Service Centre.
Noise of hood is higher
than customer expectation.
Air outlet diameter in the wall is too
small, causing a pressure drop and an
increase in motor speed.
Follow the Installation instruction enclosed to the ap-
pliance.
Product is installed in recirculation
mode.
Product in recirculation mode(and using a charcoal
lter) will generate an higher noise than a product in
extration mode.
More than one bend in the ventilation
duct.
If the exhaust system in the building has multiple bend
in or a long distance, this can increase the noise of the
product.
Button A light ashing once
per second. Grease lter alarm.
Please clean grease lter and reset alarm. Refer to care
and cleaning guide for maintenance.
Press and hold the “C” button for approximately 2
seconds, with all the loads turned o (Motor+Lights), to
reset the grease lter saturation alarm. LED (A) ashes
three times to conrm.
Button A lights ashing
twice per second. Charcoal lter alarm.
Charcoal lter alarm. Please clean charcoal lter and
reset alarm. Refer to care and cleaning guide for
maintenance.
Press and hold the “C” button for approximately 2
seconds, with all the loads turned o (Motor+Lights),
to reset the charcoal lter alarm. LED (A) ashes three
times to conrm

12 ENGLISH
This appliance has been designed,
manufactured and marketed in compliance
with the E.E.C. Directives.
The technical information is situated in
the rating plate on the internal side of the
appliance.
Technical Data
Unit Value
Product Type Wall mounted hood
Dimensions
Width mm 898
Depth mm 460
Height min/max mm 730/1010
Airow max* - Exhaust m3/h 380
Noise max* - Exhaust dBA 59
Airow max* - Recirculating m3/h 340
Noise max* - Recirculating dBA 74
Total Power W276
Lamps info
Type LED BAR
Number & Power 1 x 6W
Socket N/A
Installation minimum height - gas hob mm 650
Installation minimum height - elec hob mm 500
Net Weight Kg 15
* Maximum speed (boost excluded).

13 ENGLISH
Environment concerns
Maintenance
• The symbol on the product or on
its packaging indicates that this product
may not be treated as household waste.
Instead it shall be handed over to the ap-
plicable collection point for the recycling
of electrical and electronic equipment.
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environ-
ment and human health, which could
otherwise be caused by inappropriate
waste handling of this product.
For more detailed information about
recycling of this product, please contact
your local city office, your household
waste disposal service or the shop
where you purchased the product.
Packaging materials
The materials with the symbol are re-
cyclable. Dispose the packaging in suitable
collection containers to recycle it.

14 ENGLISH
Cebas Pty Ltd
8c Sunray Drive, Innaloo WA 6018
Australia
Contact - IKEA Customer Service at
www.IKEA.com.au
How long is the IKEA guarantee valid?
This guarantee is valid for five (5) years
from the original date of purchase of Your
appliance at IKEA Pty Ltd, ABN 84006270757
or at Cebas Pty Ltd, ABN 15 009 156 003
(Both Trading as IKEA). The original sales
receipt is required as proof of purchase.
If service work is carried out under guar-
antee, this will not extend the guarantee
period for the appliance.
Who will execute the service?
IKEA service provider will provide the
service through its own service operations
or authorized service partner network.
Contact IKEA for further information.
If you encounter any trouble with the ap-
pliance and wish to register a service call
or make a claim, please refer to www.ikea.
com.au for your local store after sales cus-
tomer service center phone number, online
email and opening times.
The principal address and contact details in
Australia are:
For Queensland, New South Wales, and
Victorian customers please contact:
IKEA Pty Ltd
IKEA Pty Ltd
IKEA Service Office
L1 Clock Tower, 630 Princes Highway
Tempe, NSW 2044
Contact - IKEA Customer Service at
www.IKEA.com.au
For Western Australian and South Austral-
ian customers please contact:
IKEA GUARANTEE
What does this guarantee cover?
The guarantee covers faults of the appli-
ance, which have been caused by faulty
construction or material faults from the
date of purchase from IKEA. This guarantee
applies to domestic use only. The products
have been designed and tested for domes-
tic purposes only and this guarantee does
not cover damage arising from use of the
Product in a commercial environment.
The exceptions are specified under the
headline “What is not covered under this
guarantee?” Within the guarantee period,
the costs to remedy the fault e.g. repairs,
parts, labour and travel will be covered, pro-
vided that the appliance is accessible for re-
pair without special expenditure. Replaced
parts become the property of IKEA.
The guarantee exists only if the appliance
complies and is installed in accordance
with:
• The technical specifications.
• The Assembly Instructions and user
manual Safety Information.
IKEA’s guarantee is subject to Australian
Consumer Law - see Schedule 2 to Com-
petition and Consumer Act, 2010. This
guarantee is in addition to (and does not
exclude, restrict or modify in any way) any
non-excludable statutory warranties in
Australia.

15 ENGLISH
What will IKEA do to correct the prob-
lem?
IKEA appointed service provider will exam-
ine the product and decide, at its sole dis-
cretion, if it is covered under this guarantee.
They will notify you as to whether your
claim is covered under this guarantee. If
your claim is approved, the IKEA service
provider or its authorized service partner,
will then, at its sole discretion, either repair
the defective product or replace it with the
same or a comparable product.
What is not covered under this guaran-
tee?
• Normal wear and tear.
• Deliberate or negligent damage, damage
caused by failure to observe operat-
ing instructions, incorrect installation
or by connection to the wrong voltage,
dam age caused by chemical or electro-
chemical reaction, rust, corrosion or
water damage including but not limited
to damage caused by excessive lime in
the water supply, damage caused by
abnormal environmental conditions.
• Consumable parts including batteries
and lamps.
• Non-functional and decorative parts
which do not affect normal use of the
appliance, including any scratches and
possible colour differences.
• Accidental damage caused by foreign
objects including insect or vermin
infestation or substances and cleaning or
unblocking of filters, drainage systems or
soap drawers.
• Damage to the following parts: ceramic
glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.
• Cases where no fault could be found dur-
ing a technician’s visit.
• Repairs not carried out by our appointed
service providers and/or an authorized
service contractual partner or where non-
original parts have been used.
• Repairs caused by installation which is
faulty or not according to specification.
• The use of the appliance in a non-domes-
tic environment i.e. professional use.
• Transportation damages. If a customer
transports the product to their home or
other address, IKEA is not liable for any
damage that may occur during transport.
However, if IKEA delivers the product to
the customer’s delivery address, then
damage to the product that occurs dur-
ing this delivery will be covered by this
guarantee.
• Cost for carrying out the initial installation
of the IKEA appliance. However, if an IKEA
service provider or its authorized service
partner repairs or replaces the appliance
under the terms of this guarantee, the
service provider or its authorized service
partner will reinstall the repaired appli-
ance or install the replacement, if neces-
sary.
• The appliance’s serial number or war-
ranty seal has been removed or defaced.
How country law applies
Our goods come with guarantees that
cannot be excluded under the Australian
Consumer Law (ACL). You are entitled to a
replacement or refund for a major failure
and compensation for any other reason-
ably foreseeable loss or damage.
You are also entitled to have the goods
repaired or replaced if the goods fail to be
of acceptable quality and the failure does
not amount to a major failure.
This guarantee is not intended in any way
to limit or exclude such rights and remedies
that you may have under law.

16 ENGLISH
You can find out more information about
the Australian Consumer Law on the ACCC
website: www.accc.gov.au
Area of validity
This IKEA guarantee applies only to prod-
ucts purchased and installed in AUSTRALIA .
What you must do to make a claim un-
der the guarantee:
To make a claim under the guarantee
contact IKEA after sales customer service
center at the above address, the IKEA
catalogue or refer to www.ikea.com.au for
your local store customer service phone
number, online email and opening times.
Please describe the problem that you are
facing with the appliance in detail along
with your product article number (8 digit
code) and date of purchase at the time of
call registration.
Please do not hesitate to contact the
dedicated after sales customer service
center for IKEA appliances to:
1. Make a service request under this guar-
antee;
2. Ask for clarification on installation of the
IKEA appliance in the dedicated IKEA
kitchen furniture.
3. Ask for clarification on user manual
contents and specifications of the IKEA
appliance.
To ensure that we provide you with the best
assistance, please read carefully the Assem-
bly Instructions and/or the User Manual
section of this booklet before contacting us.
How to reach us if you need our service
The IKEA after sales customer service
centre will assist you on the phone with
basic trouble shooting for your appliance at
the time of service call request. Please refer
to the IKEA catalogue or www.ikea.com.au
and select your local store for local store
phone numbers and opening times.
Please describe the problem that you
are facing with the appliance in detail
along with your product article number
( 8 digit code ) and date of purchase at
the time of call registration
SAVE THE SALES RECEIPT!
Kindly keep all these details and origi-
nal invoice of purchase handy during
the service technician’s visit to enable
him to carry out the job. It is your proof
of purchase and required for the guar-
antee to apply. Note that the receipt
reports also the IKEA article name and
number (8 digit code) for each of the
appliances you have purchased.

  






  
  
 
  
 
  
  
  
  
  
  
  
  
 Π
  
  
  
  
  
  
  
  
  
  
  
  
  
 
 
  
  
  
  
  
  
  

AA-2027178-6© Inter IKEA Systems B.V. 2013 23199
991.0669.457_01 - 211206
D0008303_00
