or your safety and correct operation of the
appliance, read this manual carefully before
installation and use. Always keep these
instructions with the appliance even if you move
or sell it. Users must fully know the operation and
safety features of the appliance.
Recommendations and suggestions
• The manufacturer will not be held liable for
any damages resulting from incorrect or
improper installation.
• The minimum safety distance between the
cooker top and the extractor hood is: for elec-
trical hob 500mm and for gas hob 650mm.
• If the instructions for installation for the gas
hob specify a greater distance, this must be
respected.
• Check that the mains voltage corresponds to
that indicated on the rating plate fixed to the
inside of the hood.
• For Class I appliances, check that the domestic
power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue
through a pipe of minimum diameter 120
mm. The route of the flue must be as short as
possible.
• Do not connect the extractor hood to exhaust
ducts carrying combustion fumes (boilers,
fireplaces, etc.).
• If the extractor is used in conjunction with non-
electrical appliances (e.g. gas burning appli-
ances), a sufficient degree of aeration must be
guaranteed in the room in order to prevent
the backflow of exhaust gas. When the cooker
hood is used in conjunction with appliances
supplied with energy other than electric, the
negative pressure in the room must not exceed
0,04 mbar to prevent fumes being drawn back
into the room by the cooker hood.
• If the supply cord is damaged, it must be
replaced from the manufacturer or its service
agent.
• Connect the plug to a socket complying with
current regulations, located in an accessible
place.
• With regards to the technical and safety
measures to be adopted for fume discharging
it is importat to closely follow the regulations
provided by the local authorities.
• WARNING:Before installing the Hood, re-
move the protective films (white and transpar-
ent).
• Connect the hood to the power net by using a
bipolar switch having a contact gap of at least
3 mm.
• Do not look directly at the light through optical
devices (binoculars, magnifying glass-es…).
Use
• The extractor hood has been designed ex-
clusively for domestic use to eliminate kitchen
smells.
• The top of the hood must not to be used as
a shelf.
• Never use the hood for purposes other than
for which it has been designed.
• Never leave high naked flames under the
hood when it is in operation.
• Adjust the flame intensity to direct it onto the
bottom of the pan only, making sure that it
does not engulf the sides.
• Deep fat fryers must be continuously moni-
tored during use: overheated oil can burst
into flames.
• Do not flambè under the range hood; risk of
fire.
Contents
Safety information 4
Product description 5
Care and cleaning 6
What to do if... 7
Technical data 8
Energy efficiency 9
Environment concerns 10
IKEA GUARANTEE 10
Safety information

5
ENGLISH
Product description
Upper chimney
Lower chimney
Hood body
Lighting
Grease filters
Control panel
Control Panel
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or instruc-
tion concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to ensure that
they do not play with the appliance.
Accessible parts may become hot when
used with cooking appliances.
DCBA E
BUTTON FUNCTION
A =
Pilot
Light ON if the motor is working.
B =
Speed
Turns the Motor ON at Speed
one.
Turns the Motor OFF..
C =
Speed Set the Motor at Speed two.
D =
Speed Set the Motor at speed three.
E =
Light Turns the Lighting System ON and OFF..

6
ENGLISH
Care and cleaning
Switch off or unplug the appliance from
the mains supply before carrying out any main-
tenance work.
IMPORTANT Clean the hood using a damp
cloth and a neutral liquid detergent.
Charcoal Filter
These filters are not washable and cannot be
regenerated, and must be replaced approxi-
mately every 4 months of operation, or more
frequently with heavy usage.
Grease Filters
Clean or replace the filters continuously accord-
ing to below time intervals, to maintain good
performance of the hood and to prevent a po-
tential fire hazard, caused by excessive grease
build-up.
The grease filters must be cleaned every 2
months of operation, or more frequently for
particularly heavy usage, and can be washed in
a dishwasher.
Replacing the lamps
For Replacement please contact an authorized
service center.

7
ENGLISH
What to do if...
PROBLEM POSSIBLE CAUSE SOLUTION
Appliance not stable The appliance is not correctly installed Follow the Installation instruction enclosed to
the appliance.
Appliance is not in horizontal position The appliance is not correctly installed Follow the Installation instruction enclosed to
the appliance.
Performance in terms of oil capture
arent satisfying Oil and grease on metal lters Follow the cleaning frequency of lters as described in the user manual
Appliance doesn't work The appliance is not correctly connected Verify that the main cable is connected to the motor group or the plug is connected
to the socket
If there is a fault, first try to find a solution to the
problem yourself. If you cannot find a solution
to the problem yourself, contact an authorized
service center.
If you operated the appliance wrongly, or
the installation was not carried out accord-
ing to the Assembly instructions, the visit from the
After Sales Service technician may not take
place free of charge, even during the warranty
period.

8
ENGLISH
This appliance has been designed, manufactured
and marketed in compliance with the E.E.C.
Directives.

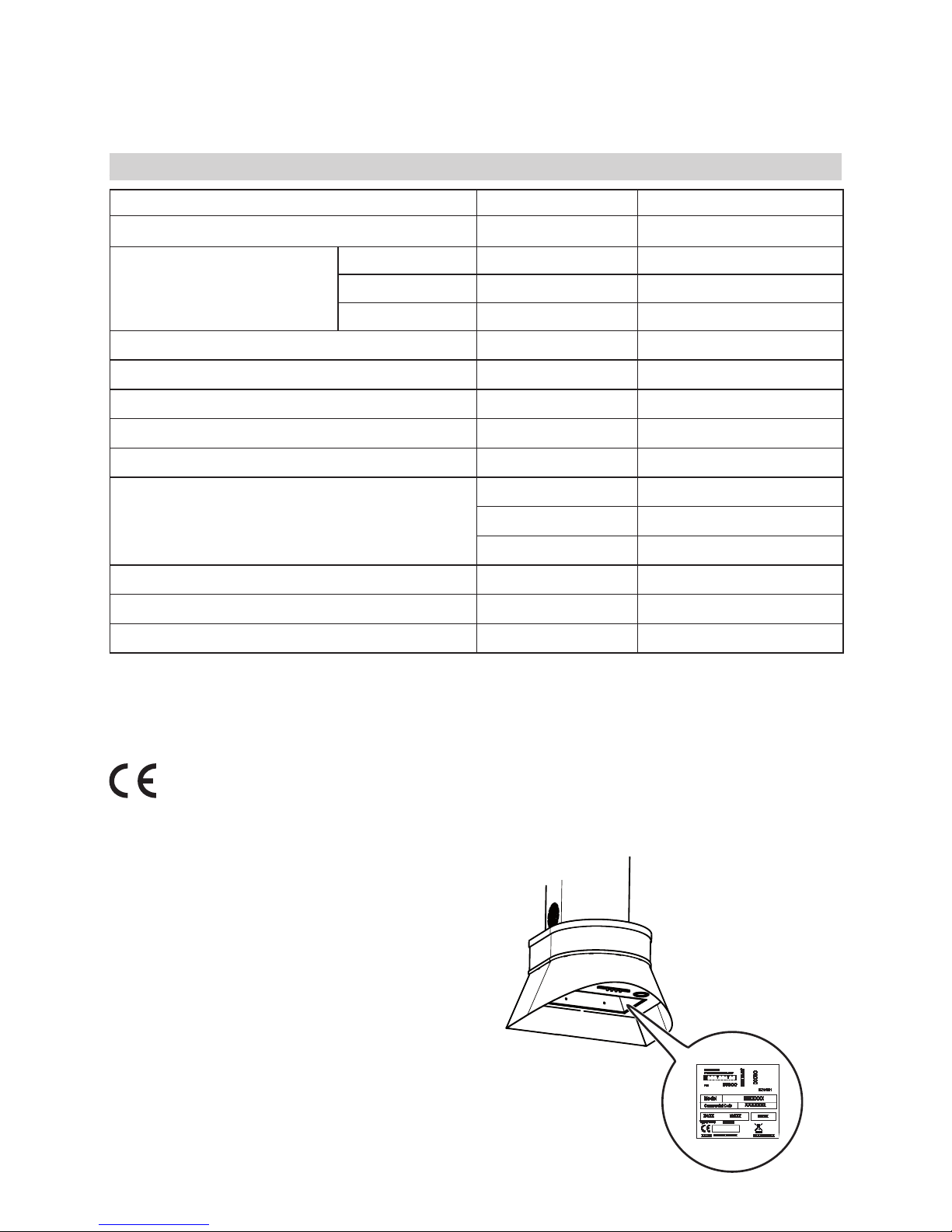

The technical information is situated in the rating
plate on the internal side of the appliance.
Technical Data
Unit Value
Product Type Wall mounted hood
Dimension
Width mm 650
Depth mm 510
Height min/max mm 950/1170
Airow max* - Exhaust m3/h 560
Noise max* - Exhaust dBA 69
Airow max* - Recirculating m3/h 340
Noise max* - Recirculating dBA 72
Total Power W142
Lamps info
LED
2 x 1W
S1000
Installation minimum height - gas hob mm 650
Installation minimum height - elec hob mm 500
Net Weight Kg 12
* Maximum speed (boost excluded)

9
ENGLISH
Energy efficiency
Normative references:
EN/IEC 61591
EN/IEC 60704-1
EN/IEC 60704-2-13
EN/IEC 60704-3
EN 50564
Energy saving
The appliance contains features which help you
save energy during everyday cooking.
General hints
• Switch ON the hood at minimum speed when
you start cooking and kept it running for few
minutes after cooking is finished.
• Increase the speed only in case of large
amount of smoke and vapour and use boost
speed(s) only in extreme situations.
• Replace the charcoal filter(s) when neces-
sary to maintain a good odour reduction
efficiency.
• Clean the grease filter(s) when necessary to
maintain a good grease filter efficiency.
• Use the maximum diameter of the ducting
system indicated in this manual to optimize
efficiency and minimize noise.
Product Information according to EU n°66/2014 Unit Value
Model identier TJÄNLIG 003.033.61
Annual Energy Consumption kWh/a 77,6
Time increase factor 1,5
Fluid Dynamic Efciency 13,5
Energy Efciency Index 84,1
Measured air ow rate at best efciency point m3/h 322
Measured air pressure at best efciency point Pa 208
Maximum air ow m3/h 560,0
Measured electric power input at best efciency point W137,6
Nominal power of the lighting system W 2
Average illumination of the lighting system on the
cooking surface lux 175
Measured power consumption in standby mode WN/A
Measured power consumption off mode W0,00
Sound power level at maximum speed (boost exclu-
ded)
dBA 69

10
ENGLISH
Environment concerns
IKEA GUARANTEE
Maintenance
• The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it shall be handed over to the applicable
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will help
prevent potential negative consequences for
the environment and human health, which
could otherwise be caused by inappropriate
waste handling of this product.
For more detailed information about recy-
cling of this product, please contact your local
How long is the IKEA guarantee valid?
This guarantee is valid for five (5) years from the
original date of purchase of Your appliance at
IKEA, unless the appliance is named LAGAN in
which case two (2) years of guarantee apply.
The original sales receipt is required as proof
of purchase. If service work is carried out under
guarantee, this will not extend the guarantee
period for the appliance.
Which appliances are not covered by the
IKEA five (5) years guarantee?
The range of appliances named LAGAN and
all appliances purchased in IKEA before 1 st of
August 2007
Who will execute the service?
IKEA service provider will provide the service
through its own service operations or authorized
service partner network.
What does this guarantee cover?
The guarantee covers faults of the appliance,
which have been caused by faulty construction
or material faults from the date of purchase
from IKEA. This guarantee applies to domestic
city office, your household waste disposal
service or the shop where you purchased the
product.
Packaging materials
The materials with the symbol are recycla-
ble. Dispose the packaging in suitable collection
containers to recycle it.
use only. The exceptions are specified under
the headline “What is not covered under this
guarantee?” Within the guarantee period, the
costs to remedy the fault e.g. repairs, parts,
labour and travel will be covered, provided that
the appliance is accessible for repair without
special expenditure. On these conditions the EU
guidelines (Nr. 99/44/EG) and the respective
local regulations are applicable. Replaced parts
become the property of IKEA.
What will lKEA do to correct the problem?
IKEA appointed service provider will examine
the product and decide, at its sole discretion, if
it is covered under this guarantee. If considered
covered, IKEA service provider or its authorized
service partner through its own service opera-
tions, will then, at its sole discretion, either repair
the defective product or replace it with the same
or a comparable product.
What is not covered under this guaran-
tee?
• Normal wear and tear.
• Deliberate or negligent damage, damage

11
ENGLISH
caused by failure to observe operating in-
structions, incorrect installation or by connec-
tion to the wrong voltage, damage caused
by chemical or electro-chemical reaction, rust,
corrosion or water damage including but
not limited to damage caused by excessive
lime in the water supply, damage caused by
abnormal environmental conditions.
• Consumable parts including batteries and
lamps.
• Non-functional and decorative parts which
do not affect normal use of the appliance,
including any scratches and possible color
differences.
• Accidental damage caused by foreign
objects or substances and cleaning or un-
blocking of filters, drainage systems or soap
drawers.
• Damage to the following parts: ceramic
glass, accessories, crockery and cutlery bas-
kets, feed and drainage pipes, seals, lamps
and lamp covers, screens, knobs, casings and
parts of casings. Unless such damages can
be proved to have been caused by produc-
tion faults.
• Cases where no fault could be found during
a technician’s visit.
• Repairs not carried out by our appointed ser-
vice providers and/or an authorized service
contractual partner or where non-original
parts have been used.
• Repairs caused by installation which is faulty
or not according to specification.
• The use of the appliance in a non-domestic
environment i.e. professional use.
• Transportation damages. If a customer trans-
ports the product to their home or other ad-
dress, IKEA is not liable for any damage that
may occur during transport. However, if IKEA
delivers the product to the customer’s delivery
address, then damage to the product that
occurs during this delivery will be covered by
this guarantee.
• Cost for carrying out the initial installation
of the IKEA appliance. However, if an IKEA
service provider or its authorized service
partner repairs or replaces the appliance
under the terms of this guarantee, the service
provider or its authorized service partner will
re-install the repaired appliance or install the
replacement, if necessary.
This restriction do not apply to fault-free work
carried out by a qualified specialist using our
original parts in order to adapt the appliance to
the technical safety specifications of another EU
country.
How country law applies
The IKEA guarantee gives You specific legal rights,
which covers or exceed local demands. However
these conditions do not limit in any way consumer
rights described in the local legislation
Area of validity
For appliances which are purchased in one EU
country and taken to another EU country, the
services will be provided in the framework of
the guarantee conditions normal in the new
country. An obligation to carry out services in
the framework of the guarantee exists only if the
appliance complies and is installed in accord-
ance with:
• the technical specifications of the country in
which the guarantee claim is made;
• the Assembly Instructions and User Manual
Safety Information;
The dedicated After Sales Service for
IKEA appliances:
Please do not hesitate to contact IKEA After
Sales Service to:
1. make a service request under this guarantee;
2. ask for clarification on installation of the IKEA
appliance in the dedicated IKEA kitchen
furniture. The service won’t provide clarifica-
tions related to:
- the overall IKEA kitchen installation;
- connections to electricity (if machine comes
without plug and cable), to water and to gas
since they have to be executed by an author-
ized service engineer.

12
ENGLISH
3. ask for clarification on user manual contents
and specifications of the IKEA appliance.
To ensure that we provide you with the best
assistance, please read carefully the Assembly
Instructions and/or the User Manual section of
this booklet before contacting us.
How to reach us if You need our service
Please refer to the last page of this manual for
the full list of IKEA appointed contacts and rela-
tive national phone numbers.
Important! In order to provide You with a
quicker service, we recommend that You use the
specific phone numbers listed at the end of this
manual. Always refer to the numbers listed in the
booklet of the specific appliance You need an
assistance for. Before calling us, assure that You
have to hand the IKEA article number (8 digit
code) for the appliance of which you need our
assistance.
Important! SAVE THE SALES RECEIPT! It
is Your proof of purchase and required for the
guarantee to apply. Note that the receipt reports
also the IKEA article name and number (8
digit code) for each of the appliances you have
purchased.
Do You need extra help?
For any additional questions not related to After
Sales of your appliances. Please contact our
nearest IKEA store call centre. We recommend
you read the appliance documentation carefully
before contacting us.

Country Phone number Call Fee Opening time
België 070 246016 Binnenlandse gesprekskosten 8 tot 20 Weekdagen
Belgique Tarif des appels nationaux 8 à 20. En semaine
България 00359888164080
0035924274080 Такса за повикване от страната От 9 до 18 ч в работни дни
Česká republika 246 019721 Cena za místní hovor 8 až 20 v pracovních dnech
Danmark 70 15 09 09 Landstakst
man. - fre. 09.00 - 20.00
lør. 09.00 - 16.00
1 søndag pr. måned, normalt første
søndag i måneden
Deutschland [phone]
32*
* 0,20 €/Verbindung aus dem Festnetz
max. 0,60 €/Verbindung
aus dem Mobilfunknetz 8 bis 20 Werktage
Ελλάδα 211 176 8276 Υπεραστική κλήση 8 έως 20 κατά τις εργάσιμες ημέρες
España 91 1875537 Tarifa de llamadas nacionales De 8 a 20 en días laborables
France 0170 36 02 05 Tarif des appels nationaux 9 à 21. En semaine
Hrvatska 00385 1 6323 339 Trošak poziva 27 lipa po minuti radnim danom od ponedjeljka
do petka od 08:00 do 16:00
Ireland 0 14845915 National call rate 8 till 20 Weekdays
Ísland 5880503 Innanlandsgjald fyrir síma 9 til 18. Virka daga
Italia 02 00620818 Tariffa applicata
alle chiamate nazionali dalle 8 alle 20 nei giorni feriali
Κυπρος 22 030 529 Υπεραστική κλήση 8 έως 20 κατά τις εργάσιμες ημέρες
Lietuva 5 230 06 99 Nacionalinių pokalbių tarifai Pr. - Ketv.: 8:00 - 12:00, 12:45 - 17:00
Pnkt.: 8:00 - 12:00, 12:45 - 15:45
Magyarország 061 998 0549 Belföldi díjszabás Hétköznap 8 és 10 óra között
Nederland 0900 235 45 32 and/or
0900 BEL IKEA
15 cent/min., starttarief 4.54 cent
en gebruikelijke belkosten
ma - vr 08.00 - 20.00,
zat 09.00 - 20.00
(zondag gesloten)
Norge 815 22052 Takst innland 8 til 20 ukedager
Österreich 0810 300486 max. 10 Cent/min. Mo - Fr 8.00 - 20.00 Uhr
Polska 012 297 8787 Stawka wg taryfy krajowej Od 8 do 20 w dni robocze
Portugal 211557985 Chamada Nacional 9 às 21. Dias de Semana
*excepto feriados
România 021 211 08 88 Tarif apel naţional 8 - 20 în zilele lucrătoare
Россия 8 495 6662929 Действующие телефонные тарифы с 8 до 20 по рабочим дням
Время московское
Schweiz
031 5500 324
Tarif für Anrufe im Bundesgebiet 8 bis 20 Werktage
Suisse Tarif des appels nationaux 8 à 20. En semaine
Svizzera Tariffa applicata
alle chiamate nazionali dalle 8 alle 20 nei giorni feriali
Slovensko [phone] Cena vnútroštátneho hovoru 8 až 20 v pracovných dňoch
Suomi 030 6005203 Lankapuhelinverkosta 0,0835 €/puhelu + 0,032 €/min
Matkapuhelinverkosta 0,192 €/min arkipäivisin 8.00 - 20.00
Sverige 0775 700 500 lokalsamtal (lokal taxa) mån-fre 8.30 - 20.00
lör-sön 9.30 - 18.00
Türkiye 212 244 0769 Ulusal arama ücreti Hafta içi saat 09:00’dan 18:00’a kadar
Україна 044 586 2078 Міжміськи дзвінки платні 9 - 21 В робочі дні
United Kingdom 020 3347 0044 National call rate 9 till 21. Weekdays
Slovenija www.ikea.com
Србија www.ikea.com

AA-1377426-1© Inter IKEA Systems B.V. 2013
991.0360.087_01 - 150226
