Ikegami IEN-10 User manual

Ikegami Tsushinki Co., Ltd.
INSTRUCTION MANUAL
(SETUP INSTRUCTIONS)
MODEL
OUTDOOR USE WARNING
WARNING — TO PREVENT FIRE OR
ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
IEN-10
H.264 NETWORK ENCODER
e
c
o
p
r
o
d
u
c
t
s
H.264 Network Encoder
MODEL
IEN-10
SD CARD
PSE

The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
NOTE:
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
CAUTION;
ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE
WARNING
This is a class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
FOR COMPLIANCE COULD VOID THE USERS AUTHORITY TO OPERATE THE EQUIPMENT.
Instructions for Disposal of Electric and Electronic Equipment in Private Household
Disposal of used Electric and Electronic Equipment
(Applicable in the European Union and other European countries with separate
collection systems)
This symbol on the product, or in the related documents in the package, indicates that this product
shall not be treated as normal household waste. Instead, it should be taken to a proper applicable
collection point or depot for the recycling of electric and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent possible negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste handling of this
product. The recycling of materials will help to conserve natural resources.
For more detailed information about recycling of this product, please contact your local city authority, your
household waste disposal service or the place where you purchased the product.

Contents
Page
1. Introduction ............................................................................................................ 1
1-1. Handling precautions ................................................................................... 1
1-2. Checking the supplies .................................................................................. 2
1-3. License for third party software .................................................................... 2
1-4. Distribution of source code of free software ................................................ 3
1-5. Limitations on Equipment Use ..................................................................... 3
2. Outline .................................................................................................................... 4
3. Features ................................................................................................................. 4
4. Names of parts and their functions ........................................................................ 5
4-1. Front panel ................................................................................................... 5
4-2. Rear panel ................................................................................................... 6
5. Attach Rubber Feet ................................................................................................ 7

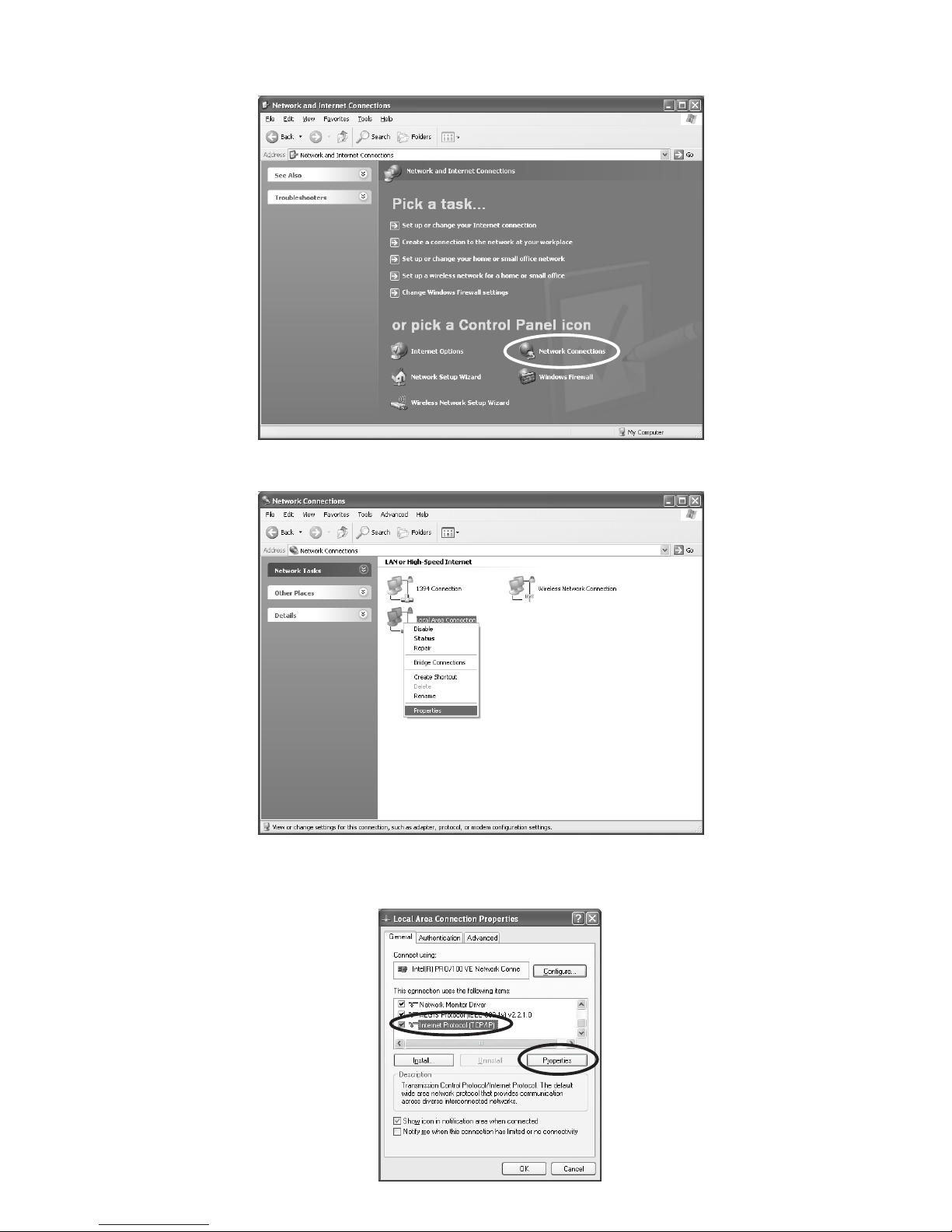

6. Setting this equipment PC setting ..................................................................................... 8
7. Setting this equipment Turning on the power .................................................................. 11
7-1. Power supply with AC adapter ................................................................... 11
7-2. Supplying power from terminal block 2 ...................................................... 11
7-3. Supplying power with PoE ......................................................................... 12
8. Setting this equipment Connect the equipment to the PC .............................................. 13
9. Setting this equipment Making the IP address and other settings .................................. 14
10. Installation Connecting the LAN cable ............................................................................. 15
10-1. Installing on the same network ................................................................ 15
10-2. Installing on different networks ................................................................ 16

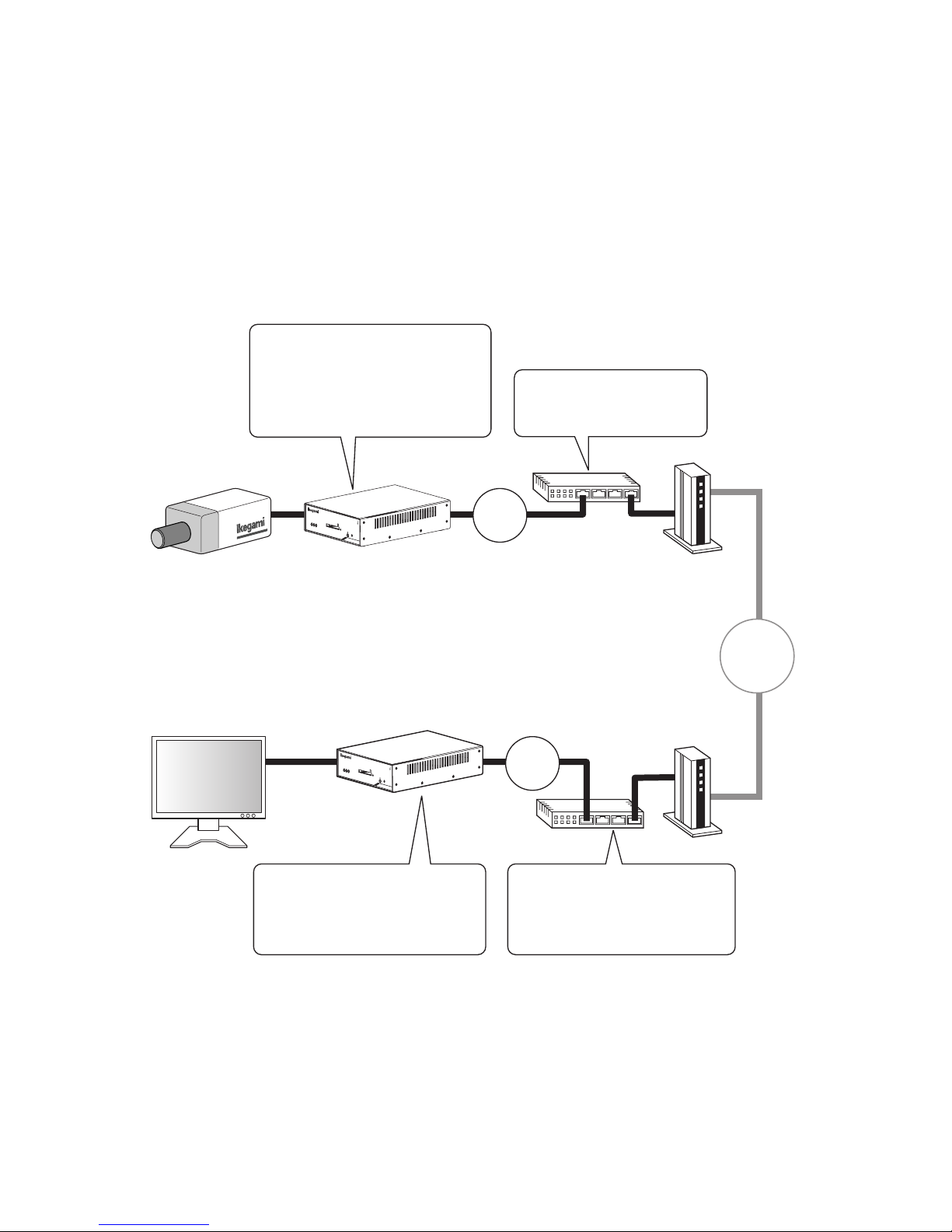

10-3. Installing in separate locations with use of Internet and WAN ................. 17
11. Installation Connecting to video/audio ............................................................................. 18
11-1. Connecting to VIDEO IN/LOOP OUT ...................................................... 18
11-2. Connecting to analog audio Input/Output ................................................ 18
12. Installation Connecting to I/O terminal ............................................................................. 19
13. Installation Connecting to the RS485 or RS-232C .......................................................... 20
13-1. Connecting to the RS-485 ....................................................................... 20
13-2. Connecting to the RS-232C ..................................................................... 20
14. Troubleshooting ................................................................................................. 21
15. Specifications ..................................................................................................... 22
16. Appearance view ............................................................................................... 24
17. Warranty and after-sales service ....................................................................... 25

1
1. Introduction
Thank you very much for your wise choice of this product. Be sure to carefully read this manual
before use in order to fully understand the product’s functions and to keep the product at full
capacity.
This Instruction Manual is the Introductory Section and provides an overview of this equipment
and installation. For details on equipment settings, see the Instruction Manual (Application
Instructions). The Instruction Manual (Application Instructions) can be downloaded at the
following URL.
URL http://www.ikegami.co.jp/en/products/security/download/index.html
1-1. Handling precautions
Handling precautions
Be very careful to keep the product from impacts and vibrations. Otherwise it
may get in trouble.
1. Installation location and conditions
* Be sure to keep off the power while installing the product.
* Never open the housing. Otherwise the internal precision parts may get damaged,
resulting in failure or accident.
* Install the product in a place within its ambient temperature range and without
condensation.
* Do not block nor cover the product’s vent.
* Make sure the supply voltage is as specified.
* Handle the product with care. Impacts and vibrations may get it scratched or in trouble.
* Do not install the product in a hot spot: not exposed to direct sunlight nor near a heating
element, for example.
* Do not install the product in a strong magnetic field or exposed to radio waves.
* Do not place this product near a radio, TV set and other signal receiver. Such
equipment may suffer from poor signal reception.
* Do not move the product with the power on.
* Use only the recommended SD card. SD cards other than the recommended card may
not operate normally or result in a reduction in performance.
* The recommended SD card is listed in the Application Instructions.
2.Disclaimer
*Ikegami assumes no responsibility for the following matters.
①System impediment, malfunction or breakdown as a result of connecting with
equipment from other companies.
②Accidents or breakdowns due to mistaken usage or negligence.
③Disassembly or repair of equipment that is not recognized by Ikegami.
④Improper use by a third party of the surveillance images produced by this
equipment, or damages resulting from such use.
⑤Loss of the setting contents.
⑥In addition, all damages resulting directly or indirectly in connection with this device.

2
*SD Card
•Please be aware that this company assumes no responsibility regarding guarantees
in cases where images were not recorded due to problems with this device or the SD
card.
•The following cases may involve destruction (loss) of recorded data. Please be
aware that this company cannot assume any responsibility regarding damages due
to destruction of data.
•Mistaken usage method of SD card.
• If the SD card was not correctly inserted in the device.
•If the SD card has undergone electrical or mechanical shock or force.
•If the SD card was removed or the device power was turned off during access to
the SD card.
3. Copyrights and the protection of personal information
* Take proper measures for delivering copyrighted and personal video materials.
* The contents of information recorded on the SD memory card used with this device
may correspond in some cases to private information. If this device is given to a third
party due to disposal, transfer or repairs, please be especially careful about handling.
1-2. Checking the supplies
Quantity
* Rubber foot .......................................................................................4
* Instruction Manual (Setup Instructions) ............................................1
1-3. License for third party software
We are licensed to use the software made by third parties for this product. The license for each
software shall be applicable to the software in question respectively and not to the whole
software of this product.
Certain software used in this product and made by third parties are used based on the following
licenses:
* GNU General Public License Version 2 (GPL)
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html
*GNU Lesser General Public License Version 2.1 (LGPL)
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html
*OpenSSL License
http://www.openssl.org/source/license.html
This product includes software developed by the OpenSSL Project for use in the OpenSSL
Toolkit. (http://www.openssl.org/)
*Original SSLeary License
http://www.openssl.org/source/license.html
This product includes cryptographic software written by Eric Young
([email protected])
The text of the license is included in the Instruction manual (Application Instructions).

3
1-4. Distribution of source code of free software
If you would like to purchase the GPL/LGPL software used in this product, please contact our
sales division. In accordance with the licence terms, we will provide this at cost.
1-5. Limitations on Equipment Use
This equipment has its usage regulated by the VC-1 and AVC/H.264 Patent Portfolio Licenses
Concerning Personal and Non-Commercial Use. This license should be observed in limiting
use of this equipment to private use or uses that are non-profit.
For details consult the following:
http://www.mpegla.com
Reference: Actions permitted by VC-1 and AVC/H.264 images for private and non-commercial
uses.
(1) Only encoding of images to the VC-1 and AVC/H.264 for private uses or uses
not having profit for purposes.
(2) To be used for encoding for private applications or applicant that do not have
profit as a goal, and for decoding of VC-1 and AVC/H.264 images from a
supplier who has obtained a patent.
• Microsoft Windows XP, Internet Explorer are either registered trademarks or trademarks of
Microsoft Corporation in the USA and other countries.
• Intel Pentium is a registered trademark or trademark of Intel Corporation in the USA and its
subsidiaries in other countries.
• The symbols ® and ™ are not included in the text.
•Microsoft product screen shots reprinted with permission from Microsoft Corporation.

4

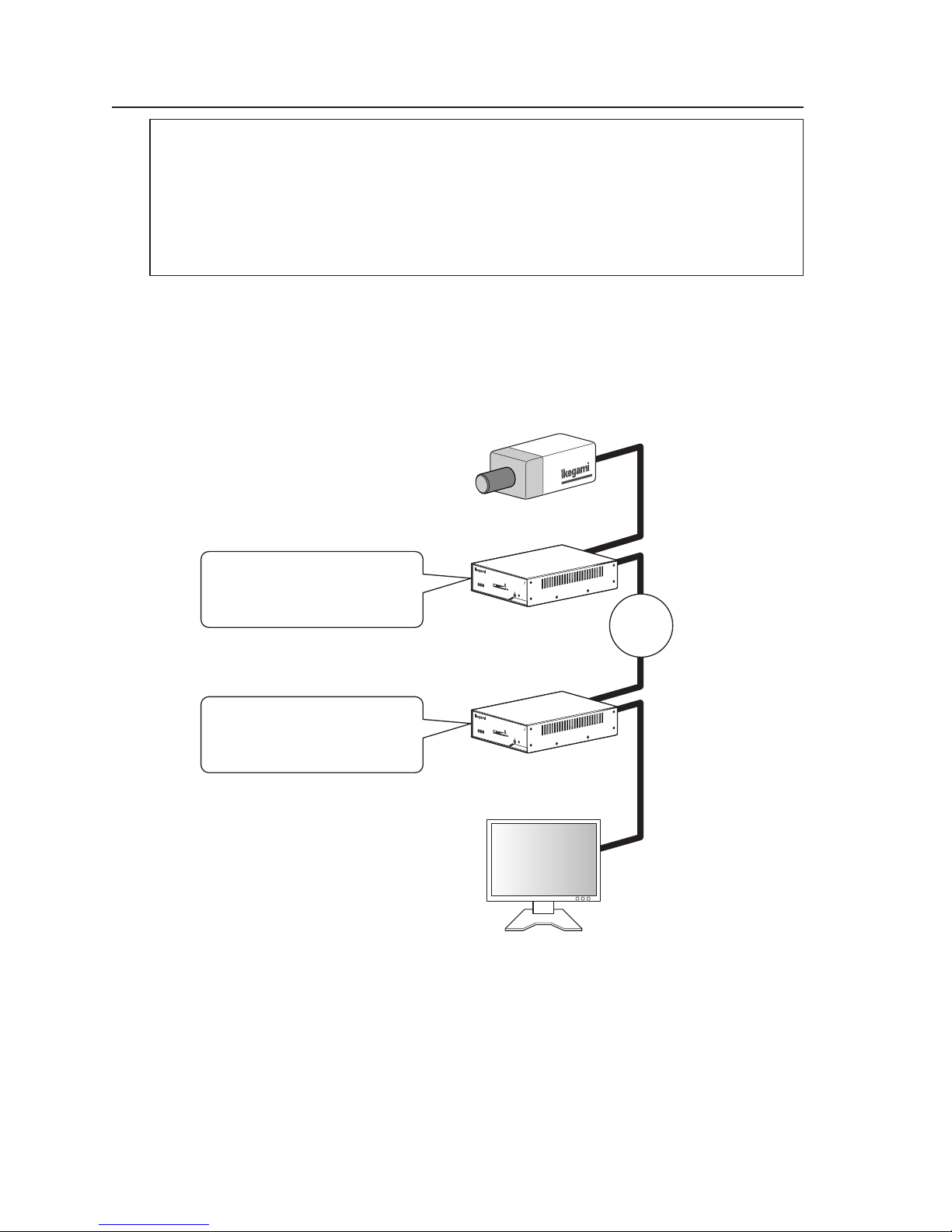

2. Outline
This equipment is a PoE-compatible network encoder (box-type) that can compress both image
and voice signals from conventional analog surveillance cameras into digital data to be delivered
over a network. It uses the state-of-the-art H.264/AVC technology to compress image data for
allowing high-quality images to be delivered at a highly efficient rate. By connecting this
equipment to an existing surveillance camera system, the system networking can be
accomplished with ease.
The equipment incorporates an outdoor-responsive-type motion-detection function, which is not
sensitive to disturbances such as rocking vibrations of tree leaves, etc. to provide for an alarm
system with least false alarms.
3. Features
(1) Operates with high picture quality, high compression
With its high profile H.264 technology, this equipment can deliver high-quality images even
though at high-compression rates of 64kbps ~ 8Mbps.
(2) Outdoor-responsive-type motion detection
The equipment employs the outdoor-responsive-type motion-detection function not
sensitive to rocking vibrations of tree leaves etc. to provide for an alarm system with least
false reports.
(3) Alarm functions
The Pre-alarm and post-alarm functions are incorporated to record the images preceding
and following an alarm that has occurred.
(4) Recording images on SD cards
Images can be recorded and stored on SD cards.
(5) I/O function
Possible to carry out transmission/reception of contact signals via networks between this
device and network encoders during connection.
(6) External device control function
Control data received via the network can be output with the RS-232C and RS-485 to control
external devices. In addition, the control data input from external devices using the RS-232C
and RS-485 can then be transmitted via the network.
(7) Maintenance
It is possible via the network to update the software or conduct maintenance by means of
self-diagnoses.
(8) PoE-Compatible
In environments where it is difficult to obtain power, it is possible to supply power via an
Ethernet cable using a hub, etc. that operates with PoE (power over Ethernet).
(9) Displaying images using the dedicated viewer
Images can be displayed by using the dedicated viewer software.

5
4. Names of parts and their functions
4-1. Front panel
①SD CARD ...................................... Possible to insert an SD card. Also operates with SDHC
card.
②LED displays
P (green) ..................................... This LED is lit when the power is ON.
S (orange) ................................... This LED lights or blinks when the unit is operating.
E (red) ......................................... This LED lights or blinks when an error is generated.
③IP initialization switch ..................... If this switch is pressed during the initialization mode, it
is possible to return the network settings to the initial
settings.
④All-setting initialization switch ........ If this switch is pressed for at least three seconds
during operations, the system goes to the initialization
mode. If the initialization mode continues for five
seconds, it is automatically released. If this switch is
pressed during the initialization mode, all settings can
be returned to the initial settings.
SD CARD
P
MODEL
IEN-10
S E
H.264 Network Encoder
②
①
③ ④

6
4-2. Rear panel
AUDIO
IN OUT
AC24V
50/60Hz
〜
DC12V
CLASS2
＋−
ETHERNET RS-232C(DCE)
VIDEO IN LOOP OUT OPTION
RS485
ACT LINK
IO2IO1 DC12V
⑦ ⑧ ⑨ ⑩ ⑪
① ② ③ ④ ⑤ ⑥
①VIDEO IN .................... Video signals from camera, etc. are input here. It incorporates the
automatic termination function.
②LOOP OUT ................. This is a throughout terminal for VIDEO IN signals. If a coaxial
cable is connected here, the termination function will be
automatically cancelled.
③OPTION ...................... Normally not in use.
④AUDIO IN .................... Audio input.
⑤AUDIO OUT ................ Audio output. (not in use)
⑥Grounding terminal ..... Ground equipment for safety’s sake.
(special screw)
⑦ETHERNET ................ Wire for LAN cable (category 5e or higher). Operates with PoE.
⑧RS-232C ..................... RS-232C communications possible (DCE).
⑨Terminal block 1
IO1 ................ Normally open non-voltage input or open collector output. Possible to
set functions on input/output setting screen. For details, see the
Instruction Manual (Application Instructions).
IO2 ................ Same as IO1.
RS-485 .......... Communications possible with Ikegami I-LAN compatible
equipments.
⑩Terminal block 2 ......... Input of DC12V or AC24V (normally not in use). Do not
simultaneously use the power source in item ⑪(AC adapter). Do
not input AC24V simultaneously with PoE.
*This installation should be made by a qualified service person and
should conform to all local codes.
⑪Power source .............. The installation should be made by a qualified service person and
should conform to all local codes. Do not use simultaneously with
terminal block 2 in item ⑩.
Use an AC adapter attested in UL1310 and CSA-C22.2 No.223.

7
5. Attach Rubber Feet
In accordance with your operating environment, attach rubber feet as shown on the diagram
below.

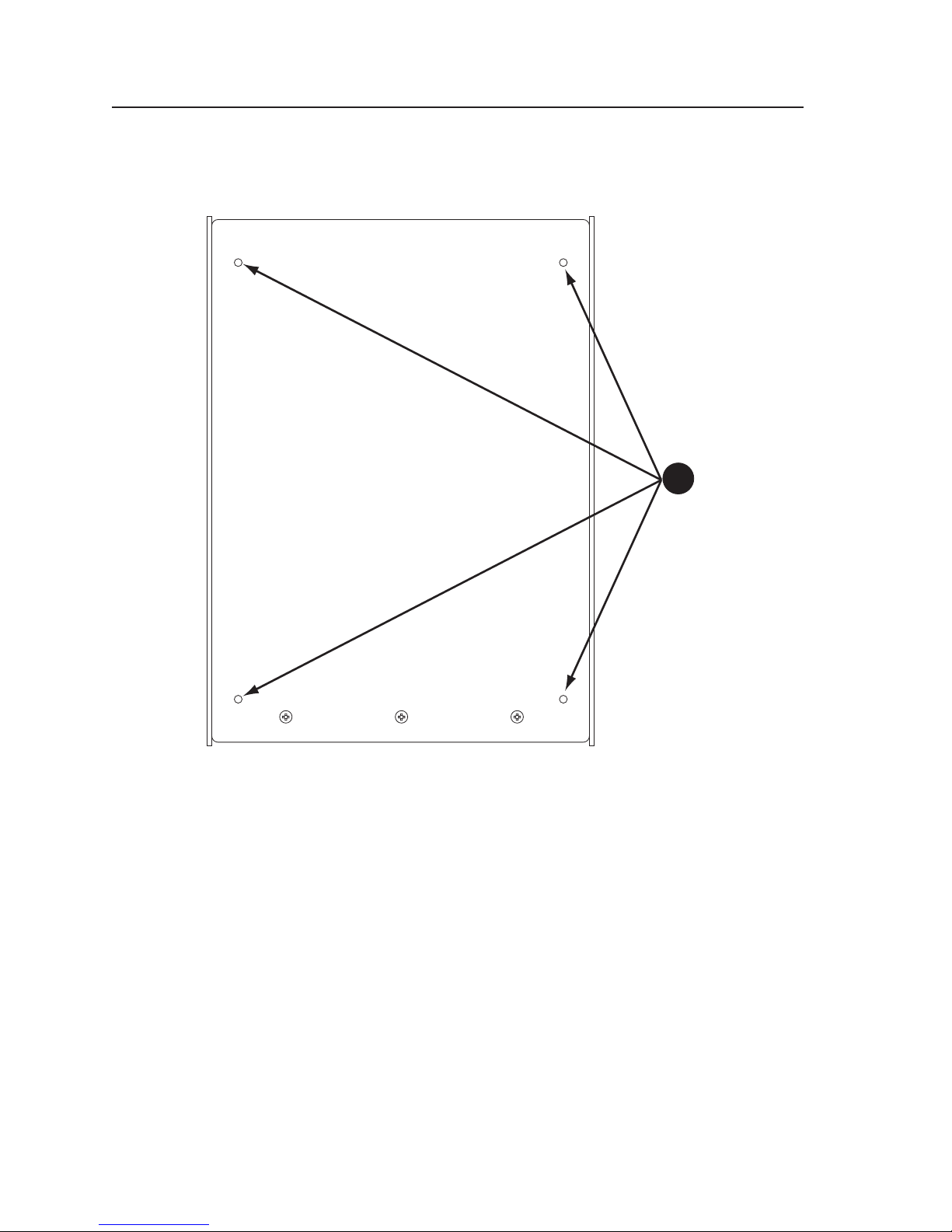

Rubberfoot
Thebottomsideofthisproduct
