INSTRUCTION MANUAL
(SETUP INSTRUCTIONS)
MODEL
OUTDOOR USE WARNING
WARNING — TO PREVENT FIRE OR
ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
IDE-10
H.264 NETWORK DECODER
e
c
o
p
r
o
d
u
c
t
s
H.264 Network Decoder
MODEL
IDE-10
SD CARD
PSE

The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
NOTE:
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
CAUTION;
ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE
WARNING
This is a class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
FOR COMPLIANCE COULD VOID THE USERS AUTHORITY TO OPERATE THE EQUIPMENT.
Instructions for Disposal of Electric and Electronic Equipment in Private Household
Disposal of used Electric and Electronic Equipment
(Applicable in the European Union and other European countries with separate
collection systems)
This symbol on the product, or in the related documents in the package, indicates that this product
shall not be treated as normal household waste. Instead, it should be taken to a proper applicable
collection point or depot for the recycling of electric and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent possible negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste handling of this
product. The recycling of materials will help to conserve natural resources.
For more detailed information about recycling of this product, please contact your local city authority, your
household waste disposal service or the place where you purchased the product.

Contents
Page
1. Introduction ............................................................................................................ 1
1-1. Handling precautions ................................................................................... 1
1-2. Checking the supplies .................................................................................. 2
1-3. License for third party software .................................................................... 2
1-4. Distribution of source code of free software ................................................ 2
1-5. Limitations on Equipment Use ..................................................................... 3
2. Outline .................................................................................................................... 4
3. Features ................................................................................................................. 4
4. Names of parts and their functions ........................................................................ 5
4-1. Front panel ................................................................................................... 5
4-2. Rear panel ................................................................................................... 6
5. Attach Rubber Feet ................................................................................................ 7

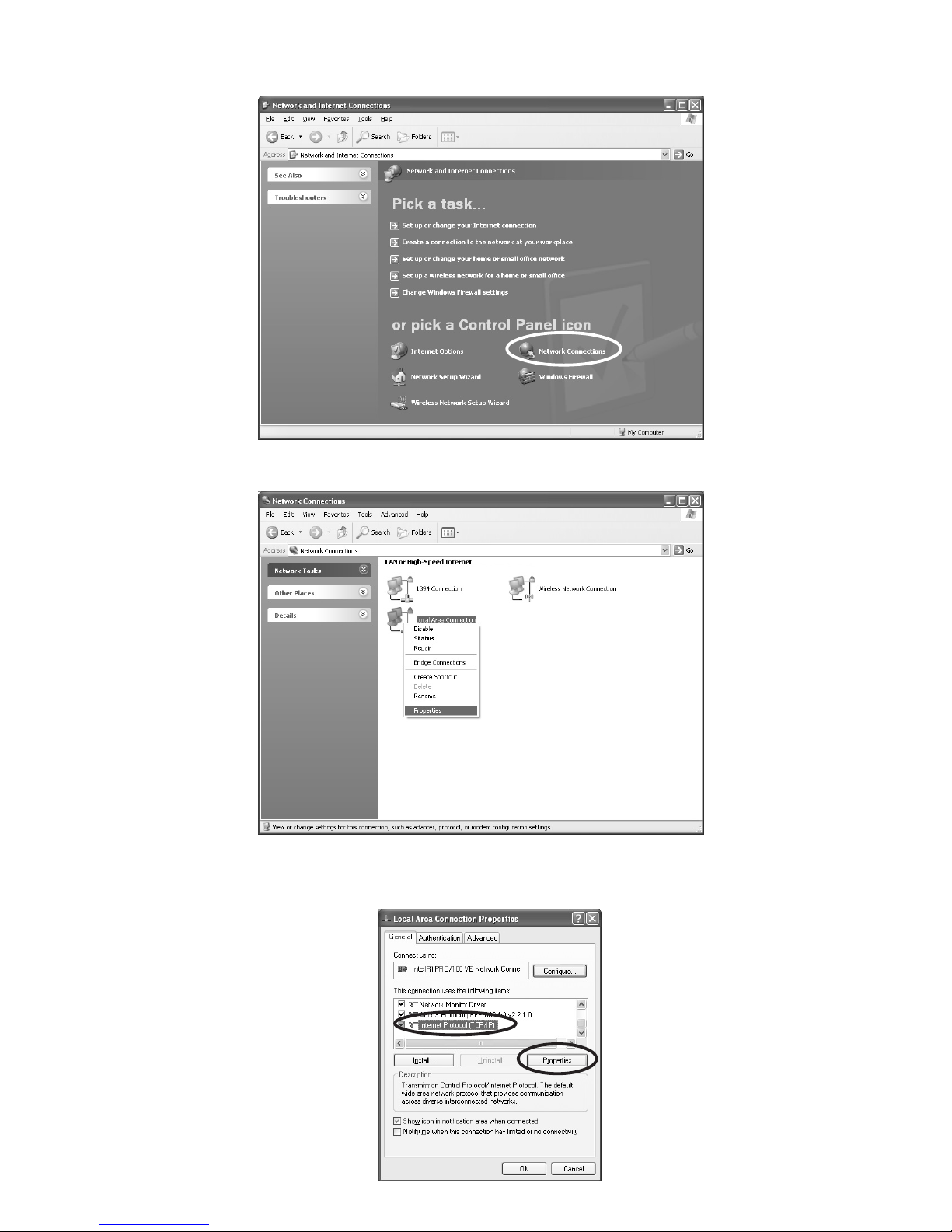

6. Setting this equipment PC setting ..................................................................................... 8
7. Setting this equipment Turning on the power .................................................................. 11
7-1. Power supply with AC adapter ................................................................... 11
7-2. Supplying power from terminal block 2 ...................................................... 11
7-3. Supplying power with PoE ......................................................................... 12
8. Setting this equipment Connect the equipment to the PC .............................................. 13
9. Setting this equipment Making the IP address and other settings .................................. 14
10. Installation Connecting the LAN cable ............................................................................. 15
10-1. Installing on the same network ................................................................ 15
10-2. Installing on different networks ................................................................ 16
10-3. Installing in separate locations with use of Internet and WAN ................. 17
11. Installation Connecting to video/audio ............................................................................. 18
11-1. Connecting to VIDEO OUT ...................................................................... 18
11-2. Connecting to analog audio Input/Output ................................................ 18
12. Installation Connecting to I/O terminal ............................................................................. 19
13. Installation Connecting to the RS485 or RS-232C .......................................................... 20
13-1. Connecting to the RS-485 ....................................................................... 20
13-2. Connecting to the RS-232C ..................................................................... 20
14. Troubleshooting ................................................................................................. 21
15. Specifications ..................................................................................................... 22
16. Appearance view ............................................................................................... 23
17. Warranty and after-sales service ....................................................................... 24

1
1. Introduction
Thank you very much for your wise choice of this product. Be sure to carefully read this manual
before use in order to fully understand the product’s functions and to keep the product at full
capacity.
This Instruction Manual is the Introductory Section and provides an overview of this equipment
and installation. For details on equipment settings, see the Instruction Manual (Application
Instructions). The Instruction Manual (Application Instructions) can be downloaded at the
following URL.
URL http://www.ikegami.co.jp/en/products/security/download/index.html
1-1. Handling precautions
Handling precautions
Be very careful to keep the product from impacts and vibrations. Otherwise it
may get in trouble.
1. Installation location and conditions
* Be sure to keep off the power while installing the product.
* Never open the housing. Otherwise the internal precision parts may get damaged,
resulting in failure or accident.
* Install the product in a place within its ambient temperature range and without
condensation.
* Do not block nor cover the product’s vent.
* Make sure the supply voltage is as specified.
* Handle the product with care. Impacts and vibrations may get it scratched or in trouble.
* Do not install the product in a hot spot: not exposed to direct sunlight nor near a heating
element, for example.
* Do not install the product in a strong magnetic field or exposed to radio waves.
* Do not place this product near a radio, TV set and other signal receiver. Such
equipment may suffer from poor signal reception.
* Do not move the product with the power on.
2.Disclaimer
*Ikegami assumes no responsibility for the following matters.
①System impediment, malfunction or breakdown as a result of connecting with
equipment from other companies.
②Accidents or breakdowns due to mistaken usage or negligence.
③Disassembly or repair of equipment that is not recognized by Ikegami.
④Improper use by a third party of the surveillance images produced by this
equipment, or damages resulting from such use.
⑤Loss of the setting contents.
⑥In addition, all damages resulting directly or indirectly in connection with this device.
3. Copyrights and the protection of personal information
* Take proper measures for delivering copyrighted and personal video materials.

2
1-2. Checking the supplies
Quantity
* AC adapter ........................................................................................1
* Rubber foot .......................................................................................4
* Instruction Manual (Setup Instructions) ............................................1
1-3. License for third party software
We are licensed to use the software made by third parties for this product. The license for each
software shall be applicable to the software in question respectively and not to the whole
software of this product.
Certain software used in this product and made by third parties are used based on the following
licenses:
* GNU General Public License Version 2 (GPL)
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html
*GNU Lesser General Public License Version 2.1 (LGPL)
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html
*OpenSSL License
http://www.openssl.org/source/license.html
This product includes software developed by the OpenSSL Project for use in the OpenSSL
Toolkit. (http://www.openssl.org/)
*Original SSLeary License
http://www.openssl.org/source/license.html
This product includes cryptographic software written by Eric Young
([email protected])
The text of the license is included in the Instruction manual (Application Instructions).
1-4. Distribution of source code of free software
If you would like to purchase the GPL/LGPL software used in this product, please contact our
sales division. In accordance with the licence terms, we will provide this at cost.

3
1-5. Limitations on Equipment Use
This equipment has its usage regulated by the VC-1 and AVC/H.264 Patent Portfolio Licenses
Concerning Personal and Non-Commercial Use. This license should be observed in limiting
use of this equipment to private use or uses that are non-profit.
For details consult the following:
http://www.mpegla.com
Reference: Actions permitted by VC-1 and AVC/H.264 images for private and non-commercial
uses.
(1) Only encoding of images to the VC-1 and AVC/H.264 for private uses or uses
not having profit for purposes.
(2) To be used for encoding for private applications or applicant that do not have
profit as a goal, and for decoding of VC-1 and AVC/H.264 images from a
supplier who has obtained a patent.
• Microsoft Windows XP, Internet Explorer are either registered trademarks or trademarks of
Microsoft Corporation in the USA and other countries.
• Intel Pentium is a registered trademark or trademark of Intel Corporation in the USA and its
subsidiaries in other countries.
• The symbols ® and ™ are not included in the text.
•Microsoft product screen shots reprinted with permission from Microsoft Corporation.

4
2. Outline
This equipment is a PoE-compatible network decoder (box-type) that decompresses the image
and audio signals that have been compressed and delivered on the network by the H.264
network camera or the network encoder for outputting composite video signals to be displayed
on conventional surveillance monitors. It can downconvert images from mega-pixel cameras for
outputting. By connecting this equipment to an existing surveillance camera system, the system
networking can be accomplished with ease.
3. Features
(1) For high picture quality
The high-quality video images that have been compressed by the H.264 equipment can be
decompressed for displaying on monitors.
(2) Possible to register as many as 60 cameras
It is possible with a single unit of this equipment to register as many as 60 network cameras/
encoders and to display them by switching.
(3) Automatic reconnection function
Even when communication with the network camera/network encoder has been interrupted
due to a network failure and the like, this function allows the communication to be
reconnected for resuming the reception of the image/audio data.
(4) The images from a mega-pixel camera manufactured by our company can be
downconvered for output.
It is possible to downconvert the images from a mega-pixel camera manufactured by our
company for outputting the images to monitors.
(5) I/O function
It is possible to receive and transfer connection signals via the network with network
cameras/encoders connected with this equipment.
(6) External equipment control function
Control data received via the network can be output with the RS-232C and RS-485 to control
external equipments. In addition, the control data input from external equipments using the
RS-232C and RS-485 can then be transmitted via the network.
(7) Maintenance
It is possible via the network to update the software or conduct maintenance by means of
self-diagnoses.
(8) PoE-Compatible
In environments where it is difficult to obtain power, it is possible to supply power via an
Ethernet cable using a hub, etc. that operates with PoE (power over Ethernet).

5
4. Names of parts and their functions
4-1. Front panel
①SD CARD ...................................... Possible to insert an SD card. Also operates with SDHC
card.
②LED displays
P (green) ..................................... This LED is lit when the power is ON.
S (orange) ................................... This LED lights or blinks when the unit is operating.
E (red) ......................................... This LED lights or blinks when an error is generated.
③IP initialization switch ..................... If this switch is pressed during the initialization mode, it
is possible to return the network settings to the initial
settings.
④All-setting initialization switch ........ If this switch is pressed for at least three seconds
during operations, the system goes to the initialization
mode. If the initialization mode continues for five
seconds, it is automatically released. If this switch is
pressed during the initialization mode, all settings can
be returned to the initial settings.
H.264 Network Decoder
SD CARD
P
MODEL
IDE-10
S E
②
①
③ ④

6
4-2. Rear panel
AUDIO
IN OUT
DC12V
AC24V
50/60Hz
〜
DC12V
CLASS2
＋−
ETHERNET RS-232C(DCE)
VIDEO OUT
RS485
ACT LINK
IO2IO1
⑤ ⑥ ⑦ ⑧ ⑨
① ② ③ ④
①VIDEO OUT ................ It outputs the images decompressed by this equipment.
②AUDIO IN .................... Audio input. (not in use)
③AUDIO OUT ................ Audio output.
④Grounding terminal ..... Ground equipment for safety’s sake.
(special screw)
⑤ETHERNET ................ Wire for LAN cable (category 5e or higher). Operates with PoE.
⑥RS-232C ..................... RS-232C communications possible (DCE).
⑦Terminal block 1
IO1 .............. Normally open non-voltage input or open collector output. Possible to
set functions on input/output setting screen. For details, see the
Instruction Manual (Application Instructions).
IO2 .............. Same as IO1.
RS-485 ....... Communications possible with Ikegami I-LAN compatible
equipments.
⑧Terminal block 2 ......... Input of DC12V or AC24V (normally not in use). Do not
simultaneously use the power source in item ⑨(AC adapter). Do
not input AC24V simultaneously with PoE.
*This installation should be made by a qualified service person and
should conform to all local codes.
⑨Power source .............. The installation should be made by a qualified service person and
should conform to all local codes. Do not use simultaneously with
terminal block 2 in item ⑧.
Use an AC adapter attested in UL1310 and CSA-C22.2 No.223.

7
5. Attach Rubber Feet
In accordance with your operating environment, attach rubber feet as shown on the diagram
below.
Rubberfoot
Thebottomsideofthisproduct

8
6. Setting this equipment PC setting
Before installing this equipment, change the settings on this equipment to match the network you
are using. The settings on this equipment can be changed by using Internet Explorer on your PC.
Before connecting this equipment with your PC, change the PC network settings. (First
disconnect from existing network before setting).
The PC setting changes are described on the Windows XP screen.
To set an IP address, start with the properties of the local area network connection.
①Getting the “LAN Connection” properties displayed
Click on the start button first and then on the control panel.
②Click on “Network and Internet Connections”.

9
③Click on “Network Connections”.
④Right-click on “Local Area Connection” and click on “Properties”.
⑤Getting the “Internet Protocol (TCP/IP)” properties displayed
Click on “Internet Protocol (TCP/IP)” first and then on “Properties”.

10
⑥Click on “Use the following IP address” and enter the address.
* To return to the original IP address after setting up this equipment, preferably note
down the current IP address.
• Set the IP address at “192.168.1.○” (not 150 for the ○blank).
• Set the subnet mask at “255.255.255.0”.
Initial settings (IDE-10)
URL : http://192.168.1.150/
User name : admin
Password : 1
IP address : 192.168.1.150
Subnet mask : 255.255.255.0
Gateway : 192.168.1.1
MTU : 1454
HTTP port : 80
PC operationg environment
To carry out settings and maintenance
on this device, you must have a PC that
satisfies the following conditions.
• Microsoft Windows XP
•Internet Explorer 6.0 or higher
•Intel Pentium 4 2.0GHz or higher
•Memory 256MB or higher (512MB or
higher recommended)
For reference
The initial values of the IP addresses for products operating with the Ikegami
network are as follows.
Network Camera : 192.168.1.100
Network Encoder : 192.168.1.100
Network Recoder : 192.168.1.200

11
7. Setting this equipment Turning on the power
There is no power switch on this equipment. It is possible to supply power for this equipment with
the following three methods: (1) AC adapter, (2) terminal block, (3) PoE.
When the power is inserted, the LED display P (green) lights and operation starts after about 40
seconds.
7-1. Power supply with AC adapter
When supplying power to this equipment with an AC adapter, connect as shown in the figure
below. Prior to connecting, first make sure that no power is being supplied to the equipment with
another method.
DC12V
ACadapter
• Use an AC adapter attested in UL1310 and CSA-C22.2 No.223.
•Use an AC adapter which outputs DC12V/1A.
•Do not use simultaneously with terminal block 2.
•When power has been supplied simultaneously with PoE, the method that was turned on first
has priority.
7-2. Supplying power from terminal block 2
It is possible to supply DC12V or AC24V power from terminal block 2. When supplying power to
this equipment from terminal block 3, connect as shown in the figure below. Prior to connecting,
first make sure that no power is being supplied to the equipment with another method.
When supplying DC12V.
〜
＋−
DC12V
When supplying AC24V.
〜
＋−
+
-
〜 AC24V

12
Power cable
Remove about 10 mm from the end of the power cable. The thickness of cables for connection
should be AWG24-12.
Remove about 10 mm.
•Do not use simultaneously with AC adapter.
•When supplying AC24V, do not use simultaneously with PoE.
•When DC12 power has been supplied simultaneously with PoE, the method that was turned
on first has priority.
7-3. Supplying power with PoE
When supplying power to this equipment with PoE, connect as shown in the figure below.
Prior to connecting, first make sure that no power is being supplied to the equipment with
another method.
ETHERNET
LAN cable (category 5e or higher)
HUB for PoE
or
PoE power
supply adapter
•PoE operates with Type A or Type B.
•Do not use simultaneously with AC24V from terminal block 2.
•If DC12V from the AC adapter or terminal block 2 is supplied simultaneously with PoE, the
method that was turned on first has priority.

13
8. Setting this equipment Connect the equipment to the PC
When connecting this equipment to the PC, connect with the LAN cable.
IDE-10 PC
H.264 Network Decoder
MODEL
IDE-10
SD CARD
PSE
LANcable
Possibletouse
straightcableor
crosscable
Enter this equipment ’s URL in the Internet Explorer address bar.
The initial setting is “http://192.168.1.150/”.
A pop-up window opens and you are asked for the user name and password. Enter the
administrator’s user name as well as the password, and click on . The initial settings
are “admin” for the administrator’s user name and “1” for the password. The operator’s user
name is not registered.
When the user name and password are correct, the monitor screen shows up.

14
9. Setting this equipment Making the IP address and other settings
When connecting this equipment to your PC via Internet Explorer, it is possible to change
settings and conduct maintenance on this equipment.
Changing the IP address (Default setting: 192.168.1.150) of this equipment is possible by
following the descriptions under "Setting" Mode "IPv4."
*For details consult the Instruction Manual (Application Instructions).
When selecting “IPv4” from menu, it is possible to change the equipment network information.
The Instruction Manual (Application Instructions) can be downloaded
from the following URL.
URLhttp://www.ikegami.co.jp/en/products/security/download/index.html
•Easy Setting Tool
This is a handy tool for easy changing of the IP address of this equipment and other
equipments operating with an Ikegami. It is also possible to change the IP address after
installing the equipment.
You can download the tool (software) from the below website. Before use, carefully read the
“Easy Setting Tool” instructions (Help on Toolbar).
URL http://www.ikegami.co.jp/en/products/security/tool/easysettingtool.html

15
10. Installation Connecting the LAN cable
NOTE
The IP addresses used in the figure are setting examples. You should actually set the
correct values according to the network environment you are using.
In particular, do not connect to the Internet with the IP address used in the figure. The
correct setting value should be obtained from the network manager or the ISP (Internet
Service Provider) for which you are contracted.
10-1. Installing on the same network
This is an example of installing the IEN-10 and this equipment on the same network. Be sure to
correctly set the IP address and subnet mask.
LAN
H.264 Network Encoder
MODEL
IEN-10
SDCARD
PSE
H.264 Network Decoder
MODEL
IDE-10
SDCARD
PSE
IEN-10
Camera
Monitor
Example (IEN-10)
IP address : 192.168.1.100
Subnet mask : 255.255.255.0
Example (IDE-10)
IP address : 192.168.1.150
Subnet mask : 255.255.255.0 IDE-10

16
10-2. Installing on different networks
This is an example of installing the IEN-10 and this equipment on different networks. Be sure to
correctly set the IP address and subnet mask, and the gateway IP address.
This equipment uses RTSP (TCP) and RTP/RTCP (UDP) for transmission and reception of
video and audio. Carry out setting of the router firewall and port forward for communications with
these protocols.
For details consult the Instruction Manual (Application Instructions) and the manual of the router
you are using.
LAN1
LAN2
H.264 Network Encoder
MODEL
IEN-10
SD CARD
PSE
H.264 Network Decoder
MODEL
IDE-10
SD CARD
PSE
Example (Router)
LAN1 side
IP address : 192.168.1.1
Subnet mask : 255.255.255.0
LAN2 side
IP address : 192.168.2.1
Subnet mask : 255.255.255.0
IEN-10
Router
Camera
IDE-10
Monitor
Example (IEN-10)
IP address : 192.168.1.100
Subnet mask : 255.255.255.0
Gateway : 192.168.1.1
Example (IDE-10)
IP address : 192.168.2.150
Subnet mask : 255.255.255.0
Gateway : 192.168.2.1

17
10-3. Installing in separate locations with use of Internet and WAN
This is an example of installing the IEN-10 and this equipment using the Internet and WAN for
installation in different locations. Be sure to correctly set the IP address and subnet mask, and
the gateway IP address.
This equipment uses RTSP (TCP) and RTP/RTCP (UDP) for transmission and reception of
video and audio. Carry out setting of the router firewall and port forward for communications with
these protocols.
For details consult the Instruction Manual (Application Instructions) and the manual of the router
you are using.
LAN1
LAN2
H.264 Network Encoder
MODEL
IEN-10
SDCARD
PSE
H.264 Network Decoder
MODEL
IDE-10
SDCARD
PSE
Router
Monitor
Router
Modem, etc.
Example (IEN-10)
IP address : 192.168.1.100
Subnet mask : 255.255.255.0
Gateway : 192.168.1.1
HTTP port : 80
Example (Router)
LAN1 side
IP address
: 192.168.1.1
Example (Router)
LAN2 side
IP address :
192.168.1.1
Subnet mask : 255.255.255.0
Modem, etc.
Internet
・
WAN
Example (IDE-10)
IP address : 192.168.1.150
Subnet mask : 255.255.255.0
Gateway : 192.168.1.1
IEN-10
Camera
IDE-10
