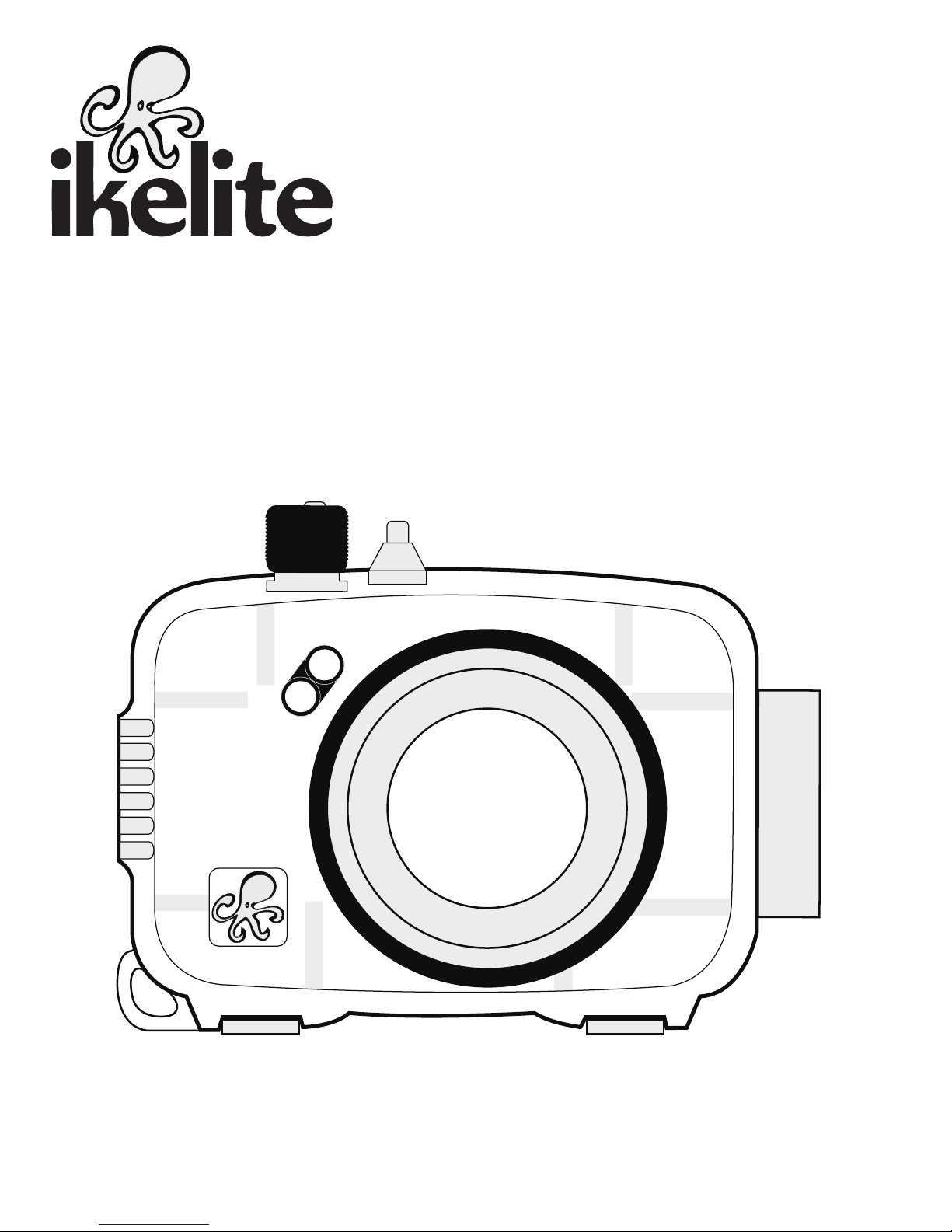

Ikelite 6282.53 Owner's manual

Digital Housing
Supplemental Instructions
6282.53 Nikon Coolpix S5300
Thank you for your purchase of Ikelite equipment. Please read the
“Instruction Manual” and “Supplemental Instructions” completely before
attempting to operate or dive with this product.

Controls ............................All camera functions
Width ................................5.9 in (150 mm) including controls
Height ..............................4.5 in (114 mm) including controls
Depth ................................4.2 in (106 mm) including controls
Weight ..............................1.2 lb (544 g)
Buoyancy..........................Slightly positive in freshwater
Depth Rating ....................200 ft (60 m)
Use Built-in Flash ............Yes
Strobe Connection............Slave or Fiber Optic
Tray Mounting ..................12-24 thread with 3 in spacing (76 mm)
Main O-Ring ....................0132.45
Port O-Ring ......................0134.33
Port Outer Diameter ........3.0 in (76 mm)
Port Lens ..........................Glass
Use 46mm Lenses............ o
Use 67mm Lenses............Yes (slight to moderate vignetting possible)
Use Bayonet Lenses ........ o
2
- Housing
- Port Cover
- Vinyl Break-away Safety Lanyard
- Flash Diffuser
- Flash Deflector
- Silicone Lubricant 1 cc Tube
- Extra Control Tips and Sleeves
What’s in the Box
Specifications

67
8
4
1
10
3
5
9
2
ULTRA compact
Made in USA

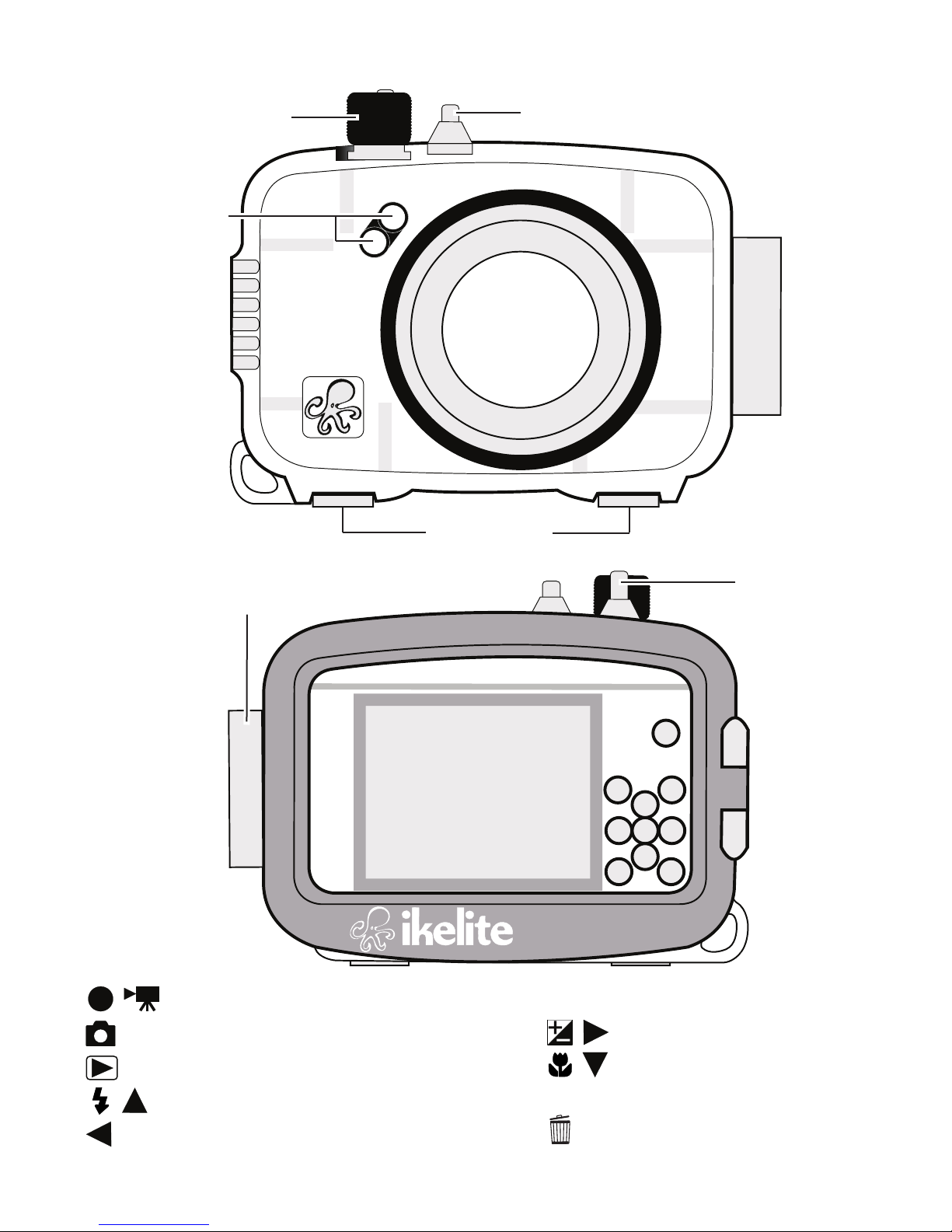

Parts of the Housing
Back View
Power Switch
1. Movie-record Button
2. Shooting Mode Button
3. Playback Button
4. Flash Mode, Up Arrow
5. Self-timer, Left Arrow
Latch
Tray Mounts
6. OK/Apply Selection Button
7. Exp. Comp./Right Arrow
8. Macro Mode/Down Arrow
9. MENU Button
10. Delete Button
Zoom Control
Front View Lens Port
Shutter-release
Button
3
Fi er Optic Ports

- Insert fully charged battery.
- In Shooting Menu:
Set Image mode to “16m.”
Set White balance to “Auto.” If more accurate colors are desired,
we recommend using “PRE” preset manual white balance underwater
using a white slate, white sandy bottom, or even the palm of your hand.
Manual white balance should be reset for each working depth due to
color absorption caused by the water. When adding a UR-Pro color filter,
reset manual white balance.
Set Continuous to “S” Single.
Set ISO sensitivity to “200.”
Set AF area mode to “Center” and Autofocus Mode to “AF-S” Single AF.
Set Quick effects to “Off.
- In Setup Menu:
Set Time Zone and Date.
In Monitor Settings set Image Review to “O .”
Set Photo VR to “On.”
Set Motion Detection, AF-assist beam and Digital Zoom to “Off.”
Set Auto off to “5 min.”
Insert and format a SD memory card.
Set Blink warning to “OFF.”
- Set Flash Mode to “Fill flash .”
- Set Macro mode to “On” when shooting close-up. If the image is
overexposed, use “-” exposure compensation and/or back away,
zoom in, and then reshoot.
* All other camera functions not mentioned should be set to the user’s
desired settings.
4
Initial Camera Settings ( efore placing camera in housing)

W-20 and W-30 Wide-Angle Conversion Lenses
The front of the lens port accepts the Ikelite 6420 W-20, 6430 W-30, and
other 67mm threaded wide angle or macro lenses without the need for
an adapter. An external wide angle conversion lens increases angle of
coverage so you can get closer to the subject while still fitting everything
Moderate vignetting will likely occur at widest angle camera lens setting
with these lenses. Zoom in to eliminate, or crop the image in post
processing.
Bayonet mount lenses cannot be used with this housing.

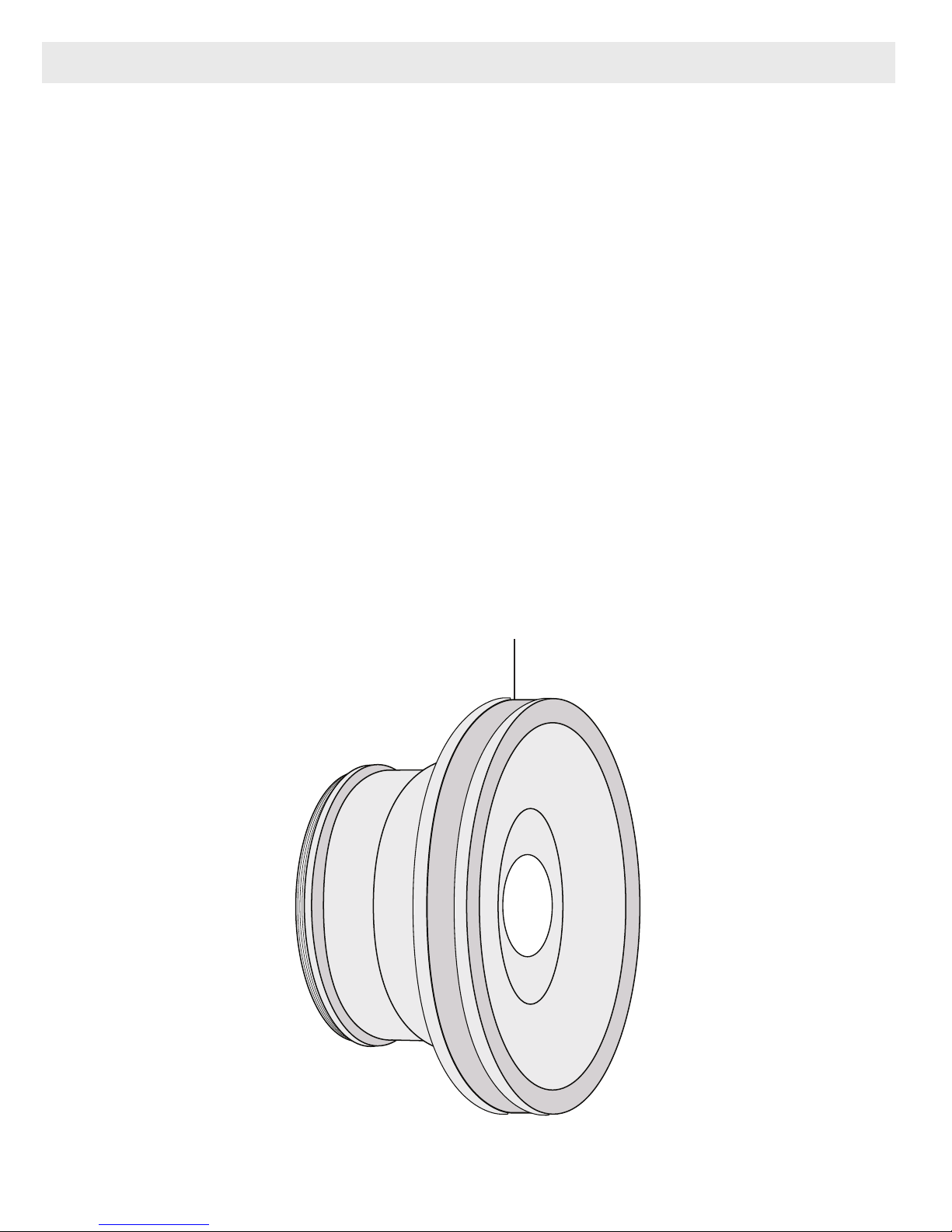

6430 W-30 Conversion Lens
Please visit www.ikelite.com for additional information.
5
External Accessory Lenses

6
The AutoFlash AF35 kit is a great compliment, and an effortless,
affordable way to add a flash to your new Ikelite point and shoot camera
system. Everything you need to get started is in the box. Just attach it to
the bottom of your housing and start taking pictures!
The AF35 Strobe Package is available to support your housing along
with a full range of accessories. Please visit www.ikelite.com to see the
most current information about recommended accessories for your
housing.
ikelite
35
AF
ikelite
AUTOFLASH
AF35 Stro e Package 4035

This Ikelite product is warranted against any manufacturing defects for a
period of one (1) year from the original date of purchase. Defective
products should be returned to Ikelite postage paid. Ikelite will, at its sole
discretion, repair or replace such products, and will return to customer
postage paid. All other claims of any nature are not covered. Except as
mentioned above, no other warranty expressed or implied applies to this
Ikelite product.
7
Please read the troubleshooting section of the “Instruction Manual”
before contacting Ikelite.
Spare Parts (can e ordered through Ikelite or an authorized dealer)
- 0132.45 Main o-ring
- 0134.33 Port o-ring
- 0321.10 Vinyl Break-away Safety Lanyard
- Flash Diffuser
- Flash Deflector
- 0184.2 Silicone lubricant resealable 2cc tube
- Extra Control Tips and Sleeves
Customer Support
Limited Warranty

6282.53_ ikon_S5300_Supplemental_1-0714
Ikelite Underwater Systems
50 West 33rd Street
Indianapolis, IN 46208 USA
www.ikelite.com
© 2014 Ikelite Underwater Systems
