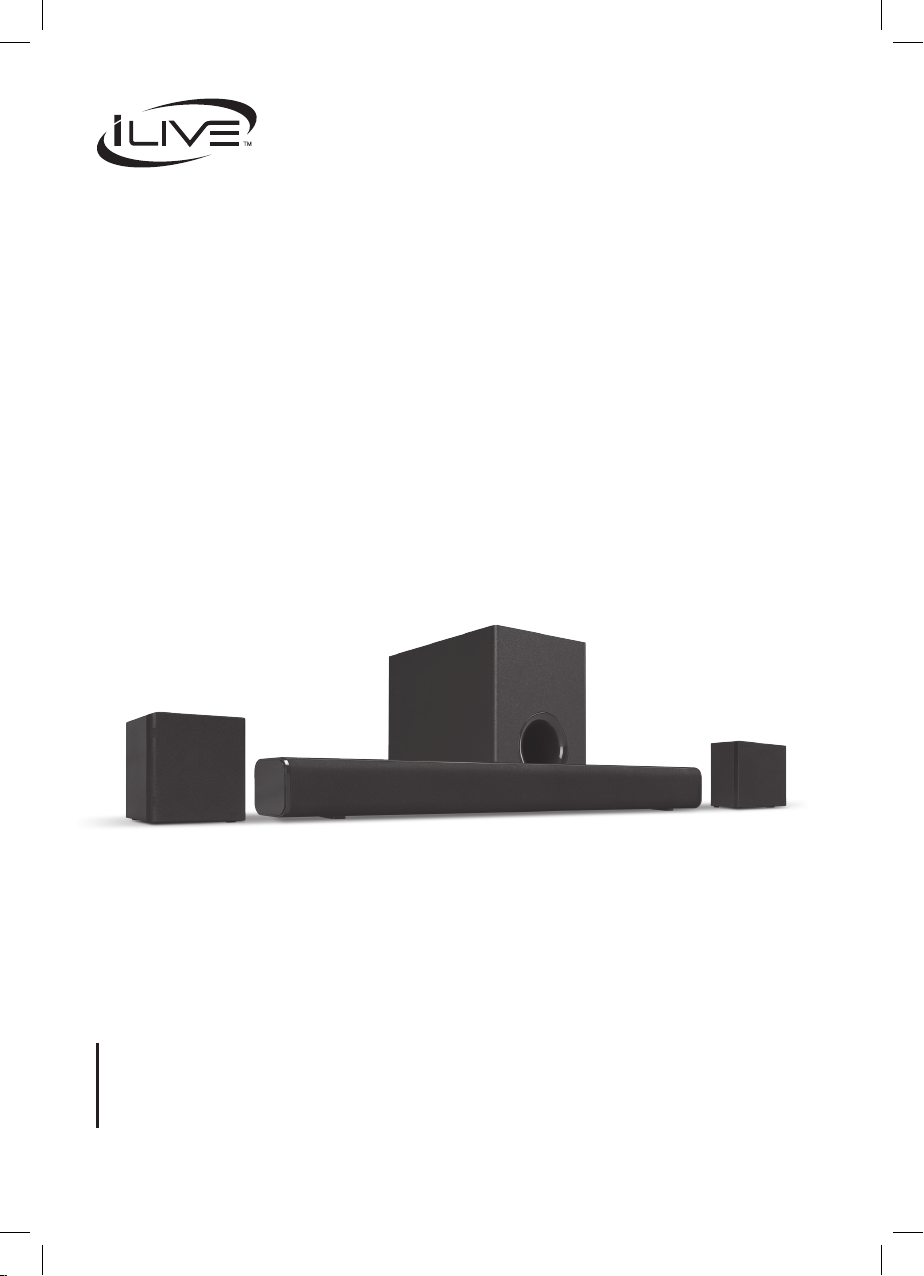

iLive ITBSW241 User manual

4.1 Home Theater System with Bluetooth
User’s Guide for Model ITBSW241 v2971-01
For the most up-to-date version of this User’s Guide, go to: www.iLiveElectronics.com

2
Safety Instructions & Warnings
Important Safety Instructions
• Read these Instructions.
• Keep these Instructions.
• Heed all Warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers)
that produce heat.
• Do not defeat the safety purpose of the polarized or
grounding - type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. e wide blade or the
third prong are provided for your safety. When the provided
plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
• Only use attachments/accessories specied by the
manufacturer.
• Unplug this apparatus during lightning storms or when
unused for long periods of time.
• Refer all servicing to qualied service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
• Use only with a cart, stand, tripod, bracket,
or table specied by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
WARNING: To reduce the risk of electric
shock, do not remove cover (or back). No
user-serviceable parts inside. Refer servicing
to qualied service personnel.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
This symbol indicates that this product
incorporates double insulation between
hazardous mains voltage and user accessible
parts.
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sucient magnitude
to constitute a risk of electric shock to persons.
WARNING: DO NOT INGEST BATTERY,
CHEMICAL BURN HAZARD.

3
FCC Warnings
Warning: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician
for help.
FCC Radiation Exposure Statement
This equipment complied with FCC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
Additional Warnings and Precautions
•CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
•Mains plug is used as disconnect device and it should remain
readily operable during intended use. In order to disconnect
the apparatus from the mains completely, the mains plug
should be disconnected form the mains socket outlet
completely.
•WARNING: Shock hazard - Do Not Open.
•Caution and marking information is located at the rear or
bottom of the apparatus.
•WARNING: To reduce the risk of re or electric shock,
do not expose this apparatus to rain, moisture, dripping,
or splashing.
•Objects lled with liquids, such as vases, shall not be placed
on the apparatus.
•CAUTION: Use of controls or adjustments or performance
of procedures other than those specied may result in
hazardous radiation exposure.
•WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment
•WARNING: Do not place this unit directly onto furniture
surfaces with any type of soft, porous, or sensitive nish.
As with any rubber compound made with oils, the feet
could cause marks or staining where the feet reside. We
recommend using a protective barrier such as a cloth or a
piece of glass between the unit and the surface to reduce the
risk of damage and/or staining.
•WARNING: Use of this unit near uorescent lighting may
cause interference regarding use of the remote. If the unit is
displaying erratic behavior move away from any uorescent
lighting, as it may be the cause.
•CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
•Battery shall not be exposed to excessive heat such as
sunshine, re or the like.
•Keep new and used batteries away from children. If the
battery compartment does not close securely, stop using the
product and keep it away from children.
•If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate medical
attention.
•Do not mix old and new batteries.
•Completely replace all old batteries with new ones.
•Do not mix alkaline, standard (carbon-zinc), or rechargeable
(ni-cad, ni-mh, etc) batteries.
•Batteries should be recycled or disposed of as per state and
local guidelines.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm
between the radiator &
your body.

4
Table of Contents
Setup
Features & Specications - 5
Power - 5
Remote Battery - 5
Includes - 5
Orientation
Rear View - 6
Front View - 6
Source Mode Indicator LED - 6
Speaker Controls - 6
Connecting the Satellite Speakers - 7
Connecting the Subwoofer - 7
Remote
Functions & Controls - 8
Connecting Devices
Initial Bluetooth Connection and Playing Audio - 9
Troubleshooting - 9
Aux In - 9
Learn Feature -10
Company Information
Contact Information - 12
International Support - 12
Warranty - 12

5
Features & Specifications
• Supports Bluetooth 5.0, range: 60 ft.
• 4.1 channel stereo sound
• Digital volume control
• Full-function remote
• Aux In (3.5mm audio input)
Bluetooth QDID : 115952
Includes
• Remote control with CR2025 battery
• AC/DC power adapter
• 3.5mm to RCA cable
Power
Plug the power adapter for the soundbar into the DC
Input on the back of the soundbar and a standard
wall outlet.
Setup
Remote Battery
Requires 1 CR2025 battery (pre-installed).

6
Speaker Controls
Rear View
Front View
Speaker Inputs: Audio Outputs (to speakers) | Sub Audio Output | DC Power Input
Power/Source
Press to power the unit ON.
Press and hold to power the unit OFF.
Press to switch audio source to Bluetooth and AUX In
modes.
Volume
Press to adjust volume.
Pair/Learn
With the unit powered ON, press and hold to enter
pairing mode manually. With the unit powered OFF,
press to begin using the learn function.
Aux In
3.5mm audio input.
Source Mode Indicator LED
Orientation
STATUS INDICATOR LIGHT
Power Off Red Light
Bluetooth Standby/Pairing Quick Flashing Blue Light
Bluetooth Connected Solid Blue Light
Aux In Mode Green Light
Function/Source Indicators: Power | Bluetooth | Aux In
PAIR/LEARN AUX IN
SOURCE/
VOL +
VOL –

7
Connect each satellite speaker to the two satellite speaker inputs on the rear of the sound bar. Note: If there
is no sound from satellite speakers, please make sure the sub and satellite speakers are correctly connected.
Connecting the Satellite Speakers
Satellite Speakers
Sound bar
Connecting the Subwoofer
Connect the subwoofer to the output labled "Sub Out" on the rear of the sound bar as seen below.
NOTE: To reduce unwanted vibration, try place the
subwoofer on a solid or padded surface, such as the
floor or carpet.

8
Remote
Functions & Controls
MOVIEMUSIC
DIALOG
BASSTREBL
EV
OLUME
POWE
RM
UTE
AUX
SOURCE
Power
Press to turn
the unit on or off.
Press to switch
to Bluetooth Mode.
Aux
Press to switch
to Aux In mode.
Music
Press to switch to the
EQ optimized for music.
Press and hold Music for
5 seconds to turn voice
prompts ON/OFF.
Movie
Press to switch to the
EQ optimized for movies.
Dialog
Press to switch to the
EQ optimized for
dialogue.
Skip
In Bluetooth mode,
press to skip forward
or back one track.
Play/Pause
In Bluetooth Mode, press
to play or pause audio
tracks. Press and hold
to pair to a Bluetooth
device.
Treble
Press to adjust the treble
up or down.
Bass
Press to adjust the bass
up or down.
Volume +/-
Press to adjust
the volume.
Mute
Press to mute the volume.
The indicator on the sound
bar will flash. Press and
hold to reset treble and
bass to default level.

9
Initial Bluetooth Connection and Playing Audio
1. When first powered ON the unit defaults to Bluetooth mode. A voice will say, “Bluetooth,” and the LED indicator
will quickly flash blue. When pairing, remain within 3 feet of the Bluetooth device.
2. Using the controls on your Bluetooth device, select ITBSW241 in the Bluetooth Settings Menu to pair. If need
be, refer to the user’s manual for your specific device for more information.
3. When successfully paired, a voice will announce, “Bluetooth is connected,” and the LED indicator will turn solid
blue. Audio from the connected Bluetooth device will now be heard through the speaker.
4. Use the controls on the connected Bluetooth device to select and play audio. Use the speaker controls or the
connected Bluetooth device to play, pause, and adjust the volume level.
5. After initial pairing, anytime the speaker powers ON it will automatically connect to the last Bluetooth device
used. Note: If your device should become unpaired or you find it is unable to connect, press and hold the Play
button (on remote), or Pair button (sound bar) to enter to Pairing Mode. A voice will announce, “Bluetooth is
connecting,” and you can connect to the speaker manually.
Note: This sound bar has a last-function-used memory; it will resume using the last mode before it was turned OFF
after it is turned ON again.
Troubleshooting
If the sound bar should become unpaired or will not connect normally, follow these steps in your device’s
Bluetooth Settings Menu.
• Delete the sound bar (“Forget This Device”).
• Turn Bluetooth OFF, then ON again, and repeat the Initial Bluetooth Connection steps.
Connecting Devices
Aux In
Requires a 3.5mm audio cable (included).
1. Connect the 3.5mm to RCA cable to the 3.5mm Aux in on the sound bar and the other end into your TV or other
device.
2. Power ON the sound bar and press Source on the sound bar or Aux on the remote to select Aux In Mode. A
voice will announce the source mode and the indicator will turn green.
3. Use the controls on the connected device to select and play audio. Be sure the
volume on your connected device is audible when you begin playing.
PAIR/LEARN AUX IN
SOURCE/
VOL +
VOL –

10
Learn Feature
What Is the Learn Feature?
The Learn feature captures remote commands from your television remote, and teaches your soundbar to operate
when these commands are pressed. Power, volume and mute are a few examples of commands that the bar speaker
can learn.
Why Use the Learn Feature?
Teaching the bar speaker remote commands will reduce the number of remotes needed, save time searching for
remote codes, and improve the ease of operation.
Note: Not all functions of the sound bar will be available through your own remote control, such as bass and treble.
Use the included remote for these functions. While your ITBSW241 sound bar is able to learn most IR protocols, not all can
be programmed.
Using the Learn Feature
1. With the power Off, press the Learn/Pair button on the unit. An indicator will flicker red.
2. Press the button you desire to be learned on the included remote.
For example: Volume +
3. The red light will continue to flicker, and another indicator will display a blue light.
4. Press the corresponding button on your remote.
5. The red light will continue to flicker, and another indicator will display a green light.
6. When the green light turns off, the button command is saved.
7. The programmed button on your remote will now be able to control your sound bar.
Note: It is necessary to program each button i.e. channel and volume + and - separately.
8. To start over, press and hold the Learn/Pair button for 5 seconds. If the sound bar has failed to learn a
command, the orange light will flicker, and another indicator will display a blue light. Please try again with a
different remote.

11

12
International Support
To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked
questions, visit the support section at: www.iLiveElectronics.com
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas
frecuentes, visite la sección de apoyo en: www.iLiveElectronics.com
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des
questions fréquemment posées, consultez la rubrique d’assistance sur: www.iLiveElectronics.com
Contact Information
Website: www.iLiveElectronics.com
Email Support: [email protected]
Email Parts: [email protected]
Phone Support: 1-888-999-4215
Warranty
For Warranty Information and the most up-to-date
version of this User’s Guide, go to:
www.iLiveElectronics.com
Copyright © 2021 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the
property of their respective owners. Specifications are subject to change without notice.
Protect for Today
Sustain for Tomorrow
Made
Green
Company Information
