Iluminarc Ilumipod Inground Tri-3 IP Optic 25 RGB User manual

Ilumipod Inground Tri-3 IP
Optic 25 RGB
User Manual

Edition Notes
Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5
Edition Notes
The Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5
covers the description, safety
precautions, installation, programming, operation, and maintenance of the
Ilumipod Inground
Tri-3 IP Optic 25 RGB. ILUMINARC®released this edition of the Ilumipod Inground Tri-
3 IP
Optic 25 RGB User Manual Rev. 5 in December 2013.
Trademarks
The ILUMINARC®logo, the ILUMINARC®
name and all other trademarks in this document
related to services or products by ILUMINARC®
are trademarks owned or licensed by
ILUMINARC®, its affiliates or subsidiaries. Any other product names, log
os, brands, company
names,
trademarks featured or referred to within this document are the property of their respective
trademark holders.
Copyright Notice
The entire content of this document, except where applicable and unless otherwise noted, is solely
owned by ILUMINARC®, a wholly owned trademark of CHAUVET & Sons, Inc.
(d/b/a CHAUVET® or Chauvet).
© Copyright 2013 ILUMINARC®.
All rights reserved.
Electronically published by ILUMINARC®in the United States of America.
Manual Usage
ILUMINARC®
authorizes its customers to download and print this manual for professional
information purposes only. ILUMINARC®expressly prohibits the u
sage, copy, storage,
distribution, modification, or printing of this manual or its content for any other purpose without
its written consent.
Document Printing
For better results, print this document in color, on letter size paper (8.5 x 11 inches), double sided.
If using A4 paper (210 x 297 mm), configure your printer to scale the content of this document to
A4 paper.
Intended Audience
Any person in charge of installing, operating, and/or maintaining the Ilumipod Inground Tri-
3 IP
Optic 25 RGB should read the Quick Reference Guide that shipped with product and this manual
in their entirety before installing, operating, or maintaining this product.
Disclaimer
ILUMINARC®
believes that the information contained in this manual is accurate in all respects.
However, ILUMINARC®
assumes no responsibility for any error or omissions in this document.
ILUMINARC®reserves the right
to revise this document and to make changes from time to time
in the content hereof without obligation of ILUMINARC®
to notify any person or company of
such revision or changes. This does not constitute in any way a commitment by ILUMINARC®to
make such changes. ILUMINARC®may issue a revision of this manual or a new edition of it to
incorporate such changes.
Document Revision
The Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5
supersedes all previous
versions of this manual. Please discard any older versions of this manual you may have, whether
in printed or electronic format, and replace them with this version
Author Date Editor Date
D. Couppe 11/27/13 A. Leon 12/04/13

Table of Contents
Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5 i
Table of Contents
1. Introduction ...................................................................................................1
What Is in the Box ........................................................................................................ 1
Unpacking Instructions................................................................................................. 1
Claims .................................................................................................................................1
Text Conventions ......................................................................................................... 1
Safety Notes................................................................................................................. 2
Personal Safety...................................................................................................................2
Mounting and Installation.....................................................................................................2
Power and Wiring................................................................................................................2
Operation.............................................................................................................................2
2. Product Description......................................................................................3
Features ....................................................................................................................... 3
Options................................................................................................................................3
Product Overview......................................................................................................... 4
Product Dimensions ..................................................................................................... 5
3. Installation.....................................................................................................6
Installation Notes.......................................................................................................... 6
Installation Sleeve Orientation.............................................................................................6
Installation Sleeve Setup.....................................................................................................6
AC Power ..................................................................................................................... 7
Power Consumption............................................................................................................7
AC Plug ...............................................................................................................................7
Power Wiring.......................................................................................................................7
DMX Linking................................................................................................................. 8
DMX Modes.........................................................................................................................8
Protocol Connectivity...........................................................................................................8
Controllers.................................................................................................................... 9
DMX Controller....................................................................................................................9
Ilumicode...........................................................................................................................10
4. Operation.....................................................................................................11
Ilumicode.................................................................................................................... 11
Ilumicode Panel Description..............................................................................................11
Control Options .......................................................................................................... 11
Programming.............................................................................................................. 11
DMX Personality................................................................................................................11
DMX Starting Address.......................................................................................................11
Static Colors......................................................................................................................12
Whites Setting ...................................................................................................................12
Color..................................................................................................................................12
Dimmer..............................................................................................................................12
Reset.................................................................................................................................12
Menu Map .................................................................................................................. 13
DMX Values ............................................................................................................... 14
ARC 1................................................................................................................................14
ARC 1 + D.........................................................................................................................14
SOLID................................................................................................................................14
ARC FULL.........................................................................................................................15

Table of Contents
ii Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5
5. Technical Information.................................................................................16
Product Maintenance ................................................................................................. 16
Product Repairs.......................................................................................................... 16
Troubleshooting Guide............................................................................................... 17
Photometrics .............................................................................................................. 18
LED Disclaimer........................................................................................................... 19
LED Life.............................................................................................................................19
LED Binning.......................................................................................................................19
Color Rendering Index (CRI).............................................................................................19
Returns Procedure..................................................................................................... 20
Contact Us.................................................................................................................. 20
Technical Specifications............................................................................................. 21

Introduction
Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5 1
1. Introduction
This icon
indicates useful,
although non-
critical information.
This icon
indicates
important
installation or
configuration information.
Failure to comply with this
information may prevent
the product from
functioning correctly.
This icon
indicates critical
installation,
configuration, or operation
information. Failure to
comply with this
information may render
the product partially or
completely inoperative,
damage third-party
equipment, or cause harm
to the user
The term “DMX”
used throughout
this document
refers to the USITT
DMX512-A transmission
protocol.
What Is in the Box
•One Ilumipod Inground Tri-3 IP Optic 25 RGB
•One Installation Sleeve
•Warranty Card
•Quick Reference Guide
Unpacking Instructions
Immediately upon receiving a product from ILUMINARC®, carefully unpack the carton. Check
the contents of the box to ensure that all parts are present and that they are in good condition.
Claims
The carrier is responsible for any damage incurred during shipping. Therefore, if the received
merchandise appears to have been damaged during shipping, the customer must submit the
damage report and any related claims to the carrier, not ILUMINARC®. The customer must
submit the report upon reception of the damaged merchandise. Failure to do so in a timely
manner may invalidate the customer’s claim with the carrier.
For other issues such as missing components or parts, damage not related to shipping, or
concealed damage, the customer must make claims to ILUMINARC®within seven (7) days of
receiving the merchandise.
Text Conventions
Convention Meaning
1–512
A range of values in the text
50/60
A set of mutually exclusive values in the text
DMX Primer
The name of another publication or manual
<SET>
A button on the product’s control panel
Settings
A product function or a menu option
MENU > Settings
A sequence of menu options
1–10
A range of menu values from which to choose in a menu
Yes/No
A set of two mutually exclusive menu options in a menu
ON
A unique value to enter or select in a menu

Introduction
2 Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5
There are no user
serviceable parts
inside this
product. Any reference to
servicing you may find
from now on in this User
Manual will only apply to
properly certified
ILUMINARC®
technicians. Do not open
the housing or attempt
any repairs unless you
are certified to do so.
Please refer to all
applicable local codes
and regulations for the
proper installation of this
product.
Keep this manual for
future consultation. If you
sell this product to
another user, make sure
that they also receive this
manual.
In the unlikely
event that your
Ilumipod
Inground Tri-3 IP Optic 25
RGB may require service,
please contact
ILUMINARC®Technical
Support.
Safety Notes
Please read all the following safety notes carefully because they include important information
on how to install, use, and maintain this product safely.
Personal Safety
•Avoid direct eye exposure to the light source while the product is on.
•Always disconnect this product from its power source before servicing.
•Always connect this product to a grounded circuit to avoid the risk of electrocution.
•Do not touch this product’s housing when operating because it may be very hot.
Mounting and Installation
•This product is for outdoor use and can be submerged (IP67). However, do not
submerge deeper than 1 m for more than thirty (30) minutes.
•Make sure there are no flammable materials close to this product while operating.
Power and Wiring
•Always make sure that you are connecting this product to the proper voltage, as per the
specifications in this manual or on the product’s sticker.
•Never connect this product to a dimmer pack.
•Make sure that the power input cable is not cracked, crimped, or damaged.
•Never disconnect this product by pulling or tugging on the power input cable.
Operation
•The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at a
higher temperature.
•In case of a serious operating problem, stop using this product immediately!

Product Description
Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5 3
2. Product Description
The Ilumipod Inground Tri-3 IP Optic 25 RGB is a tri-color wash light intended for inground
installation. The product consists of a cast aluminum body containing a power supply, control
unit, drive-over-rated glass lens cover, and tri-color LEDs.
Features
•1, 3, 4 or 7-channel DMX-512 LED inground washlight
•Operating modes:
1-channel (SOLID): Dimmer
3-channel (ARC 1): RGB control
4-channel (ARC 1 + D): RGB, dimmer
7-channel (ARC FULL): RGB, dimmer, color macro, strobe, dimmer speed
•Five distinct dimming curves
•IP67 stainless steel gland nuts for cable entry
•Remotely addressable with Ilumicode Addresser
•IP67 ingress protection
•Gore™ valve
•Drive-over-rated glass lens cover
•High-power 3 W (1,050 mA) tri-color LEDs
Additional Equipment
•Ilumicode addresser required for product configuration (sold separately)

Product Description
4 Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5
Product Overview
Tri
-color LEDs
Installation
Sleeve
316 Stainless
Steel Gland Nuts

Product Description
Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5 5
Product Dimensions
0.2 in
(4 mm)
7 in
(178 mm)
4.2 in
(107 mm)
5.6 in
(141 mm)
6.0 in
(153 mm)

Installation
6 Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5
3. Installation
Always keep the
power cables
away from the
signal cables by
running them in different
conduits and using
separate distribution
boxes.
Ilumipod
Inground Tri-3 IP
Optic 25 RGB
products can support a
distributed load of up to
3,000 kg (6,614 lb) when
properly installed.
Installation Notes
The Ilumipod Inground Tri-3 IP Optic 25 RGB consists of two parts, the product housing and
the concrete installation sleeve. The product housing is IP67-rated. The installation sleeve is
not. Read the Installation Sleeve Setup instructions carefully.

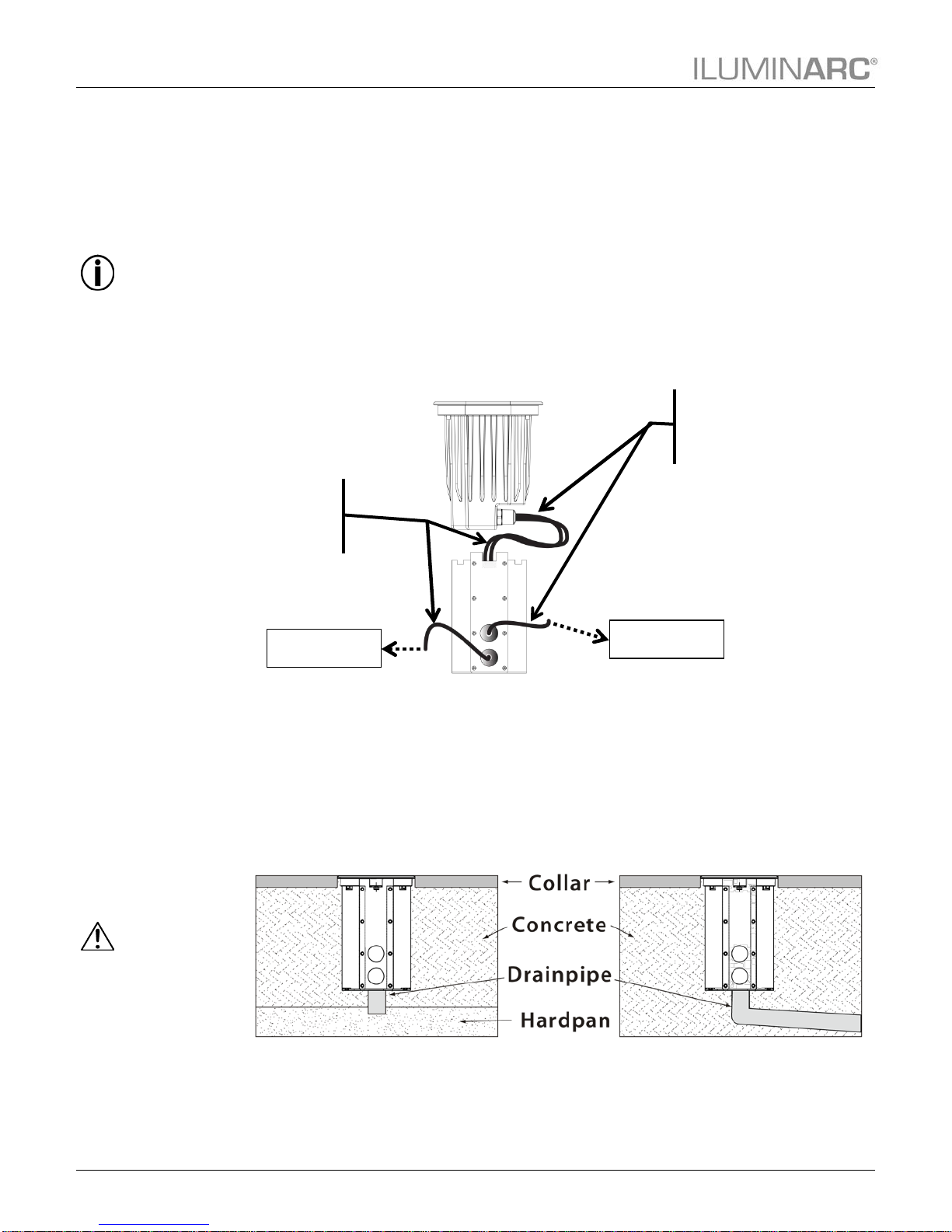

Installation Sleeve Orientation
You will have to run the AC power and signal cables into the concrete installation
sleeve. Position the installation sleeve so the signal cable enters the sleeve using one of
the two cable inlets. Use the opposite inlet for the power cable (refer to the following
figure). This will reduce the stress to the signal and power cables when setting down
the product, while keeping them separated under the product’s housing.
Installation Sleeve Setup
When setting up the installation sleeve, make sure that any water that may have
entered it can drain out of the sleeve on its own. Locate the installation sleeve above
the normal drainage level so the product is never under more than 1 m of water (IP67)
during heavy rain.
In addition, make sure that the installation sleeve and the stainless steel collar are
horizontal and even with the ground surface. This helps to distribute the load
uniformly over the product’s surface and avoids creating dangerous bumps.
Signal
cable
Power
cable
To power
distribution box.
To signal
distribution box.

Installation
Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5 7
Always connect
the Ilumipod
Inground Tri-3 IP
Optic 25 RGB to a
protected circuit with an
appropriate electrical
ground to avoid the risk of
electrocution or fire.
Never connect
the Ilumipod
Inground Tri-3 IP
Optic 25 RGB to a
rheostat (variable resistor)
or dimmer circuit, even if
the rheostat or dimmer
channel serves only as a
0 to 100% switch.
Make sure to
connect the
Ilumipod Inground
Tri-3 IP Optic 25 RGB to a
power line with the proper
voltage and frequency, as
per the specifications in
this manual or on the
product’s sticker.
The listed
current rating
indicates the
maximum current draw
during normal operation.
If you choose to
bury the power or
signal distribution
boxes, make sure that
they are IP67-rated or
greater.
AC Power
The Ilumipod Inground Tri-3 IP Optic 25 RGB has an auto-ranging power supply that can work
with an input voltage range of 100~240 VAC, 50/60 Hz.
Make sure that you are connecting this product to the proper voltage, as per the specifications in
this User Manual or on the product’s sticker.
Power Consumption
To determine the power requirements for the Ilumipod Inground Tri-3 IP Optic 25
RGB see the label affixed to the side of the product. Alternatively, you may refer to
the specifications chart in the Technical Information chapter of this User Manual.
The listed current rating indicates the maximum current draw during normal operation.
AC Plug
The Ilumipod Inground Tri-3 IP Optic 25 RGB comes with an un-terminated power
input cord for hardwiring during installation. Use the table and the illustration below to
wire a plug.
Connection Wire (US) Screw Color (US) Wire (Europe) IP67 Pin
AC Live
Black
Yellow or Brass
Brown
1
AC Neutral
White
Silver or Gray
Blue
2
AC Ground
Green/Yellow
Green
Green/Yellow
3
Power Wiring
You can connect the bare-ended IP67 rated AC power cable from the fixture to an
IP67 rated power connector or IP67 rated junction box.
If using junction boxes, make sure to use IP67-rated conduit for surface installations.

Installation
8 Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5
The Ilumipod
Inground Tri-3 IP
Optic 25 RGB
products must be linked
using DMX cable in a
daisy chain (serial)
fashion. To comply with
the EIA-485 standard, no
more than 32 products
should be connected on
one daisy chain without
using a DMX optically-
isolated splitter. Doing
otherwise may result in
deterioration of the digital
DMX signal.
USITT
recommends
limiting the total
length of the DMX cable
(from the first
product/controller to the
last product) to
300–455 m
(985–1,500 ft).
Disconnect the
product from the
AC power before
opening it.
The signal cable
must match or
exceed the
electrical characteristics
of the Belden® 9841
cable for EIA RS-485
applications. You may
also use CAT5, 5e, or
CAT6 LAN cable.
DMX Linking
You may link the Ilumipod Inground Tri-3 IP Optic 25 RGB to a DMX controller using a
standard DMX serial connection. If using other DMX products compatible with the Ilumipod
Inground Tri-3 IP Optic 25 RGB, you can control each individually with a single DMX
controller.
If you are not familiar with the DMX standard, or if you need information about the DMX
cables needed to link the Ilumipod Inground Tri-3 IP Optic 25 RGB to a DMX controller, you
may download the DMX Primer document from the ILUMINARC® website at
http://www.iluminarc.com/reports/dmx-primer.
DMX Modes
The Ilumipod Inground Tri-3 IP Optic 25 RGB uses the standard DMX data
connection for its ARC 1, ARC 1 + D, ARC FULL, and SOLID. Refer to the
Introduction chapter for a brief description of these modes and the Operation chapter
to learn how to configure the Ilumipod Inground Tri-3 IP Optic 25 RGB. The DMX
Values section will give you detailed information regarding the above-mentioned
DMX modes.
DMX Mode DMX Address DMX Mode DMX Address
ARC FULL
506
SOLID
512
ARC 1
510
ARC 1 + D
509
Protocol Connectivity
The Ilumipod Inground Tri-3 IP Optic 25 RGB uses the USITT DMX 512 Protocol.
The procedure below illustrates the recommended connection method.

Installation
Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5 9
If you have not
configured the
DMX starting
address and DMX
mode for each product,
they will all use their
default values. This
means that all products
will operate in unison.
Controllers
The Ilumipod Inground Tri-3 IP Optic 25 RGB can operate with a standard DMX controller or
the Ilumicode addresser. The sections below will show you how to connect these products to
the corresponding controllers. The instructions to operate these products with each of the above
controllers are in the Operation chapter of this User Manual.
DMX Controller
The Ilumipod Inground Tri-3 IP Optic 25 RGB products can work with a standard
DMX controller. The channel assignments will depend on the chosen personality (see
the Menu Map) and the DMX address assigned to each product (see Programming).
The figure below illustrates how to connect the DMX controller to the Ilumipod
Inground Tri-3 IP Optic 25 RGB products.

Installation
10 Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5
ILUMINARC®
suggests that you
connect no more
than 20 products
together at one time with
this controller and keep the
total distance to less than
60 m (197 ft). Otherwise,
you might need to use an
optically isolated signal
amplifier.
Ilumicode Addresser
The Ilumicode addresser (“Ilumicode”)
is required to program the settings on the
Ilumipod Inground Tri-3 IP Optic 25 RGB. The diagram below shows how to connect
the Ilumicode addresser to this product.
Note that this connection will control multiple products at the same time, all having the
same DMX address.
The Ilumicode must be used to configure the product. The Ilumicode can be
purchased separately through your ILUMINARC® sales representative.

Operation
Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5 11
4. Operation
When you scroll
through the
menu options,
you will see
many of them that do not
correspond with this menu
map. Skip them, as they
do not work with the
RGB-only output
products.
Ilumicode Addresser
The Ilumipod Inground Tri-3 IP Optic 25 RGB needs an external controller, the Ilumicode
addresser, to change its configuration.
Ilumicode Panel Description
Control Options
You can set the Ilumipod Inground Tri-3 IP Optic 25 RGB start address in the 001–512 DMX
range. This allows for the control of up to 73 fixtures in the 7-channel ARC FULL personality.
Programming
Carry out all the programming procedures indicated below from the control panel. Refer to the
Menu Map to learn how the menu options relate to each other.
Use <ENTER> and <MENU> to change levels in the Menu Map. This is equivalent to moving
right and left, respectively. Use <UP> and <DOWN> to move vertically within the Menu Map
options.
DMX Personality
1. Go to PERSON and select any DMX personality.
Ilumipod Inground Tri-3 IP Optic 25 RGB
ARC 1
ARC 1 + D
ARC FULL
SOLID
2. Make sure to rearrange the DMX addresses of all fixtures in the current DMX
universe to avoid address overlapping.
DMX Starting Address
1. Go to DMX.
2. Select a starting DMX address (001–512).
Button
Function
<MENU>
Exits from the current menu or function
<ENTER>
Enables the currently displayed menu or sets the
currently selected value into the selected function
<UP>
Navigates upwards through the menu list and increases
the numeric value when in a function
<DOWN>
Navigates downwards through the menu list and
decreases the numeric value when in a function
<POWER>
Turns the unit on. The unit will turn off automatically
after 30 seconds of inactivity.

Operation
12 Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5
DIM1 is the
fastest dimmer
curve and DIM4
is the slowest.
Static Colors
1. Go to STATIC.
2. Select a color RED, GREN (green), or BLUE; or the strobe effect STRB.
3. Select a color value 000–255 (0–100%) or a strobe frequency 0–20 (0–20 Hz).
Whites Setting
1. Go to CALIB.
2. Select a white color WHITE 1–11 or RGBTOW.
3. Select an RGB color RED, GREN (green), or BLUE.
4. Select a color value 0–255 (0–100%).
5. Repeat steps 3 and 4 for the other RGB colors to obtain a white color.
6. Repeat steps 2 to 5 for the other white colors.
Color
1. Go to SETTINGS > COLOR.
2. Select the color method (OFF, RGBTOW, or UC).
Color Description
OFF
When the RGB faders are all at 255, the output is at its
maximum.
RGBTOW
When the RGB faders are all at 255, the output is the selected
white color (see Whites Setting).
UC
When the RGB faders are all at 255, the output matches the
same color output of previous versions of this product.
Dimmer
This setting gives the user four different options to simulate the dimming curve of an
incandescent lighting product.
1. Go to DIMMER.
2. Select a dimmer curve (OFF or DIM1–4).
Procedure:
DIMMER Description
OFF
Dimmer curve is linear with fader
DIM1
Non-linear (fastest)
DIM2
Non-linear (fast)
DIM3
Non-linear (slow)
DIM4
Non-linear (slowest)
Reset
This option resets the Ilumipod Inground Tri-3 IP Optic 25 RGB to the factory default
settings.
1. Go to SETTINGS > RESET.
2. Select YES or NO.

Operation
Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5 13
Menu Map
Main Level Programming Levels Description
DMX 001–512 Sets the DMX starting address
PERSON
ARC 1 3-channel: RGB control
ARC 1 + D
4-channel: RGB control + dimmer
ARC FULL
7-channel: RGB control, dimmer, color macro, strobe,
dimmer speed
SOLID
1-channel: dimmer
CALIB
WHITE 1–11 RED
GREN
BLUE 0–255
Determines the white balance for the color macros
RGBTOW Determines the white balance when RGBTOW is
active
DIMMER
OFF Dimmer works in linear mode
DIM1
Dimmer works in non-linear mode, from fast (DIM1)
to slow (DIM4).
DIM2
DIM3
DIM4
STATIC
RED
0–255 Configures the static color (0–100%) and
the strobe effect (0–20 Hz)
GREN
BLUE
STRB
0–20
SETTINGS
COLOR
OFF
Maximum output, unbalanced white
RGBTOW White output is as per CALIB > RGBTOW settings
UC Output matches that of product’s previous versions
RESET
YES
Resets product to factory default settings
NO

Operation
14 Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5
DMX Values
ARC 1
Channel
Function
Value
Percent/Setting
1
Red
000 ó255
0–100%
2
Green
000 ó255
0–100%
3
Blue
000 ó255
0–100%
ARC 1 + D
Channel Function Value Percent/Setting
1
Dimmer
000 ó255
0–100%
2
Red
000 ó255
0–100%
3
Green
000 ó255
0–100%
4
Blue
000 ó255
0–100%
SOLID
Channel
Function
Value
Percent/Setting
1
Dimmer
000 ó255
0–100%

Operation
Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5 15
ARC FULL
Channel
Function
Value
Percent/Setting
1
Dimmer
000 ó255
0–100%
2
Red
000 ó255
0–100%
3
Green
000 ó255
0–100%
4
Blue
000 ó255
0–100%
5
White
000 ó255
0–100%
6 Color Macro + White Balance
000 ó010
011 ó030
031 ó050
051 ó070
071 ó090
091 ó110
111 ó130
131 ó150
151 ó170
171 ó200
201 ó205
206 ó210
211 ó215
216 ó220
221 ó225
226 ó230
231 ó235
236 ó240
241 ó245
246 ó250
251 ó255
No Function
Red 100% Green Up Blue 0%
Red Down Green 100% Blue 0%
Red 0% Green 100% Blue Up
Red 0% Green Down Blue 100%
Red Up Green 0% Blue 100%
Red 100% Green 0% Blue Down
Red 100% Green Up Blue Up
Red Down Green Down Blue 100%
Red 100% Green 100% Blue 100%
White 1: 3200 K
White 2: 3400 K
White 3: 4200 K
White 4: 4900 K
White 5: 5600 K
White 6: 5900 K
White 7: 6500 K
White 8: 7200 K
White 9: 8000 K
White 10: 8500 K
White 11: 10000 K
7 Strobe
000
ó
004
005 ó255
No Function
0–20 Hz
8 Dimming Speed
000 ó009
010 ó029
030 ó069
070 ó129
130 ó189
190
ó
255
Dimmer is set by Ilumicode
OFF (dimmer is linear)
DIM1 (fastest dimmer curve)
DIM2
DIM3
DIM4 (slowest dimmer curve)

Technical Information
16 Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5
5. Technical Information
Always dry the
external optics
and glass
surfaces carefully after
cleaning them.
If you still
experience
technical
problems after
trying the solutions in the
Troubleshooting Table,
contact ILUMINARC®
Technical Support.
Product Maintenance
To maintain optimum performance and minimize wear, the user should clean the products
frequently. Usage and environment are contributing factors in determining the cleaning
frequency. As a rule, the user should clean the products at least twice a month. Dust build-up
reduces light output performance and can cause overheating. This can lead to reduced light
source life.
To clean a product, follow the instructions below:
•Disconnect the power to the product.
•Wait until the product is at room temperature.
•Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the
external surfaces.
•Clean all external glass optics and glass surfaces with a mild solution of glass cleaner or
isopropyl alcohol, and a soft, lint free cotton cloth or a lens cleaning tissue.
•Apply the solution directly to the cloth or tissue and drag any dirt and grime to the outside
of the lens.
•Gently polish the external glass surfaces until they are free of haze and lint.
Product Repairs
ILUMINARC®strongly advises you against attempting any repairs to this product unless you
are an authorized ILUMINARC®technician.
ILUMINARC®presents the information contained in the Troubleshooting Table as a guide
only. In most cases, opening the product’s housing will invalidate its warranty, unless there is a
written indication to the contrary.
