USERÕS MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satis-
faction through direct assis-
tance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
Model No. IMEX35080
Serial No.
Write the serial number in the
space above for future reference.
Patent Pending
Visit our website at
www.imagefitness.com
new products, prizes,
fitness tips, and much more!

2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

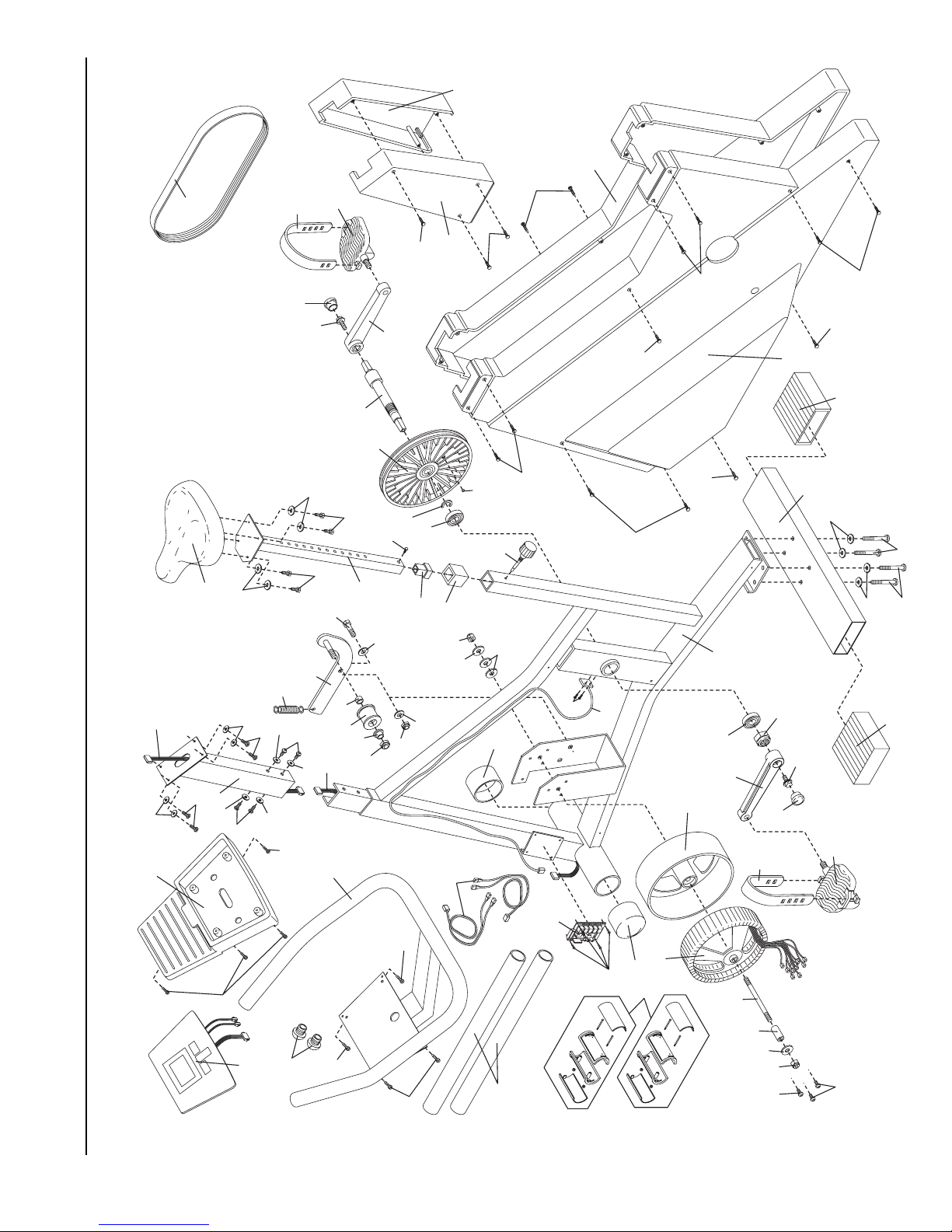

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
1. Read all instructions in this manual before
using the exercise cycle. Use the exercise
cycle only as described in this manual.
2. It is the responsibility of the owner to
ensure that all users of the exercise cycle
are adequately informed of all precautions.
3. Use the exercise cycle indoors on a level
surface. Keep the exercise cycle away from
moisture and dust. Place a mat under the
exercise cycle to protect the floor or carpet.
4. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
5. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
6. The exercise cycle should not be used by
persons weighing more than 250 pounds.
7. Wear appropriate clothing and athletic
shoes when exercising; do not wear loose
clothing that could become caught on the
exercise cycle.
8. Always keep your back straight when using
the exercise cycle. Do not arch your back.
9. If you feel pain or dizziness while exercis-
ing, stop immediately and cool down.
10. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended
only as an exercise aid in determining heart
rate trends in general.
11. The exercise cycle is intended for in-home
use only. Do not use the exercise cycle in a
commercial, rental, or institutional setting.

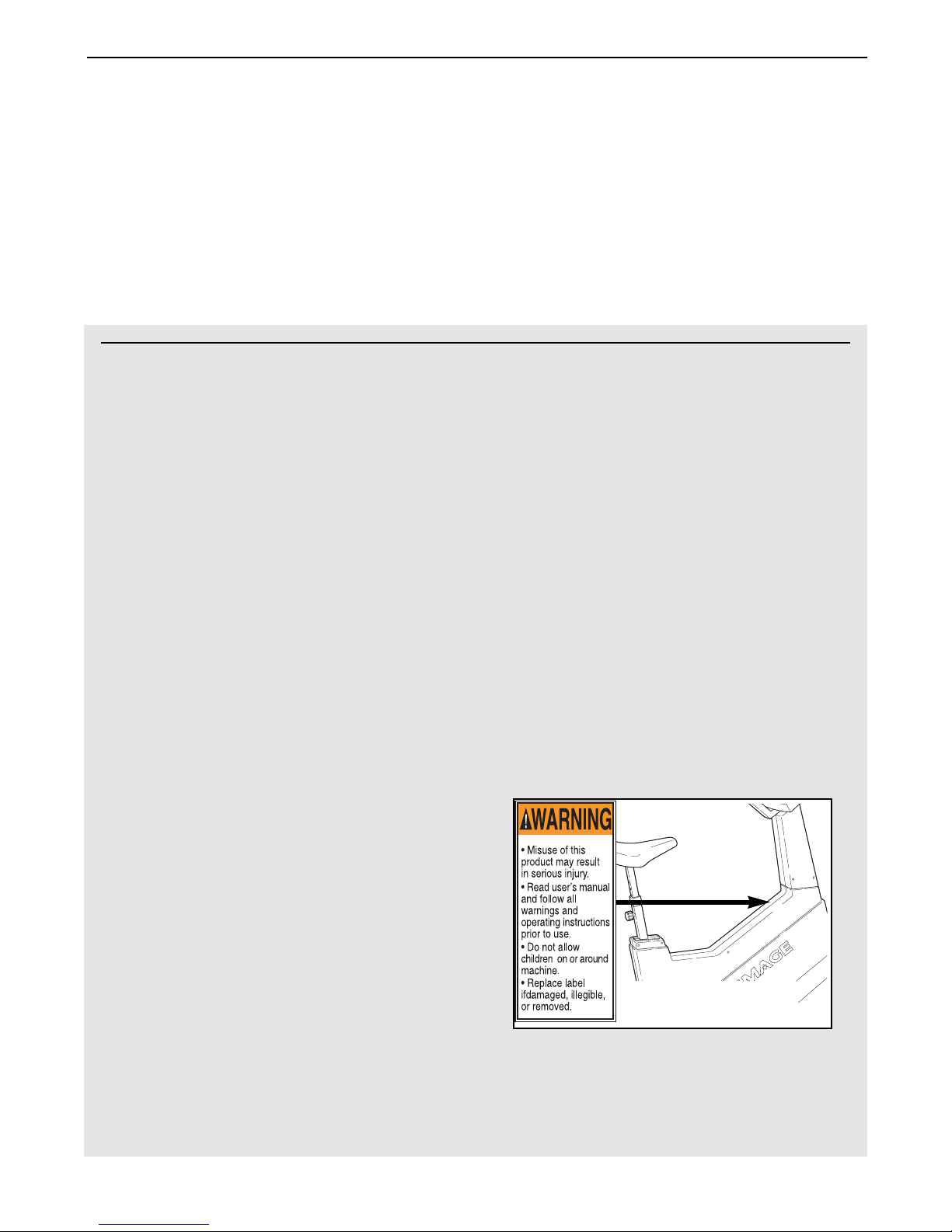

12. CAUTION DECAL: The decal shown below
has been placed on the exercise cycle. If
the decal is missing, or if it is not legible,
please call our Customer Service
Department toll-free at 1-800-999-3756 to
order a free replacement decal. Apply the
decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician. This is espe-
cially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or proper-
ty damage sustained by or through the use of this product.
Note: Decal is shown
at 75% of actual size
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions before
using the exercise cycle.

3
Congratulations for selecting the new IMAGE¨3.2C
exercise cycle. Cycling is one of the most effective
exercises for increasing cardiovascular fitness, building
endurance, and toning the entire body. The IMAGE¨
3.2C offers an impressive array of features designed
to let you enjoy this healthful exercise in the comfort
and privacy of your home.
For your benefit, read this manual carefully before
you use the IMAGE¨3.2C. If you have additional
questions, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
mention the product model number and serial number
when calling. The model number is IMEX35080. The
serial number can be found on a decal attached to
the IMAGE¨3.2C (see the front cover of this manual).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Handlebar
FRONT
BACK
Seat
Seat Knob
Seat Post
Side Shield
Upper Side Shield
Pedal
Pedal Strap
Rear Stabilizer
Console
Book Holder
RIGHT SIDE
BEFORE YOU BEGIN

4
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench .
PART CHART
Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the PART LIST on page 14. The second number refers
to the quantity needed for assembly. Note: Some small parts may have been pre-attached for shipping. If a
part is not in the parts bag, check to see if it has been pre-assembled.
M8 x 15mm Button Screw (7)Ð4
M8 x 55mm Button Screw (63)Ð4
Monitor Screw (17)Ð4
Console Screw (20)Ð4
#8 x 19mm Screw (11)Ð3
M8 x 20mm Button Screw (25)Ð4
M6 x 15mm Hex Screw (29)Ð4
M8 Black Flat Washer (57)Ð16

5
1
63
57
3
1. Attach the Rear Stabilizer (3) to the Frame (1) with
four M8 x 55mm Button Screws (63) and four M8
Black Flat Washers (57).
2. Attach the Seat (12) to the Seat Post (13) with four
M6 x 15mm Hex Screws (29) and four M8 Black Flat
Washers (57).
3. Turn the Seat Knob (8) counterclockwise one com-
plete turn. Next, pull back the Seat Knob and insert
the Seat Post (13) into the Frame (1). Slide the Seat
Post up or down to the desired height and release
the Seat Knob. Make sure that the Seat Knob
snaps into one of the holes in the Seat Post. Turn
the Seat Knob clockwise to retighten it.
Press the Seat Post Bushing (26) down onto the top
of the Frame (1).
4. The Console (2) requires two ÒAAÓ batteries (not
included); alkaline batteries are recommended. Turn
the Console over and press two batteries into the
battery holder (see the inset drawing). Make sure
that the negative (Ð) ends of the batteries are
touching the springs in the battery holder.
Hold the Console (2) near the Console Base (9).
Insert the two pulse wires and the wire harness
through the slot in the center of the Console Base.
Attach the Console to the Console Base with the four
Monitor Screws (17). Be careful not to pinch the
wires.
2
3
4
12
13
57
29
13
1
8
26
2
9
Pulse
Wires
Wire
Harness
17
1
Battery Holder
