USER'S MANUAL
®
CAUTION
Read all precautions and instruc-
tions in this manual be ore using
this equipment. Save this manual
or uture re erence.
Serial Number Decal
Model No. IMTL11997
Serial No.
Find the serial number in the location
shown below. Write the serial number
in the space above for reference.
Visit our website at
www.image itness.com
new products, prizes,
fitness tips, and much more!
QUESTIONS?
I you have questions, or i there
are missing parts, we will guar-
antee complete satis action
through direct assistance rom
our actory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, ree o
charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
Patent Pending

TABLE OF CONTENTS
IMP RTANT PRECAUTI NS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEF RE Y U BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PERATI N AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
H W T F LD AND M VE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
TR UBLE-SH TING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
C NDITI NING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
RDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPL DED DRAWING is attached in the center of this manual.
®
IMAGE is a registered trademark of IC N Health & Fitness, Inc.
2

3
1. It is the responsibility o the owner to ensure
that all users o this treadmill are adequately
in ormed o all warnings and precautions.
2. Use the treadmill only as described in this
manual.
3. Place the treadmill on a level sur ace, with at
least eight eet o clearance behind it. Do not
place the treadmill on any sur ace that blocks
air openings. To protect the loor or carpet
rom damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away rom mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age o 12 and pets
away rom the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 275 pounds.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended or
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
10. When connecting the power cord (see page 8),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable o carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that
meets all o the speci ications described on
page 8. To purchase a surge suppressor, see
your local IMAGE dealer or call 1-800-806-3651
and order part number 146148.
12. Failure to use a properly unctioning surge
suppressor could result in damage to the con-
trol system o the treadmill. I the control sys-
tem is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a all and serious injury.
13. Keep the power cord and the surge suppres-
sor away rom heated sur aces.
14. Never move the walking belt while the power
is turned o . Do not operate the treadmill i
the power cord or plug is damaged, or i the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 5 i the tread-
mill is not working properly.)
15. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
16. The treadmill is capable o high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
17. The pulse sensor is not a medical device.
Various actors, including the user's move-
ment, may a ect the accuracy o heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
18. Using hand weights and not holding the
handrails may compromise your ability to
maintain your balance. Hand weights should
be used only by experienced users.
19. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord and move the on/o switch to
the o position when the treadmill is not in
use. (See the drawing on page 5 or the loca-
tion o the on/o switch.)
20. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 22.) You
must be able to sa ely li t 45 pounds (20 kg) in
order to raise, lower, or move the treadmill.
WARNING:To reduce the risk o burns, ire, electric shock, or injury to persons, read the
ollowing important precautions and in ormation be ore operating the treadmill.
IMPORTANT PRECAUTIONS

21. Do not change the incline o the treadmill by
placing objects under the treadmill.
22. When olding or moving the treadmill, make
sure that the storage latch is ully closed.
23. When using iFIT.com CD’s and videos, an
electronic “chirping” sound will alert you
when the speed and/or incline o the treadmill
is about to change. Always listen or the
“chirp” and be prepared or speed and/or in-
cline changes. In some instances, the speed
and/or incline may change be ore the per-
sonal trainer describes the change.
24. When using iFIT.com CD’s and videos, you
can manually override the speed and incline
settings at any time by pressing the speed
and incline buttons. However, when the next
“chirp” is heard, the speed and/or incline will
change to the next settings o the CD or video
program.
25. Always remove iFIT.com CD’s and videos
rom your CD player or VCR when you are not
using them.
26. Inspect and tighten all parts o the treadmill
regularly.
27. Never insert or drop any object into any
opening.
28. DANGER:Always unplug the power
cord immediately a ter use, be ore cleaning
the treadmill, and be ore per orming the main-
tenance and adjustment procedures de-
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be per ormed by an authorized service
representative only.
29. This treadmill is intended or in-home use
only. Do not use this treadmill in any commer-
cial, rental, or institutional setting.
WARNING:Be ore beginning this or any exercise program, consult your physician. This
is especially important or persons over the age o 35 or persons with pre-existing health problems.
Read all instructions be ore using. ICON assumes no responsibility or personal injury or property
damage sustained by or through the use o this product.
SAVE THESE INSTRUCTIONS
The decals shown below have been placed on your treadmill. I the decal is missing or illegible, please
call our Customer Service Department, toll- ree, to order a ree replacement decal (see ORDERING RE-
PLACEMENT PARTS on page 27). Apply the decal in the location shown.
Note: This decal is shown at 38% of actual size.
4

Thank you for selecting the revolutionary IMAGE®
10.2QL treadmill. The IMAGE 10.2QL treadmill com-
bines advanced technology with innovative design to
help you get the most from your exercise program in
the convenience of your home. And when you’re not
exercising, the unique IMAGE 10.2QL can be folded
up, requiring less than half the floor space of other
treadmills.
For your bene it, read this manual care ully be ore
using the treadmill. If you have additional questions,
please call our Customer Service Department toll-free
at 1-800-999-3756, Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time (excluding holidays). To
help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is IMTL11997. The serial num-
ber can be found on a decal attached to the treadmill
(see the front cover of this manual for the location).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Console
Hand Weights
Lock Knob
Book Holder
Key/Clip
Circuit Breaker
n/ ff Switch
Walking Belt
Cushioned Walking Platform
Foot Rail
Power Cord
Rear Roller
Adjustment Bolts
Water Bottle Holder*
Pulse Sensor
RIGHT SIDE
LEFT SIDE
*No water bottle is included.
5

3. With the help of a second person, carefully tip the
Uprights (69) down as shown. Make sure that the
Extension Legs (102) remain in the Uprights.
Attach each Extension Leg (102) with two Screws (111)
as shown.
With the help of a second person, carefully tip the
Uprights (69) back to the vertical position.
Note: ne replacement Base Pad (99) may be included.
Use the Base Pad to replace any Base Pad that becomes
worn. 111
102
69 69 111
102
99
99
Frame
3
2. Press the Lock Knob Sleeve (70) into the left Upright (69).
Make sure that the Lock Pin Collar (72) and the Spring
(71) are on the Lock Pin (74). Insert the Lock Pin into the
Lock Knob Sleeve (70) and the left Upright (69). Next,
press the Lock Knob Spacer (80) onto the left Upright.
Tighten the Lock Knob (68) onto the Lock Pin.
69
80
70
68
71 72 74
2
ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench
and your own phillips screwdriver and wire cutters .
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
1. With the help of a second person, carefully raise the
Uprights (69) until the treadmill is in the position shown.
See the inset drawing. Insert one of the Extension Legs
(102) into the treadmill as shown. Make sure that the
Extension Leg is turned so the Base Pad (99) is on the
bottom. Note: It may be helpful to tip the Uprights (69)
forward as you insert the Extension Leg.
Insert the other Extension Leg (not shown) in the same
way.
1
69
99
102
69
6

7. Make sure that all parts are tightened be ore you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 24). To protect the floor or carpet
from damage, place a mat under the treadmill.
6. Insert two Handrail Bolts (78) with Handrail Washers
(77) and Handrail Bushings (75) into the right Upright
(69) and the right Handrail Spacer (65). Turn the
Handrail Bushings so they fit against the Upright, with
the thick sides of the Bushings toward the center of the
treadmill, as shown in the inset drawing. Lift the right
Handrail (66) slightly and align the Bolts with the holes
in the Handrail. Next, thread the Bolts into the Handrail.
Do not tighten the Bolts yet.
Attach the left Handrail (not shown) in the same way.
Tighten all four Handrail Bolts (78).
6
78
77
75
69
66
65
75
77 Thick
Side
5. Pull the Upright Wire Harness (98) up through the other
Handrail Spacer (65). Place the Handrail Spacer on the
right Upright (69) as shown, with the cutout turned to-
ward the treadmill (see inset drawing A).
Have a second person hold the Handrails (66) near the
Uprights (69) as shown. Connect the Upright Wire
Harness (98) to the wires extending from the Console
Base (81). See inset drawing B. Insert the connectors
and the Upright Wire Harness into the hole in the
Console Base (81).
Being careful not to pinch the Wire Harness (98), set the
Handrails (66) on the Spacers (65).
5
98 69
66
81
65
69
65
81
98
A
B
Cutout
4. Slide the Grounding Bracket (64) onto one of the Handrail
Spacers (65) in the location shown.
See inset drawing A. Pinch the tabs on the Grounding
Bracket (64) so that the tabs will fit into the hole in the
Upright (69 [see inset drawing B]).
See inset drawing B. Place the Handrail Spacer (65) on
the left Upright (69) as shown, with the cutout on the indi-
cated side. Note: Make sure that the tabs on the
Grounding Bracket (64 [see inset drawing A])) are in-
serted into the hole in the Upright.
4Tabs
A
B
69
64
117
65
65
Cutout
7

8
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETM WALKING BELT
Your treadmill features a walking belt coated with
PERF RMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
orm. Such substances will deteriorate the walking
belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility o
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local IMAGE dealer or call 1-800-806-3651 and
order part number 146148.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating o 400 volts or less
and a minimum surge dissipation o 450 joules.
The surge suppressor must be electrically rated
or 120 volts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indi-
cate whether it is unctioning properly. Failure to
use a properly unctioning surge suppressor could
result in damage to the control system o the
treadmill. I the control system is damaged, the
walking belt may change speed or stop unexpect-
edly, which may result in a all and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a quali ied elec-
trician to determine i the outlet box cover is
grounded be ore using an adapter.
DANGER:Improper connection
o the equipment-grounding conductor can
result in an increased risk o electric shock.
Check with a quali ied electrician or service-
man i you are in doubt as to whether the
product is properly grounded. Do not modi y
the plug provided with the product—i it will
not it the outlet, have a proper outlet
installed by a quali ied electrician.
1
2
Grounded utlet Box
Grounded utlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded utlet
Grounding Pin

9

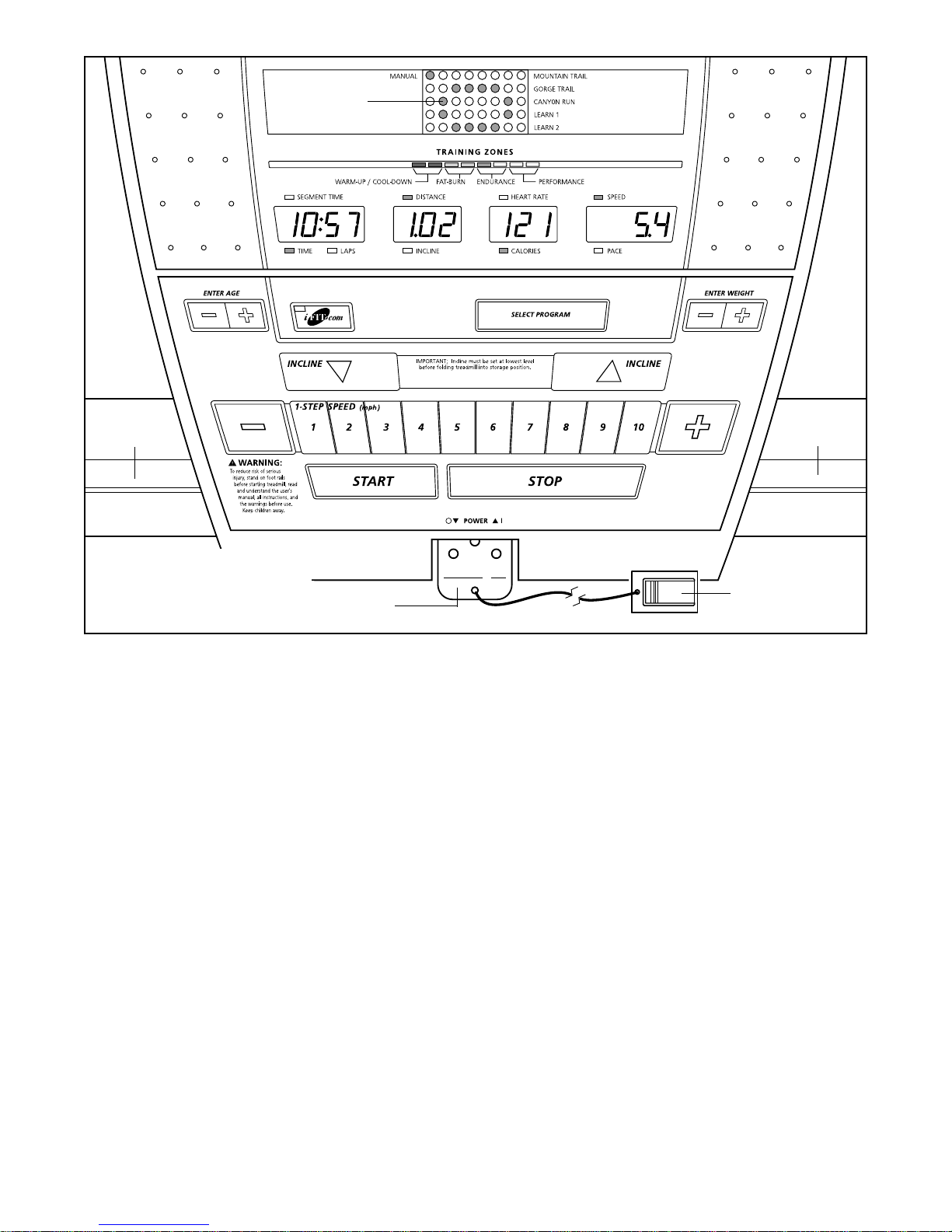

FEATURES OF THE CONSOLE
The advanced console offers an impressive array of
features to help you get the most from your exercise.
When the console is in the manual mode, the speed
and incline of the treadmill can be changed with a touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the built-in pulse sensor.
Three preset workout programs are also offered. Each
program automatically controls the speed and incline
of the treadmill to give you an effective workout. You
can even create your own custom workout programs
and store them in memory for future use.
The console also features new iFIT.com interactive
technology. IFIT.com technology is like having a per-
sonal trainer right in your home. Using the included
audio cable, you can connect the treadmill to your
home stereo, portable stereo, or computer and play
special iFIT.com CD programs (iFIT.com CDs are avail-
able separately). IFIT.com CD programs automatically
control the speed and incline of the treadmill as a per-
sonal trainer guides you through every step of your
workout. High-energy music provides added motivation.
Each CD features two programs designed by certified
personal trainers.
In addition, you can connect the treadmill to your VCR
and TV and play iFIT.com video programs (videocas-
settes are available separately). Video programs offer
the same benefits as iFIT.com CD programs, but add
the excitement of working out with a class and an
instructor—the hottest new trend at health clubs.
With the treadmill connected to your computer, you
can also go to our Web site at www.iFIT.com and ac-
cess basic programs, audio programs, and video pro-
grams directly from the internet. Additional options are
soon to be available. See www.iFIT.com for details.
To purchase iFIT.com CDs or videocassettes, call toll-
free 1-800-735-0768. For information about an optional
chest pulse sensor, see page 21.
To use the manual mode o the console, follow the
steps beginning on page 11. To use a preset program,
see page 12. To create and use a custom program,
see pages 14 and 15. To use an iFIT.com CD or
video program, see page 18. To use an iFIT.com
program directly rom our Web site, see page 20.
Program
Display
Pulse
Sensor Pulse
Sensor
Clip
Key
Note: If there is a thin sheet
of clear plastic on the face
of the console, remove it.

10
GETTING STARTED
Attach the clip to the waistband o your clothes.
Stand on the foot pads
of the treadmill. Find
the clip attached to the
key and slide the clip
onto the waistband of
your clothes. Next, in-
sert the key into the
console. Test the clip
by care ully taking a ew steps backward until
the key is pulled rom the console. I the key is
not pulled rom the console, adjust the posi-
tion o the clip as needed. Then, remove the key
from the console.
Plug in the power cord.
See H W T PLUG IN THE P WER C RD on
page 8.
Move the on/o switch to the on position.
Locate the on/off switch
on the treadmill near the
power cord. Move the
on/off switch to the on
position.
Insert the key ully into the console.
Stand on the foot pads of the treadmill. Make sure
that the clip is securely attached to the waistband
of your clothes. Next, insert the key into the con-
sole. After a moment, various displays and indica-
tors on the console will light.
Enter your weight.
Although you can use
the console without
entering your weight, the
console will display your
calorie expenditure more
accurately if you enter
your weight. To enter your weight, press either of
the Enter Weight buttons. The current weight set-
ting will appear in the Speed/Pace display. Press
the Enter Weight buttons again to enter your
weight. A few seconds after the buttons are
pressed, the weight setting will disappear from the
display. Your weight will then be saved in memory.
Enter your age, i necessary.
Although you can use
the console without en-
tering your age, some
features on our Web site
may require you to enter
your age (see page 20).
To enter your age, press either of the Enter Age
buttons. The current age setting will
appear in the Time/Laps display. Press the Enter
Age buttons again to enter your age. A few sec-
onds after the buttons are pressed, the age setting
will disappear from the display. Your age will then
be saved in memory.
6
5
4
3
2
1
CAUTION:Be ore operating the
console, read the ollowing precautions.
• Do not stand on the walking belt when turn-
ing on the power.
• Always wear the clip (see the drawing below)
while operating the treadmill.
• Adjust the speed in small increments to
avoid sudden jumps in speed.
• The pulse sensor is not a medical device.
Various actors, including the user’s move-
ment, may a ect the accuracy o heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
• Using hand weights and not holding the
handrails may compromise your ability to
maintain your balance. Hand weights should
be used only by experienced users.
• To reduce the possibility o electric shock,
keep the console dry. Avoid spilling liquids
on the console and place only a sealed water
bottle in the water bottle holder.
n
Position
Clip
