Edition B
November 2006
DAC6800+BCA4,
DAC6800+BCA4Z
Digital-to-Analog Audio Converters
Installation and Operation Manual

DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual iii
Contents
Preface
Manual Information .............................................................................. vii
Purpose ........................................................................................... vii
Audience ........................................................................................ vii
Revision History ............................................................................ vii
Writing Conventions ..................................................................... viii
Obtaining Documents ................................................................... viii
Unpacking/Shipping Information .......................................................... ix
Unpacking a Product ....................................................................... ix
Product Servicing ............................................................................ ix
Returning a Product ........................................................................ ix
Restriction on Hazardous Substances (RoHS) Compliance ....................x
Waste from Electrical and Electronic Equipment (WEEE) Compliance xi
Safety .................................................................................................... xii
Safety Terms and Symbols in this Manual .................................... xii
Chapter 1: Introduction
Overview ..................................................................................................1
Product Description ..................................................................................2
Main Features ...................................................................................2
Module Descriptions ................................................................................3
Front Module ....................................................................................3
Back Connectors ...............................................................................5
Signal Flow .......................................................................................6
Chapter 2: Installation
Overview ..................................................................................................7
Maximum 6800+Frame Power Ratings ..................................................8

iv DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual
Contents
Unpacking the Module ............................................................................ 9
Preparing the Product for Installation .............................................. 9
Checking the Packing List ............................................................... 9
Setting Jumpers ..................................................................................... 10
Setting the REM/LOC Jumper for Remote or Local Control ........ 11
Setting Jumpers ‘A’, ‘B’ and ‘C’ for Analog Level Options ......... 12
Setting Jumpers for Balanced/Unbalanced AES Input .................. 14
Installing 6800+Modules ..................................................................... 15
Required Frames and Back Connector Types ................................ 15
Installing and Removing EAS6800+Modules .............................. 15
Upgrading Module Firmware ................................................................ 16
Upgrading the Firmware in Boot Loader Mode ............................. 16
Correcting a Failed Upgrade Procedure ......................................... 20
Chapter 3: Operation
Overview ............................................................................................... 23
Operating Notes ..................................................................................... 24
Reading the Software Version ....................................................... 24
Reading Hardware Identifiers ........................................................ 24
Analog Audio Output Level Offset ................................................ 25
Changing Parameter Settings ................................................................ 26
Viewing DAC6800+Control Parameters ............................................. 27
LEDs and Alarms .................................................................................. 28
Monitoring LEDs ........................................................................... 28
Module Status LEDs ...................................................................... 29
Alarms ............................................................................................ 30
Errors .............................................................................................. 30
Chapter 4: Specifications
Overview ............................................................................................... 31
Inputs ..................................................................................................... 32
Balanced AES Input ....................................................................... 32
Unbalanced AES Input ................................................................... 32
Outputs .................................................................................................. 33
Analog Audio Output (DAC6800+BCA4 Only) ........................... 33
Analog Audio Output (DAC6800+BCA4Z Only) ....................... 34
Power Consumption .............................................................................. 34
Operating Temperature ......................................................................... 34
Overview ............................................................................................... 35

DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual v
Contents
General Troubleshooting Steps ..............................................................36
Software Communication and Control Issues ........................................36
+Pilot Lite Fails to Communicate with Installed Modules ...........37
+Pilot Lite Does Not Find All Modules in Frame ........................38
+Pilot Lite or CCS Software Application Not Responding ..........39
+Pilot Lite Cannot Control a Module Showing
in the Control Window ...................................................................39
+Pilot Lite Status Bar Reports “Not Ready” .................................39
CCS Software Application or Remote Control Panel Does Not
Communicate with Module ............................................................39
Alarm Query Fails When a Device Reboots ...................................40
Hardware Communication and Control Issues ......................................40
Frames Fail to Communicate with the PC after a Power Failure ...40
Module Does Not Seem to Work ....................................................40
Contacting Customer Service .................................................................40
Index
Keywords ...............................................................................................41

vi DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual
Contents

DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual vii
Preface
Manual Information
Purpose
This manual details the features, installation, operation, maintenance,
and specifications for the DAC6800+BCA4 and DAC6800+BCA4Z
four-channel Digital-to-Analog Audio Converters.
Audience
This manual is written for engineers, technicians, and operators
responsible for installation, setup, maintenance, and/or operation of the
DAC6800+BCA4 and DAC6800+BCA4Z Digital-to-Analog Audio
Converters.
Revision History
Table P-1. Revision History of Manual
Edition Date Comments
A August 2004 Initial Release
B November 2006 Addition of Analog Audio Output Level
Offset Parameter

viii DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual
Preface
Writing Conventions
To enhance your understanding, the authors of this manual have
adhered to the following text conventions:
Obtaining Documents
Product support documents can be viewed or downloaded from our
Web site at www.broadcast.harris.com/leitch (go to Support>
Documentation). Alternatively, contact your customer service
representative to request a document.
Table P-2. Writing Conventions
Term or
Convention Description
Bold Indicates dialog boxes, property sheets, fields, buttons,
check boxes, list boxes, combo boxes, menus,
submenus, windows, lists, and selection names
Italics Indicates E-mail addresses, the names of books or
publications, and the first instances of new terms and
specialized words that need emphasis
CAPS Indicates a specific key on the keyboard, such as
ENTER, TAB, CTRL, ALT, or DELETE
Code Indicates variables or command-line entries, such as a
DOS entry or something you type into a field
> Indicates the direction of navigation through a hierarchy
of menus and windows
hyperlink Indicates a jump to another location within the
electronic document or elsewhere
Internet address Indicates a jump to a Web site or URL
Note
Indicates important information that helps to avoid and
troubleshoot problems

DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual ix
Preface
Unpacking/Shipping Information
Unpacking a Product
This product was carefully inspected, tested, and calibrated before
shipment to ensure years of stable and trouble-free service.
1. Check equipment for any visible damage that may have occurred
during transit.
2. Confirm that you have received all items listed on the packing list.
3. Contact your dealer if any item on the packing list is missing.
4. Contact the carrier if any item is damaged.
5. Remove all packaging material from the product and its associated
components before you install the unit.
Keep at least one set of original packaging, in the event that you need to
return a product for servicing.
Product Servicing
Except for firmware upgrades, DAC6800+BCA4 and
DAC6800+BCA4Z modules are not designed for field servicing. All
hardware upgrades, modifications, or repairs require you to return the
modules to the Customer Service center.
Returning a Product
In the unlikely event that your product fails to operate properly, please
contact Customer Service to obtain a Return Authorization (RA)
number, then send the unit back for servicing.
Keep at least one set of original packaging in the event that a product
needs to be returned for service. If the original package is not available,
you can supply your own packaging as long as it meets the following
criteria:
• The packaging must be able to withstand the product’s weight.
• The product must be held rigid within the packaging.
• There must be at least 2 in. (5 cm) of space between the product and
the container.
• The corners of the product must be protected.

x DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual
Preface
Ship products back to us for servicing prepaid and, if possible, in the
original packaging material. If the product is still within the warranty
period, we will return the product prepaid after servicing.
Restriction on Hazardous Substances (RoHS)
Compliance
Directive 2002/95/EC—commonly known as the European Union (EU)
Restriction on Hazardous Substances (RoHS)—sets limits on the use of
certain substances found in electrical and electronic equipment. The
intent of this legislation is to reduce the amount of hazardous chemicals
that may leach out of landfill sites or otherwise contaminate the
environment during end-of-life recycling. The Directive takes effect on
July 1, 2006, and it refers to the following hazardous substances:
• Lead (Pb)
• Mercury (Hg)
• Cadmium (Cd)
• Hexavalent Chromium (Cr-V1)
• Polybrominated Biphenyls (PBB)
• Polybrominated Diphenyl Ethers (PBDE)
According to this EU Directive, all products sold in the European Union
will be fully RoHS-compliant and “lead-free.” (See our Web site for
more information on dates and deadlines for compliance.) Spare parts
supplied for the repair and upgrade of equipment sold before
July 1, 2006 are exempt from the legislation. Equipment that complies
with the EU directive will be marked with a RoHS-compliant emblem,
as shown in Figure P-1.
Figure P-1. RoHS Compliance Emblem

DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual xi
Preface
Waste from Electrical and Electronic
Equipment (WEEE) Compliance
The European Union (EU) Directive 2002/96/EC on Waste from
Electrical and Electronic Equipment (WEEE) deals with the collection,
treatment, recovery, and recycling of electrical and electronic waste
products. The objective of the WEEE Directive is to assign the
responsibility for the disposal of associated hazardous waste to either
the producers or users of these products. Effective August 13, 2005,
producers or users will be required to recycle electrical and electronic
equipment at end of its useful life, and may not dispose of the
equipment in landfills or by using other unapproved methods. (Some
EU member states may have different deadlines.)
In accordance with this EU Directive, companies selling electric or
electronic devices in the EU will affix labels indicating that such
products must be properly recycled. (See our Web site for more
information on dates and deadlines for compliance.) Contact your local
sales representative for information on returning these products for
recycling. Equipment that complies with the EU directive will be
marked with a WEEE-compliant emblem, as shown in Figure P-2.
Figure P-2. WEEE Compliance Emblem

xii DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual
Preface
Safety
Carefully review all safety precautions to avoid injury and prevent
damage to this product or any products connected to it. If this product is
rack-mountable, it should be mounted in an appropriate rack using the
rack-mounting positions and rear support guides provided. It is
recommended that each frame be connected to a separate electrical
circuit for protection against circuit overloading. If this product relies
on forced air cooling, it is recommended that all obstructions to the air
flow be removed prior to mounting the frame in the rack.
If this product has a provision for external earth grounding, it is
recommended that the frame be grounded to earth via the protective
earth ground on the rear panel.
IMPORTANT! Only qualified personnel should perform service
procedures.
Safety Terms and Symbols in this Manual
WARNING
Statements identifying conditions or
practices that may result in personal injury
or loss of life. High voltage is present.
CAUTION
Statements identifying conditions or
practices that can result in damage to the
equipment or other property.

DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual 1
Chapter 1
Introduction
Overview
The DAC6800+BCA4 and DAC6800+BCA4Z are four-channel
digital-to-analog audio converters that support two AES inputs and four
analog audio output channels. Both versions generate either unbalanced
or balanced AES inputs, and balanced analog outputs. The DAC6800+
BCA4Z generates 600 ohms of output impedance, while the
DAC6800+BCA4 generates 66 ohms of output impedance.
The following topics appear in this chapter:
•“Product Description” on page 2
•“Module Descriptions” on page 3
•“Signal Flow” on page 6

2 DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual
Chapter 1: Introduction
Product Description
The DAC6800+BCA4/4Z Four-Channel Digital-to-Analog Converter
converts two AES inputs to four analog audio output channels. All
versions support either unbalanced or balanced AES inputs, and
balanced analog outputs. These options are all set via jumpers on the
board itself. The DAC6800+BCA4Z outputs 600 ohms output
impedance.
These modules can be monitored locally via the card edge, or remotely
with control software applications such as CCSTM+Pilot Lite™, CCS™
Pilot™, and CCS Navigator™, or control panels LCP-3901-1U and
RCP-CCS-1U, or other CCS-compliant products.
Two module types are available:
• DAC6800+BCA4 has two AES inputs and four analog audio
output channels at 66 ohms.
• DAC6800+BCA4Z has two AES inputs and four analog audio
output channels at 600 ohms.
The back connectors require two frame slots within an FR6802+frame
(there is no backward-compatibility provided for use with 6800/7000
series frames).
Main Features
Other DAC6800+BCA4/4Z Four-Channel Digital-to-Analog Converter
features include the following:
• Supports 32 kHz to 96kHz sampling frequency
• 16, 20 or 24 bit audio processing
• Analog output levels of:
• 16,18, 20, 22, 24, 26 and 28 dBu (66 ohms)
• 10,12, 14, 16, 18, 20 and 22 dBm (600 ohms)
• Integrated remote PC-based control capability (using CCS control
software and control panels)
• Card edge control
• LEDs for AES input presence and AES input errors
• Four analog audio output channels (66 ohms or 600 ohms)
• Two jumper selectable AES balanced or unbalanced inputs

DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual 3
Chapter 1: Introduction
Module Descriptions
Front Module

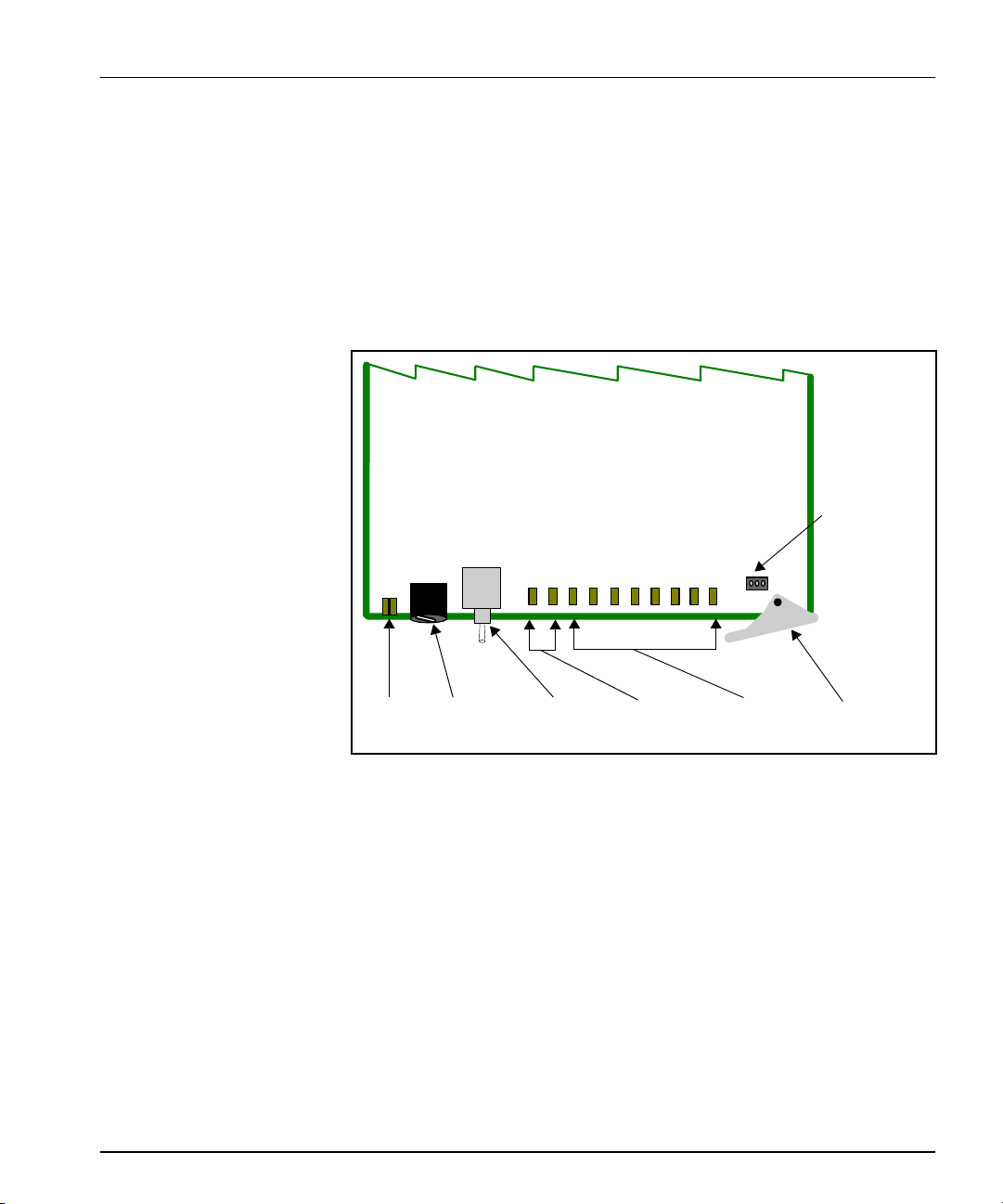

Figure 1-1 is a generic top-front view of a typical 6800+module and
shows the general location of standard LEDs, controls, and jumpers.
The number of Control and Monitoring LEDs on 6800+modules
varies.
Figure 1-1. Typical 6800+Module
Table 1-1 on page 4 briefly describes generic 6800+LEDs, switches,
and jumpers. See “Chapter 3: Operation” for more information on
specific DAC6800+BCA4 and DAC6800+BCA4Z module controls,
LEDs, and jumpers.
Module
status
LEDs
Mode select
rotary
switch
Navigation
toggle
switch
Monitoring
LEDs
Remote/local
control
jumper
Extractor
handle
Control
LEDs

4 DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual
Chapter 1: Introduction
Table 1-1. Generic 6800+Module Features
Feature Description
Module status
LEDs
Various color and lighting combinations of these LEDs
indicate the module state. See “Monitoring LEDs” on
page 28 in Chapter 3 for more information.
Mode select
rotary switch
This switch selects between various control and
feedback parameters.
Navigation
toggle switch
This switch navigates up and down through the available
control parameters:
•Down: Moves down through the parameters
•Up: Moves up through the parameters
Monitoring
LEDs
Each 6800+module has a number of LEDs assigned to
indicate varying states/functions. See “Monitoring
LEDs” on page 28 in Chapter 3 for a description of these
LEDs.
Local/remote
control jumper
•Local: Locks out external control panels and allows
card-edge control only; limits the functionality of
remote software applications to alarm monitoring
•Remote: Allows remote or local (card-edge)
configuration, operation, and monitoring of the
DAC6800+BCA4 or DAC6800+BCA4Z

DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual 5
Chapter 1: Introduction
Back Connectors
Figure 1-2 shows the double-slot back connector used by the
DAC6800+BCA4 or DAC6800+BCA4Z module when installed in an
FR6802+XF frame.
Figure 1-2. DAC6800+Back Connector
BAL AES
IN 1
BAL AES
IN 2
AES IN 1
AES IN 2
2A
2B
+
-
+
-
1A
1B
+
-
+
-
+
-
+
-
Analog Audio Out
Unbalanced
AES input 1
Unbalanced
AES input 2
Balanced AES
inputs
Reserved for
future use
Analog audio
outputs
Reserved for
future use
Reserved for
future use

6 DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual
Chapter 1: Introduction
Signal Flow
Figure 1-3 shows the basic signal flow of DAC6800+BCA4(Z)
modules.
Figure 1-3. DAC6800+BCA4(Z) Signal Flow Diagram
Control core
CCS
control /
Monitor
Port
Card-edge control
Balanced analog
audio 1
AES
receiver DAC Analog audio
output driver
+
-
+
-
+
-
Unbalanced
AES 1
Balanced
AES 1
Balanced analog
audio 2
AES
receiver DAC Analog audio
output driver
+
-
+
-
+
-
Unbalanced
AES 2
Balanced
AES 2

DAC6800+BCA4 and DAC6800+BCA4Z Installation and Operation Manual 7
Chapter 2
Installation
Overview
This chapter describes the DAC6800+BCA4 and DAC6800+BCA4Z
installation process, including the following topics:
•“Maximum 6800+Frame Power Ratings” on page 8
•“Unpacking the Module” on page 9
•“Setting Jumpers” on page 10
•“Installing 6800+Modules” on page 15
•“Upgrading Module Firmware” on page 16
See the FR6802+Frame Installation and Operation Manual for
information about installing and operating an FR6802+frame and its
components.
Caution
Before installing this product,
read the 6800+Series Safety
Instructions and Standards
Manual shipped with every
FR6802+Frame Installation
and Operation Manual or
downloadable from the Leitch
Web site at www.leitch.com.
This safety manual contains
important information about the
safe installation and operation
of 6800+series products.
