IMASS Visual Navigation Series User manual

Robot Vacuum Cleaner
Instruction Manual
Visual Navigation series

01 02

LED display
Navigation Camera
EVA foam EVA foam
Cliff Sensors

English
1
1
2
3
4
5
6
7
8
9
10
11
12
2
3
5
8
9
12
4
6
7
10
11
007 008

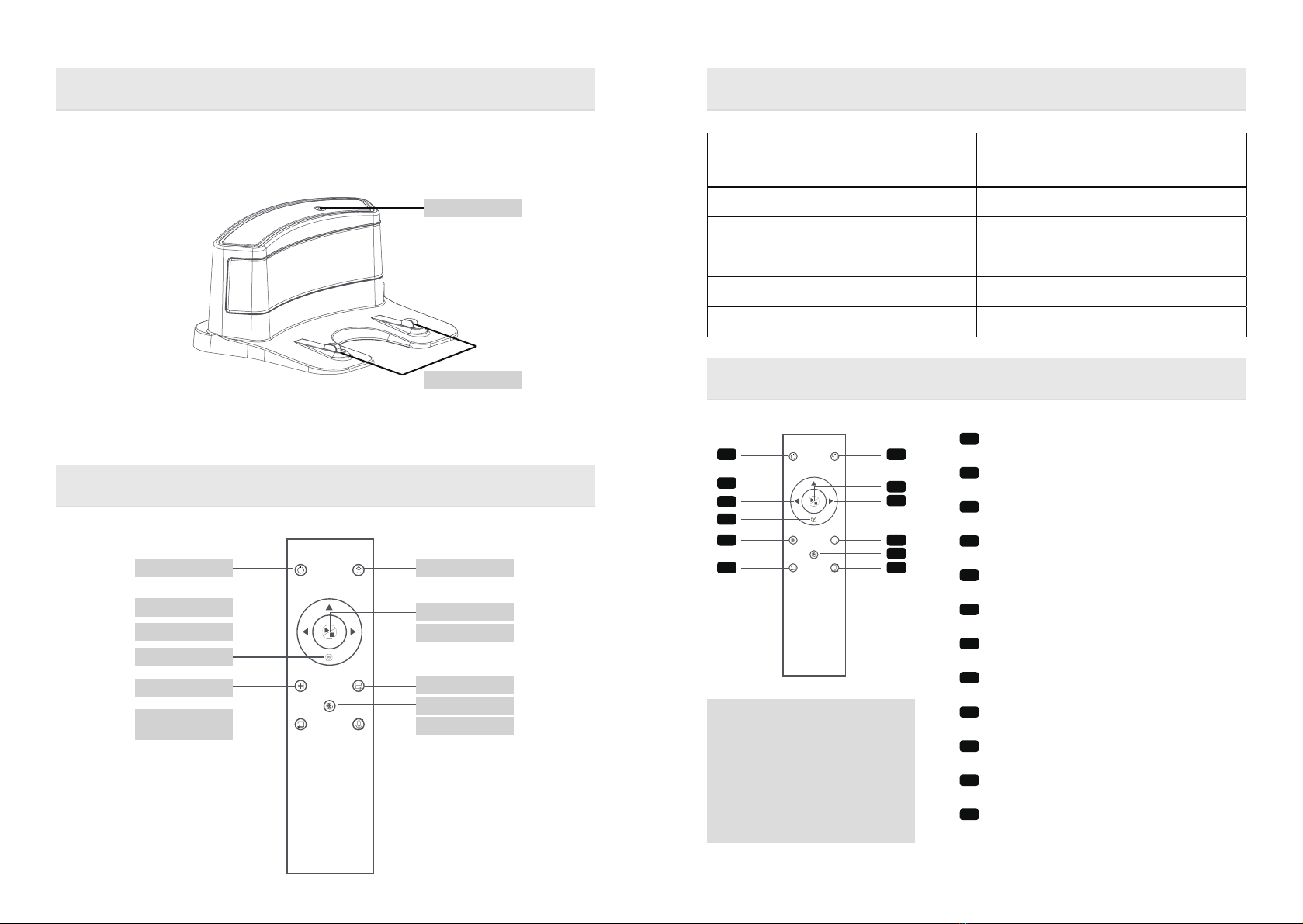

Power display
Charging contacts
Remote controller
Power On/Off Re-charge
Forwarder
Left
Wi-Fi
Max Power
Wall follow /
Edge cleaning
Start / Pause
Right
Mini Room cleaning
Spot cleaning
Voice On/Off
Using the remote controller
Robot Status Display status
Charging
Operating mode
Robot error
Low battery
Charge complete
CLEAN status buttonDocking Station
Display flashes Red
Display in green
Display in Green
All display flash
Display turns red
Note:
1) Place two AAA type batteries
into the remote controller.
2) Remove the batteries if you will
not use the remote controller for
a long period.
Press this button to turn on / off the robot
Press this button to send the robot back to
charging station for re-charge
Press this button to start / pause cleaning
Press this button to move the robot forward
Press this button to turn the robot to right
Press this button to turn the robot to left
Pree this button to trun on the Wi-Fi of robot
Press this button to clean in a small area
Press this button to start spot cleaning
Press this button to start max power cleaning
Press this button to start clean along the wall
Press this button to turn on/off the voice guide

6、The indicator light will keep
blinking when enter Wi-Fi setting
Click “Comfirm indicator rapidly
blink”
Note: Please remove the EVA foam before using the robot
EVA foam EVA foam

13 14
Charging contacts
Cliff sensors
Charing
contact
pin
Charing
contact
pin
Use a soft dry cloth to gently clean the sensors’ window and the charging contacts.
Note: Do not use water or liquid to clean the sensors or charging contacts.

LED digital display code list
* Note: Under regular status, the LED display in Green light
* Note: Under error status, the LED display in Red light
[ Error code list ]
Standby
Wall follow / Edge cleaning mode
Cleaning
Back to charging dock
Infrared remote control
Charging
Pause
Error code Description & Solution
Main brush entangled, please clear the main brush
Left wheel entangled, please clear the left wheel
Right wheel entangled, please clear the right wheel
Side brushes entangled, please clear the side brushes
Anti-collision sensors in stuck, please clear the anti-collsion bumper
Ground sensors had been blocked, please clean the sensors
Low battery, please charge the battery
Fan motor entangled, please clear the fan motor
Unusual error, please contact us to solve the problem

Up to 150 minutes
