1.0 Device Overview and Description
The B034 RF 2.4GHz module has been designed to extend wireless communication in IMET radio
control systems in the 2.4GHz to 2.4835GHz band, making 38 channels available in the assigned
band. The device is integrated into the logic units of the IMET industrial remote control systems, to
allow greater coverage and reliability in the communication between the remote unit (radio control
or transmitter unit M880 THOR2; M880 ZEUS2; M880 KRON; M880 ZED; M880 ARES2) and the base
station (receiver unit M880 HAC; M880 HDC; M880 LDC; M880 LAC).
The B034 module mounts two antennas with U.FL 50Ω connectors to ensure greater coverage and
stability in radio communication.
The B034 is assembled by welding and has its own internal voltage regulators one for the RF part
and one for the microcontroller logic part and its own oscillators.
The module can it be easily integrated (surface mount) with M880 systems, freeing up the design
dedicated to the RF communication part and from the compliance tests with the reference
standards listed in the section 6.0 “Approval and Certification” allowing more faster construction
times for the new M880 products.
The B034 module is approved for modular devices in the United States (FCC) and Canada (IC).
Modular approval removes the need for expensive RF and antenna design, and allows the end user
to place the B034 module inside a finished product and does not require regulatory testing for an
intentional radiator (RF transmitter).
To maintain conformance, refer to module settings in Annex A.1 for the United States and Annex A.2
for Canada.
The B034 module is an RED Directive assessed radio module for operation in Europe. The module
tests can be applied toward final product certification and Declaration of Conformity (DoC). To
maintain conformance for Europe, refer to module settings in Section ANNEX A.3. Additional testing
may be required depending on the end application.

TECHNICAL MANUAL
Page n°6 of 25
RF TRANSCEIVER MODULE 2.4GHz
B034
Doc. Revision°:0
Date: 11/01/2021
Technical Manual file.dot revisione n° 0 data: 24/02/2020
IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) –ITALY –Tel. [phone] –Fax [phone] P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail: [e-mail]
1.1 Main technical Characteristics and Features
B034 RF module is a Long Range 2.4GHz transceiver ideal for robust and reliable wireless solution
and in particular for IMET radio remote control systems M880 series listed in the section 1.0 “Device
overview”;
The main technical characteristics are listed in the following table
B034 MAIN CHARACTERISTICS
•High receiver sensitive up to -117 dBm;
•Size: 36,2 x 55,63 x 4,20 mm (L x W x H with shield)
•Wight: 8.00 g (with Shield)
•Integrated crystal oscillator for RF and logic unit
•2.4Ghz ISM band transceiver
•Up to 38 channels available and selectable
•Wide band trasceiver at 812kHz per channel
•Spread spectrum modulation with forward error correction (FEC)
technique to increase the range and robustness of the radio
communication. It is superior immunity to interference
•Internal voltage Regulator at 3.3 V with LDO (low Drop Out)
•Two External 50ΩAntenna Connector: Ultra Miniature Coaxial (U.FL),
50Ω
•Surface mountable in the IMET Remote control unit
•UART communication interface available
Table 1

TECHNICAL MANUAL
Page n°7 of 25
RF TRANSCEIVER MODULE 2.4GHz
B034
Doc. Revision°:0
Date: 11/01/2021
Technical Manual file.dot revisione n° 0 data: 24/02/2020
IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) –ITALY –Tel. [phone] –Fax [phone] P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail: [e-mail]
1.2 Main Application
B034 is designed for industrial automation application and in particular for IMET radio REMOTE
control listed in section 1.0 “Device Overview”.
1.3 Main Operational characteristics and storage
RF transceiver B034 is designed to operate in the following environmental condition
-Operating Voltage range: 3,7Vd.c. to 5V d.c.;
-Operating Temperature Range: -25°C to + 55°C (-13°F to +131°F);
-Storage Temperature Range: -40°C to +85°C (-40°F to +185°F);

TECHNICAL MANUAL
Page n°8 of 25
RF TRANSCEIVER MODULE 2.4GHz
B034
Doc. Revision°:0
Date: 11/01/2021
Technical Manual file.dot revisione n° 0 data: 24/02/2020
IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) –ITALY –Tel. [phone] –Fax [phone] P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail: [e-mail]
1.4 List of available RF channel from 2.404GHz to 2.479 GHz
In the following table is reported the list of available channels than can be used by the B034 RF
module
List of Available Channels
Channel Number
Channel Frequency (GHz)
1
2.404
2
2.406
3
2.408
4
2.410
5
2.412
6
2.414
7
2.416
8
2.418
9
2.420
10
2.422
11
2.424
12
2.426
13
2.428
14
2.430
15
2.432
16
2.434
17
2.436
18
2.438
19
2.440
20
2.442
21
2.445
22
2.447
23
2.449
24
2.451
25
2.453
26
2.455

TECHNICAL MANUAL
Page n°9 of 25
RF TRANSCEIVER MODULE 2.4GHz
B034
Doc. Revision°:0
Date: 11/01/2021
Technical Manual file.dot revisione n° 0 data: 24/02/2020
IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) –ITALY –Tel. [phone] –Fax [phone] P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail: [e-mail]
List of Available Channels
Channel Number
Channel Frequency (GHz)
27
2.457
28
2.459
29
2.461
30
2.463
31
2.465
32
2.467
33
2.469
34
2.471
35
2.473
36
2.475
37
2.477
38
2.479
Table 2 –List of available channels

TECHNICAL MANUAL
Page n°10 of 25
RF TRANSCEIVER MODULE 2.4GHz
B034
Doc. Revision°:0
Date: 11/01/2021
Technical Manual file.dot revisione n° 0 data: 24/02/2020
IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) –ITALY –Tel. [phone] –Fax [phone] P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail: [e-mail]

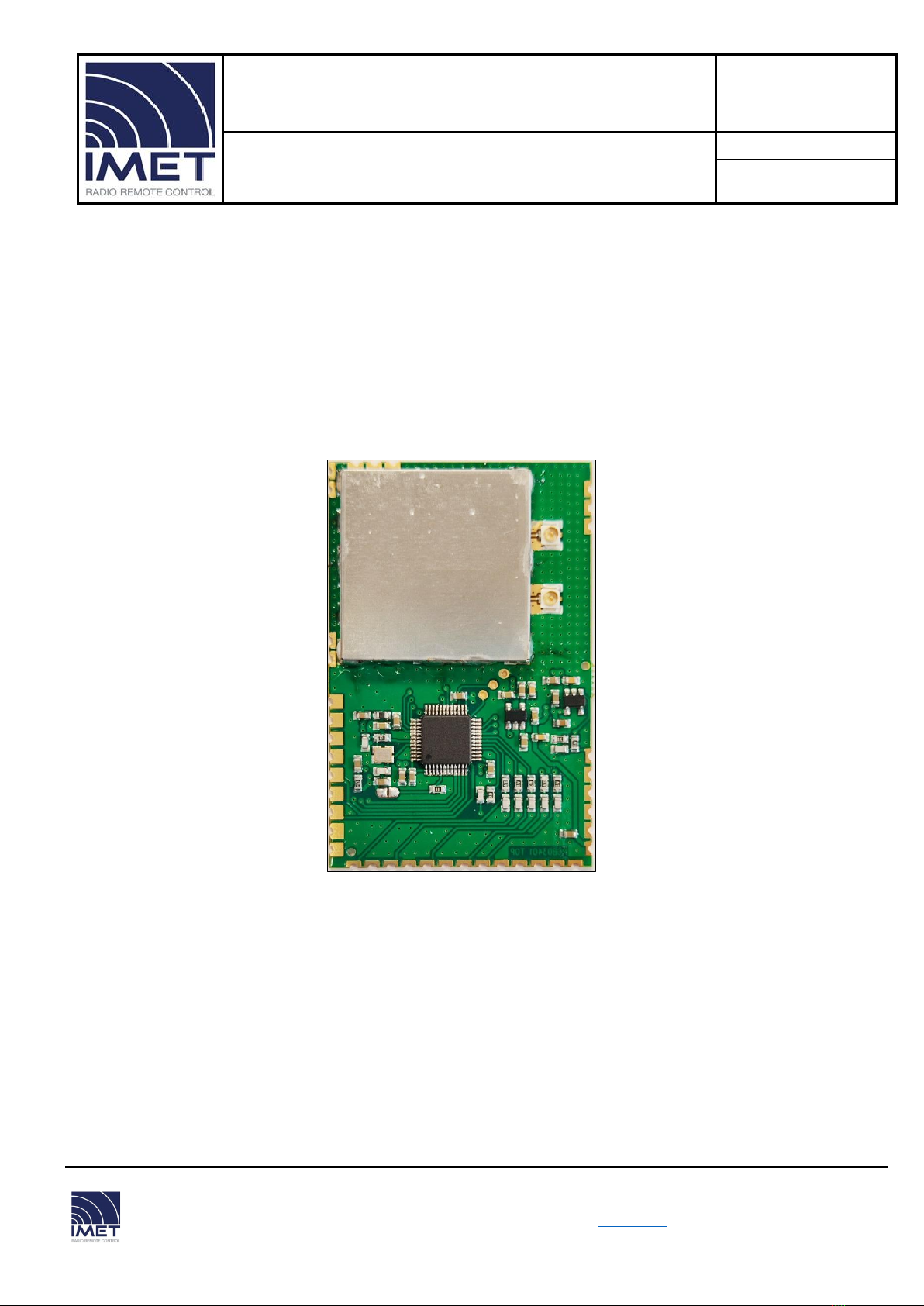

2.0 Foto of the Device
2.1 Top side with Shield
2.1 Bottom side

TECHNICAL MANUAL
Page n°11 of 25
RF TRANSCEIVER MODULE 2.4GHz
B034
Doc. Revision°:0
Date: 11/01/2021
Technical Manual file.dot revisione n° 0 data: 24/02/2020
IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) –ITALY –Tel. [phone] –Fax [phone] P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail: [e-mail]
3.0 Device Marking plate
B034 is marking with FCC ID: for Unite State as modular approval in accordance with Part 15.212
Modular Transmitter approval
B034 is marking with IC ID: for Canada as modular approval according to Radio Standards Specifica-
tion (RSS) RSS-210 and RSSGen.
B034 is CE marking according to EUROPEAN RED directive 2014/53/EU Essential Requirements for
Health and Safety (Article (3.1(a)), Electromagnetic Compatibility (EMC) (Article 3.1(b)), and Radio
(Article 3.2) and are summarized in Section 6.0 “Approvals and Certification” European Compliance
Testing.

TECHNICAL MANUAL
Page n°12 of 25
RF TRANSCEIVER MODULE 2.4GHz
B034
Doc. Revision°:0
Date: 11/01/2021
Technical Manual file.dot revisione n° 0 data: 24/02/2020
IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) –ITALY –Tel. [phone] –Fax [phone] P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail: [e-mail]
4.0 Device PIN Diagram and Layout

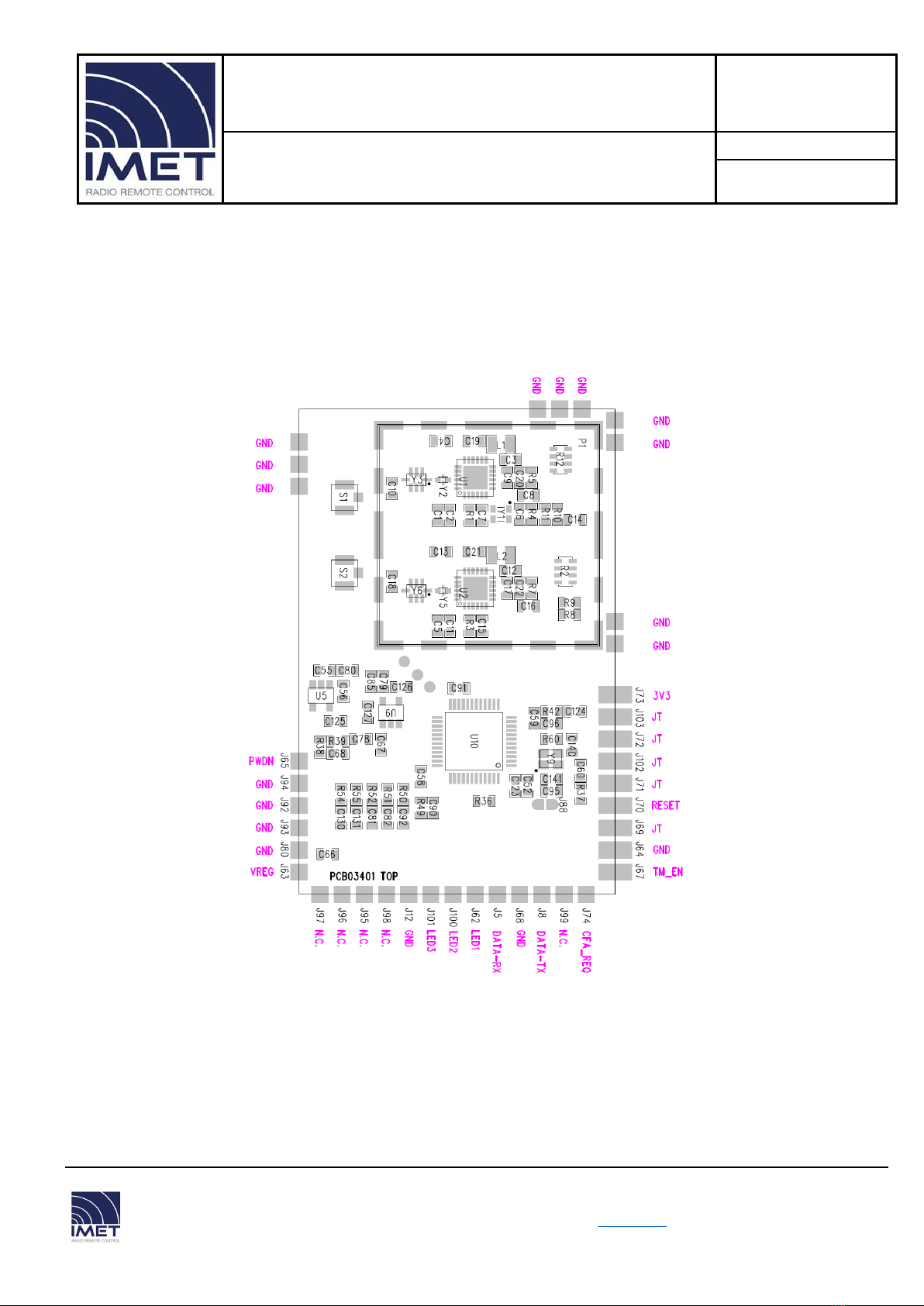

Figure 1 –Pin Layout

TECHNICAL MANUAL
Page n°13 of 25
RF TRANSCEIVER MODULE 2.4GHz
B034
Doc. Revision°:0
Date: 11/01/2021
Technical Manual file.dot revisione n° 0 data: 24/02/2020
IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) –ITALY –Tel. [phone] –Fax [phone] P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail: [e-mail]
4.1 PIN Description table
PIN
Symbol
Type
Description
J65
PWDN
LDO
Power enable; Power ON / Power OFF the RF module
J94
GND
Ground
Ground
J92
GND
Ground
Ground
J93
GND
Ground
Ground
J80
GND
Ground
Ground
J63
VREG
Power
Power supply input
J12
GND
Ground
Ground
J62
LED1
GPIO
General porpouse digital input /output use only for debug
J100
LED2
GPIO
General porpouse digital input /output use only for debug
J101
LED3
GPIO
General porpouse digital input /output use only for debug
J5
DATA -RX
DI
UART Serial communication data input
J68
GND
Ground
Ground
J8
DATA-TX
DO
UART Serial communication data output
J74
CFA-REQ
DI
Digital input for frequency change request
J67
TM_EN
GPIO
Reserved for internal used
J64
GND
Ground
Ground
J69
JT
JTAG
JTAG signal
J70
RESET
Reset
Microcontroller Reset PIN
J71
JTCK
JTAG
JTAG signal
J102
JTDI
JTAG
JTAG signal
J72
JTDO
JTAG
JTAG signal
J103
JTNRS
JTAG
JTAG signal
J73
3.3V
3.3V
Power supply for microcontroller during programming phase
DO = Digital Output ; DI = Digital Input; GPIO = general porpouse input output
Table 3

TECHNICAL MANUAL
Page n°14 of 25
RF TRANSCEIVER MODULE 2.4GHz
B034
Doc. Revision°:0
Date: 11/01/2021
Technical Manual file.dot revisione n° 0 data: 24/02/2020
IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) –ITALY –Tel. [phone] –Fax [phone] P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail: [e-mail]
5.0 Mounting Details
The B034 2.4GHz module is a surface mountable module and module dimension are shown in figure
3. The module B034 is 1,0mm (0,038”) thick with castellated mounting point on the edge.
In the host PCB of the B034 module it is recommended to extend the ground plane at least 5mm
(0,2”) around the module.
The module was assembled using standard lead free reflow profile The module is compatible with
standard lead-free solder reflow profiles. To avoid damaging the module, the following
recommendations are given:
•Refer to the solder paste data sheet for specific reflow profile recommendations;
•Use no-clean flux solder paste;
•Do not wash as moisture can be trapped under the shield;
•Use only one flow. If the PCB requires multiple flows, apply the module on the last flow;
The B034 has 50Ωultra miniature coaxial (U.FL) connector.
Caution: The U.FL connector is fragile and can oly tollerate very
limited number of insertions and disinsertions

TECHNICAL MANUAL
Page n°15 of 25
RF TRANSCEIVER MODULE 2.4GHz
B034
Doc. Revision°:0
Date: 11/01/2021
Technical Manual file.dot revisione n° 0 data: 24/02/2020
IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) –ITALY –Tel. [phone] –Fax [phone] P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail: [e-mail]
5.1 Module Dimension Details
Figure 3 –Dimension Details

TECHNICAL MANUAL
Page n°16 of 25
RF TRANSCEIVER MODULE 2.4GHz
B034
Doc. Revision°:0
Date: 11/01/2021
Technical Manual file.dot revisione n° 0 data: 24/02/2020
IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) –ITALY –Tel. [phone] –Fax [phone] P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail: [e-mail]
5.2 External Antenna for B034
The B034 module has a 50Ωultra miniature coaxial (U.FL) connector to connect to an external
2.4GHz antenna. Modular certification of the B034 module is performed with the external antenna
types listed in the following table:
TESTED EXTERNAL ANTENNA TYPES
IMET CODE
TYPE
Nominal Gain
Description
AN110
RFA-02-P05-70B-150
2 dBi (Peak)
Internal Antenna with
U.FL connector 2,4GHz
PEAK GAIN 2 dBi with
CABLE 250mm
AN110/A
RFA-02-P05-70B-150
2 dBi (Peak)
Internal Antenna with
U.FL connector 2,4GHz
PEAK GAIN 2 dBi with
CABLE 100mm
Table 4
An antenna type comprises antennas having similar in-band and out-of-band radiation patterns.
Refer to Section Regulatory Approval for specific regulatory requirements by country.

TECHNICAL MANUAL
Page n°17 of 25
RF TRANSCEIVER MODULE 2.4GHz
B034
Doc. Revision°:0
Date: 11/01/2021
Technical Manual file.dot revisione n° 0 data: 24/02/2020
IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) –ITALY –Tel. [phone] –Fax [phone] P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail: [e-mail]
5.3 Electrical Characteristics
Description
Technical Data
Condition
Min
Typical
Max
Unit
Ambient Operating
Temperature
–
-25
+55
°C
Supply voltage Range
–
3.7
4.2
5.0
V
Current consumption
TX mode at
maxmiun
Output Power
50
mA
RX mode
40
mA
Sleep mode
37
mA
Receiver Characteristics
Parameters
Condition
Min
Typical
Max
Unit
RF Input Frequency
2.404
2.479
GHz
RF sensitivity
-117
dBm
Max RF Input
50Ω
10
dbBm
Blocking immunity
@ +/- 1 MHz
60
dB
@ +/- 2 MHz
63
dB
@ +/- 10 MHz
81
dB
Adjacent channel rejection
37
dB
Maximum Tollerance
frequency offset between
transmiter and receiver
without sensitive
degradation,
-50
+50
ppm
Transmitter Characteristics
Parameters
Condition
Min
Typical
Max
Unit
RF Carrier Frequency range
2.404
2.479
GHz
RF Output Power
50Ω
-18
+10
dbBm
Raw data rate
14.27
Kb/s
FSK frequency deviation
62.5
1000
kHz
Crystal oscillator frequency
52
MHz
Channels Number
38
Channel Nomial Bandwith
812
KHz
Table 5 –Electrical Characteristics

TECHNICAL MANUAL
Page n°18 of 25
RF TRANSCEIVER MODULE 2.4GHz
B034
Doc. Revision°:0
Date: 11/01/2021
Technical Manual file.dot revisione n° 0 data: 24/02/2020
IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) –ITALY –Tel. [phone] –Fax [phone] P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail: [e-mail]
6.0 Approval and Certification
RF 2.4GHz module B034 is complying with the following Directive, Standards and Regulations
-CE marking according to European RED Directive 2014/53/EU and 2011/65/EU and
Delegated Directive 2015/863/EU on the Restriction of Hazardous Substances (RoHS) with
the following reference standard
ESTI EN 301 489-1:2019 V2.2.3
ETSI EN 301 489-17: 2020 V3.2.4
ETSI EN 300 328:2019 V2.2.2
EN 62368-1:2014 + A11:2017
EN 62479:2010
-FCC (Federal Communications Commission) Part 15
PART 15.207:2018
PART 15.209:2018
PART 15.247:2018
-IC (Industrial Canada) RSS-247 issue 2:2017
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Changes or modification not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.

TECHNICAL MANUAL
Page n°19 of 25
RF TRANSCEIVER MODULE 2.4GHz
B034
Doc. Revision°:0
Date: 11/01/2021
Technical Manual file.dot revisione n° 0 data: 24/02/2020
IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) –ITALY –Tel. [phone] –Fax [phone] P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail: [e-mail]
ANNEX A - Regulatory Approval
This section outlines the regulatory information for the B034 module for the following countries:
•United State;
•Canada;
•Europe;
A.1 United State
The B034 module is received Federal Communications Commission (FCC) CFR47
Telecommunications, Part 15 Subpart C “Intentional Radiators” modular approval in accordance
with Part 15.212 Modular Transmitter approval. Modular approval allows the end user to integrate
the B034 module into a finished product without obtaining subsequent and separate FCC approvals
for intentional radiation, provided no changes or modifications are made to the module circuitry.
Changes or modifications could void the user's authority to operate the equipment. The end user
must comply with all of the instructions provided by the Grantee, which indicate installation and/or
operating conditions necessary for compliance.
The finished product is required to comply with all applicable FCC equipment authorizations
regulations, requirements and equipment functions not associated with the transmitter module
portion. For example, compliance must be demonstrated to regulations for other transmitter
components within the host product; to requirements for unintentional radiators (Part 15 Subpart B
“Unintentional Radiators”), such as digital devices, computer peripherals, radio receivers, etc.; and
to additional authorization requirements for the non-transmitter functions on the transmitter
module (i.e., Verification, or Declaration of Conformity) (e.g., transmitter modules may also contain
digital logic functions) as appropriate.

TECHNICAL MANUAL
Page n°20 of 25
RF TRANSCEIVER MODULE 2.4GHz
B034
Doc. Revision°:0
Date: 11/01/2021
Technical Manual file.dot revisione n° 0 data: 24/02/2020
IMET s.r.l. Via Ronche, 93 33077 Sacile (PN) –ITALY –Tel. [phone] –Fax [phone] P.IVA C.F. e Reg. Impr. PN:01106390931 R.E.A.
43483 CCIAA PN http//www.imet.eu e-mail: [e-mail]
A.1.1 Labelling and User Information Requirements
The B034 module has been labelled with its own FCC ID number, and if the FCC ID is not visible
when the module is installed inside another device, then the outside of the finished product into
which the module is installed must also display a label referring to the enclosed module. This
exterior label can use wording as follows:
Contains Transmitter Module FCC ID: 2AYRTB034 or Contains FCC ID:2AYRTB034 This device complies
with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation
A user’s manual for the product should include the following statement:
This equipment has been tested and found to complying with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy, and if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a cir-cuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
