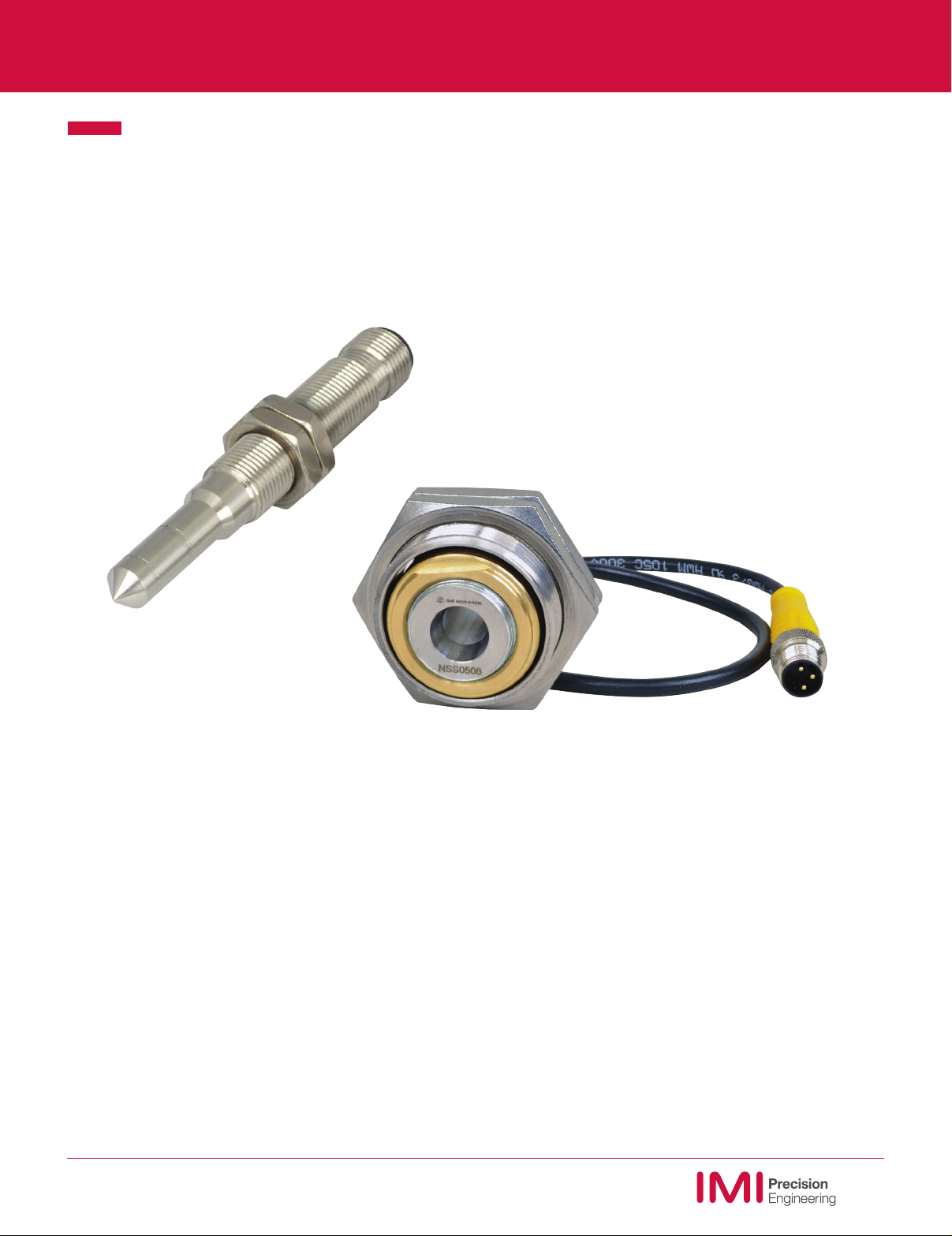

IMI NORGREN SNS04 User manual
Nut and Stud Sensors
1.800.272.4511
norgren.com/automationsolutions
Durable, Sensitive
and Cost-saving
Engineering
GREAT Solutions
NS NUT SENSOR
FAST FIND GUIDE PAGE NS-04
SS STUD SENSOR
FAST FIND GUIDE PAGE SS-23
RADDITIONAL REFERENCES
FAST FIND GUIDE PAGE R-32
Contents
1.800.272.4511
norgren.com/automationsolutions
Nut and Stud Sensors
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
The IMI Norgren Nut Thread and Stud Thread Detector line senses missing
or unthreaded nuts or studs, saving scrap and lost time for sheet metal
fabricators. The strong, sensitive sensors are a significant advancement over
previous technologies, which could only detect the presence of nut or stud
and threads but within a limited range. No other sensor on the market has
an all stainless-steel construction that provides the durability the stamping
and assembly industry demands. Application of this technology could save
customers thousands of dollars in lost time sorting parts.
Note: The use of the IMI Norgren Nut Thread Detector is limited in certain stainless steel and aluminum grades or alloys. We encourage an
evaluation be made for stainless steel and aluminum parts prior to purchase. Please contact insidesales@imi-precision.com for more information.
NUT AND STUD THREAD
DETECTOR LINE
INTRO-A
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
NS-04
NUT SENSOR
NS
NUT THREAD DETECTOR
>
Uses inductive proximity detection technology to verify the presence
of nuts or threads
>
Avoid defective parts from going through
>
Prevent manual inspection
>
Can be calibrated to detect Nut/Thread quality with a simple hand
adjustment and LED indicator
>
Capable of thread detection in tapped holes
TOUGHENED NUT THREAD DETECTOR
>
Used for heavy duty and heavy side loading applications
>
Can handle more collisions
>
Can be used as a gauging pin
SNS AND SNP SERIES
NUT THREAD DETECTOR
Prevent manual
inspection
save time
and money
Durable
Heavy duty
applications
Avoid bad
parts
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
NUT SENSOR
NS
NS-05
Fast Find Guide
NUT THREAD DETECTOR

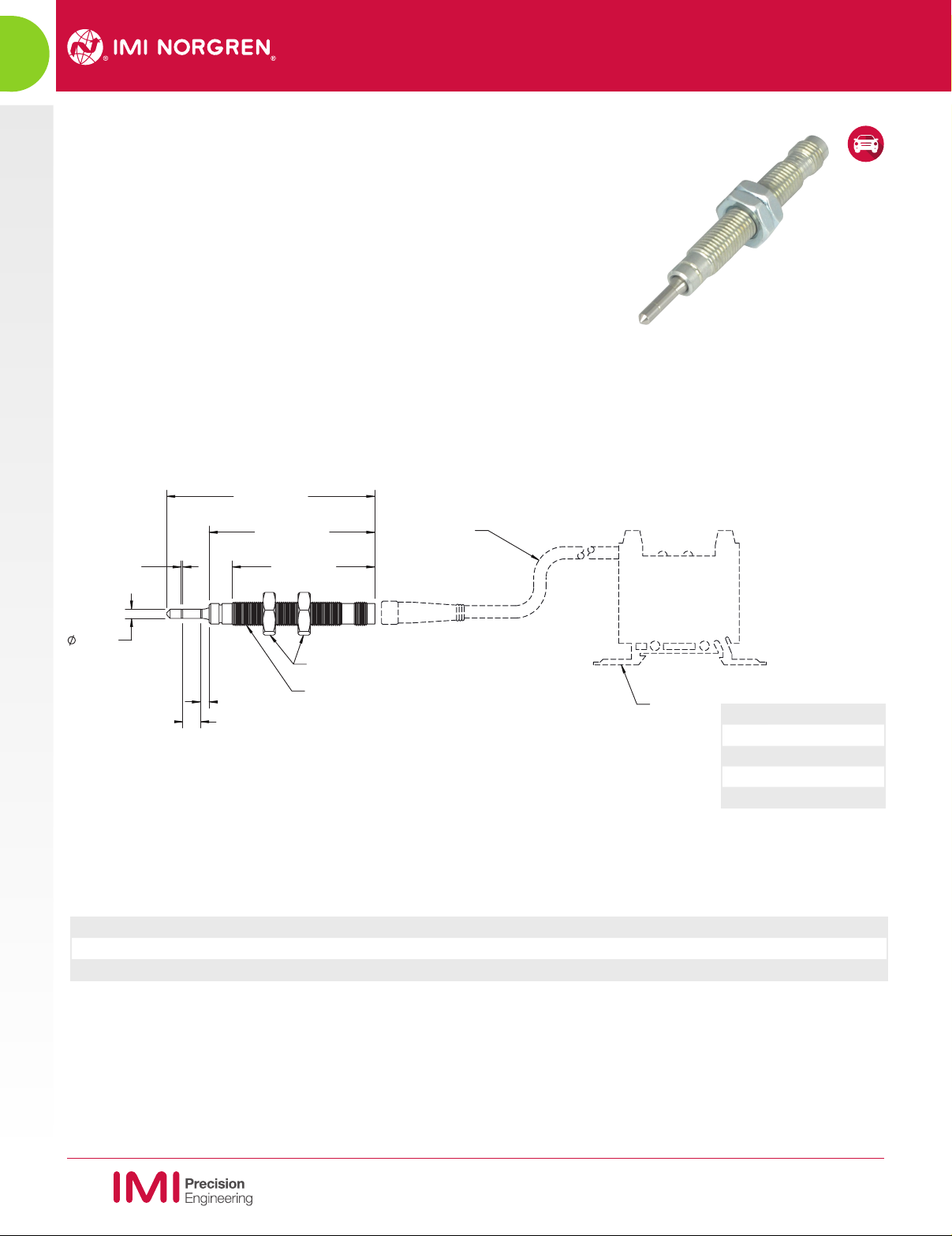

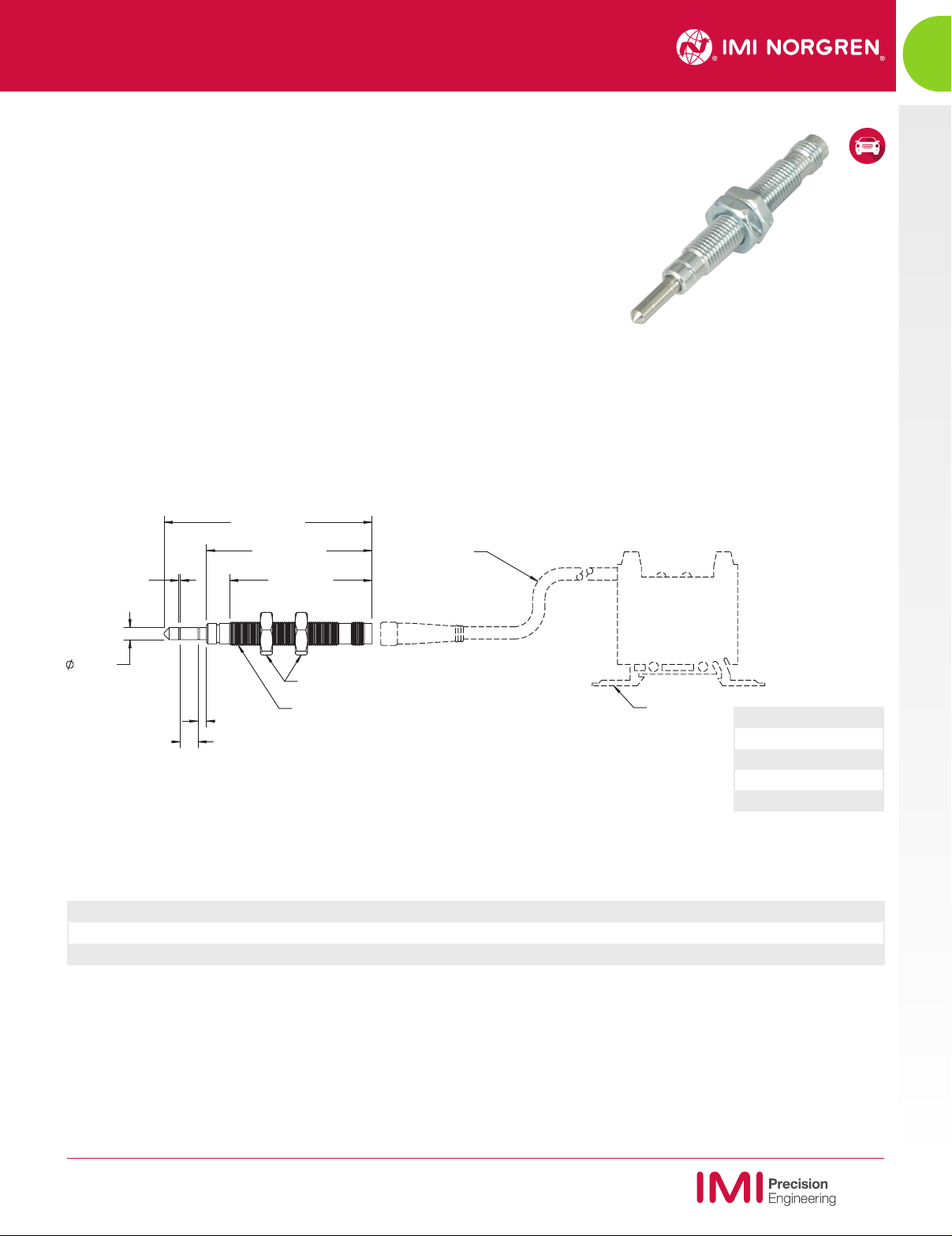

NUT SENSOR
NS-07
SNP: Nut Thread
Detector
NS-10
SNS: Toughened
Nut Thread
Detector
NS-19
SMH: Toughened
Nut Sensor Monitor
NS-20
SCE and SCF:
Cables
SAB: Spring
Mounts
NS-22
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
Nut Sensor
Selection Guide
NS-06 NS-09
SMR: Nut Sensor
Monitor
R-33
English to Metric
Nut Conversion
Guide
Additional
References
R-32
NS-06
NUT SENSOR
NS
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
Nut Sensor
Selection Guide
Sensors Accessories Monitors
PNP
SMR37005
SMR37006
SMR37008
SMR37010
SMR37012
NPN
SMR36005
SMR36006
SMR36008
SMR36010
SMR36012
To PLC
M5, M6 & M8 nuts
M10 & M12 nuts
SNP50608
SNP01012
Right angle
SCE13001
Straight
SCE13000
Spring mount
SAB30403
Sensors Accessories Monitors
M4 nuts
SNS04
M5 nuts
SNS05
M6 nuts
SNS06
M8 nuts
SNS08
M10 nuts
SNS10
M12 nuts
SNS12
Right angle
SCE13001 for
SNS04/SNS05
SNS06/SNS08
Straight
SCE13000 for
SNS04/SNS05
SNS06/SNS08
PNP
SMH37004
SMH37005
SMH37006
SMH37008
SMH37010
SMH37012
NPN
SMH36004
SMH36005
SMH36006
SMH36008
SMH36010
SMH36012
Right angle
SCF12160 for
SNS10/SNS12
Straight
SCF12060 for
SNS10/SNS12
Nut Sensor Selection Guide
Applications
>
Nut and thread sensing
>
Hidden nut detection
>
Thread sensing in tapped holes
>
Thread quality sensing
Applications
>
Nut and thread sensing
>
Used as gauging pin
>
Quality checking (nut size)
>
Heavy duty/harsh environments
>
Heavy side loading applications
Spring mount SAB30403 for
SNS04/ SNS05/ SNS06/ SNS08 only
NUT SENSOR
NS-07
NS
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
>
Detects M5, M6 or M8 nut or thread presence
>
Abrasion and impact resistant
>
For light duty applications with sensor tip radial loads up to 30 lbs.
>
Exceptional for thread detection and thread quality detection
>
Immune to weld fields and resistant to weld slag
NOTE 1
NOTE 2
NOTE 3
NOTE 4
NOTE 5
.35 (8.9)
.40 (10.2)
.25 (6.4)
.16 (4.0)
.10 (2.5)
2.70 (68.6)
1.75 (44.4)
Sensor Monitor Cable Weight
SNP50608 SMR36005 (NPN) SCE13000 2m (6ft) 0.029 lbs / 13 gm
SMR37005 (PNP) SCE13001 2m (6ft) (Angled)
M5 Nut Detector System
Minimum nut thickness:
4.0 mm (0.16") for M5 nut
5.0 mm (0.20") for M6 nut
6.5 mm (0.26") for M8 nut
Maximum blank thickness:
is 1.6 mm (0.06")
Sensor connector:
3-pin (male) 8 mm (pico) connector
Operating temperature range:
32°F to 212°F (0°C to 100°C)
Target material:
Ferrous/Non-Ferrous
Technical data
Sensor Monitor Cable Weight
SNP50608 SMR36006 (NPN) SCE13000 2m (6ft) 0.029 lbs / 13 gm
SMR37006 (PNP) SCE13001 2m (6ft) (Angled)
M6 Nut Detector System
Sensor Monitor Cable Weight
SNP50608 SMR36008 (NPN) SCE13000 2m (6ft) 0.029 lbs / 13 gm
SMR37008 (PNP) SCE13001 2m (6ft) (Angled)
M8 Nut Detector System
Note 1 M8 X 1.0
Note 2 2X M8 JAM NUTS
Note 3 SOLD SEPERATELY
Note 4 SOLD SEPERATELY
Note 5 SENSING AREA
Nut Sensor
SNP50608
Dimensions in inches (mm) are for reference only

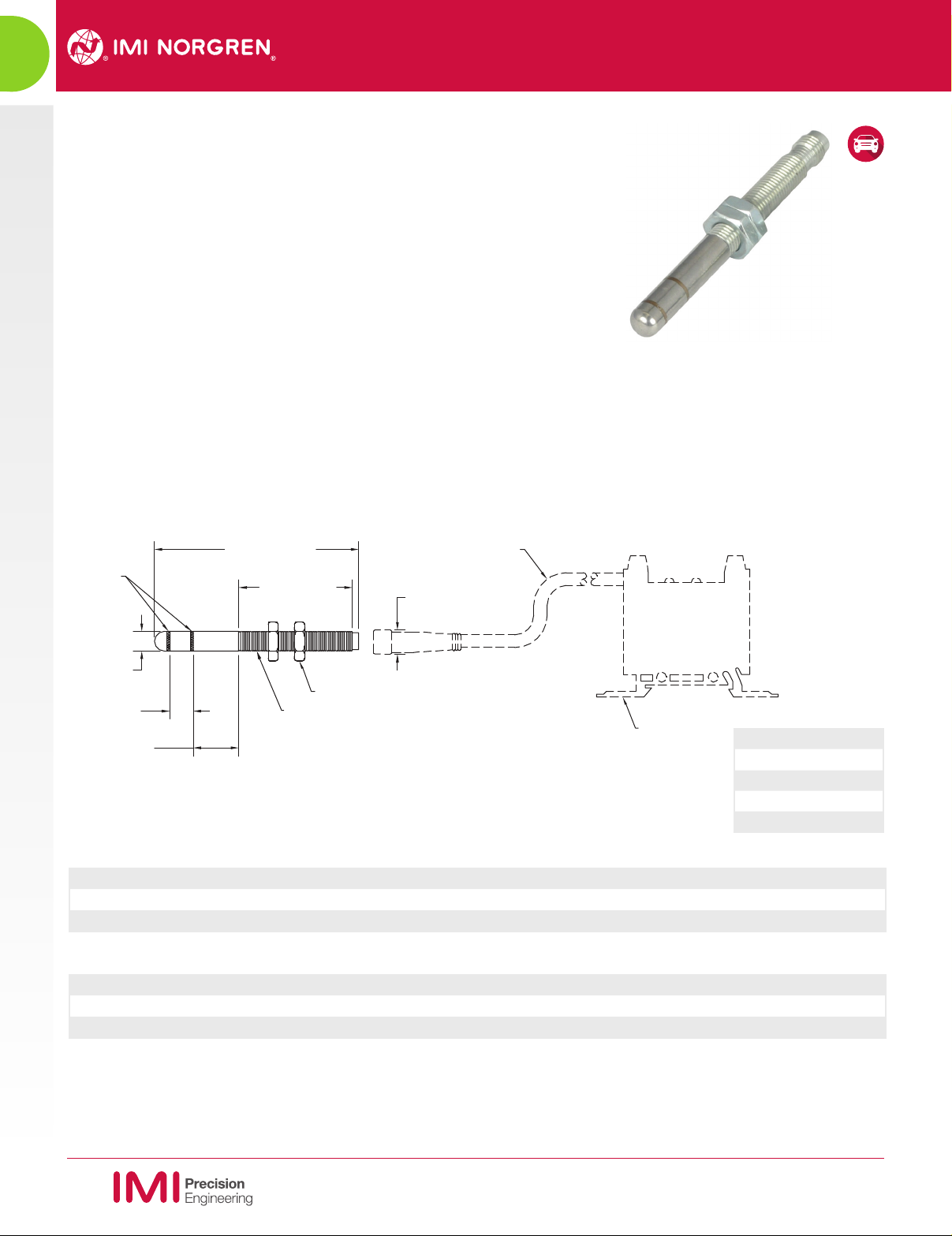

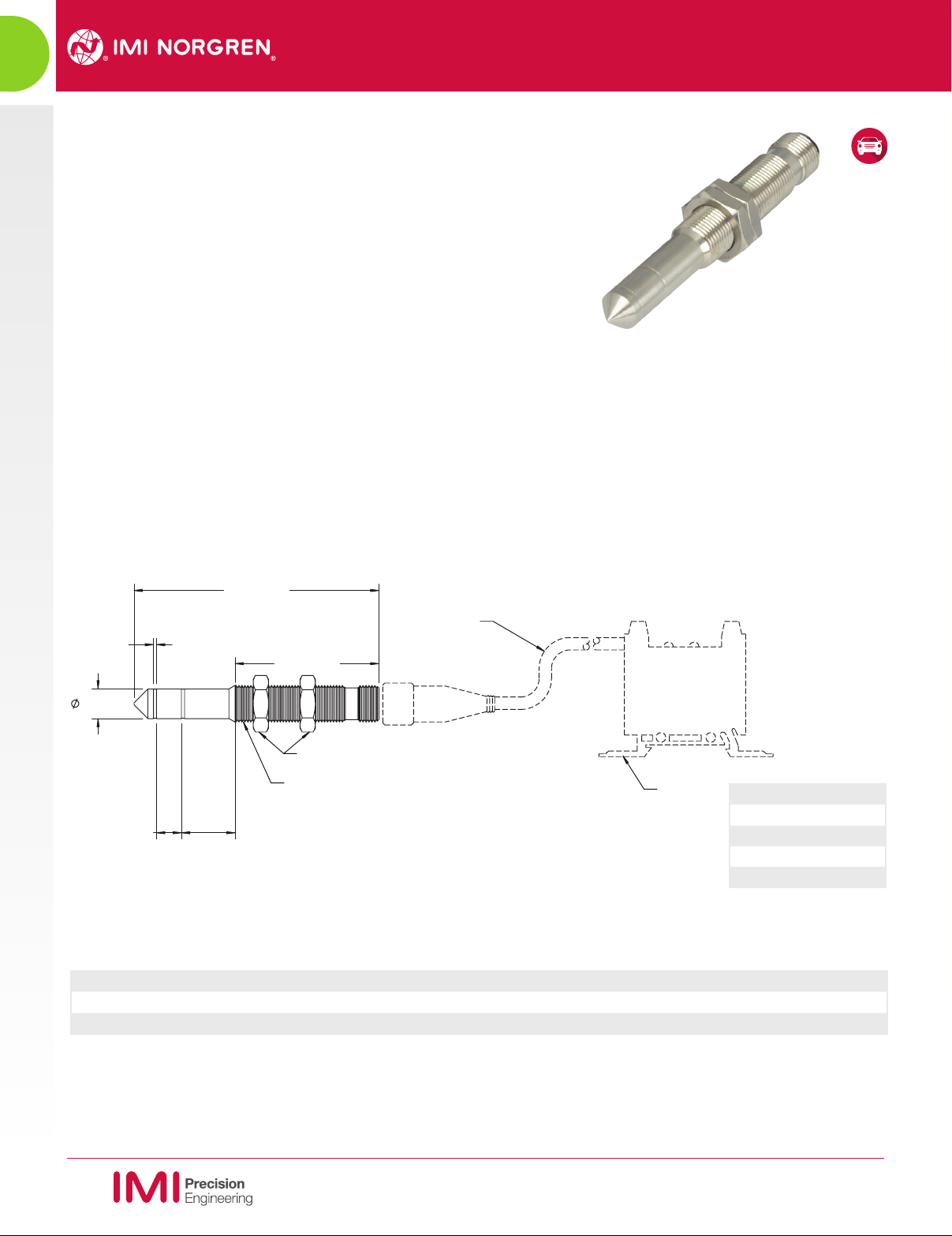

NS-08
NUT SENSOR
NS
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
Dimensions in inches (mm) are for reference only
Nut Sensor
SNP01012
> Detects M10 or M12 nut or thread presence
>
Abrasion and impact resistant
>
For light duty applications with sensor tip radial loads up to 35 lbs.
>
Exceptional for thread detection and thread quality detection
>
Immune to weld fields and resistant to weld slag
Minimum nut thickness:
8.0 mm (0.31") for M10 nut
10.0 mm (0.39") for M12 nut
Maximum blank thickness:
2.5 mm (0.10")
Sensor connector:
3-pin (male) 8 mm (pico) connector
Operating temperature range:
32°F to 212°F (0°C to 100°C)
Target material:
Ferrous/Non-Ferrous
Technical data
.70 (17.8)
NOTE 1
.39 (10.0)
.30 (7.6)
NOTE 2
NOTE 3
NOTE 4
NOTE 5
.3.15 (80)
1.75 (44.4) .35 (8.9)
Note 1 M8 X 1.0
Note 2 2X M8 JAM NUTS
Note 3 SOLD SEPERATELY
Note 4 SOLD SEPERATELY
Note 5 SENSING AREA
Sensor Monitor Cable Weight
SNP01012 SMR36010 (NPN) SCE13000 2m (6ft) 0.037 lbs / 17 gm
SMR37010 (PNP) SCE13001 2m (6ft) (Angled)
M10 Nut Detector System
Sensor Monitor Cable Weight
SNP01012 SMR36012 (NPN) SCE13000 2m (6ft) 0.037 lbs / 17 gm
SMR37012 (PNP) SCE13001 2m (6ft) (Angled)
M12 Nut Detector System

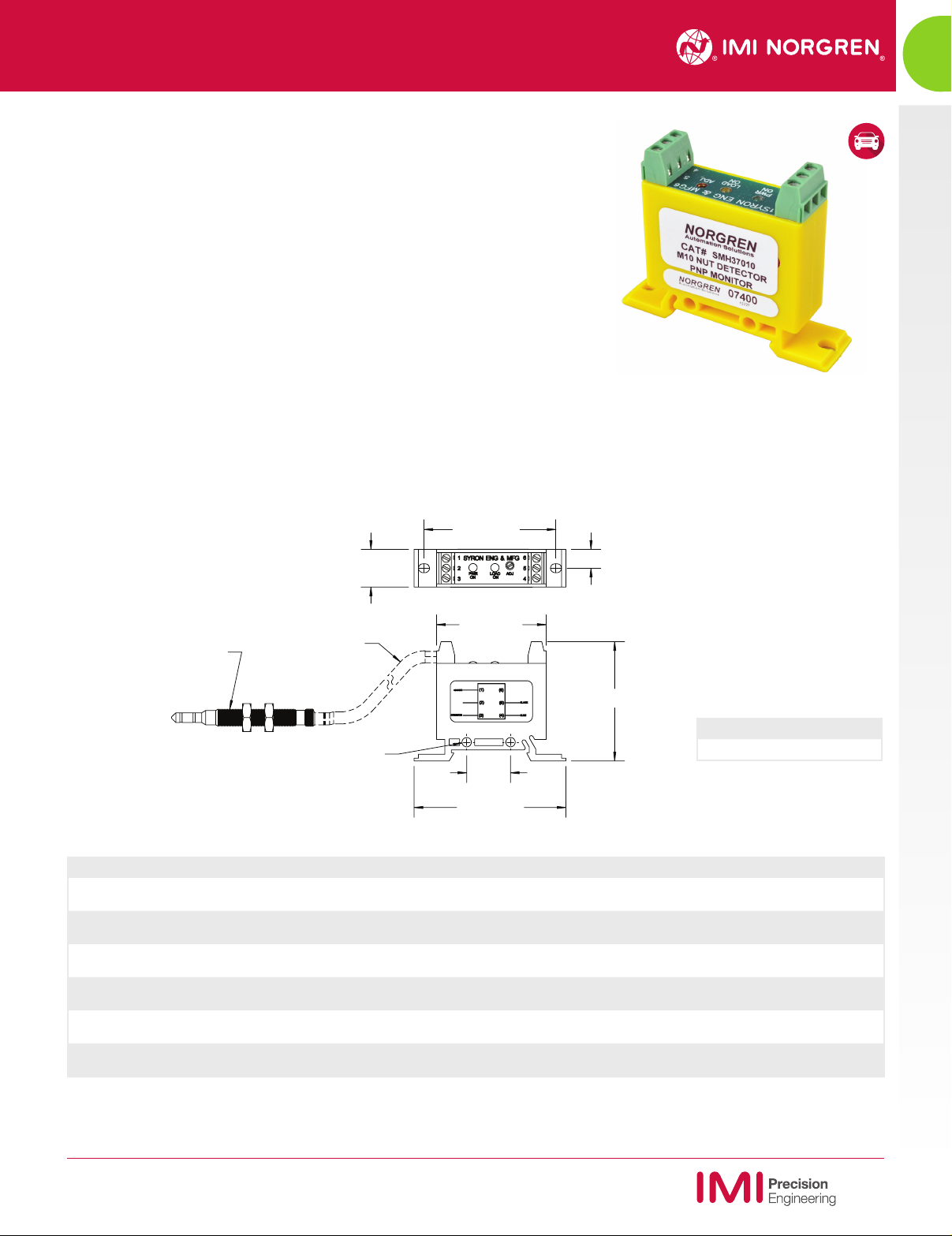

NUT SENSOR
NS-09
NS
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
>
LED for on/o status of sensor
>
Interface directly to programmable controllers
Sensor connector:
2 X 3-pin terminal strips
Supply Voltage Range:
10VDC to 30VDC
Maximum Load Current:
150mA
Operating temperature range:
32°F to 140°F (0°C to +60°C)
Response time:
25ms turn-on, 25ms turn-o
Indicator lights:
GREEN: DC power connect
AMBER: Target detected
Target material:
Ferrous/Non-Ferrous
Short circuit protection:
Yes
Overload protection:
Yes
Weight:
0.091 lbs / 41 gms
Technical data
NOTE 1
0.79
(20.0)
DIA.
(4 PLCS.)
NOTE 2
2.36 (60.0)
0.35 (9.0)
1.97 (50.0)
2.20 (56.0)
2.76 (70.0)
0.16 (4.0)
0.71 (18.0)
Note 1 SOLD SEPERATELY
Note 2 SOLD SEPERATELY
System Sensor Monitor Switch type Cable
M5 Nut Detector SNP50608 SMR36005 (NPN)
SMR37005 (PNP)
Current sinking
Current sourcing
SCE13000 2m (6ft.)
SCE13001 2m (6ft) (Angled)
M6 Nut Detector SNP50608 SMR36006 (NPN)
SMR37006 (PNP)
Current sinking
Current sourcing
SCE13000 2m (6ft.)
SCE13001 2m (6ft) (Angled)
M8 Nut Detector SNP50608 SMR36008 (NPN)
SMR37008 (PNP)
Current sinking
Current sourcing
SCE13000 2m (6ft.)
SCE13001 2m (6ft) (Angled)
M10 Nut Detector SNP01012 SMR36010 (NPN)
SMR37010 (PNP)
Current sinking
Current sourcing
SCE13001 2m (6ft.)
SCE13001 2m (6ft) (Angled)
M12 Nut Detector SNP01012 SMR36012 (NPN)
SMR37012 (PNP)
Current sinking
Current sourcing
SCE13000 2m (6ft.)
SCE13001 2m (6ft) (Angled)
Nut Sensor
Monitor for Nut Sensor
SMR3XXXX
Dimensions in inches (mm) are for reference onlyDimensions in inches (mm) are for reference only
Note 1 M8 X 1.0
Note 2 2X M8 JAM NUTS
Note 3 SOLD SEPERATELY
Note 4 SOLD SEPERATELY
Note 5 SENSING AREA

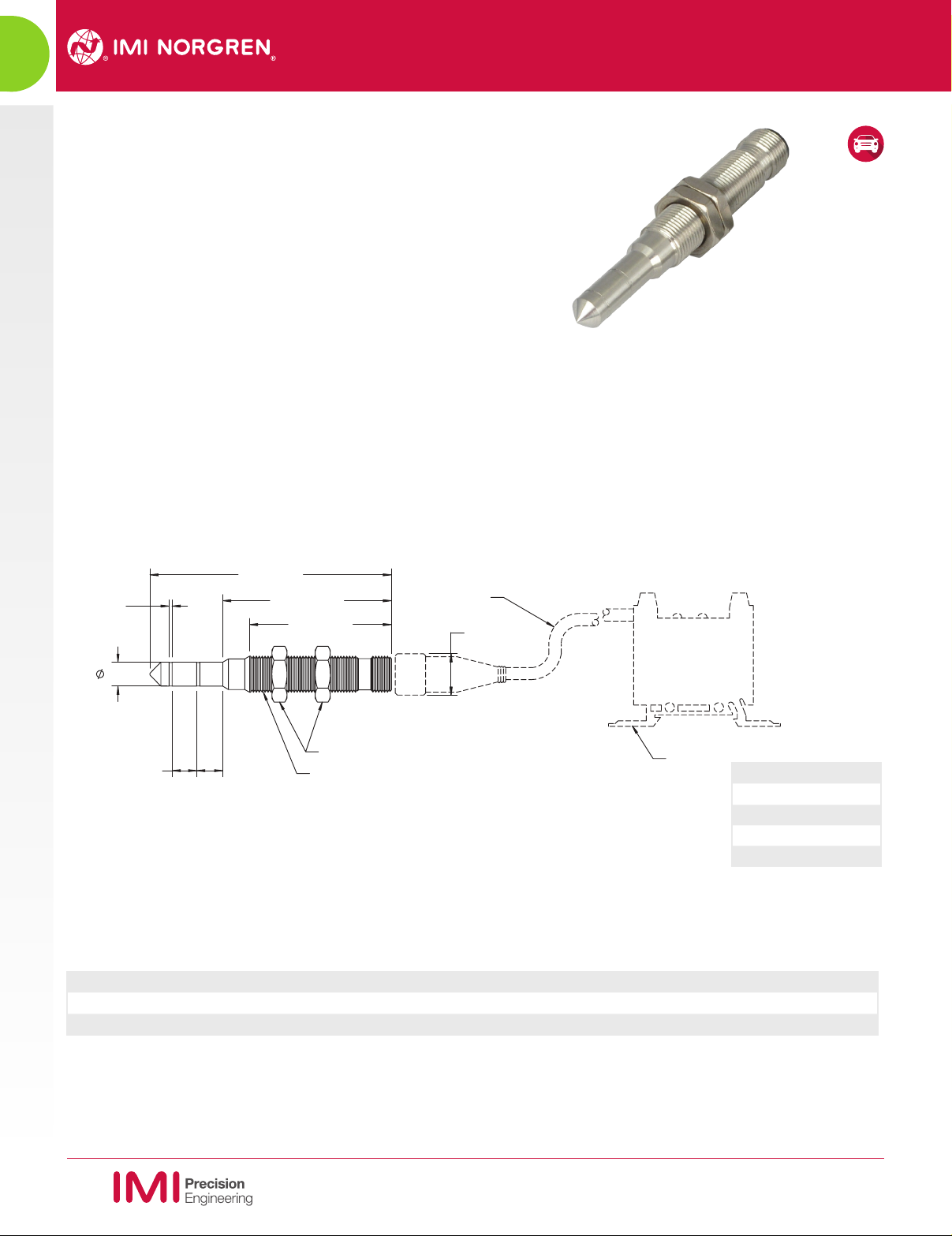

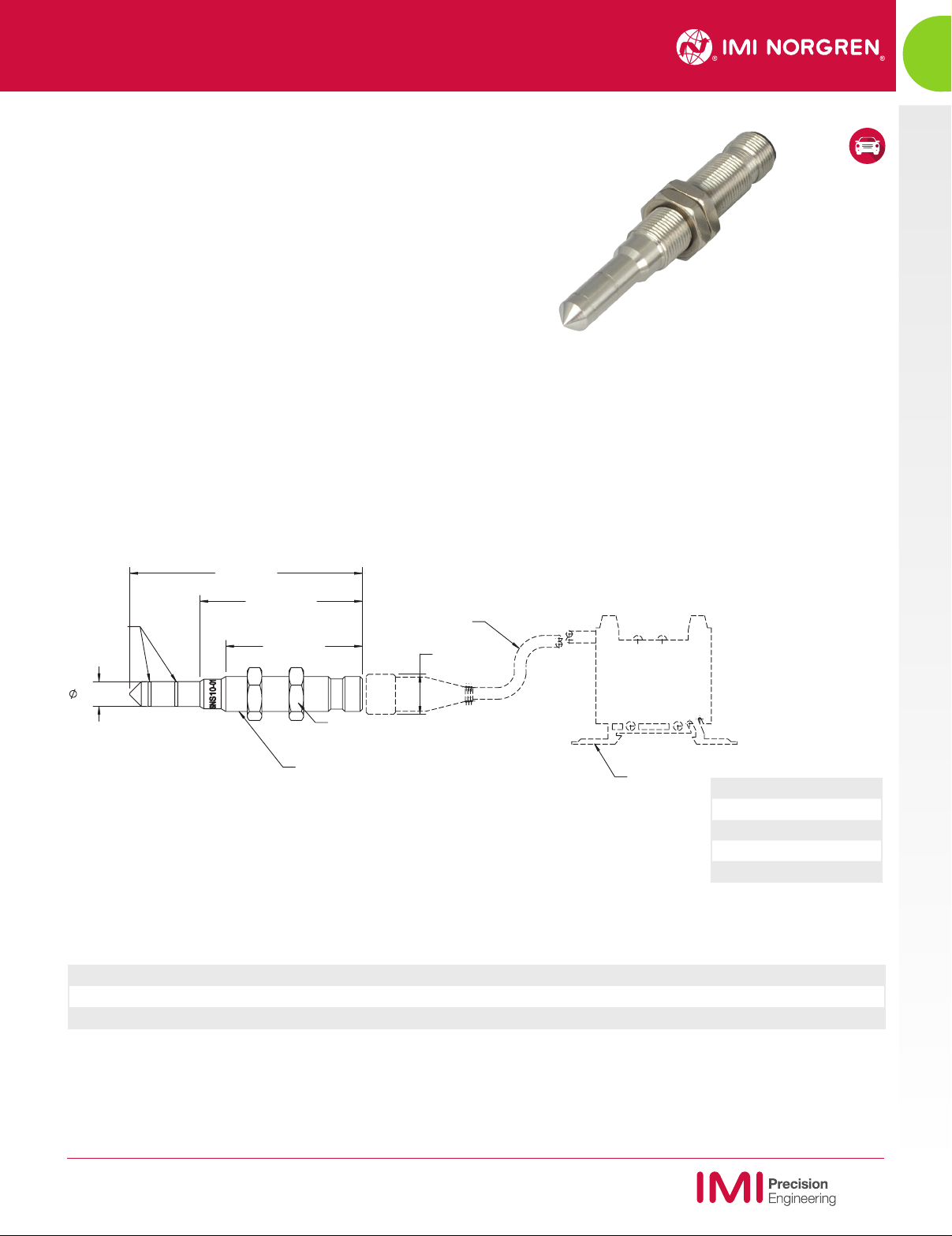

NS-10
NUT SENSOR
NS
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
> Detects M4 nut or thread presence
>
For heavy duty applications with sensor tip radial loads up to 32 lbs.
>
For use in weld applications
>
Immune to weld fields
>
Resistant to weld slag
.12 (3)
2.70 (68.6)
2.15 (54.6)
1.85 (47)
2X
.02 (0.5)
.23 (5.8)
NOTE 5
.11 (2.8)
NOTE 1
NOTE 2
NOTE 4
NOTE 3
Minimum nut thickness:
4.0 mm (0.16")
Maximum blank thickness:
1.6mm (0.06")
Sensor connector:
3-pin (male) 8mm (pico) connector
Operating temperature range:
32°F to 212°F (0°C to 100°C)
Target material:
Ferrous/Non-Ferrous
Technical data
Note 1 2X M8X 1.0
Note 2 2X M8 X 1.0 JAM NUTS
Note 3 SOLD SEPERATELY
Note 4 SOLD SEPERATELY
Note 5 SENSING AREA
Sensor Monitor Cable Weight
SNS04 SMH36004 (NPN) SCE13000 2m (6ft) 0.019 lbs / 9 gm
SMH37004 (PNP) SCE13001 2m (6ft) (Angled)
M4 Nut Detector System
Nut Sensor
Toughened Nut Sensor
SNS04
Dimensions in inches (mm) are for reference only

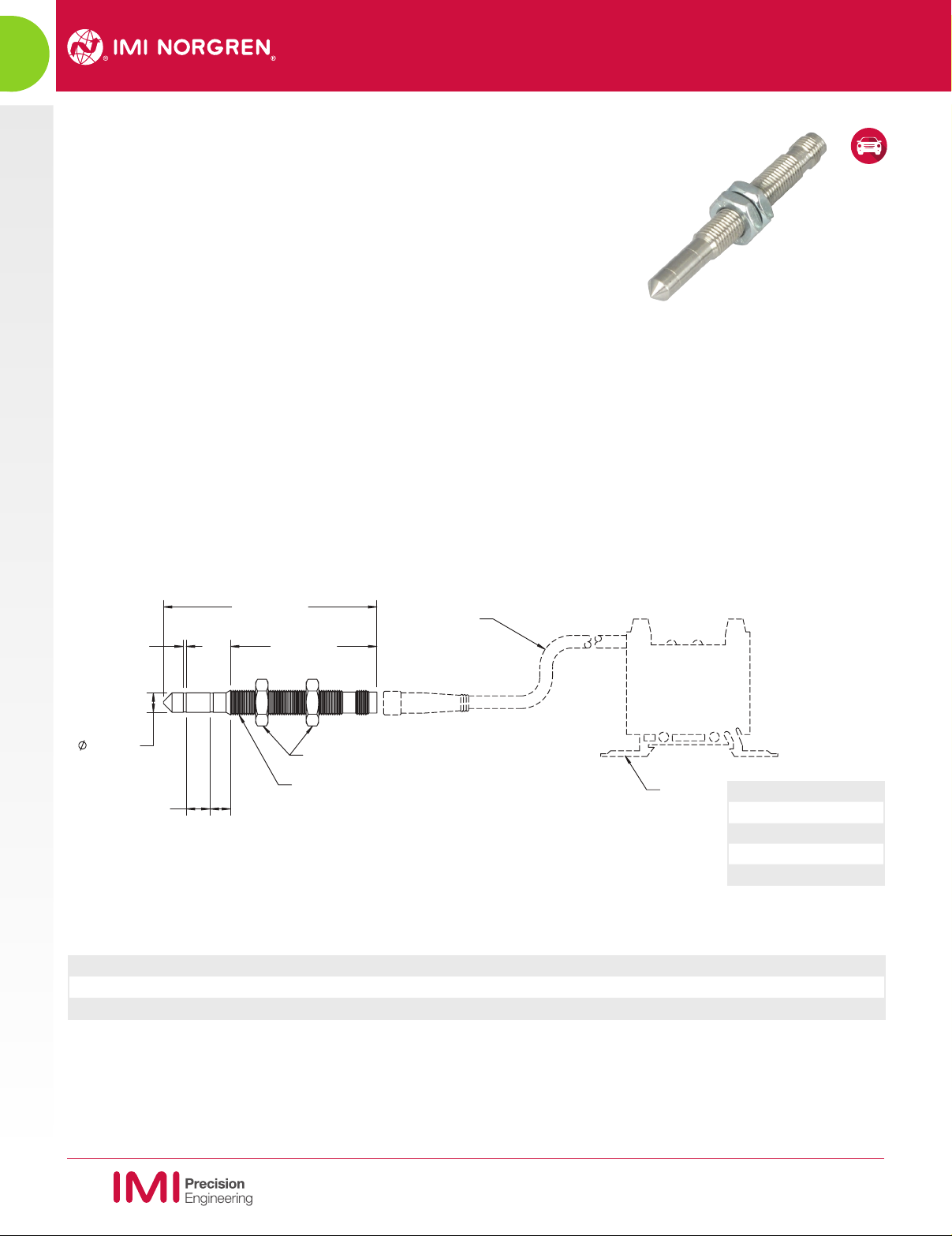

NUT SENSOR
NS-11
NS
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
Nut Sensor
Toughened Nut Sensor
SNS05
>
Detects M5 nut or thread presences
>
For heavy duty applications with sensor tip radial loads up to 38 lbs.
>
For use in weld applications
>
Immune to weld fields
>
Resistant to weld slag
Minimum nut thickness:
4.0 mm (0.16")
Maximum blank thickness:
1.6mm (0.06")
Sensor connector:
3-pin (male) 8mm (pico) connector
Operating temperature range:
32°F to 212°F (0°C to 100°C)
Target material:
Ferrous/Non-Ferrous
Technical data
.16 (4)
2.70 (68.6)
2.15 (54.6)
1.85 (47)
2X
.02 (0.5)
.11 (2.8)
.23 (5.8)
NOTE 5
NOTE 1
NOTE 2
NOTE 4
NOTE 3
Note 1 2X M8X 1.0
Note 2 2X M8 JAM NUTS
Note 3 SOLD SEPERATELY
Note 4 SOLD SEPERATELY
Note 5 SENSING AREA
Sensor Monitor Cable Weight
SNS05 SMH36005 (NPN) SCE13000 2m (6ft) 0.019 lbs / 9 gm
SMH37005 (PNP) SCE13001 2m (6ft) (Angled)
M5 Nut Detector System
Dimensions in inches (mm) are for reference only
NS-12
NUT SENSOR
NS
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
Nut Sensor
Toughened Nut Sensor
SNS06
Dimensions in inches (mm) are for reference only
> Detects M6 nut or thread presence
>
For Heavy Duty Applications with sensor tip radial loads up to 50 lbs.
>
For use in weld applications
>
Immune to weld fields
>
Resistant to weld slag
>
Can be used as a locating pin
0.18 (4.5)
2.70 (68.6)
2.15 (54.6)
.16 (4.1)
0.20 (5.1)
NOTE 5
2X
0.04 (1) 1.85 (47) 0.35 (8.9)
NOTE 1
NOTE 2
NOTE 3
NOTE 4
Note 1 2X M8X 1.0
Note 2 2X M8 JAM NUTS
Note 3 SOLD SEPERATELY
Note 4 SOLD SEPERATELY
Note 5 SENSING AREA
Sensor Monitor Cable Weight
SNS06 SMH36006 (NPN) SCE13000 2m (6ft) 0.037 lbs / 17 gm
SMH37006 (PNP) SCE13001 2m (6ft) (Angled)
M6 Nut Detector System
Minimum nut thickness:
5.0 mm (0.20")
Maximum blank thickness:
1.6 mm (0.06")
Sensor connector:
3-pin (male) 8 mm (pico) connector
Operating temperature range:
32°F to 212°F (0°C to 100°C)
Target material:
Ferrous/Non-Ferrous
Technical data
0.19 (4.9)
2.70 (68.6)
2.15 (54.6)
0.35 (8.9)
1.85 (47)
NOTE 1
NOTE 2
NOTE 3
NOTE 5
NOTE 4
NUT SENSOR
NS-13
NS
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
>
Detect M6 nut or thread presence, with additional locating pin feature
>
For Heavy Duty Applications with sensor tip radial loads up to 50 lbs.
>
For use in weld applications
>
Immune to weld fields
>
Resistant to weld slag
>
Sensor sized for more accurate positioning of nut
Minimum nut thickness:
5.0mm (0.20")
Maximum blank thickness:
1.6mm (0.06")
Sensor connector:
3-pin (male) 8mm (pico) connector
Operating temperature range:
32°F to 212°F (0°C to 100°C)
Target material:
Ferrous/Non-Ferrous
Technical Data
Note 1 M8 X 1.0
Note 2 2X M8 JAM NUTS
Note 3 SOLD SEPERATELY
Note 4 SOLD SEPERATELY
Note 5 SENSING AREA
Sensor Monitor Cable Weight
SNS06-01 SMH36006 (NPN) SCE13000 2m (6ft) 0.037 lbs / 17 gm
SMH37006 (PNP) SCE13001 2m (6ft) (Angled)
M6 Nut Detector System
Dimensions in inches (mm) are for reference only
Nut Sensor
Toughened Nut Sensor
SNS06-01
NS-14
NUT SENSOR
NS
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
Dimensions in inches (mm) are for reference only
>
Detects M8 nut or thread presence
>
For heavy duty applications with sensor tip radial loads up to 38 lbs.
>
For use in weld applications
>
Immune to weld fields
>
Resistant to weld slag
Minimum nut thickness:
6.5mm (0.26")
Maximum blank thickness:
1.6mm (0.06")
Sensor connector:
3-pin (male) 8 mm (pico) connector
Operating temperature range:
32°F to 212°F (0°C to 100°C)
Target material:
Ferrous/Non-Ferrous
Technical data
2.70 (68.6)
2X
.04 (1)
.30 (7.6)
NOTE 5
.25 (6.2)
1.85 (47)
.26 (6.6)
NOTE 1
NOTE 2
NOTE 3
NOTE 4
Note 1 2X M8X 1.0
Note 2 2X M8 JAM NUTS
Note 3 SOLD SEPERATELY
Note 4 SOLD SEPERATELY
Note 5 SENSING AREA
Sensor Monitor Cable Weight
SNS08 SMH36008 (NPN) SCE13000 2m (6ft) 0.033 lbs / 15 gm
SMH37008 (PNP) SCE13001 2m (6ft) (Angled)
M8 Nut Detector System
Nut Sensor
Toughened Nut Sensor
SNS08
0.26 (6.6)
2.70 (68.6)
2.58 (65.6)
1.85 (47)
0.35 (8.9)
NOTE 1
NOTE 2
NOTE 3
NOTE 4
NUT SENSOR
NS-15
NS
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
Nut Sensor
Toughened Nut Sensor
SNS08-01
Dimensions in inches (mm) are for reference only
>
Detect M8 nut or thread presence, with additional locating pin feature
>
For heavy duty applications with sensor tip radial loads up to 38 lbs.
>
For use in weld applications
>
Immune to weld fields
>
Resistant to weld slag
>
Sensor sized for more accurate positioning of nut
Minimum nut thickness:
6.5mm (0.26")
Maximum blank thickness:
1.6mm (0.06") Sensor connector:
3-pin (male) 8mm (pico) connector
Sensor connector:
3-pin (male) 8 mm (pico) connector
Operating temperature range:
32°F to 212°F (0°C to 100°C)
Target material:
Ferrous/Non-Ferrous
Technical data
Note 1 M8 X 1.0
Note 2 2X M8 JAM NUTS
Note 3 SOLD SEPERATELY
Note 4 SOLD SEPERATELY
Note 5 SENSING AREA
Sensor Monitor Cable Weight
SNS08-01 SMH36008 (NPN) SCE13000 2m (6ft) 0.82 lbs / 37 gm
SMH37008 (PNP) SCE13001 2m (6ft) (Angled)
M8 Nut Detector System
NS-16
NUT SENSOR
NS
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
Nut Sensor
Toughened Nut Sensor
SNS10
Dimensions in inches (mm) are for reference only
3.15 (80)
.31 (8)
2.20 (55.9)
1.85 (47)
2X
.04 (1)
.34 (8.6)
.32 (8.1)
NOTE 5
NOTE 1
NOTE 2 NOTE 3
NOTE 4
.58 (14.7)
>
Detects M10 nut or thread presence
>
For heavy duty applications with sensor tip radial loads up to 40 lbs.
>
For use in weld applications
>
Immune to weld fields
>
Resistant to weld slag
Minimum nut thickness
8.0 mm (0.31")
Maximum blank thickness
2.5mm (0.10")
Sensor connector:
4-pin (male) 12mm (micro) connector
Operating temperature range:
32°F to 212°F (0°C to 100°C)
Target material:
Ferrous/Non-Ferrous
Technical data
Note 1 2X M12X 1.0
Note 2 2X M12 JAM NUTS
Note 3 SOLD SEPERATELY
Note 4 SOLD SEPERATELY
Note 5 SENSING AREA
Sensor Monitor Cable Weight
SNS10 SMH36010 (NPN) SCF12060 2m (6ft) 0.082 lbs / 37 gm
SMH37010 (PNP) SCF12160 2m (6ft) (Angled)
M10 Nut Detector System
NUT SENSOR
NS-17
NS
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
Nut Sensor
Toughened Nut Sensor
SNS10-01
Dimensions in inches (mm) are for reference only
>
Detect M10 nut or thread presence, with additional locating pin feature
>
For heavy duty applications with sensor tip radial loads up to 40 lbs.
>
For use in weld applications
>
Immune to weld fields
>
Resistant to weld slag
>
Sensor sized for more accurate positioning of nut
Minimum nut thickness:
8.0 mm (0.31")
Maximum blank thickness:
2.5mm (0.10")
Sensor connector:
4-pin (male) 12mm (micro) connector
Operating temperature range:
32°F to 212°F (0°C to 100°C)
Target material:
Ferrous/Non-Ferrous
Technical data
00.58 (14.7)
3.15 (80)
0.34 (8.6)
2.20 (55.9)
1.85 (47)
NOTE 1
NOTE 2
NOTE 3
NOTE 5 NOTE 4
Note 1 M12 X 1.0
Note 2 2X M12 JAM NUTS
Note 3 SOLD SEPERATELY
Note 4 SOLD SEPERATELY
Note 5 SENSING AREA
Sensor Monitor Cable Weight
SNS10-01 SMH36010 (NPN) SCF12060 2m (6ft) 0.082 lbs / 37 gm
SMH37010 (PNP) SCF12160 2m (6ft) (Angled)
M10 Nut Detector System
NS-18
NUT SENSOR
NS
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
Dimensions in inches (mm) are for reference only
> Detects M12 nut or thread presence
> For heavy duty applications with sensor tip radial loads up to 60 lbs.
> For use in weld applications
> Immune to weld fields
> Resistant to weld slag
Minimum nut thickness:
10.0 mm (0.39")
Maximum blank thickness:
2.5mm (0.10")
Sensor connector:
4-pin (male) 12mm (micro) connector
Operating temperature range:
32°F to 212°F (0°C to 100°C)
Target material:
Ferrous/Non-Ferrous
Technical data
3.15 (80)
.38 (9.7)
2X
.04 (1)
.32 (8.1)
NOTE 5
1.85 (47)
.69 (17.5)
NOTE 1
NOTE 2
NOTE 3
NOTE 4
Note 1 2X M12X 1.0
Note 2 2X M12 JAM NUTS
Note 3 SOLD SEPERATELY
Note 4 SOLD SEPERATELY
Note 5 SENSING AREA
Sensor Monitor Cable Weight
SNS12 SMH36012 (NPN) SCF12060 2m (6ft) 0.082 lbs / 37 gm
SMH37012 (PNP) SCF12160 2m (6ft) (Angled)
M12 Nut Detector System
Nut Sensor
Toughened Nut Sensor
SNS12
NUT SENSOR
NS-19
NS
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
Nut Sensor
Monitor for Toughened Nut Sensor
SMH3XXXX
Dimensions in inches (mm) are for reference only
(4 PLCS)
DIA.
NOTE 2
SNS06
SHOWN
NOTE 1
0.79
(20.0)
2.36 (60.0)
0.35 (9.0)
0.71 (18.0)
0.16 (4.0)
2.76 (70.0)
1.97 (50.0)
2.20 (56.0)
Note 1 SOLD SEPERATELY
Note 2 SOLD SEPERATELY
System Sensor Monitor Switch type Cable
M4 Toughened Nut Detector SNS04 SMH36004 (NPN)
SMH37004 (PNP)
Currentsinking
Current sourcing
SCE13000 2m (6ft.)
SCE13001 2m (6ft) (Angled)
M5 Toughened Nut Detector SNS05 SMH36005 (NPN)
SMH37005 (PNP)
Currentsinking
Current sourcing
SCE13000 2m (6ft.)
SCE13001 2m (6ft) (Angled)
M6 Toughened Nut Detector SNS06
SNS06-01
SMH36006 (NPN)
SMH37006 (PNP)
Currentsinking
Current sourcing
SCE13000 2m (6ft.)
SCE13001 2m (6ft) (Angled)
M8 Toughened Nut Detector SNS08
SNS08-01
SMH36008 (NPN)
SMH37008 (PNP)
Currentsinking
Current sourcing
SCE13000 2m (6ft.)
SCE13001 2m (6ft) (Angled)
M10 Toughened Nut Detector SNS10
SNS10-01
SMH36010 (NPN)
SMH37010 (PNP)
Currentsinking
Current sourcing
SCE12060 2m (6ft.)
SCE12160 2m (6ft) (Angled)
M12 Toughened Nut Detector SNS12 SMH36012 (NPN)
SMH37012 (PNP)
Currentsinking
Current sourcing
SCE12060 2m (6ft.)
SCE12160 2m (6ft) (Angled)
Power/sensor connector:
2 X 3-pin terminal connector
Supply voltage range:
10 VDC to 30 VDC
Maximum load current:
150mA
Operating temperature range:
32°F to 140°F (0°C to +60°C)
Response time:
25ms turn-on, 25ms turn-o
Indicator lights:
GREEN: DC power connect
AMBER: Target detected
Target material:
Ferrous
Short circuit protection:
Yes
Overload protection:
Yes
Weight:
0.091 lbs / 41 gms
>
LED for on/o status
>
Interface directly to programmable controlers
Technical data
NS-20
NUT SENSOR
NS
www.norgren.com/automationsolutions
[email protected] 1-800-272-4511
Dimensions in inches (mm) are for reference only
“L”
Brown
A
Blue
Black
Front View
Female
Connector
1
2
3
3
21
Note 1
Brown
Blue
Black
1
2
3
A
Front View
Female
Connector
3
21
Note 1
B
C
“L”
Brown
A
Blue
Black
Front View
Female
Connector
1
2
3
3
21
Note 1
Brown
Blue
Black
1
2
3
A
Front View
Female
Connector
3
21
Note 1
B
C
Part number
SCE13000, SCE13005
Straight cable, 3-pin PICO for SNP50608,
SNP01012, SNS04, SNS05, SNS06, SNS08
Technical data
Weight:
74 grams
Part number “L”
SCE13000 2000.0mm (78.74")
SCE13005 5000.0mm (196.85")
DIM MM Inches
A 30.9 1.21
Note 1
3–PIN (Female), PICO
Part number
SCE13001
Right angle cable, 3-pin PICO for SNP50608,
SNP01012, SNS04, SNS05, SNS06, SNS08
Technical data
Weight:
68 grams
DIM MM Inches
A 2000.0 78.74
B 26.0 1.03
C 15.9 0.63
Note 1
3–PIN (Female), PICO
Nut Sensor
Sensor cables with 3 PIN PICO connectors
SCE13000, SCE13001, SCE13005
This manual suits for next models
4
Table of contents
Other IMI NORGREN Accessories manuals
Popular Accessories manuals by other brands
DOUXE
DOUXE S3 Active Stylus Pen instruction manual
FirstHealth
FirstHealth FH7020 instruction manual
Murdock
Murdock A311.8 Series Installation & maintenance instructions
SOMFY
SOMFY TaHoma 2401368 installation guide
PCB Piezotronics
PCB Piezotronics IMI SENSORS M641B11 Installation and operating manual
Goldair
Goldair PLATINUM GPEBSQ Series operating instructions
