imoware HSP124-4K User manual

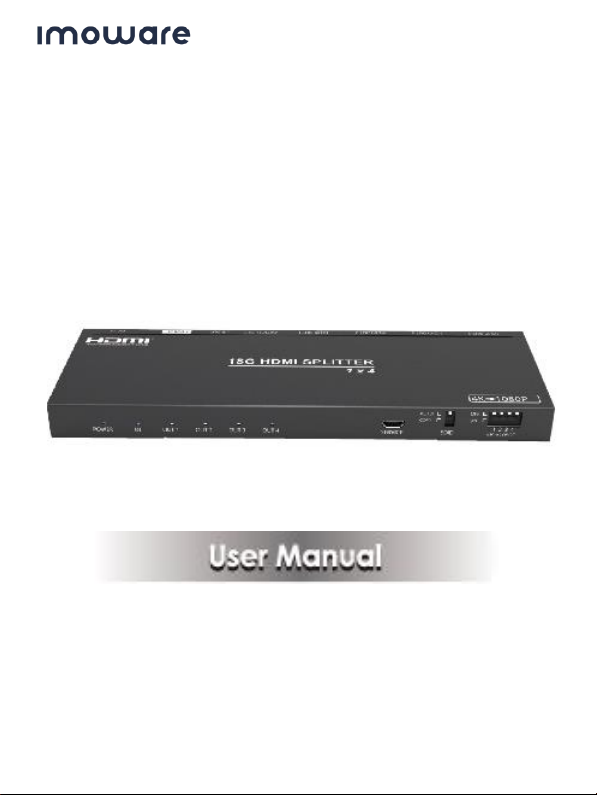

Imoware HSP124-4K
1x4 HDMI 2.0 Splitter with
Scaler/Audio Extract
VER 1.0

The information contained in this document is non -contractual and is subject to change without notice
1
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual for
future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by
electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection
systems is highly recommended in order to protect and extend the life of your
equipment.
Table of Contents
1. Introduction ...............................................................................................2
2. Features.....................................................................................................2
3. Package Contents........................................................................................3
4. Specifications .............................................................................................3
5.Operation Controls and Functions .................................................................4
5.1 Front Panel......................................................................................4
5.2 Rear Panel.......................................................................................5
6. Application Example ...................................................................................6

The information contained in this document is non -contractual and is subject to change without notice
2
1. Introduction
The 1x4 HDMI 2.0 Splitter simultaneously one route HDMI source to four routes
HDMI display. It supports resolution up to 4K2K@60Hz (4:4:4) and HDCP 2.2. This
product supports audio extract from HDMI source to optical and analog output. It
can be selected COPY, AUTO modes EDID setting. Output supports bypass and
downscaler(4K->1080P) function.
2. Features
☆ HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
☆ Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:4:4)
☆ Supports digital and analog audio extract output from HDMI source.
☆ Supports output bypass and 4K->1080P downscaler function via dial switch on
panel.
☆ EDID can be selected COPY and AUTO modes via dial switch on panel.
(COPY: It copys OUT 1 port EDID setting to all outputs port, If no HDMI OUT 1
capable EDID is detected then the unit will copy HDMI OUT 2. If no HDMI OUT
1~2 capable EDID is detected then the unit will copy HDMI OUT 3...etc. The
priority order is OUT 1 to OUT 4.
AUTO: Compare OUT 1~OUT 4 EDID setting and output the best resolution

The information contained in this document is non -contractual and is subject to change without notice
3
to all outputs).
☆ Supports analog audio PCM 2.0.
☆ Supports optical audio pass-through format about LPCM 2.0/2.1/5.1CH, Dolby
5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS-HDMA 5.1, DTS HD-
HRA 5.1.
3. Package Contents
① 1× 1×4 HDMI 2.0 Splitter
② 1× 5V/1A Power Adapter
③ 1× User Manual
4. Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Video Bandwidth
18Gbps
Video Resolutions
720P50/60Hz, 1080P50/60Hz, 4K2K24Hz,
4K2K30Hz, 4K2K@50/60Hz (4:4:4)
Color Depth
4K60Hz 8-bit, 1080P 12-bit
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD,
DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD
Master Audio, DSD
L/R Audio Formats
PCM 2.0
Optical Audio Formats
LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True
HD,Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA
5.1, DTS HD-HRA 5.1

The information contained in this document is non -contractual and is subject to change without notice
4
ESD Protection
Human-body Model：
±8kV (Air-gap discharge) , ±4kV (Contact
discharge)
Connections
Input ports
1×HDMI Type A [19-pin female]
Output ports
4×HDMI Type A [19-pin female]
1×L/R Audio out [3.5mm Stereo Mini-jack]
1×Optical out [S/PDIF]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
180mm(W)×62mm(D)×14mm(H)
Weight
227g
Power Supply
Input: AC100~240V 50/60Hz, Output: DC5V/1A
(US/EU standards, CE/FCC/UL certified)
Power Consumption
3.5W (max)
Operating
Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)
5.Operation Controls and Functions

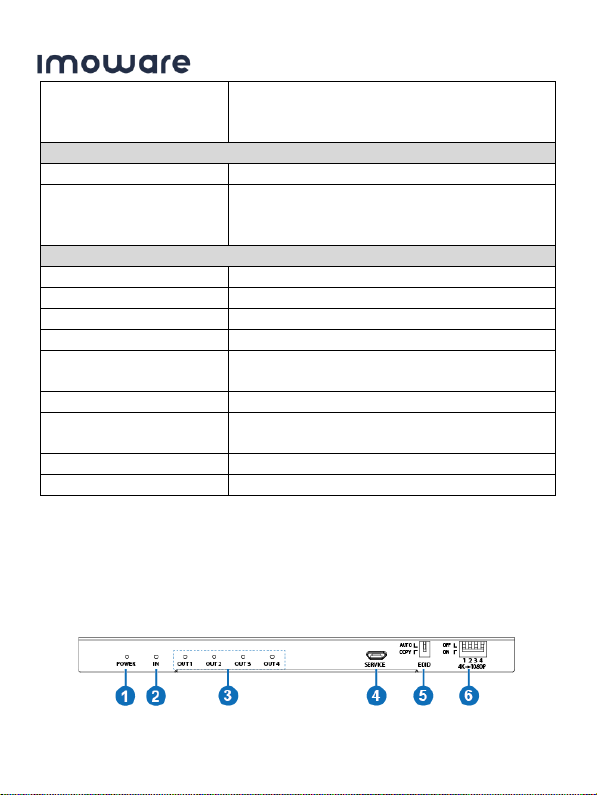

5.1 Front Panel

The information contained in this document is non -contractual and is subject to change without notice
5
Number
Name
Function description
1
POWER LED
This blue LED will illuminate when the unit has
connected power supply.
2
HDMI INPUT
LED
This blue LED will illuminate when the HDMI IN has
connected an active HDMI source device with a
HDMI cable.
3
HDMI
OUTPUT LED
These blue LEDs will illuminate when the HDMI OUT
port has connected an avtice display device with a
HDMI cable.
4
SERVICE port
Fireware update used. (Manufacturer use only.)
5
EDID
• AUTO: Compare the EDID setting of the HDMI
OUT 1~ 4 port display device, then transmit the best
EDID signal to source device, the source device will
transmit again the
EDID signal to all outputs.
• COPY: Copy the HDMI OUT 1 port EDID setting to
source device(If no HDMI OUT 1 capable EDID is
detected then the unit will copy HDMI OUT 2. If no
HDMI OUT 1~2
capable EDID is detected then the unit will copy
HDMI OUT 3...etc. The priority order is OUT 1 to
OUT 4 ), the source device will transmit again the
signal to all outputs.
6
Dial switch
(4K→1080P)
OFF: When the dial switch is dialled in ‘OFF’
position, signal input and output is bypass status.
ON: When the dial switch is dialled in ‘ON’
position,signal input will downscale(4k->1080P )
output.

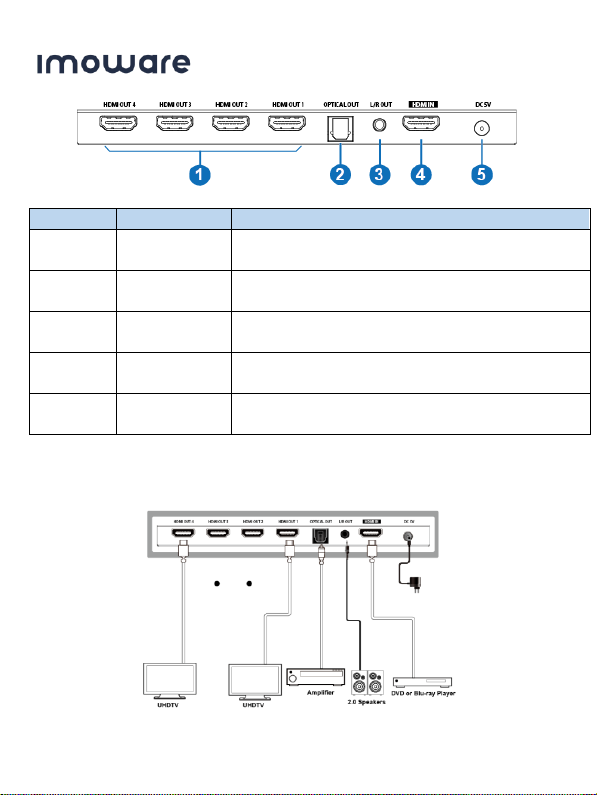

5.2 Rear Panel

The information contained in this document is non -contractual and is subject to change without notice
6
Number
Name
Function description
1
HDMI
OUTPUT
Connect to HDMI display device such as TV or
monitor.
2
OPTICAL OUT
Optical audio output.
(This port outputs audio from HDMI IN port.)
3
L/R OUT
Analog audio output.
(This port outputs audio from HDMI IN port.)
4
HDMI IN
Connect to HDMI source device such as DVD player
or PS4.
5
DC 5V
Plug the 5V/1A DC power supply into the unit and
connected the adapter to an AC outlet.
6. Application Example
