Impact Test Equipment MH630 User manual

Vibrating Hammer Makita
240V / 110V
MH630/MH631
Impact Test Equipment Ltd
www.impact-test.co.uk | www.impact-test.com
User Guide
User Guide

Impact Test Equipment Ltd
Building 21 Stevenston Industrial Estate
Stevenston, Ayrshire KA20 3LR
Tel. [phone]
Fax. [phone]
[e-mail]
Test Equipment
www.impact-test.co.uk
Test Sieves & Accessories
www.impact-test.com

MH630 240V / MH631 110V Vibrating Hammer
MH630
SPECIFICATIONS
Model
MH630/MH631
Blows per minute
1,100 - 2,650 min-1
Overall length
449 mm
Net weight
5.1 kg
Safety class
II
•Due to our continuing program of research and development, the specifications herein are subject
to change without notice.
•Specifications may differ from country to country.
•Weight according to EPTA-Procedure 01/2003
Symbols
The following show the symbols used for the equipment. Be sure that you understand their meaning
before use.
Read instruction manual
DOUBLE INSULATION
Only for EU countries
Do not dispose of electric equipment together with household waste material!
In observance of European Directive 2002/96/EC on waste electric and electronic equipment and its
implementation in accordance with national law, electric equipment that have reached the end of their life
must be collected separately and returned to an environmentally compatible recycling facility.
Intended use
The tool is intended for chiselling work in concrete, brick, stone and asphalt as well as for driving and
compacting with appropriate accessories.
Power supply
The tool should be connected only to a power supply of the same voltage as indicated on the nameplate,
and can only be operated on single-phase AC supply. They are double-insulated in accordance with
European Standard and can, therefore, also be used from sockets without earth wire.

MH630 240V / MH631 110V Vibrating Hammer
MH630
Noise
The typical A-weighted noise level determined according to EN60745:
Sound pressure level (LpA) : 87 dB(A) Sound power level (LWA) : 98 dB(A)
Uncertainty (K) : 3 dB(A)
Wear ear protection
Vibration
The vibration total value (tri-axial vector sum) determined according to EN60745:
Work mode : chiseling function with side handle
Vibration emission (ah,CHeq) : 11.0 m/s2
Uncertainty (K) : 1.5 m/s2
Work mode : chiseling function with side grip
Vibration emission (ah,CHeq) : 11.5 m/s2
Uncertainty (K) : 1.5 m/s2
•The declared vibration emission value has been measured in accordance with the standard test
method and may be used for comparing one tool with another.
•The declared vibration emission value may also be used in a preliminary assessment of exposure.
WARNING:
•The vibration emission during actual use of the power tool can differ from the declared emission
value depending on the ways in which the tool is used.
•Be sure to identify safety measures to protect the operator that are based on an estimation of
exposure in the actual conditions of use (taking account of all parts of the operating cycle such as
the times when the tool is switched off and when it is running idle in addition to the trigger time).
For European countries only
EC Declaration of Conformity
The manufacturer declares that the following machine:
Designation of Machine: Demolition Hammer
Model No./ Type: MH630/MH631 are of series production and Conforms to the following European
Directives: 98/37/EC until 28th December 2009 and then with 2006/42/EC from 29th December 2009
And are manufactured in accordance with the following standards or standardised documents:
EN60745
The technical documentation is kept by the UK Manufacturer.
24th April 2009

MH630 240V / MH631 110V Vibrating Hammer
MH630
General Power Tool Safety Warnings
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
Electrical safety
4. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
5. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
7. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
8. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of electric shock.
9. If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
10. Use of power supply via a RCD with a rated residual current of 30mA or less is always
recommended.
Personal safety
11. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
12. Use personal protective equipment. Always wear eye protection. Protective equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
13. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the switch on invites accidents.
14. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left

MH630 240V / MH631 110V Vibrating Hammer
MH630
attached to a rotating part of the power tool may result in personal injury.
15. Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
16. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
17. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
Power tool use and care
18. Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
19. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
20. Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
21. Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in the
hands of untrained users.
22. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused by poorly maintained power tools.
23. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
24. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
Service
25. Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
26. Follow instruction for lubricating and changing accessories.
27. Keep handles dry, clean and free from oil and grease.
HAMMER SAFETY WARNINGS
1. Wear ear protectors. Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the
cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a
"live" wire may make exposed metal parts of the power tool "live" and could give the operator an
electric shock.
4. Wear a hard hat (safety helmet), safety glasses and/or face shield. Ordinary eye or sun glasses
are NOT safety glasses. It is also highly recommended that you wear a dust mask and thickly
padded gloves.

MH630 240V / MH631 110V Vibrating Hammer
MH630
5. Be sure the bit is secured in place before operation.
6. Under normal operation, the tool is designed to produce vibration. The screws can come loose
easily, causing a breakdown or accident. Check tightness of screws carefully before operation.
7. In cold weather or when the tool has not been used for a long time, let the tool warm up for a
while by operating it under no load. This will loosen up the lubrication. Without proper warm-up,
hammering operation is difficult.
8. Always be sure you have a firm footing. Be sure no one is below when using the tool in high
locations.
9. Hold the tool firmly with both hands.
10. Keep hands away from moving parts.
11. Do not leave the tool running. Operate the tool only when hand-held.
12. Do not point the tool at any one in the area when operating. The bit could fly out and injure
someone seriously.
13. Do not touch the bit or parts close to the bit immediately after operation; they may be
extremely hot and could burn your skin.
14. Do not operate the tool at no-load unnecessarily.
15. Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation
and skin contact. Follow material supplier safety data.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence
to safety rules for the subject product.
MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious
personal injury.
FUNCTIONAL DESCRIPTION
CAUTION:
•Always be sure that the tool is switched off and unplugged before adjusting or checking function
on the tool.
Switch action
1. Switch lever
CAUTION:
•Before plugging in the tool, always check to see that the tool is switched off.
•Switch can be locked in "ON" position for ease of operator comfort during extended use. Apply
caution when locking tool in "ON" position and maintain firm grasp on tool.
•To start the tool, push the switch lever "ON (I)" on the left side of the tool. To stop the tool, push
the switch lever "OFF (O)" on the right side of the tool.
OFF
ON
1

MH630 240V / MH631 110V Vibrating Hammer
MH630

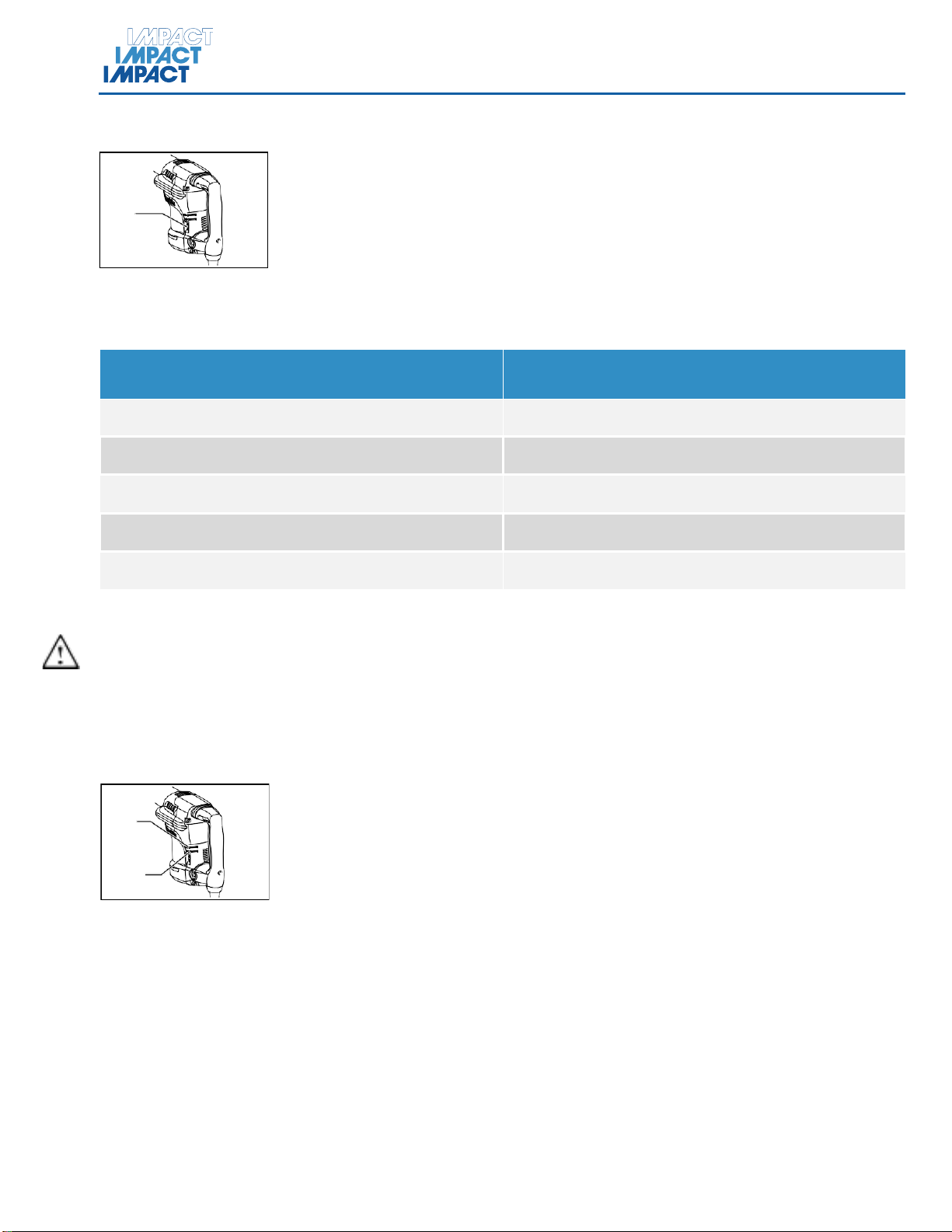

Speed change
The blows per minute can be adjusted just by turning the adjusting dial. This can
be done even while the tool is running. The dial is marked 1 (lowest speed) to 5
(full speed).
Refer to the table below for the relationship between the number settings on
the adjusting dial and the blows per minute.
1. Adjusting dial
Number on adjusting dial
Blows per minute
5
2,650
4
2,400
3
1,750
2
1,300
1
1,100
CAUTION:
•The speed adjusting dial can be turned only as far as 5 and back to 1. Do not force it past 5 or 1, or
the speed adjusting function may no longer work.
Indicator lamp
1. Power-ON indicator lamp (green)
2. Service indicator lamp (red)
The green power-ON indicator lamp lights up when the tool is plugged in. If the indicator lamp does not
light up, the mains cord or the controller may be malfunctioning. The indicator lamp is lit but the tool does
not start even if the tool is switched on, the carbon brushes may be worn out, or the controller, the motor
or the ON/OFF switch may be malfunctioning.
The red service indicator lamp flickers up when the carbon brushes are nearly worn out to indicate that the
tool needs servicing. After approx. 8 hours of use, the motor will automatically be shut off.
1
1
2

MH630 240V / MH631 110V Vibrating Hammer
MH630
ASSEMBLY
CAUTION:
•Always be sure that the tool is switched off and unplugged before carrying out any work on the tool.
Side handle (auxiliary handle)
For tool with stick type side handle
1. Side grip (auxiliary handle)
The side grip swings around to either side, allowing easy handling of the tool in any position. Loosen the
side grip by turning it counterclockwise, swing it to the desired position and then tighten it by turning
clockwise.
Installing or removing the bit
1. Bit shank
2. Bit grease
Clean the bit shank and apply bit grease before installing the bit.
Insert the bit into the tool. Turn the bit and push it in until it engages.
1. Releasing cover
If the bit cannot be pushed in, remove the bit.
Pull the releasing cover down a couple of times.
Then insert the bit again. Turn the bit and push it in until it engages.
After installing, always make sure that the bit is securely held in place by trying
to pull it out.
To remove the bit, pull the releasing cover down all the way and pull the bit out.
1. Releasing cover
1
1
2
1
1

MH630 240V / MH631 110V Vibrating Hammer
MH630
Bit angle
The bit can be secured at 12 different angles. To change the bit angle, slide the change ring forward, then
turn the change ring to change the bit angle. At the desired angle, slide the change ring back to the
original position. The bit will be secured in place.
1. Change ring
NOTE:
•The change ring cannot turn when the bit is not installed on the tool.
OPERATION
Chipping/Scaling/Demolition
Always use the side grip (auxiliary handle) and firmly hold the tool by both side
grip and switch handle during operations. Turn the tool on and apply slight
pressure on the tool so that the tool will not bounce around, uncontrolled.
Pressing very hard on the tool will not increase the efficiency.
MAINTENANCE
CAUTION:
•Always be sure that the tool is switched off and unplugged before attempting to perform
inspection or maintenance.
•Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may
result.
Lubrication
CAUTION:
•This servicing should be performed by Authorized Service Centers only.
This tool requires no hourly or daily lubrication because it has a grease-packed lubrication system. It
should be lubricated every time the carbon brushes are replaced. Send the complete tool to Authorized
Service Center for this lubrication service.
1

MH630 240V / MH631 110V Vibrating Hammer
MH630
Run the tool for several minutes to warm it up. Switch off and unplug the tool.
Loosen the four screws and remove the handle. Note that the top screws are
different from other screws.
1. Screws
Disconnect the connector by pulling them.
1. Connector
2. White
3. Black
Loosen the four screws on crank cap and remove the crank cap cover.
1. Crank cap cover
2. Screwdriver
Wipe out the old grease inside and replace with a fresh grease (30 g). Use only
approved hammer grease (optional accessory). Filling with more than the
specified amount of grease (approx. 30 g) can cause faulty hammering action
or tool failure. Fill only with the specified amount of grease.
1. Grease
CAUTION:
•Be careful not to damage the connector or lead wires especially when wiping out the old grease.
To reassemble the tool, follow the disassembling procedure in reverse.
CAUTION:
•Do not tighten the crank cap excessively. It is made of resin and is subject to breakage.
•Be careful not to damage the connector or lead wires especially when installing the handle.
Connect the connector firmly and then reinstall the handle.
1. Connector
2. White
3. Black
To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by Authorized Service Centers, always using original
replacement parts.
1
3
1
2
2
1
1
3
1
2

MH630 240V / MH631 110V Vibrating Hammer
MH630
ACCESSORIES
CAUTION:
•These accessories or attachments are recommended for use with the MH630/MH631 Vibrating
Hammer specified in this manual. The use of any other accessories or attachments might present a
risk of injury to persons. Only use accessory or attachment for its stated purpose.
If you need any assistance for more details regarding these accessories, please contact Impact Test
Equipment.
Spare Parts Available
Bull point (SDS-max)
Cold chisel (SDS-max)
Scaling chisel (SDS-max)
Clay spade (SDS-max)
Bit grease
Safety goggles
Hammer grease
Plastic carrying case

Impact Test Equipment Ltd
Building 21 Stevenston Industrial Estate
Stevenston, Ayrshire KA20 3LR, United Kingdom
([phone]
www.impact-test.co.uk
[e-mail]
