Impex MARCY CR 5 User manual

MARCY CORNER GYM
CR 5N
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: [phone] Fax: [phone]
www.impex-fitness.com
[email protected]
NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Resistance Chart
Warranty
Ordering Parts
Model
MWM CR5N
Retain This
Manual for
Reference
07-24-03
OWNER'S
MANUAL

TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................... 1
IMPORTANT SAFETY NOTICES..................................................................... 2
HARDWARE IDENTIFIER.....…....................................................................... 3
ASSEMBLY INSTRUCTIONS...............................................................…..........4
PARTS LIST…………………………………………………………….……….…….23
RESISTANCE CHART……………………………………………………………….24
WARRANTY.................................................................................................… 25
ORDERING PARTS......................................................................................... 25
BEFORE YOU BEGIN
Thank you for selecting the MARCY CR5N CORNER GYM by IMPEX FITNESS
PRODUCTS. For your safety and benefit, read this manual carefully before
using the machine. As a manufacturer, we are committed to provide you
complete customer satisfaction. If you have any questions, or find there are
missing or damaged parts, we guarantee you complete satisfaction through
direct assistance from our factory. To avoid unnecessary delays, please call our
TOLL-FREE customer service number. Our Customer Service Agents will
provide immediate assistance to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. – Fri. 9 a.m. – 5 p.m. PST
www.impex-fitness.com
[email protected]m
1

IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply whenever
you operate a piece of exercise equipment. Be sure to read the entire manual before you
assemble or operate your machine. In particular, note the following safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN.
THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS
WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING
ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL
INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS
PRODUCT.
SAVE THESE INSTRUCTIONS.
2

3

ASSEMBLY INSTRUCTION

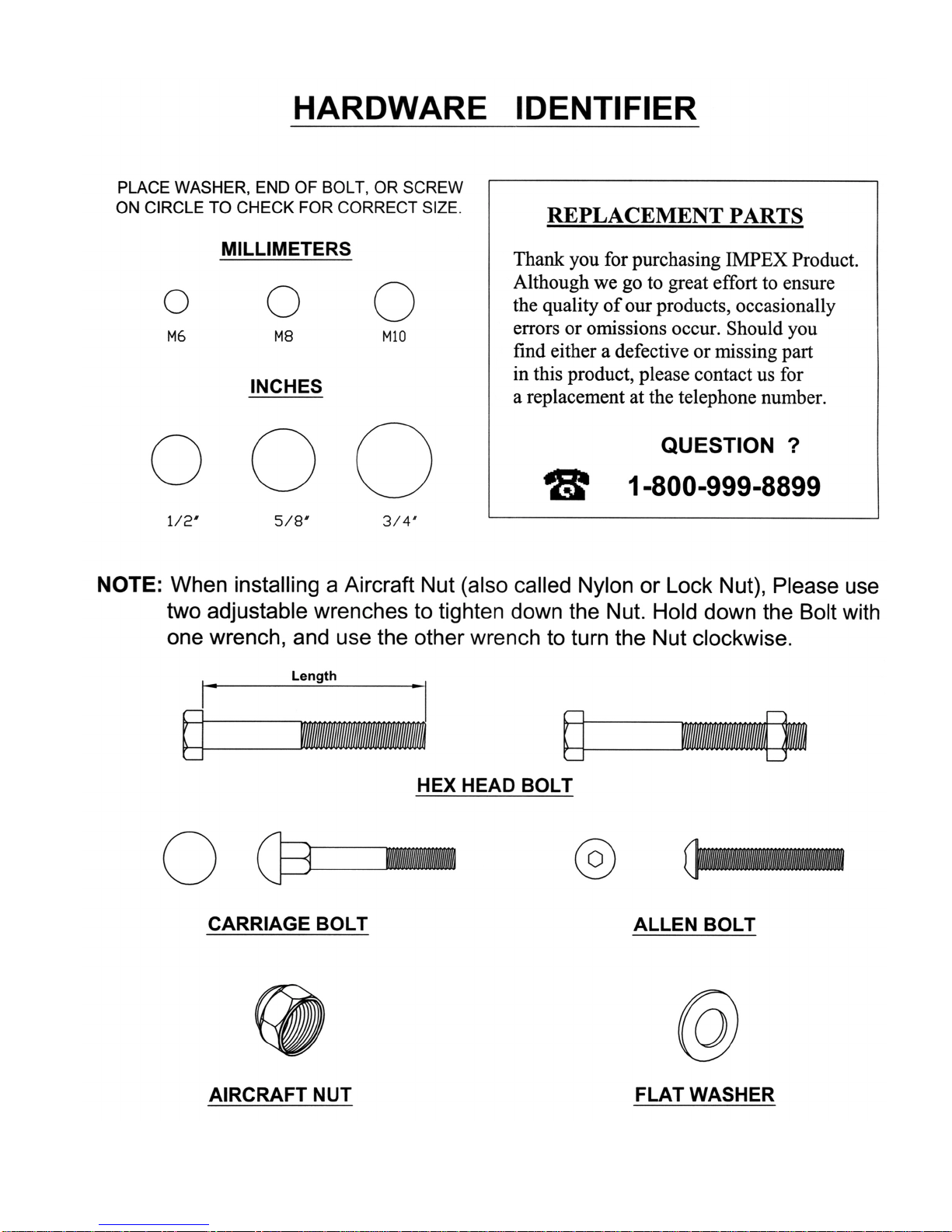

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches
NOTE: It is strongly recommended two or people assembling this machine to avoid
possible injury.
STEP 1 (See Diagram 1)
A.) Place the Right Base Frame (#46) and Left Base Frame (#87) on the floor, at a right angle to
each other. Attach the Rear Vertical Beam (#50) to the joint and align the holes. Secure the
holes with two M10 x 3” Carriage Bolts (#64), ∅3/4” Washers (#6) and M10 Aircraft Nuts (#5).
DO NOT tighten all the nuts and bolts yet.
Diagram 1
4

STEP 2 (See Diagram 2)
A.) Attach the Right Vertical Beam (#21) to the Right Base Frame (#46). Secure it with two M10 x
2 ¾” Carriage Bolts (#17), ∅¾” Washers (#6), and M10 Aircraft Nuts (#5).
B.) Attach the Right Seat Support (#49) to the Right Vertical Beam (#21). Secure it with one
Bracket (#7), two M10 x 2 ¾” Carriage Bolts (#17), ∅¾” Washers (#6), and M10 Aircraft Nuts
(#5).
C.)Attach the other end of Right Seat Support (#49) to the Right Base Frame (#46). Secure it with
one M10 x 2 ½” Carriage Bolt (#100), ∅¾” Washer (#6), and M10 Aircraft Nut (#5).
D.)Attach the Leg Developer (#40) to the front open bracket on the Right Seat Support. Secure it
with a Leg Developer Axle (#41), two ∅¾” Washers (#6), and M10 x ¾” Allen Bolts (#37).
DIAGRAM 2
5

STEP 3 (See Diagram 3)
A.) Slide two ∅2 ½” Rubber Bumpers (#58) onto two Chromed Guide Rods (#58). Insert the two
Guide Rods into the holes on the Right Base Frame (#46). Slide the Selector Stem (#67) onto
the two Guide Rods (#22). Slide the Selector Stem over the Selector Rod (#69). Secure the
Selector Rod to the Selector Stem with two M10 x 1” Allen Bolts (#56). DO NOT install the
plates yet.
B.) Repeat the Procedure A above to install another set of Guide Rods.
C.)Place the Upper Frame (#8) over the two sets of Guide Rods then onto top of Right Vertical
Beam (#21) and Rear Vertical Beam (#50).
D.)Secure each set of Guide Rods (#22) to the Upper Frame with two M10 x 1” Allen Bolts (#56)
and ∅¾” Washers (#6).
E.) Secure the Right Vertical Beam (#21) to the Upper Frame with one Bracket (#7), two M10 x 2
¾” Carriage Bolts (#17), ∅¾” Washers (#6), and M10 Aircraft Nuts (#5).
F.) Attach top of Left Vertical Beam (#77) to the Upper Frame. Attach the bottom of Left Vertical
Beam to the Left Base Frame (#87). Secure the bottom of Left Vertical Beam with two M10 x 2
¾” Carriage Bolts (#17), ∅¾” Washers (#6), and M10 Aircraft Nuts (#5).
G.)Secure the Left Vertical Beam (#77), Rear Vertical Beam (#50), and Upper Frame (#8) all
together with two M10 x 3” Carriage Bolts (#64), ∅¾” Washers (#6), and M10 Aircraft Nuts
(#5).
H.)Attach the Left Seat Support (#92) to the Left Vertical Beam (#77). Secure it with one Bracket
(#7), two M10 x 2 ¾” Carriage Bolts (#17), ∅¾” Washers (#6), and M10 Aircraft Nuts (#5).
Attach the other end of Left Seat Support (#92) to the Left Base Frame (#87). Secure it with
one M10 x 2 ½” Carriage Bolt (#100), ∅¾” Washer (#6), and M10 Aircraft Nut (#5).
I.) Securely tighten all nuts and bolts previously installed.
J.) Carefully tilt the machine on its side. (Help of another person is a MUST.) Secure the four
Guide Rods (#22) to the Right Base Frame (#46) with four M10 x 1” Allen Bolts (#56).
K.) Attach the bottom of Leg Press Frame (#84) to the bracket on the Left Base Frame (#87).
Secure it with a M12 x 3” Allen Bolt (#89), two ∅7/8” Washers (#71), and one M12 Aircraft Nut
(#57).
L.) Attach a Leg Press Diagonal Support (#90) to each side of the Leg Press Frame. Secure them
together with two M10 x 2 ½” Allen Bolts (#10), four ∅¾” Washers (#6), and two M10 Aircraft
Nuts (#5).
6

DIAGRAM 3
7

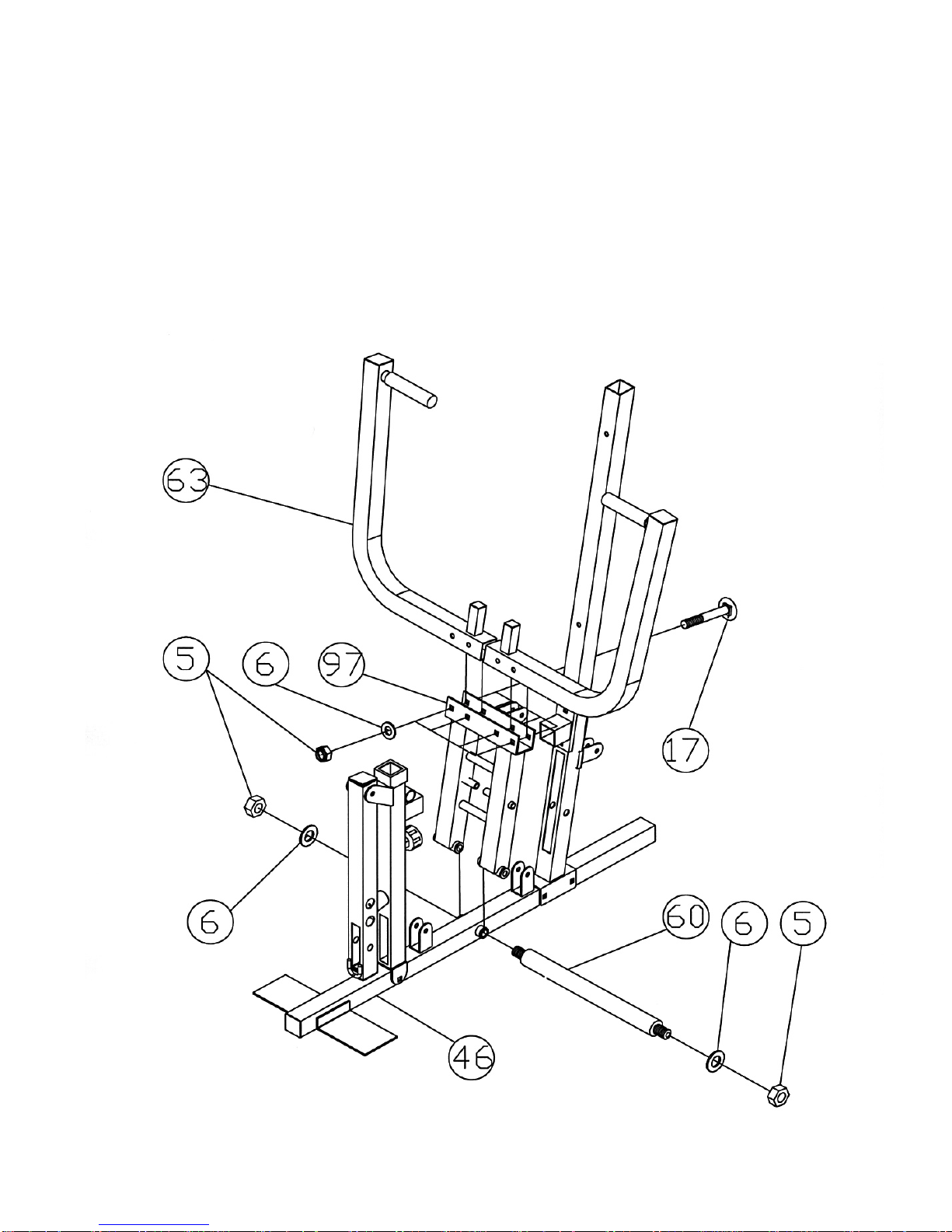

STEP 4 (See Diagram 4)
A.) Attach the Front Press Base (#97) to the Right Base Frame (#46). Secure it with a 9 ¼” Front
Press Axle (#60), two ∅¾” Washers (#6), and two M10 Aircraft Nuts (#5).
B.) Attach the Front Press Frames (#63) to the Front Press Base. Secure it with four M10 x 2 ¾”
Carriage Bolts (#17), ∅¾” Washers (#6), and M10 Aircraft Nuts (#5).
DIAGRAM 4
8

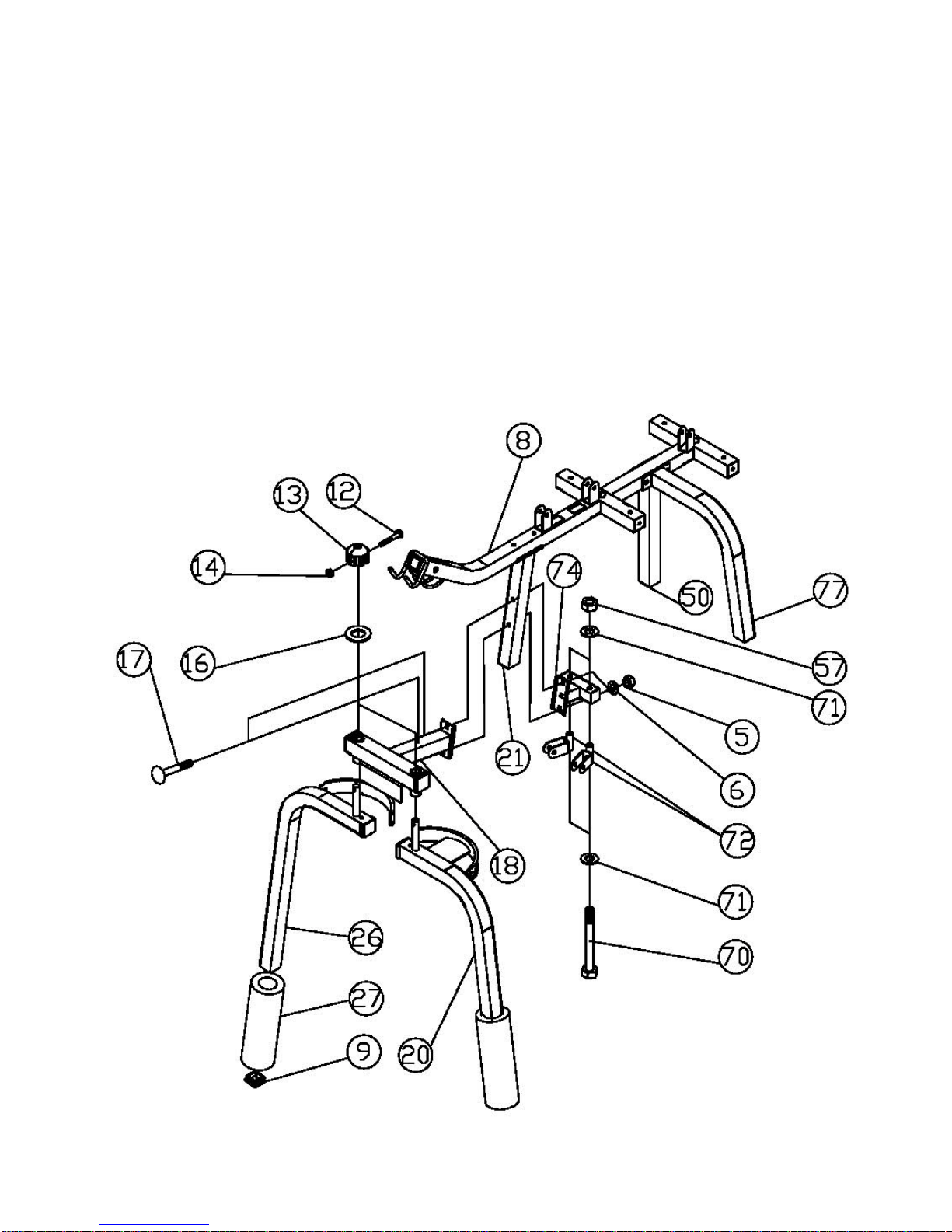

STEP 5 (See Diagram 5)
A.) Attach the Butterfly Support Frame (#18) to the front of Right Vertical Beam (#21). Attach the
Butter Pulley Support (#74) to the back of Right Vertical Beam. Align the holes. Secure them
together with two M10 x 2 ¾” Carriage Bolts (#17), ∅¾” Washers (#6), and M10 Aircraft Nuts
(#5).
B.) Insert the Axle on the Left Butterfly (#20) into the hole on the Butterfly Support Frame from the
bottom. Secure it with one ∅1 ½” Washer (#16), ∅1 1/2” Lock Ring (#13), M6 x 1 3/8” Hex
Socket Bolt (#12), and M6 Aircraft Nut (#14). Repeat the same procedure to install the other
side.
C.)Slide two Butterfly Foam Rolls (#27) onto the Butterfly Arms.
D.)Attach a Swivel Pulley Bracket (#72) to the bottom of the Butterfly Pulley Support (#74).
Secure it with a M12 x 4 ½” Allen Bolt (#70), two 7/8” Washers (#71), and one M12 Aircraft Nut
(#57). Repeat for the other side.
DIAGRAM 5
9

STEP 6 (See Diagram 6)

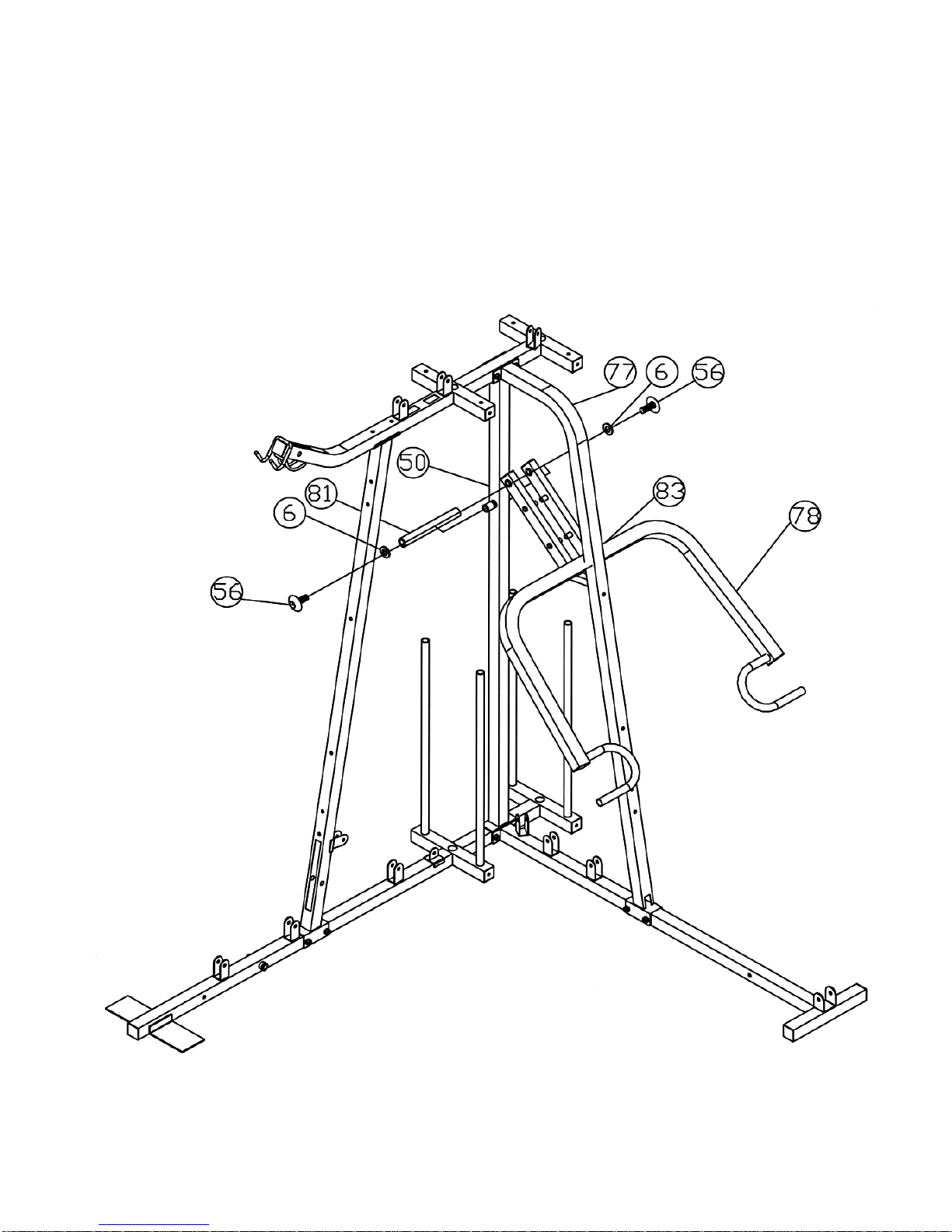

A.) Attach the Vertical Press Frame (#78) to the Rear Vertical Beam (#50). Secure it with a M10 x
4 7/8” Vertical Press Axle (#81), two ∅¾” Washers (#6), and two M10 x 1” Allen Bolts (#56).
B.) Place the Vertical Press Frame rest onto the ∅1 ½” Rubber Bumper (#83).
DIAGRAM 6
10

CABLE LOOP DIAGRAM
11

STEP 7 (Upper Cable Loop & Diagram 7)
A.) Attach the 108” Upper Cable (#93) to the front opening on the Upper Frame (#8). Attach a
Pulley (#79) to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#10), two Pulley
Bushings (#11), and one M10 Aircraft Nut (#5). Draw the Cable towards the back of the
machine. Note: Make sure the Ball Stopper is underneath the frame.
B.) Attach a Pulley to the bracket on the Upper Frame. Secure it with one M10 x 2” Allen Bolt
(#98), two ∅¾” Washers (#6), one L-shaped Pulley Bracket (#86), and one M10 Aircraft Nut
(#5).
C.) Pull the Cable downward. Install a Pulley with a U-shaped Pulley Bracket (#85) and a Flat
Double Floating Pulley Bracket (#59). Let the bracket hanging for now.
D.) Draw the Cable around the Pulley then upward to the second open bracket on the Upper
Frame. Install another Pulley with a U-shaped Pulley Bracket (#85).
E.) Draw the Cable around the Pulley then downward to the Selector Rod (#69). Securely thread
the end of the Cable into the Selector Rod (#69).
UPPER CABLE LOOP DIAGRAM
12

DIAGRAM 7
13

STEP 8 (See Butterfly Cable Loop & Diagram 8)
A.) Attach the 106” Butterfly Cable (#95) to the slot on the back of Left Butterfly (#20). Draw the
Cable through the slot then to the open left Swivel Pulley Bracket (#72).
B.) Attach a Pulley (#79) to the bracket. Secure it with one M10 x 2” Allen Bolt (#98), two ∅¾”
Washers (#6), and one M10 Aircraft Nut (#5).
C.) Draw the Cable around the Pulley then downward. Install a Pulley to the Angled Double
Floating Bracket (#51). Let the Bracket hanging for now.
D.) Draw the Cable upward to the right Swivel Pulley Bracket. Install another Pulley..
E.) Draw the Cable to the Right Butterfly (#26) and secure the cable end to the slot.
BUTTERFLY CABLE LOOP DIAGRAM
14

DIAGRAM 8
15

STEP 9 (See Front Press Cable Loop & Diagram 9)
A.) Attach the 224” Front Press Cable (#94) to the lower opening on the Leg Developer (#40).
B.) Attach a Pulley (#79) to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#10), two
Pulley Bushings (#11), and one M10 Aircraft Nut (#5).
C.) Draw the Cable underneath the Pulley through the opening on the Right Seat Support (#49) to
the open bracket on the Right Base Frame (#46).
D.) Attach a Pulley to the bracket. Secure it with one M10 x 2” Allen Bolt (#98), two ∅¾” Washers
(#6), and one M10 Aircraft Nut (#5).
E.) Continue drawing the Cable along the Right Base Frame to another open bracket. Install a
Pulley as described in Step D above. Draw the Cable around the Pulley then back to the
opening between the Front Press Base (#97).
F.) Attach a Pulley to the opening. Secure it with one M10 x 8 ¼” Allen Bolt (#62), two ∅¾”
Washers (#6), and one M10 Aircraft Nut (#5).
G.) Draw the Cable around the Pulley then back to the lower opening on the Right Vertical Beam
(#21). Install a Pulley with one M10 x 2 ½” Allen Bolt (#10), two Pulley Bushings (#11), and
one M10 Aircraft Nut (#5). Draw the Cable back to the open bracket on the back of Front
Press Base.
H.) Install another Pulley as described in Step D above. Draw the Cable back through the lower
opening on the Right Vertical Beam (#21) to the open bracket on the back of the Beam. Install
another Pulley.
I.) Draw the Cable upward to the hanging Angled Double Floating Bracket (#51) previously
installed in STEP 8. Install another Pulley. Draw the Cable downward to the open bracket on
the Right Base Frame (#46). Install another Pulley with a U-shaped Pulley Bracket (#85).
J.) Draw the Cable upward to the hanging Flat Double Floating Pulley Bracket (#59) previously
installed in STEP 7. Install another Pulley with a U-shaped Pulley Bracket (#85).
K.) Draw the Cable around the Pulley then downward and connect to the Right Base Frame with a
Chain (#3) and two C-clips (#4). Adjust the tension of the Cable by adjusting the length of the
Chain. FRONT PRESS CABLE LOOP DIAGRAM
16

DIAGRAM 9
17

STEP 10 (See Leg Press Cable Loop & Diagram 10)
A.) Attach one end of the 82” Leg Press Cable (#96) to the open slot on the back of the Leg
Press Frame (#84). Secure it with one M10 x 2 ½” Allen Bolt (#10), two ∅¾” Washers (#6),
and one M10 Aircraft Nut (#5).
B.) Draw the Cable to the front opening on the Left Seat Support (#92). Attach a Pulley to the
opening. Secure it with one M10 x 2 ½” Allen Bolt (#10), two Pulley Bushings (#11), and one
M10 Aircraft Nut (#5).
C.) Draw the Cable around the Pulley then back to the lower opening on the Leg Press Frame.
Install a Pulley as described in Step B above.
D.) Draw the Cable around the Pulley then towards back of the machine through the hole on the
bottom of the Left Vertical Beam (#77) to the open bracket on the Left Base Frame (#87).
E.) Attach a Pulley to the bracket. Secure it with one M10 x 2” Allen Bolt (#98), two ∅¾”
Washers (#6), one L-shaped Pulley Bracket (#86), and one M10 Aircraft Nut (#5).
F.) Pull the Cable upward and connect to the 298” Vertical Press Cable (#102) with two C-clips
(#4) and one Chain (#3). After completing the steps, adjust the length of this Chain to adjust
the tightness of the Cables.
G.) Draw the Vertical Press Cable to the opening between the Vertical Press Frame (#78). Attach
a Pulley to the opening. Secure it with one M10 x 5 ¾” Allen Bolt (#82), two ∅¾” Washers
(#6), and one M10 Aircraft Nut (#5).
H.) Draw the Cable around the Pulley and downward to the middle open bracket on the Left Base
Frame. Install a Pulley with a U-shaped Pulley Bracket (#85).
I.) Pull the Cable upward back to the opening on the Vertical Press Frame. Install another Pulley
as described in Step G above.
J.) Draw the Cable downward to the last open bracket on the rear of the Left Base Frame. Install
a Pulley with a U-shaped Pulley Bracket (#85).
K.) Draw the Cable upward to the last open bracket on the Upper Frame (#8). Install another
Pulley. Draw the Cable downward and securely threaded it into the Selector Rod.

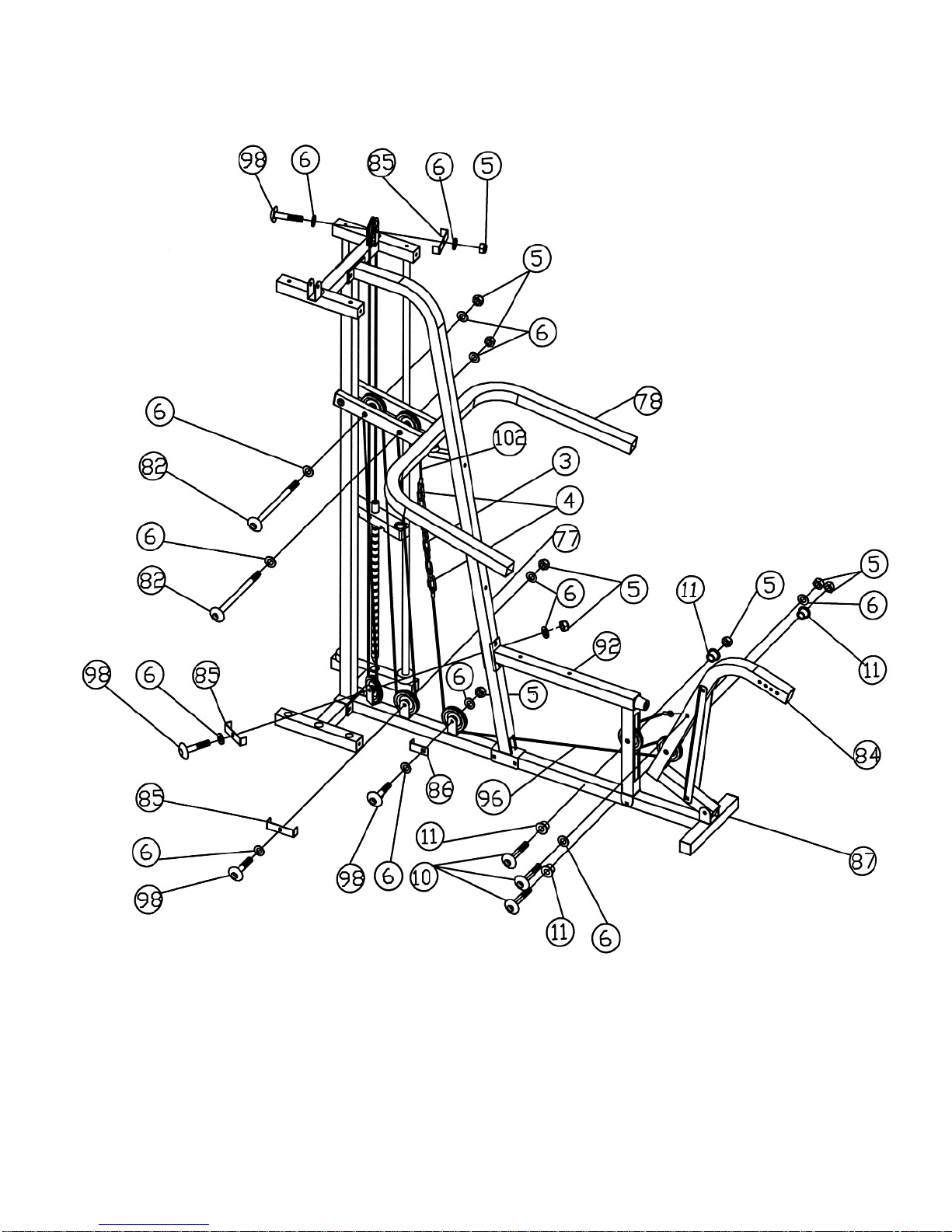

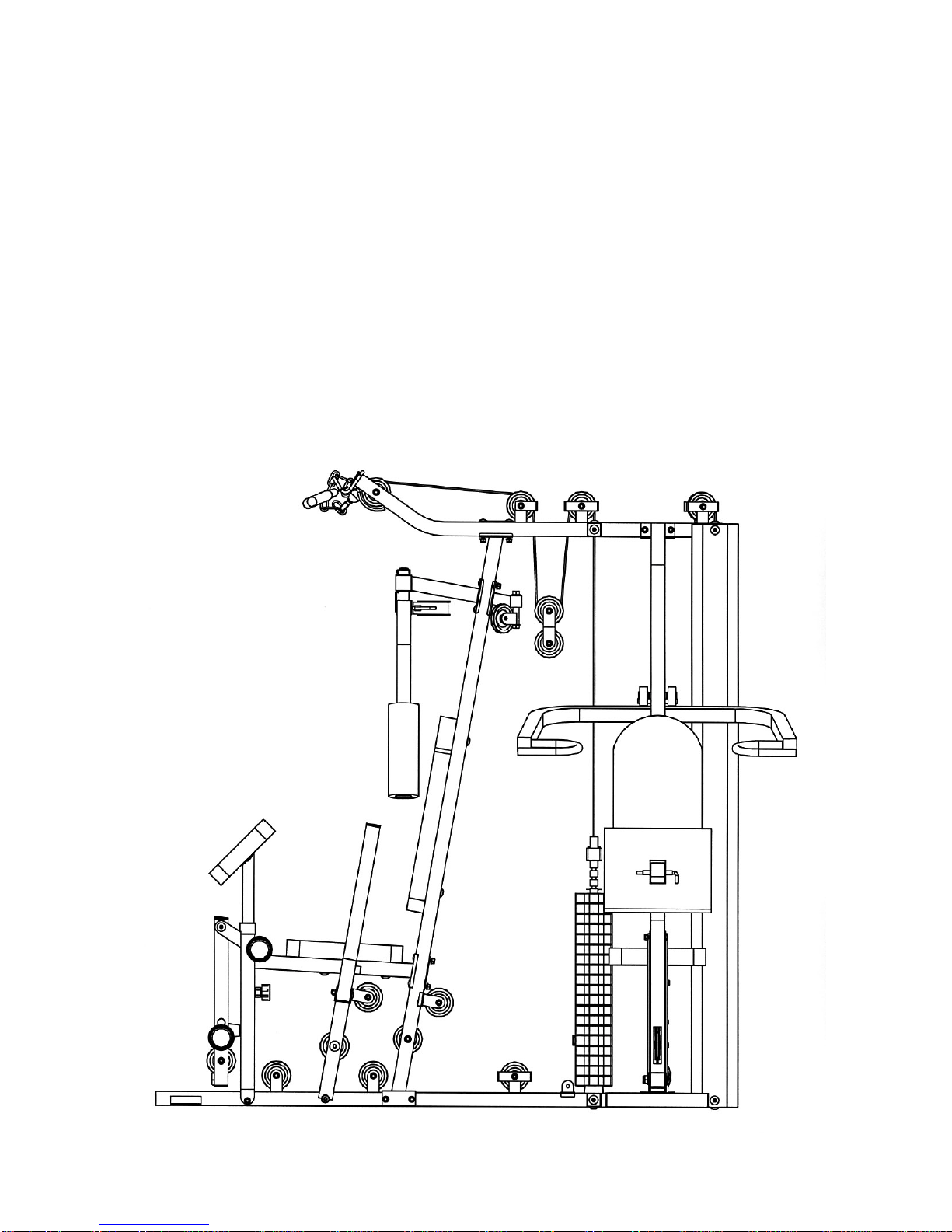

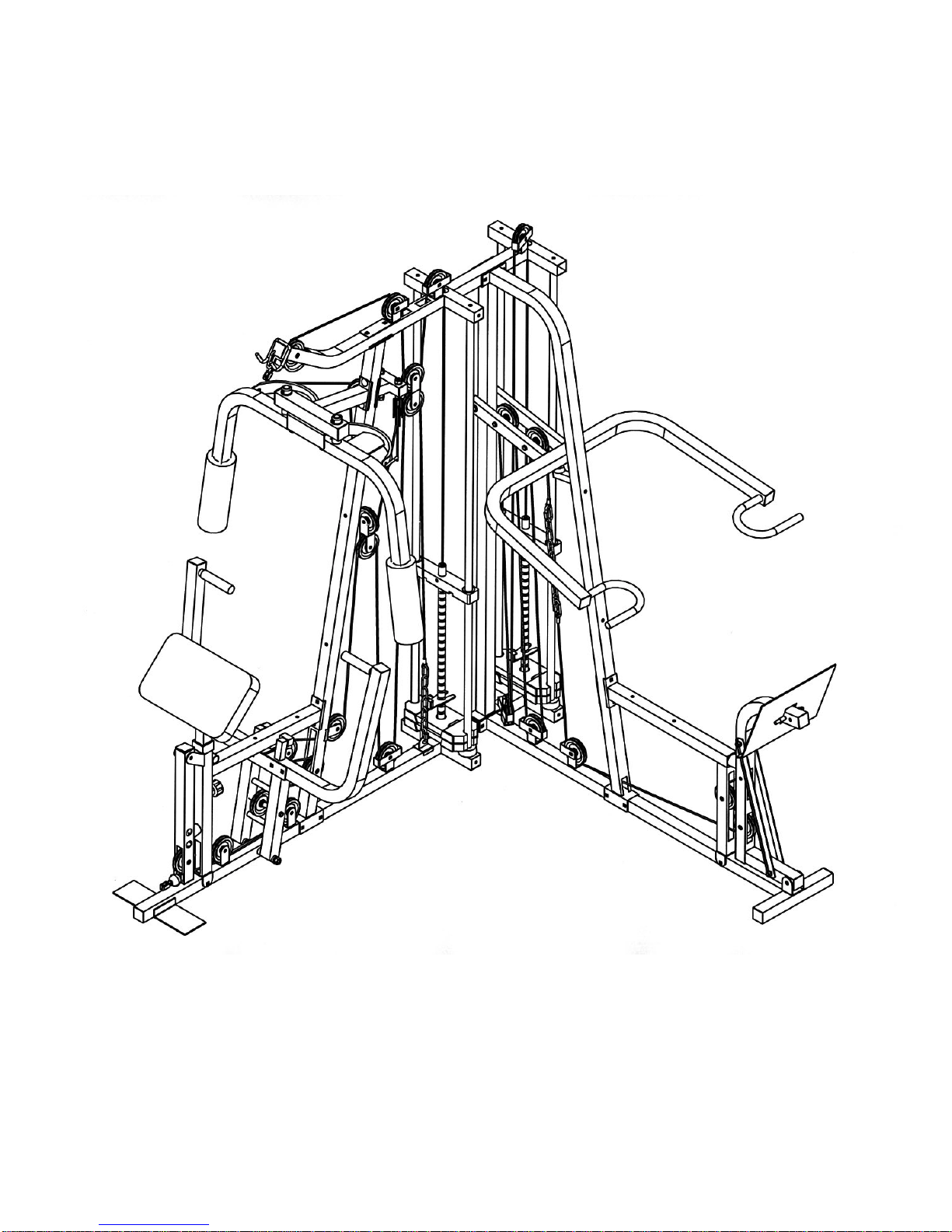

LEG PRESS CABLE LOOP DIAGRAM
18

DIAGRAM 10
19
