BEFORE YOU BEGIN
Thank you for selecting the MARCY MWM-7150 HOME GYM by IMPEX®
INC. For your safety and benefit, read this manual carefully before using the
machine. As a manufacturer, we are committed to provide you complete
customer satisfaction. If you have any questions, or find there are missing or
damaged parts, we guarantee you complete satisfaction through direct
assistance from our factory. To avoid unnecessary delays, please call our
TOO-FREE customer service number. Our Customer Service Agents will
provide immediate assistance to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. – Fri. 9 a.m. – 5 p.m. PST
www.impex-fitness.com
[email protected]m
1

IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. A spotter is recommended during exercise.
CARE AND MAINTENANCE
1. Lubricate moving parts with WD-40 or light oil periodically.
2. Inspect and tighten all parts before using the machine.
3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
4. Maximum user’s weight: 300 lbs.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2

WARNING LABEL REPLACEMENT
The warning labels shown here have been placed on the Rear Base Frame and Upper Frame. If the labels
are missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the labels
in the location shown. 3

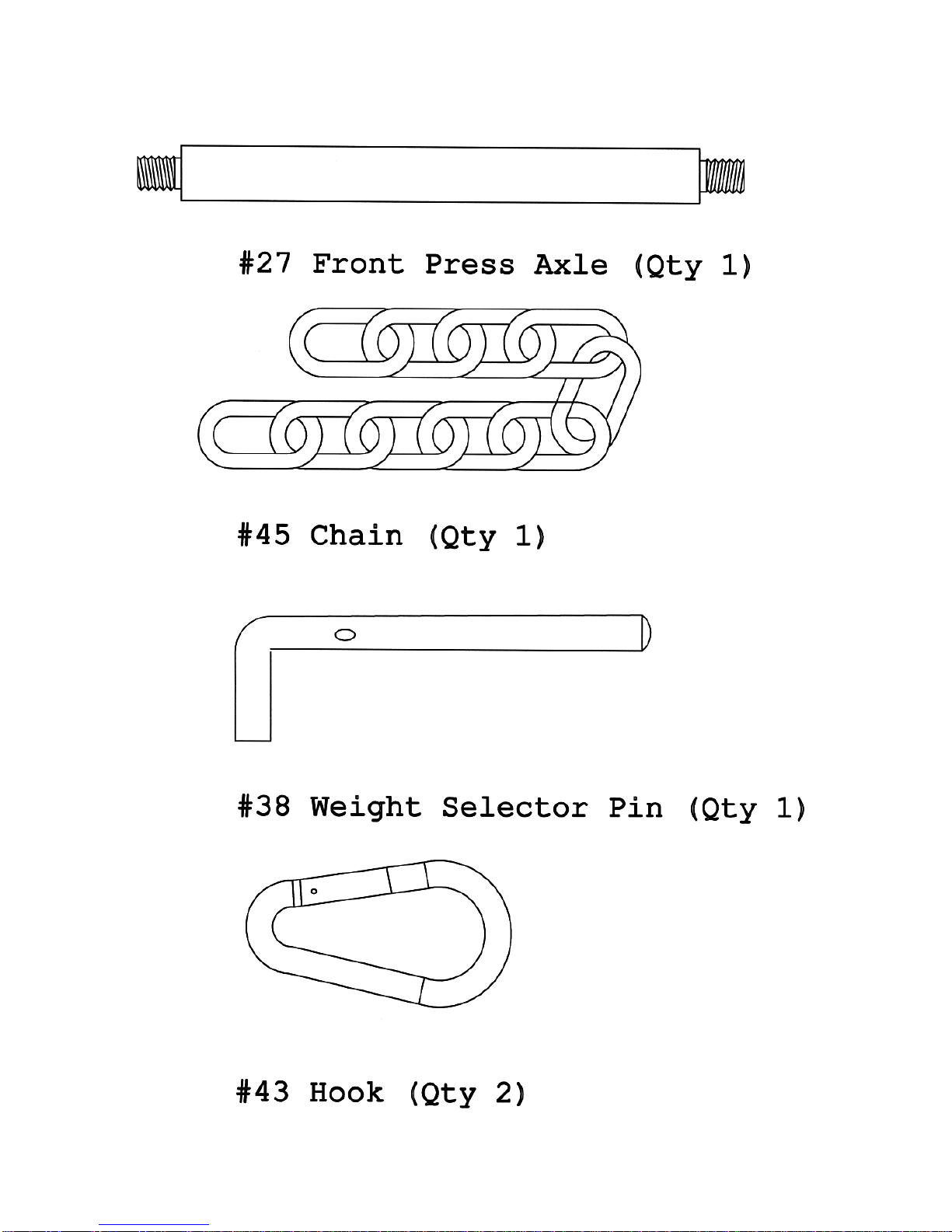

HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to measure the size.
4

HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to measure the size.
5

HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to measure the size.
6

ASSEMBLY INSTRUCTION
Tools Required for Assembling the Machine: Two Adjustable Wrenches and
Allen Wrenches. NOTE: It is strongly recommended that two or more people
assemble this machine to avoid possible injury.
STEP 1 (See Diagram 1)
A.) Do not tighten the nuts and bolts until instructed to do so.
B.) Slide two Ø 2 ½” x 1” Rubber Bumpers (#33) onto the Guide Rods (#10). Insert
the two Guide Rods into the holes on the Rear Base Frame (#5). Secure each
Guide Rod with one M10 x 1” Allen Bolt (#47) and ∅¾” Washer (#59) from the
bottom.
C.) Attach the rear of Main Frame (#1) to the Rear Base Frame. Secure them with two
M10 x 2 ¾” Carriage Bolts (#46), one U-shaped Bracket (#16), two Ø ¾” Washers
(#59), and two M10 Aircraft Nuts (#56).
D.) Attach the Front Post (#6) to the Main Frame. Secure them with two M10 x 2 ¾”
Carriage Bolts (#46), one 4 ¾” x 2” Bracket (#18), two Ø ¾” Washers (#59), and
two M10 Aircraft Nuts (#56).
E.) Attach the Seat Support (#17) onto the Main Frame. Secure them with two M10 x
2 ¾” Carriage Bolts (#46), one 4 ¾” x 2” Bracket (#18), two Ø ¾” Washers (#59),
and two M10 Aircraft Nuts (#56).
F.) Attach the Foot Plate (#14) onto the Front Post. Secure it with two M10 x 5/8”
Allen Bolts (#48) and two Ø ¾” Washers (#59).
7

DIAGRAM 1
8

STEP 2 (See Diagram 2)
A.) Attach the Vertical Frame (#2) onto the Main Frame (#1). Secure them with two M10 x 2 ¾”
Carriage Bolts (#46), one 5 ½” x 2” Bracket (#12), two Ø ¾” Washers (#59), and two M10
Aircraft Nuts (#56).
B.) Slide 14 Weight Plates (#40) onto the Guide Rods (#10). Make sure the deep grooves on the
Plates all face down and toward to the back of the machine. Insert a Selector Rod (#9) into
the center hole on the Plates. Slide the Selector Stem (#39) onto the Guide Rods. Use the
Weight Selector Pin (#38) to select the number of Wight Pates to exercise. Please refer to
the Weight Resistance Chart in page-19.
C.)Attach the Upper Frame (#3) in between the two Guide Rods. Secure each Guide Rod to
Upper Frame with one M10 x 1 ¾” Allen Bolt (#54) and Ø ¾” x Ø ½” Curved Washer (#61).
D.)Place the Upper Frame onto the Vertical Frame. Secure it with two M10 x 2 ¾” Carriage
Bolts (#46), one 5 ½” x 2” Bracket (#12), two ∅¾” Washers (#59), and two M10 Aircraft
Nuts (#56).
E.) Securely tighten all Nuts and Bolts installed in Step-1 and Step-2.
F.) Attach the Leg Developer (#7) to the Front Post (#6). Secure it with one M12 x 3 1/8” Allen
Bolt (#49), two Ø 1” Washers (#60), and one M12 Aircraft Nut (#57).
9

DIAGRAM 2
10

STEP 3 (See Diagram 3)
A.) Attach the Front Press (#4) to the Upper Frame (#3). Secure it with one Front Press Axle
(#27), two Ø ¾” Washers (#59), and two M10 Aircraft Nuts (#56). Do not over tighten the
Nuts. Make sure the Front Press can move smoothly.
B.) Insert the two Front Press Handles (#15) into the arms of Front Press. Secure each Handle
with one M10 x 1” Allen Bolt (#47) and one Ø ¾” x Ø 1” Curved Washer (#62).
C.)Attach the Backrest Board (#30) to the Vertical Frame (#2). Secure it with two M8 x 2 ½”
Allen Bolts (#51) and two Ø 5/8” Washers (#58). DIAGRAM 3
11

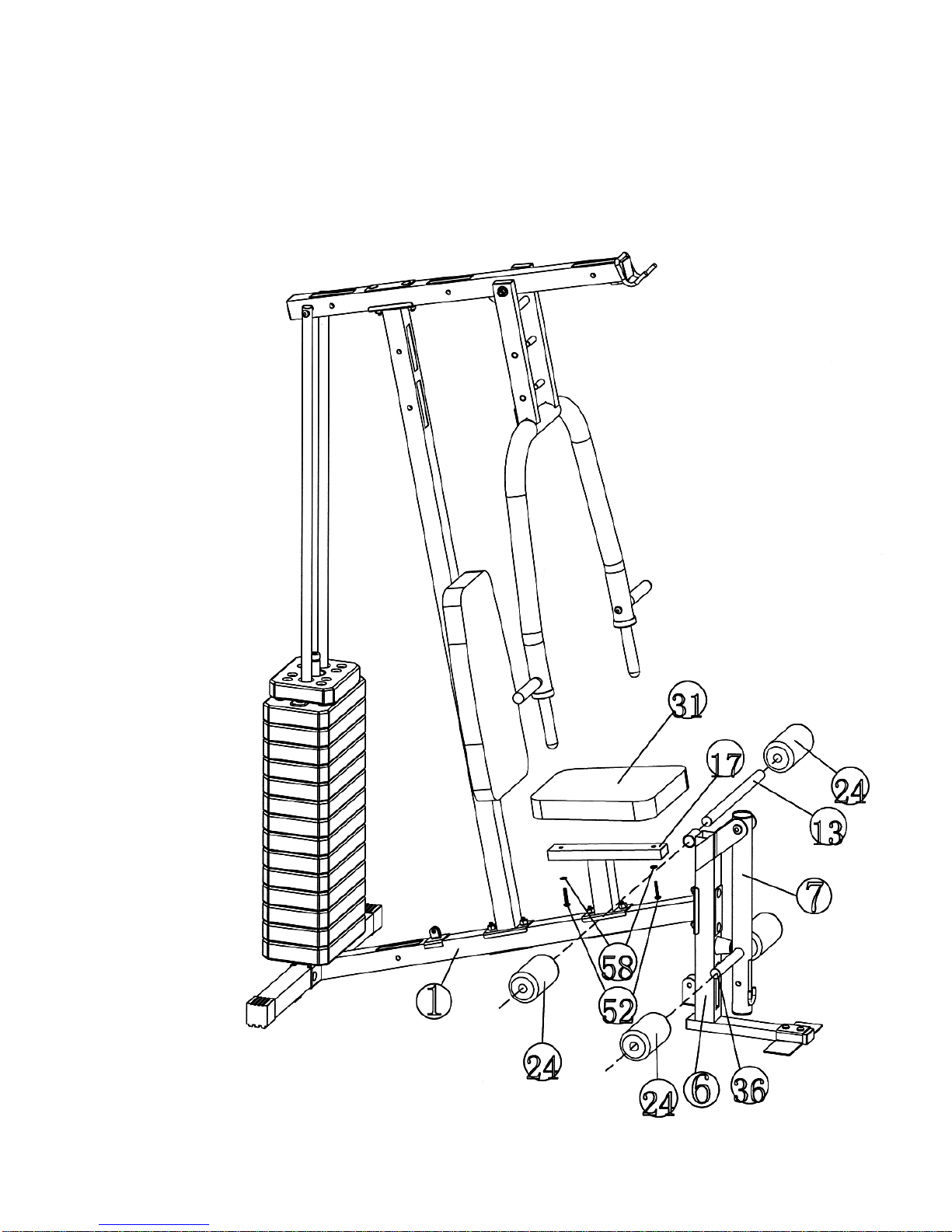

STEP-4 (See Diagram 4)
A.) Attach the Seat Pad (#31) to the Seat Support (#17). Secure it with two M8 x 1 5/8” Allen
Bolts (#52) and Ø 5/8” Washers (#58).
B.) Insert two Foam Tubes (#13) halfway through the holes on Front Post (#6) and Leg
Developer (#7).
C.)Push four Foam Rolls (#24) onto the Tubes from both ends. DIAGRAM 4
12

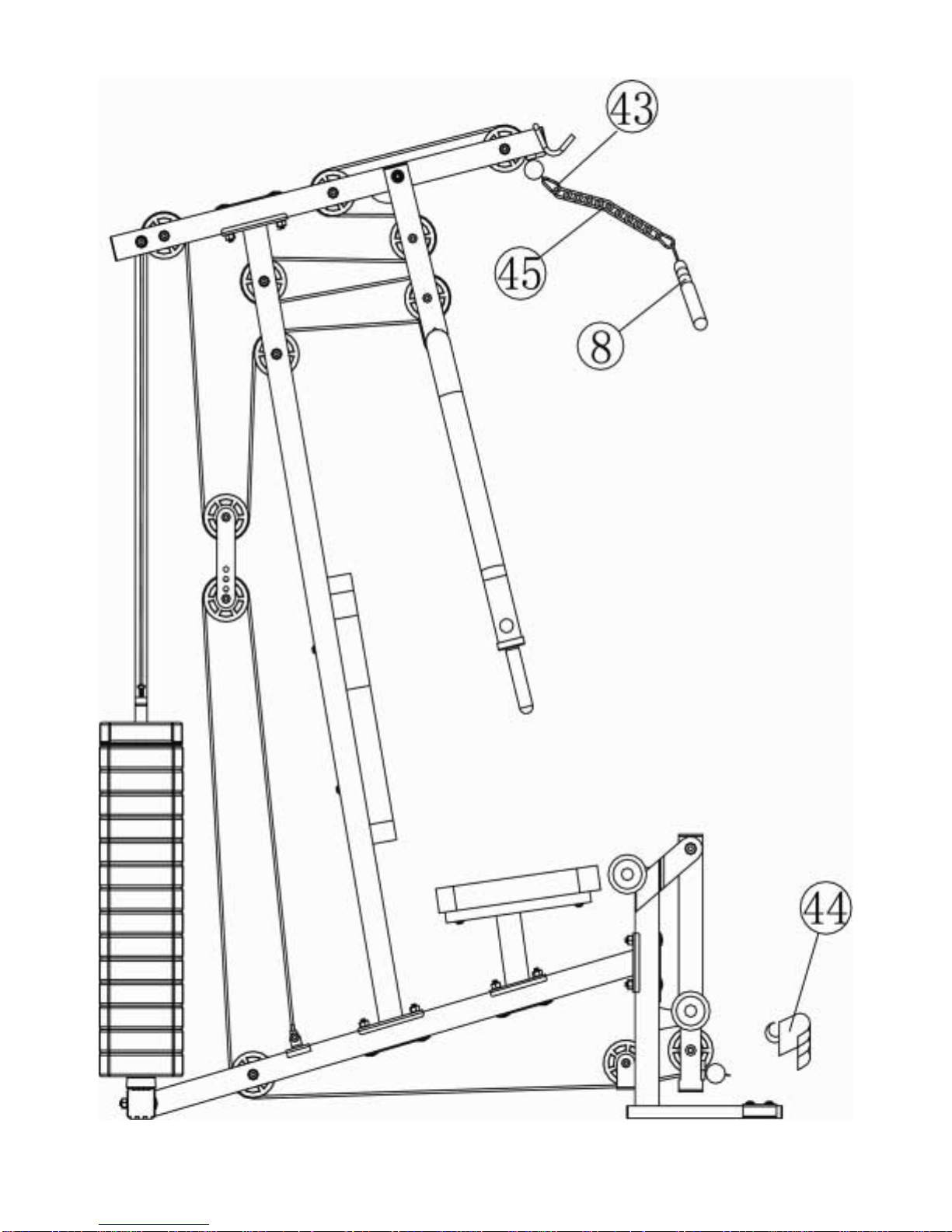

CABLE LOOP DIAGRAM
13

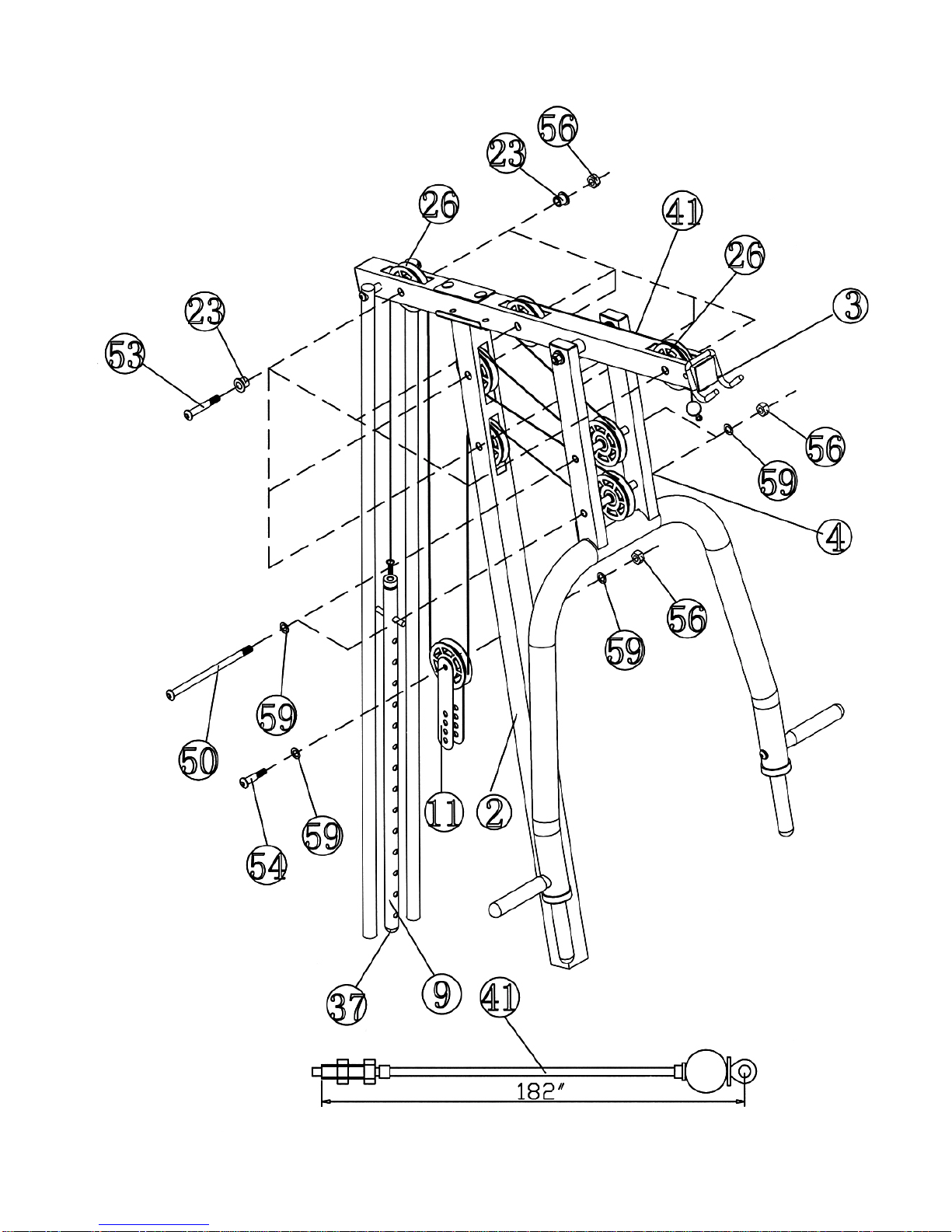

STEP 5 (See Diagram 5 & Cable Loop Diagram)
A.) Attach the 182” Upper Cable (#41) to the front opening on the Upper Frame (#3).
NOTE: The Ball Stopper on the Cable needs to be underneath the Frame.
B.) Attach a Pulley (#26) to the opening. Secure it with one M10 x 2 ½” Allen Bolt
(#53), two Ø 7/8” Bushings (#23), and one M10 Aircraft Nut (#56).
C.) Draw the Cable towards the back of the machine to another opening on the Upper
Frame. Repeat Procedure B above to install a Pulley.
D.) Draw the Cable around the Pulley then pull back to the opening on the Front Press
(#4). Attach a Pulley to the opening. Secure it with one M10 x 6 1/8” Allen Bolt
(#50), two Ø ¾” Washers (#59), and one M10 Aircraft Nut (#56).
E.) Draw the Cable around the Pulley then to the opening on the Vertical Frame (#2).
Repeat Procedure B to install a Pulley.
F.) Draw the Cable around the Pulley then back to the lower opening on the Front
Press. Repeat Procedure D to install a Pulley.
G.) Draw the Cable around the Pulley then back to the lower opening on the Vertical
Frame. Repeat Procedure B to install a Pulley.
H.) Draw the Cable over the Pulley and pull the Cable downwards. Attach a Pulley to
the upper holes on the two Double Floating Pulley Brackets (#11).
I.) Attach a Pulley to the Brackets. Secure it with one M10 x 1 ¾” Allen Bolt (#54), two
Ø ¾” Washers (#59), and one M10 Aircraft Nut (#56). Let the Brackets hanging for
now.
J.) Draw the Cable around the Pulley then pull upwards to the opening on the rear
Upper Frame. Repeat Procedure B to install a Pulley.
K.) Pull the Cable downwards between the two Guide Rods to the Selector Rod (#9).
Securely thread the bolt at the end of the Cable into the Selector Rod.
L.) Connect Lat Bat (#8) to the Cable with one Chain (#45) and two Hooks (#43).
14

DIAGRAM 5
15

STEP 6 (See Diagram 6 & Cable Loop Diagram)
A.) Attach the 110” Lower Cable (#42) to the opening on the bottom of the Leg
Developer (#7).
B.) Attach a Pulley (#26) to the opening. Secure it with one M10 x 2 ½” Allen Bolt
(#53), two Ø 7/8” Bushings (#23), and one M10 Aircraft Nut (#56).
C.) Draw the Cable underneath the Pulley towards the back of the machine through
the opening on the Front Post (#6) to the open bracket on rear of Front Post.
D.) Attach a Pulley to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#54),
two Ø ¾” Washers (#59), and one M10 Aircraft Nut (#56).
E.) Draw the Cable underneath the Pulley towards the back of the machine to the
opening on the Main Base Frame (#1). Repeat Procedure B to install a Pulley.
F.) Draw the Cable around the Pulley then pull upward to the Double Floating Pulley
Bracket (#11) previously installed in Step-5. Repeat Procedure D to install a
Pulley.
G.) Draw the Cable around the Pulley then pull downward to the bracket on the rear
of Main Frame. Secure the Cable to the bracket with one M10 x 1” Allen Bolt
(#47), two ∅¾” Washers (#59) and one M10 Aircraft Nut (#56).
H.) Adjust the tension of the Cable system by adjusting the Pulley position on the
Brackets. If the Cables are too loose, move the Pulley up one hole. If the Cables
are too tight, move the Pulley down one hole.
I.) For best performance of the machine, adjust the Cables so the Selector Stem
(Top Plate) on the weight stack is ¼” above the first plate. To select the weight,
push down on the Selector Stem to close the gap then insert the Weight Selector
Pin. This will remove the slack in the cable system so the range of motion is
smooth and tight.
J.) Attach the Ankle Strap (#44) to the Cable for various Leg exercises. Remove the
Ankle Strap when using the Leg Developer.
K.) Lubricate the two Guide Rods with WD-40 or light oil. This will minimize the
friction on the Rods so the weight plates can slide up and down on the rods more
freely.
16

DIAGRAM 6
17
110＂

PARTS LIST
KEY NO. DESCRIPTION Q’ty
1 Main Frame 1 51 M8 x 2 ½” Allen Bolt 2
2 Vertical Frame 1 52 M8 x 1 5/8” Allen Bolt 2
3 Upper Frame 1 53 M10 x 2 ½” Allen Bolt 7
4 Front Press 1 54 M10 x 1 ¾” Allen Bolt 5
5 Rear Base Frame 1 55 M6 x 5/8” Philips Screw 1
6 Front Post 1 56 M10 Aircraft Nut 25
7 Leg Developer 1 57 M12 Aircraft Nut 1
8 Lat Bar 1 58 Ø 5/8” Washer 4
9 Selector Rod 1 59 Ø ¾” Washer 28
10 Guide Rod 2 60 Ø 1” Washer 2
11 Double Floating Pulley Bracket 2 61 Ø ¾” x Ø ½” Curved Washer 2
12 5 ½” x 2” Bracket 2 62 Ø ¾” x Ø 1” Curved Washer 2
13 Foam Tube 2
14 Foot Plate 1
15 Front Press Handle 2
16 U-shaped Bracket 1
17 Seat Support 1
18 4 ¾” x 2” Bracket 2
19 Ø 2” End Cap 2
20 Ø 1 ¾” x 1 5/8” Rubber Bumper 1
21 Ø 1” x Ø ½” Bushing 2
22 Ø 1” x Ø 5/8” Bushing 6
23 Ø 7/8” Bushing 14
24 Foam Roll 4
25 2” Rear Base Frame End Cap 2
26 Pulley 12
27 Front Press Axle 1
28 Handle Grip 6
29 Ø 1” x 1/8” End Cap 2
30 Backrest Board 1
31 Seat Pad 1
32 1” x 2” End Cap 6
33 Ø 2 ½” x 1” Rubber Bumper 2
34 Ø 2” End Cap 2
35 2” End Cap 3
36 Ø 1” Flat End Cap 4
37 Ø 1” Cone-shaped End Cap 1
38 Weight Selector Pin 1
39 Selector Stem 1
40 Weight Plate 14
41 182” Upper Cable 1
42 110” Lower Cable 1
43 Hook 2
44 Ankle Strap 1
45 Chain 1
46 M10 x 2 ¾” Carriage Bolt 10
47 M10 x 1” Allen Bolt 5
48 M10 x 5/8” Allen Bolt 2
49 M12 x 3 1/8” Allen Bolt 1
50 M10 x 6 1/8” Allen Bolt 2
18

WEIGHT RESISTANCE CHART
WEIGHT PLATE
Station 1 2 3 4 5 6 7 8 9
Lat Pull 30 40 50 60 70 80 90 100 110
Low Pulley 22 33 44 55 66 77 88 99 110
Front Press 20 34 48 62 76 90 104 118 132
Leg Developer 26 38 50 62 74 86 98 110 122
WEIGHT PLATE
Station 10 11 12 13 14
Lat Pull 120 130 140 150 160
Low Pulley 121 132 143 154 165
Front Press 146 160 174 188 202
Leg Developer 134 146 158 170 182
Note: Each plate weights 10 lbs.
Numbers are approximate.
Actual weights may vary.
19
