Inalsa RAPID COOK User manual

1

2000 W
RAPID COOK

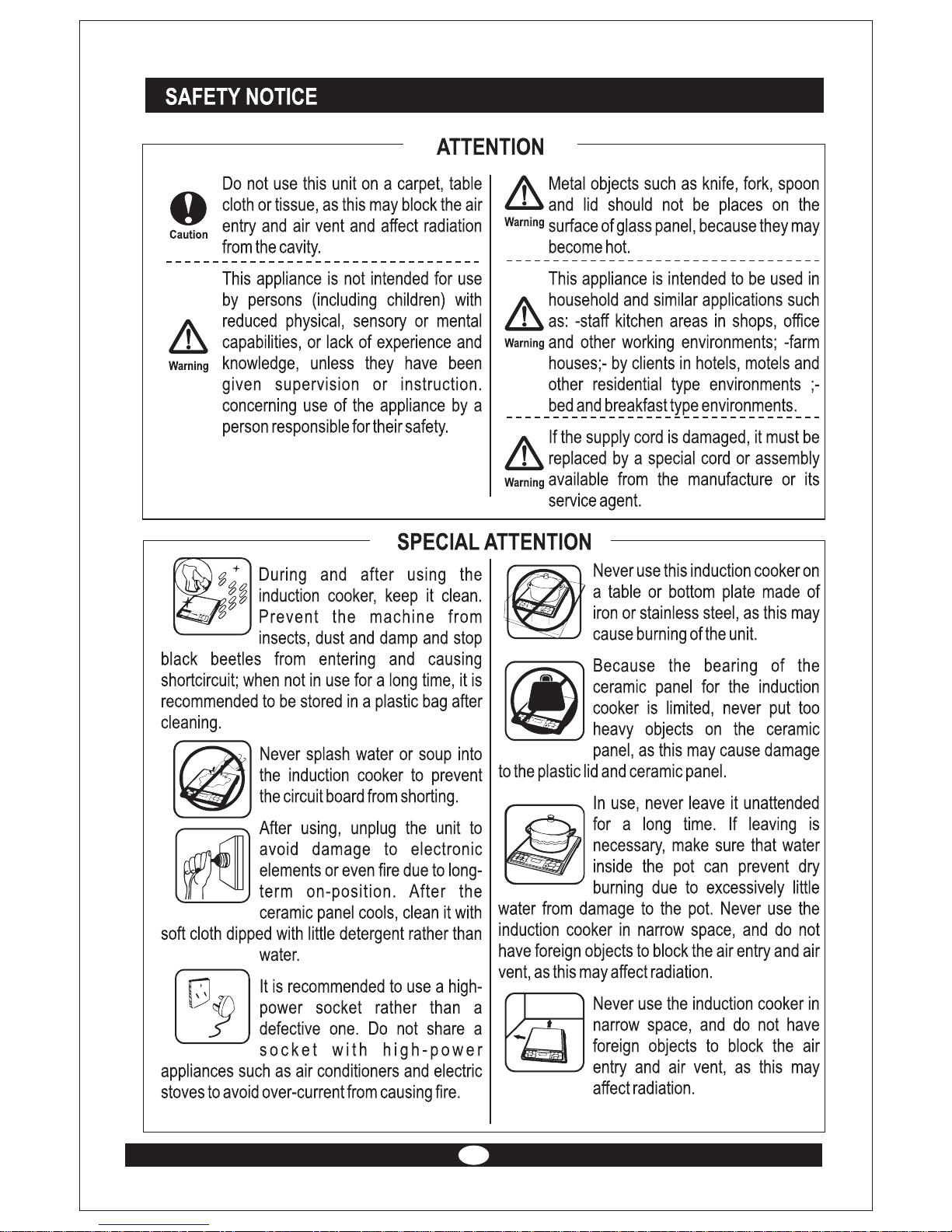

2

3

4

Based on cooking effects, you can select different function cooking modes. For the sake of
convenient operation, read the following description :
Insert power cord into separate appropriate socket, and buzzer sound “Bi” will be heard once,
digital tube and all indictors light up for 1 second and then go out, digital tube displays and
glint “- - - -”with circle, indicating the unit is energized
Timer function: In FRY or HOT POT state, touch TIMER key to enter timer state, the timer indicator
will be lighted. Timer can be adjusted by touching “▲UP” or “▼DOWN” key, the longest time set is
1 hour and 59 minutes. At once time had set, it will enter in count down state. When time out, the
appliance will stop automatically.
In SOUP state, touch TIMER key to enter timer state, the timer indicator will be lighted. Timer can be
adjusted by touching “▲UP” or “▼DOWN” key, the longest time set is 2 hours and 59 minutes. At
once time had set, it will enter in count down state. When time out, the appliance will stop
automatically.
Note: the operation process can be terminated at any time by touching the ON/OFF key. When
cooking program is ended the integrated cooling fan.
In RICE , WATER and MILK functions time can not be adjusted.
5
<Before using, please check whether the plug and socket are in good condition.
<Before positioning a pot, please clear water mark/greasy dirt or other attached
substance off the pot surface and ceramic panel.
<Put a pot to be heated on the center of the induction cooker. Never put an empty pot on
the ceramic plate .
<After the power key button is pressed, the induction cooker begins heating.
<If, after the power key button is pressed, there is no suitable pot, the buzzer will
sound. The unit will shut down automatically one minute later.
Timer

Warm Milk
Boil Water
Rice
Soup
Hot Pot
Place the pan on the center of the hot plate. Touch ON/OFF key, and buzzer sound “BI” 1 time,
digital tube displays “1400W”, this time you can choose the cooking function. at the same time the
fan starts running, which can be adjusted by touching “ UP” or “ DOWN” key. If the pan is not
placed, the unit will shut off automatically, The appliance will be shut off automatically after 60s.
▲ ▼
FRY
Touch FRY key to enter FRY setting. The FRY indicator will be lighted. The
default temperature is 240°C, which can be adjusted by touching “▲UP” or
“▼DOWN” key, when the temperature rises to the set value, the program will
enter the automatic protection.
HOT POT
Touch HOT POT key to enter HOT POT setting. the HOT POT indicator will
be lighted. The default power is 1400W, which can be adjusted by touching
“▲UP” or “▼DOWN” key, when the power rises to the set value, the program
will enter the automatic protection.
SOUP
Touch SOUP key to enter SOUP setting: the SOUP indicator will be lighted.
The induction cooker will work until it has finished.
RICE
Touch RICE key to enter RICE setting: the RICE indicator will be lighted. The
induction cooker will work until it has finished.
MILK
Touch WARM MILK key to enter WARM MILK setting: the WARM MILK
indicator will be lighted. The induction cooker will work until it has finished.
WATER
Touch BOIL WATER key to enter BOIL WATER setting: the BOIL WATER
indicator will be lighted. The induction cooker will work until it has finished.
TURN OFF
When the cooking is complete. Press :ON/OFF" at any state, the appliances
will stop heating immediately, and the screen will show "_____". The fan will
still work unit the is cooled down.
CHILD LOCK
To avoid children to use, in any working function of the induction cooker,
press the CHILD LOCK key, all the other keys except of the ON/OFF key can
not be work. If You want to unlock the key, Press the CHILD LOCK key again.
After unlocked, all the other function key can be worked normally.
6
Turn OFF

Maximum Weight Limit
SAFETY PROTECTION
You can put maximum 10kgs. Weight on the induction cooker for
cooking. However it is not recommended to use the product for commercial purpose.
Over voltage and lower voltage protection.
When power voltage is too high or low, induction cooker will compensate voltage
automatically and adjust output power.
Small Metal Part Protection.
For small iron metal pan with diameter is less than 80mm, no power is outputted to avoid
abnormal heating.
No Pan Or Improper Pan Protection.
When no utensil is placed on the hotplate or the utensil is deviated greatly from the
center, or the material of the utensil is not applicable, the power will not be outputted and
buzzer sound will be heard to alert, until appropriate utensil is put in place.
Over Temperature Protection.
When the temperature of top hotplate is too high, induction cooker will stop automatically
power output and long buzzer sound will be heard to alert until the temperature returns to
normal.
High Voltage Pulse Protection.
During operation, when power supply receives a transient high voltage pulse (such as
lightning strike), induction cooker will stop automatically and in a minute resume
automatically.
7

Steel or cast iron, enameled iron, stainless steel, flat-bottom pans/ots with
diameter more than 18.5cm.
NON SUITABLE POSTS
Heat-resistant glass, ceramic container, copper, aluminum pans/pots. Round-bottom
pans/pots with bottom diameter less than 18.5 cm.
FUSE
CNR1 C01
L1
L2
C05
C06
C07
DB1
L3
C3
C2 IGBT
CT1
CPU CON TROL K EYBOARD AN D DISPLAY
RT1 RT2 FAN
L
N
CIRCUIT DIAGRAM

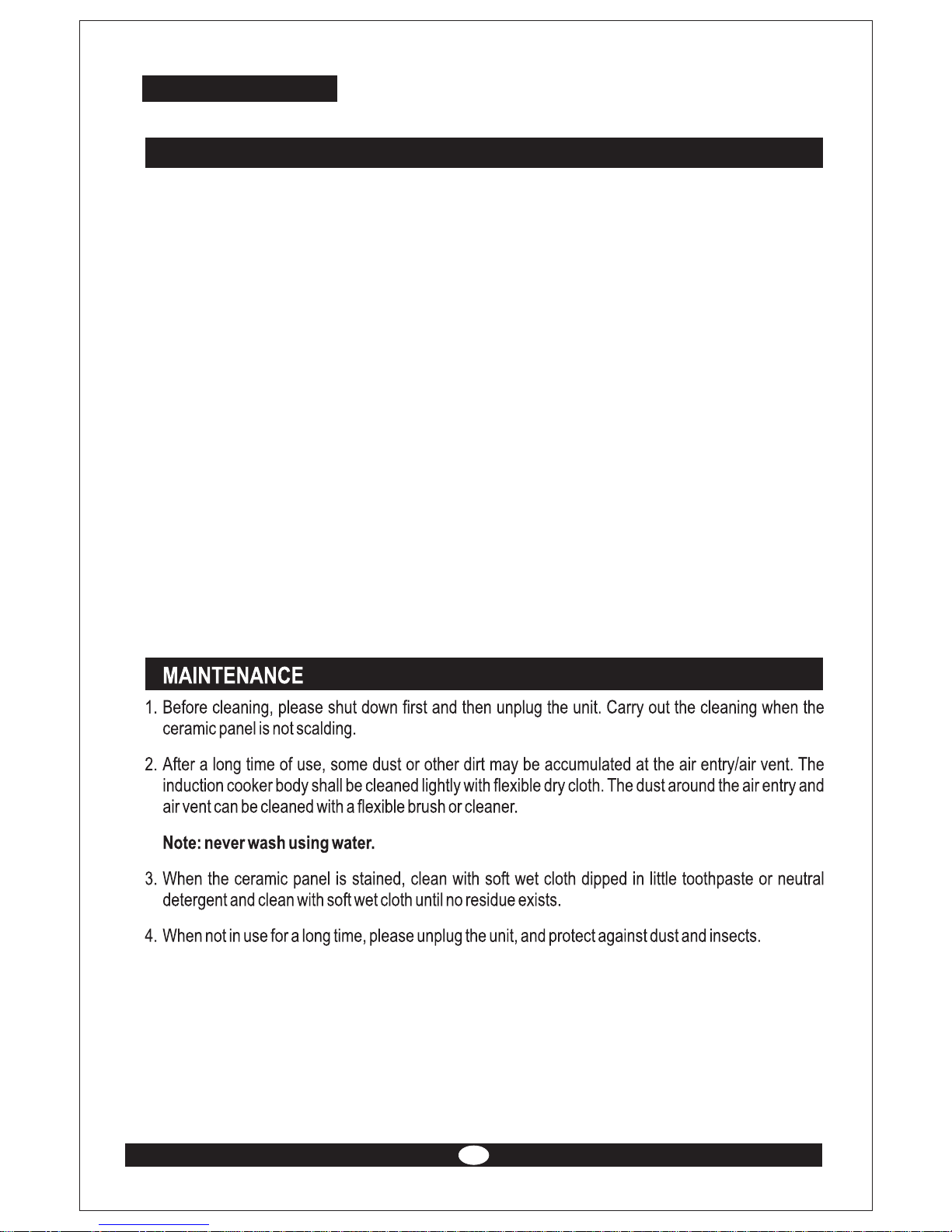

8
Heat resistance glass pot Rounded bottom pot Aluminum / copper pot
Ceramic pot Bottom measuring less
than 12 cm Pot with stands
It is better not to use other substitutes (especially pressure vessels and pots) so as to
avoid any unfavorable influence on operational performance.

CHECKING POINT
Whether the plug is removal from the outlet.
Whether power switch or fuse in your home
is cut off.
Whether power is cut off
Whether the pan is proper
Whether the pan is centered on the hotplate
Whether the bottom diameter of the pan is
more than 12cm
Whether ambient temperature is very high.
Whether gas intake or vent is jammed.
It means reaching the set temperature when
the unit is at warming state.
Protection equipment may operate confirm it
after wait several to 10 minutes.
Whether the pan bottom is concavo - convex
or the bottom center is concave.
Whether power indicator is lighted.
TROUBLE SHOOTING GUIDELINE
TROUBLE
When plug is inserted into the power outlet,
a deep sound will not be lighted when
pressing ON/OFF key
Continuous 15s beep sound will be heard
and then the unit stop operating.
The unit stops heating suddenly during use
The temperature can not be controlled when
frying or grilling food.
The induction cooker will stop heating if the following malfunctions occur, after 3s, the
display will show the malfunction alarm, the malfunction code will show on the center of
display, you can clear the display by pressing the switch button, and the appliance will enter
the standby state.
DISPLAY DIRECTION
E0 Check whether the pan is in place
E1 The circuit is malfunctioned
E2 The temperature sensor is open - circuited or short - circuited
E3 The voltage is higher (260V-275V)
E4 The voltage is lower (145V-165V)
E5 The cooker surface temperature is higher
E6 IGBT temperature is higher than 95°C for 3s
E7 The IGBT temperature sensor is open - circuited or short -
circuited
ENVIRONMENT FRIENDLY DISPOSAL
You can help protect the environment !
Please remember to respect the local regulations: hand in the non - working
electrical equipments to an appropriate waste disposal center.
