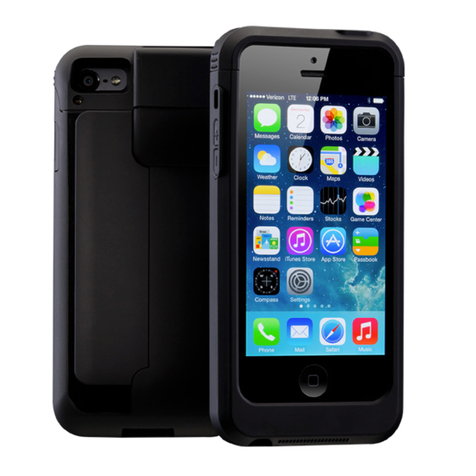

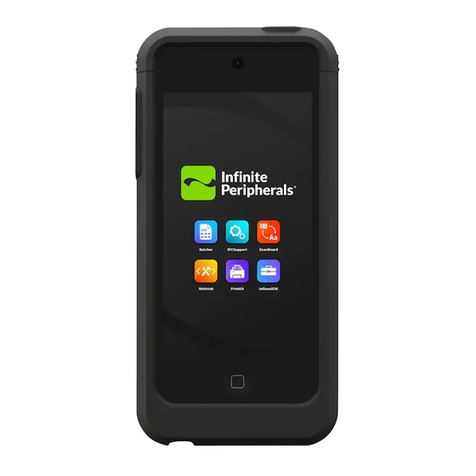

Infinite Peripherals LineaPro 5 Operating instructions

Choose 2Rent
Phone [phone]
Fax [phone]
[e-mail]
www.choose2rent.com
page 1 of 4
Dual Purpose Scan Button
The Linea Pro 5 uses a single dual-purpose scan button to power on the
unit as well as scanning barcodes. When the Linea Pro 5 is left idling
for an extended period, the power is automatically turned off to
preserve the charge in the internal battery pack.
Power On
When the Linea Pro 5 is in the off mode, pressing the scan button
momentarily turns on the unit. A single beep indicates the Linea Pro 5
is now ready for use.
Pressing the scan button a second time will activate the scanner for
normal bar code scanning.
How to Use LineaPro 5 Scanner
Top Side
1. iPod/iPhone On/Off Button
2. Linea Pro 5 Scan Button and On Button
3. Scanner
4. Volume Controls
5. USB Sync/Charge Port
6. Audio Connector
Bottom Side
1. iPod/iPhone On/Off Button
2. Linea Pro 5 Scan Button and On Button
3. Scanner
4. Magnetic Stripe Reader

page 2 of 4
How to Scan
To scan a barcode, first activate the Linea Pro 5 by pressing the scan
button. Then position the scan head as close to the barcode label as
possible so that the scan line crosses both the ends of the barcode (or)
is within the width of the red illuminated box. Slowly pull back away
until the barcode has been read by the scanner as shown in the figure
below.
How to Swipe Magnetic Card Reader
First activate the Linea Pro 5 by pressing the scan button. When
placing the card into the reader, the magnetic strip must face UP as
shown in the figure below. Keep the edge of the card flat on the inner
edge of the reader to ensure that the magnetic strip passes over the
read head evenly.

page 3 of 4
How to Read RFID Cards
First activate the Linea Pro 5 by pressing the scan button. Place the
RFID tag/card over the receiver/transmitter. Keep the face of the
tag/card flat with the receiver/transmitter as close as possible.
Please Note: Depending on the type of RFID tags/cards being used, it may
be necessary for tags/cards to make direct contact with the surface where
the RFID receiver/transmitter is located for proper reading/writing.
How to Charge Linea Pro 5
1. Connect mini USB charger cable as shown.

page 4 of 4
2. Determine the charge state by viewing the status
LEDs.
LED Lighting Indications
Result from charging, active/online status, or because of low battery.
1. ALL LED is OFF
•Linea Pro 5 is in sleep or ready mode
2. One LED is FLASHING
•Lina Pro 5 is charging and syncing
3. Multiple LEDs are ON
•Linea Pro 5 is displaying battery level status.
Please call our support team if you need assistance
setting up your rental devices
1(800) 622-6484
Status LED Charge State
1LED = 25% of full charge
2LED = 50% of full charge
3LED = 75% of full charge
4LED = 100% of full charge
