Infinite Peripherals INFINEA TAB Series User manual

INFINEA TAB USER MANUAL
INFINEA™TAB
iPad®

CONTACT INFORMATION
National Sales Headquarters: Infinite Peripherals, Inc.
1124 Main Street Suite B
Irvine, CA 92614
Toll Free: [phone]
Oce: [phone]
Fax: [phone]
HQ and Main Distribution Facility: Infinite Peripherals, Inc.
3104 N. Arlington Heights Road
Arlington Heights, IL 60004
Toll Free: [phone]
Phone: [phone]
Fax: [phone]
Technical Support: Infinite Peripherals, Inc.
1124 Main Street Suite B
Irvine, CA 92614
Oce: [phone]
Fax: [phone]
Email [email protected]
ipcprint.com

!
LEGAL NOTICE
“Made for iPad” means that an electronic accessory has been designed to
connect specifically to iPad, and has been certified by the developer to meet
Apple performance standards. Apple is not responsible for the operation of
this device or its compliance with safety and regulatory standards. Please note
that the use of this accessory with iPad may affect wireless performance.
COMPATABILITY
Made for iPad 2
!
!
!
!
!
! !

!
USER MANUAL |
!
"!
CONTENTS
!
Compatability 1!
Models 3!
Overview 4!
Technical Data 5!
Box Contents 6!
Getting Started 7!
About Your INFINEA TAB 8!
Assembling Your INFINEA TAB 9!
Charging Your INFINEA TAB 10!
Status and Operational Modes 11!
1D Barcode scanning 12!
2D Barcode scanning 13!
MSR reading 14!
RFID reading 15!
Syncing 16!
Replacing battery 17!
Develping Solutions 18!
Secured Device Information 19!
Troubleshooting Card Reading 20!
Troubleshooting Scanning 21!
Troubleshooting RFID 22!
Dimensions 23!
Federal Communications Commission 24!
! !

!
USER MANUAL |
!
#!
MODELS
!
Part #
Features
Scanner
MSR
Encryption
RFID
Bluetooth
No
Battery
Standard
PCI
LPTX-MSE
X
X
X
LPTX-S-MSE
X
X
X
LPTMS
X
LPTMSE
X
X
LPT-S-MSE
X
X
LPT
1D
X
LPTE
1D
X
X
LPT-S-E
1D
X
X
LPTBTRE
1D
X
X
X
X
LPT-S-BTE
1D
X
X
X
LPTC2D
2D
X
LPTC2DE
2D
X
X
LPT-S-C2DE
2D
X
X
LPTC2DBTRE
2D
X
X
X
X
LPT-S-C2DBTE
2D
X
X
X
Table 1
!
!
!
!
!
!
!
!

!
USER MANUAL |
!
$!
!
!
!
!
OVERVIEW
The Infinea TAB allows mobile employees to convert their iPad into a powerful
solution for retail, warehousing, supply chain, ticketing and hospitality
industries. The Infinea TAB includes optional 1D or 2D barcode scanner, 3-track
encrypted magnetic stripe reader, optional Bluetooth support, and RFID.
Features:
Battery:
Rechargeable Li-ion Battery – (700-1100) mAh
Charging via USB to computer
Magnetic Card Reader:
3-Track Head
Swipe Speed: Minimum of 1.97 in/sec
MTBF: 1 million swipes
Barcode Scanner:
Class II - 1D/2D Imager
Single / Multi-scan mode
1D - MTBF: 30K hours (Laser Diode & Mirror Unit 10K hours)
2D - MTBF: 40K hours (Imager & Focus LED)
Indicators:
Visual - 2 LEDs for device status
I/O Connectors:
30-pin plug iPod dock connector 10-pin female Mini-B USB
connector for charging and synchronization

!
USER MANUAL |
!
%!
TECHNICAL DATA
General Specifications:
Power supply
From iPad & from internal Li-Ion Battery 3,7V (700-1100)mAh
Modes of
operation
Active (turn on Infinea TAB) / Active with Scanning / Stand By (after
5sec without operate)
Active (disconnected Bluetooth) / Active(connected Bluetooth) /
Active Search
Magnetic card reader, Bar code reader, RFID reader
MCU
Hitachi - HD64F3687
Communications
UART 3,3V Level Interface - communication between Infinea TAB &
iPad
USB Interface - USB Synchronization between iPad & PC
Bluetooth – between Dongle & remote device or PC
RS232 Interface
Speed: 57600bps
iPad RS232 Protocol
Power
consumption
Active Bluetooth Disconnected: – 2,7mA;
Active Bluetooth connected: -22mA
Active Bluetooth Search – 42mA
Bar Code
Active with Scanning: 1D Engine – 110mA; 2D Engine - 230mA
Stand by - 10!A
Bluetooth
Bluetooth 1.1
Class 2
distance - Up to 10m
Serial port profile
BAR code
1D bar code reader scan engine (optional)
2D bar code reader scan engine (optional)
RFID
MIFARE CLASSIC 1K/4K, MIFARE Ultra-Light/Ultra-Light C, ISO/IEC
15424, ISO/IEC 15693, ISO/IEC 14443.
MCR
3 track secured head reader
Cipher algorithm – 3DES(112) & AES256
Key Management – DUKPT & Fixed Key
LEDs
2 LEDs for Device status
Buttons
2 buttons for start scanning
Battery
Li-ion Battery 3,7V (700-1100)mAh
Charging from USB
Weight, g
96 grams (without Apple iPad) with battery and 2D barcode scanner
Dimensions, mm
128mm x 51mm x (26/43)mm – (depends on scanner 1D/2D)
Environment
- Operating temperature 0°C to +40°C
- Operating humidity 35 to 85% RH
- Storage temperature -5°C to +40°C
- Storage humidity 10 to 90% RH
Cables
Standard USB A to mini B Sync Cable
Table 2
* Specifications subject to change without notice.! !

!
USER MANUAL |
!
&!
BOX CONTENTS
Your Infinea TAB comes with the following items listed below:
Item
Part Number
Descriptions
1
Infinea TAB
Infinea TAB Reader /
Scanner
2
USB A to mini USB
USB sync cable
3
Infinea TAB Quick Start
Infinea TAB Quick Start
Guide
Table 3
*Bulk Shipments may ship without cables and manuals in each box.
Software ( Drivers & SDK ):
Because of the continually evolving SDK, the latest SDK are not
distributed on CD.
For the latest Infinea TAB SDK’s, please visit our developer portal:
http://developer.ipcprint.com/

!
USER MANUAL |
!
'!
GETTING STARTED
The Infinea TAB allows you to scan barcode and capture Magnetic Strip
information onto your iPad. Before using your Infinea TAB the battery should
be properly charged. The following Quick Start guide will help to get your
Infinea TAB ready for use.
Quick Start:
Step
What to do
Purpose
Where to find more
information
1
Fully charge your Infinea
TAB as recommended
The battery pack should be
fully charged before use to
ensure long battery life
Charging Battery, Page 9
2
Install Software
Barcode Scanning
& Card Reading requires
software to be installed
onto your iPad
Please contact your IPC
Sales Representative
3
Attach device to iPad
Connecting your Infinea
TAB and iPad
Charging Battery, Page 8
Table 4

!
USER MANUAL |
!
(!
ABOUT YOUR INFINEA TAB

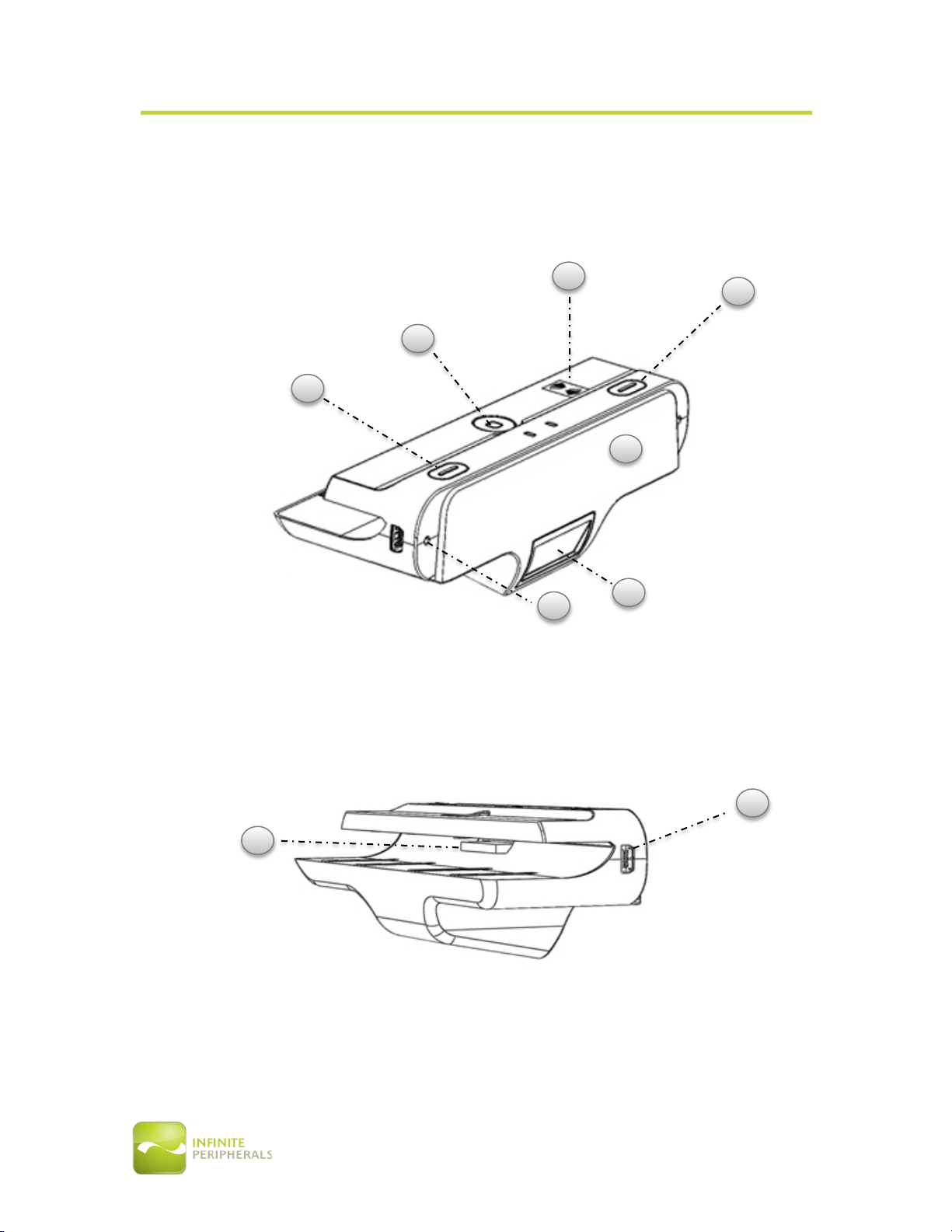

1. Scan Button
2. Scan Button
3. Home Button
4. RFID Receiver/Transmitter
5. Magnetic Strip Reader
6. Docking Connectors
7. Barcode Scanner
Figure 1
8. 30 Pin iPad connector
9. USB Sync & Charging Port
Figure 2
1
2
3
4
5
7
6
8
9

!
USER MANUAL |
!
)!
ASSEMBLING YOUR INFINEA TAB
!

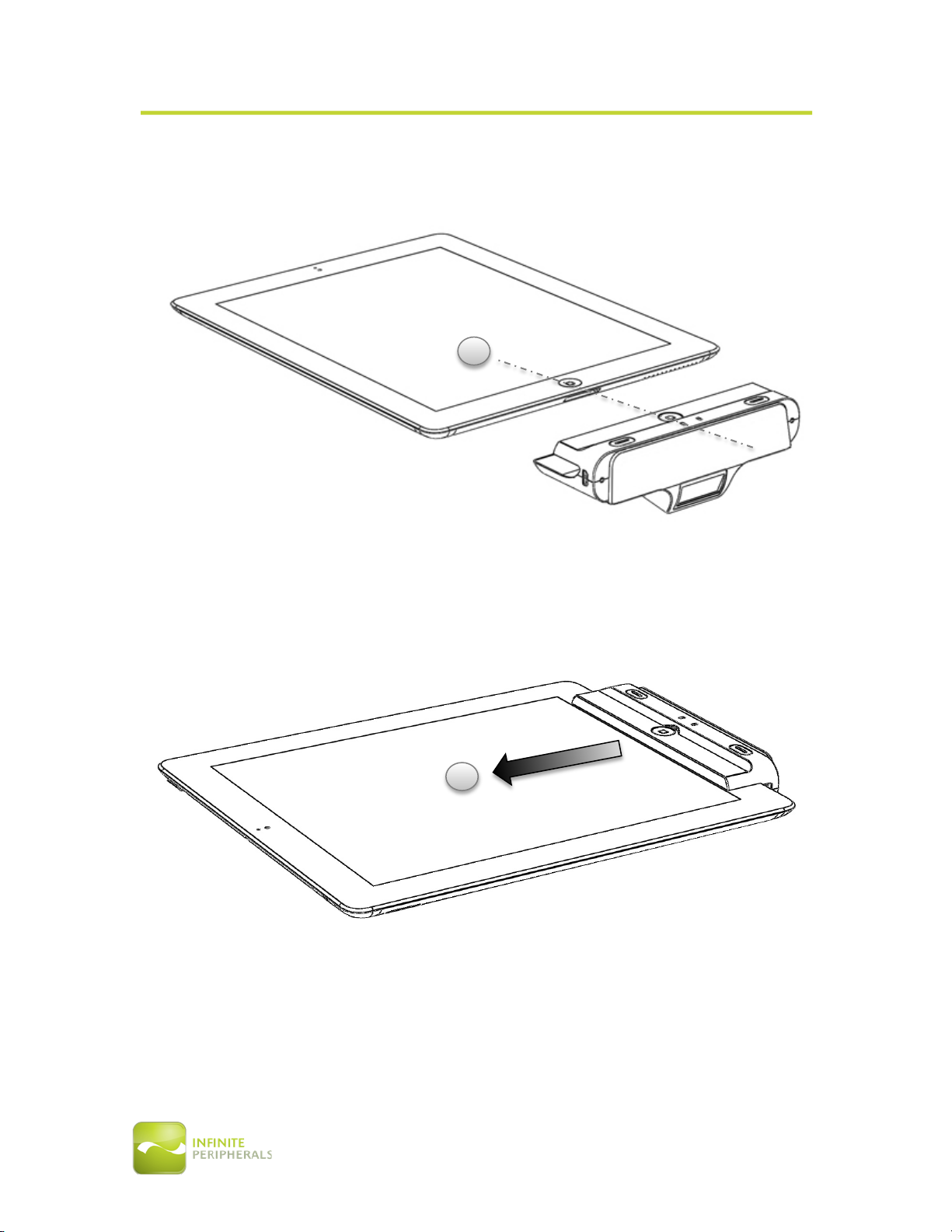

1. Align both the home button on iPad and Infinea TAB as shown below.
Figure 3
2. Gently slide Infinea TAB into position as shown below.
Figure 4
1
2

!
USER MANUAL |
!
*+!
CHARGING YOUR INFINEA TAB
Charging the Infinea TAB through USB port:
The Infinea TAB uses a Lithium Ion rechargeable battery pack. Before first
use, the battery pack should be charged for at least (4) hours.
To prevent electrical damage to the Infinea TAB and/or battery pack, please
use approved AC adaptors and USB to Mini USB cables only.
1. Connect mini USB charger cable as shown below.
Figure 5
Warning:
•When charging the iPad and Infinea TAB at the same time, only use the
approved/recommended 5 volt @ 2.1 amp dc adaptors. Failure to do so
may cause charging problems and potential damage to the Infinea TAB
and/or iPad.
•When connecting the mini USB charging cable, take care as to not force
the plug into the connector as doing so may cause damage to the
connector.!
1

!
USER MANUAL |
!
**!
STATUS AND OPERATIONAL MODES
The Infinea TAB uses LEDs to indicate various conditions of operation. This
may be charging, active or online, battery low conditions. The following
explains these conditions and LED indication.
LED
Status
1
Slow flashing, indicates no
connection with iOS
Application.
Fast flashing, indicates
connection with iOS
Application.
2
Flashing indicates battery is charging.
Solid (non-flashing) indicates battery fully charged.
Table 5
Figure 6
1
2

!
USER MANUAL |
!
*"!
1D BARCODE SCANNING
Using the 1D barcode scanner:
The Infinea TAB 1D uses a scan engine that supports one-dimensional (1D)
barcode symbols. The effective reading distance of the barcode reader varies
depending on the barcode size.
Scanning 1D Barcodes:
To scan a 1D barcode fist activate the scanner. Then position the scan head as
close to the barcode label as possible so that the scan line crosses both ends
of the barcode as shown in the figure below.

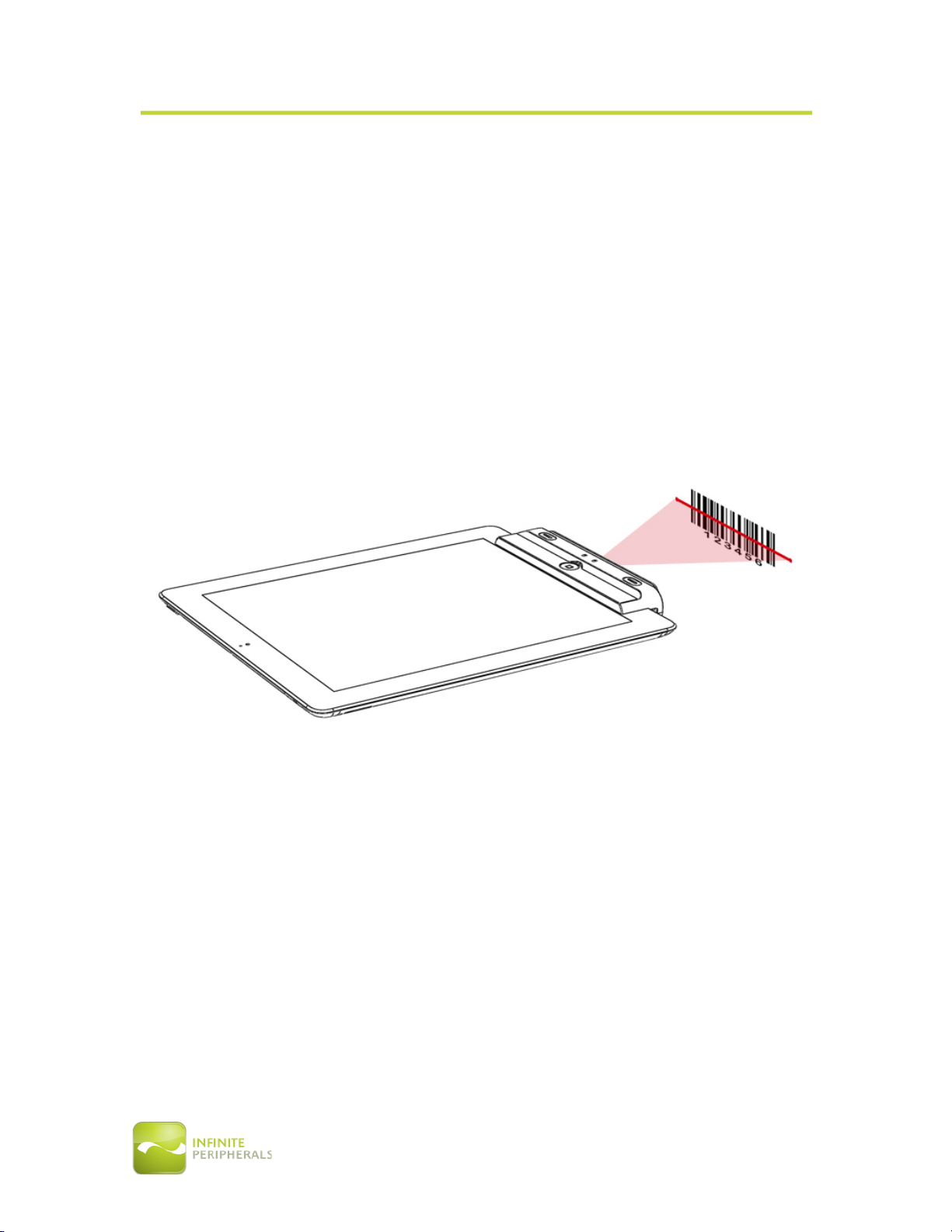

Figure 7
Tips:
Slowly pull back the unit increasing the distance between the barcode and
scan head until the scan line crosses both ends of the barcode and the
barcode has been read by the scanner.!

!
USER MANUAL |
!
*#!
2D BARCODE SCANNING
Using the 2D barcode scanner:
The Infinea TAB 2D uses a scan engine that supports one-dimensional (1D) and
two-dimensional (2D) barcode symbols. The effective reading distance of the
barcode reader varies depending on the barcode size.
Scanning 2D Barcodes:
To scan a 2D barcode fist activate the scanner. Then position the scan head to
center the aiming laser near the center of the barcode and the illumination box
is over the outer edges of the barcode as shown in the figure below.
!

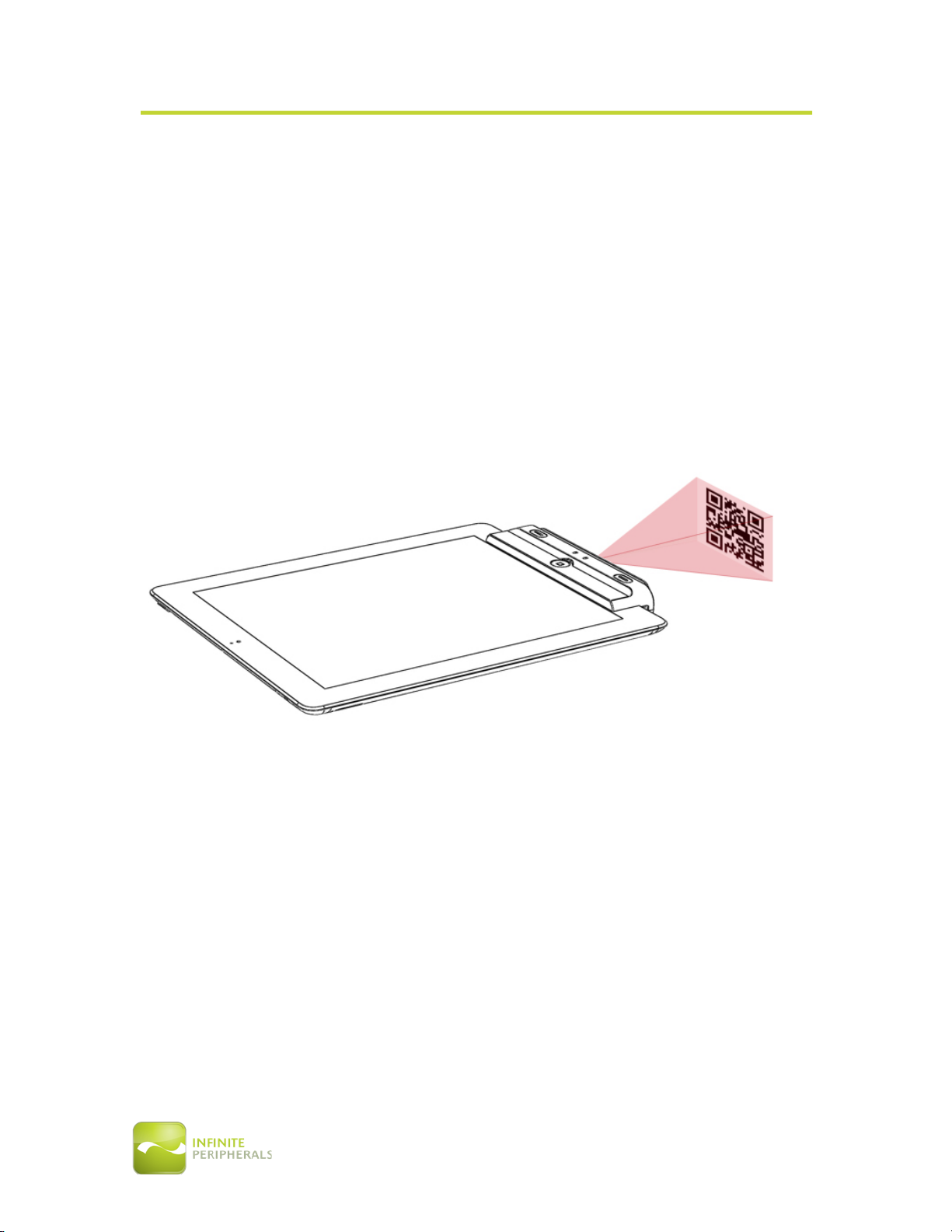

Figure 8
Tips:
Depending on the size of the barcode being scanned, you may need to slowly
pull back the unit increasing the distance between the barcode and scan head
until the barcode is within the imager’s illumination box as shown in the figure
above.

!
USER MANUAL |
!
*$!
MSR READING
Reading Magnetic Strips:
The Infinea TAB has a built-in magnetic card reader. The card reader
incorporates a (3) track magnetic read head requiring a single swipe to read
field data from all three tracks.

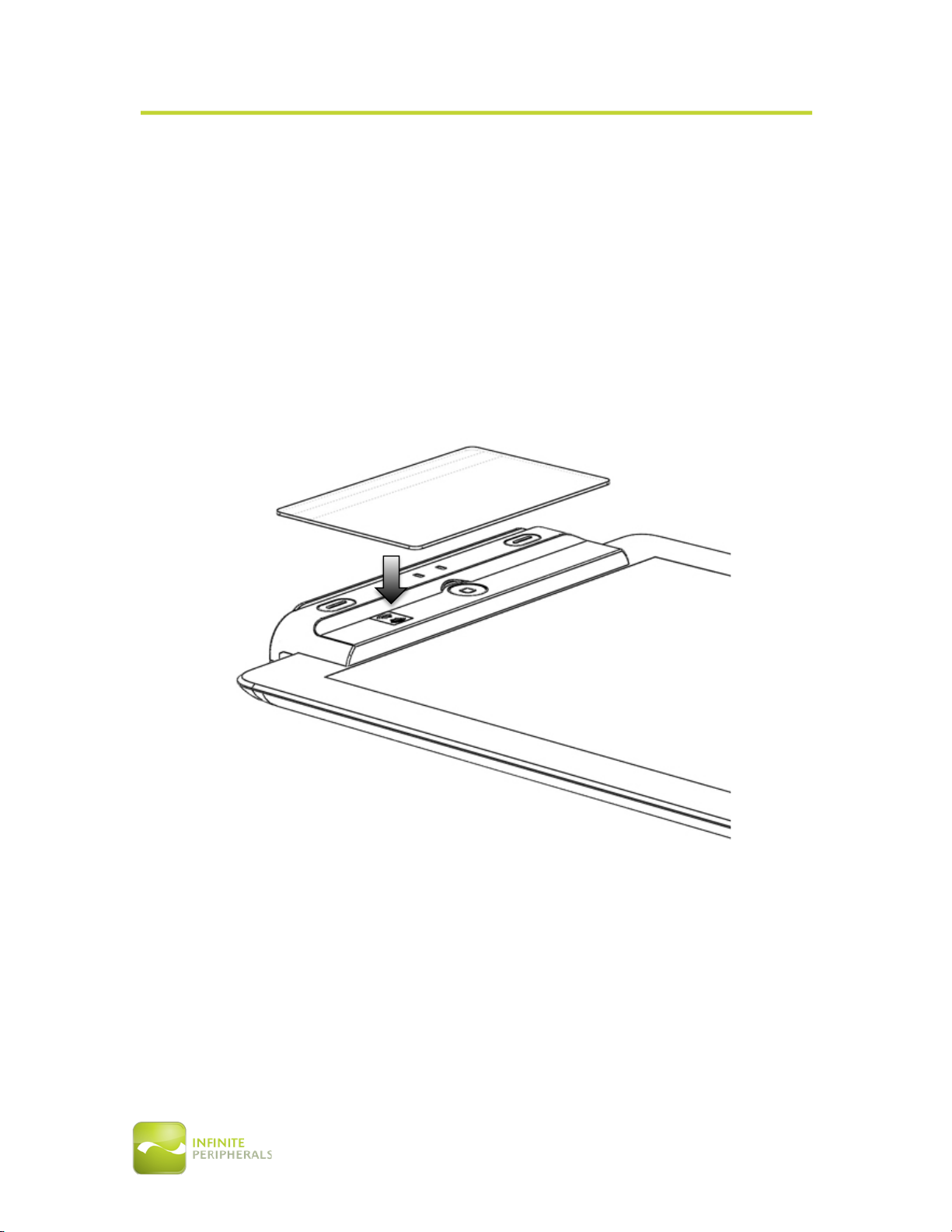

The magnetic read head faces outwards. When placing the card into the
reader, the magnetic strip must be facing towards the iPad as shown in the
figure below. !
!
!
!
!
!
!
!
!
!
!
!
!
Figure 9
!
Tips:
When swiping the card through the reader, keep the edge of the card flat on
the inner base of the reader to ensure that the magnetic strip passes over the
read head evenly.

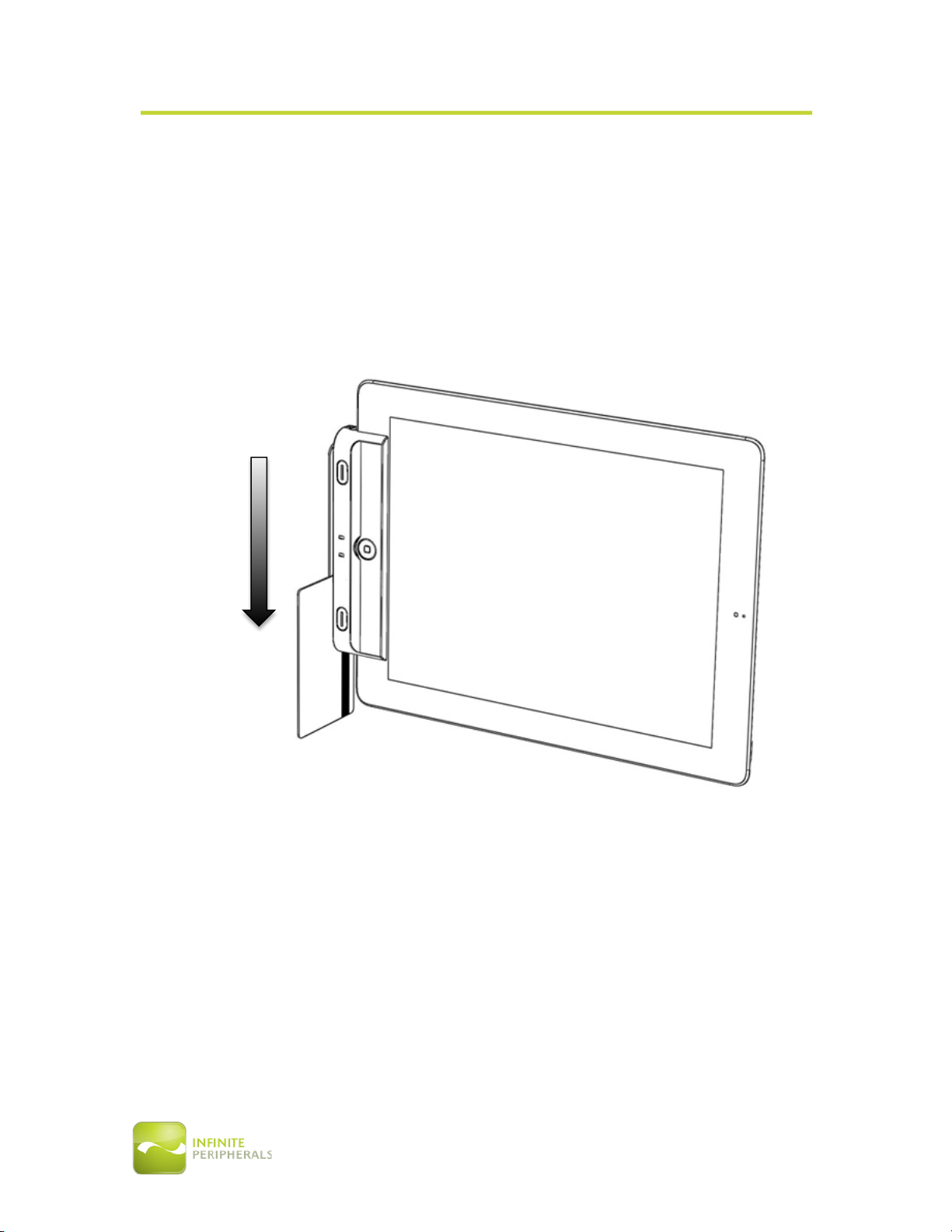

Swipe the card with an even sliding motion in the direction shown in the figure
above.!
Swipe direction

!
USER MANUAL |
!
*%!
RFID READING
Reading RFID Cards:
The Infinea TAB has a built-in RFID tag/card reader. The RFID reader
incorporates several RFID format depending on the model of your Infinea TAB.
To Read/Write to RFID tag/cards will require special software not included
with the Infinea TAB.
The RFID receiver/transmitter is located adjacent to the left scan button. Place
the RFID tag/card over the receiver/transmitter as shown in the figure below.
Keep the face of the tag/card flat with the receiver/transmitter as close as
possible.!!
!
!
!
!
!
!
!
!
!
!
!
Figure 10
!
Tips:
Depending on the type of RFID tags/cards being used, it may be necessary for
tags/cards to make direct contact with the surface where the RFID
receiver/transmitter is located for proper reading/writing.!
!

!
USER MANUAL |
!
*&!
SYNCING
The Infinea TAB portable barcode scanner and card reader is designed
specifically for use with iPad there by allowing the iPad to sync with iTunes
through the Infinea TAB while connected.
To sync iPad with iTunes through the Infinea TAB follow the steps below;
1. Connect the Infinea TAB to a computer using a Mini USB cable as
shown in the figure below.
2. Wait for the sync mode beep and the LED flashes blue.
The Infinea TAB should now be in sync mode. Refer to the iTunes
documentation for syncing your iPad.
!
!
!
!
!
!
!
Figure 11
Tips:
When debugging your Infinea TAB iOS application keeping the sync-cable
connected to the Infinea TAB will help to speed up your developing efforts by
allowing you to sync your application onto the iOS device connected to the
Infinea TAB.!
!

!
USER MANUAL |
!
*'!
REPLACING BATTERY
The Infinea TAB portable barcode scanner and card reader is designed with an
internal Lithium Ion rechargeable battery pack.
For problems related to battery not charging or unit not turning on, please
consult your Infinite Peripheral representative or certified service center.
Figure 12
Warning:
•Disassembling of the Infinea TAB may impact your Infinea TAB
warranty. Please consult your Infinite Peripheral representative before
attempting to open the Infinea TAB.!
•Attempting to disassembly secured Infinea TAB device will render the
unit unusable. Please consult your Infinite Peripheral representative or
certified service center.

!
USER MANUAL |
!
*(!
DEVELPING SOLUTIONS
Integrating the Infinea TAB into your solution requires the use of the Infinea
TAB SDK.
The SDK incorporates an API specifically for rapid development of iOS
applications designed to use the barcode scanning, card reading, Bluetooth,
and RFID capability of the Infinea TAB.
For details on using the Infinea TAB SDK, please refer to the SDK’s
documentation. The Infinea TAB SDK can be downloaded from our Developer
Portal.
For the latest Infinea TAB SDK’s, please visit our developer portal:
http://developer.ipcprint.com/
!
!
!
!
!
!
!
!
!
!
!
