Infinity iB-2R User manual

Infinity iB-2R V3
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Ordercode: 41531
MANUAL
ENGLISH

1
Ordercode: 41531
Infinity iB-2R
Table of contents
Warning ...............................................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................4
Rigging ............................................................................................................................................................................4
Connection with the mains.........................................................................................................................................6
Return Procedure..........................................................................................................................................................6
Claims..............................................................................................................................................................................6
Description of the device.................................................................................................................................................7

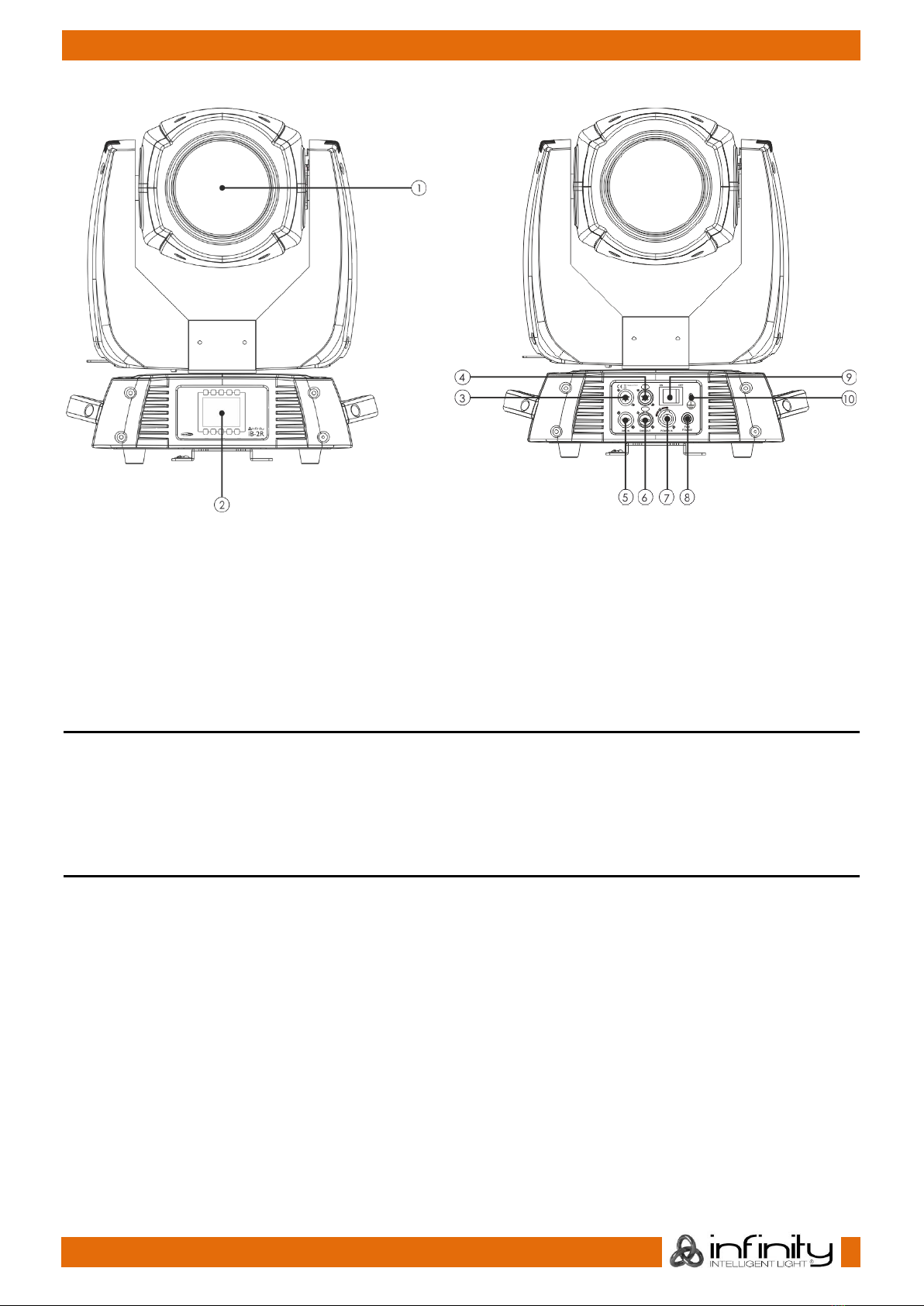

Overview ........................................................................................................................................................................8
Backside .........................................................................................................................................................................8
Installation...........................................................................................................................................................................8
Set Up and Operation .......................................................................................................................................................8
Control Modes...............................................................................................................................................................8
One Infinity (Built-in Programs).................................................................................................................................8
Multiple Infinitys (DMX Control) ...............................................................................................................................9
Fixture Linking...............................................................................................................................................................10
Data Cabling...............................................................................................................................................................10

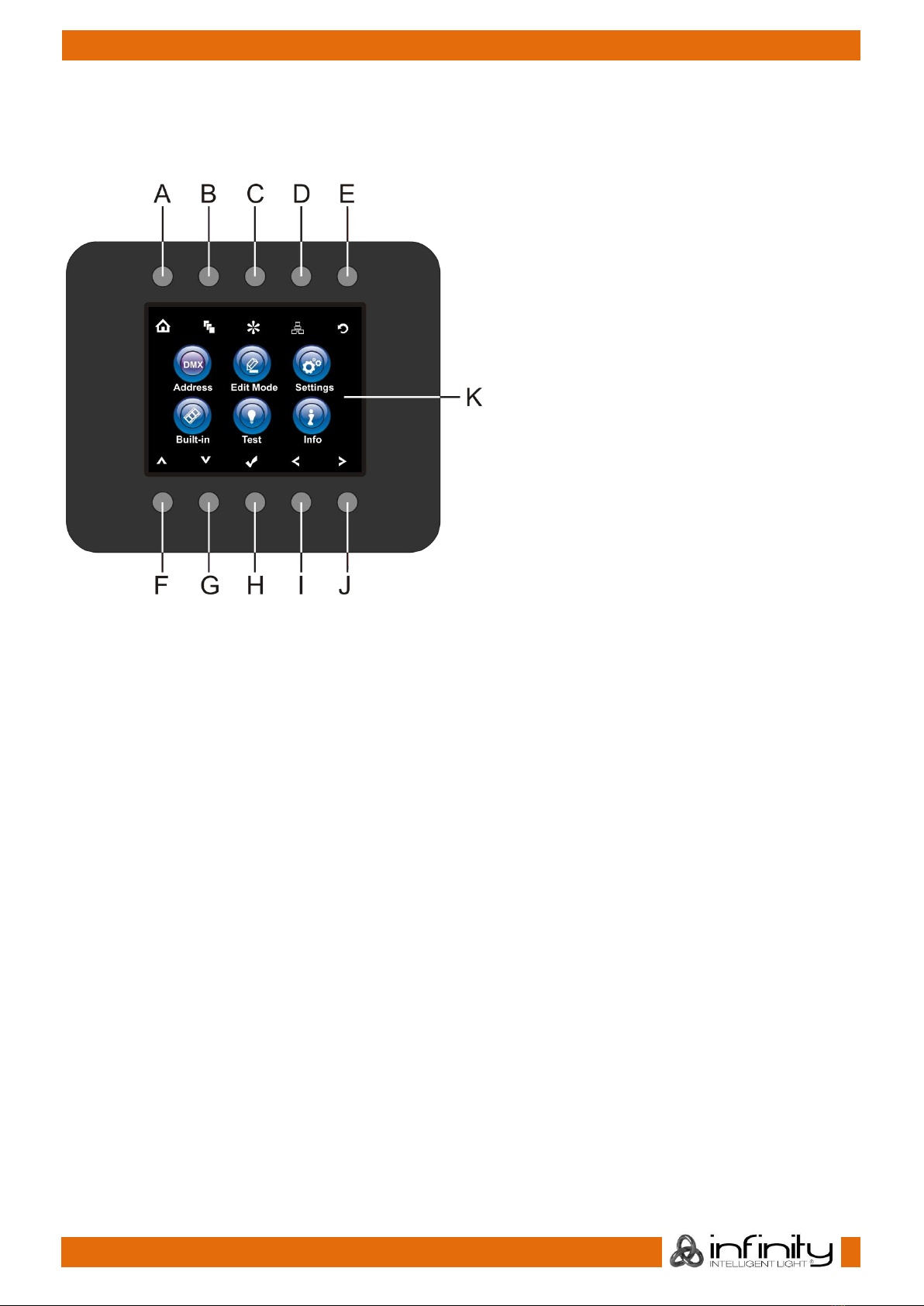

Control Panel ...............................................................................................................................................................11
Control Mode ..............................................................................................................................................................11
DMX Addressing ..........................................................................................................................................................11

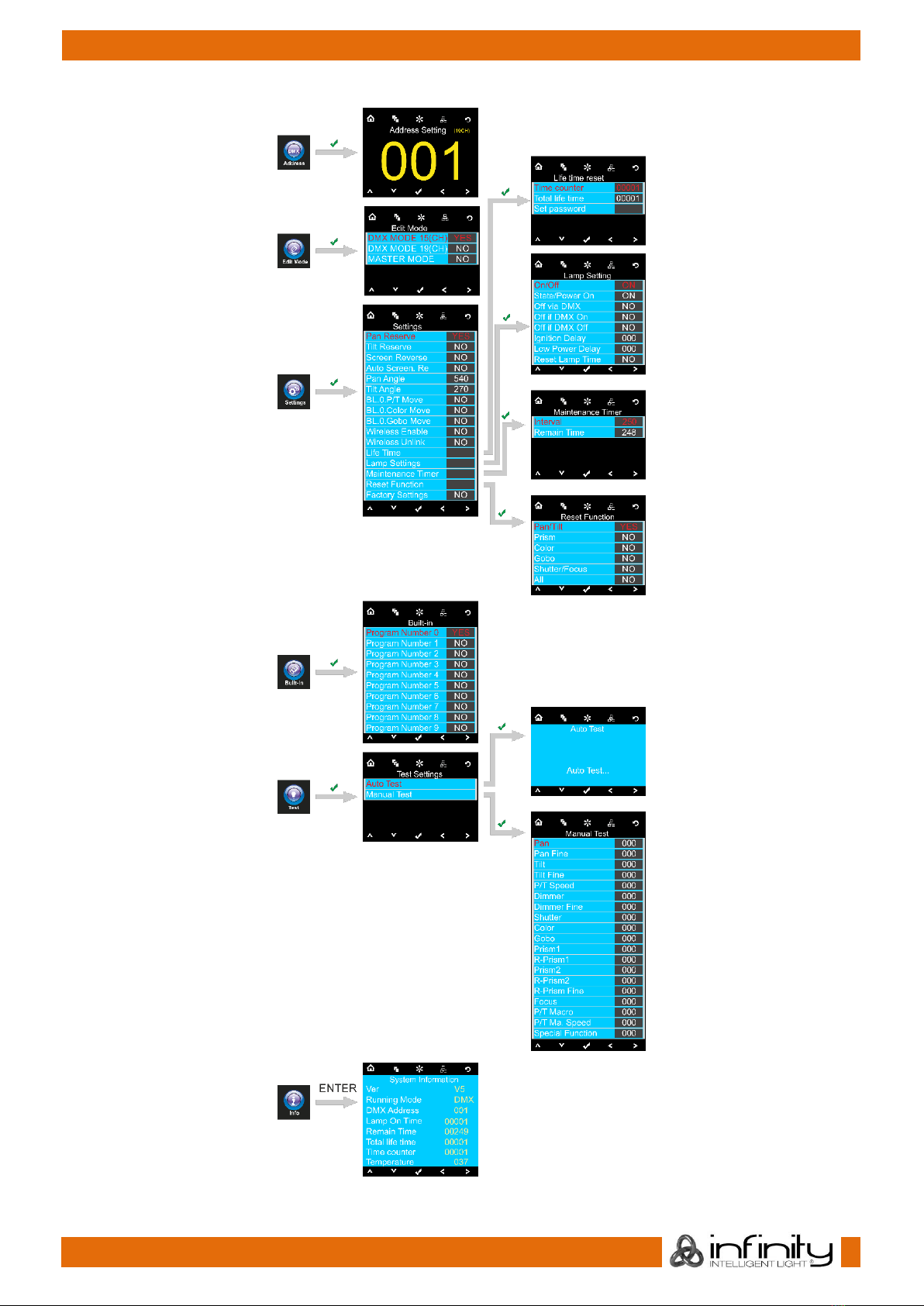

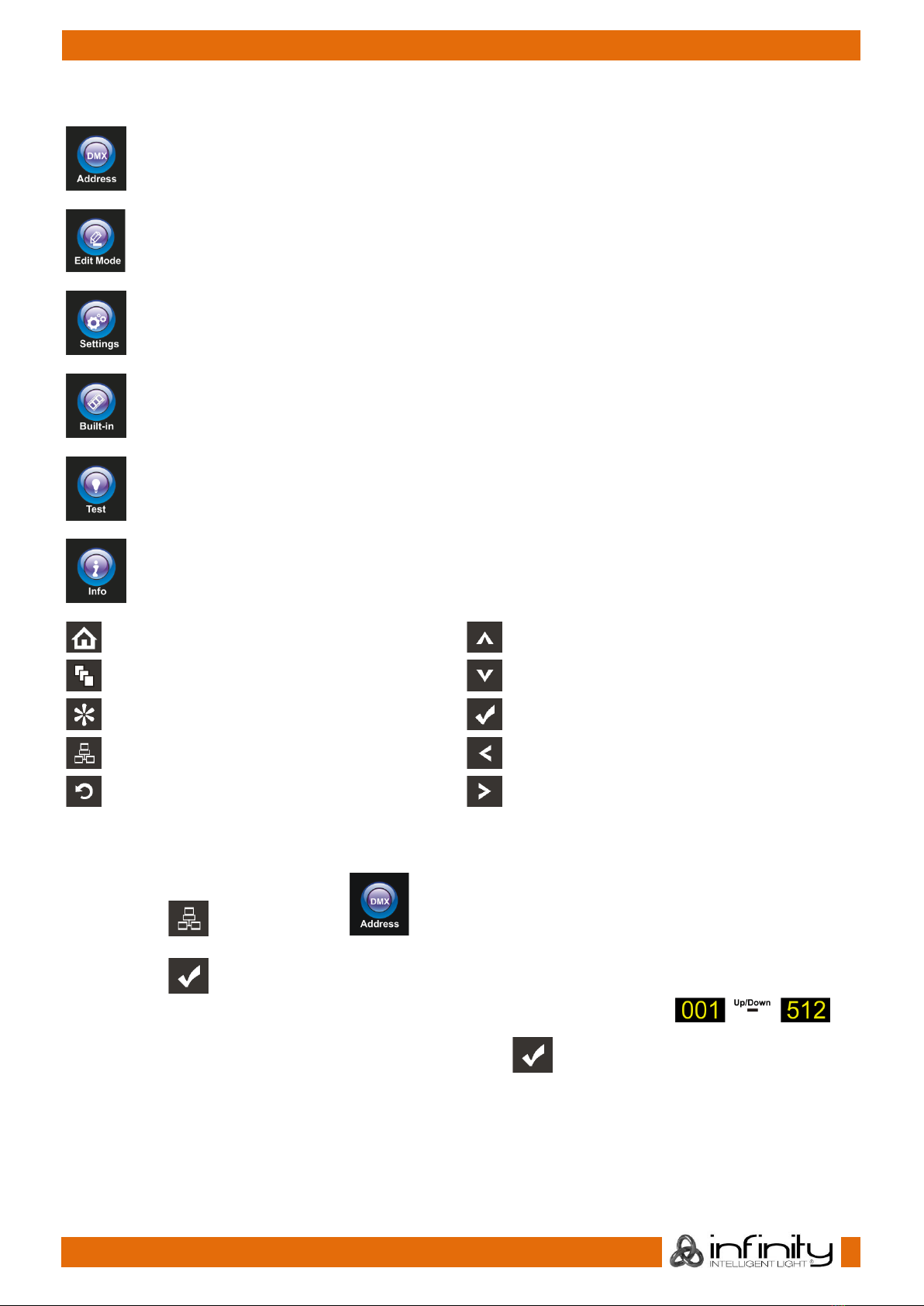

Menu Overview...........................................................................................................................................................12
Main Menu Options.................................................................................................................................................13
1. DMX Addressing...................................................................................................................................................13
2. Edit Mode..............................................................................................................................................................14
3. Settings Menu .......................................................................................................................................................14

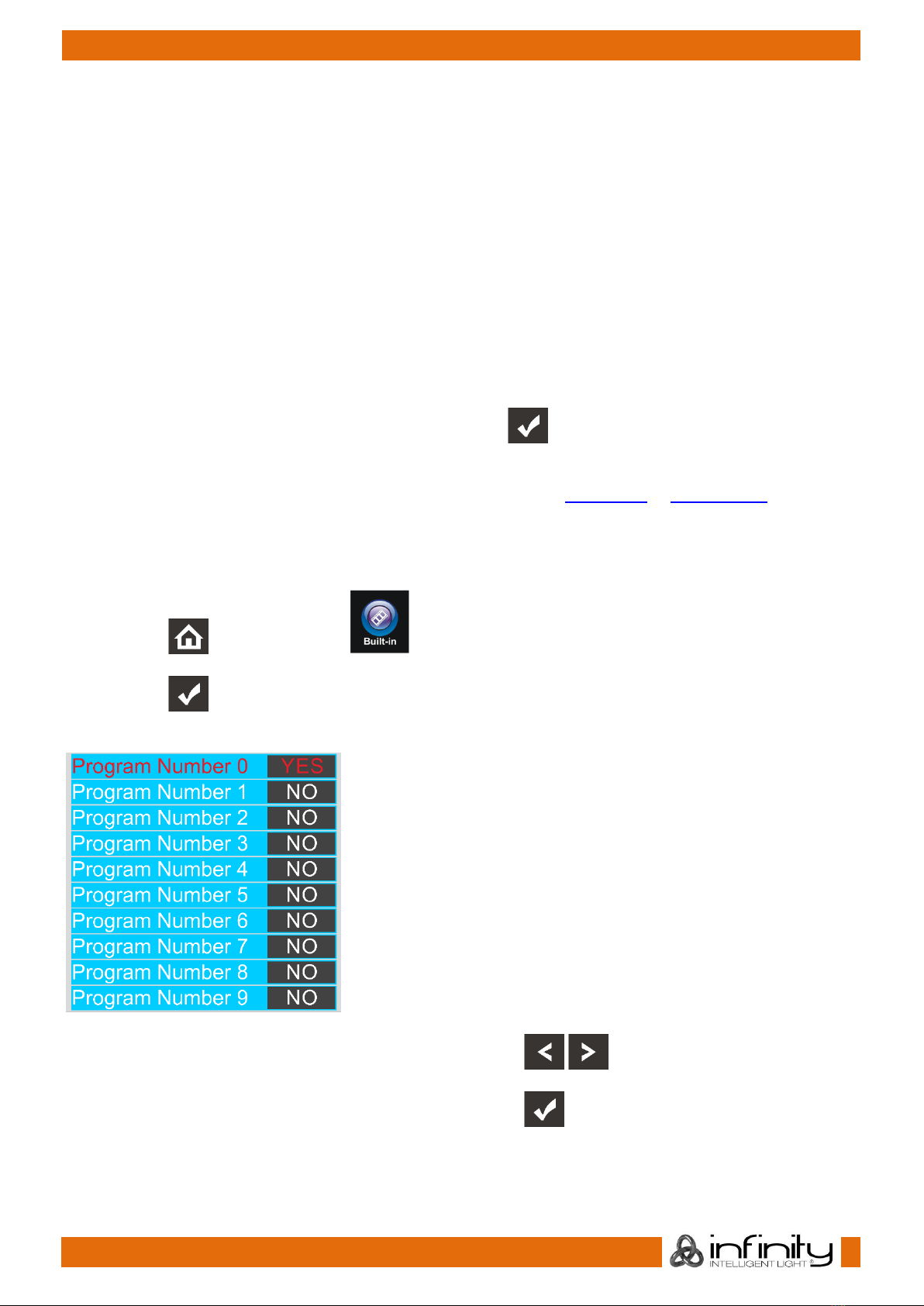

4. Built-in Programs...................................................................................................................................................16
5. Test Menu ..............................................................................................................................................................17
6. Information Menu ................................................................................................................................................18
DMX Channels .............................................................................................................................................................19
18 Channels (Advanced).......................................................................................................................................19
15 Channels (Advanced).......................................................................................................................................23
Channel settings .........................................................................................................................................................26
Maintenance....................................................................................................................................................................26
Replacing a Fuse ........................................................................................................................................................26
Battery Replacement.................................................................................................................................................27
(must be carried out by a qualified technician!).................................................................................................27
Troubleshooting ...............................................................................................................................................................28
Product Specification .....................................................................................................................................................30

2
Ordercode: 41531
Infinity iB-2R

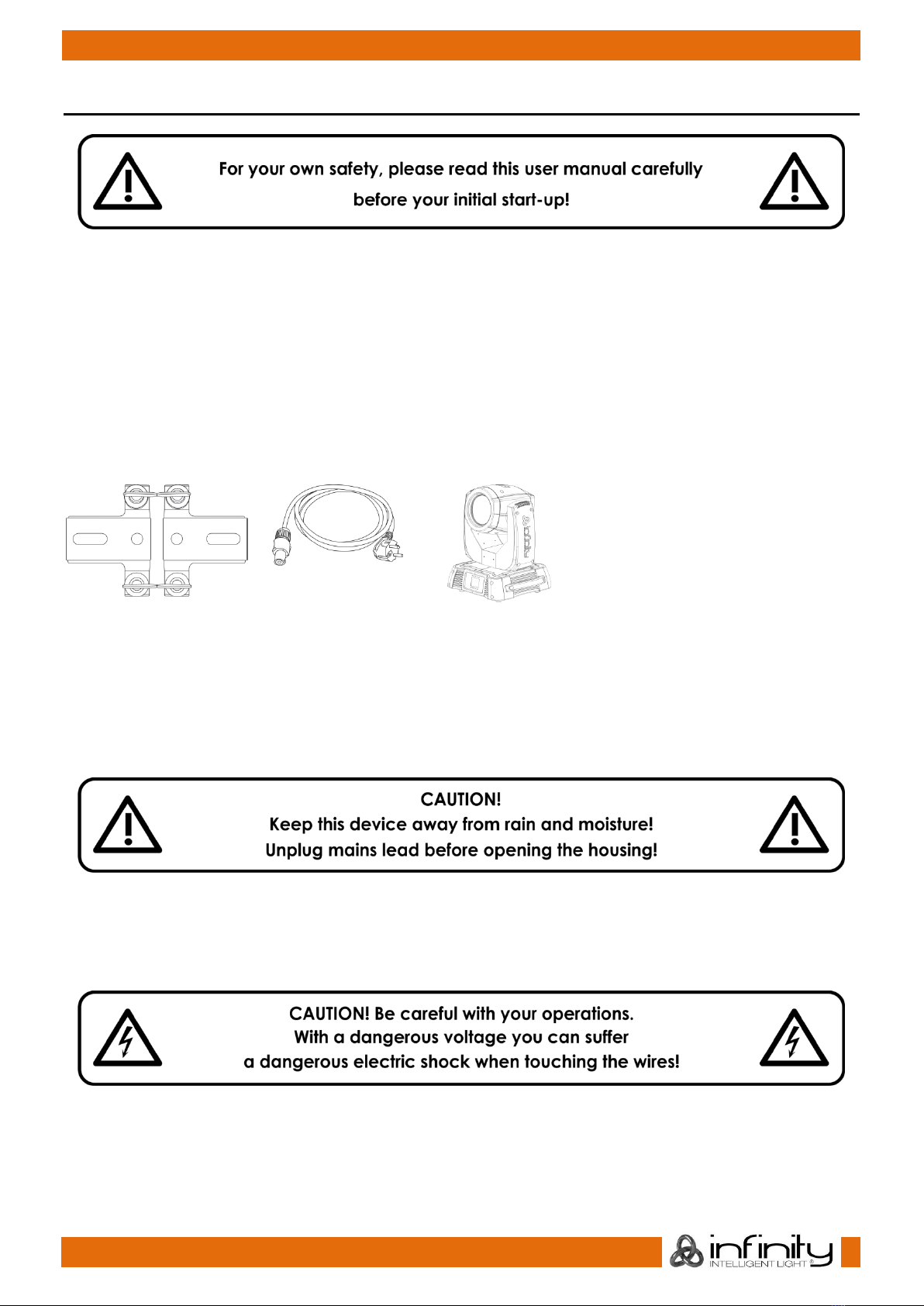

Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
●Infinity iB-2R LED Spot with Powercon powercable 0,9m
●2 brackets for truss mounting
●Safety eye
●User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving your lifespan expectancy is of a higher priority, place care in providing
for lower operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
●be qualified
●follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.

3
Ordercode: 41531
Infinity iB-2R
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
●Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
●Never remove warning or informative labels from the unit.
●Never use anything to cover the ground contact.
●Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always
hold the fixture at the transport handles.
●Never place any material over the lens.
●Never look directly into the light source.
●Never leave any cables lying around.
●Do not insert objects into air vents.
●Do not connect this device to a dimmer pack.
●Do not switch the device on and off in short intervals, as this would reduce the device’s life.
●Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
●Do not shake the device. Avoid brute force when installing or operating the device.
●Only use device indoors, avoid contact with water or other liquids.
●Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
●Only operate the device after having familiarized with its functions.
●Avoid flames and do not put close to flammable liquids or gases.
●Always keep case closed while operating.
●Always allow free air space of at least 50 cm around the unit for ventilation.
●Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord by the plug. Never pull out the plug by tugging the power cord.
●Make sure that the device is not exposed to extreme heat, moisture or dust.
●Make sure that the available voltage is not higher than stated on the rear panel.
●Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
●If the lens is obviously damaged, it has to be replaced, so that its functions are not impaired due to
cracks or deep scratches.
●If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
●If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
●If your Infinity device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Infinity dealer for service.
●For adult use only. Moving head must be installed out of the reach of children. Never leave the unit
running unattended.
●Never attempt to bypass the thermostatic switch or fuses.
●For replacement use fuses of same type and rating only.
●The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this device.
●This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
●Repairs, servicing and electric connection must be carried out by a qualified technician.
●WARRANTY: Till one year after date of purchase.

4
Ordercode: 41531
Infinity iB-2R
Operating Determinations
●This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
●The minimum distance between light-output and the illuminated surface must be more than 1 meter.
●The maximum ambient temperature ta = 45°C must never be exceeded.
●The relative humidity must not exceed 50 % with an ambient temperature of 40°C.
●If this device is operated in any other way, than the one described in this manual, the product may
suffer damages and the warranty becomes void.
●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
●If the Infinity is lowered from the ceiling or high joists, professional trussing systems have to be used.
●Use a clamp to mount the Infinity, with the mounting bracket, to the trussing system.
●The Infinity must never be fixed swinging freely in the room.
●The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
●When rigging, derigging or servicing the Infinity, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
The Infinity can be placed on a flat stage floor or mounted to any kind of truss by a clamp.

5
Ordercode: 41531
Infinity iB-2R
Mounting a clamp to the underside of the Infinity moving head
Improper installation can cause serious damage to people and property !

6
Ordercode: 41531
Infinity iB-2R
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NULL
YELLOW/GREEN
GREEN
GREEN
EARTH
Make sure that the device is always connected properly to the earth!
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersal[email protected] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.

7
Ordercode: 41531
Infinity iB-2R
Description of the device
Features
The Infinity iB-2R is a moving-head with high output and great effects.
●Beam effect
●High torque motors
●Ultra-fast movements
●Quick-lock screws on the covers
●Onboard: Battery powered full color display including gravity sensor
●Onboard: 16x2 character display
●DMX-control via standard DMX-controller
●User-selectable Pan & Tilt ranges, 540° / 360° / 180° / 90°
●Reverse Pan / Tilt movement
●Special: Pan / Tilt movement, Color, Gobo change blackout
●Pan 0º -- 540º, Tilt 0º -- 270º
●Pan/Tilt resolution: 16 bit
●Control: DMX-512, Built-in programs
●Gobo wheel: Static gobo wheel with 17 metal gobos and open
●Gobo functions: Gobo-flow effect, Gobo shake
●Color wheel: 14 dichroic filters and white
●Color functions: Split colors, Rainbow-flow effect
●Rotation: Bi-directional
●Prism wheel 1: 5-facet rotating prism
●Prism wheel 2: 8-facet rotating prism
●10 built-in programs selectable by DMX
●Light source: Osram Sirius HRI 132W (included)
●Lamp socket: E19
●Color temp.: 9200K
●Beam angle: 3°
●Input voltage: 100-240 VAC
●Continuous power: 265W max. at full output
●Dimmer: 0-100%, mechanical
●Strobe: 0-20Hz
●Focus: Motorized
●Housing: Black metal & flame-retardant plastic
●Connections: XLR Data in/out (XLR 3-pin + XLR 5-pin)
●Neutrik Powercon IN
●User selectable Basic (15CH) or Advanced (19CH) operating modes
●Fuse: F5A / 250V
●Dimensions: 303 x 366 x 475 mm (LxWxH)
●Weight: 17,78 kg
●Minimum distance to lighted objects: 6,5m
Optional accessories
MOD41531 –Wireless DMX upgrade kit, External Antenna
MOD41531IA - Wireless DMX upgrade kit, Internal Antenna
The Wireless DMX upgrade kits should be installed ONLY by a qualified technician.
Do not attempt installation yourself!

8
Ordercode: 41531
Infinity iB-2R
Overview
Backside
Fig. 01
Fig. 02
01) Lens
02) LCD display
03) 5-pin DMX signal connector IN
04) 5-pin DMX signal connector OUT
05) 3-pin DMX signal connector IN
06) 3-pin DMX signal connector OUT
07) Neutrik Powercon IN
08) Fuse 5A/250V
09) Power switch ON/OFF
10) Ground/Earth connection
NOTE: Knowledge of DMX is required to fully utilize this unit.
Installation
Remove all packing materials from the Infinity iB-2R. Check that all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Control Modes
There are 2 modes:
●Stand-alone (built-in programs)
●DMX512 (15CH, 19CH)
One Infinity (Built-in Programs)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Infinity is not connected by a DMX-cable, it functions as a stand-alone device.
05) Please see page 16 for more information about the built-in programs.

9
Ordercode: 41531
Infinity iB-2R
Multiple Infinitys (DMX Control)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-pin XLR cable to connect the Infinitys and other devices.
05) Link the units as shown in (fig. 03). Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
06) Supply electric power: Plug electric mains power cords into each unit's Powercon socket, then plug
the other end of the mains power cord into proper electric power supply sockets, starting with the
first unit. Do not supply power before the whole system is set up and connected properly.
Multiple Infinitys DMX Set Up
Fig. 03
Note : Link all cables before connecting electric power
