Infinity iB-5R User manual

Infinity iB-5R V3
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Ordercode: 41530
MANUAL
ENGLISH

1
Ordercode: 41530
Infinity iB-5R
Table of contents
Warning ...............................................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................4
Rigging ............................................................................................................................................................................4
Connection with the mains.........................................................................................................................................6
Return Procedure..........................................................................................................................................................6
Claims..............................................................................................................................................................................6
Description of the device.................................................................................................................................................7

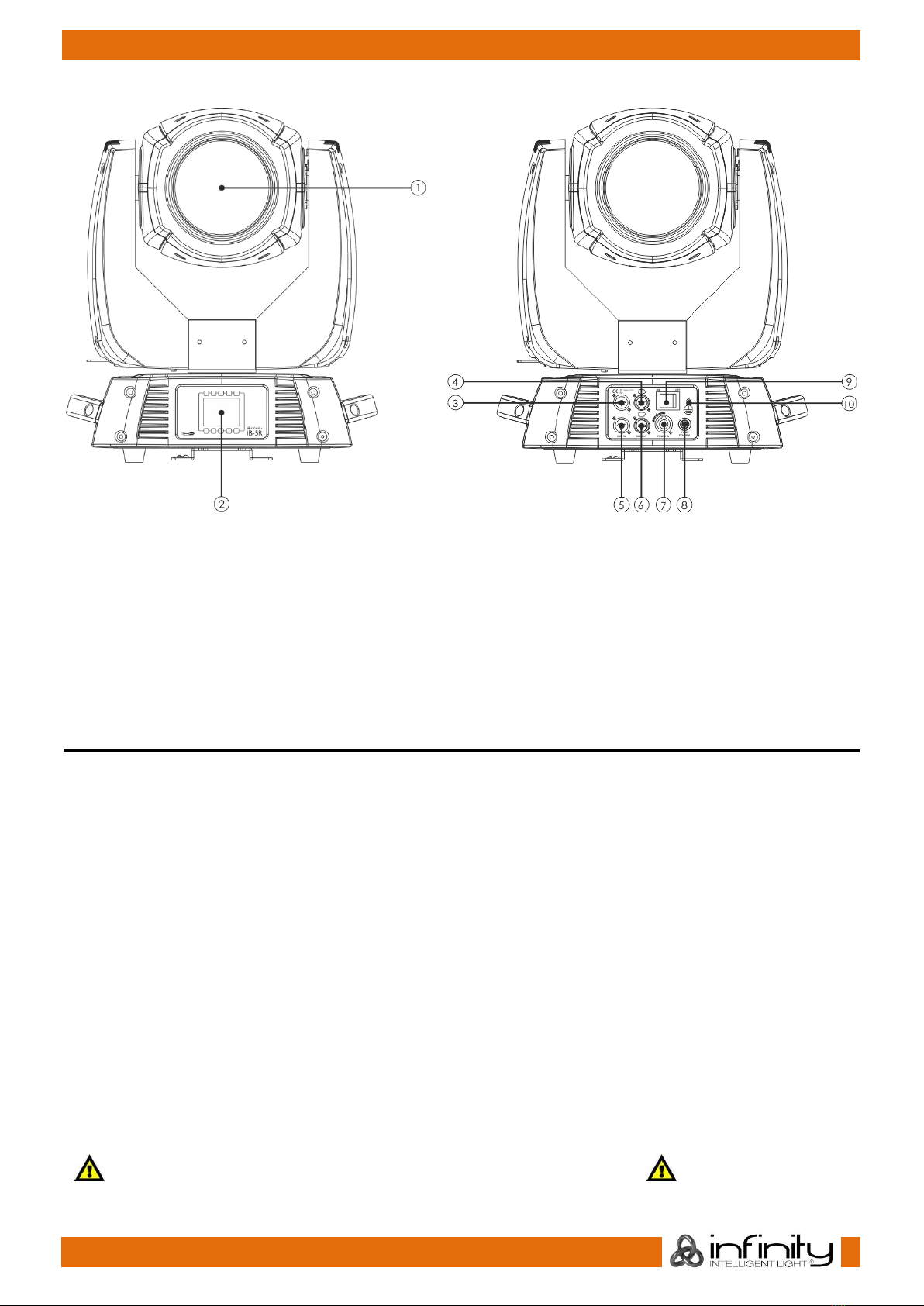

Overview ........................................................................................................................................................................8
Backside .........................................................................................................................................................................8
Installation...........................................................................................................................................................................8
Installing the Lamp........................................................................................................................................................8
Lamp Adjustment .......................................................................................................................................................10
Lock / Unlock the Moving-head ..............................................................................................................................10
Set Up and Operation .....................................................................................................................................................11
Control Modes.............................................................................................................................................................11
One Infinity (Stand-alone)......................................................................................................................................11
Multiple Infinitys (Master/Slave control)...............................................................................................................11
Multiple Infinitys (DMX Control) .............................................................................................................................12
Fixture Linking...............................................................................................................................................................13

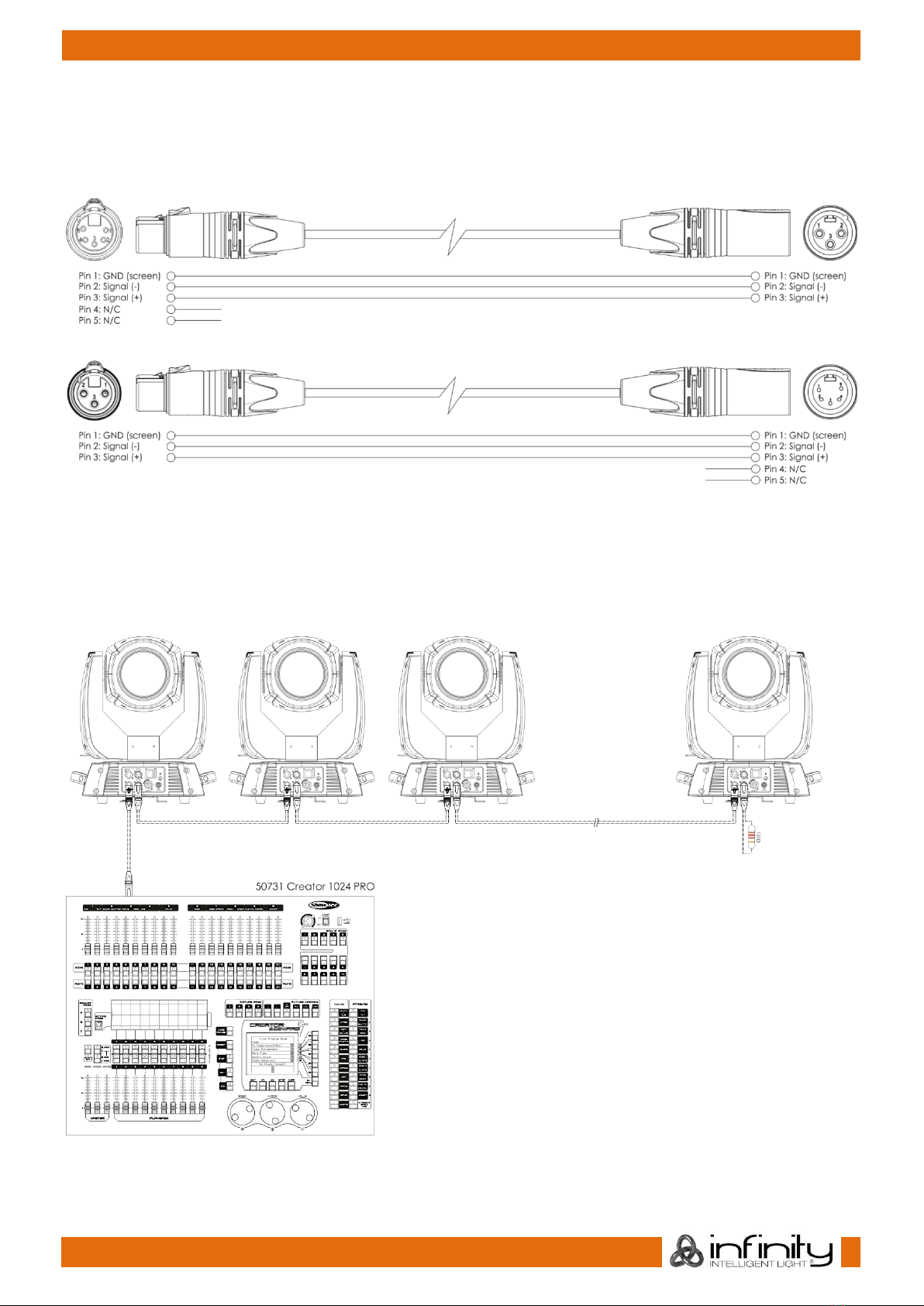

Data Cabling...............................................................................................................................................................13

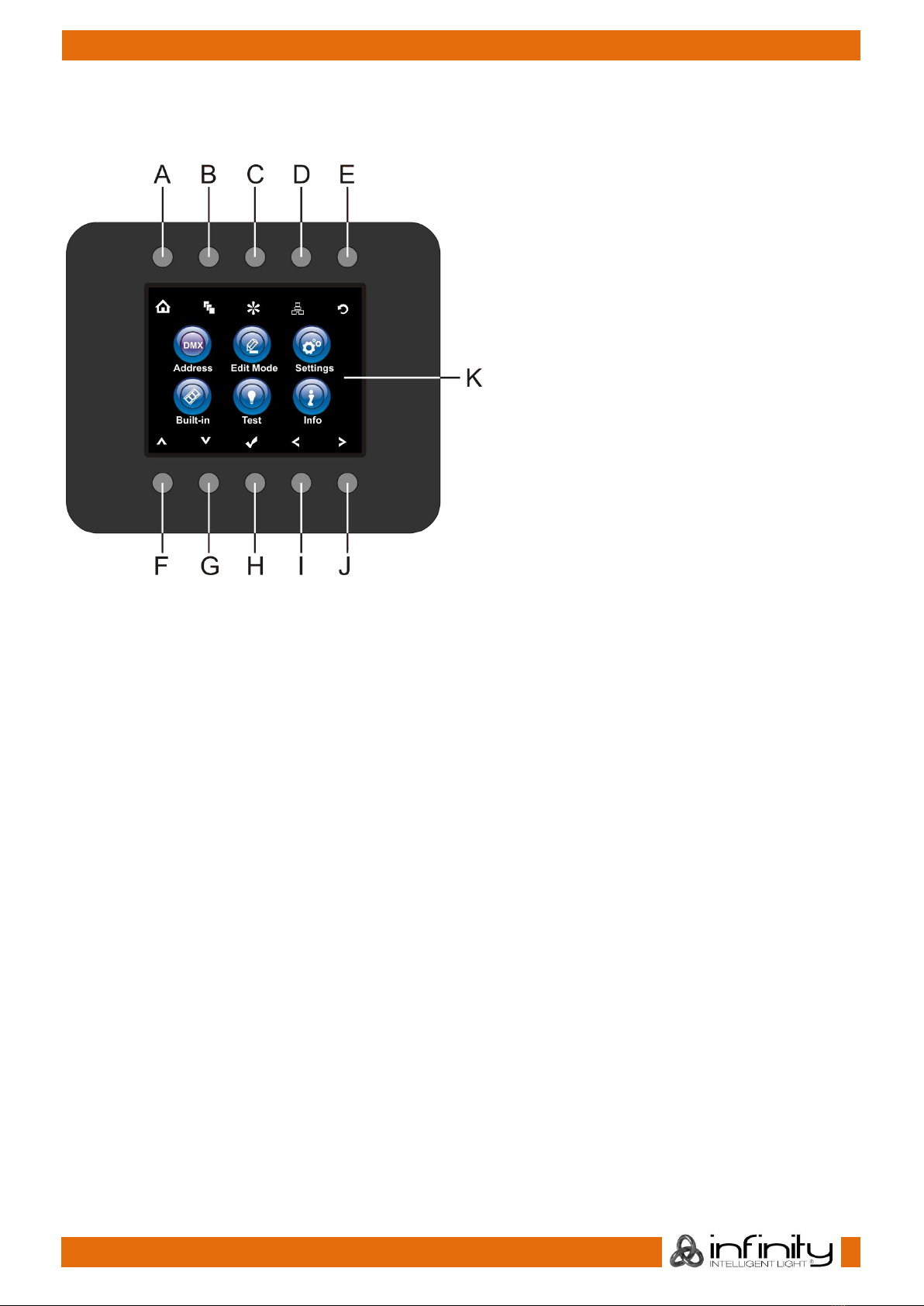

Control Panel ...............................................................................................................................................................14
Control Mode ..............................................................................................................................................................14
DMX Addressing ..........................................................................................................................................................14
Menu Overview...........................................................................................................................................................15
Main Menu Options.................................................................................................................................................16
1. DMX Addressing...................................................................................................................................................16
2. Edit Mode..............................................................................................................................................................17

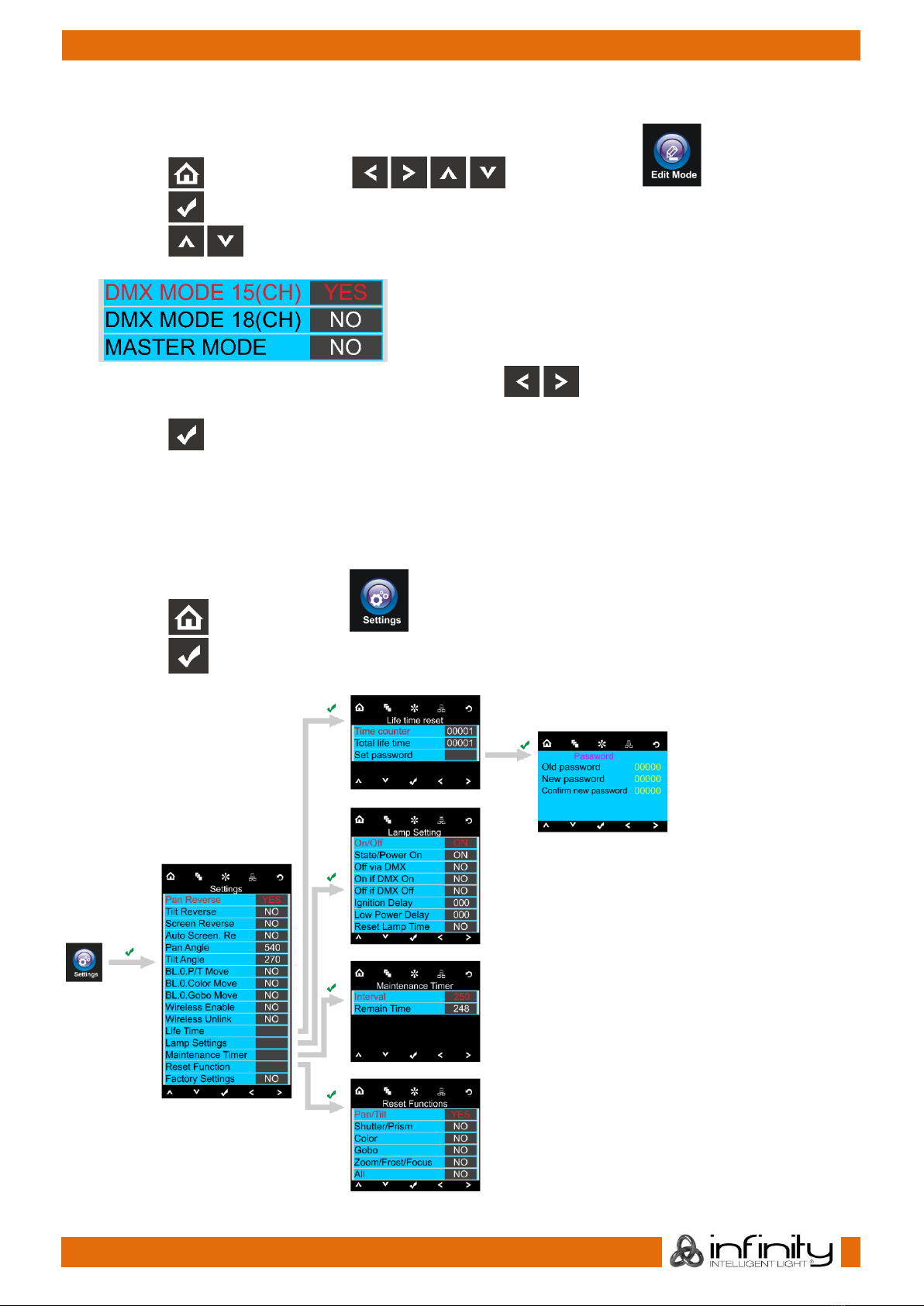

3. Settings Menu .......................................................................................................................................................17
3.1. Life Time..............................................................................................................................................................18

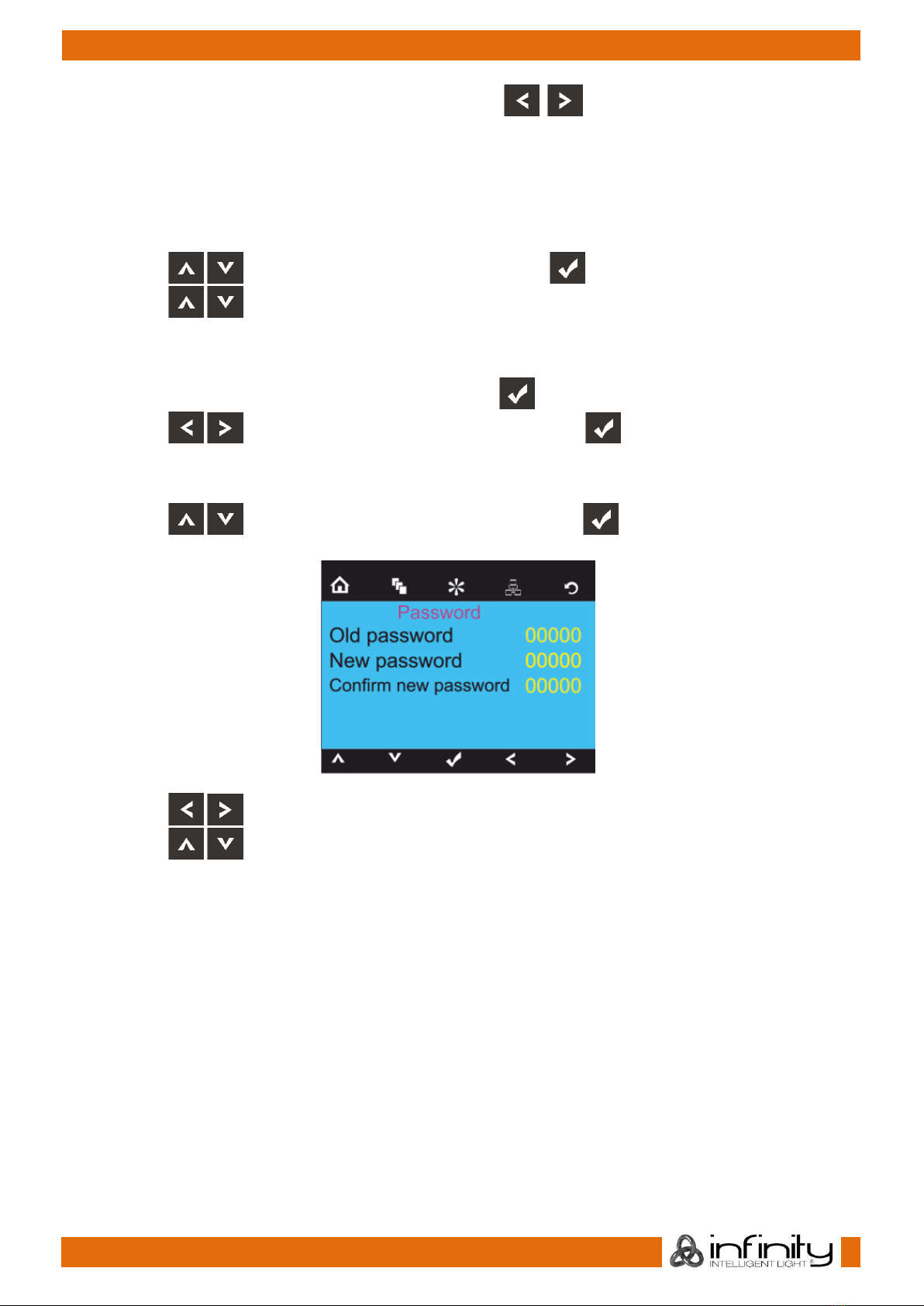

3.1.1. Set Password ..................................................................................................................................................18
3.2. Lamp Settings....................................................................................................................................................19
3.3. Maintenance Timer..........................................................................................................................................19
3.4. Reset ...................................................................................................................................................................19
4. Built-in Programs...................................................................................................................................................20
5. Test Menu ..............................................................................................................................................................21
6. System Information..............................................................................................................................................22
DMX Channels .............................................................................................................................................................23
18 Channels (Advanced).......................................................................................................................................23
15 Channels (Basic) .................................................................................................................................................27
Channel Settings .........................................................................................................................................................30
Maintenance....................................................................................................................................................................30
Changing the Lamp...................................................................................................................................................30
Replacing the Fuse.....................................................................................................................................................30
Static Gobo Wheel and Color Wheel ..........................................................................................................................31
Troubleshooting ...............................................................................................................................................................31
Product Specifications....................................................................................................................................................33

2
Ordercode: 41530
Infinity iB-5R
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
●Infinity iB-5R with PowerCON power cable (1 m)
●2 x quick-lock brackets for truss mounting
●User manual
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
●be qualified
●follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

3
Ordercode: 41530
Infinity iB-5R
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
●Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
●Never remove warning or informative labels from the unit.
●Never use anything to cover the ground contact.
●Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always
hold the fixture at the transport handles.
●Never place any material over the lens.
●Never look directly into the light source.
●Never leave any cables lying around.
●Do not insert objects into air vents.
●Do not connect this device to a dimmer pack.
●Do not switch the device on and off in short intervals, as this would reduce the device’s life.
●Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
●Do not shake the device. Avoid brute force when installing or operating the device.
●Only use device indoors, avoid contact with water or other liquids.
●Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
●Only operate the device after having familiarized with its functions.
●Avoid flames and do not put close to flammable liquids or gases.
●Always keep case closed while operating.
●Always allow free air space of at least 50 cm around the unit for ventilation.
●Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord by the plug. Never pull out the plug by tugging the power cord.
●Make sure that the device is not exposed to extreme heat, moisture or dust.
●Make sure that the available voltage is not higher than stated on the rear panel.
●Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
●If the lens is obviously damaged, it has to be replaced, so that its functions are not impaired due to
cracks or deep scratches.
●If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
●If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
●If your Infinity device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Infinity dealer for service.
●For adult use only. Moving head must be installed out of the reach of children. Never leave the unit
running unattended.
●Never attempt to bypass the thermostatic switch or fuses.
●For replacement use fuses of same type and rating only.
●The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this device.
●This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
●Repairs, servicing and electric connection must be carried out by a qualified technician.
●WARRANTY: Till one year after date of purchase.

4
Ordercode: 41530
Infinity iB-5R
Operating Determinations
●This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
●The minimum distance between light output and the illuminated surface must be bigger than 12
meters.
●The maximum ambient temperature ta = 40°C must never be exceeded.
●To eliminate wear and improve lifespan, during periods of non-use, completely disconnect from
power via breaker or by unplugging.
●The relative humidity must not exceed 50% with an ambient temperature of 40°C.
●If this device is operated in any other way, than the one described in this manual, the product may
suffer damages and the warranty becomes void.
●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
●If the Infinity is lowered from the ceiling or high joists, professional trussing systems have to be used.
●Use a clamp to mount the Infinity, with the mounting bracket, to the trussing system.
●The Infinity must never be fixed swinging freely in the room.
●The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
●When rigging, derigging or servicing the Infinity, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a clamp.

5
Ordercode: 41530
Infinity iB-5R

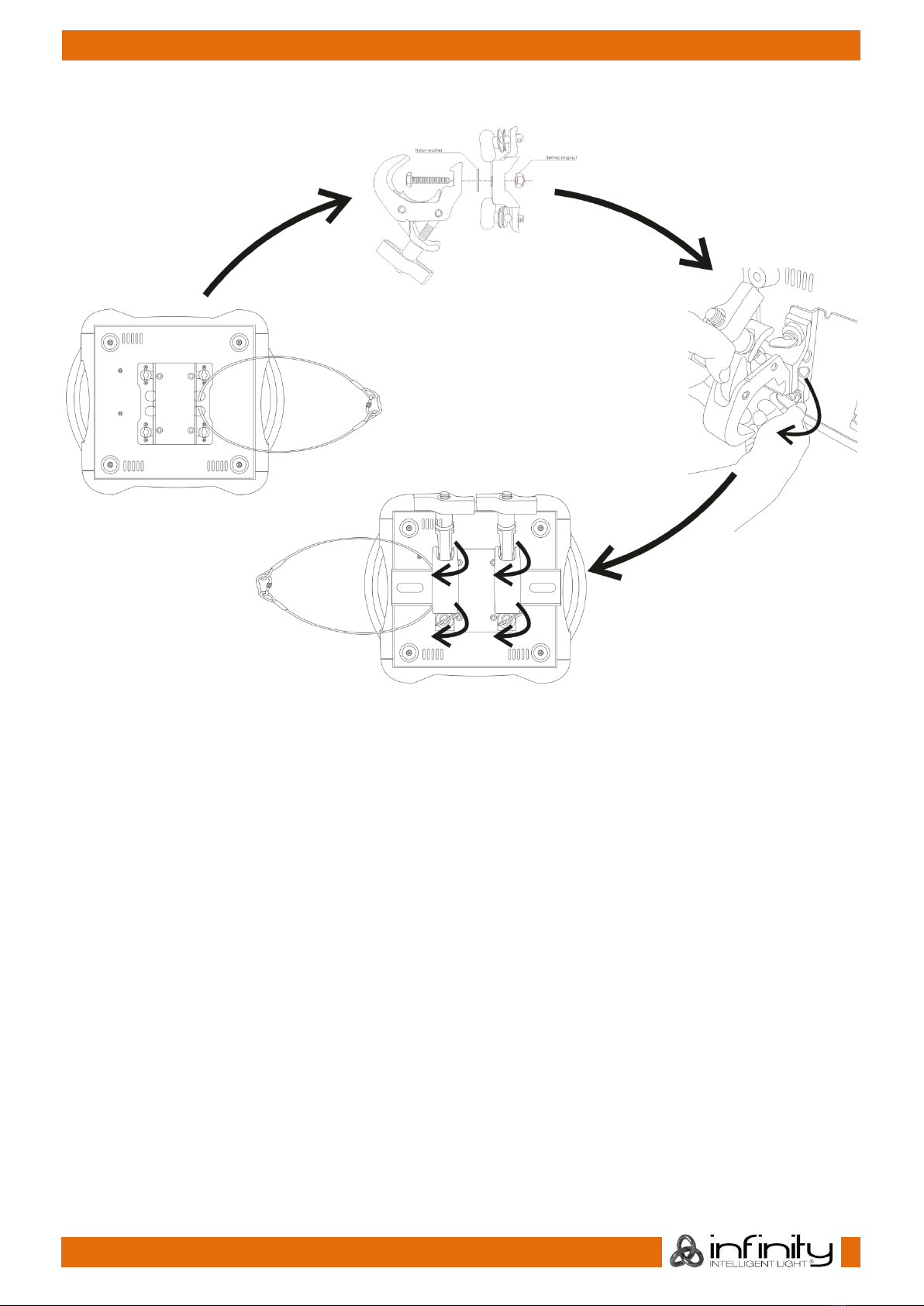

Mounting a clamp to the underside of the Infinity moving head
Improper installation can cause serious damage to people and property !

6
Ordercode: 41530
Infinity iB-5R
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NULL
YELLOW/GREEN
GREEN
GREEN
EARTH
Make sure that the device is always connected properly to the earth!
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.

7
Ordercode: 41530
Infinity iB-5R
Description of the device
Features
The Infinity iB-5R is a moving-head with high output and great effects.
●DMX control via standard DMX-controller
●User-selectable Pan & Tilt ranges, 540° / 360° / 180° / 90°
●Reverse Pan / Tilt movement
●Special: Pan / Tilt movement, Color, Gobo change blackout
●Pan 0º -- 540º, Tilt 0º -- 270º
●Pan/Tilt resolution: 16 bit
●Control: Built-in programs, Master/Slave, DMX-512
●DMX channels: Basic (15CH) or Advanced (18CH)
●Gobo wheel: Static gobo wheel with 17 metal gobos and open
●Gobo functions: Gobo-flow effect, Gobo shake
●Color wheel: 14 dichroic-filters and white
●Color functions: Split colors, Rainbow-flow effect
●Rotation: Bi-directional
●Prism: 8-facet rotating prism
●Frost filter
●10 built-in programs selectable by DMX
●Input voltage: 100-240V AC
●Light source: Osram Sirius HRI 230W (included)
●Lamp socket: E20.6
●Color temp.: 8000K
●Beam angle: 1°-3,8° electronic adjustment
●Power consumption: 385W (full output)
●Dimmer: 0-100% Mechanical
●Strobe: 0-20Hz
●Focus: Motorized
●Housing: Black metal & flame-retardant plastic
●Connections: XLR data IN/OUT (XLR 3-pin/5-pin)
●Fuse: F7AL / 250V
●Dimensions: 346 x 417 x 490 mm (LxWxH)
●Weight: 20,5 kg
●Minimum distance to lighted objects: 12 m
Optional accessories
MOD41530 –Wireless DMX upgrade kit (external antenna)
MOD41530IA - Wireless DMX upgrade kit (internal antenna)
The Wireless DMX upgrade kit should be installed ONLY by a qualified technician.
Do not attempt installation yourself!
70315 –Quicktrigger Slimline basic
70450 –Saveking 3mm
70451 –Saveking 3mm
81014 –Osram Sirius HRI 230W
90456 –Schuko to Neutrik PowerCON splitter 3-way
D7030 –Case for 2 x iS-200/iB-5R
D7235 –Case for 2 x iS-200/iB-5R

8
Ordercode: 41530
Infinity iB-5R
Overview
Backside
Fig. 01
Fig. 02
01) Lens
02) LCD display
03) DMX signal connector (IN) 5-pin
04) DMX signal connector (OUT) 5-pin
05) DMX signal connector (IN) 3-pin
06) DMX signal connector (OUT) 3-pin
07) Neutrik Powercon IN
08) Fuse F7AL/250V
09) Power switch ON/OFF
10) Ground/earth connection
NOTE: Knowledge of DMX is required to fully utilize this unit.
Installation
Remove all packing materials from the Infinity iB-5R. Check that all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Installing the Lamp
The Infinity iB-5R uses the Osram Sirius HRI 230W (ordercode 81014) bulb as manufactured by all popular
manufacturers. Use only the appropriate lamp for your unit.
Note that, product versions that use other lamps, may be offered in the future. Check your product
specification label for information.
Always disconnect from electric mains power supply before changing lamps.
The lamp has to be replaced when it is damaged or deformed due to the heat.
Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the
device was not designed for.
Damages caused by non-observance are not subject to warranty.
Always read the safety instructions that are included with the lamp.
Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe off the glass with a clean,lint-free
towel and rubbing alcohol.).
Always read all the safety warnings at the beginning of this manual, before replacing the lamp!!!
Let the lamp cool down for 20 minutes, before replacing the lamp.

9
Ordercode: 41530
Infinity iB-5R
Procedure:
01) Loosen the 8 screws on both sides of the housing and remove both covers (fig. 03).
02) Push on the lamp protection. Pull the lamp out of the housing (fig. 04).
03) Gently disconnect the 2 black cables from the lamp.
04) Remove a new lamp from the box and hold it by the base. Read lamp instructions. Do not touch the
lamp bulb glass. Oil on hands shortens the lamp’s lifespan. If you touch the bulb glass, wipe it off with
a clean, lint free towel and rubbing alcohol.
05) Connect the previously disconnected 2 black cables to the new lamp.
06) Using some force, insert the new lamp into the housing (fig. 05).
07) Replace the lamp covers and snugly fasten the previously removed 8 screws (fig. 03).
Fig. 03
Fig. 04
Fig. 05

10
Ordercode: 41530
Infinity iB-5R
Lamp Adjustment
Using a screwdriver, turn the adjustment screw to adjust the lamp position. The lamp position is set in the
factory. As the lamps differ from manufacturer to manufacturer, it may be necessary to readjust their
position. The lamp must be readjusted if the light does not seem to be evenly distributed within the ray of
light. Ignite the lamp and focus the ray of light on an even surface (wall).
Fig. 06
Lock / Unlock the Moving-head
You can lock the moving head by sliding the lock pin to the left (horizontally) for Pan or up (vertically) for
Tilt (Red arrows). You can unlock the moving head by sliding the lock pin to the right (horizontally) for Pan
or down (vertically) for Tilt (Green arrows).
Fig. 07

11
Ordercode: 41530
Infinity iB-5R
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Control Modes
There are 3 modes:
●Stand-alone
●Master/Slave
●DMX512 (15CH, 18CH)
One Infinity (Stand-alone)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Infinity is not connected with a DMX cable, it functions as a stand-alone device.
05) Please see page 20 for more information about the built-in programs.
Multiple Infinitys (Master/Slave control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Use a 3-pin/5-pin XLR cable to connect the Infinity.
The pins:
01) Earth
02) Signal -
03) Signal +
03) Link the units as shown in fig. 08. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX signal cable. Repeat this process to link the second, third, and fourth units.
You can use the same functions on the master device as described on pages 16-22. This means that
you can set your desired operation mode on the master device and all slave devices will react the
same as the master device.
Multiple Infinitys (Master/Slave control)
Fig. 08

12
Ordercode: 41530
Infinity iB-5R
Multiple Infinitys (DMX Control)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-pin XLR cable to connect the Infinitys and other devices.
05) Link the units as shown in fig. 09. Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
06) Supply electric power: Plug electric mains power cords into each unit's PowerCON socket, then plug
the other end of the mains power cord into proper electric power supply sockets, starting with the
first unit. Do not supply power before the whole system is set up and connected properly.
Multiple Infinitys DMX Set Up
Fig. 09
Note : Link all cables before connecting electric power

13
Ordercode: 41530
Infinity iB-5R
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Important:
Fixtures on a serial data link must be daisy chained in one single line. To comply with the
EIA-485 standard no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of Infinitys on a DMX data link: 30 fixtures
Maximum recommended number of Infinitys on a power link @110V: 2 fixtures
Maximum recommended number of Infinitys on a power link @240V: 4 fixtures
Data Cabling
To link fixtures together you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio DMX Data Cables
●DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin. Ordercode
FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).
●DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
●DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
●DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
●DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
●DAP Audio data cable FL08 DMX/AES-EBU, XLR/M 5-pin > XLR/F 5-pin.Ordercode FL08150 (1,5 m),
FL083 (3 m), FL086 (6 m), FL0810 (10 m), FL0820 (20 m).
●DAP Audio DMX adapter: 5-pin/3-pin. Ordercode FLA29.
●DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30.

14
Ordercode: 41530
Infinity iB-5R
The Infinity can be operated with a controller in control mode or without the controller in stand-alone
mode.
Control Panel
A)
B)
C)
D)
E)
F)
G)
H)
I)
J)
K)
Home button
Edit Menu button
Settings Mode button
Address Setting button
Infinity Logo button
Up button
Down button
OK/ENTER button
Left button
Right button
LCD display
Fig. 10
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign the DMX fixture address, which is the
first channel from which the Infinity will respond to the controller.
Please note when you use the controller, the unit has 18 channels.
When using multiple Infinitys, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Infinity should be 1(001); the DMX address of the second Infinity
should be 1+18=19 (019); the DMX address of the third Infinity should be 19+18=37 (037), etc.
Please, be sure that you don’t have any overlapping channels in order to control each Infinity correctly.
If two or more Infinity’s are addressed similarly, they will work similarly.
Controlling:
After having addressed all Infinity fixtures, you may now start operating these via your lighting controller.
Note: After switching on, the Infinity will automatically detect whether DMX 512 data is received or not. If
there is no data received at the DMX-input, the “LED“ on the control panel will not flash.
The problem may be:
●The XLR cable from the controller is not connected with the input of the Infinity.
●The controller is switched off or defective, the cable or connector is defective, or the signal wires are
swapped in the input connector.
Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.

15
Ordercode: 41530
Infinity iB-5R
Menu Overview

16
Ordercode: 41530
Infinity iB-5R
Main Menu Options
DMX address
Edit Mode
Settings Menu
Built-in Programs
Test Mode
Info
Home
Up
Edit Menu
Down
Setting Mode
OK
Address Setting
Left
Infinity Logo
Right
1. DMX Addressing
With this menu you can set the DMX address.
01) Press the button or press the buttons to select .
02) Now you can adjust the device’s DMX settings.
03) Press the button, to confirm. You can choose from 512 different DMX addresses.
04) Press the and/or buttons to select the required address from
.
05) Once you have set the desired DMX address, press the button to store the settings.

17
Ordercode: 41530
Infinity iB-5R
2. Edit Mode
With this menu you can set your desired mode.
01) Press the button or press the buttons to select .
02) Press the button, to confirm. You can choose one of the 3 available modes.
03) Press the buttons to select the required mode:
04) Once you have selected the desired mode, press the buttons to change the value from
NO to YES.
05) Press the button to confirm your choice.
06) If the device has been set to MASTER MODE, all the connected slave devices will act the same as
the master device.
07) If the device has been set to slave, it will react the same as its master device.
3. Settings Menu
With this menu you can set your desired mode.
01) Press the button and select .
02) Press the button, to confirm. You can choose 16 different modes.
Press the UP/DOWN buttons to select the required mode:

18
Ordercode: 41530
Infinity iB-5R
03) Once you have selected the desired mode, press the buttons to change the value from
NO to YES.
04) A couple of menus have more options than the regular YES or NO function:
●Pan Angle: 540°, 360°, 180°
●Tilt Angle: 270°, 180°, 90°
3.1. Life Time
With this menu you can reset the device’s counters.
01) Press the buttons to select Life Time and press the button to open the menu.
02) Press the buttons to choose one of the 3 reset options:
●Time Counter (the time counter will be reset)
●Total Life Time (the device’s operation time counter will be reset)
●Set Password
03) If you select Time Counter or Total Life Time, press the button to open the selection menu.
04) Press the buttons to choose either YES or NO. Press the button to confirm.
3.1.1. Set Password
With this menu you can set the new password for the device.
01) Press the buttons to select Set Password and press the button to open the menu.
02) The following screen will pop up:
03) Press the buttons to select the digit which you want to edit.
04) Press the buttons to adjust the values.

19
Ordercode: 41530
Infinity iB-5R
3.2. Lamp Settings
With this menu you can set the lamp settings.
01) Press the buttons to select LAMP SETTINGS and press the button to open the menu.
02) You can now adjust the following options:
●ON/OFF (Set whether the lamp is ON/OFF, on start-up)
●STATE/POWER ON (Set whether the lamp is ON, once electrical power is received)
●OFF VIA DMX (Switch the lamp ON via DMX)
●ON IF DMX ON (The lamp is ON when a DMX signal is received)
●OFF IF DMX OFF (The lamp is OFF when no DMX signal is received)
●IGNITION DELAY (0-255, Lamp trigger delay)
●LOW POWER DELAY (0-255)
●RESET LAMP TIME (YES/NO)
03) Once you have chosen the desired option, press the button to enter edition mode.
04) Press the buttons to select YES or NO and press the button again, to confirm.
3.3. Maintenance Timer
With this menu you can reset the device’s counters.
01) Press the buttons to select MAINTENANCE TIMER and press the button to open the
menu.
02) Press the buttons to choose one of the 2 options:
●INTERVAL (0-250, maintenance interval)
●REMAIN TIME (NO-RESET, countdown)
03) If you select INTERVAL, press the button to open the selection menu.
04) Press the buttons to set the maintenance interval. The adjustment range is between 0-250.
05) Press the button to confirm.
06) If you select REMAIN TIME, press the button to open the selection menu.
07) Press the buttons to set the REMAIN TIME to No/Reset.
08) Press the button to confirm.
3.4. Reset
With this menu you can reset the device’s settings.
01) In SETTINGS menu, press the buttons to select RESET FUNCTION and press the button
to open the menu.
02) Press the buttons to choose one of the 6 options:
●PAN/TILT (Pan/Tilt reset)
●SHUTTER/PRISM (shutter/prism reset)
●COLOR (color wheel reset)
●GOBO (gobo wheel reset)
●ZOOM/FROST/FOCUS (zoom/frost focus effect reset)
●ALL (complete settings reset)
03) Once you have chosen the desired option, press the button to proceed to edition mode.
04) Press the buttons to choose between YES or NO.
05) Press the button to confirm your choice.
