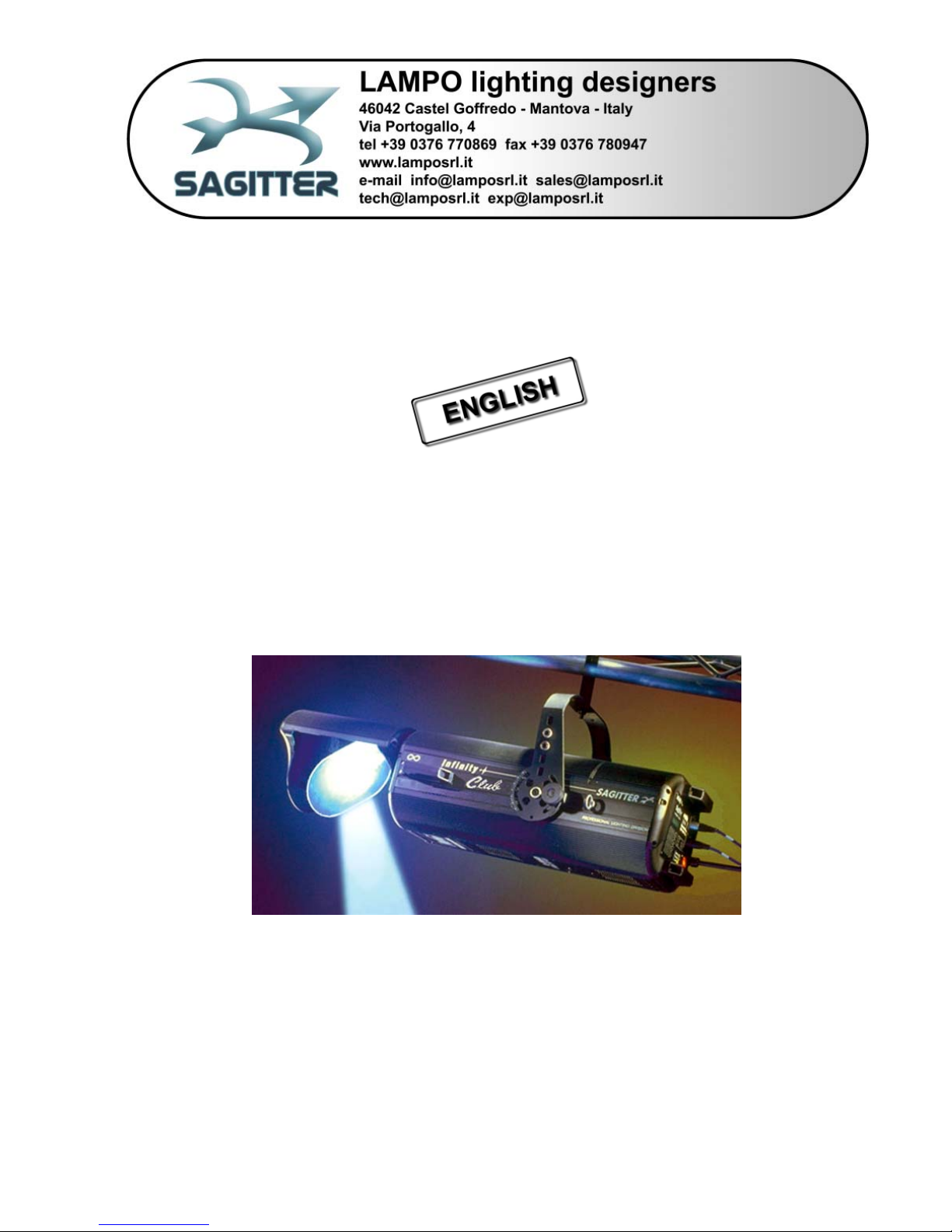

Infinity Club 1200 User manual
INFINITY Club 1200
Professional 1200W discharge scan-light
USER’ S MANUAL release 1.0
This manual must be considered an integral part of the projector.
1
BEFORE CONNECTING AND USING THE PROJECTOR, IT IS IMPORTANT TO READ CAREFULLY ALL THE
INSTRUCTIONS IN THIS MANUAL.
QUALIFIED PERSONNEL ONLY, IN COMPLIANCE WITH ALL THE SECURITY LAWS, CAN DO THE
INSTALLATION, THE MAINTENANCE AND THE UTILISATION OF THIS PROJECTOR.
BEFORE CONNECTING THE PROJECTOR, MAKE SURE THAT THE FREQUENCY AND THE VOLTAGE
VALUES ARE SUITABLE AS SPECIFIED ON THE PROJECTOR.
FOR ANY DOUBT, CONTACT YOUR SUPPLIER OR SEND AN E-MAIL TO:
INDEX
GENERAL DESCRIPTION ---------------------------------------------------------------------------- page 2
DESCRIPTION OF PARTS AND CONTROLS -------------------------------------------------- page 3
START-UP PROCEDURES -------------------------------------------------------------------------- page 5
DMX CHANNEL ASSIGNMENT -------------------------------------------------------------------- page 8
OPTICAL SYSTEM ------------------------------------------------------------------------------------ page 12
TROUBLESHOOTING -------------------------------------------------------------------------------- page 12
MAINTENANCE ---------------------------------------------------------------------------------------- page 13
SPARE PARTS ----------------------------------------------------------------------------------------- page 15
WARRANTY --------------------------------------------------------------------------------------------- page 15
2
GENERAL DESCRIPTION
As shown in Figure, the INFINITY CLUB 1200 is made up of the following parts:
1. Rear panel
2. Cooling unit
3. Auxiliary support
4. Anchoring bracket
5. Lamp compartment
6. Lid
7. Projector body
8. Swivelling head
9. Rotating mirror
Technical Features and Dimensions
Voltage rating 230 V
Rated current 7,5 A
Induced current 3,5 A
Absorbed power 1600 W
Frequency 50 Hz (60 Hz optional setting)
Maximum room temperature 35º C
Maximum surface temperature 70º C
Distance from inflammable surfaces 1,5 m
Main assembling via #1 screw M 12
Auxiliary device mount via #1 screw M 12
Length 1070 mm
Width including bracket and handle 440 mm
Weight 40 Kg
Weight, including packaging 47 Kg
CAUTION
The projector cannot be mounted on inflammable surfaces.
Norms applied to construction:
EN 60 598-1 EN 60 598-2-17 EN 294 EN 50 082-1
EN 55 015 EN 60 555-2 EN 61 000-3-2
3
DESCRIPTION OF MOVING PARTS AND CONTROLS

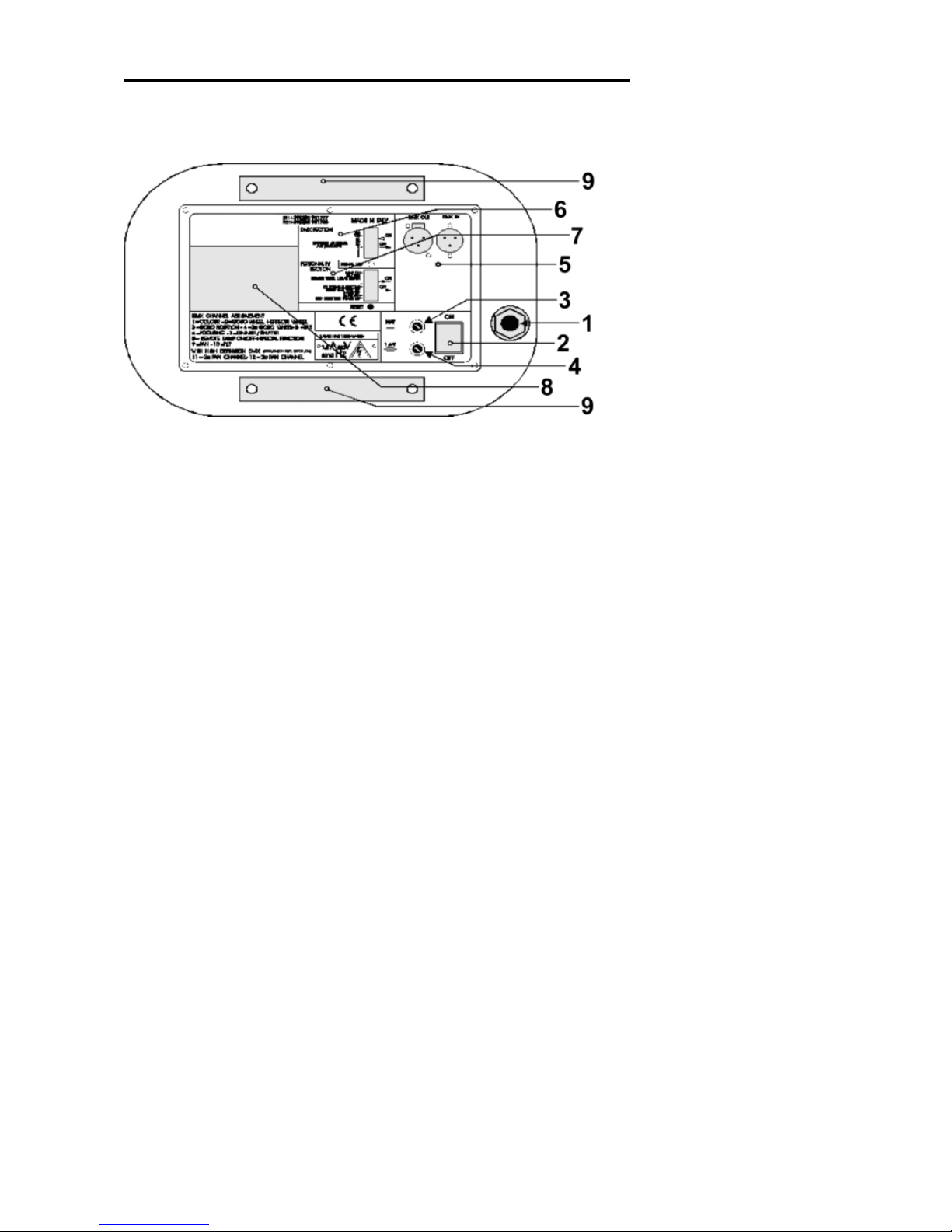

Rear Panel
As shown below, the following elements can be seen on the rear panel:
1. Cable clamp, (cable 1m)
2. ON/OFF switch
3. Line fuse
4. Electronic fuse
5. CANNON 3 pin socket and jack area
6. DMX address area
7. Personality functions area
8. Serial number plate
9. Rear handles
Adjustment of Projector Body Angle
As shown in Figure, the INFINITY CLUB 1200 projector can be adjusted between 0 ÷ 50° compared to its
anchoring bracket.
- Loosen lateral knobs.
- Place the projector at the desired angle.
- Firmly tighten lateral knobs.
- Make sure the projector is correctly mounted at the new angle.
Working Position
INFINITY CLUB 1200 can work in all positions within ± 90° of the horizontal axis.
Admissible Environmental Conditions
The projector was engineered and produced to function in covered, dry areas with an air temperature ranging
between 5° and 35° C, and with a humidity level between 30 and 90%.Sharp changes in room temperature may
generate condensation inside the projector, which can harm the projector. Therefore, switch on the projector only
after it has undergone a period of gradual adaptation to the room temperature.
Mechanical Safety Guards
A bipolar cut-off switch is located between the lamp compartment and the cooling unit. This safety switch cuts off
the power to the projector if the top lid is opened.
Noise Level
After the projector has been powered up and the initial configuration takes place, the noise produced by the
projector is primarily due to its cooling system. The noise level is much lower than the limit of 70 dB permitted by
law.
4
Adjustment of Mirror Support Angle
As shown in the picture, the mirror support can rotate on a 340° angle (+170° / -170°).
Loosen knob “A”.
Rotate the projector head to the desired angle.
Firmly tighten knob “A”.
Modular construction
As shown in the picture, the INFINITY has a modular construction for ease maintenance. (MSZ in the picture)
HANDLE WITH CARE!!!
Loosen the knobs of the top lid and remove it.
Loosen the lateral screws of module to remove it.
The modules have easy and direct connection system.
Packing
The projector is shipped and delivered in a cardboard box made of KRAFT cardboard and semi-chemical additive-
free paper, in compliance with BSFV Class 3 standards for waste disposal. The projector is completely assembled,
placed in the box inside a polyethylene bag and held firmly in place with polyurethane foam packing material. The
box is stapled shut. Even though the packing provides complete protection from rain, it must not be exposed to
inclement weather or humidity.
No more than three identical boxes can be stacked one on top of the other.
Keep the original packing for possible shipments in the future.
Storage
The projector, in its original packing, must be kept in covered, dry areas with a temperature between -10° C and
+50° C.
Handling
The projector, with or without packing, must be handled with care. Lifting and handling must be carried out with
special equipment. Do not expose the projector, with or without its packing, to brusque accelerated or decelerated
movements, knocks, dragging, or other stress caused by unsuitable handling methods.
The projector in its packing can be seriously damaged if it falls or suffers a blow during transportation.
