Infosystem Technology Corporation WS-125 User manual

W
W
S
S- -1 12 25 5
User Manual
Version 1.0
Infosystem Technology Corporation, Ltd.
2 RS232 Ports to Ethernet Converter with Multi-Sockets

WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
Index
1. Disclaimers ．．．．．．．．．．．．．．．．．．．．．．．．．． 1.
A. Warranty ．．．．．．．．．．．．．．．．．．．．．．．．． 2.
B. Trademark ．．．．．．．．．．．．．．．．．．．．．．．． 2.
2. Product Information ．．．．．．．．．．．．．．．．．．．．．．． 3.
A. Introduction ．．．．．．．．．．．．．．．．．．．．．．．． 3.
B. Features ．．．．．．．．．．．．．．．．．．．．．．．．． 4.
C. Applications ．．．．．．．．．．．．．．．．．．．．．．． 5.
3. Exterior ．．．．．．．．．．．．．．．．．．．．．．．．．．． 6.
A. Front View ．．．．．．．．．．．．．．．．．．．．．．．． 6.
B. Global View ．．．．．．．．．．．．．．．．．．．．．．． 7.
C. Front Panel ．．．．．．．．．．．．．．．．．．．．．．． 8.
D. Dimension ．．．．．．．．．．．．．．．．．．．．．．． 8.
4. Specification ．．．．．．．．．．．．．．．．．．．．．．． 9
A. Basic Specification. ．．．．．．．．．．．．．．．．．．．．． 10.
B. PIN Definition ．．．．．．．．．．．．．．．．．．．．．． 11.
C. PIN Definition ．．．．．．．．．．．．．．．．．．．．．． 11.
5. Software Installation ．．．．．．．．．．．．．．．．．．．．．．． 12.
A. Install ．．．．．．．．．．．．．．．．．．．．．．．．． 12.
-Step 1: Execute the Setup.exe file ．．．．．．．．．．． 12.
-Step 2: Select Destination Location ．．．．．．．．．．． 13.
-Step 3: Select Start Menu Folder ．．．．．．．．．．．． 14.

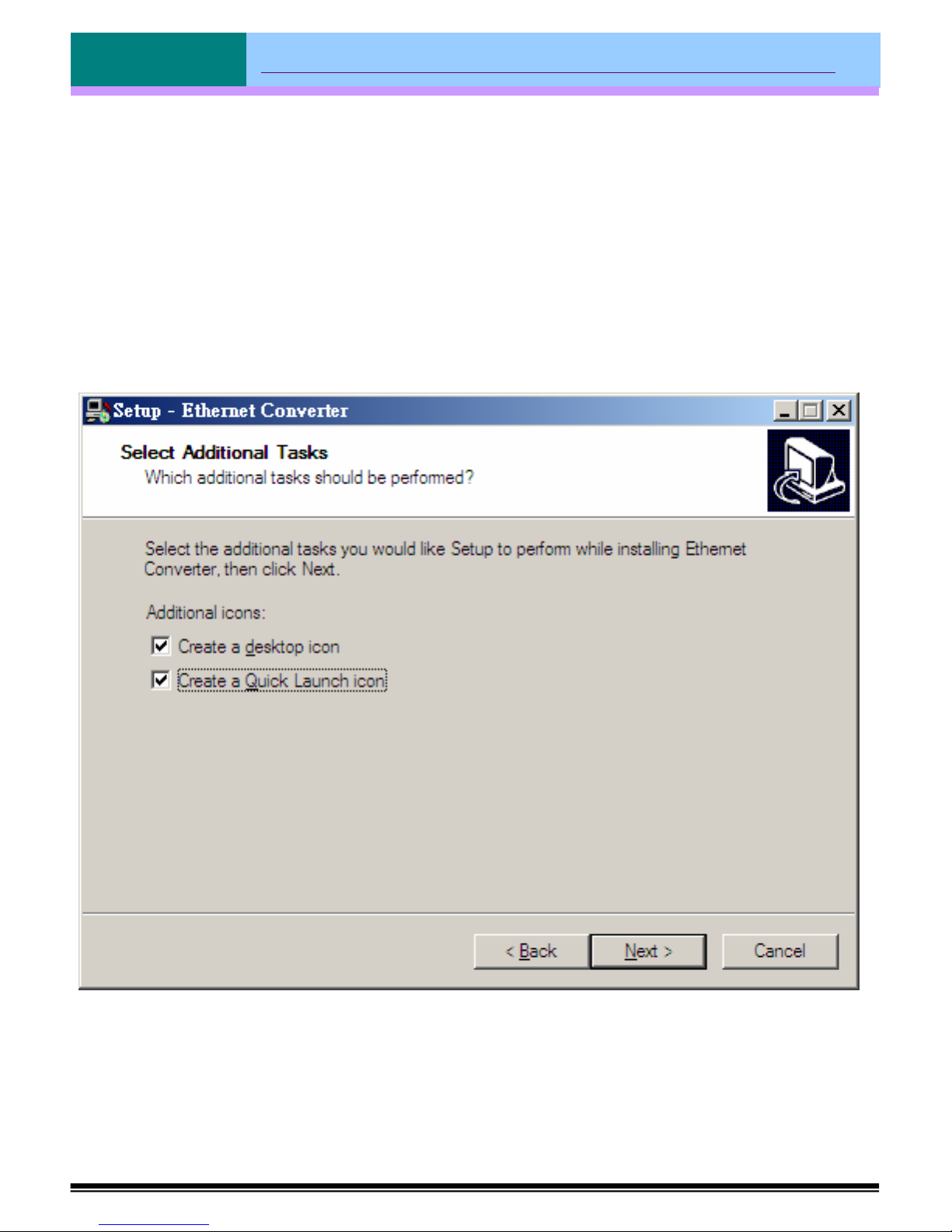

-Step 4: Select Additional Tasks ．．．．．．．．．．． 15.

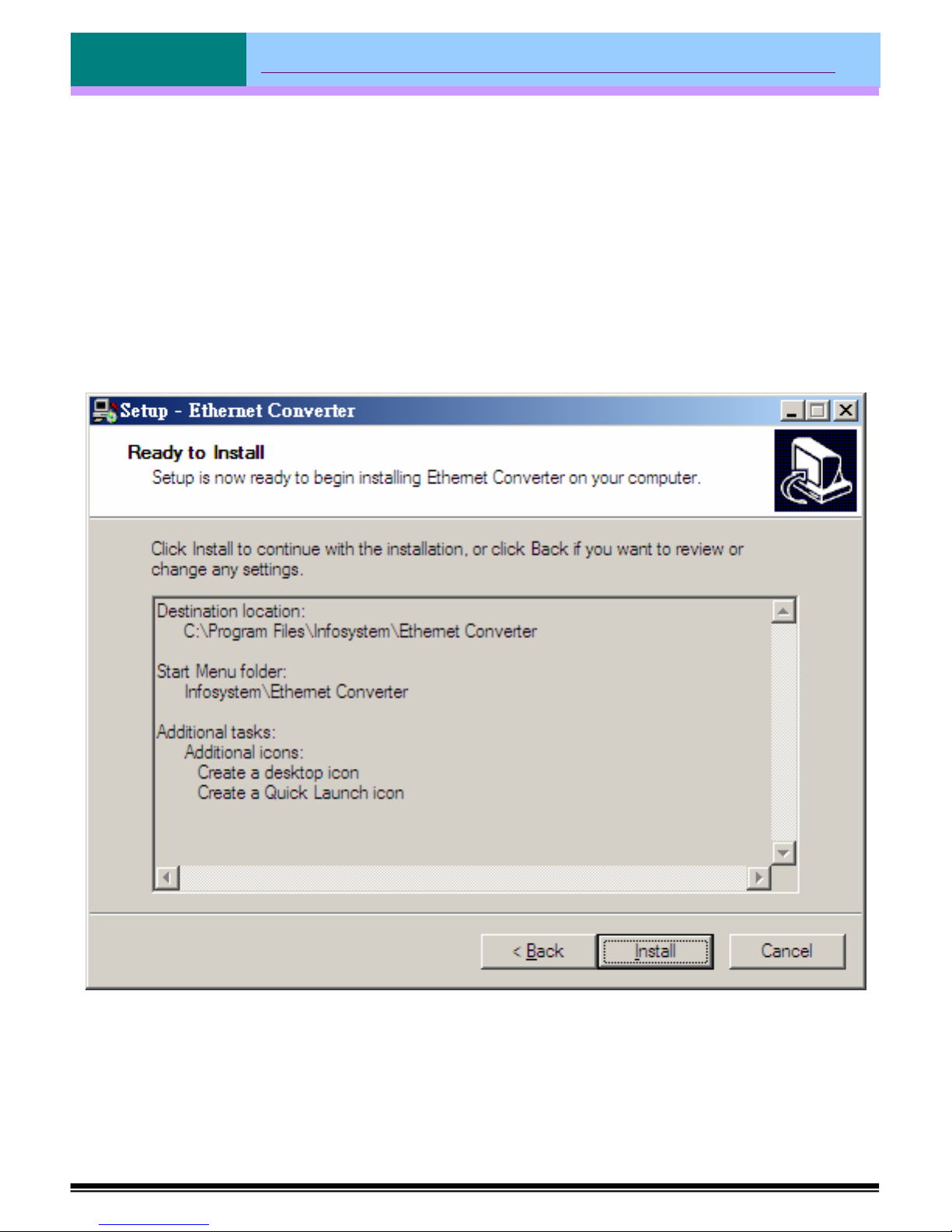

-Step 5: Processing ．．．．．．．．．．．．．．．． 16.
B. Uninstall ．．．．．．．．．．．．．．．．．．．．．．．．． 17.
-Step 1: Uninstall Ethernet Converter ．．．．．．．．．．．． 17.

WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
Index
6. Configuration ．．．．．．．．．．．．．．．．．．．．．．．．． 18.
A. By Browser ．．．．．．．．．．．．．．．．．．．．．．． 18.
-Step 1: Ready to login．．．．．．．．．．．．．．．．．． 18.
-Step 2: Configure your parameters ．．．．．．．．．．．．． 19.
-Step 3: Finish and reboot．．．．．．．．．．．．．．．．． 20.
B. By Setup Tools ．．．．．．．．．．．．．．．．．．．．．． 21.
-Step 1: Searching the devices ．．．．．．．．．．．．．．． 21.
-Step 2: Double click the selected item ．．．．．．．．．．．． 21.
-Step 3: Configure and update your parameters ．．．．．．．．． 22.
C. By Direct Broadcast Commands ．．．．．．．．．．．．．．．． 23.
-Command ListA ．．．．．．．．．．．．．．．．．．．． 23.
-Command List B ．．．．．．．．．．．．．．．．．．． 24.
-Command List C ．．．．．．．．．．．．．．．．．．． 25.
7. Parameter Description ．．．．．．．．．．．．．．．．．．．．．． 26.
8. Application Notes ．．．．．．．．．．．．．．．．．．．．．．．． 27.
A. Description ．．．．．．．．．．．．．．．．．．．．．．． 27.
B. Disable Firewall of Windows XP SP2 ．．．．．．．．．．．．．． 32.
-Step 1: Execute “Windows Firewall” ．．．．．．．．．．．．． 32.
-Step 2: Close the Firewall ．．．．．．．．．．．．．．．． 33.
C. Make Program exception for Firewall ．．．．．．．．．．．．．．． 34.
-Step 1: Choose “Exception” ．．．．．．．．．．．．．．． 34.
-Step 2:Add on New Program ．．．．．．．．．．．．．．． 35.
-Step 3:Allow “Accept any Computer” ．．．．．．．．．．．． 36.
-Step 4: Finished ．．．．．．．．．．．．．．．．．．． 37.
9. Appendix ．．．．．．．．．．．．．．．．．．．．．．．．．．． 38.

Copyright © 2007, Infosystem Technology Corporation, Ltd. 1.
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
Disclaimers
The information in this manual has been carefully checked
and is believed to be accurate. Infosystem Technology
Corporation, Ltd. assumes no responsibility for any
infringements of patents or other rights of third parties,
which may result from its use.
Infosystem assumes no responsibility for any inaccuracies
that may be contained in this document. Infosystem makes
no commitment to update or to keep current the information
contained in this manual.
Infosystem reserves the right to make improvements to this
document and/or product at any time without notice.
No part of this publication may be reproduced, stored in a
retrieval system, or transmitted in any form of or by any
means, electronic, mechanical, photocopying, recording, or
otherwise, without the prior written permission of
Infosystem Technology Corporation, Ltd.
Copyright © 2007
Infosystem Technology Corporation, Ltd.
All rights reserved. Printed in Taiwan.

Copyright © 2007, Infosystem Technology Corporation, Ltd. 2.
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
Warranty
All products manufactured by Infosystem are warranted
against defective materials for a period of one year from the
date of delivery to the original purchaser.
Trademark
The names used for identification only maybe registered
trademark of their respective companies.

Copyright © 2007, Infosystem Technology Corporation, Ltd. 3.
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
Product Information
A. Introduction
WS is Web-Server product and it can provide an ideal
solution to customized embedded system. By using WS
Products into your systems, you can easily achieve any
Serial to Ethernet Converting affairs.
WS-125 products use SoC for implementing RS232 to
Ethernet functions. It uses the state machine to handle
TCP/IP stack and brings the user a lower cost TCP/IP stack
with limited functions. Basically it supports most required
protocol likeARP, ICMP, TCP, UDP, IP, DHCP-Client and
even HTTP. It supports 10/100M speed at Ethernet Port with
Auto MDI/MDIX and Multi-Sockets Function. Meanwhile
it provides a faster speed on Serial Port than 115.2Kbps.
WS-125 product is small size and low cost solution. It can
convert serial port data to Ethernet for data acquisition in IA,
Factory Automation, Security or any other low data rate data
transmission by using it as the intermediate converter. You
can use any browsers to set the parameters, or just use the
commands in console mode with setup tools. With no doubt,
WS-125 will bring you the easiest management in your
applications.

Copyright © 2007, Infosystem Technology Corporation, Ltd. 4.
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
B. Features
¾Easy Configuration Setting
9Software Setup Tool for Configuration Setting
9Use HTTP, IE/Netscape Browser for Setting
¾Good Security Concerned
9Setup and Access Password Protect
9Support New Version Firmware Upgradeable
¾Low cost and High Reliability
9Cheap and stable
9Working 24Hours per day
¾Low Power Consumption
9Less than 1W Power Consumption
¾Support Necessary Network Protocols
9ARP, ICMP, TCP, UDP, IP, DHCP Client, HTTP
¾Support Various Interfaces (Universal Set)
9RJ-45 x 1, 10/100M, Auto MDI/MDIX
9RS-232-1: D-Sub 9 PIN RS-232 x 1
Faster than 115.2Kbps
RTS/CTS H/W flow control
9RS-232-2: Terminal Block 3 PIN RS232 x 1
¾Independent Multi-Sockets
9Support multiple sockets at Ethernet Port
9All protocol working independent and concurrently

Copyright © 2007, Infosystem Technology Corporation, Ltd. 5.
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
C. Applications
¾Data collection
¾Security Terminals
¾Access Control Terminals
¾Security Devices
¾Time Recorders
¾Warehouse Terminals
¾Shop floor automation Terminals
¾Remote Sensors and Various Meters
¾Power monitors
¾Power meters
¾Environmental monitors
¾Temperature monitors
¾Data loggers
¾Data Acquisitions
¾Auto-ID Scanners
¾Barcode Scanners
¾Magnetic Card Readers

Copyright © 2007, Infosystem Technology Corporation, Ltd. 6.
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
Exterior
A. Front View
FRONT VIEW
+ -
24VDC
RS-232 - 1 RS-232-2
RJ-45
FRONT VIEW
+ -
24VDC
RS-232 - 1 RS-232-2
RJ-45

Copyright © 2007, Infosystem Technology Corporation, Ltd. 7.
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
Exterior
B. Global View

Copyright © 2007, Infosystem Technology Corporation, Ltd. 8.
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets

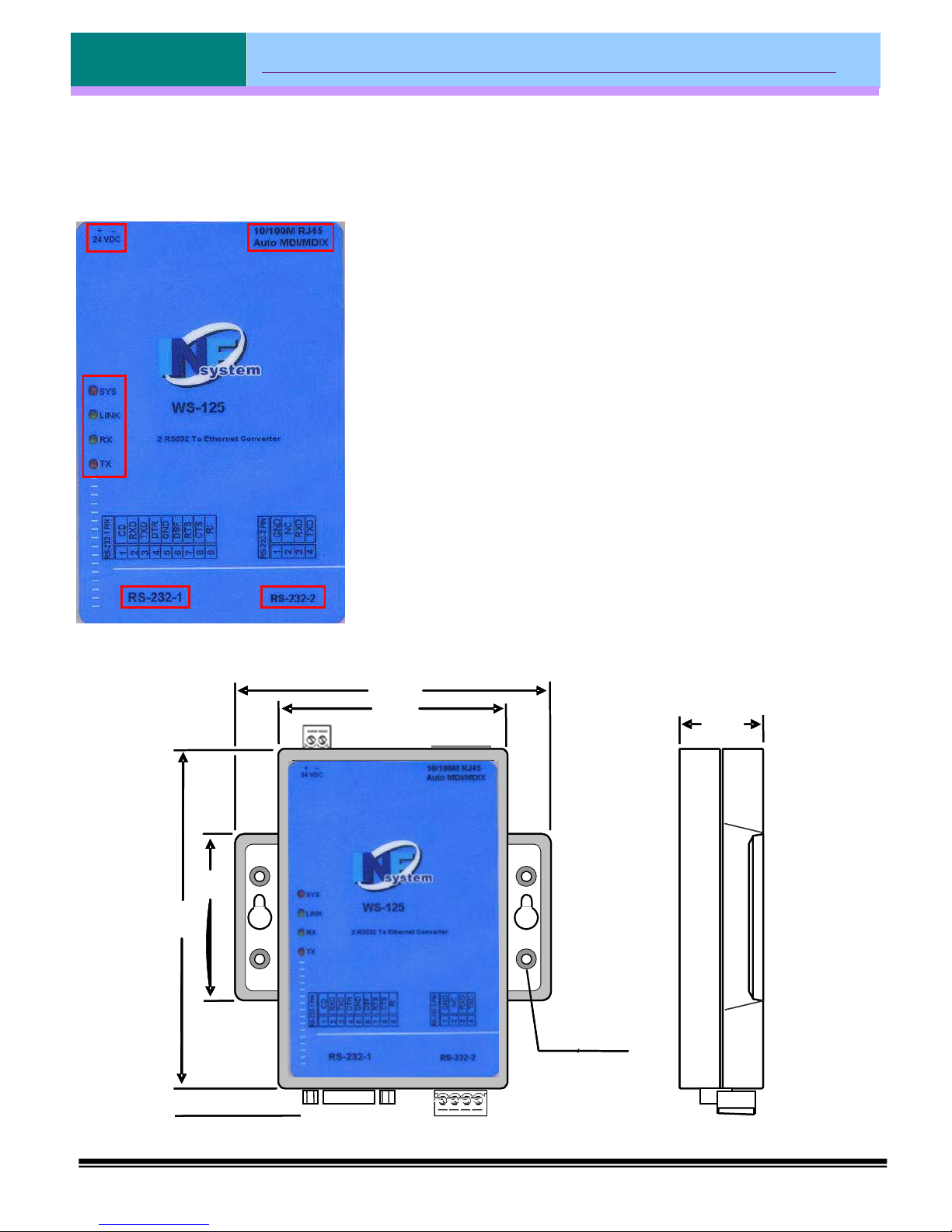

Exterior
C. Front Panel a. 10/100M Ethernet Port
b. 24VDC Power
c. System LED Indicator
d. D-Sub RS232 Connector
e. 3 PIN RS422 Connector
ba
c
de
ba
c
de
D. Dimension
(UNIT: mm)
4x
ψ3.0
50.0
101.1
67.2
93.1
9.0
33.4
(UNIT: mm)
4x
ψ3.0
50.0
101.1
67.2
93.1
9.0
33.4

Copyright © 2007, Infosystem Technology Corporation, Ltd. 9.
WS-125
Preliminary
2 RS232 Ports toEthernet Converter with Multi-Sockets
WS-125
Preliminary
2 RS232 Ports toEthernet Converter with Multi-Sockets
Specification
A. Basic Specification
- General list -
LED indication: SYS: Red high bright round LED
LINK: Green high bright round LED
RX: Green high bright round LED
TX: Red high bright round LED
- Power -
Power Supply: 24VDC
- Environment -
Operating temperature: 0~55 ˚C, non-condensing
Operating relative humidity:
20~95 %RH
Storage temperature: -10~70 ˚C
- Mechanics -
Case Materiel: ABS fire-protection
Mounting: Surface mount, wall mount
Terminal block: Plastic NYLON 66
Weight: 150g
- Multi Sockets -
Socket: Multiple Sockets Concurrently

Preliminary
2 RS232 Ports toEthernet Converter with Multi-Sockets
Copyright © 2007, Infosystem Technology Corporation, Ltd. 10.
WS-125
Preliminary
2 RS232 Ports toEthernet Converter with Multi-Sockets
WS-125
Specification
B. PIN Definition
+ -
24VDC RJ-45
10/100M
Auto MDI/MDIX
RS-232-1
SYS
LINK
RX
TX
WS-125
RS-232-2
+ -
24VDC RJ-45
10/100M
Auto MDI/MDIX
RS-232-1
SYS
LINK
RX
TX
WS-125
RS-232-2

Preliminary
2 RS232 Ports toEthernet Converter with Multi-Sockets
Copyright © 2007, Infosystem Technology Corporation, Ltd. 11.
WS-125
Preliminary
2 RS232 Ports toEthernet Converter with Multi-Sockets
WS-125
Specification
C. PIN Definition
– D-sub (RS-232-1) – PIN RS-232-1
1 CD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
Male
9 RI
– Terminal Block (RS-232-2) –
PIN
RS-232-2
1 GND
2 NC
3 RXD
4 TXD

Copyright © 2007, Infosystem Technology Corporation, Ltd. 12.
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
Install and Uninstall
A. Install
Step 1: Execute the Setup.exe file
Execute the Setup.exe file and you will get
the following screen. Press “Next”.
PS: Press “Ethernet Converter Setup Utilities”
button while using the installation cd.

Copyright © 2007, Infosystem Technology Corporation, Ltd. 13.
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
Install and Uninstall
A. Install

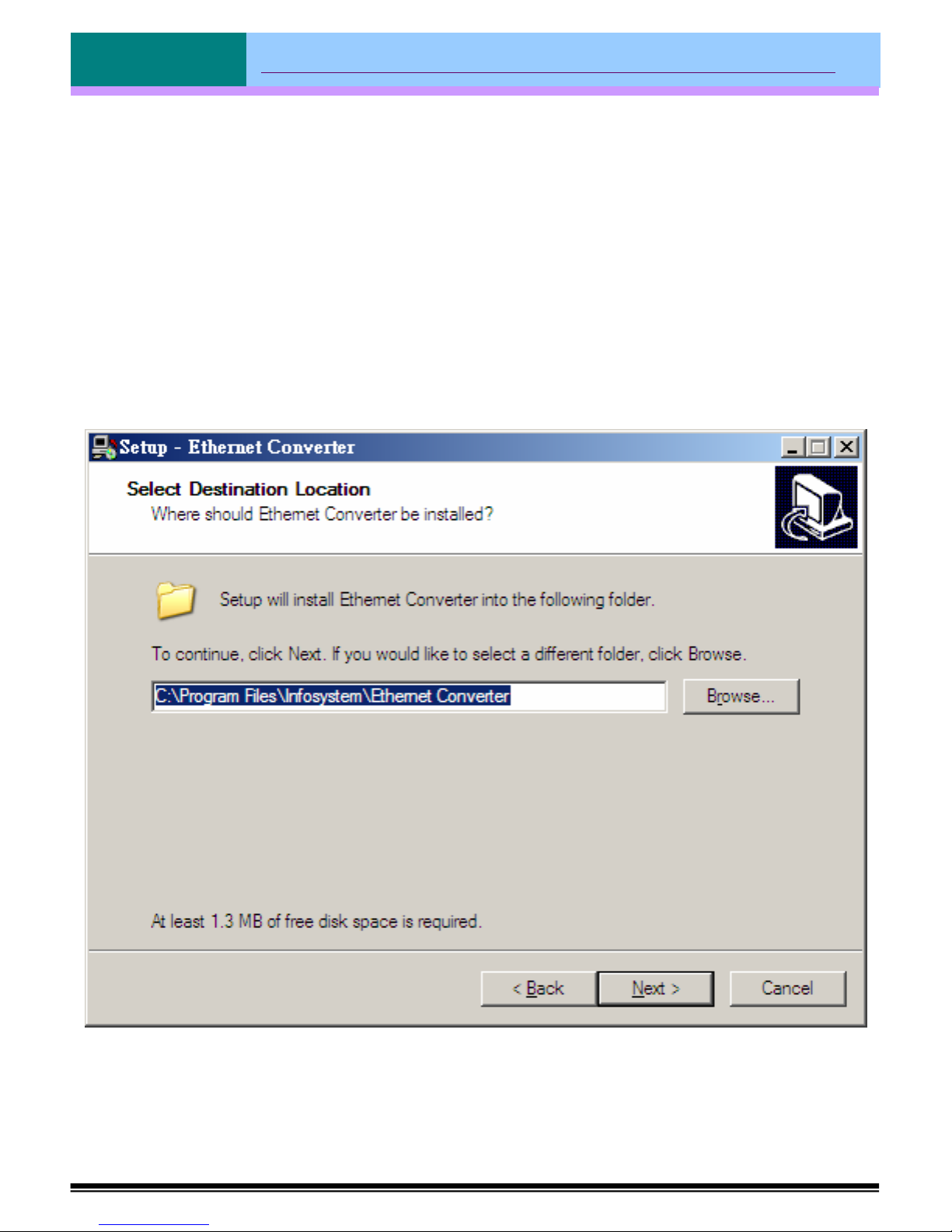

Step 2: Select Destination Location
Select which directory you want to install
the program. Press “Next”.

Copyright © 2007, Infosystem Technology Corporation, Ltd. 14.
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
Install and Uninstall
A. Install

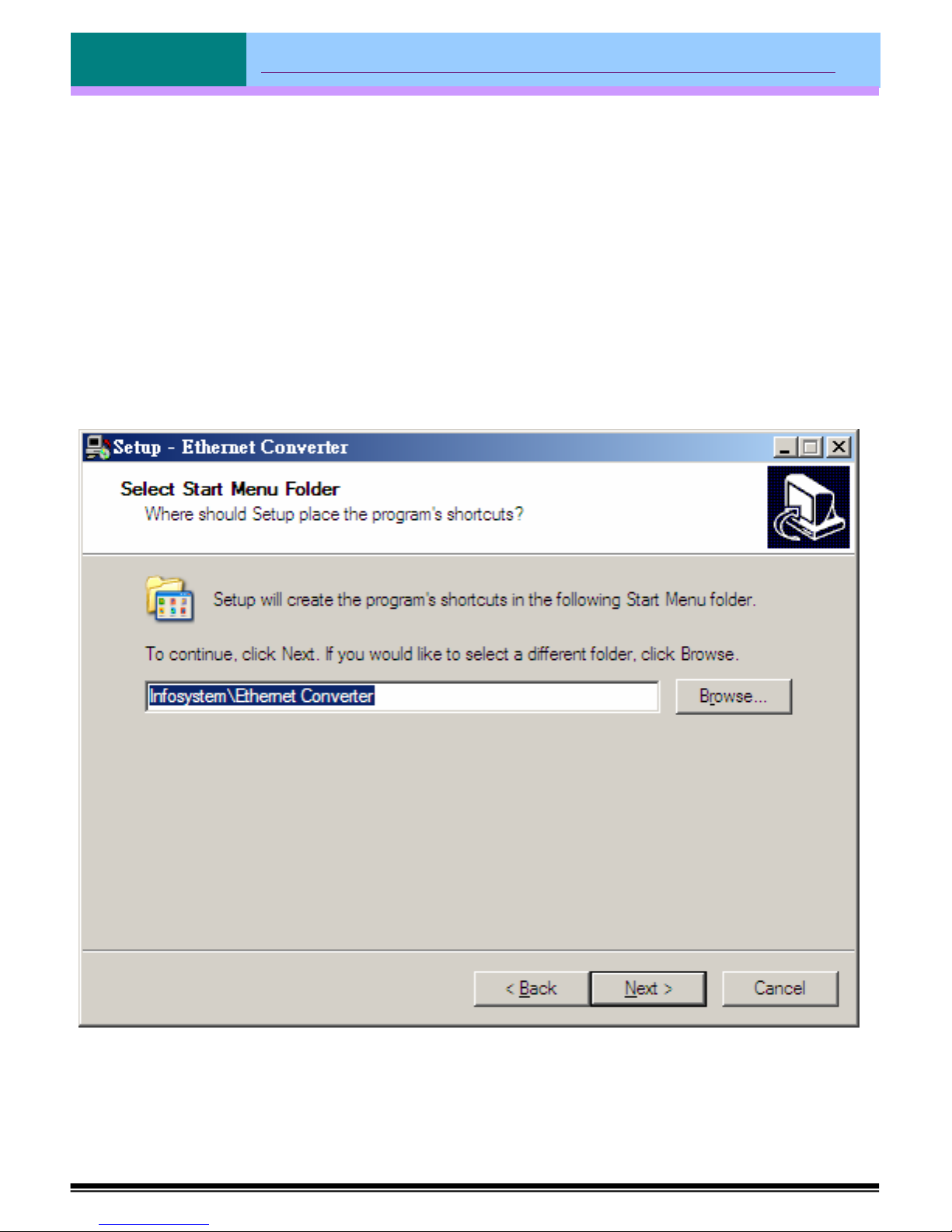

Step 3: Select Start Menu Folder
Select which folder you want the program
to belong to of Start Menu. Press “Next”.

Copyright © 2007, Infosystem Technology Corporation, Ltd. 15.
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
Install and Uninstall
A. Install
Step 4: Select Additional Tasks
Create or not the extra icons. Press
“Next”.

Copyright © 2007, Infosystem Technology Corporation, Ltd. 16.
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
Install and Uninstall
A. Install
Step 5: Processing
To start installation process, press
“Install”.

Copyright © 2007, Infosystem Technology Corporation, Ltd. 17.
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
WS-125
2 RS232 Ports to Ethernet Converter with Multi-Sockets
Install and Uninstall
B. Uninstall
Step 1: Uninstall Ethernet Converter
Execute “Uninstall Ethernet Converter” in
the folder of where you have installed the
program. And then get the message as
the following.
