ADF Web PROFINET Master HD67B70-232-A1 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 1 of 31
User Manual
Revision 1.000
English
PROFINET Master / Serial - Converter
(Order Code: HD67B70-232-A1, HD67B70-485-A1,
HD67B70-422-A1)
for Website information:
http://www.adfweb.com/? roduct=HD67B70
for rice information:
http://www.adfweb.com/? rice=HD67B70-232-A1
http://www.adfweb.com/? rice=HD67B70-485-A1
http://www.adfweb.com/? rice=HD67B70-422-A1
Benefits and Main Features:
Triple electrical isolation
Two Ethernet ports
T
emperature range:
-
40
°C/+85°C (
-
40°F/+185°F)
For others ROFINET Master devices, see also the following links:
PROFINET Master from/to …
www.adfweb.com? roduct=HD67B45 (OPC A Server)
www.adfweb.com? roduct=HD67B71 (Modbus Slave)
www.adfweb.com? roduct=HD67B72 (PROFIB S Slave)
www.adfweb.com? roduct=HD67B73 (CAN)
www.adfweb.com? roduct=HD67B74 (CANopen)
www.adfweb.com? roduct=HD67B75 (DeviceNet Slave)
www.adfweb.com? roduct=HD67B76 (Modbus TCP Slave)
www.adfweb.com? roduct=HD67B77 (SNMP Agent)
www.adfweb.com? roduct=HD67B78 (EtherNet/IP Slave)
www.adfweb.com? roduct=HD67B79 (KNX)
www.adfweb.com? roduct=HD67B80 (MQTT)
www.adfweb.com? roduct=HD67B81 (BACnet Slave)
www.adfweb.com? roduct=HD67B82 (IEC 61850 Server)
www.adfweb.com? roduct=HD67B84 (Ethernet)
Do you have an your customer protocol?
See the following links:
www.adfweb.com? roduct=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 2 of 31
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 8
CONFIGURATION 8
OWER SU LY 9
FUNCTION MODES 10
LEDS 11
ETHERNET 12
RS232 12
RS485 13
RS422 14
USE OF COM OSITOR SW67B70 15
NEW ROJECT / O EN ROJECT 16
SOFTWARE O TIONS 17
SET COMMUNICATION 19
ROFINET ACCESS 20
U DATE DEVICE 23
SERIAL ROTOCOL 25
MECHANICAL DIMENSIONS 28
ORDERING INFORMATIONS 29
ACCESSORIES 29
DISCLAIMER 30
OTHER REGULATIONS AND STANDARDS 30
WARRANTIES AND TECHNICAL SU ORT 31
RETURN OLICY 31
Pagina 2 di 31
PDATED DOC MENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
Revision Date Author Chapter Description
1.000 13/03/2020 Ff All First release version
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 3 of 31
SEC RITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q ALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESID AL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 4 of 31
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 5 of 31
CONNECTION SCHEME:
Figure
1
a
: Connection scheme for HD67
B70
-
232
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 6 of 31
Figure
1
b
: Connection scheme for HD67
B70
-
485
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 7 of 31
Figure
1
c
: Connection scheme for HD67
B70
-
422
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 8 of 31
CHARACTERISTICS:
The HD67B70-xxx-A1 is a ROFINET Master / Serial converter.
It allows the following characteristics:
Triple isolation between Serial - ower Supply, Serial - Ethernet, Ethernet - ower Supply;
Up to 4096 bytes in reading and 4096 bytes in writing;
Two-directional information between Serial and ROFINET;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIG RATION:
You need Compositor SW67B70 software on your C in order to perform the following:
Define the parameter of the ROFINET;
Define the parameter of the Serial;
Define the list of ROFINET slaves connected to the converter;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 9 of 31
POWER S PPLY:
The devices can be powered between a wide range of tensions. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD67B84-A1 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67B70-xxx-A1 4
Caution: Not reverse the polarity po
wer
HD67B70-xxx-A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 10 of 31

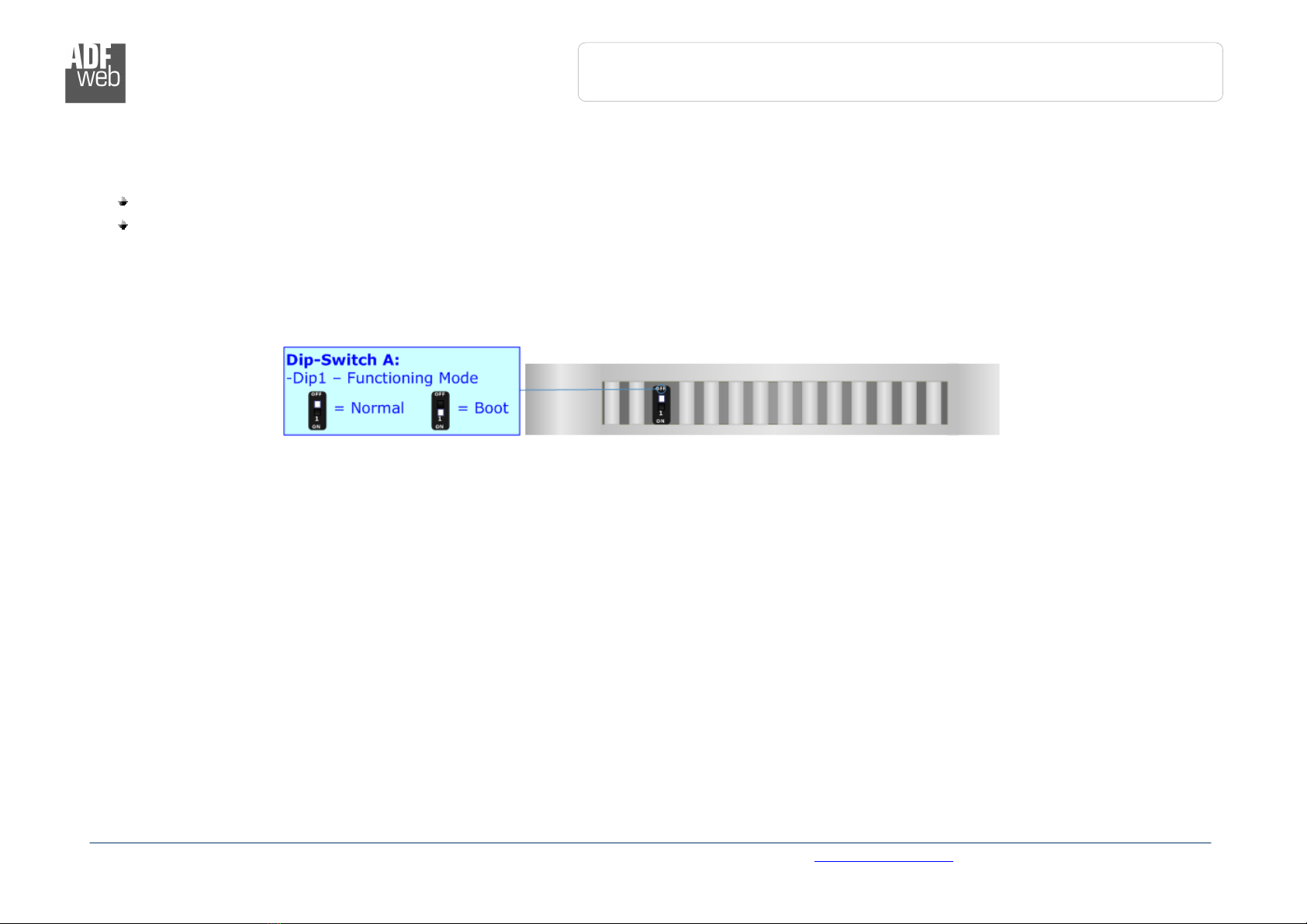

F NCTION MODES:
The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’:
The first, with Dip1 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip1 in On position, is used for upload the roject/Firmware.
For the operations to follow for the updating (see ‘U DATE DEVICE’ section).
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 11 of 31
LEDS:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: ON [supply voltage ]
(green)
ON: Device powered
OFF: Device not powered
ON: Device powered
OFF: Device not powered
2: MT [maintenance display]
(yellow)
ON: Maintenance are present
OFF: No maintenance are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: BF [bus fault] (red)
ON: The Ethernet connection is defective; the I
address exists several times in the network; the own
NameOfStation exists several times in the network; no
I address has been set
Flashing: At least one configured AR is no longer in
the data exchange
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: SF [group error] (red) ON: At least one AR is not in the data exchange
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet1 Tx (green) Blinks when is transmitting Ethernet frames Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
6: Ethernet2 Tx (green) Blinks when is transmitting Ethernet frames Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 12 of 31
ETHERNET:
The Ethernet connection must be made using Connector3 or Connector4 of HD67B70-xxx-A1 with at least a Category 5E cable. The
maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to
100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C/ LC/other is
recommended the use of a cross cable.
RS232:
The connection from RS232 socket to a serial port (example one from a
personal computer) must be made with a Null Modem cable (a serial cable
where the pins 2 and 3 are crossed).
It is recommended that the RS232 cable not exceed 15 meters.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 13 of 31

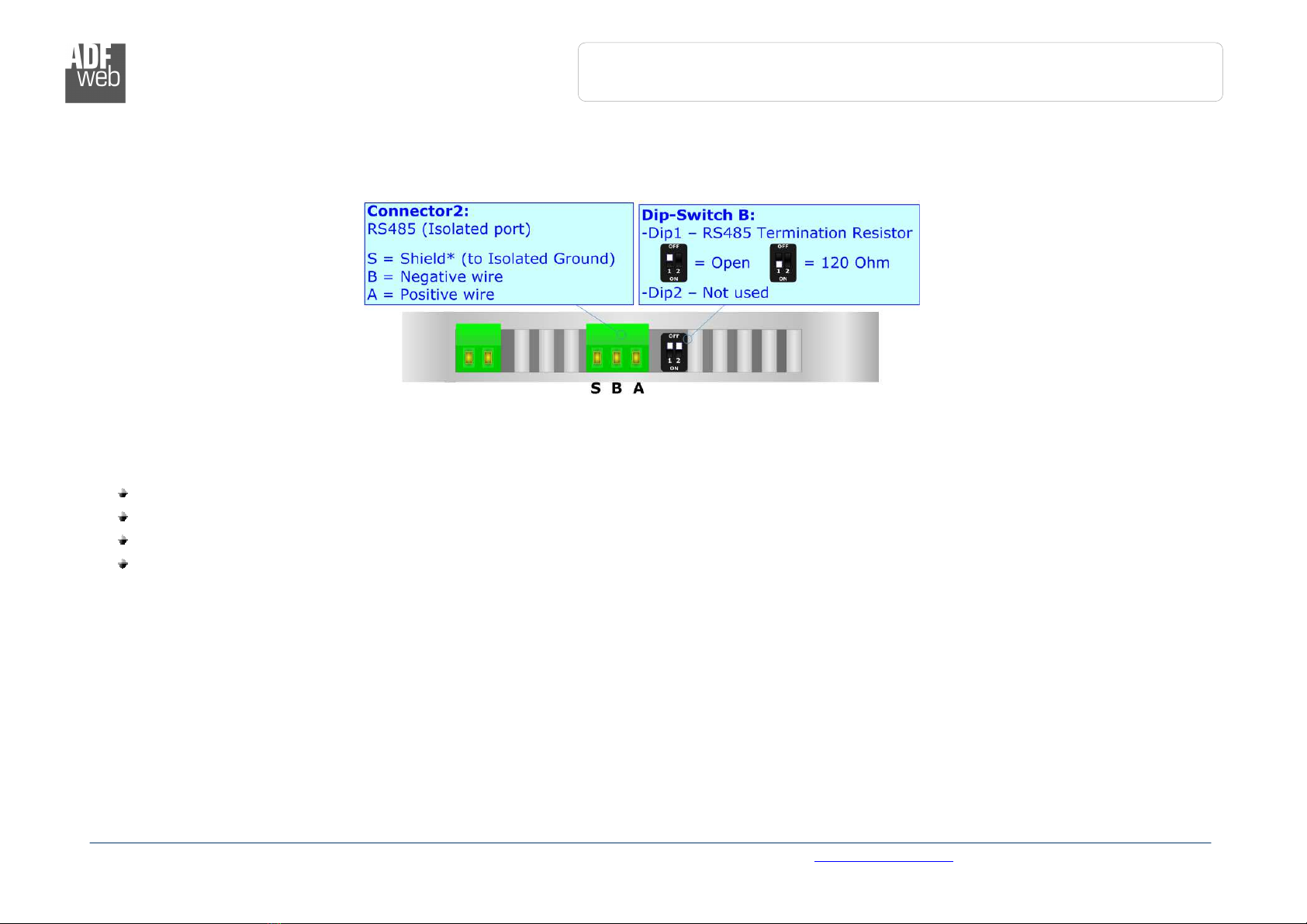

RS485:
For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure.
The maximum length of the cable should be 1200m (4000 feet).
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 14 of 31

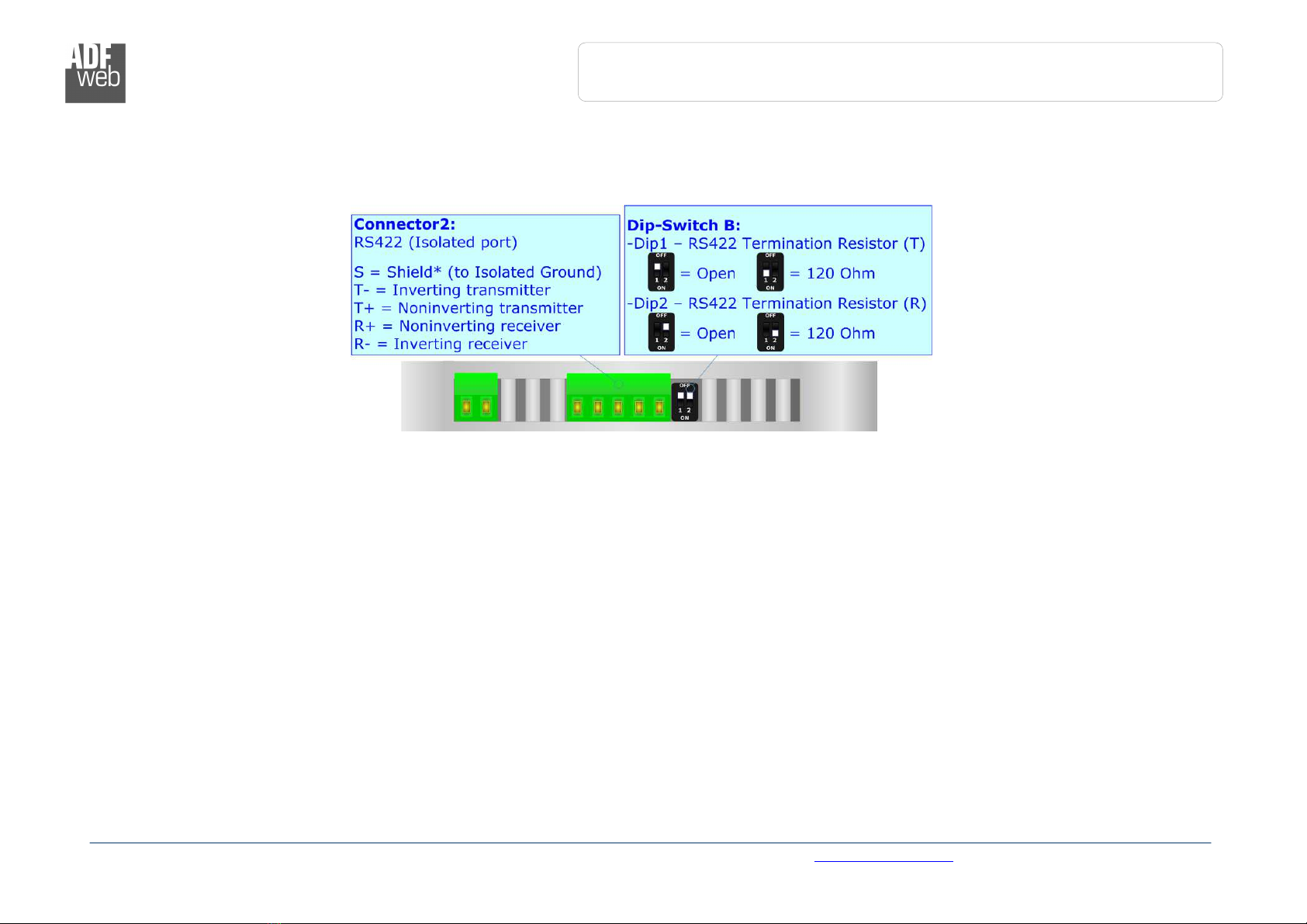

RS422:
For terminating the RS422 line with a 120Ω resistor it is necessary to put ON dip 1 for T line and/or put ON dip 2 for R line, like in figure.
The maximum length of the cable should be 1200m (4000 feet).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 15 of 31
SE OF COMPOSITOR SW67B70:
To configure the Converter, use the available software that runs with Windows called SW67B70. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8, 10; 32/64bit).
When launching the SW67B70, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67B70

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 16 of 31
NEW CONFIG RATION / OPEN CONFIG RATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “ ROFINET Master / Serial - Converter”
in order to configure another device in the same manner, it is necessary to maintain
the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 17 of 31
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software pdate at Start of Program”, the
SW67B70 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 18 of 31
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 19 of 31
SET COMM NICATION:
This section define the fundamental communication parameters of two buses, ROFINET and
Serial.
By ressing the “Set Communication” button from the main window for SW67B70 (Fig. 2)
the window “Set Communication” appears (Fig. 3).
The means of the fields for “ ROFINET Master” are:
In the fields “IP Address” the I address for ROFINET side of the converter is
defined;
In the fields “SubNet Mask” the SubNet Mask for ROFINET side of the converter is
defined;
In the fields “Gateway” the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of
the net;
In the field "Name of Station" the name of the ROFINET node is defined.
The means of the fields for “Serial” are:
In the field “Serial” the serial line to use is defined;
In the field “Baudrate” the baudrate for the serial line is defined;
In the field “Parity” the parity of the serial line is defined;
In the field “Stop Bits” the number of Stop Bits is defined.
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
PROFINET Master /
Serial
Document code: MN67B70_ENG Revision 1.000 age 20 of 31
Figure 4: “Definition of ROFINET Devices resent in Network” window
PROFINET ACCESS:
By ressing the “PROFINET Access” button from the main window for SW67B70 (Fig. 2) the window “Definition of ROFINET Devices
resent in Network” appears (Fig. 4).
This section is used to define the list of the ROFINET slaves to read/write with the ROFINET Master. It is possible to add the ROFINET
slaves from the hardware catalog. If a new device will be connected, it is possible to instal the GSDML file.
