Ingersoll-Rand LCN 4810 Guide

4810
AUTO-EQUALIZER
NON-HANDED / NON-SIZED
LOW ENERGY DOOR OPERATOR
INSTALLATION AND ADJUSTMENT OF DOOR OPERATOR
08/04 ©2004 SCHLAGE LOCK COMPANY. All rights reserved. DP# 24827R2
HOW TO TELL HAND OF DOOR:
LEFT
HAND
DOOR
RIGHT
HAND
DOOR
COVER
INSERT COVER
AIR INLET FITTING
SPEED
CONTROL
STANDOFF
1/8" ID SURFACE AIR INLET OR CONCEALED
AIR INLET CONNECTED TO CONTROL BOX
MOUNTING
PLATE
TRACK
TRACK ROLLER
TRACK PLUG
ROLLER
LOCKING
SCREW
MAIN
ARM
ARM SHAFT
SCREW
SPACER
COVER
SCREW
OPERATOR
ASSEMBLY
LONG
COVER
SCREW
RIGHT HAND SHOWN
LEFT HAND OPPOSITE
NOTE:
1.
2.
3.
4.
5.
6.
This door operator requires additional system components, see LCN Closer Catalog.
Prepare frame per template (page 5), then secure mounting plate to frame with screws provided.
Secure operator assembly to mounting plate with (4) 1/4 - 20x 2 1/2.
Connect air line to air inlet fitting.
Place spacer on operator shaft, then push arm on to operator shaft at approx. 30° to door. Secure
with arm shaft screw.
Remove end cap from track, insert track roller, mount track on door and secure with screws provided.
Loosen roller locking screw in the end or arm, open door part way (about 30°), pull arm over
top of door and connect to track roller. Tighten arm set screw firmly.
INSTALLATION
1-800-526-2400
®
IMPROPER INSTALLATION OR
REGULATION MAY RESULT IN
PERSONAL INJURY OR
PROPERTY DAMAGE. FOLLOW ALL
INSTRUCTIONS CAREFULLY. FOR
QUESTIONS, CALL LCN AT
800 - 526 - 2400
CAUTION
!

FIGURE 1
TABLE 1 TABLE 2

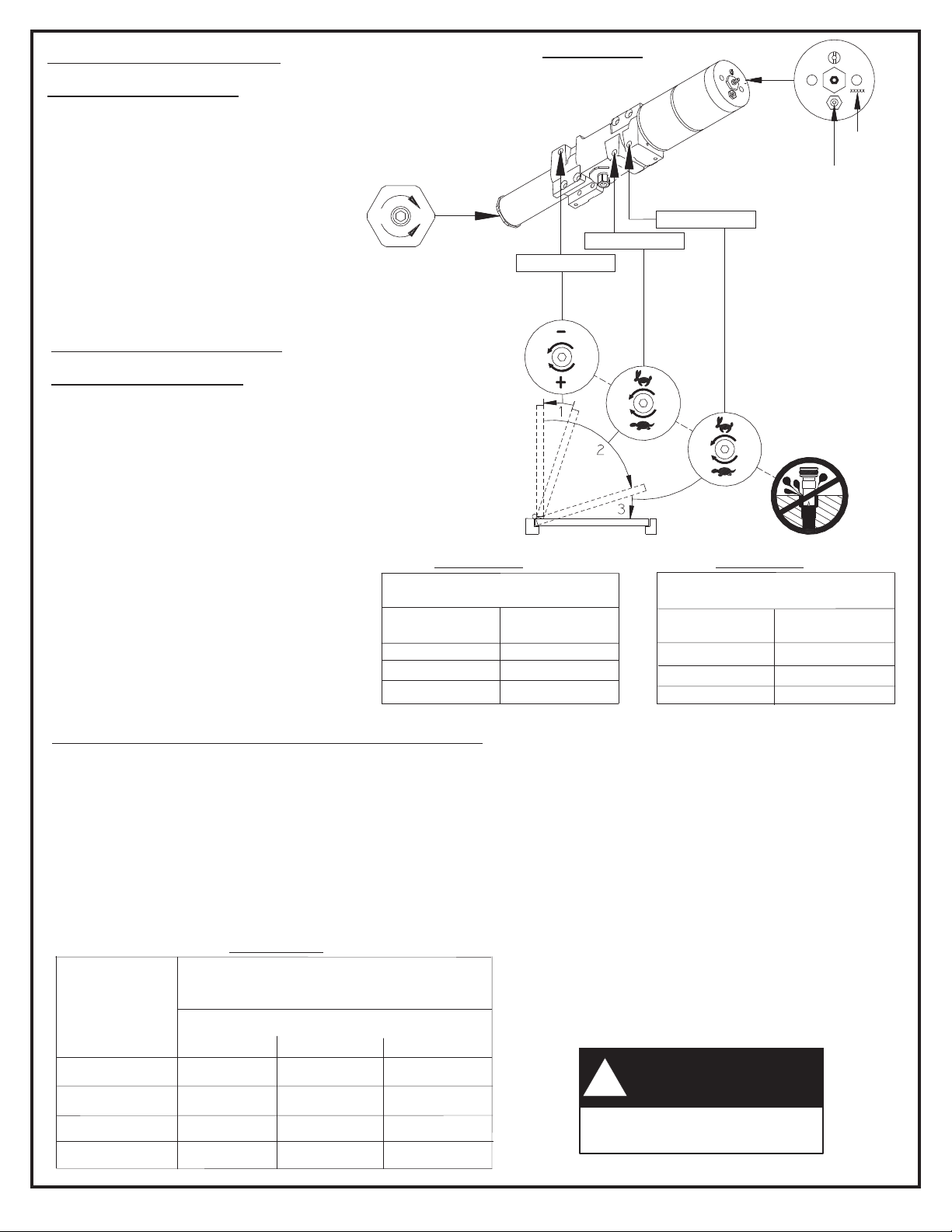

A "normal" closing time from 90°
open position is 5 to 7 seconds,
evenly divided between
and .
Use 3/32" Allen wrench provided.
To slow of door,
turn regulating screw (nearest to
arm) clockwise.
To slow of door,
turn regulating screw (nearest to
latch) clockwise.
Do not allow door to slam into frame.
1.
main
speed latch speed
2.
3. MAIN SPEED
4. LATCH SPEED
5.
CLOSING SPEED
ADJUSTMENT
To adjust , turn
the spring adjustment nut clockwise
or counter-clockwise the required
number of turns to match the door
width in . Maximum
adjustment, 5 turns counter-
clockwise and 7 turns clockwise.
1. CLOSING FORCE
Tables 1 & 2
Page 2
DO NOT SET DOOR SPEED FASTER
THAN CHART RECOMMENDS
EXTERIOR DOOR
MAXIMUM
DOOR WIDTH
MAXIMUM
DOOR WIDTH
NUMBER OF
TURNS
NUMBER OF
TURNS
30"
36"
0 TURNS
2 TURNS C.W.2 TURNS C.W.
42"
7 TURNS C.W.
INTERIOR DOOR
MAXIMUM
DOOR WIDTH
MAXIMUM
DOOR WIDTH
NUMBER OF
TURNS
NUMBER OF
TURNS
34"
38"
5 TURNS C.C.W.
0 TURNS
48"
2 TURNS C.W.
CLOSING FORCE
ADJUSTMENT
(See Figure 1)
(See Figure 1)
OPENING SPEED ADJUSTMENT
1. The door opening speed must be adjusted to suit the width and weight of the door. The wider and/or
heavier the door, the slower it should open. To determine opening speed, measure door leaf width
and weight and set set speed to open door from 0°to 80° for the time shown in Table 3 below. The
opening speed control adjusting screw is located in the end of the door operator near the tubing
connection (see figure 1). Using a 3/32" Allen wrench (provided), turn the speed control clockwise to
slow the door, counter-clockwise to increase speed.
LATCH SPEED
MAIN SPEED
BACKCHECK
SPRING
ADJUSTMENT NUT
INCREASE
FORCE
DECREASE
FORCE
OPENING
SPEED CONTROL
ADJUSTING SCREW
(Socket Head Regulating Screw)
OPERATOR
MODEL No.
TABLE 3
Door Weight
In Pounds
Door Width In Inches
100 lbs.
125 lbs.
150 lbs.
3.0 sec.
3.5 sec.
3.5 sec.
200 lbs.
4.0 sec.
36"
FASTEST OPENING TIME
IN SECONDS TO 80° POSITION
3.0 sec.
3.5 sec.
3.5 sec.
4.0 sec.
42"
3.0 sec.
3.5 sec.
3.5 sec.
4.0 sec.
48"
NOTE FOR AIR PRESSURE REGULATION, SEE CONTROL BOX INSTRUCTIONS
NOTE:
If door width or weight is between the sizes listed, use
the time shown for the next wider or heavier door.
CAUTION
!

Page 3
DELAY TIME ADJUSTMENT
After opening, the door should remain at the 90° position for no less than 5 seconds. This "Delay Time"
can be increased to approximately 30 seconds by turning the timer adjustment wheel(s) in the control box
clockwise. For the location of this wheel(s), refer to 7900 or 7980 Series Control Box Instruction Sheet.
Adjust "Delay Time" to maximum practical for the elderly or handicapped. Time cycle begins when switch
or scanner is activated.
ATTACH COVER
1. (see Figure 4)
2.
3.
Slide cover insert into the top cutout
in cover .
Push cover over the operator assembly
and against mounting plate.
Insert cover screws and tighten securely.
FIGURE 4
LOCATING THE CAUTION / AUTOMATIC DOOR DECAL
1.
2.
3. (item 16 on page 10)
Locate one decal on each side of door near lock stile of door, approximately 53" min. to 63" max. above
the floor. The decal location must be visible without interference from door trim, panic devices, etc.
Clean a 6" x 6" area where decals will be placed.
Apply one decal on each side of door. Remove backing and "roll" onto door to avoid
trapping air under decal.
TABLE 4
5.5
DOOR TYPE
Solid Core Wood
20 Ga. Flush Hollow Metal
Aluminum x 1" Glass
7.0
Mineral Core Door
16 Ga. Flush Hollow Metal
Aluminum x 1" Glass
Weight
per sq. ft.
2. If door weight cannot be measured, the weight can be estimated by finding the area of the door
(length x width) and multiplying it by the weight per square feet for the door type that is being used as
shown in Table 4 below.
BACKCHECK ADJUSTMENT
1
2DO NOT USE AN ABRUPT
BACKCHECK.
. Backcheck slows the door swing as it approaches full opening (see figure 1 on page 2).
. Increase the resistance of backcheck only if necessary to prevent the door from striking a wall. To do
this, turn the regulating screw (nearest to hinge) clockwise by quarter turns.
NOTE:
These weights are for 1 " thick doors. If the doors are
thicker or thinner, consult door manufacture for proper
weight or weigh the door.
3/4

Page 4

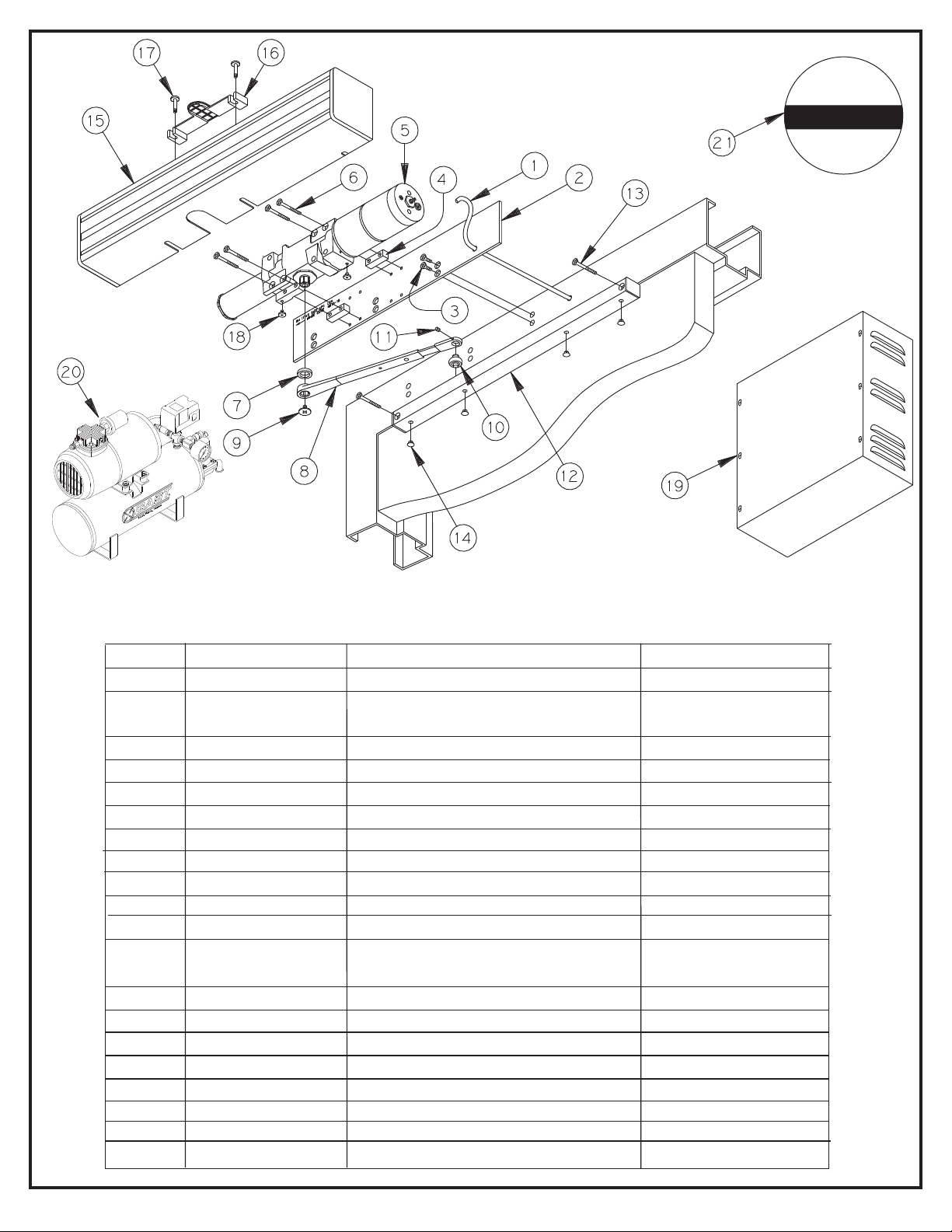

ITEM No.
PART No.
DESCRIPTION
QUANTITY
1 925 1/8" I.D. Pneumatic Tubing Order Length Required
2 4810-18 Standard Mounting Plate
3 No. 14 x 1 " Phillips Head Wood Screw or
1/4-20 x " Phillips Head Machine Screw
4 4810-182 Standoff
5 4810-3071 LCN Switch-Actuated Auto Equalizer
6 No. 1/4-20 x 2 " Phillips Head Machine Screw
7 4810-61 Spacer
8 4810-3077 Arm
9 4810-159 Arm Shaft Screw
10 4810-3034 Track Roller
11 4810-425 Roller Locking Screw
12 4810-3038 Track
13 No. 14 x 2 " Phillips Head Wood Screw
No. 1/4-20 x 1 " Phillips Head Machine Screw
14 4810-141 Track Plug
15 4810-72 Cover
16 4810-163 Cover Insert
17 4810-31L Long Cover Screw
18 4810-31 Cover Screw
19 7900 or 7980 Series Control Box
20 920 Series Compressor (optional)
21 4820-155G Decal
1/2
5/8
1/2
1/2
1/2
1
6
2
1
4
1
1
1
1
1
1
2
4
1
1
2
2
1
1
2
AUTOMATIC
DOOR
CAUTION

GENERAL NOTES:
1. 1/8" I.D. Tubing connected to control box.
2. Locate closer & track from C of pivot or swing clear
hinges when used.
3. Auxiliary stops are recommened at maximum opening.
4. Closer size 20" x 3 " x 3 ".
5. Reinforcing per ANSI/SDI-100 recommended for hollow
metal doors & frames.
1/2 5/16
L
THIS TEMPLATE APPLIES TO
170° OPENING MAX.
90° POWER OPENING
RIGHT HAND SHOWN
LEFT HAND OPPOSITE
FIGURE 5
DO NOT SCALE
BAM 9/94
APP
BY
PULL SIDE / TOP JAMB MOUNTED
NON-HANDED AUTO-EQUALIZER
4810
SINGLE LEVER ARM SET SCREW ADJUSTMENT
1. It may be necessary to adjust the fully open door position. Minor adjustment can be obtained by using
the telescoping arm as follows (see figure 5):
A. Shorten length of arm to decrease door opening.
Lengthen arm to increase door opening.
B. Remove set screw and adjust arm to preferred length.
C. Replace set screw and tighten securely after adjustment.
D. After arm adjustment is made, cycle door to ensure that it is operating properly.
SET SCREW
ADJUSTABLE ROD
MAIN ARM
Page 5
®
