OPERATOR’S MANUALPM30R-XXX-XXX-CXX
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE RELEASED: 2-16-05
REVISED: 7-23-21
(REV: L)

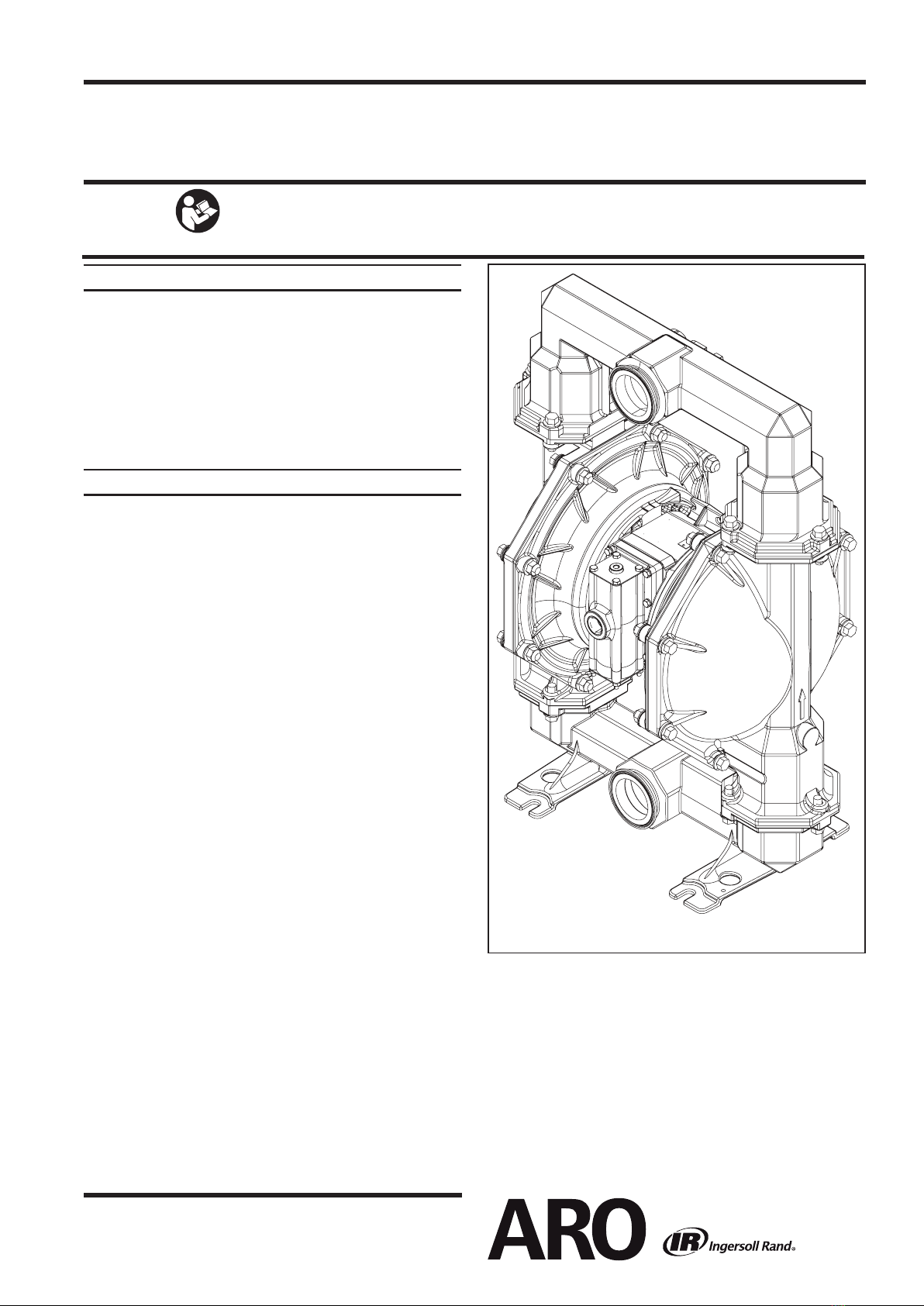

3" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump
material options.

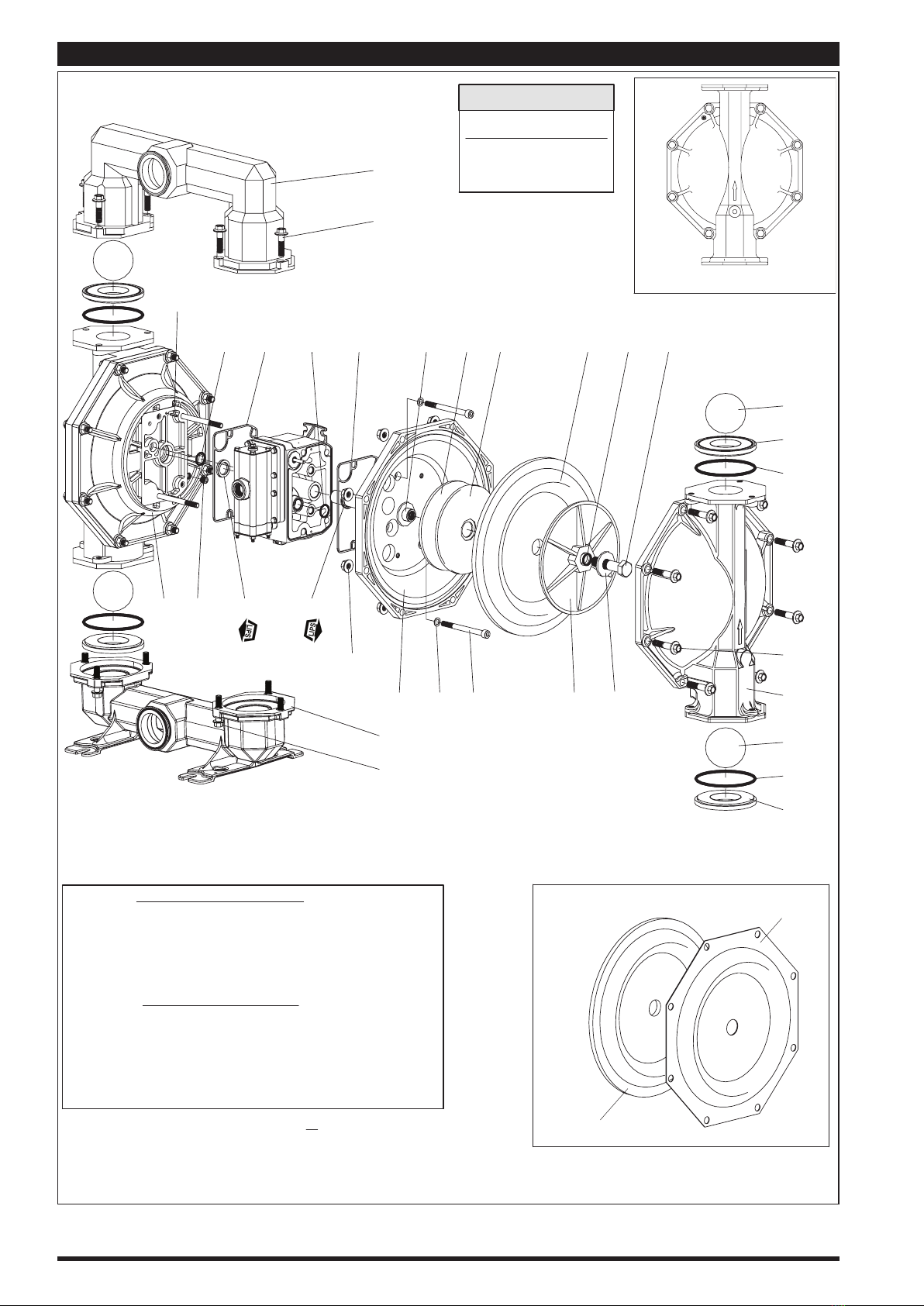

637303-XXX for Fluid Section Repair with seats (see page 5).
637303-XX for Fluid Section Repair without seats (see page 5).
NOTE: This kit also contains several air motor seals which will
need to be replaced.

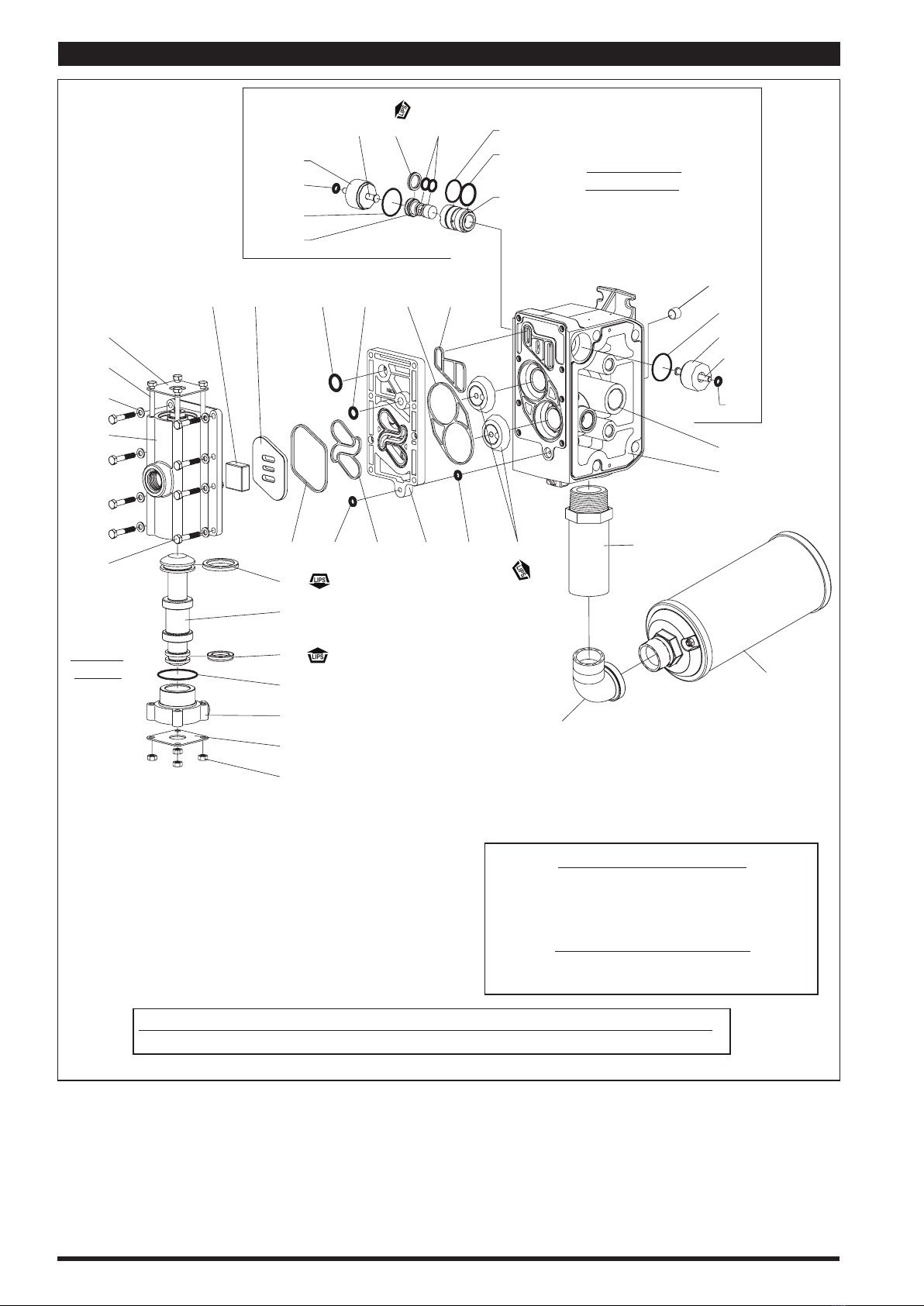

637369 for Air Section Repair (see page 7).
637374 Major Air Valve Assembly (see page 8).
PUMP DATA
Models........... see Model Description Chart for “-XXX”
Pump Type....... Metallic Air Operated Double Diaphragm
Material.......... see Model Description Chart
Weight . . ........................... 253.3 lbs (114.9 kgs)
Maximum Air Inlet Pressure ....... 120 psig (8.3 bar)
Maximum Material Inlet Pressure.. 10 psig (0.69 bar)
Maximum Outlet Pressure ......... 120 psig (8.3 bar)
Maximum Flow Rate ............... 237 gpm (897 lpm)
Flooded inlet............... 275 gpm (1041 lpm)
Displacement / Cycle @ 100 psig... 2.8 gal. (10.6 lit.)
Maximum Particle Size ............ 3/8” dia. (9.5 mm)
Maximum Temperature Limits (diaphragm / ball / seal
material)
E.P.R. / EPDM.............. -60° to 280° F (-51° to 138° C)
Nitrile .................... 10° to 180° F (-12° to 82° C)
Polypropylene. ........... 32° to 175° F (0° to 79° C)
Santoprene®.............. -40° to 225° F (-40° to 107° C)
PTFE. . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Dimensional Data.................. see page 9
Mounting Dimension .............. 10-5/32” x 12-1/16”
(258 mm x 306 mm)
Noise Level @ 70 psig, 50 cpm

... 83.0 dB(A)


Tested with 67263 muer assembly installed.

The pump sound pressure levels published here have been updated
to an Equivalent Continuous Sound Level (LA
eq
) to meet the intent of
ANSI S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
Figure 1
3” DIAPHRAGM PUMP
PM30R-CSS-XXX-CXX

Page 2 of 12 PM30R-XXX-XXX-CXX (en)
MODEL DESCRIPTION CHART
Model Code Explanation PM30 R
-
CSS
-
XXX
-
CXX
Center Section Material
R - Polypropylene / Stainless Steel
Thread
Fluid Caps and Manifold Material
S - Stainless Steel
Hardware Material
S- Stainless Steel
Seat Material
Ball Material
Diaphragm Material
Revision
C- Revision
Specialty Code 1 (Blank if no Speciality Code)
B- Solenoid 12 VDC, 24 VAC AND 22 VAC
D- Solenoid 24 VDC, 48 VAC AND 44 VAC
A- Solenoid 120 VAC,110 VAC AND 60 VDC
C- Solenoid 240 VAC, 220 VAC AND 120 VDC
N- Solenoid with no Coil
NOTICE: All possible options are shown in the chart, however, certain combinations may not be recommended.
Consult a representative or the factory if you have questions concerning availability.
F- End of Stroke feedback
E- End of Stroke feedback + Leak Detection
L- Leak Detection
E- Solenoid 12 VDC NEC / CEC
F- Solenoid 24 VDC NEC / CEC
J- Solenoid 120 VAC NEC / CEC
C - Sanitary Flange
0- Standard Valve Block (No Solenoid)
S- Cycle Sensing on Major Valve
2- No option
Specialty Code 2 (Blank if no Speciality Code)
M - Medical Grade Santoprene
M - Medical Grade Santoprene
T - PTFE
L - Long Life PTFE
M - Medical Grade Santoprene
T - PTFE / Santoprene
S - 316 Stainless Steel
Fluid Section Service Kit Selection
EXAMPLE: Model #PM30R-CSS-SMM-CXX
Fluid Section Service Kit # 637303-MM
PM30R - CSS - X X X - CXX
Ball Diaphragm
637303 - X X

PM30R-XXX-XXX-CXX (en) Page 3 of 12
WARNING
EXCESSIVE AIR PRESSURE. Can cause per-
sonal injury, pump damage or property damage.
yDo not exceed the maximum inlet air pressure as stat-
ed on the pump model plate.
yBe sure material hoses and other components are
able to withstand fluid pressures developed by this
pump. Check all hoses for damage or wear. Be certain
dispensing device is clean and in proper working con-
dition.
WARNING
STATIC SPARK. Can cause explosion re-
sulting in severe injury or death. Ground pump and
pumping system.
yUse the pump grounding screw terminal provided.
Use ARO® part no. 66885-1 ground kit or connect a
suitable ground wire (12 ga. min.) to a good earth
ground source.
ySecure pump, connections and all contact points to
avoid vibration and generation of contact or static
spark.
yConsult local building codes and electrical codes for
specic grounding requirements.
yAfter grounding, periodically verify continuity of elec-
trical path to ground. Test with an ohmmeter from
each component (e.g., hoses, pump, clamps, contain-
er, spray gun, etc.) to ground to ensure continuity.
Ohmmeter should show 0.1 ohms or less.
ySubmerse the outlet hose end, dispensing valve or
device in the material being dispensed if possible.
(Avoid free streaming of material being dispensed.)
yUse hoses incorporating a static wire.
yUse proper ventilation.
yKeep inammables away from heat, open ames and
sparks.
yKeep containers closed when not in use.
WARNING
Pump exhaust may contain contaminants.
Can cause severe injury. Pipe exhaust away from work
area and personnel.
yIn the event of a diaphragm rupture, material can be
forced out of the air exhaust muer.
yPipe the exhaust to a safe remote location when
pumping hazardous or inammable materials.
yUse a grounded 1” minimum ID hose between the
pump and the muer.
WARNING
HAZARDOUS PRESSURE. Can result in se-
rious injury or property damage. Do not service or
clean pump, hoses or dispensing valve while the sys-
tem is pressurized.
yDisconnect air supply line and relieve pressure from
the system by opening dispensing valve or device and
/ or carefully and slowly loosening and removing out-
let hose or piping from pump.
WARNING
HAZARDOUS MATERIALS. Can cause serious
injury or property damage. Do not attempt to return
a pump to the factory or service center that contains
hazardous material. Safe handling practices must
comply with local and national laws and safety code
requirements.
OPERATING AND SAFETY PRECAUTIONS
READ, UNDERSTAND AND FOLLOW THIS INFORMATION TO AVOID INJURY AND PROPERTY DAMAGE.
yObtain Material Safety Data Sheets on all materials
from the supplier for proper handling instructions.
WARNING
EXPLOSION HAZARD. Models containing
aluminum parts cannot be used with 1,1,1-trichlo-
roethane, methylene chloride or other halogenated
hydrocarbon solvents which may react and explode.
yCheck pump motor section, uid caps, manifolds and
all wetted parts to assure compatibility before using
with solvents of this type.
WARNING
MISAPPLICATION HAZARD. Do not use
models containing aluminum wetted parts with food
products for human consumption. Plated parts can
contain trace amounts of lead.
CAUTION
Verify the chemical compatibility of the
pump wetted parts and the substance being pumped,
flushed or recirculated. Chemical compatibility may
change with temperature and concentration of the
chemical(s) within the substances being pumped,
ushed or circulated. For specic uid compatibility,
consult the chemical manufacturer.
CAUTION
Maximum temperatures are based on me-
chanical stress only. Certain chemicals will signifi-
cantly reduce maximum safe operating temperature.
Consult the chemical manufacturer for chemical com-
patibility and temperature limits. Refer to PUMP DATA
on page 1 of this manual.
CAUTION
Be certain all operators of this equipment
have been trained for safe working practices, under-
stand it’s limitations, and wear safety goggles / equip-
ment when required.
CAUTION
Do not use the pump for the structural sup-
port of the piping system. Be certain the system com-
ponents are properly supported to prevent stress on
the pump parts.
ySuction and discharge connections should be flexi-
ble connections (such as hose), not rigid piped, and
should be compatible with the substance being
pumped.
CAUTION
Prevent unnecessary damage to the pump.
Do not allow pump to operate when out of material
for long periods of time.
yDisconnect air line from pump when system sits idle
for long periods of time.
CAUTION
Use only genuine ARO replacement parts to
assure compatible pressure rating and longest service
life.
WARNING
= Hazards or unsafe practices which
could result in severe personal injury,
death or substantial property damage.
CAUTION
= Hazards or unsafe practices which
could result in minor personal injury,
product or property damage.
NOTICE
= Important installation, operation or
maintenance information.
EXCESSIVE AIR PRESSURE
STATIC SPARK
HAZARDOUS MATERIALS
HAZARDOUS PRESSURE

Page 4 of 12 PM30R-XXX-XXX-CXX (en)
MAINTENANCE
Refer to the part views and descriptions as provided on pag-
es 5 through 8 for parts identication and Service Kit infor-
mation.
yCertain ARO “Smart Parts” are indicated which should be
available for fast repair and reduction of down time.
yService kits are divided to service two separate dia-
phragm pump functions: 1. AIR SECTION, 2. FLUID SEC-
TION. The Fluid Section is divided further to match typical
part Material Options.
yProvide a clean work surface to protect sensitive internal
moving parts from contamination from dirt and foreign
matter during service disassembly and reassembly.
yKeep good records of service activity and include the
pump in preventive maintenance program.
yBefore disassembling empty captured material in the
outlet manifold by turning the pump upside down to
drain material from the pump.
FLUID SECTION DISASSEMBLY
1. Remove top manifold(s).
2. Remove (22) balls, (19) “O” rings (where applicable) and
(21) seats.
3. Remove (15) uid caps.
NOTE: Only PTFE diaphragm models use a primary (7) dia-
phragm and a backup (8) diaphragm. Refer to the auxiliary
view in gure 2.
4. Remove the (6) diaphragm washer, (7) or (7/8) diaphragm,
(5) backup washer and (196) cushion.
NOTE: Do not scratch or mar the surface of (1) diaphragm
rod.
FLUID SECTION REASSEMBLY
SERVICE NOTE: ARO PN 204214-T Diaphragm assembly tool
is recommended for use when reassembling the pump.
yReassemble in reverse order.
yClean and inspect all parts. Replace worn or damaged
parts with new parts as required.
yLubricate (1) diaphragm rod and (144) “U” cups with Lu-
briplate®FML-2 grease (94276 grease packet is included
in service kit).
yBe certain the diaphragm assembly bottoms out on the
(1) rod, back o PTFE diaphragm assembly far enough to
align holes.
yFor models with PTFE diaphragms: Item (8) Santoprene
diaphragm is installed with the side marked “AIR SIDE”
towards the pump center body. Install the (7) PTFE dia-
phragm with the side marked “FLUID SIDE” towards the
uid cap.
yRe-check torque settings after the pump has been
re-started and run a while.
GENERAL DESCRIPTION
The ARO diaphragm pump oers high volume delivery even
at low air pressure and a broad range of material compatibili-
ty options are available. Refer to the model and option chart.
ARO pumps feature stall resistant design, modular air motor
/ uid sections.
Air operated double diaphragm pumps utilize a pressure dif-
ferential in the air chambers to alternately create suction and
a positive uid pressure in the uid chambers, valve checks
ensure a positive ow of uid.
Pump cycling will begin as air pressure is applied and will
continue to pump and keep up with the demand. It will build
and maintain line pressure and will stop cycling once maxi-
mum line pressure is reached (dispensing device closed) and
will resume pumping as needed.
AIR AND LUBE REQUIREMENTS
WARNING
EXCESSIVE AIR PRESSURE. Can cause pump
damage, personal injury or property damage.
yA filter capable of filtering out particles larger than 50
microns should be used on the air supply. There is no lu-
brication required other than the “O” ring lubricant which
is applied during assembly or repair.
yIf lubricated air is present, make sure that it is compatible
with the Nitrile “O” rings in the air motor section of the
pump.
OPERATING INSTRUCTIONS
yAlways flush the pump with a solvent compatible with
the material being pumped if the material being pumped
is subject to “setting up” when not in use for a period of
time.
yDisconnect the air supply from the pump if it is to be in-
active for a few hours.
yThe outlet material volume is governed not only by the
air supply, but also by the material supply available at the
inlet. The material supply tubing should not be too small
or restrictive. Be sure not to use hose which might col-
lapse.
yWhen the diaphr agm pump is used in a forced-feed
(ooded inlet) situation, it is recommended that a “Check
Valve”be installed at the air inlet.
ySecure the diaphragm pump legs to a suitable surface to
ensure against damage by vibration.
yLoctite® is registered trademarks of Henkel Loctite Corporation yARO® is a registered trademark of Ingersoll-Rand Company y
ySantoprene® is a registered trademark of ExxonMobil y271™ and 242® registered trademarks of Henkel Loctite Corporation y
yLubriplate® is a registered trademark of Lubriplate Lubricants Company y

PM30R-XXX-XXX-CXX (en) Page 5 of 12
PARTS LIST / PM30R-X-X-CXX FLUID SECTION
FLUID SECTION SERVICE KITS (637303-XXX or 637303-XX)
For Fluid Kits With Seats:
637303-XXX Fluid Section Service Kits include: Seats (see SEAT Option, refer to -XXX in chart below), Balls (see BALL Option, refer to -XXX in chart below),
Diaphragms (see DIAPHRAGM Option, refer to -XXXin chart below), and items: 3, 19, 70, 144, 175, 196 (listed below) plus 174 and 94276 Lubriplate
FML-2 grease (page 7).
For Fluid Kits Without Seats:
637303-XX Fluid Section Service Kits include: Balls (see BALL Option, refer to -XX in chart below), Diaphragms (see DIAPHRAGM Option, refer to -XXin
chart below), and items: 3, 19, 70, 144, 175, 196 (listed below) plus 174 and 94276 Lubriplate FML-2 grease (page 7).
MATERIAL CODE
[B] = Nitrile
[C] = Carbon Steel
[Co] = Copper
[L] = Long Life PTFE
[MSP] = Medical grade santoprene
[SP] = Santoprene
[SS] = Stainless Steel
[T] = PTFE

Items included in Air Motor Service Kit, see pages 7.

“Smart Parts”, keep these items on hand in addition to the Service Kits for fast repair and reduction of down time.
COMMON PARTS
Item Description (size) Qty Part No. Mtl
1 Rod (1) 97387 [C]
5Backup Washer (2) 94831-2 [SS]
6Fluid Side Washer (2) 97714 [SS]
9 Washer (3/16”ID x 2” OD x 5/32”) (2) 97715 [SS]
14 Cap Screw (3/14” - 16 x 3-1/4”) (2) 97716 [SS]
15 Fluid Cap (2) 94972 [SS]
26 Screw (M12 x 1.75 - 6g x 45 mm) (12) 94412-2 [SS]
27 Screw (M12 x 1.75 - 6g x 60 mm) (16) 94991 [SS]
29 Nut (M12 x 1.75 - 6g) (16) 95053 [SS]
60 Inlet Manifold (1) 97214 [SS]
61 Outlet Manifold (1) 94969 [SS]
68 Air Cap (1) 94031-1 [SS]
Item Description (size) Qty Part No. Mtl
69 Air Cap (1) 94031-2 [SS]

70 Gasket (2) 94100 [B]
74 Pipe Plug (1/4 - 18 NPTF x 7/16”) (2) Y17-51-S [SS]
131 Screw (M10 x 1.5 - 6g x 120 mm) (4) 96656 [SS]

144 “U” Cup (3/16" x 1-3/8" OD) (2) Y186-51 [B]

175 O-ring (3/32” x 1” OD) (2) Y325-117 [B]

180 Gasket (0.406" ID x 0.031" thick) (4) 94098 [Co]
181 Roll Pin (0.156”OD x 3/4” long) (4) Y178-56-S [SS]

196 Cushion (2) 94631 [SP]
SEAT OPTIONS PM30R-CSS-XXX-CXX BALL OPTIONS PM30R-CSS-XXX-CXX
“21” “22” (3-1/4” diameter)
-XXX Ball Qty [Mtl] -XXX Ball Qty [Mtl]
-MXX 94104-M (4) [MSP] -XMX 94103-M (4) [MSP]
-SXX 94113 (4) [SS] -XTX 94103-T (4) [T]
DIAPHRAGM OPTIONS PM30R-CSS-XXX-CXX
Service Kit
With Seats
Service Kit
Without Seats “3” (1/8” x 1” OD) “7” “8” “19” (3/16” x 5” OD)
-XXX
-XXX = (Seat)
-XXX = (Ball)
-XXX = (Diaphragm)
-XX = (Ball)
-XX = (Diaphragm) “O” Ring Qty [Mtl] Diaphragm Qty [Mtl] Diaphragm Qty [Mtl] “O” Ring Qty [Mtl]
-XXL 637303-XXL 637303-XL Y328-210 (2) [T] 94090-L (2) [L] 94110-A (2) [SP] Y328-350 (4) [T]
-XXM 637303-XXM 637303-XM Y328-210 (2) [T] 94091-M (2) [MSP] ---- -- -- Y328-350 (4) [T]
-XXT 637303-XXT 637303-XT Y328-210 (2) [T] 94090-T (2) [T] 94110-A (2) [SP] Y328-350 (4) [T]
NOTE: Seat option -MXX does not require item 19 “O” ring.

Page 6 of 12 PM30R-XXX-XXX-CXX (en)
FOR THE
AIR MOTOR SECTION
SEE PAGES7and 8
.TORQUE REQUIREMENTS ,
NOTE: DO NOT OVERTIGHTEN FASTENERS.
ALL FASTENERS ARE METRIC.
(14) CapScrew 65 -70ftlbs (88.1-94.9 Nm)
(26 and 27) Fluid Cap /ManifoldScrew 60 -70ftlbs (81.4 -94.9 Nm).
(131) Screws 35 - 40 ft lbs (47.5 - 54.2 Nm).
LUBRICATION/SEALANTS
COLOR CODE
DIAPHRAGM BALL
MATERIALCOLOR COLOR
SANTOPRENETan Tan
SANTOPRENEGreen N/A
(Backup)
PTFE White White
SANTOPRENE
7
8
Figure 2
PTFE
VIEW OF TWO PIECE PTFE DIAPHRAGM
kApply Lubriplate FML-2 greasetoall “O” rings, “U” Cups
and mating parts.
=NOT USED with models PM30R-CSS-MXX-CXX.
sApply PTFE tape to threadsatassembly.
xApply Loctite 242tothreads at assembly.
gApply Loctite 271tothreads.
GApply anti-seize compound to threads.
1
8
6
42
3
7
5
Torque Sequence
1
26 ,G
22
181
60
5
144 k
21
22
21
180
175 k70 k
69
61
27 ,G
131,x
19 =k
19 =k
9
14 ,g196 3 k
74 s
70 k
26 ,G
144 k
29
15
7
6
175 k
68
PARTS LIST / PM30R-X-X-CXX FLUID SECTION
Figure 2

PM30R-XXX-XXX-CXX (en) Page 7 of 12
PARTS LIST / PM30R-X-X-CXX AIR SECTION

Indicates parts included in 637369 Air Section Service Kit shown below and items 70, 144, 175 and 180 shown on page 5.
MATERIAL CODE
[B] = Nitrile [P] = Polypropylene
[C] = Carbon Steel [SP] = Santoprene
[Ck] = Ceramic [SS] = Stainless Steel
[D] = Acetal [U] = Polyurethane
[I] = Iron
AIR MOTOR SECTION SERVICE
Service is divided into two parts - 1. Pilot Valve, 2. Major
Valve.
GENERAL REASSEMBLY NOTES:
yAir Motor Section service is continued from Fluid Section
repair.
yInspect and replace old parts with new parts as neces-
sary. Look for deep scratches on metallic surfaces, and
nicks or cuts in “O” rings.
yTake precautions to prevent cutting “O” rings upon instal-
lation.
yLubricate“O” rings with Lubriplate FML-2 grease.
yDo not over-tighten fasteners. Refer to torque speci-
cation block on view.
yRe-torque fasteners following restart.
ySERVICE TOOLS - To aid in the installation of (168) “O”
rings onto the (167) pilot piston, use tool # 204130-T,
available from ARO.
PILOT VALVE DISASSEMBLY
1. A light tap on (118) actuator pin should expose the oppo-
site (121) sleeve, (167) pilot piston and other parts.
2. Remove (170) sleeve and Inspect inner bore of sleeve for
damage.
PILOT VALVE REASSEMBLY
1. Clean and lubricate parts not being replaced from service
kit.
2. Install new (171 and 172) “O” rings, replace (170) sleeve.
3. Install new (168) “O” rings and (169) seal - Note the lip di-
rection. Lubricate and replace (167).
4. Reassemble remaining parts, replace (173 and 174) “O”
rings.
MAJOR VALVE DISASSEMBLY
1. Remove (135) valve block and (233) adapter plate, ex-
posing (132 and 166) gaskets , (232) "O" ring and (176)
checks.
2. Remove (233) adapter plate, releasing (140) valve insert,
(141) valve plate, (199 and 200) gaskets and (232, 243 and
244) “O” rings.
3. Remove (136) end cap and (137) “O” ring, releasing (111)
spool.
MAJOR VALVE REASSEMBLY
1. Install new (138 and 139) “U” cups on (111) spool - LIPS
MUST FACE EACH OTHER.
2. Insert (111) spool into (135) valve block.
3. Install (137) “O” ring on (136) end cap and assemble end
cap to (135) valve block, securing with (107) end plates
and (105) screws.
4. Install (140) valve insert and (141) valve plate into (135)
valve block. NOTE: Assemble (140) valve insert with
“dished” side toward (141) valve plate. Assemble (141)
valve plate with 2 identification dots toward (199 and
200) gaskets.
5. Assemble (232, 243 and 244) “O” rings, (199 and 200) gas-
kets and (233) adapter plate to (135) valve block.
6. Assemble (132 and 166) gaskets, (176) checks and (232)
“O” ring to (101) body.
7. Assemble (135) valve block and components to (101)
body, securing with (134) screws.
AIR MOTOR PARTS LIST
Item Description (size) Qty Part No. Mtl
101 Center Body (1) 97037 [P]
103 Bushing (1) 97394 [D]
105 Screw (M6 x 1 - 6g x 180 mm) (4) 95921 [SS]
107 End Plate (2) 95846 [SS]
111 Spool (1) 95651 [D]
118 Actuator Pin (0.250” x 2.276” long) (2) 94083 [SS]
121 Sleeve (2) 94084 [D]
126 Plug (1) 93897-1 [P]
127 90 St.Elbow (1-1/2-11-1/2 NPT) (1) 94860 [C/I]

132 Gasket (1) 94099 [B]
133 Washer (M6) (8) 95931 [SS]
134 Screw (M6 x 1 - 6g x 35 mm) (8) 95923 [SS]
135 Valve Block (1) 95789 [P]
136 End Cap (1) 95790 [P]

137 "O” Ring (1/16” x 2” OD) (1) Y325-32 [B]

138 “U” Cup (3/16” x 1.792” OD) (1) 95966 [B]

139 “U” Cup (3/16” x 1-1/4” OD) (1) Y186-50 [B]
140 Valve Insert (1) 95650 [Ck]
141 Valve Plate (1) 95659 [Ck]

166 Track Gasket (1) 94026 [B]
Item Description (size) Qty Part No. Mtl

167 Pilot Piston (includes items 168 and 169) (1) 67164 [D]
168 "O” Ring (3/32” x 5/8” OD) (2) 94433 [U]
169 “U” Cup (1/8” x 7/8” OD) (1) Y240-9 [B]
170 Piston Sleeve (1) 94081 [D]

171 “O” Ring (3/32” x 1-1/8” OD) (1) Y325-119 [B]

172 “O” Ring (1/16” x 1-1/8” OD) (1) Y325-22 [B]

173 “O” Ring (1/16” x 1-3/8” OD) (2) Y325-26 [B]
 
174 “O” Ring (1/8” x 1/2” OD) (2) Y325-202 [B]

176 Diaphragm (check valve) (2) 94102 [SP]

199 Track Gasket (1) 95666 [B]

200 Gasket (1) 95665 [B]
201 Muer (includes item 127) (1) 67213

232 “O” Ring (1/8” x 1/2” OD) (2) Y325-202 [B]
233 Adapter Plate (1) 95761 [P]
236 Nut (M6 x 1 -6g) (4) 95924 [SS]

243 “O” Ring (1/8” x 5/8” OD) (1) Y325-204 [B]

244 “O” Ring (1/8” x 7/8” OD) (1) Y325-208 [B]

 Lubriplate FML-2 Grease (1) 94276
Lubriplate Grease packets (10) 637308
Items included in Fluid Section Service Kit, see pages 5.

Page 8 of 12 PM30R-XXX-XXX-CXX (en)
168 k
107
107
136
137k
139
111
138
.105
135
133
.
.
134
101
103
174 k
121
118
173 k
169 k172 k
171 k
170
167
k173
121
k174
118
166k
132 k
243 k 244 k
199k
141k
k
140
232k200 k232k233 176
PILOT VALVE
PART GROUP
MAJOR
VALVE
Optional 9411
Muer
236
126
127
201
PARTS LIST / PM30R-X-X-CXX AIR SECTION
TORQUE REQUIREMENTS 
NOTE: DO NOT OVERTIGHTEN FASTENERS.
ALL FASTENERS ARE METRIC.
Torque (105) Screw to 35 - 40 in. lbs (4.0 - 4.5 Nm).
Torque (134) Screw to 35 - 40 in. lbs (4.0 - 4.5 Nm).
LUBRICATION / SEALANTS
 Apply Lubriplate FML-2 grease to all“O” rings, “U” cups
and mating parts.
Figure 3
A 637374 Replacement Major Valve Service Assembly is available separately, which includes the following:
105 (4), 107 (2), 111, 132, 135, 136, 137, 138, 139, 140, 141, 166, 176 (2), 199, 200, 232 (2), 233, 236 (4), 243 and 244.

PM30R-XXX-XXX-CXX (en) Page 9 of 12
TROUBLESHOOTING
Product discharged from exhaust outlet.
yCheck for diaphragm rupture.
yCheck tightness of (14) cap screw.
Air bubbles in product discharge.
yCheck connections of suction plumbing.
yCheck “O” rings between intake manifold and uid caps.
yCheck tightness of (14) cap screw.
Motor blows air or stalls.
yCheck (176) check valve for damage or wear.
yCheck for restrictions in valve / exhaust.
Low output volume, erratic ow or no ow.
yCheck air supply.
yCheck for plugged outlet hose.
yCheck for kinked (restrictive) outlet material hose.
yCheck for kinked (restrictive) or collapsed inlet material
hose.
yCheck for pump cavitation - suction pipe should be sized
at least as large as the inlet thread diameter of the pump
for proper ow if high viscosity uids are being pumped.
Suction hose must be a non-collapsing type, capable of
pulling a high volume.
yCheck all joints on the inlet manifolds and suction con-
nections. These must be air tight.
yInspect the pump for solid objects lodged in the dia-
phragm chamber or the seat area.
DIMENSIONAL DATA
Dimensions shown are for reference only, they are displayed in inches and millimeters (mm).
Figure 4
OPTIONAL ACCESSORY: 66109 Airline Connection Kit
3” Sanitary FlangeAir Inlet
3/4 - 14 NPT
OUTLET
Dottedlines show
optional 67213
(88.9 mm)
15”
3.5”
(381 mm)
17-11/16”(449.2mm)
23-3/32”(586.3 mm)
10-5/32”(258 mm)
9/16” Slot(14.3 mm)
12-1/16”(306.4 mm)
30”
(761.7 mm)
32”
(812.5 mm)
Exhaust Port
1-1/2 - 11- 1/2 NPSM
INLET
11-11/16”(296.9 mm)
23-1/8”(587.3 mm)
16”
(406.4 mm)
2- 3/4”
(69.9 mm)
Dottedlines show
optional 67263
muer assembly.
muer assembly.

Page 10 of 12 PM30R-XXX-XXX-CXX (en)

PM30R-XXX-XXX-CXX (en) Page 11 of 12

Page 12 of 12 PM30R-XXX-XXX-CXX (en)
PN 97999-1117
