Inkel ISD-8106 User manual

SIGNAL DISTRIBUTOR
2ISD-8106
Welcome 3
Unpacking 3
Before Use 3
Safety Instruction 4
Operation 5
Features 5
Front Pane 6
Rear Panel 7
Precaution for RACK Installation 7
RACK Connection 8
Block Diagram 9
Specifications 10
Service and Warranty 11
Contents

SIGNAL DISTRIBUTOR
ISD-8106 3
Welcome you from management and staffs of INKEL PA.
All of the staffs here at INKEL PA have dedicated to provide excellent products of value, and we are glad
that you have purchased one of our products.
We sincerely trust that this product will provide satisfactory service, but if anything goes up you do not
satisfy completely, we will endeavor to make things right.
Welcome to INKEL PA and thank you for joining our worldwide family.
Please inspect all equipment carefully right after unpacking. If you find any damages, contact your supplier
or dealer immediately. Only a shipper may file a damage claim as a carrier for damages which have been
incurred during shipping. Be sure to keep carton boxes and other all packing materials for the carrier’s
inspection. If your packing materials are in good condition, please keep them. If you ever need to return
the unit to INKEL PA or an authorized service center, you should use only the original factory packing.
Welcome
WARNING : TO PREVENT FIRE OF ELECTRIC SHOCK HAZARD,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE
Unpacking
To insure proper use of this product, please read owner’s manual carefully and keep this manual in an
easily accessible place for future reference.
Before Use

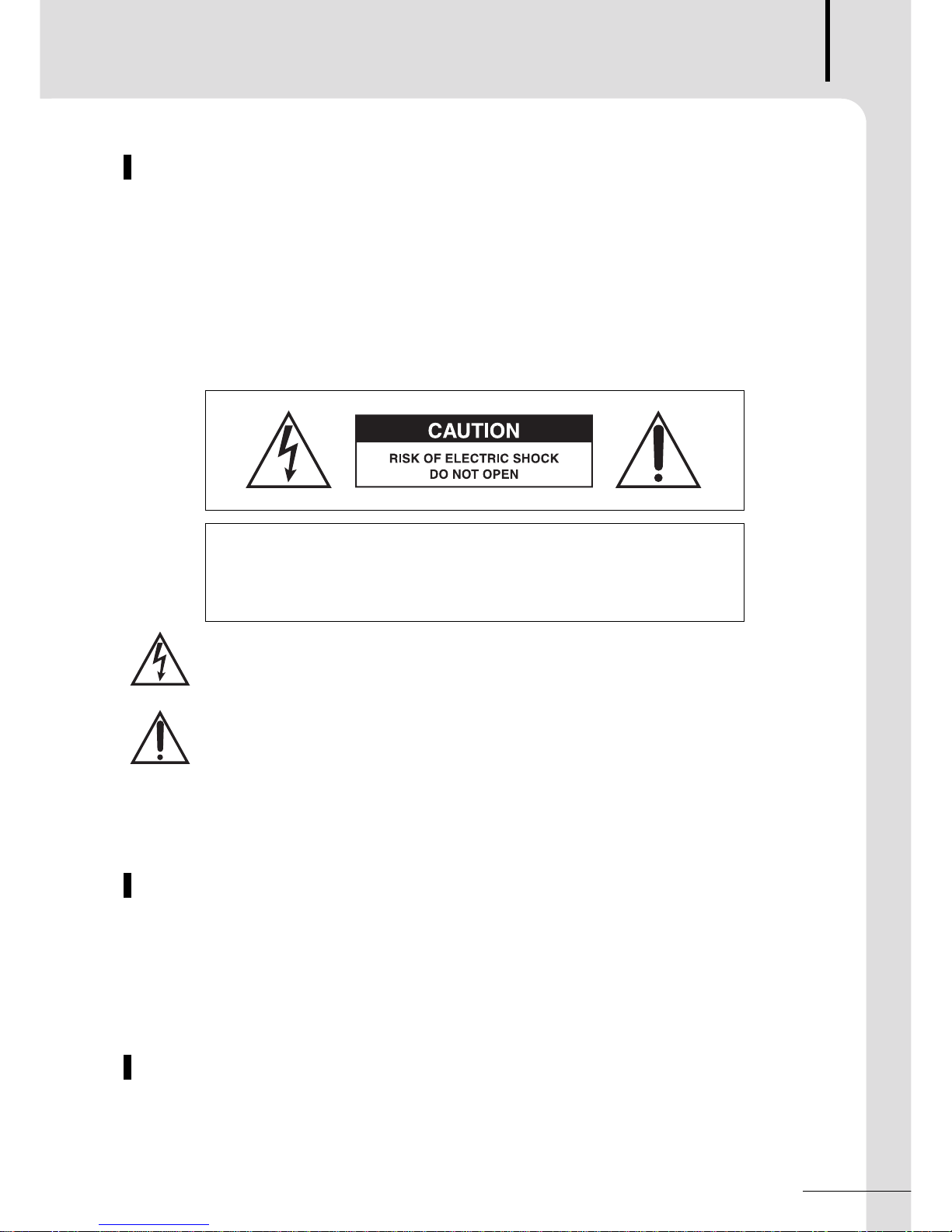

CAUTION : TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE THE COVER (OR BACK)
NO USER SERVICABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
This lightening flash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of non insulated “dangerous” voltage within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.
This exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instruction in the literature accompanying the
products.

SIGNAL DISTRIBUTOR
4ISD-8106

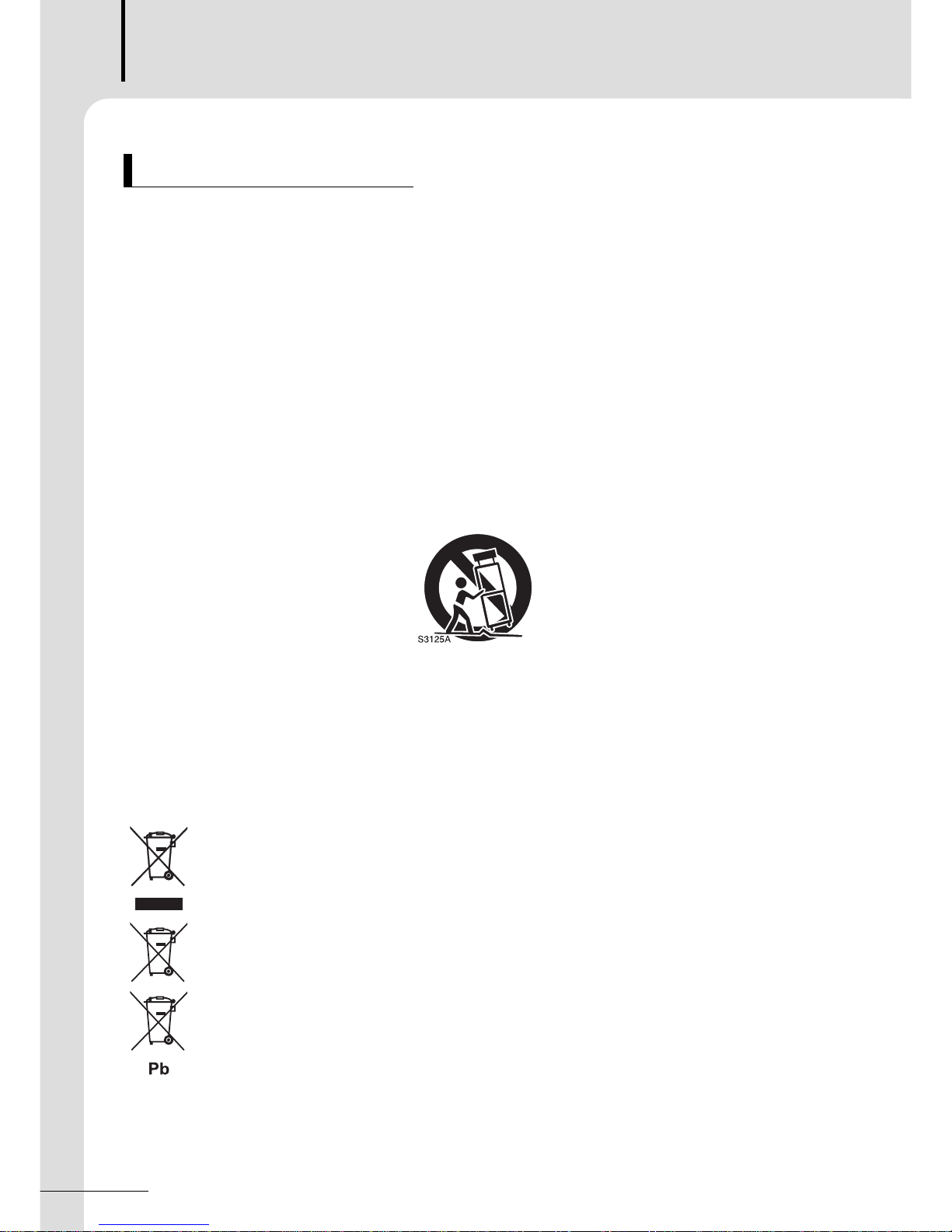

Safety Instruction
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical
and electronic products and batteries should not be mixed with general household waste.
For propertreatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation.
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise arise
from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your
local municipality, your waste diposal service or the point of sale where you purchased the items.
Information on Disposal in other Countries outside the European Union
These symbols are only valid in the European Union. If you wish to discard these items, please contact
your local authorities or dealer and ask for the correct method of diposal.
Note for the battery symbol (bottom two symbol examples):
The sign Pb below the symbol for batteries indicates that this batteries contains lead.

SIGNAL DISTRIBUTOR
ISD-8106 5
Features
* CONVENIENT AND EASY TO OPERATE
Distributes a single channel input to six outputs for signal transmission.
* EASY LEVEL ADJUSTMENT
Front-panel input and output level adjustment.
* INPUT PEAK LED
Easy checking of supplied signal statue with LED indicator.
*XLR JACK
Convenient installation by using XLR jack on in/output circuit.
Operation
1. Place all volumes on minimized before plugging in.
2. If turn the power on, then power LED is illuminated and this device starts operation.
* Note :
The system’s operation is delayed by approximately three seconds after pressing the power switch.
This is due to the built-in protection circuitry, designed to protect the speakers and other system components.

SIGNAL DISTRIBUTOR
6ISD-8106

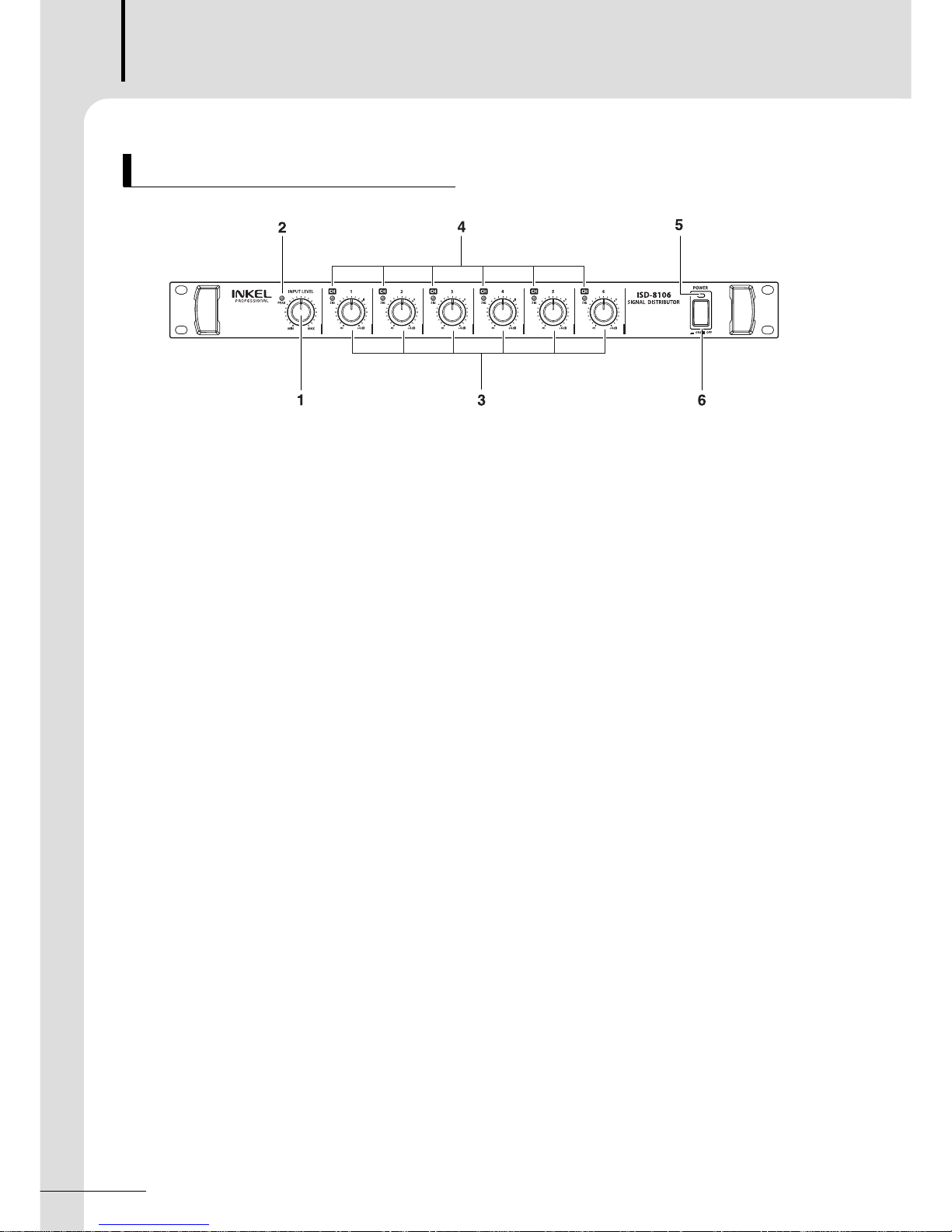

1. INPUT LEVEL CONTROL
It controls input level. If you turn it clockwise, the volume is up and if you turn it contrarily, the volume is down.
2. PEAK LED INDICATOR
If signal comes over than 4dB, the LED is illuminated.
3. OUTPUT LEVEL CONTROL
It controls output level. If you turn it clockwise, the volume is up and if you turn it contrarily, the volume is down.
4. OUTPUT SIGNAL INDICATOR
It indicates the statue of output signal and it is illuminated at over than -30dB.
5. POWER LED
This LED indicates the statue of power supply.
When power is turned on, it is illuminated.
6. POWER SWITCH
This switch supplies power to the device. If press it, power is on and if press it again, then power is off.
Front Panel

SIGNAL DISTRIBUTOR
ISD-8106 7
1. AC CONNECTOR AND FUSE HOLDER
Connect the supplied standard AC input cable to this input.
The fuse holder below the input contains the AC overload protection fuse.
If the fuse has blown out, replace it with a fuse of the same type and rating.
If the fuse continues to blow, refer servicing to a qualified service technician.
2. LINE OUTPUT JACK
It is balanced XLR line output. Be careful (+), (-) polarity when you connect it with other devices.
If use UNBALANCE out, make (-) and GND terminal SHORT.
3. LINE INPUT JACK
It is balanced XLR line input.
Use it by connecting with AUDIO MIXER or PRE-AMP line output.
4. DC INPUT TERMINAL
This terminal supplies DC power to this device. Use DC +24V and be careful about polarity of the terminal.
●Check the AC input voltage, and then install it.
●Turn off all switches of the RACK.
●Connect the DC power to DC power input terminal and check if power indicator is illuminated on the front panel.
Ex) Ensure +, - polarity when you connect the power.
Precaution for RACK Installation
Rear Panel

SIGNAL DISTRIBUTOR
8ISD-8106
RACK Connection

SIGNAL DISTRIBUTOR
ISD-8106 9

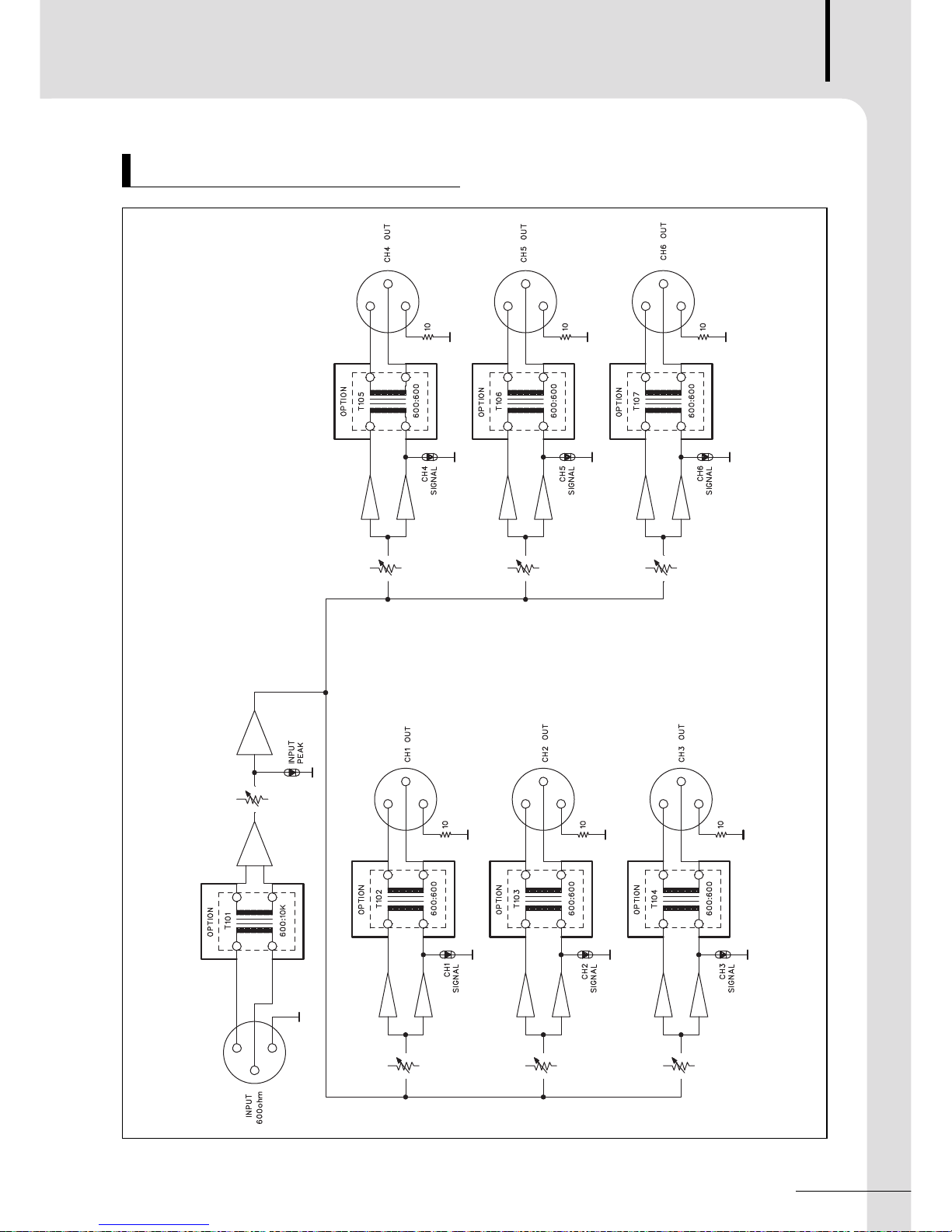

Block Diagram

SIGNAL DISTRIBUTOR
10 ISD-8106
Specifications
■■ELECTRICAL
Output Level 1V/600Ω, Balanced
Input Level 1V/600Ω, Balanced
Frequency Response 20Hz ~ 20kHz
Total Harmonic Distortion Less Than 0.1%
Signal to Noisr Ratio Better than 75dB
Operation Temperature -10℃~ +40℃
Storage Temperature -20℃~ +60℃
■GENERAL
Power Source 100-120VAC or 220-240VAC, 50/60Hz, DC +24V
(Supplied AC mains transformer depends on country requirements)
Power Consumption 10W
Weight 3.2kg
Dimensions 482(W)×44(H)×285(D)mm
※Above specifications can be changed by our situations without notice.

SIGNAL DISTRIBUTOR
ISD-8106 11
Service and Warranty
TO PURCHASE ADDITIONAL INKEL PA. GEAR AND ACCESSORIES
To purchase INKEL PA gear and optional accessories, contact any authorized INKEL PA distributor.
For a list of INKEL PA distributors please visit our website at www.inkelpa.com.
SERVICE AND REPAIR
For replacement parts, service and repairs please contact the INKEL PA distributor in your country.
INKEL PA does not release service manuals to consumers, and advice users to not attempt any self repairs, as doing so
voids all warranties.
You can locate a dealer near you at www.inkelpa.com.
WARRANTY INFORMATION
Warranty terms and conditions vary by country and may not be the same for all products.
Terms and conditions of warranty for a given product may be determined first by locating the appropriate country which
the product was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact INKEL PA directly or the authorized
INKEL PA distributor for your specific country or region.
CUSTOMER SERVICE AND TECHNICAL SUPPORT
We encourage you to visit our online help and support at http://www.inkelpa.com.
There you can find answers to frequently asked questions, tech tips, downloads, returns instruction and other helpful
information.
We make every effort to answer your questions within one business day.
