INNLED LAKO User manual
LAKO
Firmware V03
Compatible T4, T3, K3
user
guide
V1.2
2 3
thank you for purchasing an innled product
« Dedicated to supporting a French industrial ecosystem, this product
was developed and assembled by our team in our Montpellier
workshop.
Because we attach special importance to the feedback of our
customers, we invite you to contact us for any comment or suggestion.
In order for us to continue to enlighten your ideas in the best possible
way....»
INNLED Team
12 3
warranty
conditions
P5
Precautions
of use
P4
assignment
mode
P10
introduction
and overview
P6
TABLE of contents
567
usage
mode
P12
MAINTENANCE and
cleaning
P14
4
understanding
groups and ids
P8
4 5
1Precautions of use
WARNING !
Read the precautions in this manual before installing, switching on, using or
maintaining this product.
The following symbols are used to identify important security information of the
product.
Beware !
Important risk.
Beware !
Refer
to the manual before
to install, turn on
or repair the product
Beware !
Dangerous voltages. Risk
of injury
severe or even fatal
by electrication
This product is for professional use only. It is not intended for home use. It
presents risks of serious injury by burns, re, electric shock and fall from heights
if the precautions for use are not followed.
Do not install, use, or service this product unless scrupulously following the
instructions given in this manual, you could otherwise be creating a security risk
and damage that would not be not covered by the warranty.
Follow the warnings listed below and respect all warnings printed in this manual.
Keep this manual for future use.
For updates of the documentation and any information relative to this product
and the rest of the INNLED range, visit our website : www.innled.fr.
For any questions about the safe handling of this product, contact your INNLED
dealer or call for technical assistance from Monday to Friday from 9am to 6pm :
+33 9500 508 78.
Respect all local standards and regulations during the installation, when
switching the product on for the rst time.
Protection AGAINST ELECTRIC SHOCKS
Do not use the product in the rain, do not immerse in water.
> Switch off the product before carrying out installation or maintenance.
> Disconnect the power supply from the mains before carrying out installation
or maintenance.
warranty
INNLED products are intended for professional use; any use of the products in a
domestic environment is prohibited.
As part of a quality approach, INNLED reserves the right to adapt or modify the
technical characteristics of their products at any time and without notice, the
adaptations or modications then being applicable to all orders subsequent to
these adaptations or modications.
INNLED products are guaranteed for 2 years by manufacturers (electronics). The
equipment must be returned free of postage (at the customer’s expense). Any
postage due will be refused. The material must be in its original packaging. The
return of the equipment will then be our responsibility.
Excluded from the benets of the guarantee are: damage caused by fault,
negligence, lack of maintenance by the user (broken, burned, heated, wet, sandy
devices, etc.), devices already installed including the failure would come from poor
installation or use by the user.
In the case of the DMX remote control, this product has been tested before
shipping. Wiring errors during installation exclude the benet of the warranty.
Responsibility
Under no circumstances can INNLED be held responsible for any damage of any nature
whatsoever, in particular loss of operation, destruction of consumables or any other nancial
losses resulting from the use or inability to use your equipment.
2
6 7
3INTRODUCTION AND OVERVIEW

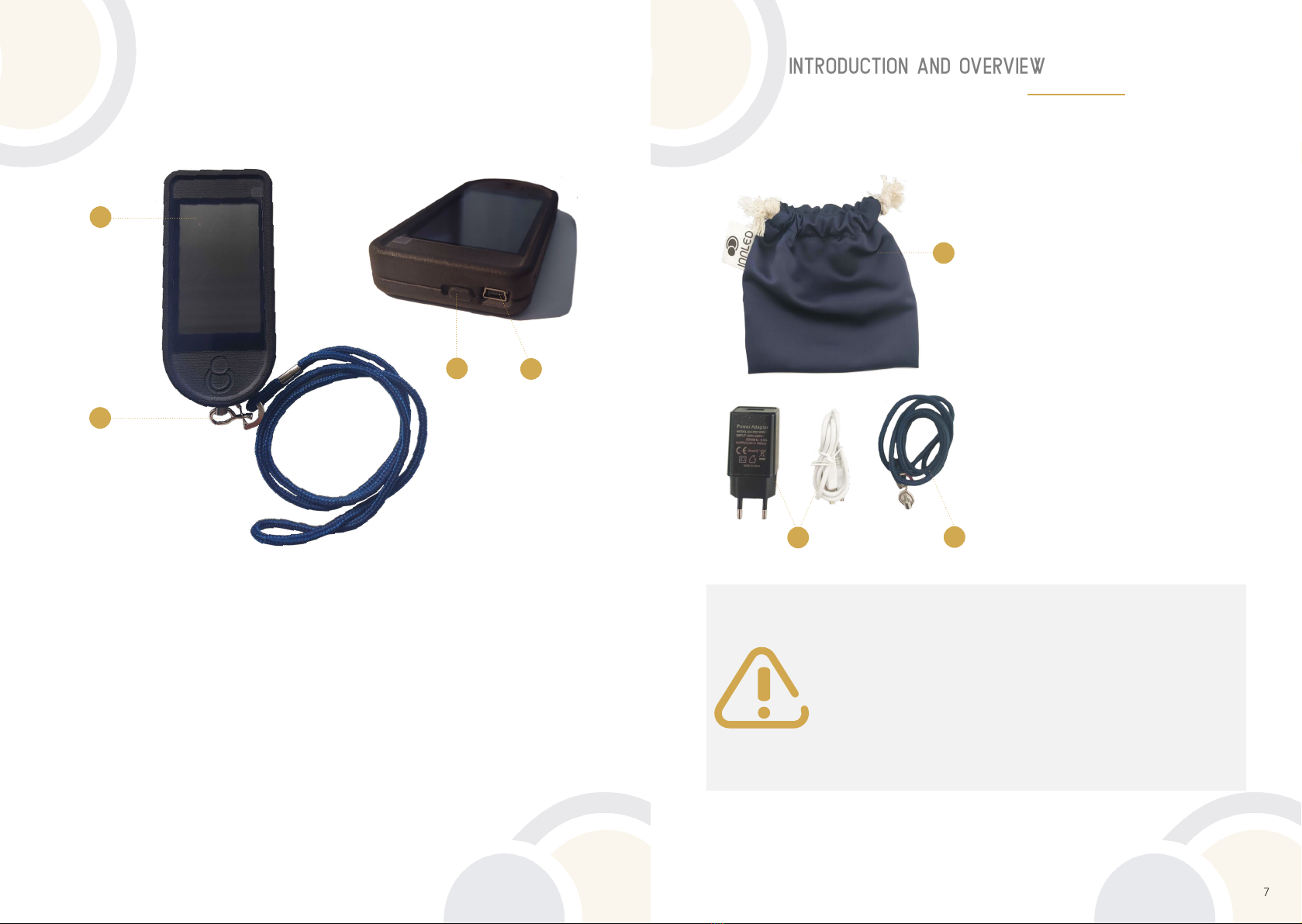

LAKO is a radio remote control that works with the
following products of the INNLED range : T4, T3
(RF option) and K3.
It comes in the form of an ergonomic PA12
polyamide case which integrates the following
elements :
• color tactile screen (1)
• micro-controller
• 2.4 GHz band transmitter / receiver
• integrated FLEX antenna
• 3.7V Li-ion battery
• mini USB port for battery charging (2)
• ON / OFF switch (3)
• ring to hold a wrist strap (4)
It comes with:
• A standard USB power supply + cable (5)
• A carrying strap (6)
• A fabric pouch (7)
INTRODUCTION AND OVERVIEW
It allows 2 very distinct uses :
• The assignment (SETTINGS) of Groups and IDs of the
INNLED products you wish to remote control.
• The use of remote-controlled features :
> choice of color (RGB) or variable white (CCT)
> brightness level - DIMMER
1
6
7
3
5
4
2
8 9
using a single lako
using multiple LAKOs
1
2
4
understanding Groups and IDs
understanding Groups and IDs
Each product of the INNLED range can be assigned to different Groups and IDs in
order to allow targeted management according to uses and location congurations.
If you wish to use multiple LAKOs in the same space to control batches of different
products, assign each LAKO to a different ID, and then assign each product batch of
to the corresponding IDs and Groups.
Group A - ID 1
Groupe A - ID 1
Group B - ID 1
Groupe A - ID 2
Group C - ID 1
Groupe A - ID 3
Group D - ID 1
Groupe A - ID 4
ID 1
> Choice :
Group A
ou Group B
ou Group C
ou Group D
As in the previous case, but each waiter
has a LAKO to manage their own buffet :
• Group A - ID 1 :
> 3 T4 masts on the buffet for starters
• Group A - ID 2 :
> 4 T4 masts on the buffet for mains
• Group A - ID 3 :
> 2 T4 masts on the buffet for desserts
• Group A - ID 4 :
> 3 T4 masts on the Bar
ID 1
Choice :
> Group A
ID 2
Choice :
> Group A
ID 3
Choice :
> Group A
ID 4
Choice :
> Group A
From the same LAKO we can control 4
different Groups (A, B, C, or D) on each ID
(1, 2, 3 or 4).
For example, these Groups make it
possible to have :
• Group A - ID 1:
> 3 T4 masts on the buffet for starters
• Group B - ID 1:
> 4 T4 masts on the buffet for mains
• Group C - ID 1:
> 2 T4 masts on the buffet for desserts
• Group D - ID 1:
> 3 T4 masts on the Bar
Thus, it will be possible to turn off or lower
the brightness of the entrance buffet when
it is no longer in use, while leaving the
others in the same state.
At the end of the evening, only the Bar will
remain lit to easily inform guests that it is
still active !
10 11
Assignment Mode (SETTINGS) of Groups and IDs
Assignment Mode (SETTINGS) of Groups and IDs
5
Choose an ID for LAKO, and a group for INNLED
products.
For example :
• LAKO ID : Press button 1 to choose ID = 1
• Device GRP : Press button A to choose Group = A
• Start a T4 mast by pressing the ON/OFF button
of the T4
• The T4 is now assigned to ID = 1 and Group = A
WARNING
Thus, the LAKO is in Assignment mode and any
INNLED product that starts up is assigned to the
chosen ID and Group.
Once all INNLED products have been assigned,
simply exit Assignment mode by pressing the
RETURN arrow at the top left of the LAKO screen.
Then restart the INNLED products.
The LAKO keeps the ID chosen in the SETTINGS
mode, this means that this LAKO will only be able to
control the INNLED products assigned to this ID.
This ID is visible in USAGE mode at the bottom right
of the screen
ID : 1 for example (see next chapter)

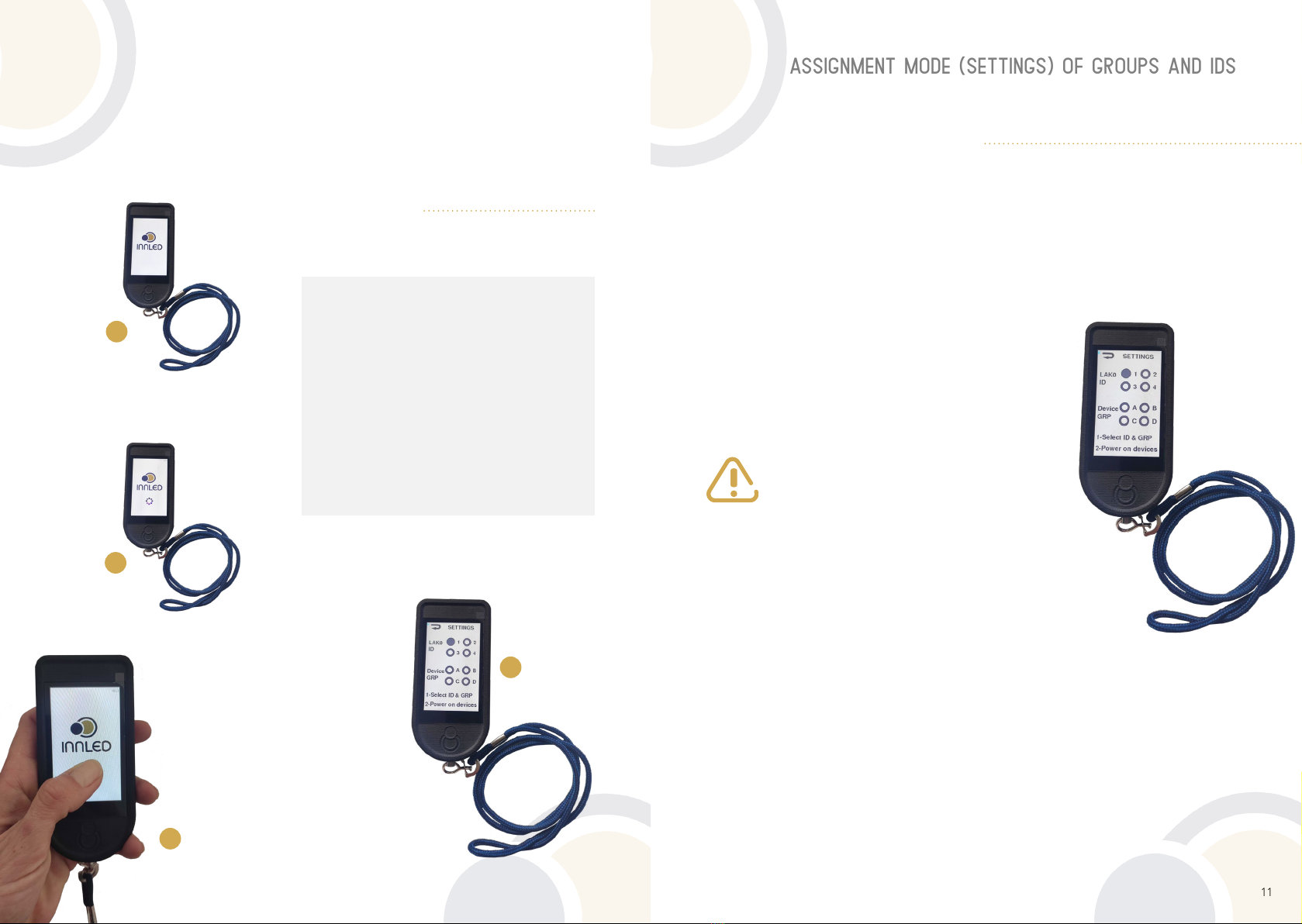

settings
SETTINGS page
• Operate the ON / OFF switch on
the top of the LAKO to switch the
remote control on (1)
• Wait for the loading wheel to
appear (2)
• Press long on the loading wheel (3)
• The SETTINGS page appears
shortly after (4)
• Manœuvrer l’interrupteur ON / OFF
sur le dessus de la LAKO pour la mise en
route de la télécommande (1)
• Attendre de voir apparaitre la roue de
progression (2)
• Appuyer sur la roue de progression (3)
• Afchage de la page d’assignation
(SETTINGS) (4)
steps
Switch on
the LAKO
Display of the
loading wheel
Press long on the loading wheel
1
2
3
SETTINGS Page
4
To enter the SETTINGS mode, press on the loading wheel (under the INNLED logo)
while the LAKO is switching on.
12 13
usage
6usage mode
To use the LAKO, simply turn it on by operating the ON /OFF switch located on the
top of the remote control.
WARNING : Remote-controllable INNLED products detect the remote control during
their start-up phase, it is therefore imperative that the LAKO is switched on BEFORE
switching on the product to be remote-controlled.
After starting the LAKO, the control screen is then displayed, with the following
elements :
• Button for selecting the Group to control (1)
• Brightness control slider - DIMMER (2)
• White or color temperature preselection buttons (3)
• CCT or RGB preset selection button (4)
• CCT or RGB color wheel selection button (5)
• CCT or RGB mode display (6)
• Display of the % charge of the LAKO battery (7)
• ID on which the LAKO is programmed (8)
remote controlling
To remote control an INNLED product group, use the Group button (1) to choose the
Group to control then act on the desired functions (color, dimmer, etc.)
To change the ID of the LAKO, you must restart the LAKO, press the loading wheel
to enter the Assignment (SETTINGS) mode.
Then simply choose the ID by pressing the desired button (1 to 4).
Return to USAGE mode by pressing the RETURN arrow.
BEWARE
If you press the Selected Group button again, then there is no longer any group
selected (9) and in this case only the DIMMER (10) will act on all groups simultaneously
(A, B, C and D) .
1
2
6
3
4
5
7
8
9
10
14 15
innled
Monday to Friday - 9am to 6pm
360 Avenue des Compagnons
34170 Castelnau-le-lez
FRANCE
+339 500 508 78
Read the Precautions for use on page 4 before any maintenance operation.
Refer any maintenance not described here in this manual to a qualied
service technician.
Disconnect the appliance from the mains before cleaning or carrying out
maintenance.
Carry out maintenance in an area where there is no risk of falling of
components, tools or any other material.
Excess dust, smoke uid and particle aggregates degrade performance and cause
overheating which can damage the device. This damage caused by improper
cleaning or insufcient maintenance is not covered by the product warranty.
1. repairs
There are no user-serviceable components inside the device. Do not open the
different modules of the product.
Do not attempt to repair the device yourself as this may result in a safety hazard or
damage that is not covered by the warranty. Any other intervention must be carried
out by INNLED after-sales service or an approved distributor.
2. cleaning
Do not use heavy pressure for cleaning. Work in a clean, well-lit area.
Do not use any product containing solvents or abrasive agents which could
damage the surfaces.
To clean the device :
Make sure the device is turned off.
Clean the surfaces with a microber cloth dampened with a little window cleaning
solution. Rub gently.
Clean the screen with a soft, clean, lint-free cloth dampened with a little light
detergent solution.
Do not scrub the surfaces too harshly. Dry with a soft, clean, lint-free cloth or
low-pressure compressed air. Remove stuck particles with a wipe.
Check that the appliance is completely dry before switching it on again.
Recycling of end-of-life products
INNLED products are supplied in compliance with Directive 20012/19/EC of the
European Parliament and the Council of the European Union on the Reprocessing of
Electrical and Electronic Equipment (WEEE) where applicable. Help save the environment
by ensuring this product will be recycled! Contact us to nd out about local recycling
provisions for our products.
7maintenance et nettoyage
16
revealing senses
www.innled.fr
360 avenue des Compagnons
34170 Castelnau-le-Lez
FRANCE
Table of contents
