Precautions
Keep the monitor away from water sources or damp places, such as bath rooms, kitchens,
basements and swimming pools.
Make sure the monitor is placed on a flat surface. If the monitor falls down, it may cause human
injury or device damage.
Store and use the monitor in a cool, dry and well ventilated place, and keep it away from emission
and heat sources.
Do not cover or block the vent hole in the rear casing, and do not use the product on a bed,sofa,
blanket or similar objects.
The range of the supply voltage of the monitor is printed on the label on the rear casing.If it is
impossible to determine the supply voltage, please consult the distributor or local power
company.
If the monitor will not be used for a long period, please cut off the power supply to avoid electric
shock in rainy days and damage due to abnormal supply voltage.
Please use a reliable grounded socket,Do not overload the socket, or it may cause fire or electric
shock.
Do not put foreign matters into the monitor, or it may cause short circuits resulting fire or electric
shock.
Do not disassemble or repair this product by self to avoid electric shock. If faults occur, please
contact the after-sales service directly.
Do not pull or twist the power cable forcedly.
There is a polarizer layer (not a protective film) on the surface of the screen. Do not peel it off, or
the product may be damaged and the warranty will be invalid.

English
[email protected]
2
2
Package Content
Packing list
Please check that the package of the monitor contains all parts. If any part is lost, please contact
the distributor.
The color and shape of parts may vary with models. Figures in this User Manual are for reference only.
Cables supplied may vary with purchased products. Figures in this User Manual are for reference only.
Display screen Stand Base
ScrewdriverPower AdapterDP Cable
QSG
25G1G
Quick Installation Guide
使用产品前请仔细阅读本说明书，并妥善保管
Beforeusing this product, please read this User Manual carefully and keep it well
本製品をご使用になる前に、本ユーザーマニュアルをよくお読みになり、大切に保管してください
Veuillez,avant d'utiliser ce produit, lire attentivement ce manuel et le conserver en lieu sûr
LesenSie vor Verwendung dieses Produkts sorgfältig die Bedienungsanleitung und bewahren Sie sie gut auf
3pcs screws PM4*8mm3pcs screws KM4*8mm
Warranty Card
Need Help? We are here!
Contact Us
service@innocn. com
Home Page
www.innocn.com
We are fully dedicated to your 100 %satisfact ion.
Please do not return this product back to the store directly. We are alwa ys
here to help! Innocn provide s 1 Year Warranty.If you have any questio ns using
the product, please contact o ur surpport team.We will resolve yo ur problem
over online chat or e mail, provice replacement pro duct or warranty repair.

English
[email protected]
3
Installation of base
Installation
Note: During standing of the monitor, do not take out the monitor from foams, and do not pinch
the liquid crystal screen with hand to avoid damage to the screen.

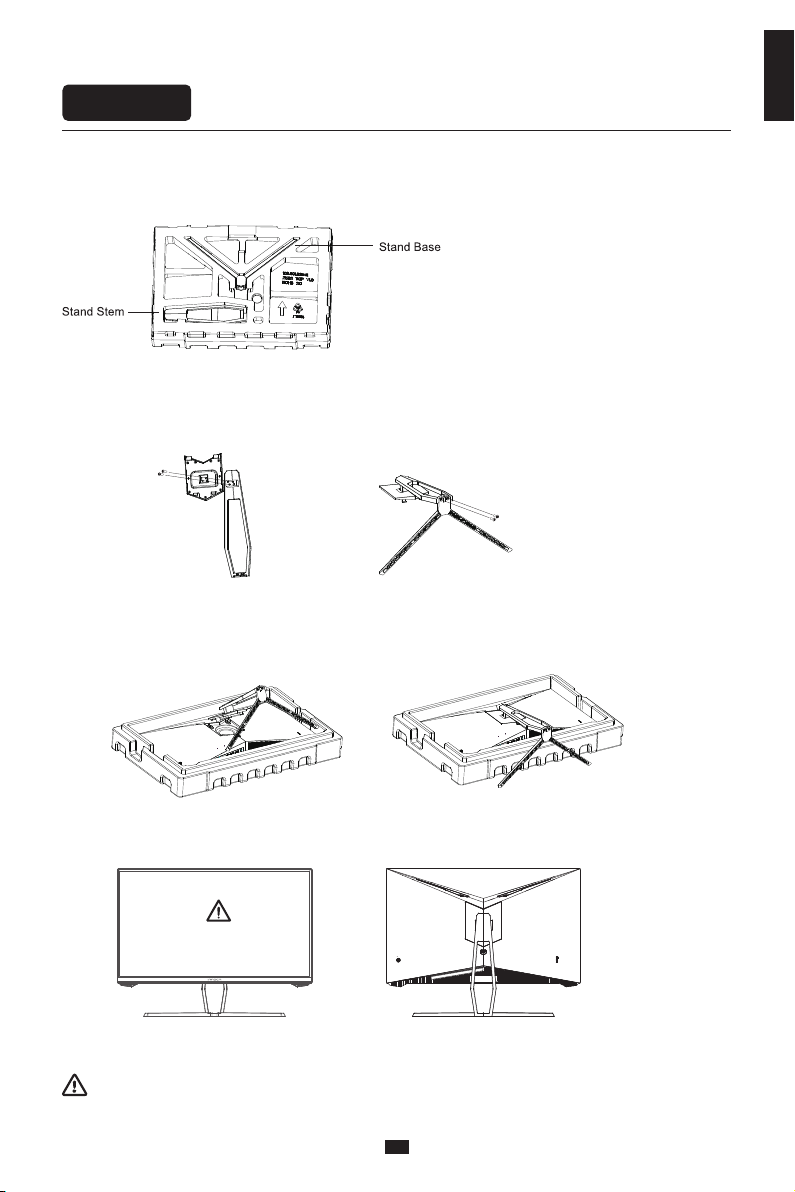

1.Open the package,take out the product with foam still attached,and gently place it on a desktop or
table.
3.Buckle the assembled bracket chassis on the whole machine(insert the upper part and press down).
If you want to remove the bracket chassis,pull down the button on the rear shell to remove the
bracket chassis.
4.Place the monitor on your desktop or table after completing installation.
2.Take out the shaft assembly,bracket and base,use two pm4x8 blue zinc plated acrews to lock the
shaft assembly and bracket,and then use two km4x8 black zinc plated screws to lock the bracket
and base.
Do not press the LCD
PM4*8x2
KM4*8x2

English
[email protected]
4
Wall mounting

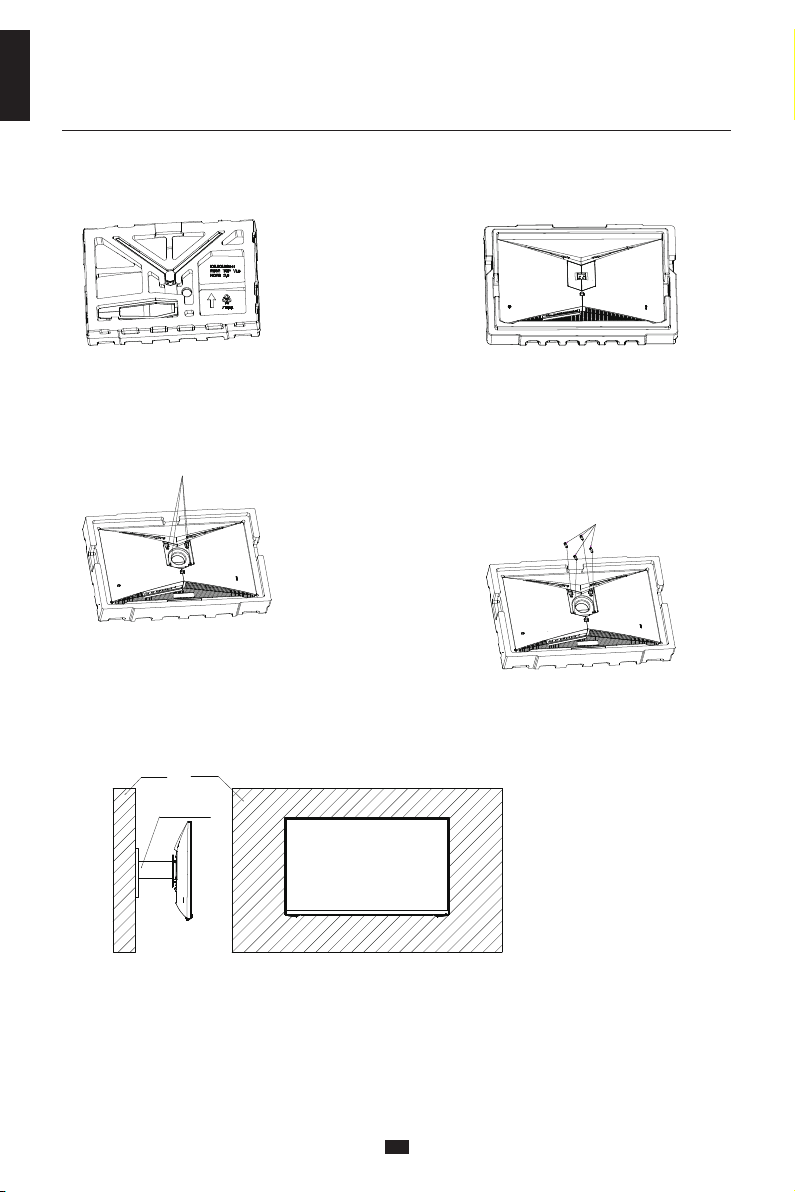

1. Remove the whole machine (Polygon together)
and place it on a horizontal table.
2. Remove the pivot bracket.
3. The back shell on this location 4 silk removed.
Remove the 4 screws from this position
4. Screw the 4 hexagonal studs of the attachment
in this position, for transferring to the
wall-mounted rack. (This machine does not
come with a wall bracket, you have to buy it
separately. Standard VESA hole 75*75mm)
Screw the attached 4 hexagonal
studs in this position
Wall
Wall Mount
Bracket
Wall
5. Assembled products can be wall-mounted, hanging products in the process, please do not use
your hands directly pinch the screen to prevent broken screen.

English
[email protected]
5
Instructions for use

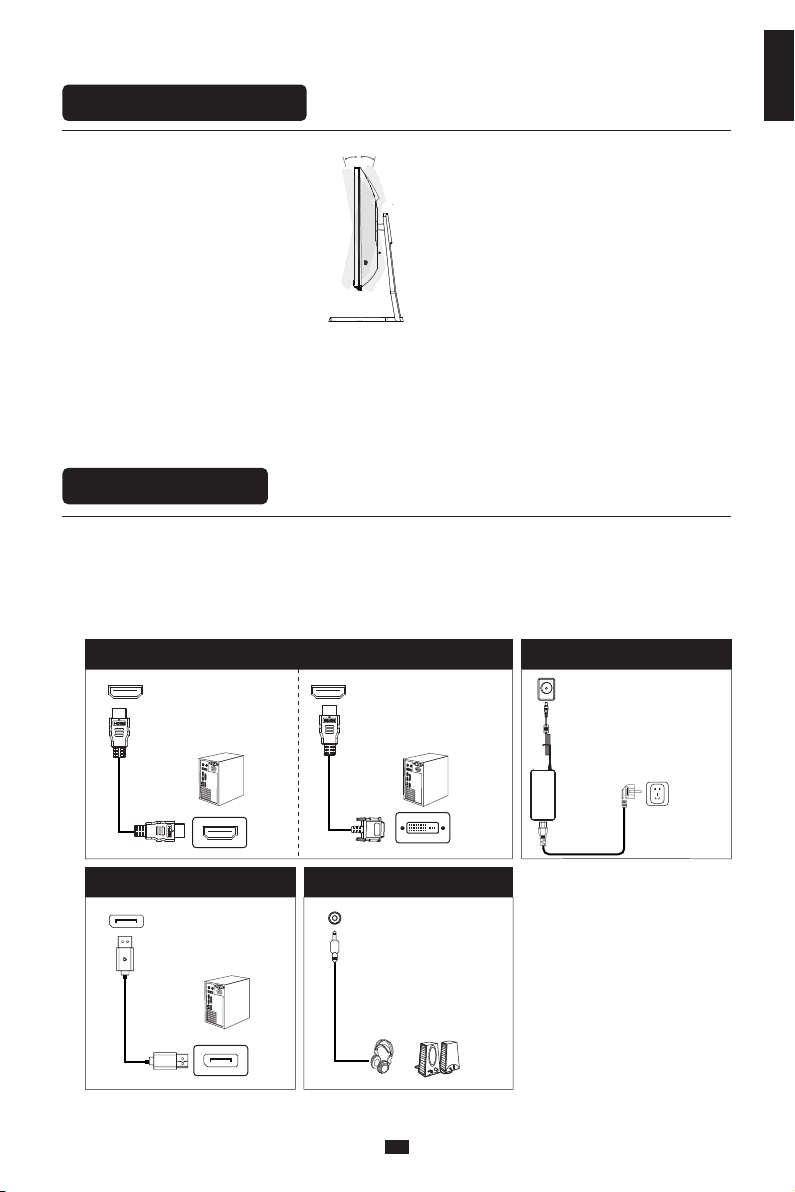

Cable connection：
* The bottom interface configuration at the back of the monitor varies with products.
* Note: If the power cable or signal cable is damaged, you must replace it with special soft cables or
special components purchased from the manufacture or maintenance department.
OR
AUDIO OUT
Connect audio outputting
devices such as earphones
to the AUDIO OUT port.
DP interface
Use the DP cable to
connect the DP IN port of
the product to the DP
OUT port of a PC.
HDMI interface
Use the HDMI-DVI cable
(not included) to connect
the HDMI IN port of the
product to the DVI OUT
port of a PC.
Use the HDMI cable to
connect the HDMI IN port
of the product to the
HDMI OUT port of a PC
DC IN port
Please connect the power adap-
ter to the power cord,connect
the power adapter plug to the
corresponding power port of
the monitor, and then connect
the power cord to a properly
grounded power socket.
-5° 20°
Tilting angle
-5.0°- +20°
Adjustment of monitor

English
[email protected]
6
Instructions for use
Description of buttons
Explanation of indicator light
1 2 3 4 5
6
6. Solid blue light indicates power is on and the monitor is operating normally. Flashing blue light
indicates no video source , no horizontal or vertical signal has been detected or power is low.
Please ensure your computer is on and all video cables are fully inserted and / or connected.
Button Function
1
2
3
4
5
Press Rocker up: Select upwards/plus. Light effect switch shortcut button.
Power Button: Turn monitor off/on.
Press Rocker to the right: Main Menu / Ok.
Press Rocker down: Select downwards/minus. Crosshair shortcut button.
Press Rocker to the left: Exit / return.

English
[email protected]
7
OSD menu
Menu description
The color and shape of the OSD menu of the actual computer may be slightly different from them
shown in the figure.
Specifications of the OSD menu may change with improvements of functions without prior notice.
The screen display (OSD) menu can be used to adjust settings of the monitor and is shown on the
screen after the monitor is powered on and the button is pressed.
1. Press one of the buttons ( ) to activate the browser screen.
When booting for the first time, you need to set the default language of the monitor menu.
Press buttons ( ) to select the language to be set, and press the OK right( ) to confirm.
Please select the default language
请选择默认语言
简体中文
ENGLISH
DEUTSCH
ITALIANO
한국어
日本語
TURKCE
POLSKI
NEOERLANDS
1
2
3
1 Light effect switch shortcut button
2 Turn off/on the monitor
3 Exit
4 Crosshair shortcut button
5 Main Menu
4
5

English
[email protected]
8
3. Press or to scroll through the functions.
- Select the desired function, and press to enter the sub-menu.
- Press or to scroll through sub-menus, and press key to select and confirm the desired function.
- Press or to select one option, and press to confirm settings and exit from the current menu.
4. Press to exit from the menu screen
2. Press to enter the OSD screen.
Functions of the monitor vary with models, and the functions in this manual are for reference only
BRIGHTNESS
BRIGHTNESS 0 - 100
0 - 100
STANDARD/TEXT/GAME/MOVIE/FPS/RTS
ON/OFF
CONTRAST
ECO
DCR

English
[email protected]
9
Functions of the monitor vary with models, and the functions in this manual are for reference only
H. POSITION
V. POSITION
CLOCK
PHASE
ASPECT
0-100
0-100
0-100
0-100
WIDE /4:3/AUTO
COLOR TEMP.
LANGUAGE
OSD H. POS.
OSD V. POS.
OSD TIMER
TRANSPARENCY
COLOR TEMP. WARM/COOL/USER
ENGLISH/FRANÇAIS/DEUTSCH/简体中文/ITALIANO/
ESPAÑOL/PORTUGUÊS/TURKCE/POLSKI/NEDERLANDS/
РУССКИЙ/한국/日本語
0-100
0-100
0-60
0-100
IMAGE AUTO ADJUST
COLOR AUTO ADJUST
RESET
MPRT OFF/ON
OSD SETTING
SIGNAL SOURCE
VOLUME
LOW BLUE RAY
ADAPTIVE-SYNC
OVER DRIVER
LED EFFECT
RESET
MISC
0 - 100
0-100
ON/OFF
OFF/HIGH/MIDDLE/LOW
NORMAL/FLICKER/OFF
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
(2) this device must accept any interference received, including interference that may cause undesired
operation.
CAN ICES-3 (B)/NMB-3(B)
HDMI1/HDMI2/DP

English
[email protected]
10
LCD Monitor
25S2G
25G1G
25
inch (62.23cm)
16:9
178°(H)/178°(V)
0.2832(H)*0.2802(V)mm
3000:1(TYP)
16.7M
1920 x 1080
165Hz
DC 12V 3.0A
The standard voltage and power supply may vary with countries,
please refer to the label at the back of the product.
556.4x338.7x70.8mm approx. 3.40kg
556.4x423.8x204.4mm
approx. 4.05kg
Forward tilting -5°/ Backward tilting +20°
N/A
N/A
N/A
Temperature ：0℃~40℃（32℉~104℉）
Humidity ：10%~90% RH（ non-condensing ）
Temperature ：-20℃~60℃（-4℉~140℉）
Humidity ：5%~95% RH（ non-condensing ）
Without base
With base
Action
Storage
Product Name
Product Model
Product Code
Screen Size
Aspect Ratio
Viewing Angle
Pixel pitch
Contrast ratio
Color
Resolution
Refresh Rate
Power Input
Product
Dimentions
(with Height range)
Tilting angle
Height range
Rotation angle
Vertical angle
Environmental
conditions

English
Common troubleshooting
Common Symptoms Possible Solutions
The following table contains general information about common monitor problems you might encounter
and the possible solutions.
• Ensure that the video cable connecting the monitor and the computer is properly connected
and secure.
• Make sure if the operating system had entered hibernation, sleep or power-save mode. Press
any key (Enter key / Power key) or move the mouse to wake it up.
• Check for bent or broken pins in the video cable connector.
• Ensure that the correct input source is selected in the Input Source menu.
• Replace other identical signal cable (HDMI / DisplayPort) to take cross-test.
No display after turning monitor
ON (screen is black but power s
upply lights is ON)
• Verify that the power outlet is functioning properly using any other electrical equipment.
• Make sure the power button on the front panel is normal for boot and pressed fully.
• Check for bent or broken pins in the video cable connector.
No display after turning monitor
ON (not boot, black screen & no
power lights)
• Eliminate video extension cables.
• Reset the monitor to factory settings.
• Change the video resolution to the correct resolution and aspect ratio.
• If the words are still blurry, please try enabling or disabling CLEAR TYPE function from windows
Poor Focus. Picture is fuzzy,
blurry, or ghosting
• Cycle power On-Off.
• Pixel that is permanently Off is a natural defect that can occur in LCD technology.
• For more information on Dell Monitor Quality and Pixel Policy, see INNOCN Support site
at: http://www.innocn.com
Missing Pixels. LCD screen has
spots
• Do not perform any troubleshooting steps.
• Contact INNOCN immediately.
Safety Related Issues
(Visible signs of smoke or sparks)
• Check the resolution setting in your PC
• Reset the monitor to factory settings.
• Make sure the device was not set to “Care Eyes mode”
• Check here: OSD→Picture Setting→Contextual mode→Care Eyes mode
• Press only one key at a time.
• Restart the computer
• Make sure to have a valid video signal going through the monitor before
you can turn on the OSD
• Make sure the “contextual mode”is OFF before setting brightness and contrast ratio.
• Check here: OSD→Picture Setting→Contextual mode→off
The screen appears yellow
Control panel keys do not work
I cannot adjust the brightness/
contrast ratio through OSD
• Make sure your video card supports that feature.
• Also make sure you are using DisplayPort to connect from your computer to your monitor.
• Not every computer/phone ‘s USB Type-C port will support video out signals. Please check
your cable and your computer/phone to make sure those will support a video signal.our monitor.
• Check to see if you plugged a USB-B uplink cable(included in the package) from your computer
to the monitor’s USB-B port. Without an uplink cable to the computer, the USB ports on the back
of the monitor will not work.
• Check that your monitor is turned On.
• Reconnect the uplink cable to your computer.
• Reconnect the USB peripherals(downstream connector).
• Switch Off and then turn On the monitor again.
• Reboot the computer.
• Some USB devices like external portable HDD require higher electric current; connect the device
directly to the computer system.
I cannot get higher refresh rate
on my monitor
After plugged in USB Type-C
from computer to monitor,
there is no video
USB interface is not working
• Check the Aspect Ratio setting in the Display menu OSD.Image is centered on screen, but
does not fill entire viewing area

[email protected]
11
Warranty Information
1. What is covered in your warranty?
2. Contact us
3. This Warranty is not applicable:
1.The product is not purchased from an Authorized Innocn dealer.
2.The product is not used according to instructions given in the instruction manual.
3.Defects caused by improper use as determined by company personnel.
4.Modification or alteration of any nature is made in the electrical circuitry / or physical construction of
the set.
5.Installation / repair work is carried out by persons / agency other than authorized by the company.
6.The original serial number is removed, obliterated or altered from the machine or cabinet.
7.Accidents, Acts of God, lightning, water, fire, public disturbances, improper ventilation, voltage
fluctuations or any cause beyond the control of Innocn.
Item
Monitor
Warranty term
1 Year
Service Email
Service Website
[email protected]
http://www.innocn.com
Contact us
Thank you for choosing Innocn®!
We hope the Innocn®product you purchased will serve you well. To ensure safety and trouble-free
operation of your device, please read the user guide carefully and keep it for future needs.
Please email us for customer service & technical support at [email protected].
We recommend you go online to our homepage for the most up-to-date guidance for your product.
registering Innocn membership; refering to warranty information.
http://www.innocn.com
English

简体中文
1
2
3
目 录
注意事项
产品介绍
安装
调整显示
使用
OSD菜单
基本参数
德国莱因 TÜV Low Blue Light (低蓝光) 认证
常见故障排查
保修说明
联系我们
5
10
7
10
11
12
12
5

简体中文
注意事项
请勿靠近水源或潮湿的地方，如浴室、厨房、地下室、游泳池等。
确保设备安装放置在平稳处，若掉落，可能产生人身伤害或设备损坏。
在阴凉、干燥、通风处存放、使用，请勿靠近辐射源和热源。
请勿覆盖、堵塞后壳上的通风孔，请勿置于床、沙发、毛毯或类似物体表面使用。
设备操作的电源电压范围标示于后壳标签上。若不能确认所供应的电压，可洽询经销商或当地的电力公司。
当设备长期不使用，请切断电源，防止在雷雨天受到电击以及异常电源电压的损伤。
请使用可靠接地插座，勿让插座过载，否则会引起火灾或电击。
请勿把异物放入机内，否则可能会引起短路而导致火灾或电击。
请勿自行拆卸，维修本产品，以免发生电击危险，若有故障，请直接与售后服务人员联系。
请勿过度拉扯、扭曲电源线。
屏幕表面附有一层偏光片（非保护膜），请勿撕除，否则会损坏产品且无法保修。
1

简体中文
包装清单
请检查所有物品是否包含在您的显示器包装中，如有丢失配件，请联系您的经销商。
显示器主机 支架 底座
配件的颜色和形状可能随型号的不同而有所变化，具体以您收到的实物为准。
根据所购产品的不同，提供的线材可能会有所不同，具体以收到的实际线材为准。
产品介绍
2
2
螺丝刀适配器DP信号线
简易说明书
25G1G
Quick Installation Guide
使用产品前请仔细阅读本说明书，并妥善保管
Beforeusing this product, please read this User Manual carefully and keep it well
本製品をご使用になる前に、本ユーザーマニュアルをよくお読みになり、大切に保管してください
Veuillez,avant d'utiliser ce produit, lire attentivement ce manuel et le conserver en lieu sûr
LesenSie vor Verwendung dieses Produkts sorgfältig die Bedienungsanleitung und bewahren Sie sie gut auf
3颗螺丝 PM4*8mm3颗螺丝 KM4*8mm

简体中文
底座安装
安 装
禁止按压液晶显示屏
注意：整机在立起的过程中请勿用手直接按住液晶屏幕，防止破屏。
底座安装
安 装
1.取出整机（保丽龙一起）放置水平桌面上。
3.把装配好的支架底盘扣在整机上（上部插进去，往下压），如果要拆下支架底盘，就把后壳上的按钮往下拔，
就可以拆下支架底盘。
4.把装配好的整机可以立在桌面上。
2.取出转轴组件，支架和底座，用2颗PM4x8镀蓝锌螺丝锁紧转轴组件与支架，再用2颗KM4x8镀黑锌螺丝锁
紧支架和底座。
底座
支架
3
PM4*8x2
KM4*8x2

简体中文
4
壁挂安装
1.取出整机（保丽龙一起）放置水平桌面上。 2.取出转轴支架。
3.把后壳上此位置4颗丝拆下来。
把此位置4颗螺丝拆下来
4.把附件4颗六角螺柱拧在此位置，用于转接在壁挂
架上。（此机不带壁挂架，要另外购买，
标准VESA孔75*75mm）
把附件4颗六角螺柱拧在此位置
墙壁
壁挂
支架
墙壁
5.组装好的产品就可以进行壁挂，挂产品过程中请勿用手直接捏屏幕，防止破屏。

简体中文
5
线缆连接：
* 显示器背面的底部接口配置根据产品不同而异。
* 注意：如果电源线或信号线损坏，必须用专用软线或从其制造商或维修部买到的专用组件来更换。
使用HDMI信号线，将产品的
HDMI IN接口连接到PC的
HDMI OUT 接口。
使用HDMI-DVI信号线，将产
品的HDMI IN接口连接到PC的
DVI OUT接口。
HDMI接口
将耳机等音频输出设备
连接到AUDIO OUT接口。
AUDIO OUT
OR
将耳机等音频输出设备
连接到AUDIO OUT接口。
AUDIO OUT
OR
使用DP信号线，将产品
的DP IN接口连接到PC
的DP OUT 接口。
DP接口
使用DP信号线，将产品
的DP IN接口连接到PC
的DP OUT 接口。
DP接口
使 用
DC IN接口
请将电源适配器与电源线连接
起来，电源适配器插头连接到
显示器对应电源接口上，再将
电源线连接到正确接地的电源
插座。
倾斜角度
-5.0°- +20°
调整显示
-5° 20°
