Innovate EI6153 User manual
Model: EI6153
TV Wall Mount
Instruction Manual V1.0
Thank you for choosing this ERGO-INNOVATE product! At ERGO-INNOVATE
we strive to provide you with the best quality products and services in the
industry. Should you have any issues, please don't hesitate to contact at
[email protected](US/CA)
Solid Concrete
or Concrete Block
CAUTION
DO NOT
install into
drywall alone Wood Studs
(with Drywall)
If you are not sure the wall
construction, please contact
our product support line at
• Please carefully read all instructions before attempting installation. If you
do not understand the instructions or have any concerns or questions, please
CAUTION: Avoid potential personal injuries and property damage!
• Do not use this product for any purpose that is not explicitly specified in
this manual. Do not exceed weight capacity. We are not liable for damage or
injury caused by improper mounting, incorrect assembly or inappropriate use.
• This product is designed for use in wood stud, solid concrete, concrete
block and brick walls - DO NOT install into drywall alone.
• The wall must be capable of supporting five times the weight of the TV and
mount combined.
Minimum VESA pattern: 75mm/3 in.(W)x75mm/3 in.(H)
MAX:400mm/
15.7
in.
MAX:400mm/15.7 in.

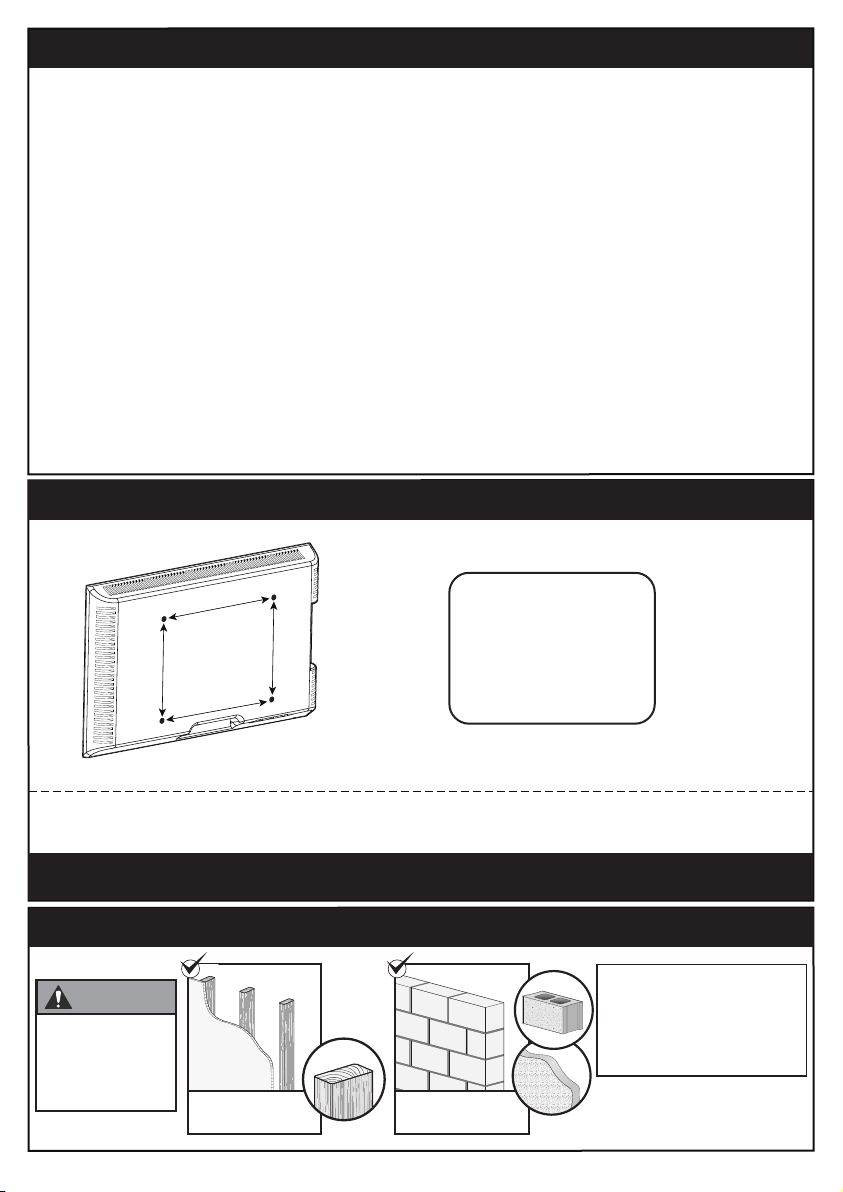

Check the VESA Pattern of Your TV before the Installation
IMPORTANT SAFETY INFORMATION
If your TV VESA is greater than 400x400 mm/16x16 in. or less than VESA
75x75mm/3x3in., this mount is NOT compatible.
If this mount is NOT compatible, please contact customer service at
[email protected] to find a compatible mount.
Verify Your Wall Construction
100 mm ≈ 4 in
75 mm ≈ 3 in
200 mm ≈ 8 in
300 mm ≈ 12 in
400 mm ≈ 16 in
01
Hammer
3/8 in.(10mm)
Concrete Drill
Warning: This product contains small items that could be a choking hazard if
swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not
use damaged or defective parts. lf you require replacement parts, contact our
• Please note: Not all hardware included in this package will be used.
Awl
Stud Finder Tape Measure Pencil Drill
5/32 in.(4 mm)
Wood Drill
3/8in.(10mm)
Socket Wrench Phillips
Tools Needed (Not lncluded)
Supplied Parts and Hardware
Supplied Parts and Hardware for Step 1
02 x1
Faceplate
06 x4
Extender Bracket
Spacers
[If needed]Washer [If needed]
[C1] x4
φ8.5x18x2.5mm
[C2] x4
φ8.5x18x22mm
Note: The washer and spacer are shown in accordance with the actual size
03 04
[B] x4
M4/M6
Screwdriver
Nut
H (x4)
Bolt
G (x4)
02
Wall
Anchor
φ10x50mm
x3
A2
This anchor is for
concrete or brick walls
ONLY. DO NOT use them
in drywall or wood studs.
CAUTION!
M4 x 30mm
[D] x4
M6 x 15mm
[E1] x4
M6 x 35mm
[E2] x4
M8 x 15mm
[F1] x4
M8 x 35mm
[F2] x4
M6
M4
M8
[Only one bolt size fits your TV]
TV Bolts
Note: The bolts are shown in accordance with the actual size
05
Level x1
Arm Assembly/Wall Plate
01 x1
Supplied Part and Hardware for Step 2
Note: The lag screw is shown in accordance with the actual size
Lag Screw
ST6.3x60mm
x3
A1
06
G
03
Step 1 Secure the Faceplate(or Faceplate with Extender
Brackets) to TV
For VESA hole pattern:
3x3 in.(75mmx75mm)
4x4 in.(100x100mm)
8x8 in.(200x200mm)
For VESA hole pattern:
12x12 in.(300x300mm)
16x16 in.(400x400mm)
For VESA hole pattern:
12x8 in.(300x200mm)
16x8 in.(400x200mm)
8in.(200mm)
16in.(400mm)
12in.(300mm)
16in.(400mm)
12in.(300mm)
16in.(400mm)
12in.(300mm)
8in.(200mm)
4in.(100mm)
3in.(75mm)
8in.(200mm)
4in.(100mm)
3in.(75mm)
1-1 Choose the combination that applies to your VESA
Attach the extender brackets to faceplate using 4 pcs bolts [G] and 4 pcs nuts
[H] for pattern [B and C].
06
02
06
02
H
G
H
3/8in.(10mm)
Socket Wrench
(Not lncluded)
Make sure the bump part
touches the faceplate
04
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Too Short Too Long Correct Correct
1-2 Select TV Bolts
M6
M4 M8
Only one bolt size fits your TV.
CAUTION: Ensure the
faceplate [02](or faceplate [02]
with extender brackets [06]) is
EQUALLY CENTERED on your TV
and securely fastened in place.
Please note: The bolt hole
locations on your TV may vary in
accordance of the manufacturers
design of the TV. We are only
illustrating possible locations of
the bolt holes.
Please Note:
When using the spacers it is important to note that they can be used in
multi-layers (meaning stacked). If you have any difficulty understanding how to
install the TV bolts or spacers, please contact customer service at
UP
05
Option A (For Flat Back TV)
(If needed)
03
05 E1/F1/D
B
04 C2
(If needed)

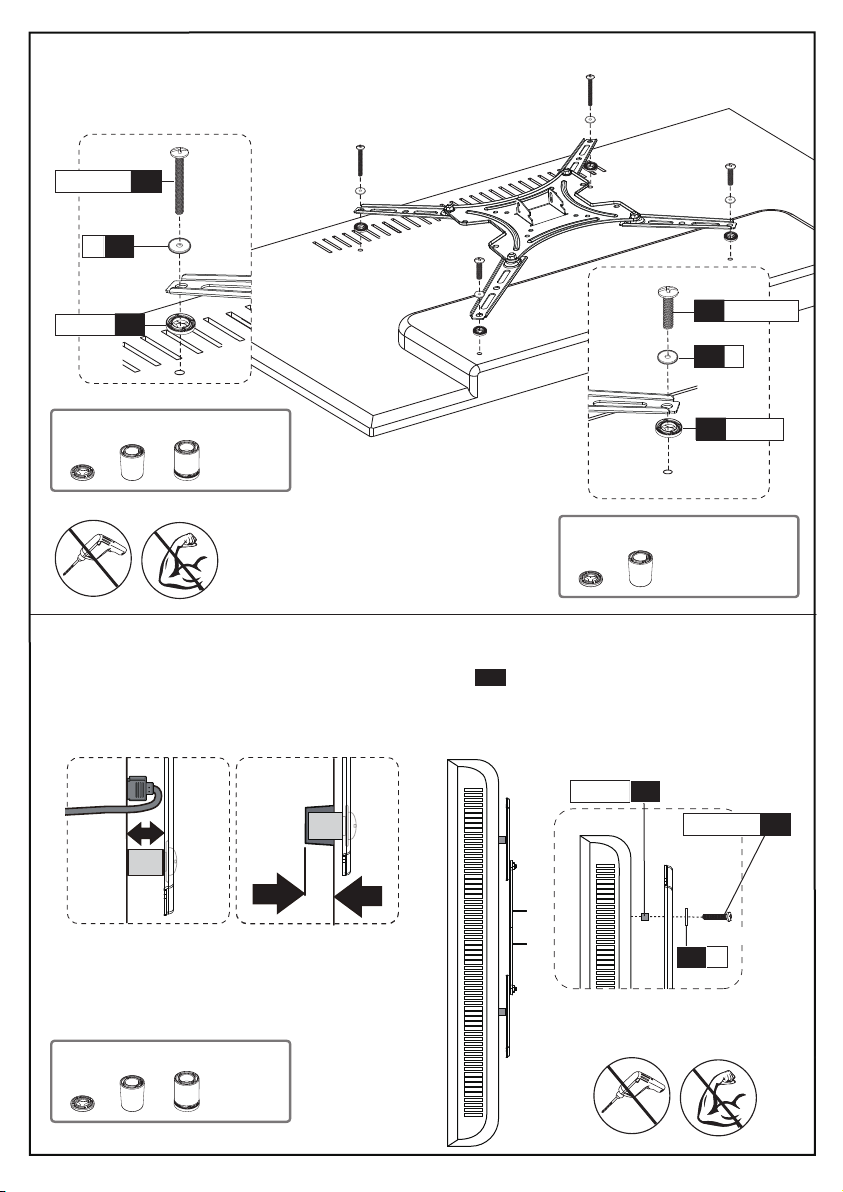

1-3 Attach the TV Bracket
(If needed)
03
05 D/E2/F2
B
04 C1/C2
(If needed)
Option B (For Round Back TV)
Alternate Spacer Setups
Alternate Spacer Setups
06
Spacers may be necessary for 2 holes ONLY.
Option C (For TV with A “Bump”)
Option D
For cable interference or inset holes, use spacers to create extra space between the
TV and faceplate.
03
04
04
C1/C2
04
C1/C2
05D/E2/F2
05
D/E2/F2
03
B
B
(If needed)
05 E1/F1/D
B
03
04 C1/C2
(If needed)
(If needed)
Alternate Spacer Setups
Alternate Spacer Setups
Alternate Spacer Setups
07
2A-1
Use a stud finder(not
included) to locate wood
studs or use an awl (not
included) to verify the edges.
Mark the edge and center
locations.
WARNING:
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Nominal wood stud size: common 2 x 4 in. (51 x 102 mm) minimum 1½ x 3½
in. (38 x 89 mm)
● Stud center must be verified
●Avoid potential personal injury or property damage! DO NOT over-tighten the lag screws
[A1]. Tighten the lag screws [A1] only until the they are pulled firmly against the arm
assembly/wall plate [01].
●Ensure the arm assembly/wall plate [01] is securely fastened to the wall
before continuing to the next step.

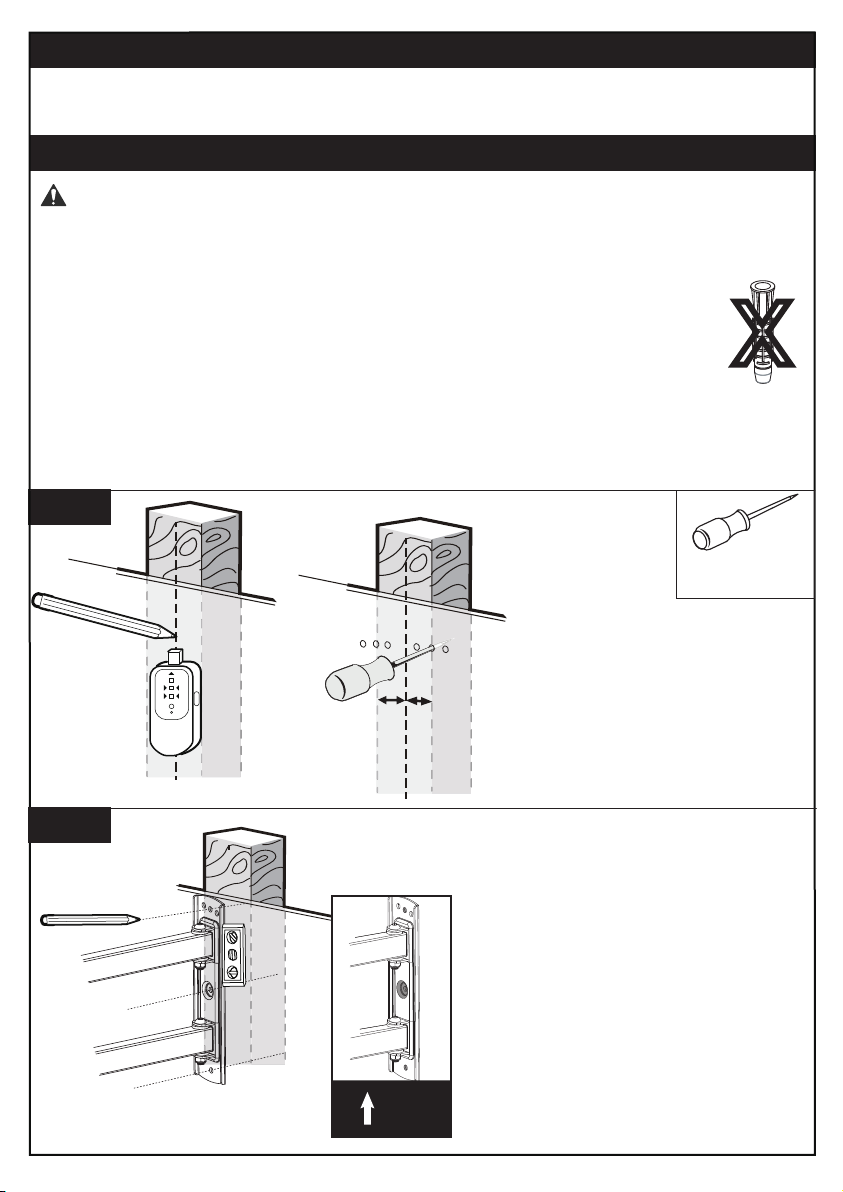

Step 2 Attach the Arm Assembly/Wall Plate [01] to Wall
For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B
Step2A Wood Stud Option
2A-2
●DO NOT USE ANCHOR [A2] FOR THIS STEP! X
Position the arm assembly/wall plate[01]
at your desired height and line up the
holes with your stud center line. Level
the wall plate and mark the holes.
UP
awl
(Not lncluded)
08
3/8in.(10mm)
Socket Wrench
(Not lncluded)
ø5/32 in.(4 mm)
2 23/64 in.(60mm)
WARNING:
●Avoid potential personal injury or property damage! DO NOT over-tighten the
lag screws [A1]. Tighten the lag screws [A1] only until the they are pulled firmly
against the wall plate.
●Ensure the arm assembly/wall plate [01] is securely fastened
to the wall before continuing to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Mount the arm assembly/wall plate directly onto the concrete surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
● Never drill into the mortar between blocks
Wall
Anchor
A2
Step 2B Solid Concrete or Concrete Block Option
2A-3
2A-4
Install the arm assembly/wall plate [01].
using lag screws [A1]. Tighten the lag
screws [A1] only until they are pulled
firmly against the wall plate.
A1
01
Drill 3 pilot holes using a 5/32 in.(4mm)
diameter drill bit. Make sure the depth is
not less than 2 23/64 in. (60mm).
UP
09
ø3/8 in.(10mm)
2 9/16 in.(65mm)
3/8in.(10mm)
Socket Wrench
(Not lncluded)
2B-2
2B-3
UP
2B-1
2B-4
A1
UP
Position arm assembly/wall
plate [01] at your desired
height, level the wall plate and
mark the pilot hole locations.
Use the hammer to knock anchors [A2]
into the wall. Be sure the anchors [A2]
are seated flush with the concrete
surface.
Drill 3 pilot holes using a 3/8 in.(10mm)
diameter drill bit. Make sure the depth is
not less than 2 9/16 in.(65mm). Never drill
into the mortar between blocks.
Install the arm assembly/wall plate [01]
using lag screws [A1] and anchors [A2].
Tighten the lag screws [A1] only until
they are pulled firmly against the wall
plate. DO NOT over-tighten the lag
screws [A1].
A2
10
HEAVY! You may need
assistance with this step.
Step 3
Hang the TV onto the Arm Assembly/Wall Plate [01]
Tilt Adjustment
①
②
③
Detach the preassembled bolts [S1] and washers [S2] and
keep them for the next step.
Hang the TV to the
Arm Assembly.
Tighten the bolts [S1] and washers [S2] to
secure TV to the arm assembly.
Phillips
Screwdriver
(Not included)
Phillips
Screwdriver
(Not included)
S1
S2
S2 S1
1. Slightly loosen the both bolts [S1].
2. Adjust TV to your desired tilt angle.
3. Retighten the 2 bolts [S1] to hold TV in place.
S1
11
