Innovative Energies No-Break SR250i 485 Series User manual

Specifications are subject to change without notice. No liability accepted for errors or omissions. 1
www.innovative.co.nz
Phone: [phone]
Fax: [phone]
NZ Freephone: 0800 654 668
AU Freephone: 1800 148 4 4
Email: [e-mail]
No-Break
TM
DC UPS with RS485 communications port
25 W
SR250i …. 485 for use with optional
MODBUS protocol converter
User Manual
Global Solutions Personal Focus

Specifications are subject to change without notice. No liability accepted for errors or omissions. 2
Safety
The user is responsible for ensuring that input and output wiring segregation complies with local standards and that in
the use of the equipment, access is confined to operators and service personnel. A low resistance earth connection is
essential to ensure safety and additionally, satisfactory EMI suppression (see below).
HAZARDOUS VOLTAGES EXIST WITHIN A POWER SUPPLY EN LOSURE AND ANY REPAIRS MUST
BE ARRIED OUT BY A QUALIFIED SERVI EPERSON.
Electrical Stren th Tests
Components within the power supply responsible for providing the safety barrier between input and output are con-
structed to provide electrical isolation as required by the relevant standard. However EMI filtering components could be
damaged as result of excessively long high voltage tests between input, output and ground. Please contact our techni-
cians for advice regarding electric strength tests.
Earth Leaka e
The EMI suppression circuits causes earth leakage currents which may be to the maximum allowable of 3.5mA.
Ventilation
High operating temperature is a major cause of power supply failures, for example it has been well documented that a
10
o
C rise in the operating temperature of a component will halve its expected life. Therefore always ensure that there is
adequate ventilation for the equipment. Batteries and cooling fans also suffer shortened lifetimes if subjected to high
ambient temperatures - both should be included in a routine maintenance schedule to check for signs of reduced effi-
ciency.
Water / Dust
Every effort must be made in the installation to minimise the risk of ingress of water or dust. Water will almost always
cause instant failure; the effects of dust are slower in causing failure of electronic equipment. All electrical equipment
should be cleaned free of any dust accumulation at regular intervals.
Electroma netic Interference (EMI)
Switching power supplies and converters inherently generate electrical noise. Power supply wiring should be as short
as practicable and segregated from all equipment wiring which is sensitive to EMI. Residual noise can be reduced by
looping DC wiring through ferrite cable sleeves. These are most effective as close to the power supply as possible and
as many turns of the wire taken through the core (+ and - in the same direction) as the core will accommodate.
Fuse ratin s
Check that the wiring and fuses or MCBs match the rating of the PSU or converter. Note that the Innovative Energies
No-Break
TM
DC chargers are able to deliver up to 2.5 times the rated current when mains power is on.
Connection polarity
It is critical to check the polarity carefully when connecting DC devices. Some Innovative Energies models have re-
verse polarity protection (RPP), for example, the Smartchargers have electronic (non-destructive) RPP, the No-
Break
TM
DC range has an internal fuse which needs to be replaced if the battery is connected in reverse. Usually, how-
ever, a reverse polarity connection results in instant destruction of the device, especially if there is a battery involved.
Global Solutions Personal Focus
PSU = power supply unit B T = battery condition test E B = electronic circuit breaker
ELVD = electronic low voltage disconnect RPP = reverse polarity protection EMI = electromagnetic interference
Glossary of terms used in our user manuals
SNMP = Simple Network Management
Protocol
LAN = local area network DOD = depth of discharge

Specifications are subject to change without notice. No liability accepted for errors or omissions. 3
The No-Break™ DC power supply is designed to provide DC power and float charge lead acid batteries for
critical back up applications. The SR250i  485 is a variant of our standard SR250C model. In addition
to all the normal features of the No-Break™ DC range, the SR250i  485 has a serial communication inter-
face to enable user monitoring of the power supply and user control of the battery condition test function.
No-Break™ SYSTEM BLO K DIAGRAM
LOAD +
I
LOAD
AC MAINS
STANDBY
LED &
BUTTON
POWER
OK LED
BATTERY
SYSTEM
OK LED
MAINS FAIL /
POWER SUPPLY
FAIL ALARM
BATTERY
SYSTEM
FAIL ALARM
LED
ON
LED
ON
LED
OFF
ALARM
OFF
ALARM
OFF
LOAD -
BATTERY +
BATTERY -
NORMAL OPERATION
LOAD CURRENT < PSU MAX CURRENT
ELECTRONIC
CIRCUIT
BREAKER
POWER CONVERSION
BATTERY
MANAGEMENT
& ALARM
CIRCUIT
BATTERY
CURRENT
SENSE
OUTPUT VOLTAGE, CURRENT
LIMIT & BATTERY CHARGE
CURRENT CONTROL
I
CHARGE
BATTERY TEMP.
SENSOR
REVERSE
POLARITY
FUSE
RS485
comms. port
System urrent Limit (AC mains on) System urrent Limit (during AC fail)
Total current
PSU + Battery
PSU current
Component
8
6x
2.5x
1x
Load Amps
2mS 300mS Time
6x overload
for 300mS max.
Battery is discharging whenever load cur-
rent exceeds 1x (system current limit).
Short circuit condition
can only exist for 2mS
8
6x
1.5x
Load Amps
2mS 300mS Time
6x overload
for 300mS max.
Short circuit condition
can only exist for 2mS
Indefinite
Until LVD
OPERATION OF ELE TRONI IR UIT BREAKER (E B) UNDER OVERLOAD ONDITIONS
ECB operates after 2mS under short circuit condition and after 300mS of sustained overload. At all times the ECB allows 50-60% system overload.
Global Solutions Personal Focus

Specifications are subject to change without notice. No liability accepted for errors or omissions. 4
These charts are system status diagrams showing current flows, alarm status & LED indication status for each state
LOAD +
I
LOAD
AC MAINS
STANDBY
LED &
BUTTON
POWER
OK LED
BATTERY
SYSTEM
OK LED
MAINS FAIL /
POWER SUPPLY
FAIL ALARM
BATTERY
SYSTEM
FAIL ALARM
LED
ON
LED
ON
LED
OFF
ALARM
OFF
ALARM
OFF
LOAD -
BATTERY +
BATTERY -
NORMAL OPERATION
LOAD CURRENT < PSU MAX CURRENT
ELECTRONIC
CIRCUIT
BREAKER
POWER CONVERSION
BATTERY
MANAGEMENT
& ALARM
CIRCUIT
BATTERY
CURRENT
SENSE
OUTPUT VOLTAGE, CURRENT
LIMIT & BATTERY CHARGE
CURRENT CONTROL
I
CHARGE
BATTERY TEMP.
SENSOR
REVERSE
POLARITY
FUSE
LED
OFF
AC MAINS
LED
ON
LED
ON
ALARM
OFF
ALARM
OFF
MAINS FAIL /
POWER SUPPLY
FAIL ALARM
BATTERY
SYSTEM
FAIL ALARM
BATTERY
SYSTEM
OK LED
POWER
OK LED
STANDBY
LED &
BUTTON
LOAD +
LOAD -
BATTERY +
BATTERY -
BATTERY TEMP.
SENSOR
LOAD CURRENT < 2.5 x PSU MAX CURRENT
SLIGHT OVERLOAD
ELECTRONIC
CIRCUIT
BREAKER
BATTERY
CURRENT
SENSE
BATTERY
MANAGEMENT
& ALARM
CIRCUIT
POWER CONVERSION
OUTPUT VOLTAGE, CURRENT
LIMIT & BATTERY CHARGE
CURRENT CONTROL
REVERSE
POLARITY
FUSE
I
LOAD
I
LOAD - PSU MAX
LED
ON
AC MAINS
LED
OFF
LED
OFF
ALARM
ON
ALARM
OFF
STANDBY
LED &
BUTTON
POWER
OK LED
BATTERY
SYSTEM
OK LED
MAINS FAIL /
POWER SUPPLY
FAIL ALARM
BATTERY
SYSTEM
FAIL ALARM
LOAD +
LOAD -
BATTERY +
BATTERY -
LOAD CURRENT < 1.5 x PSU MAX CURRENT
MAINS FAIL
ELECTRONIC
CIRCUIT
BREAKER
BATTERY
MANAGEMENT
& ALARM
CIRCUIT
BATTERY
CURRENT
SENSE
OUTPUT VOLTAGE, CURRENT
LIMIT & BATTERY CHARGE
CURRENT CONTROL
POWER CONVERSION
BATTERY TEMP.
SENSOR
REVERSE
POLARITY
FUSE
LOAD
I
LOAD
I
BATTERY
CURRENT
SENSE
OUTPUT VOLTAGE, CURRENT
LIMIT & BATTERY CHARGE
CURRENT CONTROL
LED
OFF
LED
OFF
AC MAINS
LED
FLASH
ALARM
ON
ALARM
ON
STANDBY
LED &
BUTTON
POWER
OK LED
BATTERY
SYSTEM
OK LED
MAINS FAIL /
POWER SUPPLY
FAIL ALARM
BATTERY
SYSTEM
FAIL ALARM
BATTERY
MANAGEMENT
& ALARM
CIRCUIT
POWER CONVERSION
I
I
LOAD CURRENT < 1.5 x PSU MAX CURRENT
MAINS FAIL - BATTERY LOW
ELECTRONIC
CIRCUIT
BREAKER
REVERSE
POLARITY
FUSE
BATTERY -
BATTERY TEMP.
SENSOR
LOAD +
LOAD -
BATTERY +
LOAD
LOAD
OUTPUT VOLTAGE, CURRENT
LIMIT & BATTERY CHARGE
CURRENT CONTROL
BATTERY
CURRENT
SENSE
LED
OFF
LED
OFF
LED
OFF
AC MAINS
ALARM
ON
ALARM
ON
BATTERY
SYSTEM
OK LED
BATTERY
MANAGEMENT
& ALARM
CIRCUIT
MAINS FAIL /
POWER SUPPLY
FAIL ALARM
BATTERY
SYSTEM
FAIL ALARM
POWER CONVERSION
STANDBY
LED &
BUTTON
POWER
OK LED
I
I
SEVERE OVERLOAD (I.E. SHORT)
LOAD CURRENT DEMAND > 2.5 x PSU MAX CURRENT
ELECTRONIC
CIRCUIT
BREAKER
REVERSE
POLARITY
FUSE
LOAD +
LOAD -
BATTERY +
BATTERY -
LOAD
0
BATTERY TEMP.
SENSOR
AC MAINS
LOAD +
I
LOAD
OUTPUT VOLTAGE, CURRENT
LIMIT & BATTERY CHARGE
CURRENT CONTROL
BATTERY
CURRENT
SENSE
LED
OFF
LED
OFF
LED
ON
ALARM
OFF
ALARM
ON
MAINS FAIL /
POWER SUPPLY
FAIL ALARM
BATTERY
SYSTEM
FAIL ALARM
POWER CONVERSION
STANDBY
LED &
BUTTON
POWER
OK LED
BATTERY
SYSTEM
OK LED
BATTERY
MANAGEMENT
& ALARM
CIRCUIT
NORMAL OPERATION
BATTERY MISSING
ELECTRONIC
CIRCUIT
BREAKER
REVERSE
POLARITY
FUSE
LOAD -
BATTERY +
BATTERY -
BATTERY TEMP.
SENSOR
LED
OFF
LED
OFF
AC MAINS
LED
OFF
ALARM
ON
ALARM
ON
STANDBY
LED &
BUTTON
POWER
OK LED
BATTERY
SYSTEM
OK LED
MAINS FAIL /
POWER SUPPLY
FAIL ALARM
BATTERY
SYSTEM
FAIL ALARM
LOAD +
LOAD -
BATTERY +
BATTERY -
BATTERY TEMP.
SENSOR
BATTERY CURRENT DRAIN < 1mA
LOAD DISCONNECTED
ELECTRONIC
CIRCUIT
BREAKER
OUTPUT VOLTAGE, CURRENT
LIMIT & BATTERY CHARGE
CURRENT CONTROL
BATTERY
MANAGEMENT
& ALARM
CIRCUIT
BATTERY
CURRENT
SENSE
POWER CONVERSION
I
0
REVERSE
POLARITY
FUSE
I
0
OUTPUT VOLTAGE, CURRENT
LIMIT & BATTERY CHARGE
CURRENT CONTROL
BATTERY
CURRENT
SENSE
LED
OFF
LED
OFF
LED
OFF
AC MAINS
ALARM
ON
ALARM
ON
STANDBY
LED &
BUTTON
BATTERY
MANAGEMENT
& ALARM
CIRCUIT
BATTERY
SYSTEM
FAIL ALARM
MAINS FAIL /
POWER SUPPLY
FAIL ALARM
BATTERY
SYSTEM
OK LED
POWER
OK LED
POWER CONVERSION
I
I
SEVERE OVERLOAD (I.E. SHORT)
WHILE IN MAINS FAIL
LOAD CURRENT DEMAND > 1.5 x PSU MAX CURRENT
ELECTRONIC
CIRCUIT
BREAKER
REVERSE
POLARITY
FUSE
BATTERY +
BATTERY -
0
BATTERY TEMP.
SENSOR
LOAD +
LOAD -
0
Global Solutions Personal Focus

Specifications are subject to change without notice. No liability accepted for errors or omissions. 5

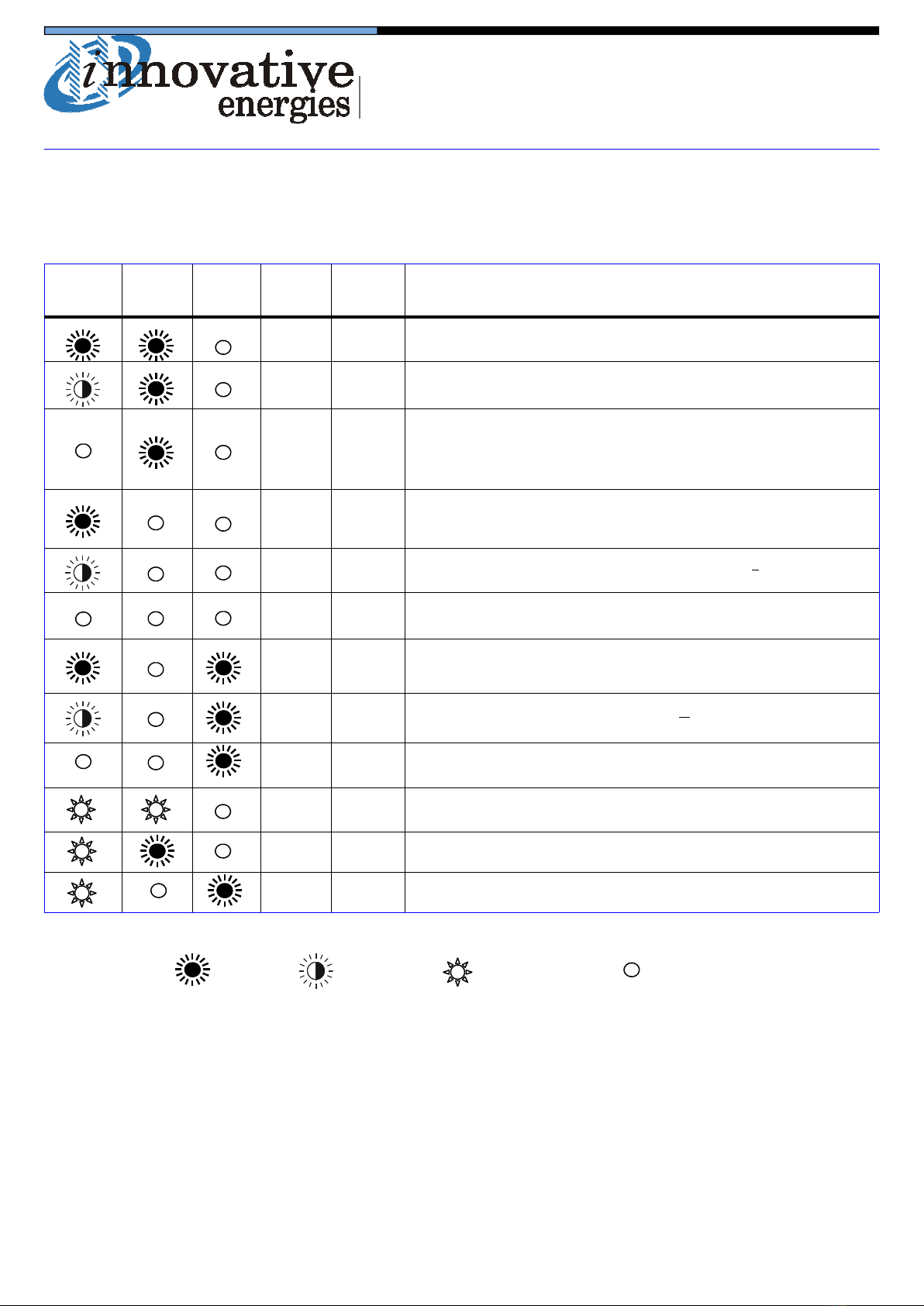

Please note that the last four conditions apply only if the battery condition test option is enabled.
Battery
System OK
LED
Power OK
LED
Power
Stand-by
LED
Power OK
Alarm
Battery
System
OK Alarm
ondition
Normal Normal System Normal: AC power is on, PSU output is OK, battery circuit is OK and bat-
tery voltage is > V Battery Low.
Normal Normal Battery Detection test in progress / imminent (LED begins flashing 10 sec. prior
to test of < 1 sec).
Normal Alarm
System AC power is on, PSU output is OK but either:
1.
Internal battery fuse has opened (only if battery has been reverse polarity
connected), or
2. Battery circuit open - battery missing, or fuse / circuit breaker / wiring fault.
Alarm Normal Either AC power has failed, or PSU has failed.
Battery system is OK
Alarm Alarm AC Power is off / DC has failed and battery has discharged to < V Battery Low, unit
will continue delivering battery current until low level initiates ELVD.
Alarm Alarm AC Power is off / DC has failed and ELVD has activated and disconnected battery
from load. Residual current drain on battery following ELVD <1 mA.
Alarm Normal
System is in STANDBY mode due to :
1. Operator pressed standby button, or
2. PSU has internal fault
Alarm Alarm PSU is in standby and battery has discharged to < Battery Low, unit will continue
delivering battery current until next level initiates ELVD.
Alarm Alarm PSU is in standby and ELVD has activated and disconnected battery from load.
Residual current drain on battery following ELVD < 1mA
Normal Normal Battery Condition Test is in progress: LEDs flash alternately
Normal Alarm Battery ondition Unserviceable: failed to maintain terminal voltage during bat-
tery condition test
Alarm Alarm PSU is in standby mode and battery condition is determined as unserviceable:
failed to maintain terminal voltage during battery condition test
LEGEND : =Off =Flashing =On =Flashing Slowly
Global Solutions Personal Focus
LED FLASH ODES
ELE TRONI IR UIT BREAKER (E B)
The ECB is activated under the following conditions: 1. battery voltage drops below the Vdisco (1.66V/cell)
2. battery overcurrent or overload (refer to page 3)
The ECB will latch open only when there is no mains input present. It will reset when mains power is restore or can be
manually reset by following the procedure in step 6 on page 8 of this manual.

Specifications are subject to change without notice. No liability accepted for errors or omissions. 6
 High performance No-Break
TM
DC UPS system
 Separate outputs for load and battery
 Battery detection - regular battery presence and
battery circuit integrity checks
 Deep discharge protection for batteries
 Battery condition test (B T) standard for models
with communication port option
 Overload, short circuit & reverse polarity protec-
tion for battery
 Automatic battery temperature compensation
 Optional serial communication interface allows
remote monitoring & user control of B T function -
i and V versions
 No transition switching between PSU & battery
 LED flash codes for precise state indication
 “Mains” & “Battery System” alarm relay outputs
ENVIRONMENTAL
Operating
temperature
Storage temperature
Humidity
ooling
♦ 24 Month Warranty
Input Voltages
▪ standard
▪ optional
Fusing / Protection
Isolation
Efficiency
Inrush current
Output Power
Output Voltages
Voltage adj. range
Temp. ompensation
urrent Limit
Line Regulation
Load Regulation
Noise
Drift
Hold-up time
Thermal Protection
Overvoltage protection
EMI
Safety
ELE TRI AL
180V - 264V, 45-65Hz
88V - 132VAC (internal link select)
88-135VDC (specify at time of order)
Internal input fuse, output battery fuse
1KV DC input - output / earth
> 85%
Soft start circuit
250W continuous (0 - 50°C)
13.8/ 27.6/ 34.5/ 41.4/ 55.2V
85 - 105% of Vout
Temperature sensor on 1.7m lead with adhe-
sive pad: -4mV / °C / cell ±10%
Straight line profile
<0.2% over AC input range
<0.4% open circuit to 100% load
<1%
0.03% / °C
15 - 20 ms (nom. - max. Vin) without battery
Automatic current de-rating if >50°C. Self-
resetting.
Over-voltage protection on output
at ~ 130% of nominal output voltage
CISPR 22 / EN55022 class A
IEC 50 / EN60 50 / AS/NZS3260 0 - 50 °C ambient at full load
De-rate linearly >50 °C to 0 load @ 70 °C
-10 to 85 °C ambient
0 - 5% relative humidity non-condensing
Natural Convection except for 12V model
(fan)
No-Break™ FUN TIONS AND ALARMS*
Battery harge Limit
Reverse Polarity
Battery Monitoring
Battery Protection
- battery discharged
- overload (*refer to
options - ECB)
- short circuit
Indication LEDs
Alarms
Alarm Relay contacts
Battery ondition Test
(B T)
Standby Mode
See Model Table for default settings -
may be increased to PSU rated current
Battery reverse connection will open internal
fuse (and produce alarm)
Detects for presence of battery on start up,
then every 60 minutes when charge current <
200mA
Electronic Circuit Breaker (ECB) operates
under the following conditions:
ELVD (electronic low voltage disconnect)
activates when battery voltage drops to 1.67V/
cell (adjustable) - auto reset
Allows ~150% load from battery without act-
ing, operates within 300ms for total load >
600%
Acts within 2ms, backed up by fuse
Green: Battery System OK, Power OK
Red: Standby
• Mains Fail (Mains or PSU fail, standby
mode)
• Battery System OK - alarms when battery
voltage low (on mains fail) , battery
missing, battery circuit wiring faulty, BCT
fail (if enabled)
C - NO - NC full changeover rated 1A /50V
DC, 32VAC
Standard on SR250i & V - 20mins/28days
unless otherwise specified on ordering.
Turns off DC output of PSU & allows load to
run off battery
Optional
+PROTO ONMB
RS485 converter for
use with SR250i -485
versions
250W PSU/Charger with communication options
Global Solutions Personal Focus
SPECIFICATIONS All specifications are typical at nominal input, full load and at 20°C unless otherwise stated.

Specifications are subject to change without notice. No liability accepted for errors or omissions. 7
PHYSI AL DETAILS
A Input connector
D Output onnec-
tions
Alarm onnections
Enclosure
Weight
Dimensions
19”Rack Mount
IEC320 input socket (included)
M6 brass stud or 'Phoenix combicon' Plug-in
style socket & mating screw terminal block:
Plug in screw terminal block
Powder coated or zinc plated steel / anodised
aluminium
1.7kg

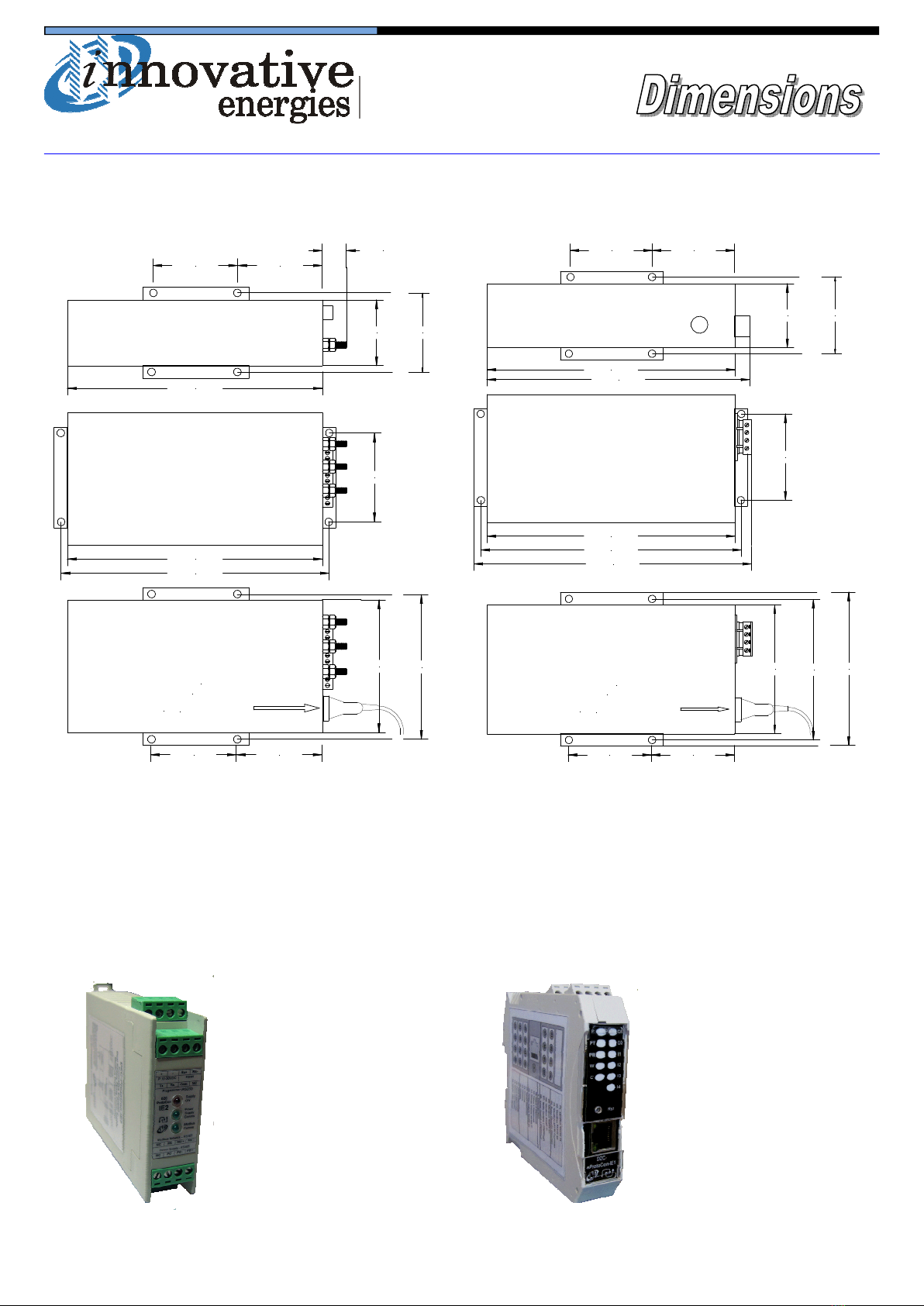

242 x 150 x 61mm (excluding mounting feet
and connections)
2U sub rack option: add SR-RM2U
Optional V/I meter for subrack: SR-METER
Refer to Rack Mounting Option data sheet for
further details.
OPTIONS
Battery ondition
Test (standard on
SR250i & SR250V)
ommunication Port
for i & V versions
+PROTO ONMB-x
E B
Add option SFM T xxxxx on SR250C. SR250i
has default setting 20mins/28 days. B T relay
provided to control an external test load.
Please refer to the BCT application notes on
page 11 or ask our sales staff for assistance
with system design.

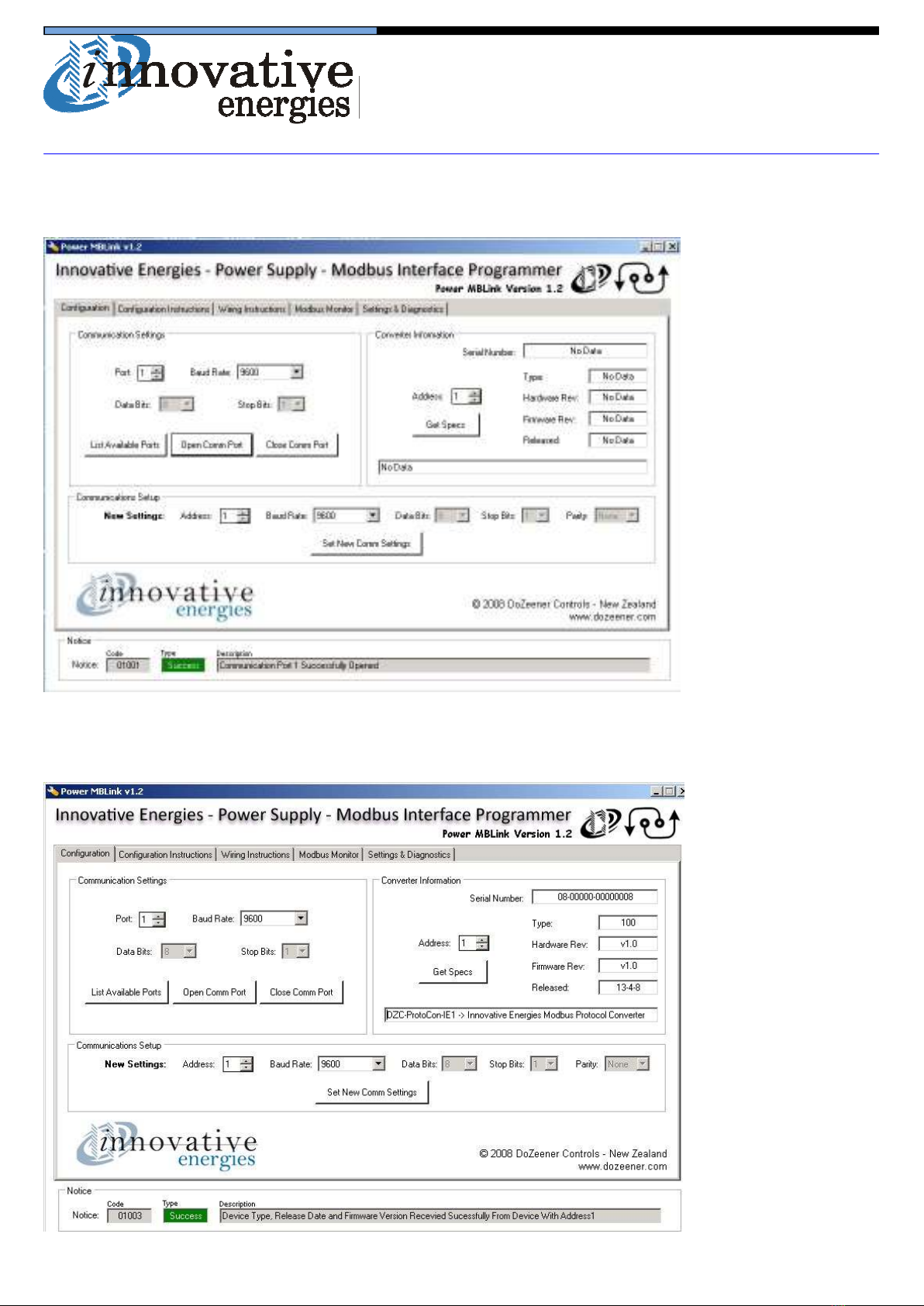

Choice of RS485, RS232, Ethernet
Protocol Converter (MODBUS via RS485) with
programming port for PC. Power MBLink
setup software supplied.
SR250i: -x = blank, x = -OE for Ethernet Port
SR250V: -x = V, x = -OE-V for Ethernet Port
Overload protection may be customized.
Please call us for further information.
D Output
Output (V) PSU Rated
(A)
harge
Limit (A) *
1
Recomm.
Load (A) Peak load (A)
SR250i 12
13.8 18.0 .0 12.0 27
SR250i 24
27.6 .0 .0 5.0 13.5
SR250i 30
34.5 7.2 7.2 3.7 10.8
SR250i 36
41.4 6.0 6.0 3.0
SR250i 48
55.2 4.5 4.5 2.0 6.7
MODELS
MODEL TABLE
MODEL IDENTIFI ATION ODES
No-Break™ DC
250 Watt
No-Break™ DC charger for lead acid batteries
230V AC + switch = L 230V AC no switch = blank
110V AC + switch = U 110V AC no switch = G
110V DC + switch = H 110V DC no switch = J
230V AC + switch + 300V MOV = M ( To be used with IE OVP HV AC)
Input voltage and front
Panel standby switch
Stud = S Phoenix combicon (plug in screw terminal block) =
Output DC Connector type:
With fan = F No fan = blank
Fan cooled:
Yes = T No = blank
Temperature Compensation
12, 24, 30, 36, 48 DC output: Nominal voltage
C No-Break™ DC PSU/charger , M = with load output at nominal voltage (eg 24V)
i with serial communications port & BCT included
V = i with dual battery output
J = with LOAD- & BATT- common (Note: no battery detection function)
Function
485 = RS485 232 = RS232 LAN = ETHERNET
Blank = no comm. port
Optional Communications Interface
Port
SR250 i 12 T F S L-485
Power 250W
*1 Factory default setting unless differently
specified at time of ordering
SR250 i
=
~
ALARMS LAN/
RS232/485
comms
port
LOAD
BATTERY
AC input
+
-
+
-
Temperature sensor to be
placed on or near battery

Specifications are subject to change without notice. No liability accepted for errors or omissions. 8
ONNE TION DIAGRAM
ONNE TION & INITIAL TESTING
1 Check input and output voltages of system, ensure that they match the equipment. All loads should be
isolated.
2 Check polarity of all wiring. Place temperature sensor probe near or on batteries.
3 Plug in ac input and turn power on. Both LEDs will light up after approx. 4 sec, “BATTERY” LED will
go out after another 10 sec (since there is no battery connected). DC output voltage should appear at both
load and battery outputs (ensure screws are tightened down on the connector block).
4 Turn off input power.
5 Connect battery.
6 Check that ECB (internal electronic circuit breaker) closes by shorting together the BATTERY –ve and
LOAD –ve terminals briefly. You will hear a relay operate and both LEDs will light up. If this does not hap-
pen, there is a fault in the wiring or the internal battery protection fuse is ruptured (see Note 2 below). The
battery voltage will then appear at the load terminals and the “BATLOW” alarm relay energises. The “MAINS
FAIL” LED stays on for about 30 seconds.
7 Connect load wiring to LOAD + and LOAD - terminals.
8 Turn on ac power.
After the batteries are fully charged, check that the battery continues to power up the load when the
input power is turned off.
10 Connect power (10-30VDC) to the protocol converter, the red LED (“supply on”) will light up
11 Connect RS485 communication port on SRxxx i to MODBUS protocol converter (+PROTOCONMB).
The green LEDs on both the power supply and the converter will flash to indicate that the comms. are
working.
12 Connect the programming cable between the converter and your PC. It is better to use a computer
with a DB serial input as some serial to USB converters do not work. For instructions on the protocol
converter please refer to page 10.
1 2 4
PD+ PC
PD-
W G B
ALARMS
L+
L-
B+
B-
TEMPCO SENSOR FOR BATTERY
TX
RX
C
2
3
5
R
BK
W
RD
TD
SG
DB
MC+ MC- MC
TO MODBUS
NETWORK
+
-
RS+
RS-
10-30VDC
INPUT
+PROTOCONMB
TO LOAD
TO BATTERY
AC MAINS
INPUT
PC
PROGRAMMING
PORT
RS485
RS232
RS485
RJ45
SR xxx i
RESET
DB - front of female
See http://www.n-tron.com/pdf/
cat5ecableschemes.pdf for
colour coding & pinout
Global Solutions Personal Focus

Specifications are subject to change without notice. No liability accepted for errors or omissions.
ALARMS
AUX: This relay is energized when BCT is in progress unless otherwise requested.
MAINS FAIL: De-energized on loss of mains input power
NOTE: 30 second delay
BAT LOW: De-energized when either:
1. battery voltage = 1.8V/cell (for 2V cells) - operates only when no mains power
present or
2. battery missing or fault in battery circuit wiring (alarm does not activate for up to
battery detection interval time).
REVERSED POLARITY ONNE TION OF BATTERY
If the battery is accidentally connected in reverse, the internal battery protection fuse will be ruptured and the
unit should be returned to the manufacturer for repair. If the fuse is good, the voltage measured as at step 3
above should be exactly the same on both the load and battery outputs.
FRONT PANEL LEDS (WITH BUILT IN SWITCHES)
For full list of LED flash codes please refer to page 5.
BATTERY SYSTEM OK: LED on: Battery present and above V batl.
POWER OK: LED on: Charger output present
LED off: no mains input or charger in standby mode
STANDBY: LED on: Charger in standby mode (no output from charger)
Push standby button to turn off charger & allows load to run off battery. Push
button again to turn on charger.

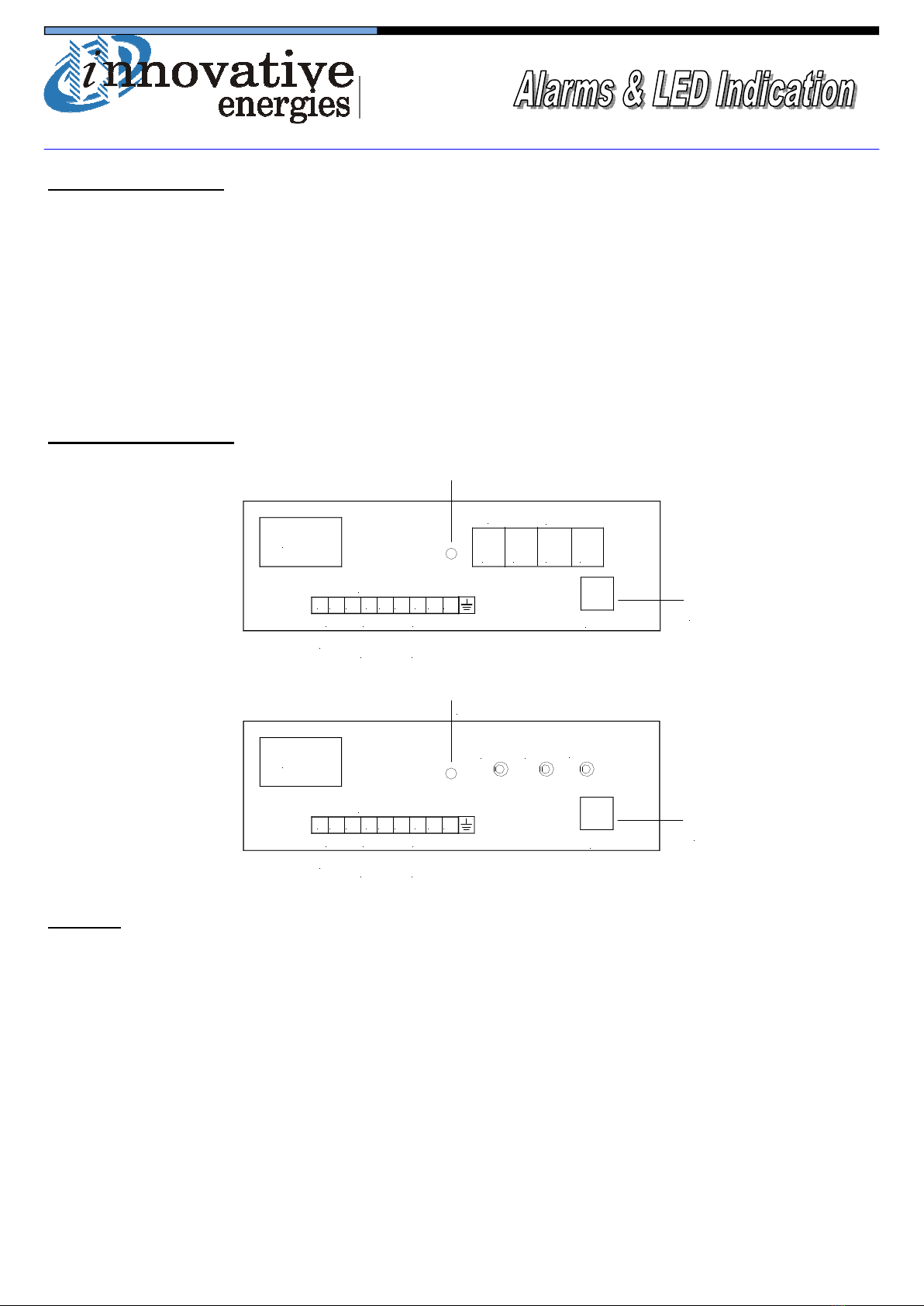

REAR PANEL LAYOUT ( Alarm contacts shown in de-energized state)
Global Solutions Personal Focus
AC IN
RS485
LOAD BATT
ALARMS
AUX
(POWER
OK)
BATLOW
C NC NO
( B T )
M/FAIL
(BATT SYS
OK)
+ + --
To protocol
converter
C NC NO C NC NO
Temperature sensor to be
placed on or near battery
AC IN
LOAD-
BATT-
ALARMS
AUX
(POWER
OK)
BATLOW
( B T )
M/FAIL
(BATT SYS
OK)
Temperature sensor to be
placed on or near battery
OM+
C NC NO C NC NO C NC NO
RS485
To protocol
converter

Specifications are subject to change without notice. No liability accepted for errors or omissions. 10
Default Settings (at 20°C)
Parameter
Nominal Voltage Default
Value
12V 24V 30V 36V 48V
V out = Output Voltage 13.8 27.6 34.5 41.4 55.2 2.3V/cell
V pres = Voltage threshold for battery de-
tection & battery condition test (BCT). If
voltage drops to this level during BCT then
the test is aborted and BATT SYS OK
alarm activated. .
12.2 24.4 30.5 36.6 48.8 2.03V/cell
V shutd = Output voltage of PSU during
battery detection & BCT 11.5 23 28.8 34.5 46 1. 2V/cell
V batl = voltage where BATT low alarm
activates during mains fail 11 22 27.6 33 44 1.84V/cell
V disco = Battery disconnect level on low
voltage during mains fail 10 20 25 30 40 1.66V/cell
Bccl = Maximum charge current as % of rated PSU rated current 100% *
1
omms = communications mode of PSU: F = continuous data stream of status
M = responds only to request made by a controller M
BatDetect = Battery detection interval time, active only when no battery charge current is detected (the
unit may not detect a missing battery for up to this time) 60 min
B T = length of battery condition test 20 min
Ret = retest option: N = after a failed BCT further scheduled BCTs are inhibited
Y = after a failed BCT further scheduled BCTs will be allowed Y
= Length of charge cycle in minutes/hours/days. ie. time between battery condition tests 40m/23h/
027d
MfiB T = time before mains fail check during BCT. A mains fail during a BCT will stop the BCT. If set
longer than BCT time no mains fail check will occur. 030 min
BATTERY ONDITION TEST
The BCT function is enabled by an internal jumper as supplied
from factory unless otherwise requested. Refer to the photo to
the right for the position of this jumper. It must be removed to
disable the automatic BCT. Although the BCT may be enabled/
disabled via the communication port, this software determined
state is not retained if the PSU is disconnected from both the
mains input and the battery.
B T FAIL RESET
If the system fails a battery condition test the BATT LOW alarm
latches (de-energized state) until
either: both the mains power input and the battery are discon-
nected briefly
or: the system passes the next BCT.
Global Solutions Personal Focus
*1 Except for 12V which is set at 50%

Specifications are subject to change without notice. No liability accepted for errors or omissions. 11
Protocol Converter and Soft are
Installation Instructions
The +PROTOCONMB protocol converter is supplied with programming software and two interconnecting cables. The
converter provides a MODBUS output using a RS485 link as well as a RS232 programming output. Information on
the power supply parameters and control of the battery condition test function are available using these outputs.
PRO EDURE
Install Software from disk Power MBLink v1.3 by clicking on Setup.exe
Click Start / ‘All Programs / DoZeener Controls / Innovative Energies Power MBLink
v1.2’
The program will begin - “Configuration” tab will show:
In ommunication settings: Click on ‘List Available Ports’ - available ports will be
listed at the bottom of the screen in the “Description” field
Global Solutions Personal Focus

Specifications are subject to change without notice. No liability accepted for errors or omissions. 12
In “ ommunications Setup”:
Set the address to the one of the available ports listed and click Open Com Port. If it is the correct one, in the “Notice”
section “Type” should go from “Notice” to “Success”.
In “ onverter Information”:
Click on “Get Specs”. The converter information will be displayed as below.
(Note that sometimes you may have to click on “Get Specs” twice)
Global Solutions Personal Focus

Specifications are subject to change without notice. No liability accepted for errors or omissions. 13
Go to “Modbus Monitor” tab and click on “Continuous Update” in “Communication” section. The power supply voltage,
current and battery temperature will be displayed as below.
In this screen you will also be able to control the battery condition test parameters under “Battery ondition Test” sec-
tion.
Go to “Settings & Diagnostics” tab. The power supply settings will be displayed as below. Note that these settings
are factory set and are not field adjustable.
Please refer to separate user manual on +PROTOCONMB protocol converter for full instructions.
Global Solutions Personal Focus

Specifications are subject to change without notice. No liability accepted for errors or omissions. 14
SUMMARY OF INFORMATION AVAILABLE VIA +PROTO ONMB
Global Solutions Personal Focus
ontinuously Updated Variables:
• Output Voltage
• Battery Current
• Power Supply Current
• Battery Temperature
Alarms
• Mains Failure
• Possible Mains/PSU Fail
• Battery in Bad Condition
• Communications to PSU Fail (eg. on LV disconnect)
• Overload
• System Down
• Battery Missing
• Battery Low
• Possible Battery Missing
Alarm State Signals:
• Normal Operation
• Battery Present
• Battery OK (on input power fail)
• Battery Charging
• Battery Condition Test
• BCT enabled
• Retry BCT on fail
• Battery Discharging
• Battery in Good Condition
ommand Functions:
• BCT Enable Acknowledge
• BCT Disable Acknowledge
• BCT Start Acknowledge
• BCT Stop Acknowledge

Specifications are subject to change without notice. No liability accepted for errors or omissions. 15
SR250
+PROTO ONMB
76 .5mm60 mm
80mm
242mm
80mm
20mm
80mm
242mm
253mm
80mm
162mm
150mm
80mm
NOTE
power cord protrudes
The Standard ac
approx. 70mm
76.5 mm
60 mm
80mm
242mm
80mm
80mm
242mm
253mm
80mm
162mm
150mm
270mm
278mm
NOTE
power cord protrudes
172mm
80mm
The Standard ac
approx. 70mm
+PROTO ONMB-OE
Global Solutions Personal Focus
24W x 2H x 115D mm 23W x 112H x 115D mm
Stud terminal output Screw terminal output

Innovative Energies Limited
Phone: [phone]
Freephone: 0800 654 668 (New Zealand)
1800 148 4 4 (Australia)
Fax: [phone]
Email: [email protected]z
Online: www.innovative.co.nz
In Person: 1 Heremai Street, Henderson, Auckland, New Zealand
By Post: PO Box 1 -501, Auckland 1746, New Zealand
Global Solutions Personal Focus
TERMS OF WARRANTY
Innovative Energies Ltd warrants its power supplies for
24 months (two years) from date of shipment against
material and workmanship defects.
Innovative Energies' liability under this warranty is lim-
ited to the replacement or repair of the defective product
as long as the product has not been damaged through
misapplication, negligence, or unauthorized modification
or repair.
Thank you for purchasing from
Innovative Energies.
We trust your power supply will exceed
your expectations and perform for many
years to follow.
Sincerely,
The Innovative Energies team.
22/12/11
16
