Innovative technology Bv50 User manual

Version: 1.0

BV50

USER MANUAL

<< Back to Contents
Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual
 Version: 1.0
 Page 1 of 63



Document Name:
BV50 User Manual
Document Version:
0
Date of Release:
06/14/2019
TABLE OF CONTENTS
1DOCUMENT INTRODUCTION ..................................................................................................................4
1 CONTACT INFORMATION.................................................................................................................................4
2 RELATED DOCUMENTS ...................................................................................................................................4
3 MANUAL AMENDMENTS.................................................................................................................................4
4 COPYRIGHT ..................................................................................................................................................5
5 LIMITED WARRANTY ......................................................................................................................................5
6 PRODUCT SAFETY INFORMATION......................................................................................................................5
2PRODUCT INTRODUCTION......................................................................................................................7
1 GENERAL DESCRIPTION...................................................................................................................................7
2 KEY FEATURES ..............................................................................................................................................7
3 TYPICAL APPLICATIONS...................................................................................................................................7

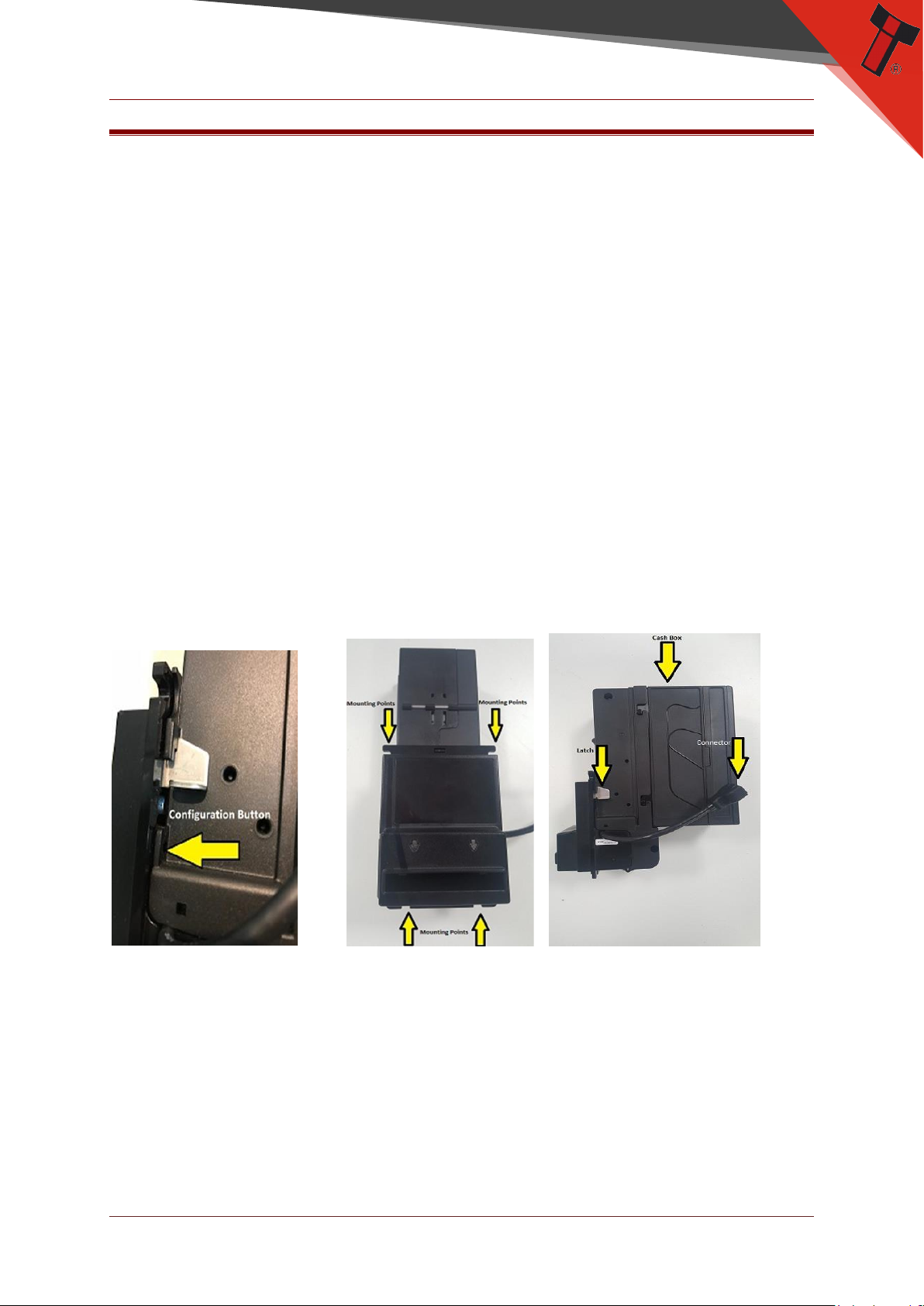

4 COMPONENT OVERVIEW ................................................................................................................................7

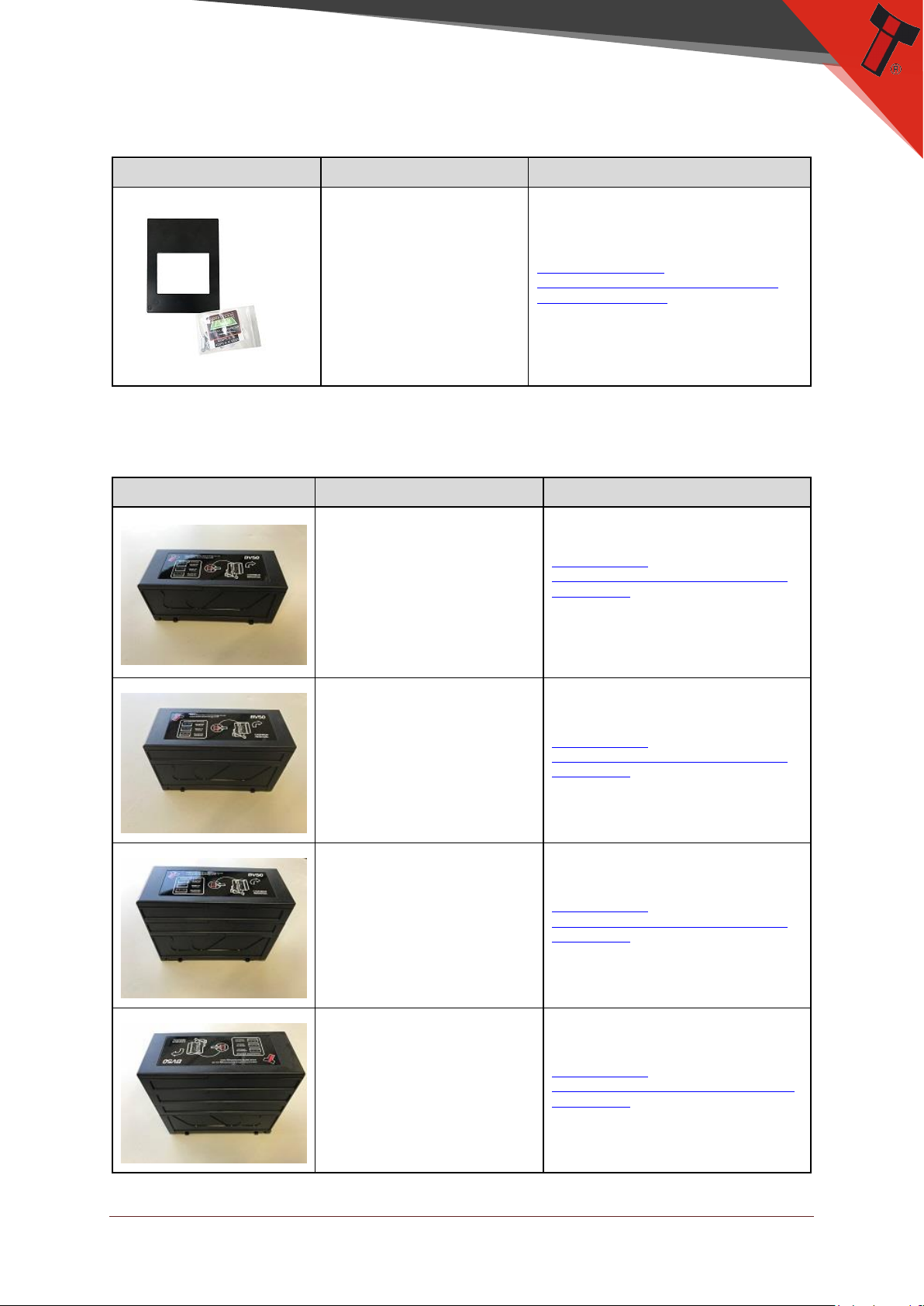

5 BEZEL OPTIONS.............................................................................................................................................8
6 CASHBOX OPTIONS........................................................................................................................................8
3TECHNICAL DATA....................................................................................................................................9
1 DIMENSIONS ................................................................................................................................................9
2 WEIGHT 0.85KG...........................................................................................................................................9
3 ENVIRONMENTAL REQUIREMENTS ....................................................................................................................9
4 POWER REQUIREMENTS .................................................................................................................................9
4.1 Supply Voltages............................................................................................................................... 9
4.2 Supply Currents ............................................................................................................................. 10
4.3 Power Supply Guidance ................................................................................................................ 10
4.4 110V Interface............................................................................................................................... 10
5 INTERFACE LOGIC LEVELS ..............................................................................................................................10
6 RELIABILITY DATA........................................................................................................................................10
7 MEDIA REQUIREMENTS ................................................................................................................................10
4MECHANICAL INSTALLATION ................................................................................................................11
1 COMPATIBILITY ...........................................................................................................................................11
1.1 Hardware Compatibility................................................................................................................ 11
1.1.1 Machine Mounting .............................................................................................................................11
1.1.2 Machine Interfacing............................................................................................................................11
1.1.3 Power Supply ......................................................................................................................................12
1.2 Software Compatibility .................................................................................................................12
1.2.1 Interface Protocols..............................................................................................................................12
1.2.2 Re-programming.................................................................................................................................12
2 CASHBOX MOUNTING ..................................................................................................................................13
2.1 Cashbox Fitting ............................................................................................................................. 13
2.2 Cashbox Removal.......................................................................................................................... 14
3 MACHINE MOUNTING..................................................................................................................................15

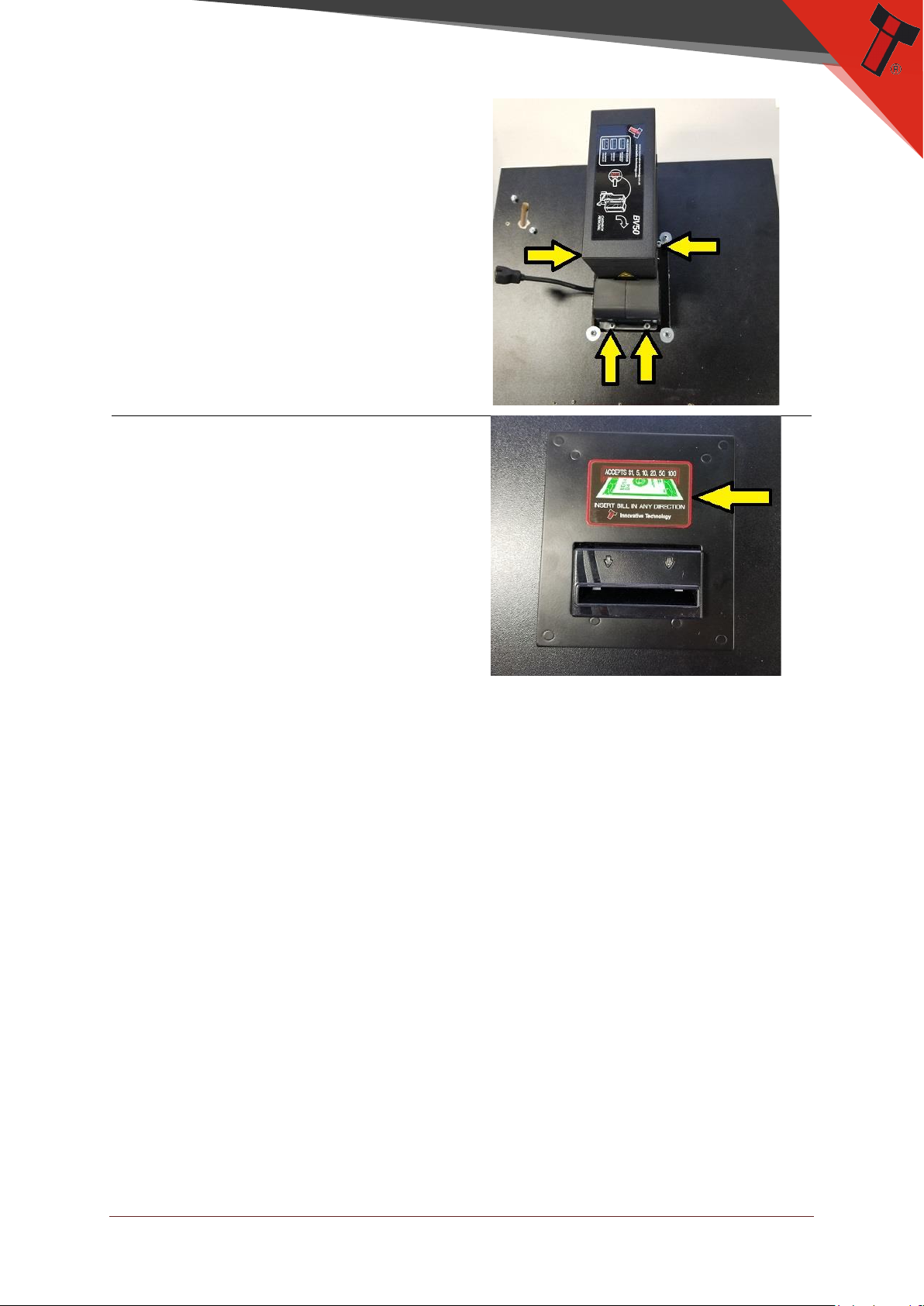

3.1 Machine Mounting ....................................................................................................................... 15
5SOFTWARE INSTALLATION AND CONFIGURATION................................................................................17
1 INTRODUCTION ...........................................................................................................................................17
2 SOFTWARE DOWNLOADS..............................................................................................................................17

<< Back to Contents
Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual
 Version: 1.0
 Page 2 of 63

3 DRIVERS ....................................................................................................................................................17
4 DATASET/FIRMWARE PROGRAMMING ............................................................................................................17
4.1 Validator Manager........................................................................................................................ 17
4.1.1 General Description ............................................................................................................................17
4.1.2 System Requirements .........................................................................................................................17

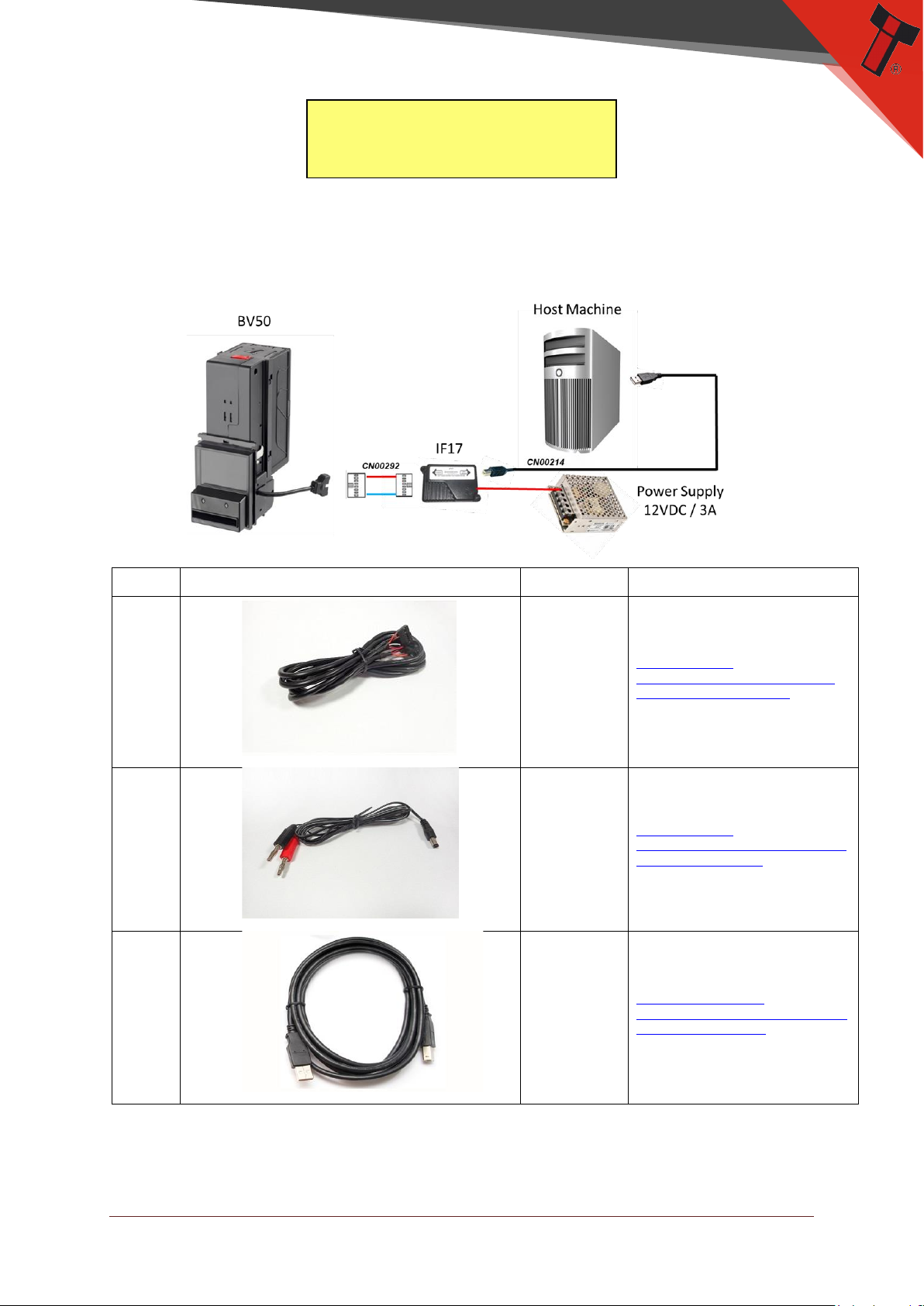

4.1.3 Hardware Setup ..................................................................................................................................18
4.1.4 Switching to Programming Mode (SSP) ..............................................................................................19
4.1.5 Programming the device.....................................................................................................................19
4.2 DA3 ............................................................................................................................................... 20
4.2.1 General Description ............................................................................................................................20
4.2.2 System Requirements .........................................................................................................................20
4.2.3 Re-programming via DA3....................................................................................................................20
4.3 Remote Updates ........................................................................................................................... 21
4.4 Configuration Card Reprogramming............................................................................................. 22
6PROTOCOLS AND INTERFACING............................................................................................................23
1 INTRODUCTION ...........................................................................................................................................23
2 SSP AND ESSP ...........................................................................................................................................23
2.1 General Description ...................................................................................................................... 23
2.2 Pin Assignments ............................................................................................................................ 23
2.3 Setup Examples ............................................................................................................................. 24
3 CCTALK®....................................................................................................................................................26
3.1 General Description ...................................................................................................................... 26
3.2 Pin Assignments ............................................................................................................................ 26
3.3 ccTalk®DES Encryption.................................................................................................................. 27
3.4 Setup Example Drawing/s............................................................................................................. 27
4 SIO AND SI2 ..............................................................................................................................................28
4.1 General Description ...................................................................................................................... 28
4.2 Pin Assignments ............................................................................................................................ 28
4.3 Packet Format............................................................................................................................... 29
5 MDB........................................................................................................................................................31
5.1 General Description ...................................................................................................................... 31
5.2 Pin Assigments .............................................................................................................................. 31
5.3 IF5 Interface .................................................................................................................................. 31
6 PARALLEL...................................................................................................................................................32
6.1 General Description ...................................................................................................................... 32
6.2 Pin Assignments ............................................................................................................................ 32
6.3 Inhibit Control ............................................................................................................................... 33
6.4 Escrow Control .............................................................................................................................. 33
6.5 Low Power Mode .......................................................................................................................... 33
6.6 IF10 Interface ................................................................................................................................ 33
7 BINARY......................................................................................................................................................34
7.1 General Description ...................................................................................................................... 34
7.2 Pin Assignments ............................................................................................................................ 34
7.3 Inhibit Control ............................................................................................................................... 35
7.4 Escrow Control .............................................................................................................................. 35
7.5 Low Power Mode .......................................................................................................................... 35
7.6 IF9 Interface .................................................................................................................................. 35
8 PULSE .......................................................................................................................................................36
8.1 General Description ...................................................................................................................... 36
8.2 Pin Assignments ............................................................................................................................ 36
8.3 Inhibit Control ............................................................................................................................... 36
8.4 Escrow Control .............................................................................................................................. 37
8.5 Low Power Mode .......................................................................................................................... 37
8.6 Credit Hold Function ..................................................................................................................... 38
8.7 IF15 Interface ................................................................................................................................ 38
8.8 Special Pulse (SP4) ........................................................................................................................ 38
7ROUTINE MAINTENANCE......................................................................................................................39

<< Back to Contents
Copyright © Innovative Technology Ltd 2020 Doc: BV50 User Manual
 Version: 1.0
 Page 3 of 63

1 INTRODUCTION ...........................................................................................................................................39
8FIRST LEVEL SUPPORT...........................................................................................................................40
1 BEZEL/STATUS LED FLASH CODES..................................................................................................................40
2 STATUS LED FLASH CODES............................................................................................................................40
9SECOND LEVEL SUPPORT ......................................................................................................................42
1 INTRODUCTION ...........................................................................................................................................42
2 FAULT FINDING FLOW CHART ........................................................................................................................42
3 CLEARING A JAM .........................................................................................................................................43
4 CHECKING POWER CONNECTIONS...................................................................................................................46
5 CHECKING COMMUNICATION CONNECTIONS ....................................................................................................47
6 CLEANING THE BV50...................................................................................................................................48
7 RE-INITIALISATION OF THE SENSORS ................................................................................................................50
COMPLIANCES AND APPROVALS ..........................................................................................................53
1 EC DECLARATION OF CONFORMITY ............................................................................................................53
CE MARKING.......................................................................................................................................................53
APPENDIX.............................................................................................................................................55
1 CABLE DRAWINGS ..................................................................................................................................55
2 CONNECTOR SPECIFICATIONS ....................................................................................................................57
3 SWITCHING TO PROGRAMMING MODE (SSP)..............................................................................................57
4 CCTALK DES ENCRYPTION –TRUSTED MODE...............................................................................................57
5 ESCROW CONTROL .................................................................................................................................59
5.1 Escrow Timing Diagram ...........................................................................................................60
6 LOW POWER MODE TIMING DIAGRAM.......................................................................................................61
7 FILE NAMING CONVENTION......................................................................................................................61

<< Back to Contents

Version: 1.0

Page 4 of 63

1DOCUMENT INTRODUCTION

1.1 Contact Information

Head Office

Innovative Technology Ltd

Innovative Business Park,

Derker Street, Oldham

OL1 4EQ, England

Email: [email protected]

Phone: +44 161 626 9999 (Main)

Email: [email protected]

Phone: +44 161 507 1818 (Technical Support)

Further Innovative Technology Ltd. representatives can be found on our website.

www.innovative-technology.com

1.2 Related Documents

This document should be read together with the following:

For SSP/eSSP:

Protocol Manual –SSP (GA138): SSP Interface Protocol Specification for integration

SSP Implementation Guide (GA973): Information for programmers and integrators

ITL Customer Software Guide (GA02037): Information about the Usage of

Innovative Technology Customer Software

For other third party interface protocols please contact support@innovative-

technology.com.

1.3 Manual Amendments

Rev.

Date

Amendment Details

Issued by

1.0

06/07/2019

First Issue

1.1

21.10.2020

Added Contact Information

<< Back to Contents

Version: 1.0

Page 5 of 63

1.4 Copyright

publication may be reproduced in any form or by any means used to make any

derivative such as translation, transformation, or adaptation without permission from

Innovative Technology Ltd. The contents of this manual set may be subject to

change without prior notice.

1.5 Limited Warranty

Innovative Technology Ltd warrants each of its hardware products to be free from

defects in workmanship and materials under normal use and service for a period

commencing on the date of purchase from Innovative Technology Ltd or its

Authorized Reseller, and extending for the length of time stipulated by Innovative

Technology Ltd.

A list of Innovative Technology Ltd offices can be found in every section of this

manual set. If the product proves defective within the applicable warranty period,

Innovative Technology Ltd will repair or replace the product. Innovative Technology

Ltd shall have the sole discretion whether to repair or replace, and any replacement

product supplied may be new or reconditioned.

The foregoing warranties and remedies are exclusive and are in lieu of all other

warranties, expressed or implied, either in fact or by operation of law, statutory or

otherwise, including warranties of merchantability and fitness for a particular

purpose.

Innovative Technology Ltd shall not be liable under this warranty if it’s testing and

examination disclose that the alleged defect in the product does not exist or was

caused by the customer's or any third person's misuse, neglect, improper installation

or testing, unauthorized attempts to repair, or any other cause beyond the range of

the intended use. In no event will Innovative Technology Ltd be liable for any

damages, including loss of profits, cost of cover or other incidental, consequential or

indirect damages arising out the installation, maintenance, use, performance, failure

or interruption of an Innovative Technology Ltd product, however caused.

1.6 Product Safety Information

Throughout this user manual, we may draw your attention to key safety points that

you should be aware of when using or maintaining the product.

These safety points will be highlighted in a box, like this:

Caution!

This is example text.

This user manual and the information it contains is only applicable to the model

stated on the front cover and must not be used with any other make or model.

<< Back to Contents

Version: 1.0

Page 6 of 63

Safety Notice! Read before using this product!

Safety Notice - Warning. Ensure power is removed before allowing access to the inside of this product.

Ensure any static build up is discharged before allowing access to any part of this product or media

contained. Always earth this product/base plate in accordance with the manual.

For use only in or with complete equipment where the acceptability of the combination is determined by

UL LLC. When installed in an end-product, consideration must be given to the following:

•The power supply terminals and/or connectors are: Not investigated for field wiring

•The investigated Pollution Degree is: 2

•The following end-product enclosures are required: Mechanical, Fire

Sicherheitshinweis –Warnung: Es muss sichergestellt werden, dass das Gerät von der

Versorgungsspannung getrennt wird, bevor ein Eingriff in das Innere des Gerätes erfolgt. Es muss

sichergestellt werden, dass jegliche statische Aufladung des Gerätes entladen wird, bevor auf das Gerät

oder auf innerhalb des Gerätes befindliche Objekte zugegriffen wird. Die Erdung des Gerätes muss immer

gemäß Handbuch erfolgen.

Nur für die Verwendung in oder mit kompletter Ausstattung, dessen Eignung und Kombination von der UL

LLC ermittelt wurde. Bei der Installation in einem Endproduckt, muss folgendes berücksichtigt werden:

•Die Spannungsversorgungsklemmen und/oder Verbinder sind: Feldverkabelung wurde nicht

untersucht

•Der untersuchte Verschmutzungsgrad ist: 2

•Folgende Anforderungen an die Gehäuse des Endproduktes sind gefordert: Mechanisch, Feuer

Aviso de seguridad: Asegúrese de que la alimentación está desconectada y de que toda la energía

estática es descargada antes de manipular este producto. Conecte a tierra la chapa base de la manera que

se indica en el manual.

Solo para uso con dispositivos con los cuales la compatibilidad ha sido certificada por UL LLC. Tras su

instalación en producto acabado, tener en cuenta lo siguiente:

•Los conectores y terminales de alimentación son: No se ha investigado/especificado cableado

externo.

•El grado de contaminación determinado es: 2

•Los siguientes manuales/certificados de producto final son requeridos: Mecánico, Fuego

Avis de sécurité : Assurez-vous que l'alimentation est coupée et que toute l'énergie statique est

déchargé avant de manipuler ce produit. Connecter à la terre, la plaque de base à la manière indiquée

dans le manuel.

A utiliser Seulement avec les dispositifs dont la compatibilité a été certifiée par UL LLC. Après son

installation dans le produit fini, prendre en considération ce qui suit:-

•Les connecteurs et les bornes d'alimentation sont : cela n’a pas été étudié/spécifié câblage

externe.

•Le degré de contamination déterminé est: 2

•Les manuels suivants / les certificats du produit final sont nécessaires : mécanique, incendie

Bezpečnostní upozornění. Před manipulací uvnitř tohoto produktu se ujistěte, že je produkt odpojen od

zdroje elektrického napětí. Ujistěte se, že jakýkoliv elektrostatický náboj byl vybit před manipulací s

jakoukoliv částí tohoto produktu nebo obsaženým médiem. Vždy uzemněte tento produkt/základovou

desku v souladu s návodem.

Pouze pro použití v nebo s kompletním vybavením, kde je přijatelnost kombinace určena UL LLC. Při

instalaci v konečném produktu je třeba zvážit nasledující:

•Napájecí svorky a/nebo konektory: Nejsou sledované pro externí kabeláž

•Sledovaný stupeň znečištění je: 2

•Následující krytí konečného produktu jsou požadované: Mechanické, Protipožární

<< Back to Contents

Version: 1.0

Page 7 of 63

2PRODUCT INTRODUCTION

2.1 General Description

The BV50 bill acceptor is designed specifically for 66 mm width bills. With the option

of up or down stacking and four cash box capacities (300, 550, 800 or 1050) the

BV50 is ideal for amusement and vending machine applications. The BV50 is

exceptional value with a fast repayment of your initial investment, while easy

maintenance and free firmware updates made the unit future proof.

2.2 Key Features

•Designed specifically for 66mm bills

•Cashbox options to suit all applications

•Quick transactions

•Ideal for amusement and vending applications

2.3 Typical Applications

•Gaming

•Amusement

•Vending

2.4 Component Overview

<< Back to Contents

Version: 1.0

Page 8 of 63

2.5 Bezel Options

ITL Part Number

Description

Details

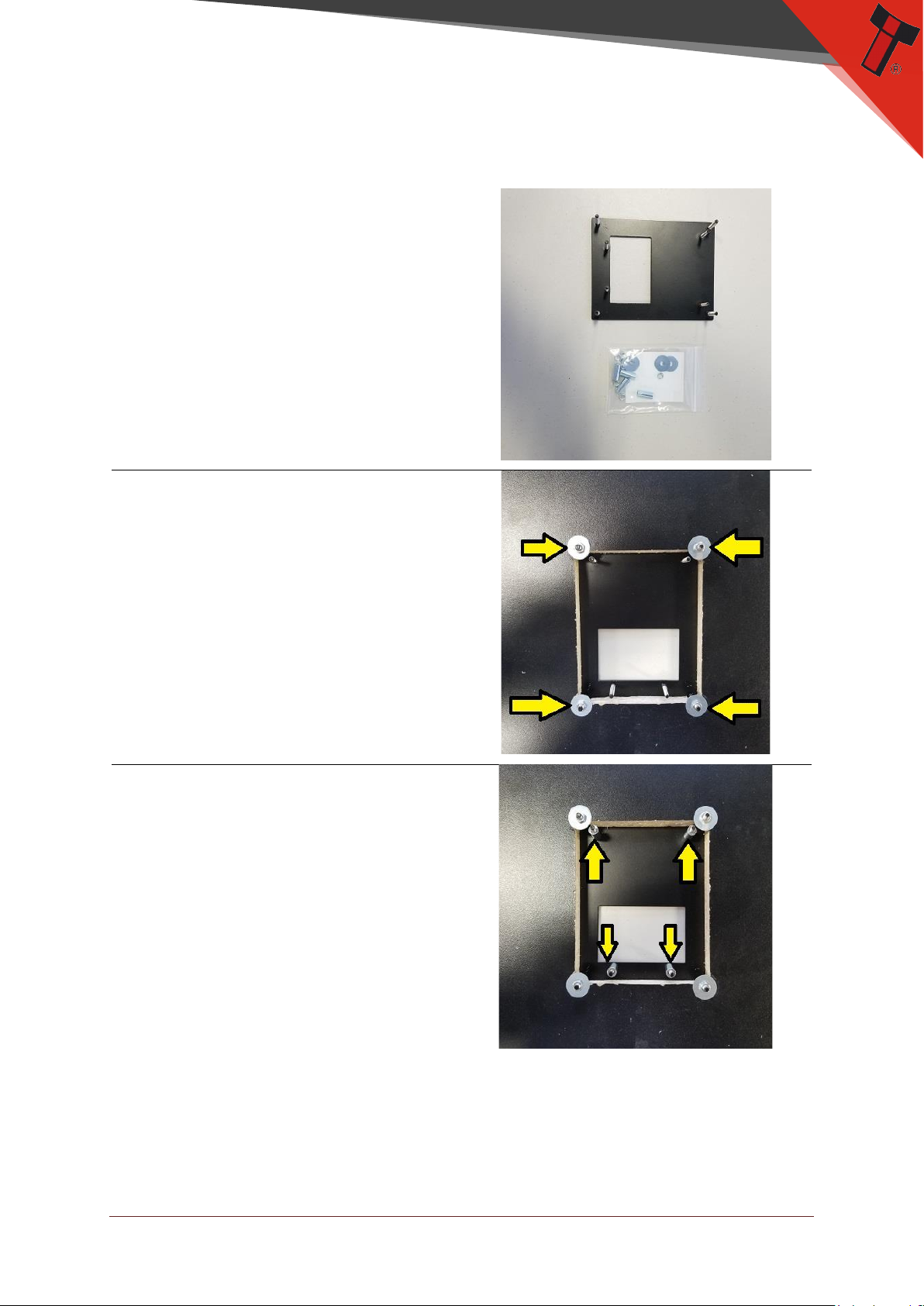

BV50 Mounting Plate Assembly

http://www.innovative-

technology.com/us/shop/bv50-spares/bv50-

mounting-bracket-detail

2.6 Cashbox Options

ITL Part Number

Description

Details

PA00814

BV50 300 Note Cashbox

http://innovative-

technology.com/shop/bezels/bv50-300-bill-

cashbox-detail

PA00822

BV50 550 Note Cashbox

http://innovative-

technology.com/shop/bezels/bv50-550-bill-

cashbox-detail

PA00823

BV50 800 Note Cashbox

http://innovative-

technology.com/shop/bezels/bv50-800-bill-

cashbox-detail

PA00821

BV50 1050 Note Cashbox

http://innovative-

technology.com/shop/bezels/bv50-1050-bill-

cashbox-detail

<< Back to Contents

Version: 1.0

Page 9 of 63

3TECHNICAL DATA

3.1 Dimensions

The dimensions below are for the BV50 showing 300, 550, 800 and 1050 note

cashbox. For dimensional drawings contact [email protected]

3.2 Weight 0.85kg

3.3 Environmental Requirements

Environment

Minimum

Maximum

Temperature

+3°C

50°C

Humidity

95% Non-condensing

3.4 Power Requirements

3.4.1 Supply Voltages

Supply Voltage

Minimum

Nominal

Maximum

Supply Voltage (V DC)

+ 10.8 V DC

+ 12 V DC

+ 13.2 V DC

Supply Ripple Voltage

0 V

0.25 V @ 100 Hz

<< Back to Contents

Version: 1.0

Page 10 of 63

3.4.2 Supply Currents

Supply Current

Nominal

Maximum

Standby

0.2A

0.4A

Running

1.5A

Peak

2.5A

3.0A

3.4.3 Power Supply Guidance

The BV50 requires a stable 12V DC / 3.0A power supply. Please check the power

requirements of your host machine and other peripherals to dimension a suitable

power environment for your machine setup.

TDK Lambda manufactures suitable power supplies. Please see table below for

further details.

Power Supply Unit

Specification

RS Stock Code

Farnell Stock Code

TDK Lambda SWS50-12

+12 V DC / 4.3 A

466-5869

1184645

3.4.4 110V Interface

The BV50 can also be supplied with a 110v AC to 12V DC adapter which can be

mounted to the rear of the unit. A link to this power supply can be found below:

http://innovative-technology.com/shop/accessories/bv20-110v-power-supply-unit-detail

3.5 Interface Logic Levels

Interface Logic Levels

Logic Low

Logic High

Inputs

0V to +0.5V

+3.7V to +12V

Outputs with 2K2Ω pull-up resistor

+0.6V

Pull-up voltage of host interface

Maximum Current Sink

50mA per Output

3.6 Reliability Data

•MCBF for the BV50 is 100,000

3.7 Media Requirements

The BV50 is capable of handling multiple denominations simultaneously, the media

that can be accepted includes but is not limited to:

•Polymer and windowed notes

The minimum and maximum dimension for media IN is as follows:

Media Requirements

Length

Width

Min

110mm

56mm

Max

156mm

66mm

<< Back to Contents

Version: 1.0

Page 11 of 63

4MECHANICAL INSTALLATION

4.1 Compatibility

4.1.1 Hardware Compatibility

4.1.1.1 Machine Mounting

The BV50 has been designed to retrofit into standard amusement facias with the

mounting kit, as such it is a drop-in replacement for many amusement style bill

validators.

Innovative Technology Ltd. has a policy of continuous product improvement. Due to

design changes older model or product bezels (and cashboxes) may not be

compatible with the BV50. However, new product deliveries always include a bezel

and cashbox that must be used.

Innovative Technology Ltd. has a policy of continuous product improvement. Due to

design changes older model or product bezels (and cashboxes) may not be

compatible with the BV50. However, new product deliveries always include a bezel

(and cashbox) that must be used.

Caution!

Only use bezel (and cashbox)

delivered with the product!

4.1.1.2 Machine Interfacing

The BV50 has a 16-pin connector which has the same pin-configurations as many of

ITL validators. The optional 110v interface connects directly into the 9-pin Molex

connector traditionally found in amusement style machines.

<< Back to Contents

Version: 1.0

Page 12 of 63

4.1.1.3 Power Supply

It is vital that the BV50 is connected to a power supply being able to provide the

required power environment. A weak power supply causes malfunctioning of the

BV50 such like note rejects or missing credits. If the BV50 is used as a fitting

replacement for an older model or product we recommend checking the power

supply specifications of the machine. The power supply of the machine might be

designed for the older model or product but not suitable for the BV50. The BV50

might have higher power consumption. Refer to 3.4 for full power requirement

details of the BV50.

Caution!

A weak power supply causes

malfunctioning!

4.1.2 Software Compatibility

4.1.2.1 Interface Protocols

When using the BV50 as a fitting replacement for an older model or product some

events such like credits may be given earlier. This is due to improved firmware

routines and faster motors being used. This may cause missing events such like

credits in those host machines where timeouts are defined for the older model or

product. Please contact the machine manufacturer for full compatibility of the BV50.

Caution!

Timing issues may cause missing

events such like credits!

4.1.2.2 Re-programming

For re-programming the BV50 always use the latest version of Validator Manager

available for download on our website. Older versions may not fully support the

product. All software from Innovative Technology Ltd is free of charge and can be

downloaded from the website: www.innovative-

technology.com/support/securedownload once registered and logged in. If you are

not registered, please create an account via the Create an account form. A

confirmation email will be sent to the registered email address once all contact

details have been successfully submitted. As of June 2016 the ASIIC chip used in the

BV50 was made obsolete by the manufacturer. As such a new board revision with a

different processor was released. This resulted in a different hardware revision and

firmware version, please see below:

The BV50 with the ST chipset will be referenced in the dataset name (see below in

RED):

Old Style- USD02316_BV50

New Style- USD02L17_BV50

<< Back to Contents

Version: 1.0

Page 13 of 63

Caution!

Older versions of Validator

Manager may not support the

BV50!

4.2 Cashbox Mounting

4.2.1 Cashbox Fitting

1. Line the cashbox up.

There are mounting slots on the

sides of the BV50 that the

cashbox slides into.

2. Clip in place

Slide the cashbox down until the

red clip on top is clips into place.

<< Back to Contents

Version: 1.0

Page 14 of 63

4.2.2 Cashbox Removal

1. Slide Clip Up

To remove the cashbox, slide the

red clip upward.

2. Remove Cash Box

With the red clip up, slide the

cash box upward and pull

outward.

<< Back to Contents

Version: 1.0

Page 15 of 63

4.3 Machine Mounting

4.3.1 Machine Mounting

1. Mounting Plate

Un-package your mounting plate

and make sure you have the

hardware kit with the mounting

plate. Included in the kit is

4xLarge washer, 4x small

washer, 4x spacer, 4x 7mm

washer, 4x 8mm washer, and

accepted currency sticker.

2. Mounting Plate to Door

Slid the mounting plate flush to

the door. Place the four large

washers over the outer bolts and

use the four 8mm washers to

secure the mounting plate.

3. Spacers

Remove the four spacers from

the bag and place them over the

four inner bolts as shown.

<< Back to Contents

Version: 1.0

Page 16 of 63

4. BV Mounting to Plate

Slide the hole of the BV over the

inner bolts as shown in the

picture. Slide the four small

washers over the bolts and then

secure with the four 7mm nuts.

*Be careful not to over tighten

the nuts as the bezel can crack.

5. Currency Stickers

With the BV mounted in place,

flip the door over and apply the

correct currency sticker to the

plate. This will inform customers

of the currencies and

denominations the machine

accepts.

<< Back to Contents

Version: 1.0

Page 17 of 63

5SOFTWARE INSTALLATION AND CONFIGURATION

5.1 Introduction

The BV50 leaves the factory pre-programmed with the latest dataset and firmware

files. However, it is important to ensure your device is kept up to date with the latest

dataset and firmware. This section will give you a brief overview of the various

update possibilities with the BV50. For detailed instructions please refer to the

relevant manual package supplied with the software or contact support@innovative-

technology.com.

5.2 Software Downloads

All software from Innovative Technology Ltd is free of charge and can be

downloaded from the website www.innovative-technology.com/support/secure-

download once registered and logged in. If you are not registered, please create an

account via the Create an account form. A confirmation email will be sent to the

registered email address once all contact details have been successfully submitted.

5.3 Drivers

The ITL drivers allow you to connect any of our validators to a compatible Windows

device. If you are connecting via an IF17 then you will not need to follow this

process as they are signed Microsoft Drivers and should install automatically. If this

isn’t the case or your computer is disconnected from the network, there is a

standalone package included within the driver downloads.

5.4 Dataset/Firmware Programming

5.4.1 Validator Manager

5.4.1.1 General Description

Validator Manager is a utility which allows the user to reprogram any of ITL’s

validators, hoppers as well as coin and note recycler. Please note that admin rights

are required during installation. The validator must be in SSP for the Validator

Manager to detect the device.

5.4.1.2 System Requirements

•Windows XP SP3 or above

•.Net Framework 4

•256mb ram

•50mb hard disk free

•Connected BV50 with active com port

Caution!

We have seen instances where one

of the dll’s (itdata1.dll) used in

Validator Manager are flagged as a

Trojan, this is a false positive and if

<< Back to Contents

Version: 1.0

Page 18 of 63

this happens you will need to add a

rule to your antivirus to allow the

file to run.

5.4.1.3 Hardware Setup

Connect the power supply to the DA2/IF17. Connect the USB cable to the DA2/IF17

and to your computer or laptop. Connect the BV50 to the DA2/IF17.

Type

ITL Part Number

Description

Details

Cable

CN00292

SSP Cable

http://innovative-

technology.com/shop/cables/ssp-to-

binary-interface-cable-detail

Cable

CN00345

IF17 Power

Cable

http://innovative-

technology.com/shop/cables/da3-if17-

if18-power-cable-detail

Cable

CN00214

USB Type A to B

http://www.innovative-

technology.com/shop/cables/usb-a-to-

b-cable-assembly-detail

<< Back to Contents

Version: 1.0

Page 19 of 63

Interface

IF17

TTL to USB

Converter

http://www.innovative-

technology.com/shop/accessories/if17-

interface-converter-detail

5.4.1.4 Switching to Programming Mode (SSP)

Before programming via the Validator Manager, the BV50 needs to be switched to its

programming mode (SSP interface). Please refer to Appendix 11.3 for the procedure

for doing this.

5.4.1.5 Programming the device

Once you have switched the unit into SSP, open Validator Manager and click detect

devices. This will scan all active com ports for a unit, if your BV50 fails to connect

please ensure the correct drivers are installed and the unit is in SSP.

By selecting the Program tab, you can reprogram the BV50. To begin the upload,

click open file, then browse to the file location (usually Downloads) before clicking

OK.

Once the file has been selected its information will be populated and the Program

device tab will become active. Finally hit ‘Program Device’, the unit’s bezel will now

begin to flash signaling the update has begun.
