Innovative THEPROTECTOR INNO-190pDhS User manual

INSTRUCTION MANUAL
INNO-190pDhS
Please keep this manual carefully for further reference!
Thank you for choosing our high-quality dehumidifier. Please read this manual
carefully before use. The dehumidifier removes excess moisture from the air,
creating a comfortable environment. The compact design allows you to move it
easily from room to room.

CONTENTS
CAUTIONS ................................................................................................. 1
SPECIFICATIONS ......................................................................................2
FEATURES................................................................................................. 2
DRAWINGS................................................................................................ 3
OPERATIONS............................................................................................. 4
WATER DRAINAGE .................................................................................. 6
CLEANING AND MAINTENANCE ......................................................... 7
TROUBLE SHOOTING GUIDE ................................................................ 9

1
CAUTIONS
Please read and obey the following cautions before use:
1. Unplug the power supply before cleaning or storingthe machine.
2. Never immerse the machine into water or other liquids.
3. Do not put the machine close to heat-generating devices, flammable and
dangerous materials.
4. Children should be supervised to ensure that they don't play with the unit.
5. Do not sit or stand on the machine. Don't put heavy objects on the machine.
6. Never operate the machine when the cable or other connector is damaged,
otherwise, something abnormal may happen.
7. Do not operate the dehumidifier in narrow areas such as a closet because it may
cause fire hazard.
8. Install the drainage pipe downward to make sure condensed water can be drained
continuously.
9. If the supply cord is damaged, it must be replaced by the manufacture, its service
agent or similarly qualified persons in order to avoid a hazard.
10. Install the machine on flat floor to diminish vibration or noise.
11. Never insert any other objects into the machine body to avoid any hazard or
machine failure.

2
SPECIFICATIONS
Model# INNO-190pDhS
Volta
g
e & Frequenc
y
AC 115V 60Hz
Rated capacity 120Pints/Day @ 80˚F, 60% RH
190Pints/Day @ 86˚F, 80% RH
Power Consumption &
Current
1165W/10.2A @ 80˚F, 60% RH
1350W/ 12 A @ 86˚F, 80% RH
Noise ≤60dB
(
A
)
Air Circulation 450m3/hr
Freon type & Capacity R410A/ 27.5Oz(780g)
Net Weight 54kg
Gross Weight 57kg
FEATURES
*Adjustable Humidity
*Built-in Auto Defrosting System
*Energy-saving Design
*Large Dehumidifying Capacity
*Moveable and Easy to Store
*Timing Operation

3
DRAWINGS
Front

4
Back
OPERATIONS

5
(1)
Press this button while on electric, screen light on, machine automatically goes to
continuous mode, display screen shows environmental humidity, compressor on after fan
run for 3 seconds; press this button again, compressor stops, double 8 shows “- -”, machine
goes to standby mode, fan will run for another minute and stop.
(2)
Press this button while machine is on electric, until button light goes on, press
“MINUS”“ADD”to set the time to start the machine, when the count down is over, fan and
compressor start work.
Press this button button while machine is running, until the button light goes on, press
“MINUS”“ADD”to set the time to stop the machine, when the count down is over, fan and
compressor stop work.
Press this button for 3 seconds shows current temperature, return to current humidity after
10 seconds. Long press this button shows temperature.
(3)
Increase the humidity by pressing this button at normal mode, humidity increase
5%RH with each press, buzzer rang each time with the press, press the button for 1
second can increase the humidity continuously; press this button to set the time after
press “TIMER”.

6

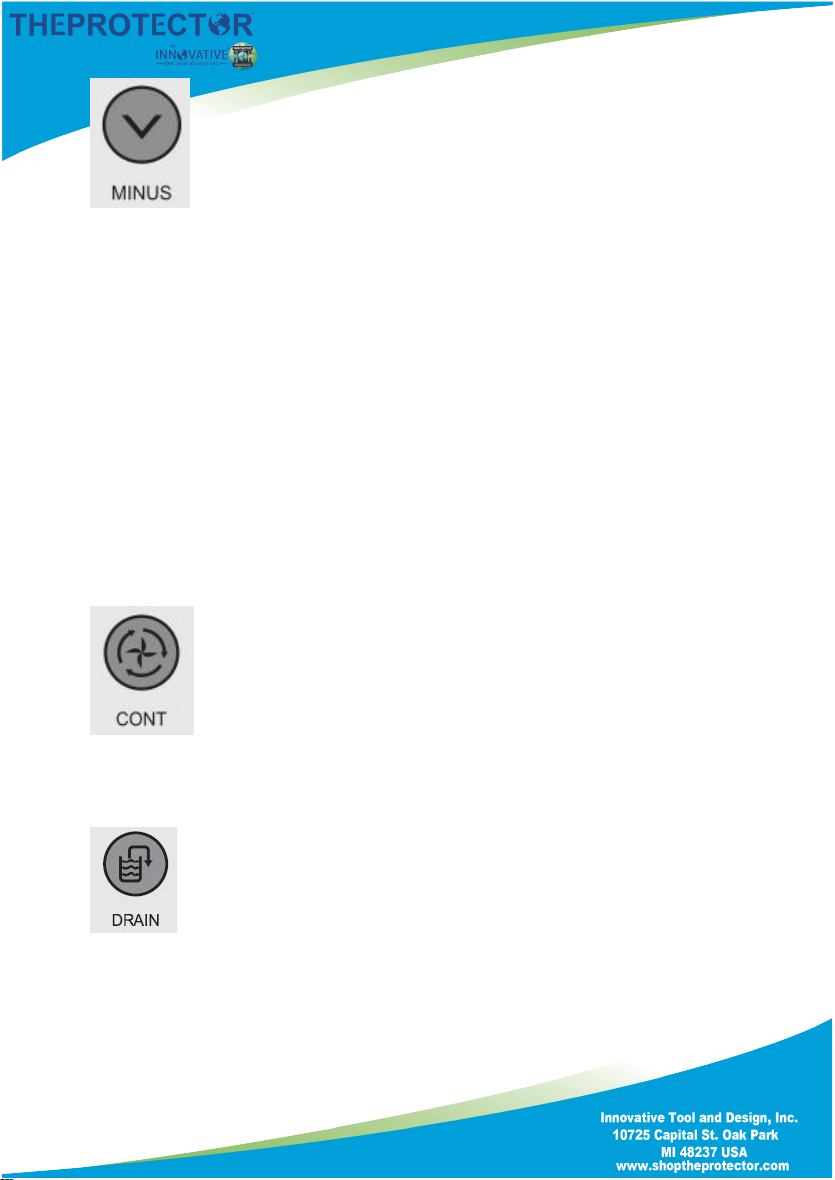

(4)
Decrease the humidity by pressing this button at normal mode, humidity decrease
5%RH with each press, buzzer rang each time with the press, press the button for 1
second can decrease the humidity continuously; press this button to set the time after
press “TIMER”.
Note:
1) The default humidity is 50%RH, to increase and decrease as follow:
20%-25%--30%-35%-40%45%-50%-55%-60%-65%-70%-75%-80%-85%-90%
2) Environmental humidity and machine set humidity will decide the status of compressor
and fan as follow:
Environmental humidity≥machine set humidity+3% ,compressor and fan start running.
Environmental humidity＜machine set humidity+3%,compressor and fan stop running.
Press continue button at continuous mode, switch to normal dehumidification mode, set the
humidity manually.
(5)
Continuous mode---(display screen shows current humidity)machine keeps running,
continuous mode light on, humidity set is invalid, time set is available. Press
continuous mode to switch to normal mode, continuous mode light off, humidity set
is operational.
(6)
Press this button to drain the water forcibly by the pump, the “FULL” indicator turn
on, after 30 seconds, the pump stop working and the indicator turn off.

7
standby mode.
Display Screen:
The digital display features the following functions:
1. When the unit is plugged in, it shows ‘--’, the machine is in
2. When users press the power button, it shows the room humidity.
3. When users set the humidity, it shows the setting humidity.
4. When users set the time, it shows the timing.
5. Long press the timer button for 5 seconds, it shows the room temperature.
6. When the room temperature is below 5℃, it shows ‘CL’.
7. When the room temperature is over 38℃, it shows ‘CH’.
8. When the room humidity is below 20% RH, it shows ‘LO’.
9. When the room humidity is over 95% RH, it shows‘HI’.
10. If there is a copper head sensor failure, it shows‘E1’.
11. If there is a temperature and humidity sensor failure, it shows ‘E2’.
12. If there is a pump failure, it shows ‘E4’.
Notes:
1. If the set humidity is higher than the room humidity, the dehumidifier will stop
working.
2. If there is a sudden power failure during operation, the system can memorize the
current status, and it will turn on automatically and enter the previous working
status after power is restored. If there is a normal shutdown and the unit is in
standby mode, then press the power button, the unit will also enter the previous
working status. If users turns off the unit and pulls the plug out, the unit will enter
the default continuous dehumidifying mode after power is restored.
3. Auto Defrosting Function:
When the room temperature is lower than 5℃or higher than 38℃, the compressor
and fan stops working.
Defrosting requirement: Compressor running for 30 minutes, temperature sensor
sense the temperature ≤-1℃(last for 10 seconds), solenoid valve defrosting starts, fan
and compressor continues, defrost light on; when the pipe temperature goes to 5℃ or
the defrost last for 15 minutes, defrosting stops.

8
WATER DRAINAGE
Install the included drain pipe to the draining nozzle on the machine and
direct the pipe to the desired area before operate the machine.
When the pump is full for 3 seconds, the “FULL” light will turn on and the
pump start to work; 30 seconds later the pump stop working.
When the pump is full for 1 minute and detected by water level switch, the
display screen will show “E4”, the buzzer rings for 15 times, the
dehumidifier will stop working and the relay of pump will break.
When the pump drains the water normally, the compressor and motor run
well.

9
CLEANING AND MAINTENANCE
Please cut off the power supply before cleaning or maintenance.
Cleaning the Machine Body: Clean the machine body with a soft damp cloth. Do
not sprinkle water on the unit. Do not use chemical solvent such as benzene, alcohol,
gasoline. The surface may be damaged, even the whole case may be deformed.
Cleaning the Air Filter:
1. Pull out the louver of the front panel to get access to the filter.
2. Remove the filter mesh out of the unit.
3. Use a clean cloth to adsorb the surface dust on the filter mesh. If the filter is
extremely dirty, use tap water to rinse the filter. Please dry it thoroughly before
inserting the filter back into the unit in smoothly.

1
0
Dehumidifier Storage:
If the dehumidifier will not be used for an extended period, please refer to the
following tips:
1. Clean the filter mesh.
2. Attention: The inner evaporator has to be dried out before the unit is stored to
avoid component damage and molds. Unplug the unit and place it in a cool and dry
area for days to dry it out. Another way to dry the unit is to set the humidity 3%
higher than the ambient humidity to force the fan to dry the evaporator for a couple
of hours.
3. Use the wrapping post to put away the power cord.
4. Store the unit in a cool dry place.

1
1
TROUBLE SHOOTING GUIDE
If the following condition happens, please review the list before calling the customer
service.
Problem Possible Cause Solution
The unit doesn’t run
Has the power cord
been disconnected? Plug in the unit
The room temperature
is under 5℃or above
35℃.
To protect the unit, please use it
only when room temperature is
between 5℃and 35℃.
The unit runs but
doesn’t dehumidify
The humidity setting is
3% higher than room
humidity.
Reset the humidity to a lower
set point, or shut down the unit
if users are satisfied with the
current humidity.
The dehumidifying
capacity reduces
Filter mesh is jammed. Clean the filter mesh according
to manual.
Louvers of Air inlet and
Air outlet are jammed. Clear the louvers.
No air comes in Filter mesh or air inlet
louver is jammed.
Clean the filter mesh or the air
inlet louver.
The operation is
noisy.
The unit is slanting. Place it on the level ground.
Filter mesh is jammed. Clean the filter mesh according
to manual.

THEPROTECTOR LIMITED PRODUCT WARRANTY
Please take the time to read through our Standard Terms and Conditions of the THEPROTECTOR Limited
Product Warranty.
How Long Does The Coverage Last?
The product warranty becomes eective from the date of purchase by the purchaser. Coverage terminates
if you sell or otherwise transfer the product. The repair of your product under warranty will not extend the
period of the warranty. Each part has its own warranty. Please check the warranty list before you place an
order.
How Do You Get Service?
Products are to be returned to THEPROTECTOR Tech Support Center under your express account. Address:
10725 Capital St. Oak Park. MI [phone]
What is Covered?
Normal wear and tear.We will repair or replace your product if your product is found, within the warranty
period, to be defective due to defective materials or workmanship existing at the time of purchase. If any
part is no longer available or out of manufacture, THEPROTECTOR will replace it with a functionally-equiva-
lent replacement part.
What is Not Covered?
THEPROTECTOR shall NOT be liable for costs of repair or replacement of a product incurred as a result of:
1. Accidental damage, faults caused by negligent use or care, neglect, careless operation or handling of
the product which is not in accordance with the THEPROTECTOR Instruction Manuals.
2. Use of the parts not assembled or installed in accordance with the instructions of THEPROTECTOR.
3. Use of parts or accessories other than those produced or recommended by THEPROTECTOR.
4. External sources such as transit damage or weather.
5. Repairs or alterations carried out by parties other than THEPROTECTOR or its authorized agents.
6. Serial numbers defaced or missing.
THEPROTECTOR warrants the mechanical and electronic components of all THEPROTECTOR series to be
free of defects in material and workmanship if used under normal operating conditions for a period from
the original date of purchase. If the product shows any defects within this period and that defect is not due
to user error or improper use THEPROTECTOR shall, at its discretion, either replace or repair the product
using suitable new or refurbished parts. In case THEPROTECTOR decides to replace the entire product, this
limited warranty shall apply to the replacement product for the remaining initial warranty period.
THEPROTECTOR DISCLAIMS ANY AND ALL LIABILITY, INCLUDING ANY EXPRESS OR IMPLIED WARRANTIES, WHETHER ORAL OR WRITTEN, FOR SUCH
THIRD PARTY HARDWARE. THE CUSTOMER ACKNOWLEDGES THAT THEPROTECTOR HAS MADE ITS BEST EFFORTS TO MATCH ITS PRODUCTS TO WORK
WITH THIRD PARTY HARDWARE OR THE ABILITY TO CONNECT TO AND CONTROL THIRD PARTY HARDWARE FOR THE CUSTOMER’S INTENDED PURPOSE.
THEPROTECTOR ADDITONALY AND SPECIFICALLY DISCLAIMS ANY AND ALL LIABILTY FOR CHANGES, ADDITIONS OR UPDATES IN ANY WAY TO A THIRD
PARTY MANUFACTURES PRODUCTS.
190 Pint Dehumidifier
Innovative Tool and Design, Inc.
10725 Capital St Oak Park MI 48237 USA
www.shoptheprotector.com
