Installation Instructions
2000/2000S Handrail
FIG. 1
FIG. 2
IPC.335/REV.4
Please read all instructions before installing handrail.
1. Cut aluminum retainer to desired length, leaving
allowance for returns, outside corners and inside corners.
See Figure 1.
2002
LEFT RETURN
(3
15
/ 16 " ALLOWANCE)
RETAINER
BUTT JOINT
906
HANDRAIL
SPLICE
2003
RIGHT RETURN
(3
15
/
16
" ALLOWANCE)
2004
INSIDE/OUTSIDE CORNER, 90º
(5
3
/ 8 " ALLOWANCE FOR INSIDE CORNER)
(
1
/ 4 " ALLOWANCE FOR OUTSIDE CORNER)
2004135
INSIDE/OUTSIDE
CORNER, 135º
(2
3
/ 8 " ALLOWANCE FOR INSIDE CORNER)
(
1
/ 4 " ALLOWANCE FOR OUTSIDE CORNER)
BOTTOM
PLATE
(Included with 2002 return)
BOTTOM PLATE
(Included with 2003 return)
2000A
CONTINUOUS
ALUMINUM RETAINER
.080"
2. Drill holes in centerline of aluminum retainer for
brackets, returns and corners using 1/4 drill bit. Attach
returns, inside corners and outside corners to retainer
leaving a 1/16 gap between returns/corners and retainer
to allow for adjustment. See Figure 2.
a. Plastic Brackets - Attach brackets to retainer.
See Figure 2a.
b. Stainless Steel Brackets - Slip stainless steel cover
over post. Insert post through retainer hole and
attach. See Figure 2b.
DRILL 4" FROM EACH END
FOR BRACKETS
SPACE HOLES
A MAXIMUM OF
EVERY 32"
FOR BRACKETS
DRILL
1
/ 2 "
FROM
EACH END
FOR RETURNS
AND CORNERS
2002
LEFT
RETURN
2004
INSIDE/OUTSIDE
CORNER
1
1
/ 8 " SLOTTED
PAN HEAD
BOLT ASSEMBLY
11 / 8 " SLOTTED
PAN HEAD BOLT
ASSEMBLY
2001
MOUNTING
BRACKET
2001SS
STAINLESS STEEL
BRACKET ASSEMBLY
FIG. 2a
FIG. 2b

Installation Questions?
Contact our Installation Hotline 866.EZINPRO
For Sales & Customer Service call 800.222.5556

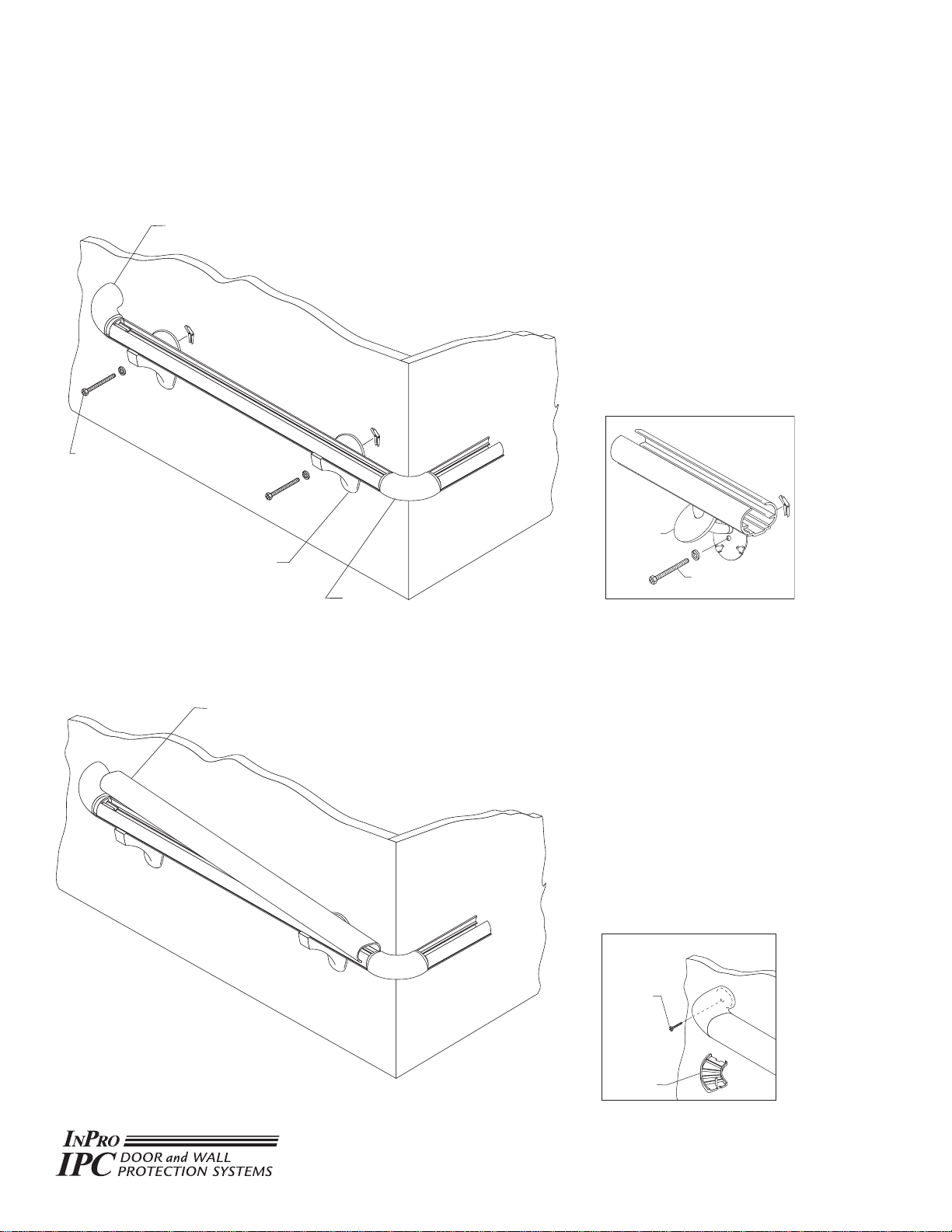

3. Position retainer against wall at desired height. Level
and mark bracket holes on wall. Drill marked holes
with 3/4 drill bit for toggle bolts (drywall
installation) or 1/2 drill bit for lead anchor (concrete
wall installation). Loosely attach mounting bolts to
the brackets. Mount on wall, level retainer and
tighten screws to secure. See Figure 3.
NOTE: For stainless steel bracket, snap cover
over mounting base when retainer is secure.
See Figure 3a.
Installation Instructions
2000/2000S Handrail
FIG. 3
FIG. 4 4. Cut vinyl cover to length between returns and/or
corners. (Note: Trim factory edges square before
installation). Position cover on retainer and adjust
returns and/or corners for a tight fit. Starting at one
end and work to the other end by pushing the cover
onto the retainer until it is securely in place.
See Figure 4.
NOTE: Returns should be secured to the wall.
Remove bottom plate and fasten installer
supplied screws through hole located in the
return. Reattach bottom plate. See Figure 5.
1
/
4
-20 x 5"
HEX HEAD SCREW
W/PHILLIPS HEAD SLOT
2001
MOLDED
MOUNTING
BRACKET
2002
LEFT RETURN
2004
INSIDE/OUTSIDE
CORNER, 90º
2000V
VINYL COVER
.080"
1
5
/ 8 " BUGLE HEAD
DRYWALL SCREW
(INSTALLER
SUPPLIED)
BOTTOM
PLATE
(Included with
2002 return)
FIG. 5
4001SS
STAINLESS
STEEL
BRACKET
ASSEMBLY
1
/
4
-20 x 3" HEX HEAD SCREW
W/PHILLIPS HEAD SLOT
FIG. 3a
