Insignia NS-DVD1 User manual

DVD Player| Lecteur de DVD | Reproductor de DVD
NS-DVD1
NS-DVD1.fm Page 1 Friday, July 28, 2006 3:43 PM

NS-DVD1.fm Page 2 Friday, July 28, 2006 3:43 PM

www.insignia-products.com 3
Insignia NS-DVD1 DVD Player
Contents
Welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Setting up your DVD player. . . . . . . . . . . . . . . . . . . . . . . . . . .11
Using your DVD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Maintaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Legal notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Español. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Welcome
Congratulations on your purchase of a high-quality Insignia product.
Your NS-DVD1 represents the state of the art in DVD player design
and is designed for reliable and trouble-free performance.
Safety information
Read this guide before using your DVD player, then keep this guide in
a safe place for future reference.
Location • Do not place your DVD player in direct sunlight or near a heat
generating source, such as a heater, stove, or other appliance
(including an amplifier).
• Do not set your DVD player on top of another appliance that
generates heat.
• Do not place your DVD player in a location that has poor
ventilation or that is dusty or damp. Do not expose your DVD
player to rain or water.
Warning
To reduce the risk of electrical shock, do not remove the cover. Refer all
servicing to qualified service personnel.
NS-DVD1.fm Page 3 Friday, July 28, 2006 3:43 PM

4
Insignia NS-DVD1 DVD Player
www.insignia-products.com
• Do not place your DVD player in a location that is unstable or
subject to vibration.
• Do not place your DVD player near high powered speakers or
on the same stand with speakers.
Discs • Do not play discs that are scratched or warped. These discs
could damage your DVD player.
Power supply
• Your DVD player uses AC 110 V~240 V 50 Hz/60 Hz power.
• When you do not intend to use your DVD player for an
extended time, unplug it from the power source.
• During electrical storms, unplug your DVD player from the
power source to prevent possible electric shock or fire.
• Make sure that you wait at least 10 seconds between turning
your DVD player on or off. This helps prolong the life of your
DVD player.
Features
Your DVD player features:
• Compatibility with DVD, SVCD, VCD, MP3 CD-R/RW, and
Picture CD
• 10-bit digital video converter with resolutions of more than 500
lines
• 96 KHz/24-bit digital/analog (D/A) converter that provides high
quality, digital sound without distortion through a single cable
connection
• Video component signal output, S-Video output, composite
video output, and coaxial output
• Eight languages, 32 caption modes, and multiple viewing
angles
• AC-3 Dolby signal decoding and output through two analog
channels
• Laser head over-current protection system with a constant
laser current to provide a long product life
NS-DVD1.fm Page 4 Friday, July 28, 2006 3:43 PM

5
Insignia NS-DVD1 DVD Player
www.insignia-products.com
Front
Control Description
1 Disc tray Insert a disc into this tray.
2 Power indicator Lights when your DVD player is
turned on.
3 Remote sensor Receives signals from the remote
control. Do not block.
4 EJECT button Press to open and close the disc
tray.
5 PLAY/PAUSE button Press to start or pause disc
playback.
6 STOP button Press to stop disc playback.
7 POWER button Press to turn your DVD player on
and off.
12345 6 7
NS-DVD1.fm Page 5 Friday, July 28, 2006 3:43 PM

6
Insignia NS-DVD1 DVD Player
www.insignia-products.com
Back
Component Description
1 Power connector Plug the AC power cord into this
connector, then plug the other end
of the cord into an electrical outlet.
2 Y component video out
jack Plug the Y connector on a component video cable into this
jack. Plug the other end of the
cable into the appropriate IN jack
on your external device.
3 Pb/Cb component video
out jack Plug the Pb/Cb connector on a component video cable into this
jack. Plug the other end of the
cable into the appropriate IN jack
on your external device.
4 Pr/Cr component video
out jack Plug the Pr/Cr connector on a component video cable into this
jack. Plug the other end of the
cable into the appropriate IN jack
on your external device.
5 VIDEO (composite) out
jack Plug a composite video cable into this jack. Plug the other end of the
cable into the appropriate IN jack
on your external device.
12345
67 8 9
NS-DVD1.fm Page 6 Friday, July 28, 2006 3:43 PM

7
Insignia NS-DVD1 DVD Player
www.insignia-products.com
6 AUDIO L (left) audio out
jack Plug the left (white) connector on an audio/video cable into this jack.
Plug the other end ofthe cable into
the appropriate IN jack on your
external device.
7 AUDIO R (right) audio out
jack Plug the right (red) connector on an audio/video cable into this jack.
Plug the other end ofthe cable into
the appropriate IN jack on your
external device.
8 COAXIAL out jack Plug one end of a coaxial cable
into this jack. Plug the other end of
the cable into the appropriate IN
jack on your external device.
9 S-VIDEO out jack Plug one end of an S-Video cable
into this jack. Connect the other
end of the cable into the
appropriate IN jack on you
external device.
Component Description
NS-DVD1.fm Page 7 Friday, July 28, 2006 3:43 PM

8
Insignia NS-DVD1 DVD Player
www.insignia-products.com

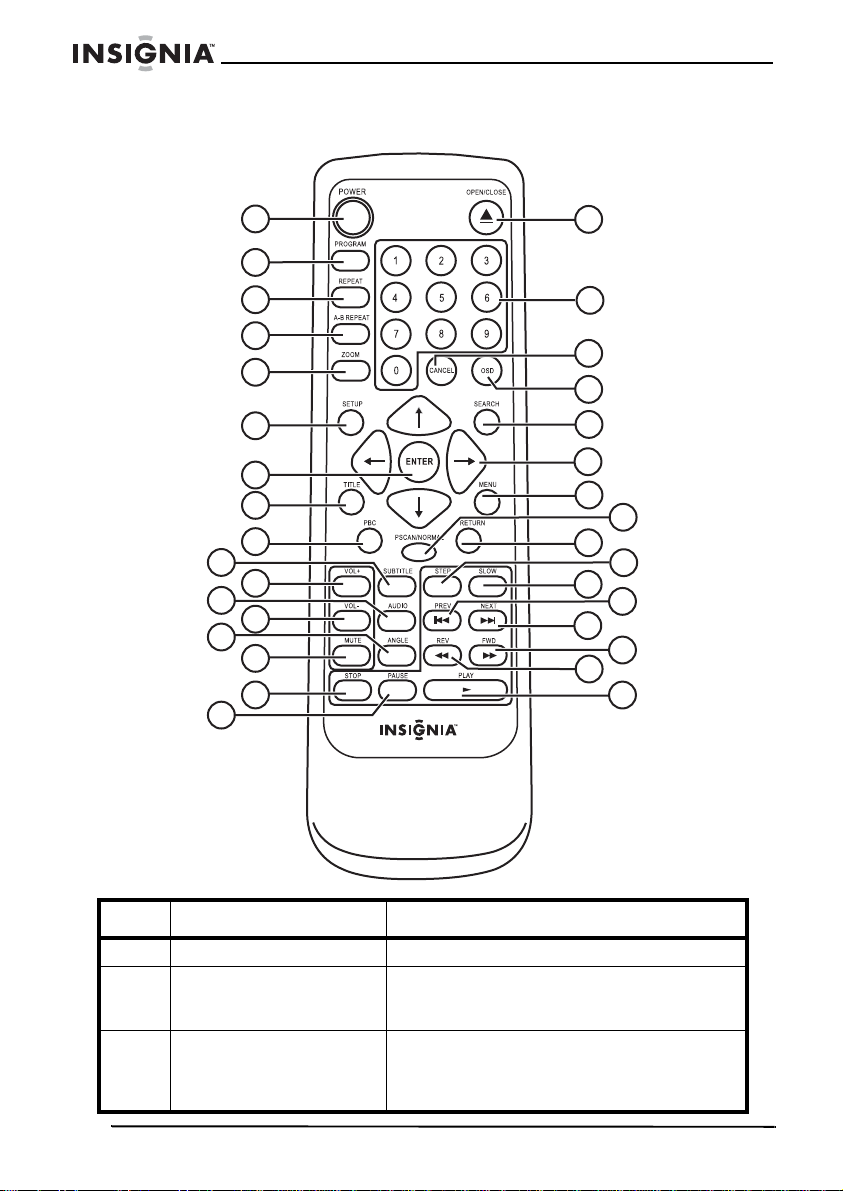

Remote control
Button Description
1 POWER Press to turn your DVD player on and off.
2 PROGRAM Press create a playback list. For more
information, see “Creating a playlist” on
page 21.
3 REPEAT Press to repeat a DVD chapter, title, or
entire disc. For more information, see
“Repeating a DVD chapter, DVD title, or
entire DVD” on page 20.
1
2
3
4
5
6
7
8
9
11
13
15
16
10
12
14
17
18
19
20
21
22
23
24
25
26
28
27
30
32
29
31
33
NS-DVD1.fm Page 8 Friday, July 28, 2006 3:43 PM

9
Insignia NS-DVD1 DVD Player
www.insignia-products.com
4 A-B REPEAT Press to create a playback loop. For more
information, see “Creating a playback loop”
on page 20.
5 ZOOM Press to enlarge the display image.
6 SETUP Press to open the on-screen menu system.
7 ENTER Press to confirm selections in the on-screen
menu system.
8 TITLE Press to open the DVD menu if the DVD
has a DVD menu.
9 PBC Press to turn the PBC feature for VCDs
(2.0) on or off.
10 SUBTITLE Press to display subtitles if the DVD has
subtitles.
11 VOL+ Press to increase the volume.
12 AUDIO Press to select the audio mode.
13 VOL– Press to decrease the volume.
14 ANGLE Press to select differentviewing angles on a
DVD if the DVD has multiple viewing
angles.
15 MUTE Press to mute the sound. Press again to
restore the sound.
16 STOP Press to stop disc playback. If you press
this button once, then press the PLAY
button, the disc starts playing at the point it
stopped. If you press this button twice, then
press the PLAY button, the disc starts
playing at the beginning.
17 PAUSE Press to pause disc playback.
18 OPEN/CLOSE Press to open or close the disc tray.
19 Number buttons Press to change settings in the on-screen
menu system or press to select an audio
track, MP3 file, or JPEG file.
20 CANCEL Press to cancel a playlist.
21 OSD Press to open or close the on-screen
display (OSD). The OSD lets you adjust
settings for your DVD player.
22 SEARCH Press to search on a disc. On the OSD
menu that appears, highlight the item you
want to search for, such as title, chapter, or
track, then press the ENTER button.
Button Description
NS-DVD1.fm Page 9 Friday, July 28, 2006 3:43 PM

10
Insignia NS-DVD1 DVD Player
www.insignia-products.com
23 Arrow buttons Press to highlight OSD menus and options
and to adjust OSD options.
24 MENU Press to open the DVD main menu if the
DVD has a main menu.
25 PSCAN/NORMAL Press to select the type signal the TV
receives.
26 RETURN Press to return to the previous menu on a
disc.
27 STEP Press to pause playback. Press again to
advance one frame on the disc. Each time
you press this button you advance one
more frame.
28 SLOW Press slow-forward or slow-reverse on a
DVD.
29 PREV Press to go to the previous DVD chapter or
CD track or picture.
30 NEXT Press to go to the next DVD chapter or CD
track or picture.
31 FWD Press to fast-forward on a disc.
32 REV Press to fast-reverse on a disc.
33 PLAY Press to start disc playback.
Button Description
NS-DVD1.fm Page 10 Friday, July 28, 2006 3:43 PM

11
Insignia NS-DVD1 DVD Player
www.insignia-products.com
Setting up your DVD player

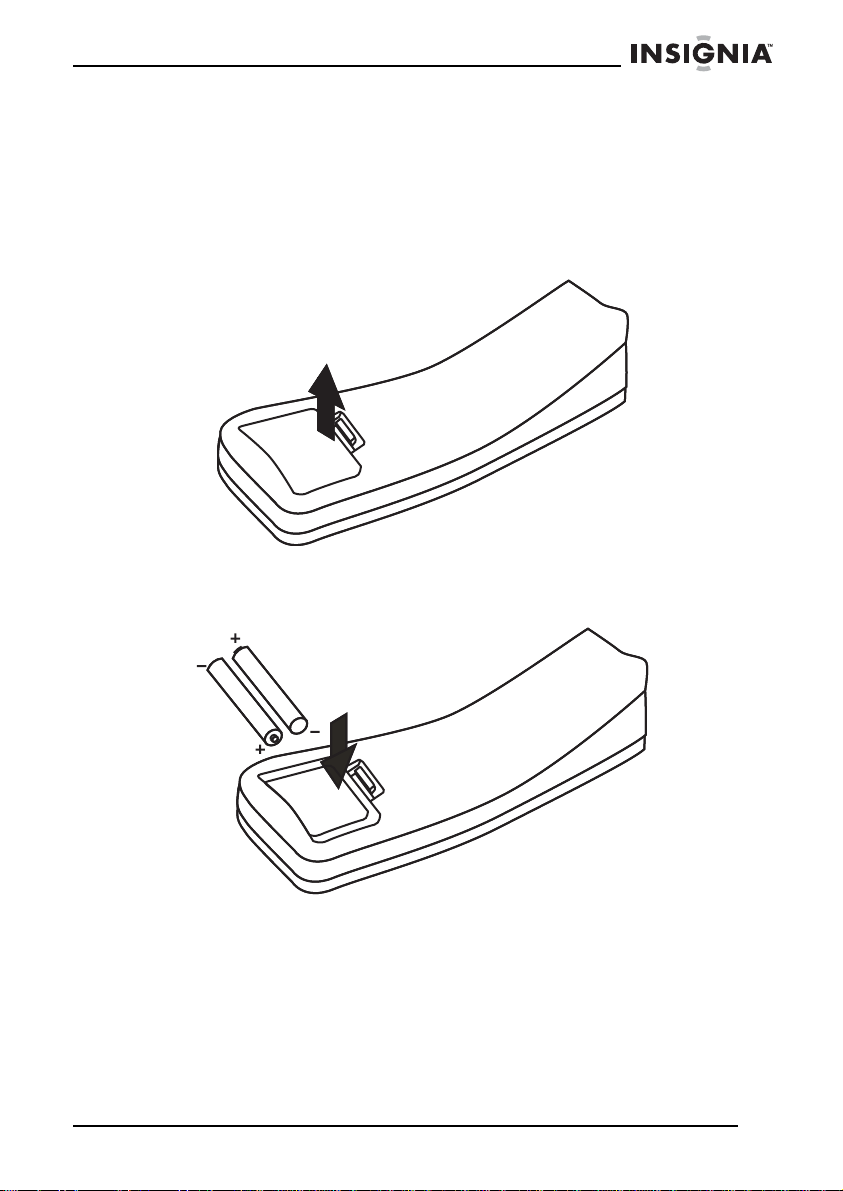

Installing the remote control batteries
To install the remote control batteries:
1Press down then out on the battery cover to remove the cover.
2Insert two AAA batteries into the battery compartment. Make sure
that you align the + and – symbols on the batteries with the + and
– symbols inside the battery compartment.
NS-DVD1.fm Page 11 Friday, July 28, 2006 3:43 PM

12
Insignia NS-DVD1 DVD Player
www.insignia-products.com

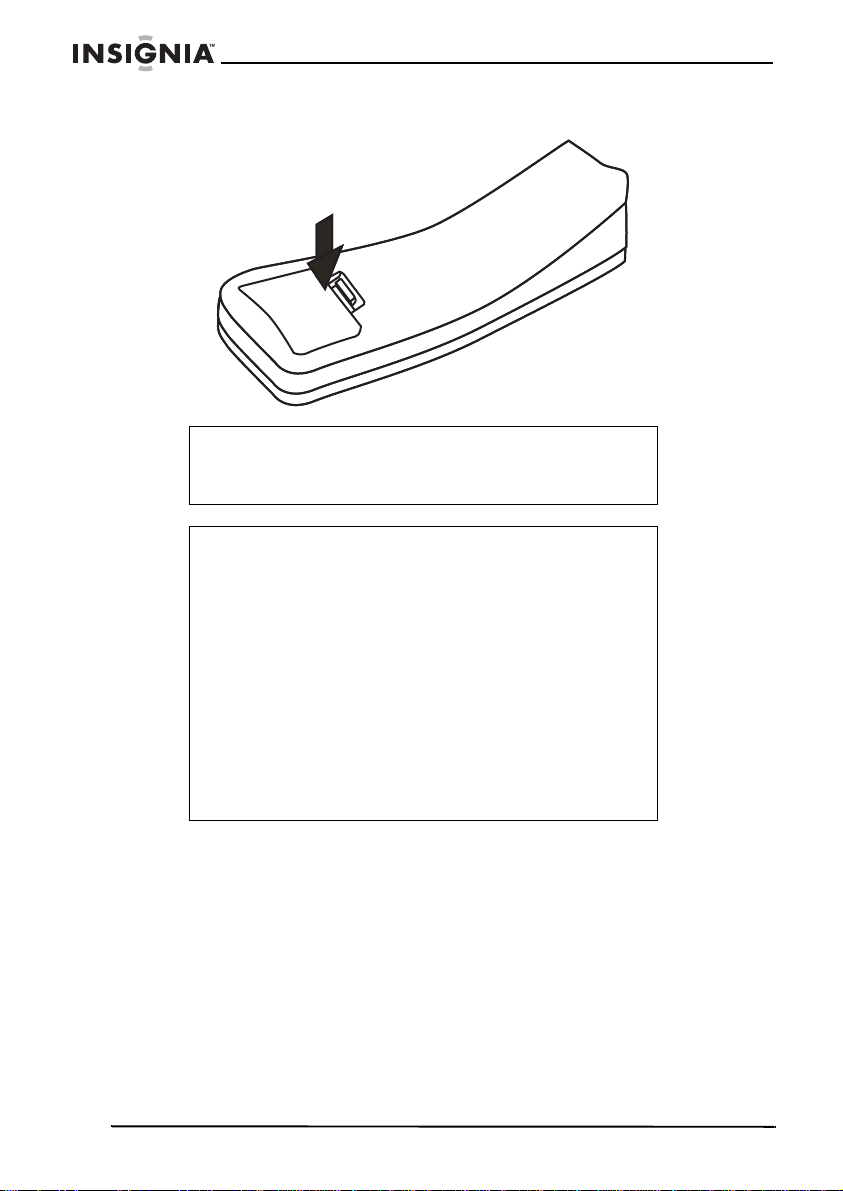

3Close the battery compartment.
Caution
If the batteries are exhausted or if you do not intend to use
the remote control for an extended period of time, remove
the batteries to prevent leakage or corrosion.
Notes
If you use another remote control in the same area as this
remote control, interference may occur.
Typical battery life is six months, but may vary depending on
usage.
Do not place the remote control in direct sunlight or near
heat sources.
Bright light, such as fluorescent light, may interfere with
signal reception.
Do not place anything on top of the remote control. Buttons
may be pushed and deplete the battery power.
Do not cover the front of your DVD player with glazed glass.
The glazing may interfere with signal reception.
Do not block the line of sight between the remote sensor on
the front of your DVD player and the remote control. This
blocks the signal.
NS-DVD1.fm Page 12 Friday, July 28, 2006 3:43 PM

13
Insignia NS-DVD1 DVD Player
www.insignia-products.com

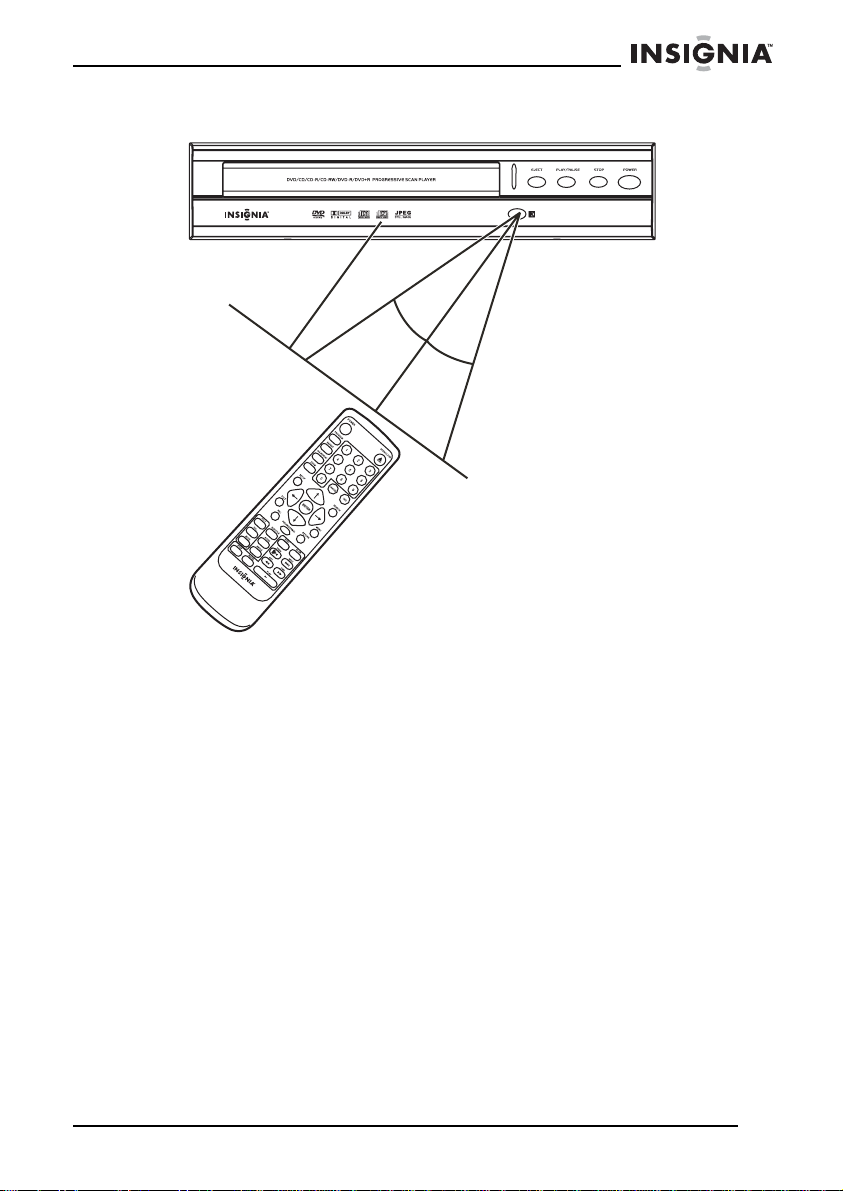

Remote control range
The remote control range is 19.6 feet (6 meters). If the range
becomes shorter, replace the batteries.
19.6 feet
(6 meters)
30° 30°
NS-DVD1.fm Page 13 Friday, July 28, 2006 3:43 PM

14
Insignia NS-DVD1 DVD Player
www.insignia-products.com

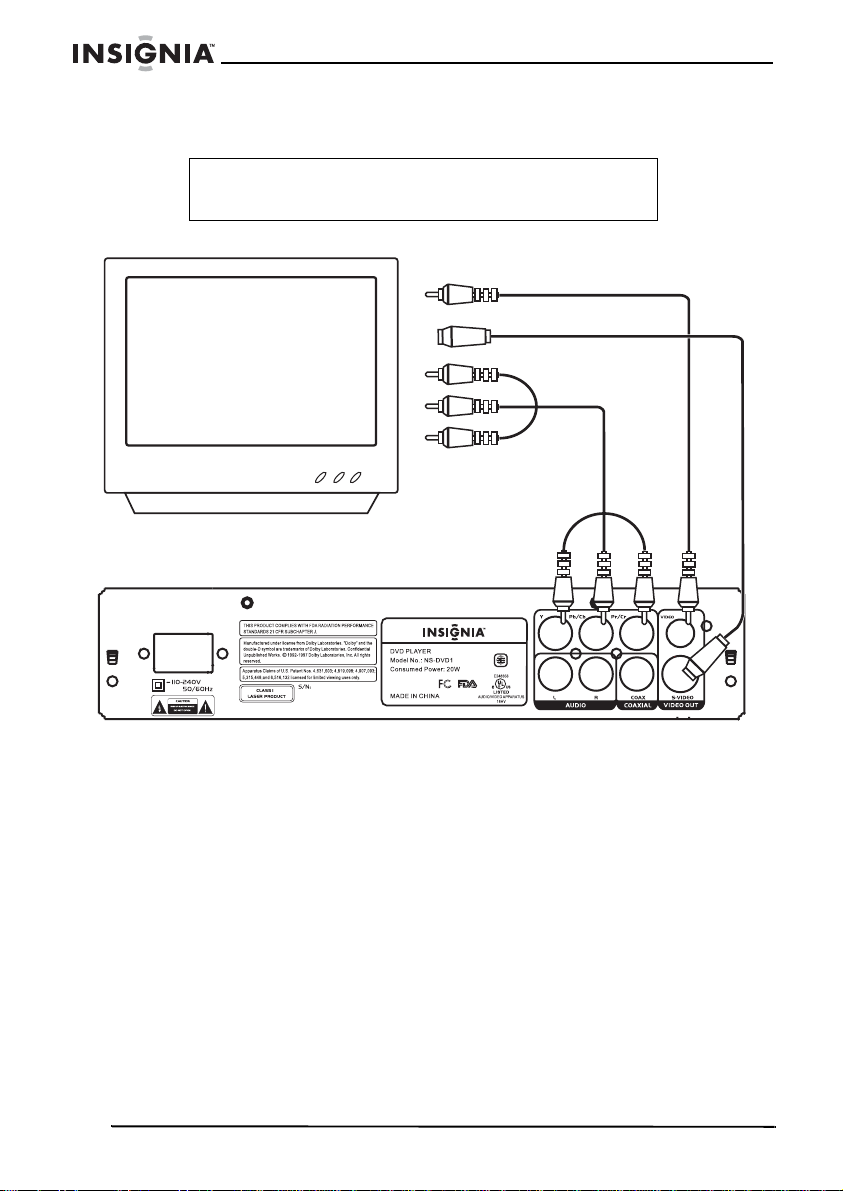

Connecting a TV
Make one of the following video connections.
Caution
Before you connect your DVD player to an external device,
make sure that your turn off all devices.
Component input
S-Video input
Video input
TV
DVD player
NS-DVD1.fm Page 14 Friday, July 28, 2006 3:43 PM

15
Insignia NS-DVD1 DVD Player
www.insignia-products.com
Connecting a 2-channel amplifier
Plug the right (red) and left (white) audio connectors on an
audio/video cable into the right and left AUDIO out jacks on the back
of your DVD player and into the right and left audio In jacks on the
amplifier.
Caution
Before you connect your DVD player to an external device,
make sure that your turn off all devices.
2-channel amplifier
DVD player
NS-DVD1.fm Page 15 Friday, July 28, 2006 3:43 PM

16
Insignia NS-DVD1 DVD Player
www.insignia-products.com

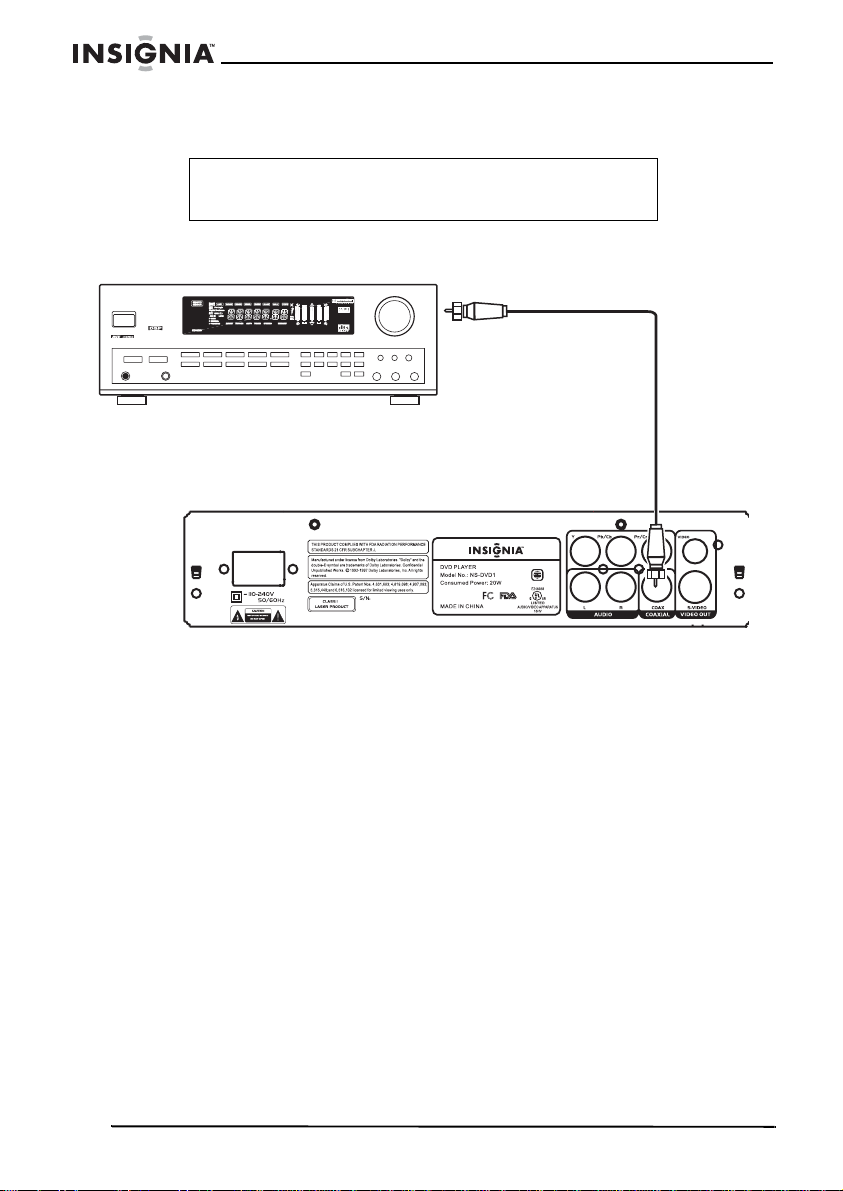

Connecting a digital audio amplifier
Plug a coaxial cable into the COAXIAL out jack on the back of your
DVD player and into the coaxial In jack on the digital audio amplifier.
Using your DVD player
Setting the picture mode
If the picture does not display correctly, you may need to change the
mode.
To change the picture mode:
• Press the PSCAN/NORMAL button. PSCAN selects a
progressive scan TV. NORMAL selects interlaced TV.
Caution
Before you connect your DVD player to an external device,
make sure that your turn off all devices.
Digital audio amplifier
DVD player
NS-DVD1.fm Page 16 Friday, July 28, 2006 3:43 PM

17
Insignia NS-DVD1 DVD Player
www.insignia-products.com

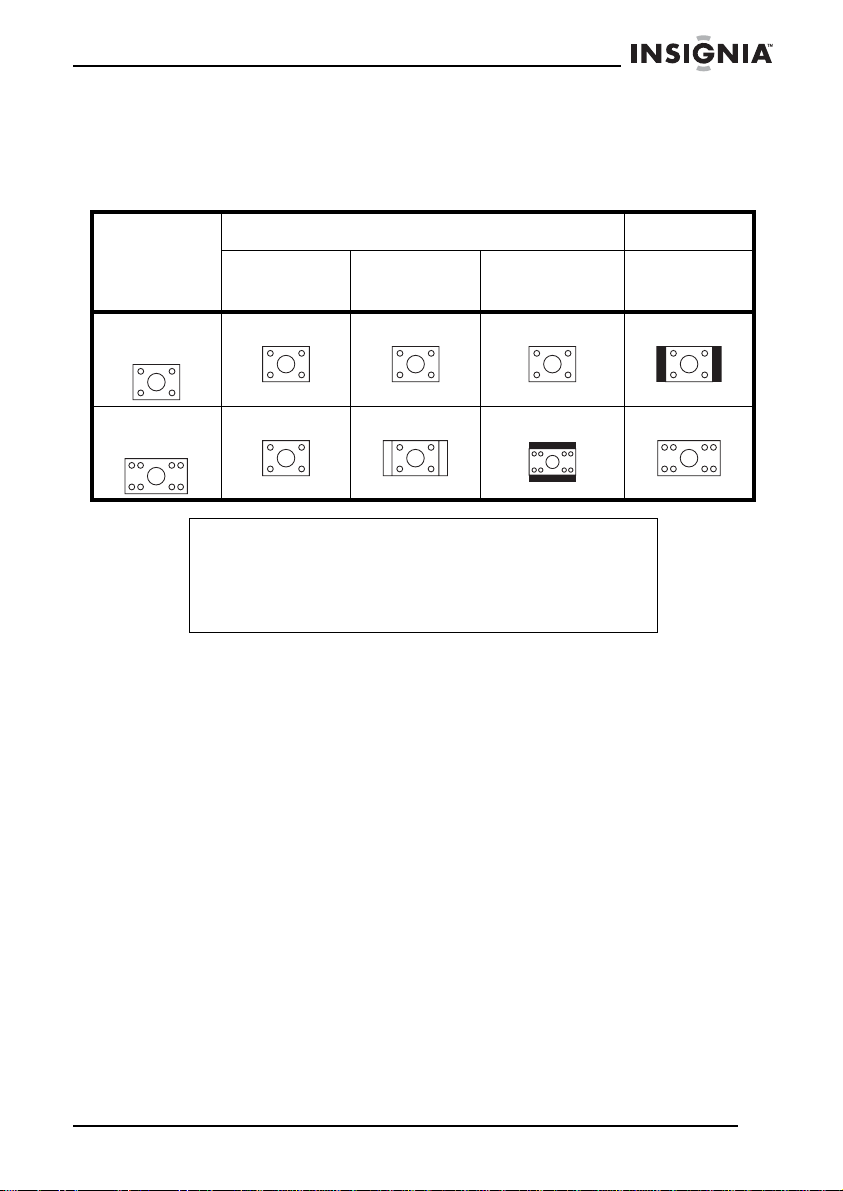

Selecting the display size
You can change the size of the image displayed on the TV.
The following shows the available screen sizes.
To change the display size:
1Press the SETUP button to open the General page of the
on-screen menu system.
2Press the PLAY button, then press the up or down arrow button to
select a display size. You can select:
•NORMAL/PS
•NORMAL/LB
•WIDE
3Press the PLAY button.
Setting the video and audio modes
You need to set the video and audio modes on your DVD player to
match the type of video and audio connections you made.
To select the video mode:
1Turn on your TV, then select your TV’s AV mode.
2Turn on your amplifier, then select your amplifier’s audio mode.
3Turn on your DVD player.
TV screen size: 4:3 16:9
Normal Pan & Scan
(PS) Letterbox (LB) Wide screen
4:3 Film
format
16:9 Film
format
Notes
The image display ratio is related to the recorded disc
format. Some discs cannot display the image ration you
select.
If you play a disc recorded in 4:3 ratio on a wide screen TV,
black bars appear on the left and right of the display image.
NS-DVD1.fm Page 17 Friday, July 28, 2006 3:43 PM

18
Insignia NS-DVD1 DVD Player
www.insignia-products.com
Playing a disc
To play a disc:
1Press the OPEN/CLOSE button to open the disc tray.
2Insert a disc, label side up, into the disc tray, then press the
OPEN/CLOSE button to close the disc tray.
If you inserted a DVD, your DVD player displays the DVD menu or
title menu.
If you inserted a CD, your DVD player starts playing the CD.
Controlling disc playback
To control disc playback:
• If the CD is not playing or the DVD menu or title menu is
displayed, press the PLAY button to start disc playback.
• Press the PAUSE button to pause playback. Press the
PLAY button to resume playback.
• Press the NEXT or PREV button to go to the next or
previous DVD chapter or CD track.
• Press the FWD or REV to fast-forward or fast-reverse on
the disc. Each time you press one of these buttons, the
speed changes from 1× to 2× to 4× to 8× to 16× to 32× then
back to 1×. (Compatible with DVDs, VCDs, CDs)
• Press the SLOW button one or more time during DVD
playback to play the DVD in slow-motion. You can select
1/2×, 1/4×, 1/8×, or 1/16× the normal speed. (Compatible
with DVDs and VCDs)
• Press the STOP button once to stop disc playback. If you
press the PLAY button after you press the STOP button
once, the disc starts playback at the point you stopped.
• Press the STOP button twice to completely stop disc
playback. If you press the PLAY button after you press the
STOP button twice, the disc starts playing at the beginning.
Adjusting the volume
To adjust the volume:
• Press the VOL+ button to increase the volume.
• Press the VOL– button to decrease the volume.
• Press the MUTE button to mute the sound. Press this button
again to restore the sound.
NS-DVD1.fm Page 18 Friday, July 28, 2006 3:43 PM

19
Insignia NS-DVD1 DVD Player
www.insignia-products.com
Displaying DVD information
To display DVD information:
• When a DVD is playing, press the OSD button one or more
times.
• The first time you press the button, the currently playing title
and total titles on the DVD or currently playing chapter and
the total chapters on the DVD are displayed
• The second time you press the button, the remaining time is
displayed.
• The third time you press the button, the elapsed time is
displayed.
• The fourth time you press the button, the display closes.
Using subtitles
If the DVD you are playing has subtitles, you can display the subtitles.
To display subtitles:
1Press the SUBTITLE button one or more times to select the
subtitle language you want.
2To turn off subtitles, press the SUBTITLE button one or more
times until SUBTITLE OFF appears on the TV screen.
Selecting the viewing angle
If the DVD you are playing has multiple viewing angles, you can select
the viewing angle.
To select the viewing angle:
• Press the ANGLE button one or more times to select the angle
you want.
Selecting the disc language
There are eight language selections for DVDs. This feature only
works if the disc has multiple language selections.
To select the disc language:
• Press the AUDIO button one or more times to select the
language you want.
NoteThe angle icon must be turned on in the on-screen
menu system for this feature to work. For more information,
see “On-screen menus” on page 23.
NS-DVD1.fm Page 19 Friday, July 28, 2006 3:43 PM

20
Insignia NS-DVD1 DVD Player
www.insignia-products.com
Accessing DVD menus
To access the DVD title menu:
1Press the TITLE button. The DVD title menu appears.
2Press the arrow buttons to highlight an option on the title menu,
then press the ENTER button to select the option.
To access the main DVD menu:
1Press the MENU button. The main DVD menu appears.
2Press the arrow buttons to highlight an option on the main menu,
then press the ENTER button to select the option.
Creating a playback loop
To create a playback loop on a disc:
1Find the place on the disc where you want to start your playback
loop.
2Press the A-B REPEAT button. Aappears on the TV screen.
3Find the place on the disc where you want to end your playback
loop.
4Press the A-B REPEAT button. AB appears on the TV screen.
The disc starts playing at point A and plays to point B, then starts
over at point A again.
5Press the A-B REPEAT button again to cancel the playback loop.
Repeating a DVD chapter, DVD title, or entire DVD
To repeat a DVD chapter, DVD title, or entire DVD:
• Press the REPEAT button one or more times.
• If you press the button once, CHAPTER appears on the
TV screen and the currently playing chapter is repeated.
• If you press the button twice, TITLE appears on the TV
screen and the currently playing title is repeated.
NoteThe DVD you are playing must have a title menu for this
feature to work.
NoteThe DVD you are playing must have a main menu for this
feature to work.
NS-DVD1.fm Page 20 Friday, July 28, 2006 3:43 PM
