SAFETY PRECAUTIONS
WARNING! DO NOT OPEN! RISK OF ELECTRIC SHOCK
To reduce the risk of electric shock, do not remove the back
cover. There are no user-serviceable parts inside. Removing the
back cover voids the warranty. Have your LCD TV repaired by
qualified service personnel only.
 Do not place your hands, face, or objects close to the ventilation openings of
your LCD TV. The top of your LCD TV gets very hot from exhaust air that is
released through the ventilation openings. Burns or personal injuries may occur if
you are too close to the LCD TV. Damage may occur if you place any object near
the top of your LCD TV.
 Disconnect all cables before moving your LCD TV. Moving your LCD TV with its
cables attached may damage the cables and cause fire or electric shock danger.
 Do not expose your LCD TV to rain or moisture.
 Keep your LCD TV away from excessive dust, high temperatures, moisture, or
direct sunlight.
 Use your LCD TV in a well-ventilated area and do not cover the ventilation
openings.
 Do not modify your LCD TV or use an unshielded power cord or video input
source cable, or you may experience excessive interference.
 Disconnect your LCD TV and unplug the power cord when the TV is not used for
a long period of time.
 If the picture displayed is in any way abnormal, turn off your LCD TV, then
disconnect it from the electrical outlet. Make sure that your video input source
cable is connected correctly, then reconnect your LCD TV to the electrical outlet.
 Disconnect your LCD TV from the electrical outlet before cleaning or performing
maintenance. Do not use liquid or aerosol cleaners. Use only a slightly damp
cloth for cleaning.
 Do not place your LCD TV on an unstable cart, stand, or table. Your LCD TV
may fall, causing serious damage.

6
This page is intentionally left blank.

Chapter 1 Before You Start
7
7
1 BEFORE YOU START
1-1 What’s in the Box
When you receive your LCD TV, unpack it carefully, and check to make sure you
have all the items below.

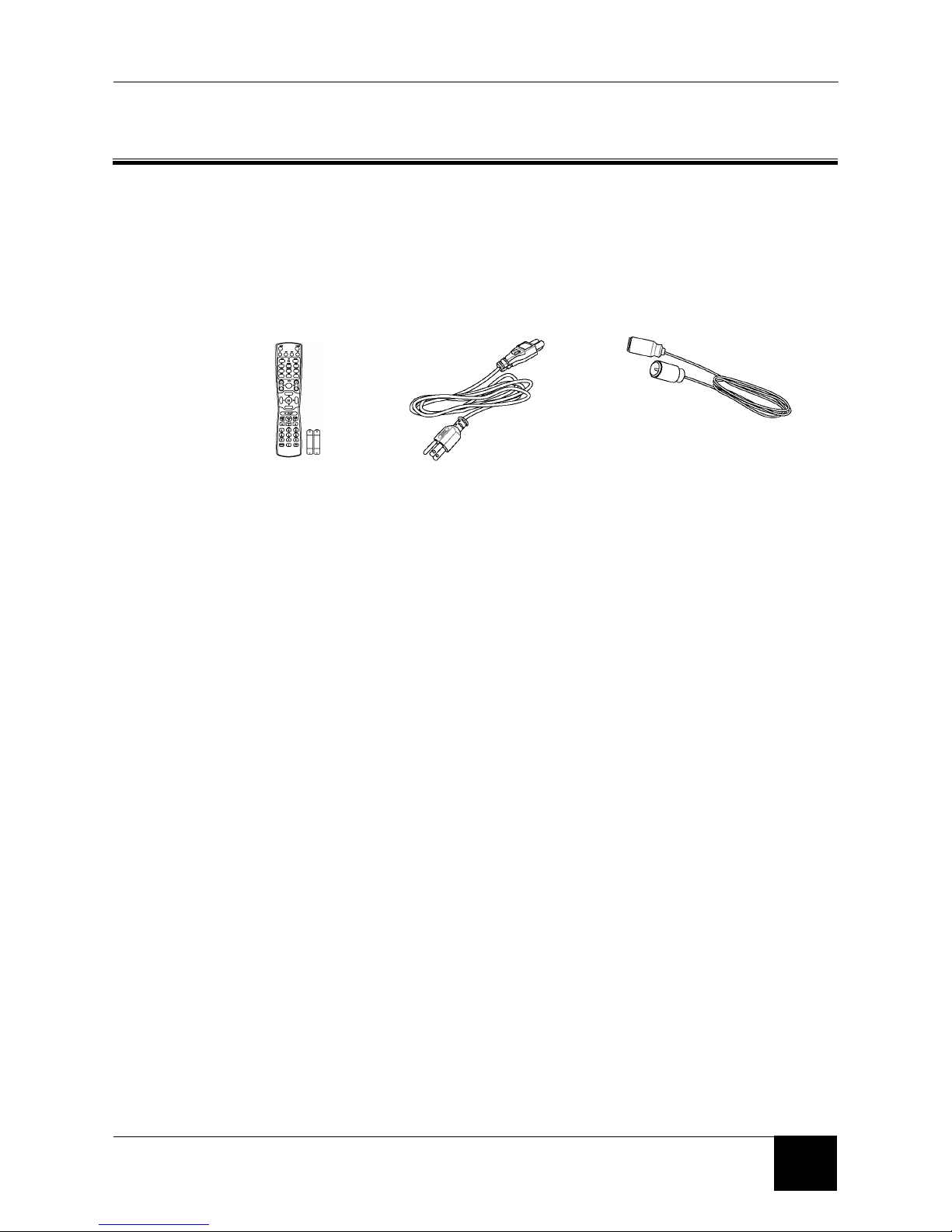

1 REMOTE CONTROL
AND two AAA BATTERIES
2 POWER CORD 3 RF CABLE
1-2 Optional Accessories
The following are optional accessories you may purchase for your LCD TV:
CABLE KITS
Cable kits consist of high-quality cables with gold-plated connectors of various
lengths for connecting audio and video devices to your LCD TV. Below are some
examples:
 DVI-D video cable
 RCA audio cable
 RCA component video cable
 RCA composite video cable
 S-Video cable
 VGA video cable
WALL MOUNT KIT
The wall mount kit contains all of the required hardware for mounting your LCD TV
on your wall. It is highly recommended that you find a qualified installer to do this.

Chapter 1 Before You Start
8
1-3 Inserting Batteries into the Remote Control
Before using the LCD TV set for the first time, insert two AAA batteries (supplied).
When the batteries become depleted and the remote control fails to operate,
replace the batteries with new batteries.
TO INSERT BATTERIES
1. Remove the battery cover on the back of the remote
control.
2. Insert two AAA batteries into the remote control. Make
sure that you match the + and - on the batteries with the
+ and - symbols inside the battery compartment.
3. Close the battery cover by aligning it with the base of
the remote control and sliding it back into place.
1-4 Turning ON the Power
1. Connect the power cord to the power cord connector on the back of your LCD
TV (see 2-3 Back Connectors), and then plug the other end of the power cord
into a correctly grounded electrical outlet or surge protector.
2. Press the Main Power switch next to the power
cord connector on the LCD TV. The Status LED on
the front turns orange and your LCD TV is ready to
turn on.
3. Press the POWER button on the front of your LCD
TV or on your remote control. The Status LED on
the front turns green, and the unit turns on.
WARNING! If you will be away for an extended period of time, turn off your
LCD TV with the Main Power switch instead of using the remote
control or front POWER button. For added protection during a
lightning storm or when it is left unattended or unused for long
periods of time, unplug your LCD TV from the wall outlet and
disconnect the antenna or cable system.

Chapter 2 Your LCD TV At A Glance
9
9
2 YOUR LCD TV AT A GLANCE
2-1 Front Panel Controls

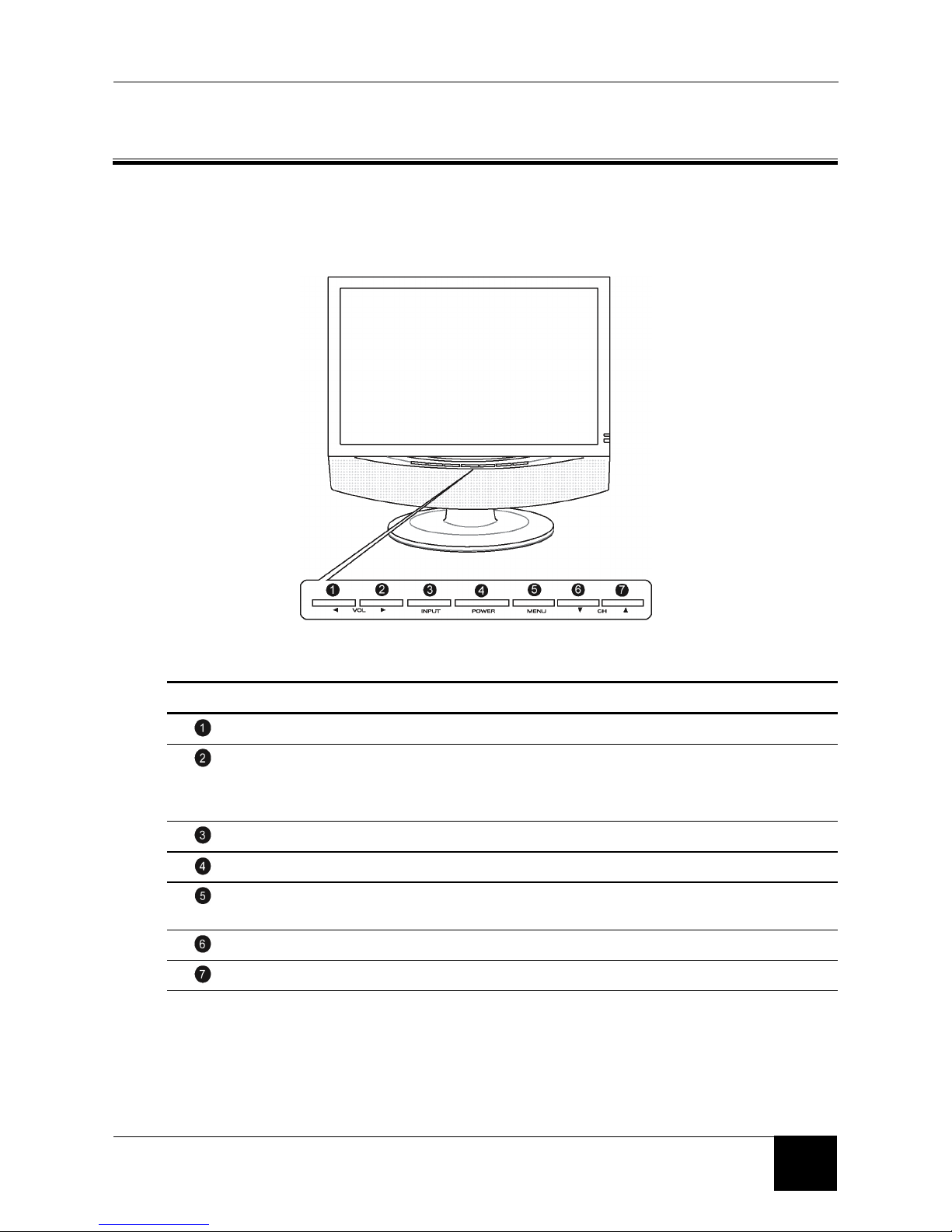

BUTTON VIEWING FUNCTION (OSD OFF) MENU FUNCTION (OSD ON)
Lowers the sound level Reduces a menu option value.
Increases the sound level. Displays a submenu with selections for the
current menu option.
Increases a menu option value.
Selects the input source. N/A
Turns the LCD TV ON/OFF. N/A
Activates the OSD main menu. Returns to the previous menu or to normal
viewing.
Displays the previous stored channel. Selects the next menu option.
Displays the next stored channel. Selects the previous menu option.

Chapter 2 Your LCD TV At A Glance
10
2-2 Right-side Connectors
CONNECTOR DESCRIPTION

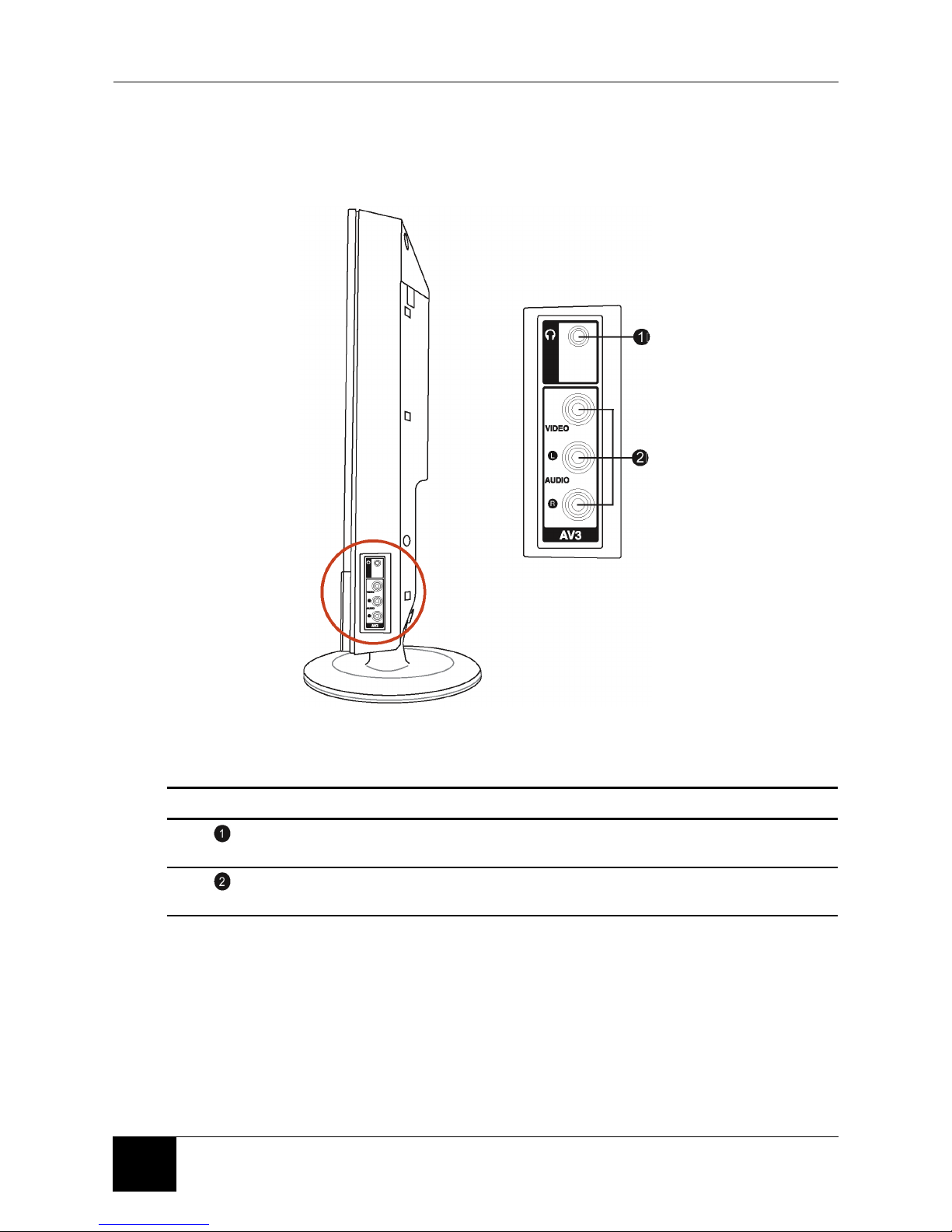

Headphone Jack - Connect amplified speakers or headphones to this stereo
headphone jack. Using this jack automatically disables the built-in speakers.
Video/Audio-in - Connect composite audio/video devices, such as camcorders or
digital cameras to these.

Chapter 2 Your LCD TV At A Glance
11
11
2-3 Back Connectors
To access the connectors on the back of your LCD TV, you will need to lift up and
remove the protective cover.

Chapter 2 Your LCD TV At A Glance
12

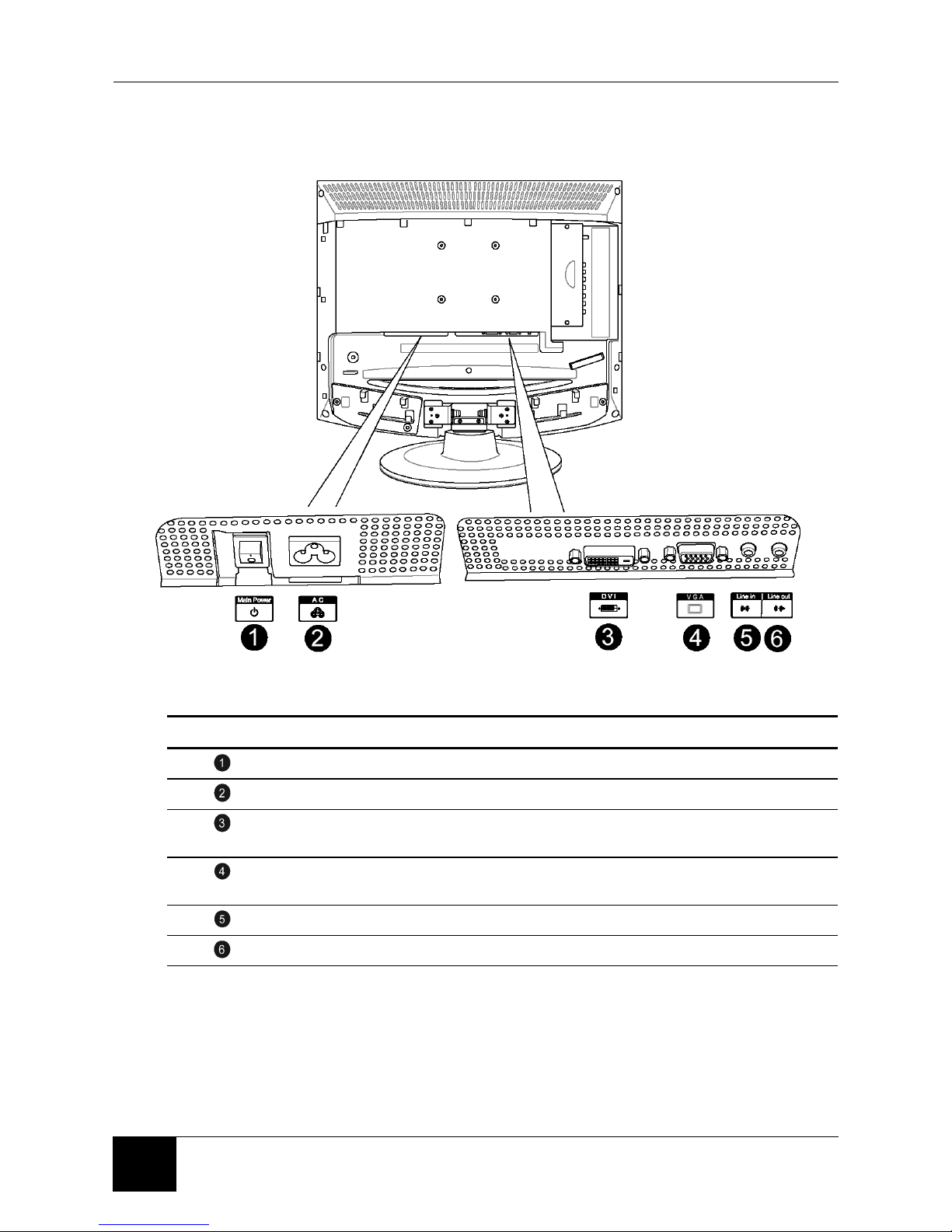

CONNECTOR DESCRIPTION
Main power switch - Turns the main power ON and OFF.
Power cord connector - Connect the power cable to this.
DVI in - Connects to a DVI video device, such as a computer or cable/Satellite
box.
VGA in - Connects to a VGA video device, such as a computer or cable/Satellite
box.
Audio in - Connects to a computer’s audio out jack.
Audio out - Connect an external amplifier or speaker to this.

Chapter 2 Your LCD TV At A Glance
13
13

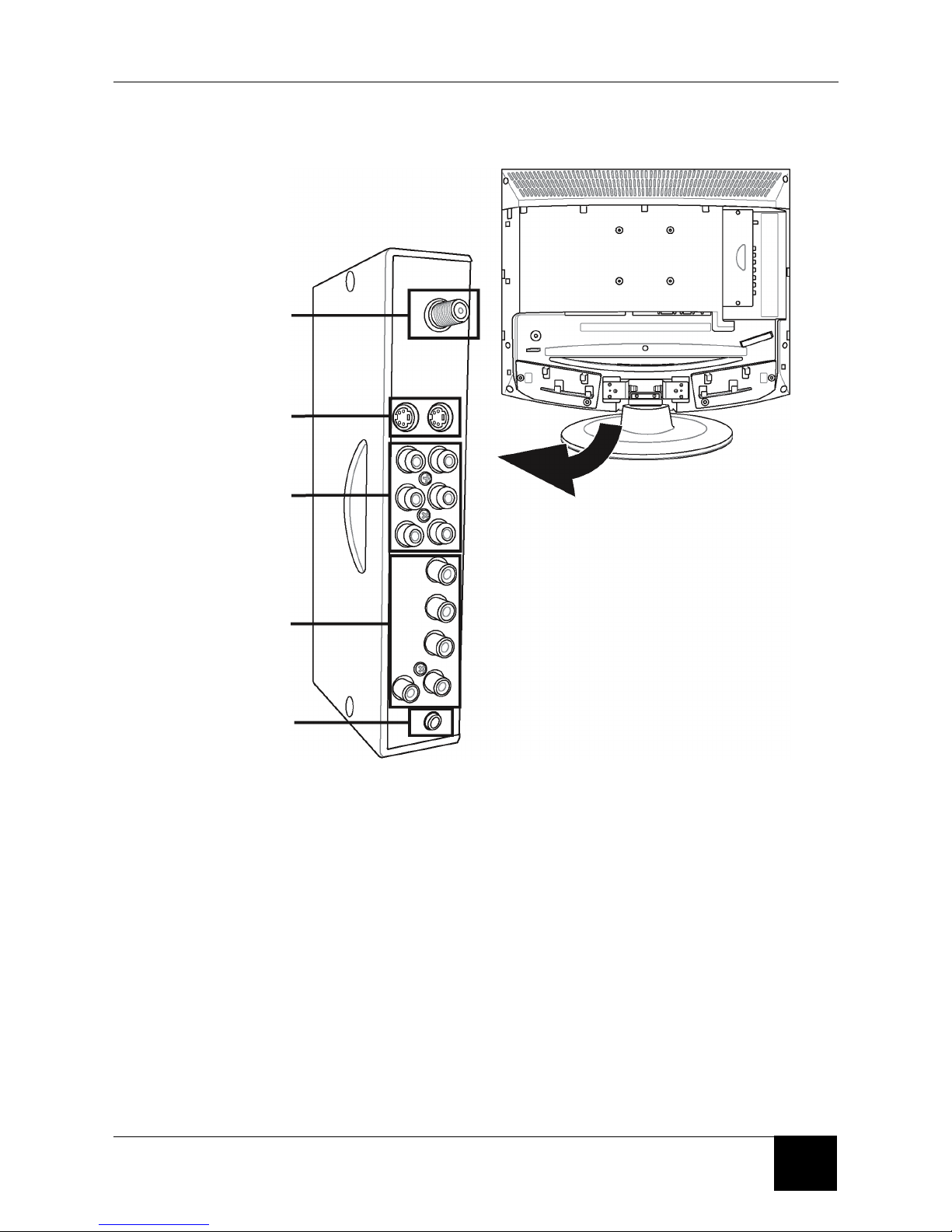

UHF/VHF
(CATV)
S-Video
(S1/S2)
Composite
Video/Audio in
(AV1/AV2)
Component HDTV
Video/Audio in
(YPBPR)
Subwoofer

Chapter 2 Your LCD TV At A Glance
14
This page is intentionally left blank.

Chapter 3 Your Remote Control At A Glance
15
15
3 YOUR REMOTE CONTROL AT A GLANCE
3-1 Remote Control Buttons
CONNECTOR DESCRIPTION

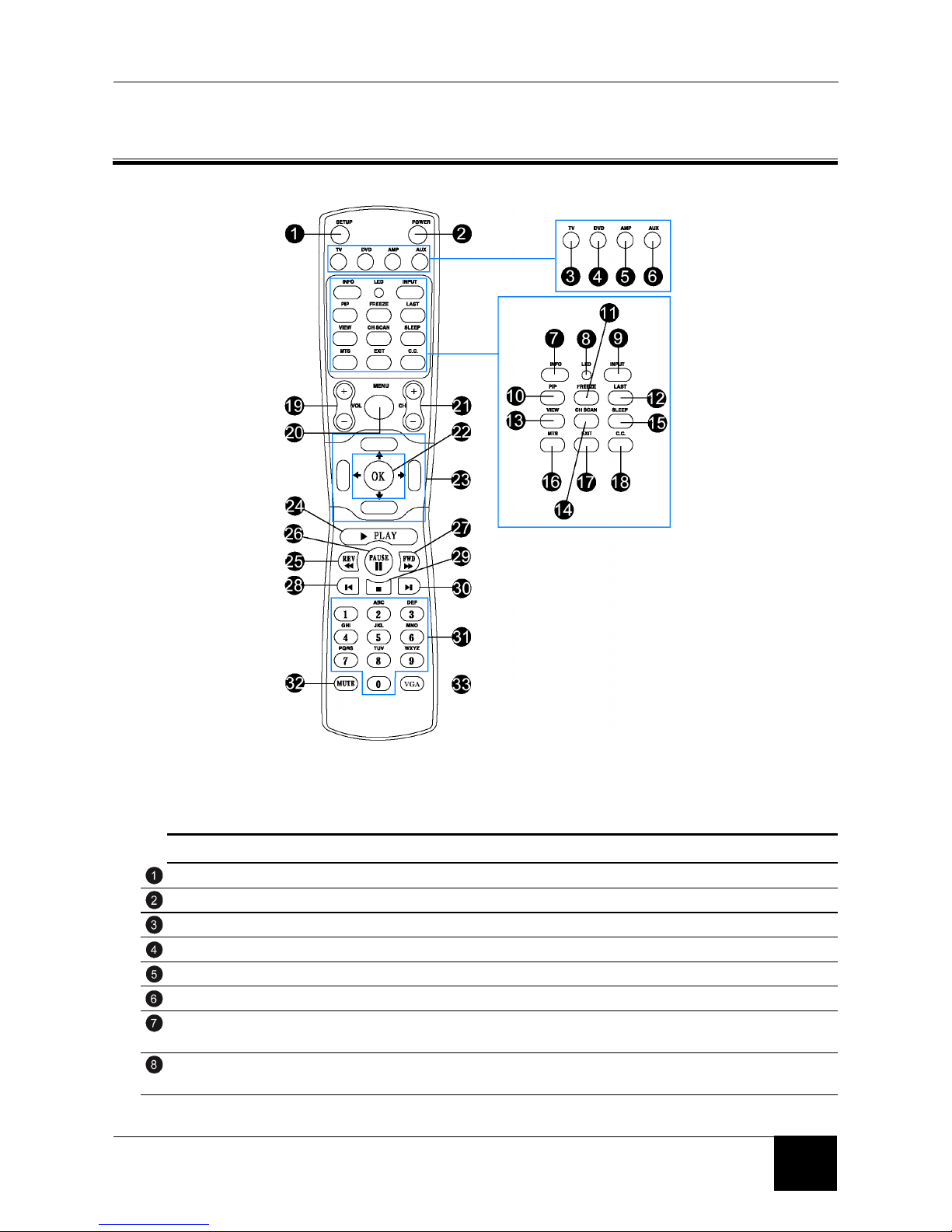

SETUP Start all programming sequences.
POWER Turns the selected component ON/OFF.
TV Selects a programmed TV.
DVD Selects a programmed DVD player.
AMP Selects a programmed amplifier.
AUX Selects a programmed component.
INFO Shows the current status of your LCD TV, such as the video input source, audio
status, and channel number
LED Flashes when the remote is being programmed or is sending a signal to your LCD
TV.

Chapter 3 Your Remote Control At A Glance
16
CONNECTOR DESCRIPTION (cont’d)
INPUT Changes the input source.
PIP Turns picture-in-picture (PIP) mode on and off. PIP mode does not work when
parental controls are set.
FREEZE Freezes the display image.
LAST Recalls the last viewed channel.
VIEW Selects the picture format (Panoramic Stretch/16:9, 4:3, Zoom) that best meets your
viewing requirement.
CHSCAN Scans four channels at a time in TV mode. Works as an ENTER button in other
video modes.
SLEEP Turns on the sleep timer.
MTS Multi channel Television Sound (MTS) - Cycles through Stereo, MONO, and SAP.
EXIT Exits from the on-screen display (OSD).
C.C. Turns CLOSED CAPTION mode ON/OFF.
VOL Increases/decreases the volume.
MENU Displays menus for TV and other options.
CH Changes the channel.
OK Works as the ENTER button.
Navigation Navigates the on-screen display (OSD) menus.
PLAY Plays the CD, DVD, or VCR when the component is activated with the remote
control.
REV Rewinds the CD, DVD, or VCR when the component is activated with the remote
control.
PAUSE Pauses the CD, DVD, or VCR when the component is activated with the remote
control.
FWD Forwards the CD, DVD, or VCR when the component is activated with the remote
control.
SKIP REV Skips to the beginning the CD, DVD, or VCR when the component is activated with
the remote control.
SKIP FWD Skips to the beginning the CD, DVD, or VCR when the component is activated with
the remote control.
STOP Stops the CD, DVD, or VCR when the component is activated with the remote
control.
Number pad Selects a channel or enters a password.
MUTE Mutes or restores the sound volume.
VGR Selects the component connected to the VGR connector as the input source.
3-2 Using the Remote Control (Basic Operation)
Point the remote control towards the remote control sensor window located on the
front of your LCD TV. Make sure no objects are in the line of aim, otherwise the
remote control may not operate properly.

Chapter 4 Connecting Devices
17
17
4 CONNECTING DEVICES
Read this section to learn how to connect the following devices:
 DVD players
 HDTV decoder set -top boxes
 VCRs
 Broadcast TV and cable TV (CATV)
 Computers
WARNING! Before connecting any external components, make sure to
unplug your LCD TV.
4-1 Connecting Your DVD Player

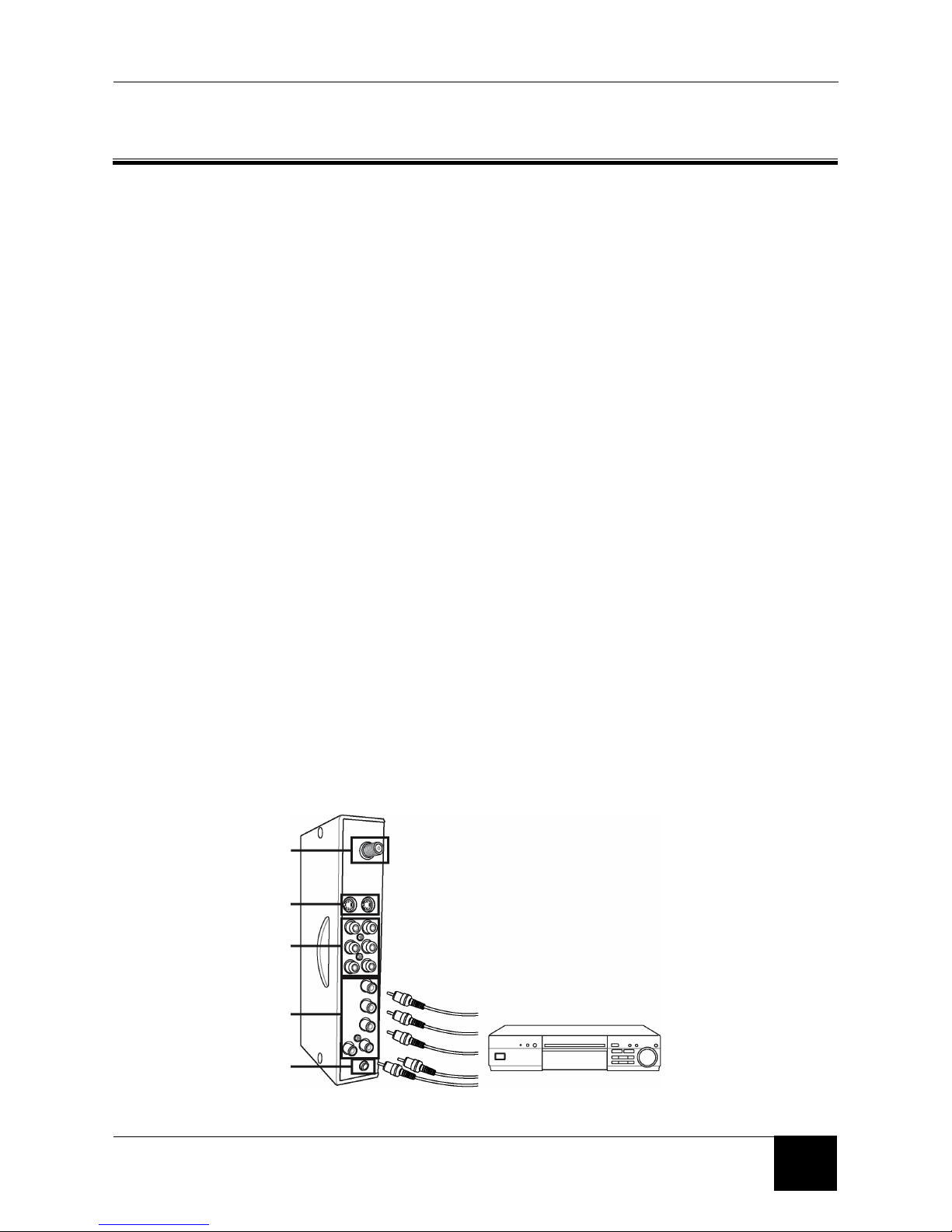

4-1-1 TO CONNECT USING COMPONENT VIDEO
1. Connect the green-colored Y jack on the back of your DVD player to the
green-colored Y jack on the back of your LCD TV.
2. Connect the red-colored PR or CR jack on the back of your DVD player to the
red-colored PRCR jack on the back of your LCD TV.
3. Connect the blue-colored PB or CB jack on the back of your DVD player to the
blue-colored PBCB jack on the back of your LCD TV.
4. Connect the red (R) and white (L) audio jacks on the back of your DVD player to
the R and L audio-in jacks on the back of your LCD TV.
5. Turn on your LCD TV, then press the INPUT button repeatedly to select YPBPR.
UHF/VHF
(CATV)
S-Video
(S1/S2)
Composite
Video/Audio in
(AV1/AV2)
Component HDTV
Video/Audio in
(YPBPR)
Subwoofer

Chapter 4 Connecting Devices
18
4-1-2 TO CONNECT USING S-VIDEO
1. Connect the S-Video jack on the back of your DVD player to one of the S-VIDEO
(S1 or S2 jacks on the back of your LCD TV with the correct optional cable
2. Connect the red (R) and white (L) audio jacks on the back of your DVD player to
the appropriately numbered AV1 or AV2 R and L audio-in jacks on the back of
your LCD TV.
3. Turn on your LCD TV (see 1-4 Turning ON the Power), then press the INPUT
button repeatedly to select AV1/S1 or AV2/S2.
4-2 Connecting Your HDTV Set-top Box
4-2-1 TO CONNECT USING COMPONENT VIDEO
1. Connect the green Y jack on the back of your HDTV set-top box to the green Y
jack on the back of your LCD TV.
2. Connect the red PR or CR jack on the back of your HDTV set-top box to the red
PRCR jack on the back of your LCD TV.
3. Connect the blue PB or CB jack on the back of your HDTV set-top box to the
blue PBCB jack on the back of your LCD TV.
4. Connect the red (R) and white (L) audio jacks on the back of your HDTV set-top
box to the R and L audio-in jacks on the back of your LCD TV.
5. Turn on your LCD TV (see 1-4 Turning ON the Power), then press the INPUT
button repeatedly to select YPBPR.
UHF/VHF
(CATV)
S-Video
(S1/S2)
Composite
Video/Audio in
(AV1/AV2)
Component HDTV
Video/Audio in
(YPBPR)
Subwoofer

Chapter 4 Connecting Devices
19
19
4-3 Connecting Your VCR or Video Camera
4-3-1 TO CONNECT USING S-VIDEO
1. Connect the S-Video jack on the back of your DVD player to one of the S-VIDEO
(S1 or S2 jacks on the back of your LCD TV with the correct optional cable.
2. Connect the red (R) and white (L) audio jacks on the back of your DVD player to
the appropriately numbered AV1 or AV2 R and L audio-in jacks on the back of
your LCD TV.
3. Turn on your LCD TV (see 1-4 Turning ON the Power), then press the INPUT
button repeatedly to select AV1/S1 or AV2/S2.
4-3-2 TO CONNECT USING COMPONENT VIDEO
1. Connect the yellow video jack on the back of your VCR or video camera to the
yellow AV1 or AV2 jack on the back of your LCD TV with the correct optional
cable.
2. Connect the red (R) and white (L) audio jacks on the back of your VCR or video
camera to the appropriately numbered AV1 or AV2 R and L audio-in jacks on the
back of your LCD TV.
UHF/VHF
(CATV)
S-Video
(S1/S2)
Composite
Video/Audio in
(AV1/AV2)
Component HDTV
Video/Audio in
(YPBPR)
Subwoofer
UHF/VHF
(CATV)
S-Video
(S1/S2)
Composite
Video/Audio in
(AV1/AV2)
Component HDTV
Video/Audio in
(YPBPR)
Subwoofer

Chapter 4 Connecting Devices
20

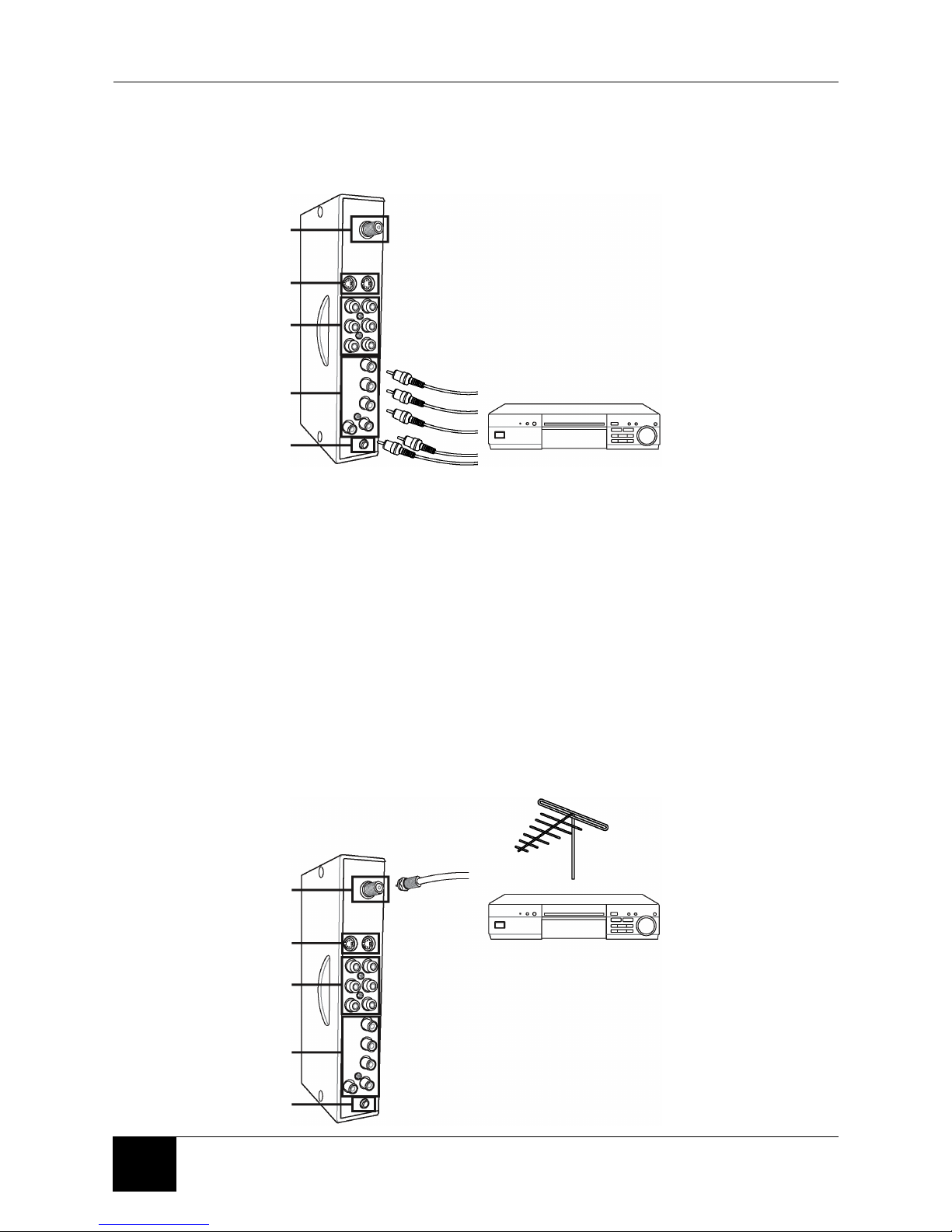

3. Turn on your LCD TV (see 1-4 Turning ON the Power), then press the INPUT
button repeatedly to select AV1/S1 or AV2/S2.
4-3-3 TO CONNECT USING COAXIAL (RF)
1. Connect the “output to TV” (RF out or Antenna out) jack on the back of your VCR
to the UHF/VHF jack on the back of your LCD TV with the correct optional cable.
2. Turn on your LCD TV (see 1-4 Turning ON the Power), then press the INPUT
button repeatedly to select CATV.
3. If you have an broadcast antenna or cable box, connect your broadcast antenna
or cable TV coaxial (RF) cable to the UHF/VHF connector on the back of your
VCR.
WARNING! If an outdoor antenna or cable system is connected to your LCD
TV, make sure that the antenna or cable system is correctly
grounded.
UHF/VHF
(CATV)
S-Video
(S1/S2)
Composite
Video/Audio in
(AV1/AV2)
Component HDTV
Video/Audio in
(YPBPR)
Subwoofer
UHF/VHF
(CATV)
S-Video
(S1/S2)
Composite
Video/Audio in
(AV1/AV2)
Component HDTV
Video/Audio in
(YPBPR)
Subwoofer
