Insignia NS-42E760A12 User manual

AUDIO/VIDEO
OUT
CABLE
AUDIO/VIDEO
OUT
Front feature
Connecting a DVD or Blu-ray player, cable box,
satellite receiver, camcorder, or game station
Using an HDMI cable (best)
Using component cables (better)
Using composite cables (good)
Connecting an antenna/cable wall jack
Connect a coaxial cable (not included) to the ANT/CABLE jack on the back of
your TV and to the Antenna/Cable wall jack.
42" 1080p LED-LCD HDTV
QUICK SETUP GUIDE
NS-42E760A12
Thank You
for purchasing this ne Insignia television. We hope you
enjoy the quality and reliability of this product for years
to come.
_______________________________
Remote control
and two AA
batteries
Audio cable
WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com, click
Support & Service, enter your model
number in the Product Search eld,
then click Search.
Remote
control sensor
Power
indicator
Note: Connect your Yellow video cable
to the Green Y/Video jack.
Component
video cable
Flat Stand Cover
for wall mounting
Cleaning cloth
TV stand and 4 screws
Composite video
and analog audio
Identifying cables
YourTV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type Video quality Cable connector
HDMI video/audio Best
Better
Good
OR
OR
Component video
and analog audio
You can use the HDMI 1 jack to connect a DVI device to yourTV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device’s jack.
Installing the stand
1Carefully place your TV screen face-down
on a cushioned, clean surface to protect
the screen from damages and scratches.
2Align and insert the base into the stand.
3 Secure the stand to theTV
with the four
provided screws.
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on
a cushioned, clean surface to protect the screen
from damages and scratches.
2
Remove the four screws that secure the
cover, then remove the cover.
3 Secure the at stand cover to the
back of your TV using the four screws
you just removed.
4 Attach the wall-mount bracket to yourTV
using the mounting holes . See
the instructions
that came with the wall-mount bracket for
information about how to correctly hang your TV.
This apparatus is intended to be supported by a UL Listed wall mount bracket.
Warning

AUDIO IN
OPTICAL
AUDIO IN
Antenna or
cable TV
(no box)
Blu-ray player/DVD player/VCR Cable or satellite TV box
AV receiver
Game console
or camera
USB ash drive
Computer
OK
ENTER
MENU EXIT
PICTURE AUDIO CHANNELS SETTINGS USB
Mode
Brightness
Contrast
Color
Tint
Sharpness
Energy Savings
48
50
60
0
+10
MOVE EXIT
PREVIOUS
SELECT
Adjust settings to affect picture quality
OK
ENTER
MENU EXIT
Reduces total power consumption
Home Mode
Retail Mode
MOVE EXIT
PREVIOUS
SELECT
Choose Your Picture Mode
EXIT
Digital Channels
Analog Channels
Scanning for digital channels
Choose Your TV Source
Antenna
Cable
Cable/Satellite Box
0
EXIT
Channel scan may take 20+ minutes
0
OK
ENTER
MENU EXIT
Mode
Time Zone
Daylight Savings
Year
Month
Day
Time
If Automatic, options are automatically set by TV source
MOVE EXIT
PREVIOUS
SELECT
Choose Your Time Setting
Manual
Pacific
On
2011
Jan
1
12:25 AM
OK
ENTER
MENU EXIT
English
Français
Español
Choose Your Menu Language
MOVE EXIT
PREVIOUS
SELECT
Set menu language to English, Français, or Español
TV
VGA
HDMI 1
HDMI 2
USB
Input Source
Component/AV
HDMI 3
Connecting a Home Theater System
Using Digital audio
Using Analog audio
Connecting power
Plug the AC power cord into a power outlet.
Two-year limited warranty
Visit www.insigniaproducts.com for details.
Need additional help?
See your Online User Guide! This
comprehensive guide includes everything from
basic how-to steps to more advanced features.
A copy of your User Guide is not provided in
the box but is available online. Go to
www.insigniaproducts.com, click Support
& Service, enter your model number in the
Product Search eld, then click Search.
Check out our online community forum at
www.InsigniaProducts.com/community for
helpful information from other Insignia TV
owners.
We’re here for you
www.insigniaproducts.com
For customer service, call:
877-467-4289 (U.S./Canada markets)
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richeld, MN USA
55423-3645
© 2011 BBY Solutions, Inc.
All rights reserved. INSIGNIA is a trademark of BBY Solutions,
Inc. Registered in some countries. All other products and
brand names are trademarks of their respective owners.
ENGLISH 11-0520
Programming your remote control
To program your universal remote control to work with your new InsigniaTV, see the table for common codes. If you have problems programming your remote or
need a dierent remote control code, visit www.insigniaproducts.com for the latest remote control code information.
WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com, click
Support & Service, enter your model
number in the Product Search eld,
then click Search.

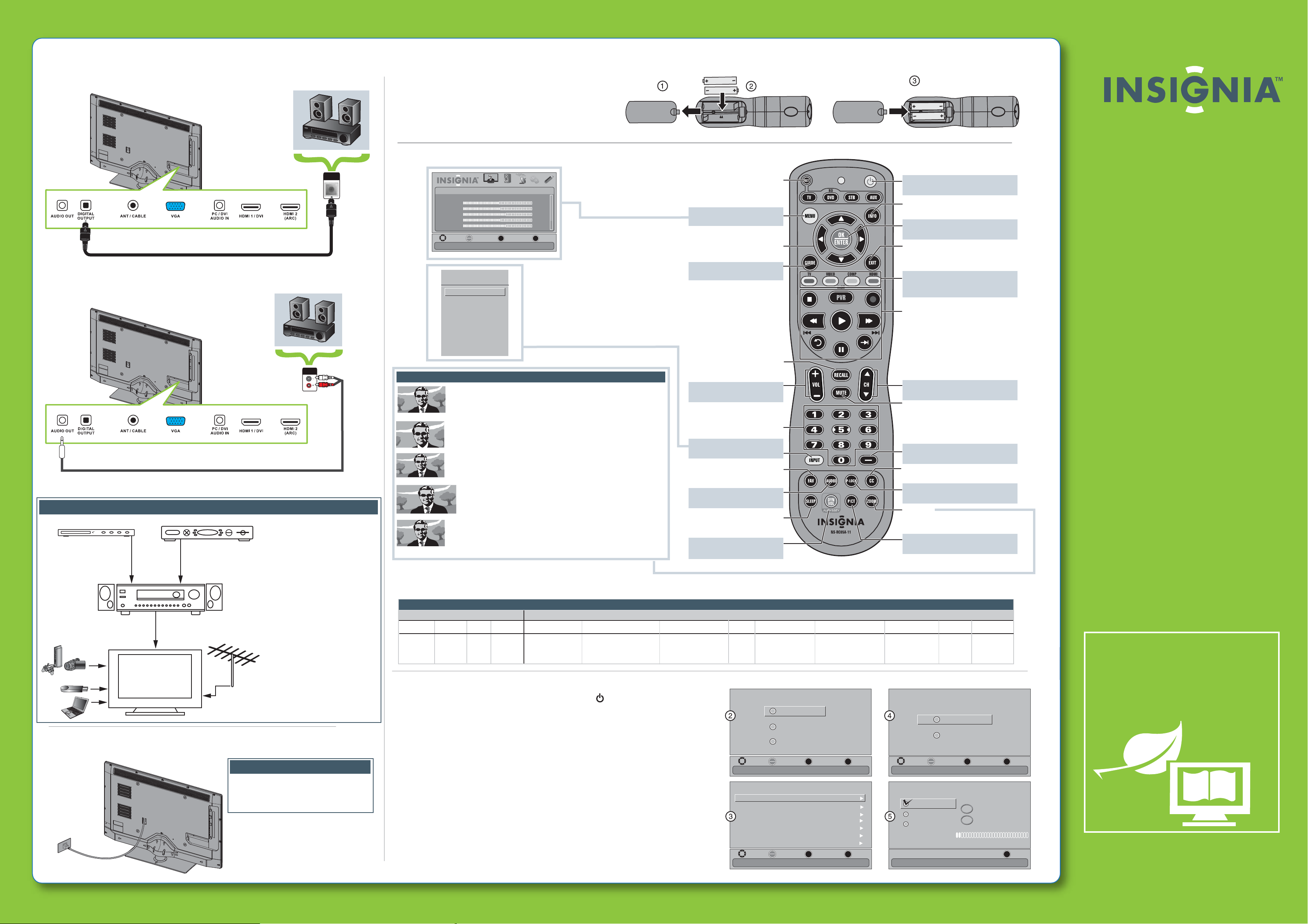

Connecting a home theater system with multiple devices
Normal:
Displays the original aspect ratio with black bars vertical on the left and
right hand side of the screen.
Display 4:3 if input source is 480i, 480p
Display 16:9 if input source is 720p, 1080i,1080p
Zoom:
Expands the image to ll the screen.The top and bottom of the
image may be cropped.
Wide:
Use this option to view content recorded in a 16:9 (wide-screen) aspect ratio.
Cinema:
Stretches the image at the edges, but keeps a clear image in the center.
Auto:
Automatically adjusts the image based on the screen size and theTV
program. Note: Auto is only available when Auto Zoom in the
CHANNELS menu is set to On.
Aspect ratio options
When connecting to an AV receiver
with ARC function, we recommend
that you connect the AV receiver’s
HDMI OUT jack to your TV’s HDMI2
(ARC) jack by using an HDMI-ARC
compliant cable.
In the following situations, the
HDMI cable routes Dolby Digital
audio to the AV receiver, so you do
not need to connect a separate
digital audio cable:
• Have a game console connected
to one of your TV’s HDMI 1/HDMI3
jacks.
• When you watch a program
through an antenna or cable
TV connected to the ANT/CABLE
jack.
Note
The AC power cord is attached on the
back of the TV when shipped, and
cannot be pulled out from theTV.
Universal remote TV codes
Universalremotecontrols Cable/Satellite/Set-topboxes
One for All Philips RCA Sony Cablevision Charter Comcast Cox Direct TV Dish Network Time Warner Tivo Verizon
0054 0198,
0490 135
1326,
1463
0198,
0490
400, 450, 461, 456,
10463, 1463, 0463
0091
068, 069, 078,
096, 100, 164,
168, 229, 026
2002, 1204, 1423, 1517,
0171, 1963, 0463, 1463,
0842, 1326, 167, 415,
424, 450, 456, 461, 507,
523, 567, 577, 586
10171, 11204,
11326, 11517,
11564, 11641,
11963, 12002
720
068, 069,
078, 096,
100, 164,
168, 229,
026
10171, 11204, 11326,
11463, 11517, 11641,
11780, 11785, 11892,
11963, 12002
42" 1080p LED -LCD HDT V IQUICK SETUP GUIDE I NS-42E760A12
Power
Turns yourTV on or o.
INFO
Opens a TV status banner.
OK/ENTER
Conrms selections or changes.
EXIT
Closes the on-screen menu.
Quick Launch Inputs
Selects another source connected to
your TV.
Media Controls
Controls HDMI-CEC devices
connected to your TV.
Channel
Changes the TV channels.
MUTE
Mutes the sound.
-
Enter a digital sub-channel number.
CC
Turns closed captioning on or o.
P-LOCK
Enable parental control.
ZOOM
Changes how the picture displays
on the screen.
PICT
Selects the video modes.
SET
Program the remote control to
control other devices.
MENU
Opens the on-screen menu.
Arrows
Navigate in on-screen menus.
GUIDE
Displays the program guide.
RECALL
Returns to the previous
channel.
Volume
Changes the volume.
Numbers
Enter channel numbers.
INPUT
Opens the source list.
FAV
Opens the Favorite Channel list.
AUDIO
Selects the audio modes.
SLEEP
Sets the sleep timer.
DYN VOL
No function.
Turning on yourTV for the rst time
1Connect the power cord to a power outlet, then press （power）.
The power indicator turns blue and the Choose Your Menu Language screen opens.
2
Press ▲or ▼ to highlight a language, then press ENTER.
The
Choose Your Time Setting screen opens with Mode highlighted.
3 Press ◄or ► to select Auto or Manual. If you select Auto, the date and time are
set automatically from a digital TV signal. If you select Manual, you can manually
set the date and time. Press ENTER. The Choose Your Picture Mode screen opens.
4Press
▲or ▼ to highlight Home Mode or Retail Mode, then press ENTER. If
you select Retail Mode, a message asks you to conrm your selection. Select Yes
or No. Retail Mode
is not an energy-saving mode. The ChooseYourTV Source screen opens.
5 Press ▲or ▼ to highlight Antenna, Cable, or Cable/Satellite box. If you select
Antenna or Cable, your TV scans for available channels. The scan may take
several minutes. If you select Cable/Satellite box, your TV does not
scan for channels.
6To watchTV, press INPUT, then press
▲ or ▼ to select the video input source for your
TV signal. For example, select HDMI if yourTV is connected to a cable/satellite box
using an HDMI cable or select TV if yourTV is connected to an antenna or
cable/satellite using a coaxial cable.
Setting up and using your remote control
1Press the release button on the back of the
remote control to remove the battery compartment cover.
2Insert two AA batteries into the battery compartment.
Make sure that the + and – symbols on the batteries
match the + and – symbols in the battery compartment.
3Replace the cover.
