Insignia NS-24L120A13 User manual

Composite video
and analog audio
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
You can use an HDMI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device’s jack.
Connection type Video quality Cable connector
HDMI video/audio Best
Component video
and analog audio
Better
Good
OR
OR
Front features
Installing the stand
1Carefully place your TV screen face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
2 Align the stand with the stand column and rotate the stand in the direction of the
arrow until you hear it lock into place.
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
2Press the PUSH button on the stand column, then rotate the stand to remove it.
3Remove the six screws that secure the stand column, then remove the stand
column.
4 Attach the wall-mount bracket to your TV using the mounting holes on the back of
your TV. See the instructions that came with the wall-mount bracket for
information about how to correctly hang your TV.
Connecting a DVD or Blu-ray player, cable box, satellite
receiver, camcorder, or game station
Using an HDMI cable (best)
Using component cables (better)
Using composite cable (good)
Connecting an antenna/cable wall jack
Connect a coaxial cable to the ANT/CABLE jack on the back of your TV and to the
Antenna/Cable wall jack.
Connecting a Home Theater System
Using digital audio
Connecting headphones
Connecting power
Plug the AC power cord on the back of your
TV into a power outlet.
Remote control
and 2 AAA batteries
TV stand
Remote control sensor Power indicator
24" 720p LCD TV
QUICK SETUP
GUIDE
NS-24L120A13
Thank You
for purchasing this ne Insignia television.
We hope you enjoy the quality and reliability
of this product for years to come.
_______________________________
Note: Cables are not provided.
Note: Cables are not provided.
Note: Cables are not provided.
PC / DVI
AUDIO IN
DIGITAL
OUTPUT
USB HDMI 1 HDMI 2 / DVI VGA Y PBPRVIDEO
COMPONENT IN AV IN
L - AUDIO - R ANT / CABLE
PC / DVI
AUDIO IN
DIGITAL
OUTPUT
USB HDMI 1 HDMI 2 / DVI VGA Y PBPRVIDEO
COMPONENT IN AV IN
L - AUDIO - R ANT / CABLE
CABLE
PC / DVI
AUDIO IN
DIGITAL
OUTPUT
USB HDMI 1 HDMI 2 / DVI VGA Y PBPRVIDEO
COMPONENT IN AV IN
L - AUDIO - R ANT / CABLE
AUDIO/VIDEO
OUT
PC / DVI
AUDIO IN
DIGITAL
OUTPUT
USB HDMI 1 HDMI 2 / DVI VGA Y PBPRVIDEO
COMPONENT IN AV IN
L - AUDIO - R ANT / CABLE
AUDIO/VIDEO
OUT
Note: Cables are not provided.
WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com,
click Support & Service, enter your model
number in the Product Search eld,
then click Search.

24" 720p LCD HDTV IQUICK SETUP GUIDE I NS-24L120A13
INPUT SOURCE
TV
AV
Component
HDMI 1
HDMI 2
VGA
USB
Antenna or
cable TV
(no box)
Blu-ray player/DVD player/VCR Cable or satellite TV box
AV receiver
Game console
or camera
USB ash drive
Computer
Move
OK
ENTER
MENU EXIT
Exit
Previous
Select
PICTURE AUDIO CHANNELS SETTINGS USB
Adjust settings to affect picture quallty
Front features
Installing the stand
1Carefully place your TV screen face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
2 Align the stand with the stand column and rotate the stand in the direction of the
arrow until you hear it lock into place.
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
2Press the PUSH button on the stand column, then rotate the stand to remove it.
3Remove the six screws that secure the stand column, then remove the stand
column.
4 Attach the wall-mount bracket to your TV using the mounting holes on the back of
your TV. See the instructions that came with the wall-mount bracket for
information about how to correctly hang your TV.
Connecting a DVD or Blu-ray player, cable box, satellite
receiver, camcorder, or game station
Using an HDMI cable (best)
Using component cables (better)
Using composite cable (good)
Connecting an antenna/cable wall jack
Connect a coaxial cable to the ANT/CABLE jack on the back of your TV and to the
Antenna/Cable wall jack.
Connecting a Home Theater System
Using digital audio
Connecting headphones
Connecting power
Plug the AC power cord on the back of your
TV into a power outlet.
ENGLISH 12-0381

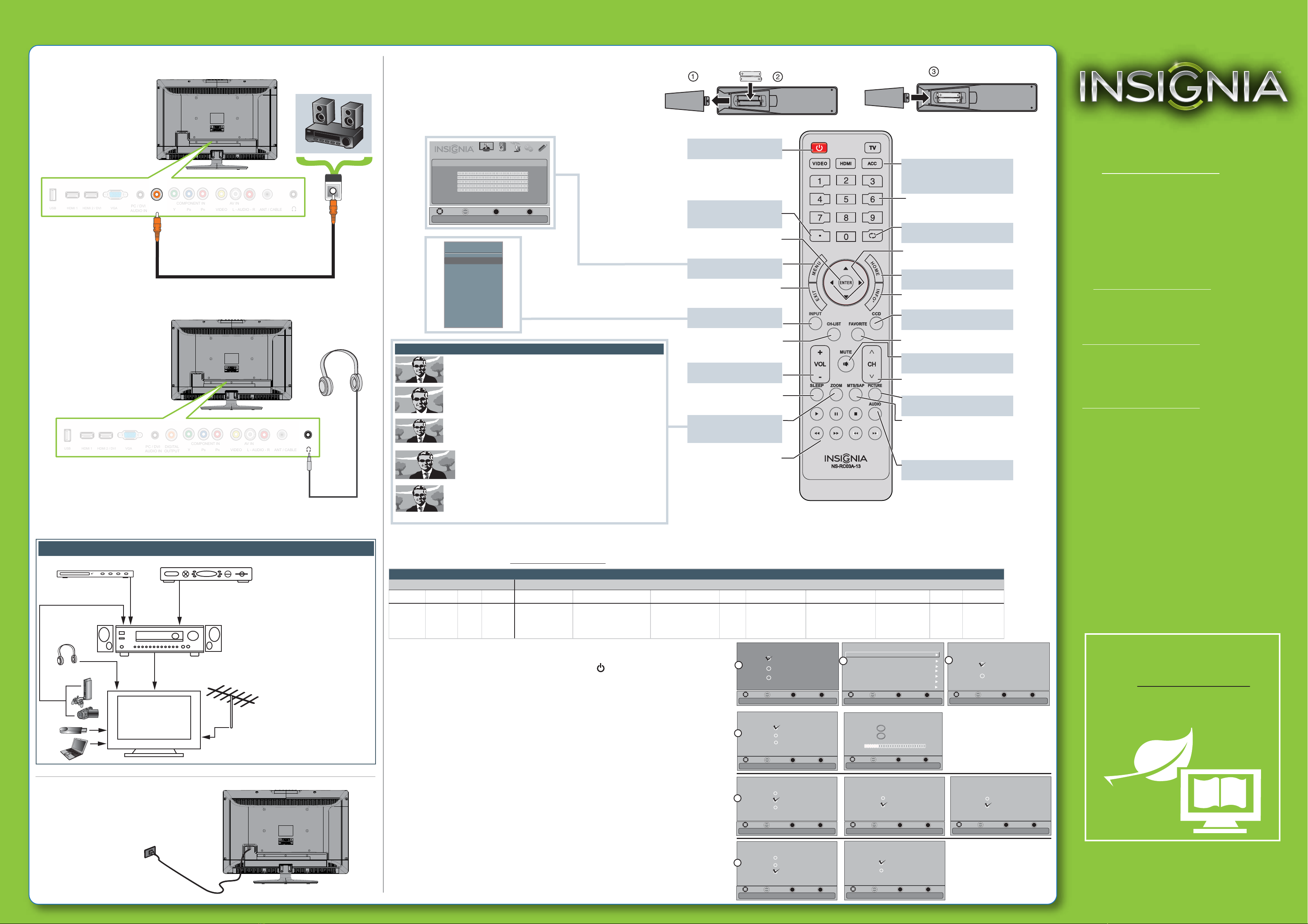

Setting up and using your remote control
1Press the release button on the back of the remote to remove the battery
compartment cover.
2Insert two AAA batteries into the battery compartment. Make sure that the +
and – symbols on the batteries match the + and – symbols in the battery
compartment.
3Replace the cover.
Quick Launch Inputs
Selects another source connected to
your TV. Note: the ACC button has
no function.
Numbers
Enter channel numbers.
Recall
Returns to the previous channel.
Arrows
Navigate in on-screen menus.
HOME
Opens the on-screen menu.
INFO
Opens a TV status banner.
CCD
Turns closed captioning on or o.
FAVORITE
Opens the Favorite Channel List.
MUTE
Mutes the sound.
Channel
Changes the TV channels.
Selects the picture mode.
MTS/SAP
Cycles through mono, stereo, and
secondary audio for analog
programs.
AUDIO
Selects the audio mode.
Power
Turns your TV on or o.
.
Enters a digital sub-channel
number (e.g. 4.1).
ENTER
Conrms selections or changes.
MENU
Opens the on-screen menu.
EXIT
Closes the on-screen menu.
INPUT
Opens the Input Source List.
CH-LIST
Opens the channel list.
Volume
Changes the volume.
SLEEP
Sets the sleep timer.
ZOOM
Changes how the picture
displays on the screen.
INlink Controls
Controls HDMI-CEC devices
connected to your TV.
Connecting a home theater system with multiple devices
We recommend that you connect
the AV receiver’s HDMI OUT jack
to your TV’s HDMI IN (ARC) jack.
In the following situations, the
HDMI cable will route Dolby Digital
audio to the AV receiver, so you do
not need to connect a separate
digital audio cable:
• When you have a game console
connected to one of your TV’s
HDMI IN jacks.
• When you watch a program
through an antenna or cable TV
connected to the ANT IN jack.
Normal:
Displays the original 4:3 aspect ratio with vertical black bars on the left and
right hand side of the screen.
Zoom:
Expands the image to ll the screen. The top and bottom of the image may
be cropped.
Wide:
Use this option to view content recorded in a 16:9 (wide-screen) aspect
ratio.
Cinema:
Stretches the image at the edges, but keeps a clear image in the center.
Auto:
Automatically adjusts the image based on the screen size and the TV
program. Note: Auto is only available when Auto Zoom in the CHANNELS
menu is set to On.
Aspect ratio options
Picture Mode Energy Savings
Brightness 00
Contrast 00
Color 00
Tint 00
Sharpness 00
Advanced Video
Reset Picture Settings
DIGITAL
AUDIO IN
PC / DVI
AUDIO IN
DIGITAL
OUTPUT
USB HDMI 1 HDMI 2 / DVI VGA Y PBPRVIDEO
COMPONENT IN AV IN
L - AUDIO - R ANT / CABLE
Turning on your TV for the rst time
1Connect your TV’s power cord to a power outlet, then press (power). The Choose Your Menu
Language screen opens.
2Press ▲or ▼the language you want, then press ENTER. The Choose Your Time Setting screen opens.
3Press ◄or ►to select Auto or Manual, then press ENTER. If you select Auto, the date and time are
set automatically from a digital TV signal. If you select Manual, you can manually set the date and
time. Press ENTER.
4Press ▲or ▼to highlight Home Mode or Retail Mode, then press ENTER. If you select Retail
Mode, a message asks you to conrm your selection. Select Ye s or No. Retail mode is not an
energy-saving mode.
5Press ▲or ▼to highlight Antenna, Cable, or Satellite Box, then press ENTER.
A. If you select Antenna, your TV scans for available channels. The scan may take several minutes.
B. If you select Cable, a message asks if you have a cable box.
• Select No if no cable box is connected. Your TV scans for available channels. The scan may take
several minutes.
• Select Yes if a cable box is connected. A message asks how you connected the cable box to
your TV:
• Select AV, Component, or HDMI if you connected a cable box to your TV using one of these
cables. Read the message, then press ENTER to close the wizard.
• Select Coaxial if you connected a cable box to your TV using a coaxial cable. Read the
message, then press ENTER to start the channel scan (VHF channels only).
C. If you select Satellite Box, a message asks how you connected the satellite box to your TV:
• Select AV, Component, or HDMI if you connected a satellite box to your TV using one of these
cables. Read the message, then press ENTER to close the wizard.
• Select Coaxial if you connected a satellite box to your TV using a coaxial cable. Read the
message, then press ENTER to start the channel scan (VHF channels only).
Move
OK
ENTER
MENU EXIT
Exit
Previous
Select
Choose Your Time Setting
Mode Auto
Time Zone Atlantic
Daylight Savings On
Year 2012
Month October
Day 28
Time 08:07 AM
If automatic, options are automatically set by TV source
3
Analog Channels
Digital Channels
Scanning for Channels
0
Move
OK
ENTER
MENU EXIT
Exit
Previous
Select
0
Channel scan may take 20+ minutes
Channel scan may take 20+ minutes
5or63or
4
English
Choose Your Menu Language
Move
OK
ENTER
MENU EXIT
Exit
Previous
Select
Set menu language to English, or
Fran aisç
Español
Move
OK
ENTER
MENU EXIT
Exit
Previous
Select
Choose Your Picture Mode
Reduces total power consumption
Home Mode
Retail Mode
Fran aisçEspañol
24
Choose Your TV Source
Antenna
Cable
Satellite Box
Move
OK
ENTER
MENU EXIT
Exit
Previous
Select
Select if using an antenna for standard or HD TV
4A
Choose Your TV Source
Antenna
Cable
Satellite Box
Move
OK
ENTER
MENU EXIT
Exit
Previous
Select
Select if you have cable service.
Do you have a Cable Box?
No
Yes
Move
OK
ENTER
MENU EXIT
Exit
Previous
Select
How did you connect the
AV, Component, or HDMI
Coaxial
Move
OK
ENTER
MENU EXIT
Exit
Previous
Select
cable box to the TV?
Choose Your TV Source
Antenna
Cable
Satellite Box
Move
OK
ENTER
MENU EXIT
Exit
Previous
Select
Select if you have a satellite box.
How did you connect the
AV, Component, or HDMI
Coaxial
Move
OK
ENTER
MENU EXIT
Exit
Previous
Select
satellite box to the TV?
4B
4C
PC / DVI
AUDIO IN
DIGITAL
OUTPUT
USB HDMI 1 HDMI 2 / DVI VGA Y PBPRVIDEO
COMPONENT IN AV IN
L - AUDIO - R ANT / CABLE
Note: Headphones are not provided.
Note: Cables are not provided.
Universal remote TV codes
Universal remote controls Cable/Satellite/Set-top boxes
One for All Philips RCA Sony Cablevision Charter Comcast Cox Direct TV Dish Network Time Warner Tivo Verizon
0054 0198,
0490
135 1326,
1463
0198,
0490
400, 450, 461, 456,
10463, 1463, 0463
0091068, 069, 078,
096, 100, 164,
168, 229, 026
2002, 1204, 1423, 1517,
0171, 1963, 0463, 1463,
0842, 1326, 167, 415, 424,
450, 456, 461, 507, 523, 567,
577, 586
10171, 11204, 11326,
11517, 11564, 11641,
11963, 12002
720068, 069,
078, 096,
100, 164,
168, 229,
026
10171, 11204, 11326,
11463, 11517, 11641,
11780, 11785, 11892,
11963, 12002
Programming your remote control
To program your universal remote control to work with your new Insignia TV, see the table for common codes. If you have problems programming your remote or need a
dierent remote control code, visit www.insigniaproducts.com for the latest remote control code information.
One-year limited warranty
Visit www.insigniaproducts.com for details.
Need additional help?
See your Online User Guide! This
comprehensive guide includes everything
from basic how-to steps to more advanced
features. A copy of your User Guide is not
provided in the box but is available online. Go
to www.insigniaproducts.com, click Support
& Service, enter your model number in the
Product Search eld, then click Search.
Check out our online community forum at
www.insigniaproducts.com for helpful
information from other Insignia TV owners.
We’re here for you
www.insigniaproducts.com
For customer service, call:
877-467-4289 (U.S./Canada markets)
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richeld, MN USA 55423-3645
© 2012 BBY Solutions, Inc.
All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc.
Registered in some countries. All other products and brand
names are trademarks of their respective owners.
WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com,
click Support & Service, enter your model
number in the Product Search eld,
then click Search.
