HD Radio™ Portable Player with Armband
NS-HD01
User Guide

2www.insigniaproducts.com
HD Radio™ Portable Player with
Armband
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important safety instructions. . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using your radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Checking the battery level. . . . . . . . . . . . . . . . . . . . . . . 36
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Legal notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
90-day limited warranty . . . . . . . . . . . . . . . . . . . . . . . . 39
Introduction
Congratulations on your purchase of a high-quality Insignia
product. Your NS-HD01 represents the state of the art in
HD Radio™ design and is designed for reliable and
trouble-free performance.

HD Radio™ Portable Player with Armband
3
www.insigniaproducts.com
Important safety instructions
1Read these instructions.
2Keep these instructions.
3Heed all warnings.
4Follow all instructions.
5Do not use this apparatus near water.
6Clean only with dry cloth.
7Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
10 Only use attachments/accessories specified by the
manufacturer.
11 Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the
cart/apparatus combination to avoid
injury from tip-over.
12 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.

4
NS-HD01
www.insigniaproducts.com
13 To reduce the risk of fire or electric shock, do not expose
this device to rain, moisture, dripping, or splashing, and
no objects filled with liquids, such as vases, shall be
placed on it.
Additional safety information
• Be careful when you use your radio with the USB
plug pulled out. The sharp USB connection plug
may cause injury.
• Observe local laws regarding using earphones
while driving a motor vehicle. Some locales allow
only one ear to be covered by an earphone. Using
the earphone while walking or jogging on a road or
on a crosswalk can lead to a serious accident.
• Do not leave your radio in temperatures above
104°F (40°C), such as in a sauna or a parked car.
• Using earphones or headphones for an extended
time may cause serious damage to your hearing. If
you are exposed to sound louder than 85dB for
extended time, you may adversely affect your
hearing. The louder the sound is, the more seriously
damaged your hearing may be (an ordinary
conversation is between 50dB to 60dB and road
noise is approximately 80dB )
• You are strongly advised to set the volume level to
medium (the medium level is usually less than 2/3
of the maximum).
• If you hear a ringing in your ear(s), lower the volume
or stop using the earphone or headphones.
• Do not place your radio near magnetic objects.

HD Radio™ Portable Player with Armband
5
www.insigniaproducts.com
Features
•Ten(10)stationpresets
•3.5mmoutputjack
•Full-colorscreen
• Built-in lithium-ion rechargeable battery
Package contents
• HD Radio portable player
•Armband
•Earphone
• USB cable for charging the battery or powering
your radio
•UserGuide
•QuickSetupGuide

6
NS-HD01
www.insigniaproducts.com

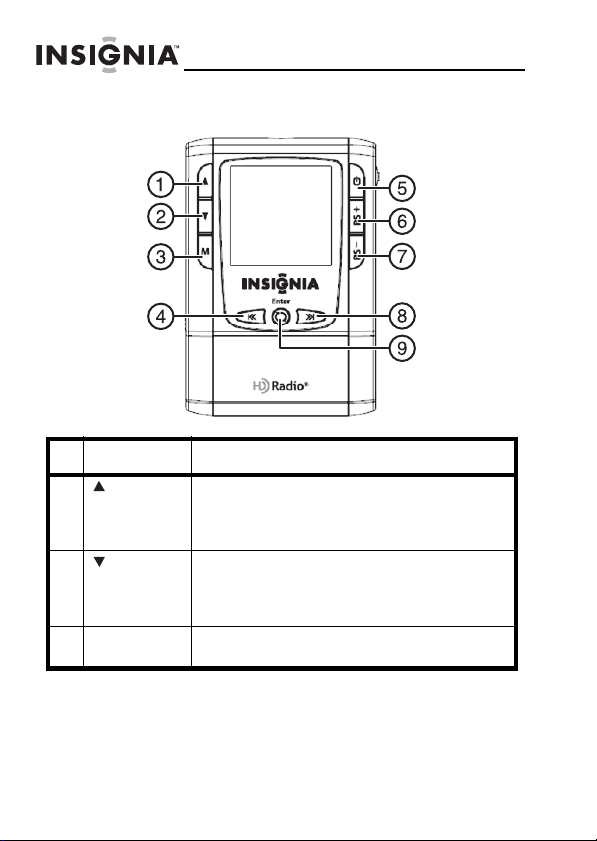

Front
# Item Description
1 Press to tune to the next higher frequency.
Press and hold to fast-foward through
frequencies. For more information, see
“Manually tuning to a frequency” on page 25.
2 Press to tune to the next lower frequency.
Press and hold to fast-reverse through
frequencies. For more information, see
“Manually tuning to a frequency” on page 25.
3MPress to access menu options. For more
information, see “Using the menu” on page 29.

HD Radio™ Portable Player with Armband
7
www.insigniaproducts.com
4 Press to automatically search for the next lower
radio station. If the search reaches the bottom
of the radio band, your radio goes to the top of
the radio band and continues searching. For
more information, see “Automatically tuning to
a station” on page 21.
5 Press for about one second to turn your radio
on or off. For more information, see “Turning
your radio on or off” on page 18
6PS+ Press and release to go to the next higher
preset station number.
Press and hold to save the current station to
the displayed preset number.
If you save a station to a preset number that is
already in use, the new station overwrites the
old station. For more information, see “Setting
a preset station” on page 27.
7PS– Press and release to go to the next lower preset
station number.
Press and hold to save the current station to
the displayed preset number.
If you save a station to a preset number that is
already in use, the new station overwrites the
old station. For more information, see “Setting
a preset station” on page 27.
8 Press to automatically search for the next
higher radio station. If the search reaches the
top of the radio band, your radio goes to the
bottom of the radio band and continues
searching. For more information, see
“Automatically tuning to a station” on page 21.
#Item Description

8
NS-HD01
www.insigniaproducts.com
Top
9 /Enter In HD Radio mode, press to switch between the
normal display and guide display. For more
information, see “Viewing the guide in HD
Radio mode” on page 29.
In menu mode, press to confirm selections.
# Item Description
Earphone jack Plug the included earphone into this jack.
# Item Description

HD Radio™ Portable Player with Armband
9
www.insigniaproducts.com

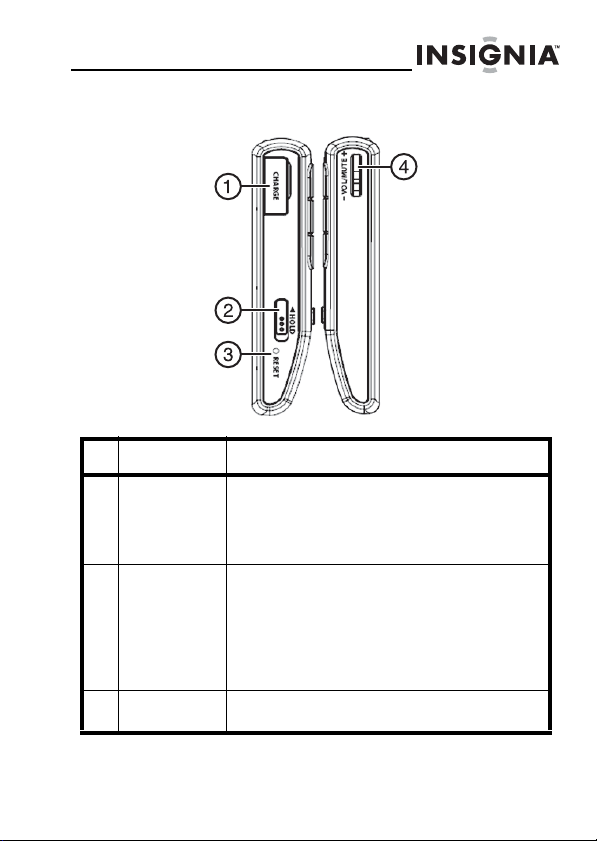

Sides
#Item Description
1CHARGE Connect the included USB cable into this port
and into a USB port on a computer to charge
the built-in battery or to power your radio. For
more information, see “Charging the battery”
on page 12.
2HOLD Push this control in the direction of the arrow
to lock the buttons to prevent accidental
button presses.
Push in the opposite direction to unlock the
buttons.
For more information, see “Locking the
buttons” on page 28.
3RESET If your radio stops responding to button
presses, press to reset your radio.

10
NS-HD01
www.insigniaproducts.com

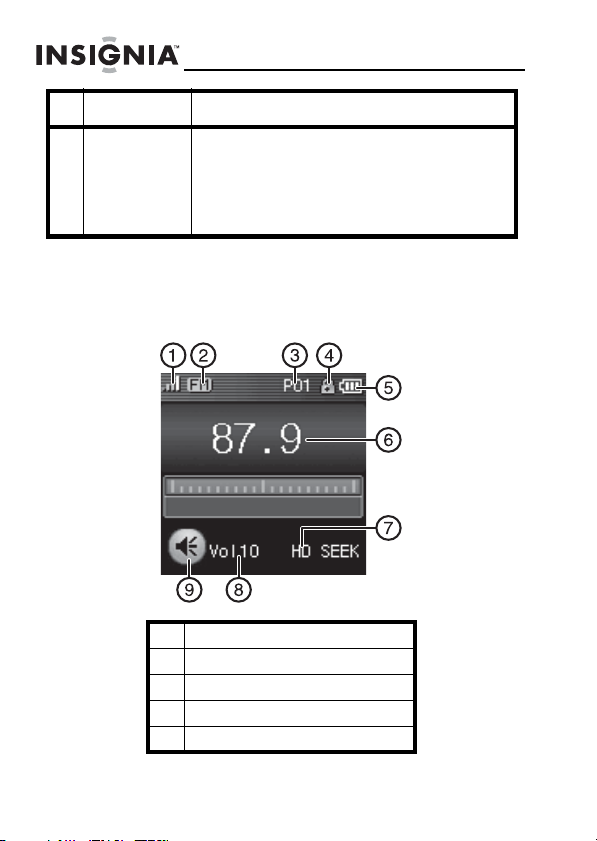

LCD information
Analog (FM) radio mode
4–VOL/MUTE+ Turn up to increase the volume or down to
decrease the volume.
Press to mute the sound, then press again to
restore the sound.
For more information, see “Adjusting the
volume” on page 19.
1 Signal strength
2Radioband
3Presetnumber
4Hold(lock)
5Batterycharge
# Item Description

HD Radio™ Portable Player with Armband
11
www.insigniaproducts.com

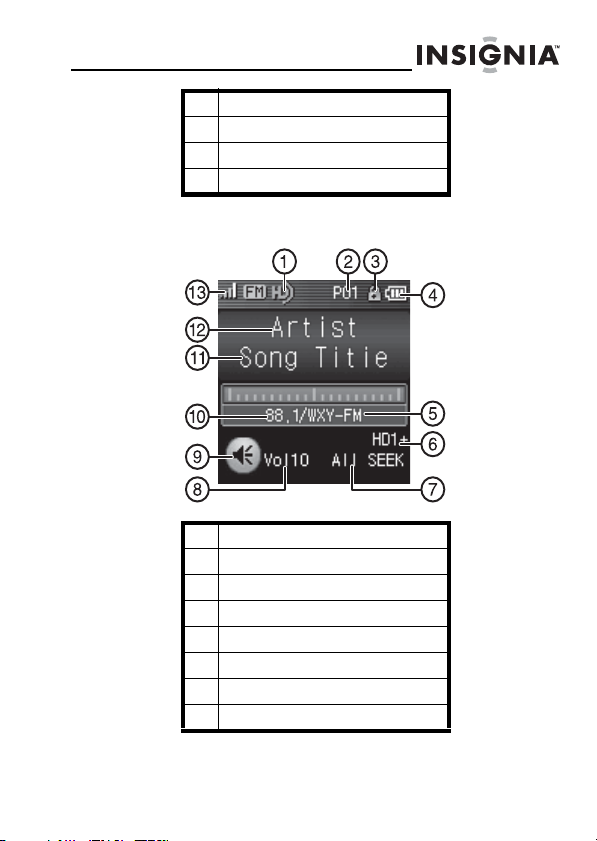

HD Radio mode
6Frequency
7 Seek mode
8Volumelevel
9 Sound state (muted or unmuted)
1HDlogo
2Presetnumber
3Hold(Lock)
4 Battery charge
5 Station name
6 Channel number
7 Seek mode
8Volumelevel

12
NS-HD01
www.insigniaproducts.com
Using your radio
Charging the battery
Your radio has a built-in battery that you charge from a USB
port on a computer.
To charge the battery:
1Connect the included USB cable to a USB port on a
computer, then connect the other end of the cable to
the CHARGE port on your radio.
2Turn on the computer.

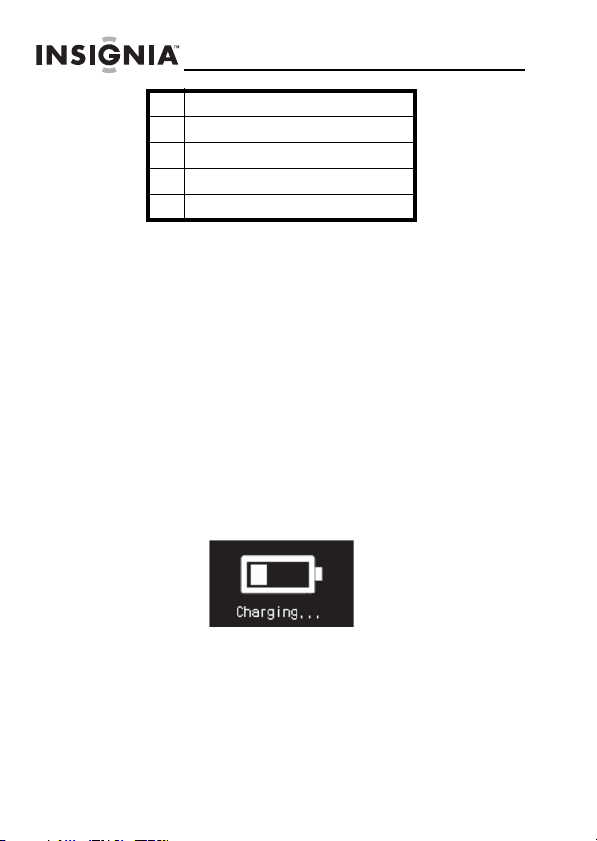

While the battery is charging, the following screen
appears:
9 Sound state (muted or unmuted)
10 Frequency
11 Song Title
12 Artist
13 Signal strength

HD Radio™ Portable Player with Armband
13
www.insigniaproducts.com

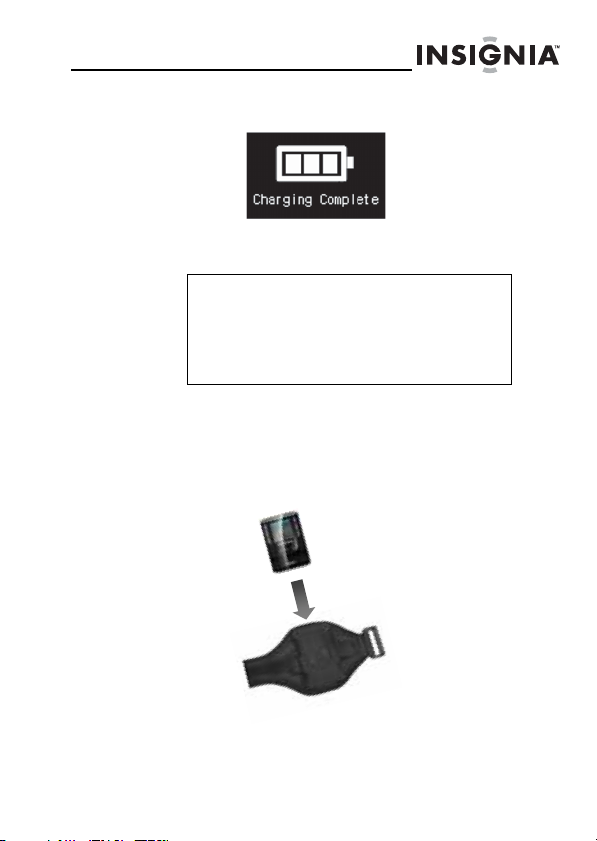

When charging is complete, the following screen
appears:
The display automatically turns off after five minutes.
You can disconnect your radio from the computer.
Using the armband
To use the armband:
1Slide your HD Radio into the armband pocket.
Note
If you press a button while the battery is
charging, the normal display appears. If
no button is pressed for 30 seconds
(unless you change the LCD Off Time in
the menu), the battery screen reappears.

14
NS-HD01
www.insigniaproducts.com

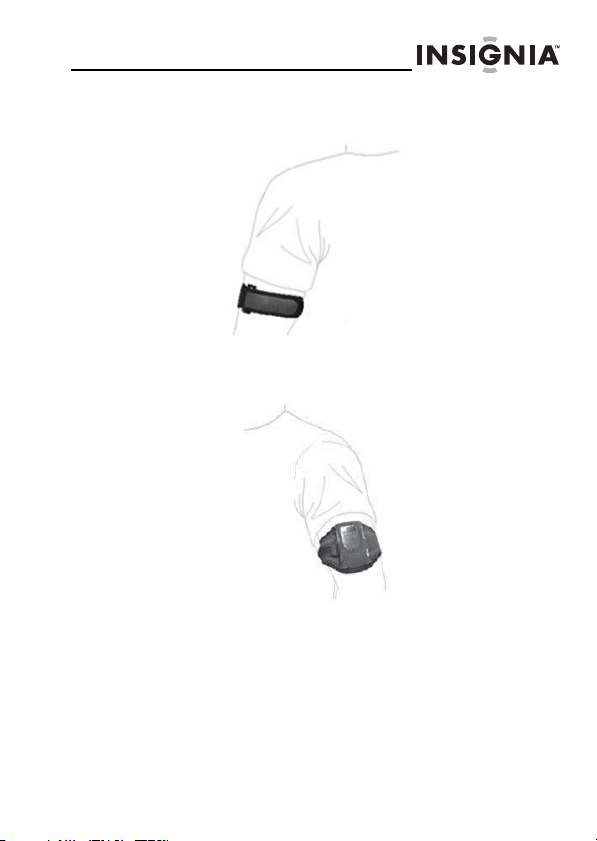

2Wrap the armband around your upper arm with the
radio facing out.
3Slide the strap through the loop, then pull the strap to
tighten it.

HD Radio™ Portable Player with Armband
15
www.insigniaproducts.com
4Fold the strap back over itself so it sticks to the velcro
strip and holds the armband in place.
When the armband is securely in place, your radio
controls are easy to access.

16
NS-HD01
www.insigniaproducts.com
Understanding radio modes
Your radio has three radio modes: Analog (FM), HD, and
RBDS (Radio Broadcast Data System).
Analog (FM) mode
The analog (FM) mode is the standard mode that has been in
use for many years. The FM radio signal is an analog signal.
When receiving an FM signal, the “FM” icon appears on the
display.
HD Radio mode
The HD Radio mode is the new digital mode for FM. Many
HD Radio stations have several sub-channels called
“multichannels.” When receiving an HD Radio signal, the
“HD” icon and the channel number appear on the display.

HD Radio™ Portable Player with Armband
17
www.insigniaproducts.com

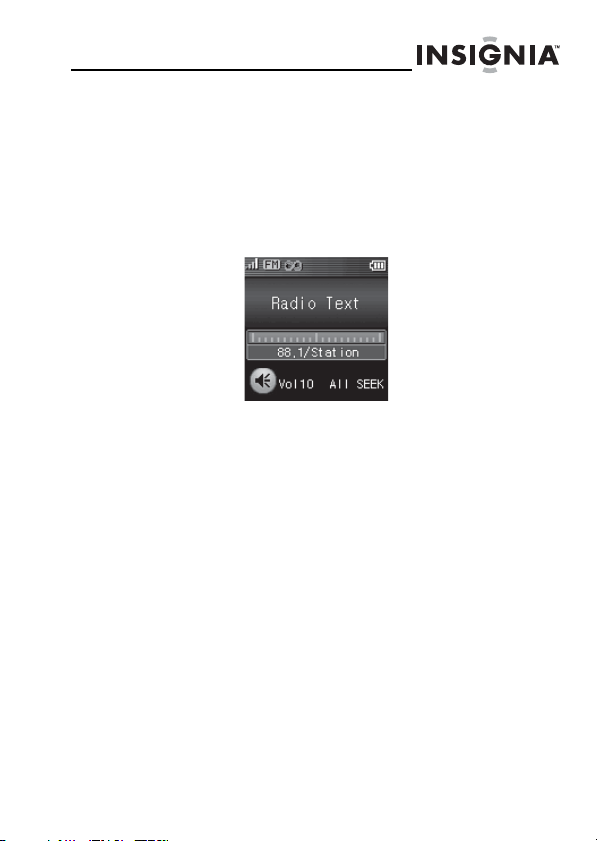

RBDS mode
RBDS (Radio Broadcast Data System) mode provides
additional functionality to FM radio reception by
transmitting encoded analog information with the FM radio
signal. This signal is decoded by an RBDS receiver and can
provide a range of informational features including the
station’s name. The RBDS text is usually centered. When the
text fills the display, it begins scrolling. When receiving an
RBDS signal, the “RBDS” icon appears on the display.

18
NS-HD01
www.insigniaproducts.com
Turning your radio on or off
To turn your radio on or off:
• Press . Your radio turns on and the following
message appears on the display:
Then one of the following screens appears:
Analog (FM) mode RBDS modeHD Radio mode

HD Radio™ Portable Player with Armband
19
www.insigniaproducts.com
• To turn off your radio, press for about one
second. The following message appears on the
display:
Adjusting the volume
To adjust the volume:
•Turnthe–VOL/MUTE+ control to increase the
volume or down to decrease the volume. The
volume indicator in the display increases.
Caution
Listening to your radio with the volume set too loud or
using earphones for extended periods of time can damage
your hearing. You should set the volume level to medium
(the medium level is usually less than 2/3 of the
maximum).
TO
Analog (FM) mode

20
NS-HD01
www.insigniaproducts.com
Press the –VOL/MUTE+ control to mute the
sound.The volume state indicator changes to the
mute icon.
• Press again to restore the sound.
HD Radio mode
TO
RBDS mode
TO
Analog (FM) mode RBDS modeHD Radio mode
