NS-R5111 Arm Band Radio
1
www.insignia-products.com
NS-R5111 Arm Band Radio
Welcome
Congratulations on your purchase of a high-quality
Insignia product. Your NS-R5111 arm band radio
represents the state of the art in design and reliable,
trouble-free performance.
Contents
Features . . . . . . . . . . . . . . . . . . . . . . . . 1
Using your arm band radio . . . . . . . . . . . . 2
Specifications . . . . . . . . . . . . . . . . . . . . . 6
Troubleshooting . . . . . . . . . . . . . . . . . . . 7
Legal notices . . . . . . . . . . . . . . . . . . . . . 7
Warranty. . . . . . . . . . . . . . . . . . . . . . . . .11
Français . . . . . . . . . . . . . . . . . . . 15
Español. . . . . . . . . . . . . . . . . . . . 31
Features
The NS-R5111 Arm Band Radio features:
• AM/FM digital radio
• Stereo or Mono listening modes
• Easy preset digital tuning and up to 10 FM and
10 AM memory presets
• Wearable oval design for arm band and
belt-holder use
• Stereo headphones

2
NS-R5111 Arm Band Radio
www.insignia-products.com
Using your arm band radio

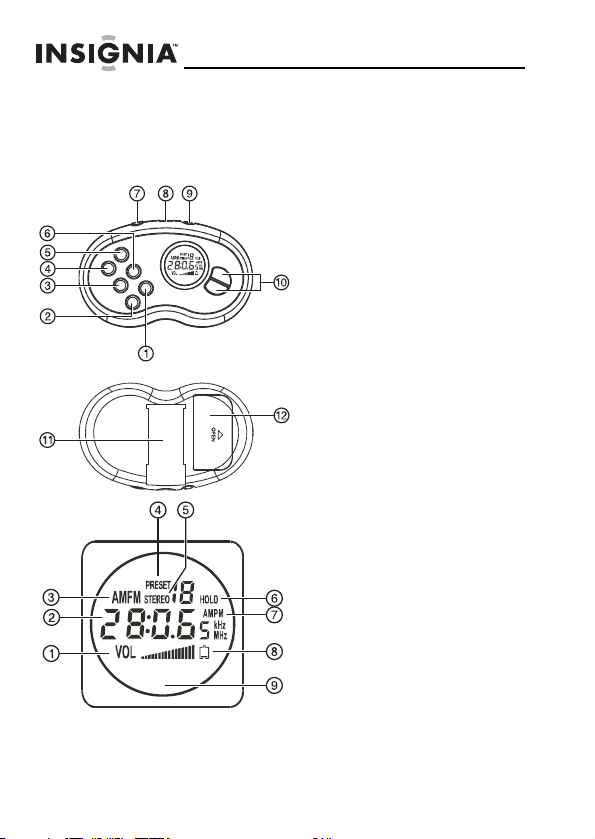

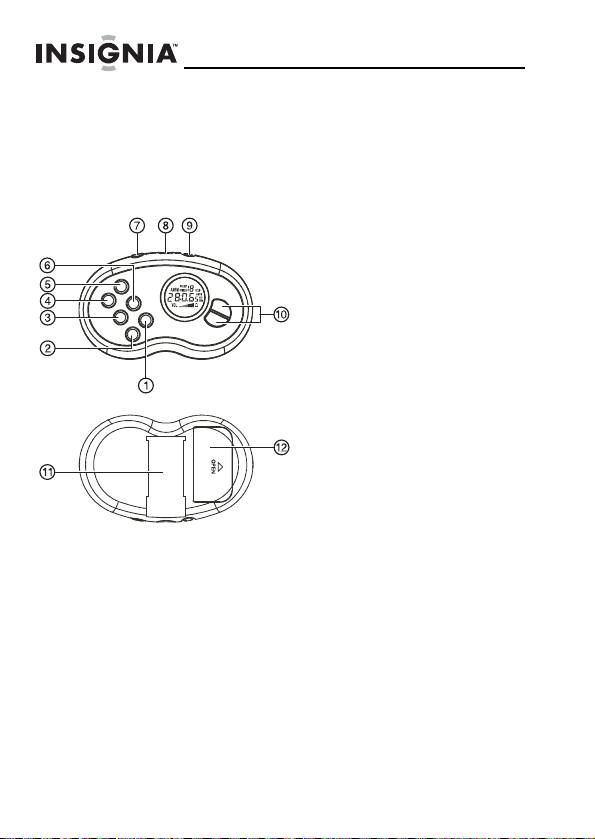

Controls
1STEREO/TIME SET button
2BAND (AM/FM) button
3MEMORY button
4TUN UP (hour) button
5TUN DN (minute) button
6PRESET button
7HOLD switch
8Phone jack
9ON/OFF button
10 Volume control button
11 Belt clip
12 Battery compartment
1Volume level indicator
2Radio frequency
3AM/FM indicator
4Preset indicator
5FM stereo indicator
6Hold indicator
7AM/PM indicator
8Low battery indicator
9LCD display

NS-R5111 Arm Band Radio
3
www.insignia-products.com
Installing the batteries
To install the batteries:
1Open the battery compartment door located on the
back of your radio.
2Insert two AAA batteries, making sure that the + and
– on the batteries match the + and – inside the
battery compartment.
3Replace the battery compartment door.
Flashing low battery alert
If the low battery indicator on the LCD starts flashing, the
batteries should be replaced. Replace batteries when
required. When not using your radio for an extended
period of time, remove the batteries.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or
rechargeable (nickel-cadmium) batteries.
• Dispose of batteries according to local
environmental laws.
Operating your radio
To operate your arm band radio:
1Press the ON/OFF button to turn on the radio.
2Press the BAND button to select AM or FM.
3Insert the headphone plug into the Phone Jack.
NoteYour earphone soft wire works as the antenna
for FM reception. You may need to extend the
wire to obtain the best reception.

4
NS-R5111 Arm Band Radio
www.insignia-products.com
To listen to your radio:
1Press and release the TUN UP or TUN DN button to
go to the next radio station.
2Press and hold the TUN UP or TUN DN button to
scan for the next radio station with clear reception.
3Press the volume control button +or –to adjust the
volume.
4Press and release the STEREO/TIME SET button to
select Stereo or Mono mode.
To manually store stations:
1Press the BAND button to select AM or FM.
2Press the TUN UP or TUN DN button to select the
radio station you want.
3Press the MEMORY button. The PRESET Indicator
on the LCD flashes.
4Press the PRESET button to select the preset
channel you want.
5Press the MEMORY button again to store the station
as a preset.
6Repeat Steps 1 to 5 to store additional stations.
NoteStereo mode is only available when listening to
FM radio stations.
NoteYou can store up to 10 AM and 10 FM radio
stations into preset numbers (erasing any
preset stations).

NS-R5111 Arm Band Radio
5
www.insignia-products.com
To recall preset stations within the
selected band:
1Press the PRESET button.
2Press the TUN UP or TUN DN button to change to a
different stored station.
When the batteries are low, the LCD will start flashing
and eventually shut off.
• Press the ON/OFF button to turn off the radio,
then replace the batteries.
Using Hold
To use the Hold feature:
1Set the HOLD switch to ON and all buttons will be
disabled. The Hold indicator appears on the LCD.
2Set the HOLD switch to OFF to enable all buttons.
Setting the time
To set the time during power off mode:
1Press and hold the STEREO/TIME SET button.
2Press the TUN UP button (hour) to set the hour, then
press the TUN DN button (minute) to set the minute.
3Press and hold the STEREO/TIME SET button to
exit Time Set mode.
NoteTime must be reset after you change the
batteries.
NoteYou cannot set the time during power on
mode.

6
NS-R5111 Arm Band Radio
www.insignia-products.com
Using the belt clip
To release the belt clip:
• Pull the top end of the belt clip outward, then
hold it and slide it down gently.
Specifications
Note: Design and specifications are subject to change without notice.
Frequency range AM 530-1720 kHz
FM 87.5-108.0 MHz
Antenna AM ferrite bar antenna
FM headphones’ Cord
10% THD Headphones 15 mW +15 mW
Battery 3V DC (1.5V x 2) AAA
Accessories Headphones
Strap
AAA (2) Alkaline mercury-free battery

NS-R5111 Arm Band Radio
7
www.insignia-products.com
Troubleshooting
Problem Solution
The sound is weak or
interrupted, or poor
reception.
Batteries may be weak. Sound/reception
may be affected if you are in a vehicle or
in a building. Move closer to a window to
improve reception.
Display is dim. Batteries may be weak. Also, your radio
may be affected by extremely high or low
temperatures or excessive moisture.
There is no power. The batteries are dead. Replace the
batteries.

8
NS-R5111 Arm Band Radio
www.insignia-products.com
Legal notices
