NS-BTHDP/NS-BTHDST
1
www.insignia-products.com
Insignia NS-BTHDP Bluetooth
Headphones and NS-BTHDST
Headset
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . 1
Package contents . . . . . . . . . . . . . . . . . . . 2
Features . . . . . . . . . . . . . . . . . . . . . . . . . 3
Setting up your headset . . . . . . . . . . . . . . . 4
Using your headset . . . . . . . . . . . . . . . . . . 7
Troubleshooting . . . . . . . . . . . . . . . . . . . 15
Specifications . . . . . . . . . . . . . . . . . . . . 17
Warranty . . . . . . . . . . . . . . . . . . . . . . . . 19
Welcome
Congratulations on your purchase of a high-quality Insignia
product. Your NS-BTHDP and NS-BTHDST represent the state
of the art in Bluetooth audio design, and are designed for reliable
and trouble-free performance.
07-324 NS-BTHDP reduced.fm Page 1 Friday, August 3, 2007 1:29 PM

2
NS-BTHDP/NS-BTHDST
www.insignia-products.com
Package contents
User Guide
Guide de l’utilisateur
Guía del Usuario
Bluetooth Headphones and Headset
NS-BTHDP/NS-BTHDST

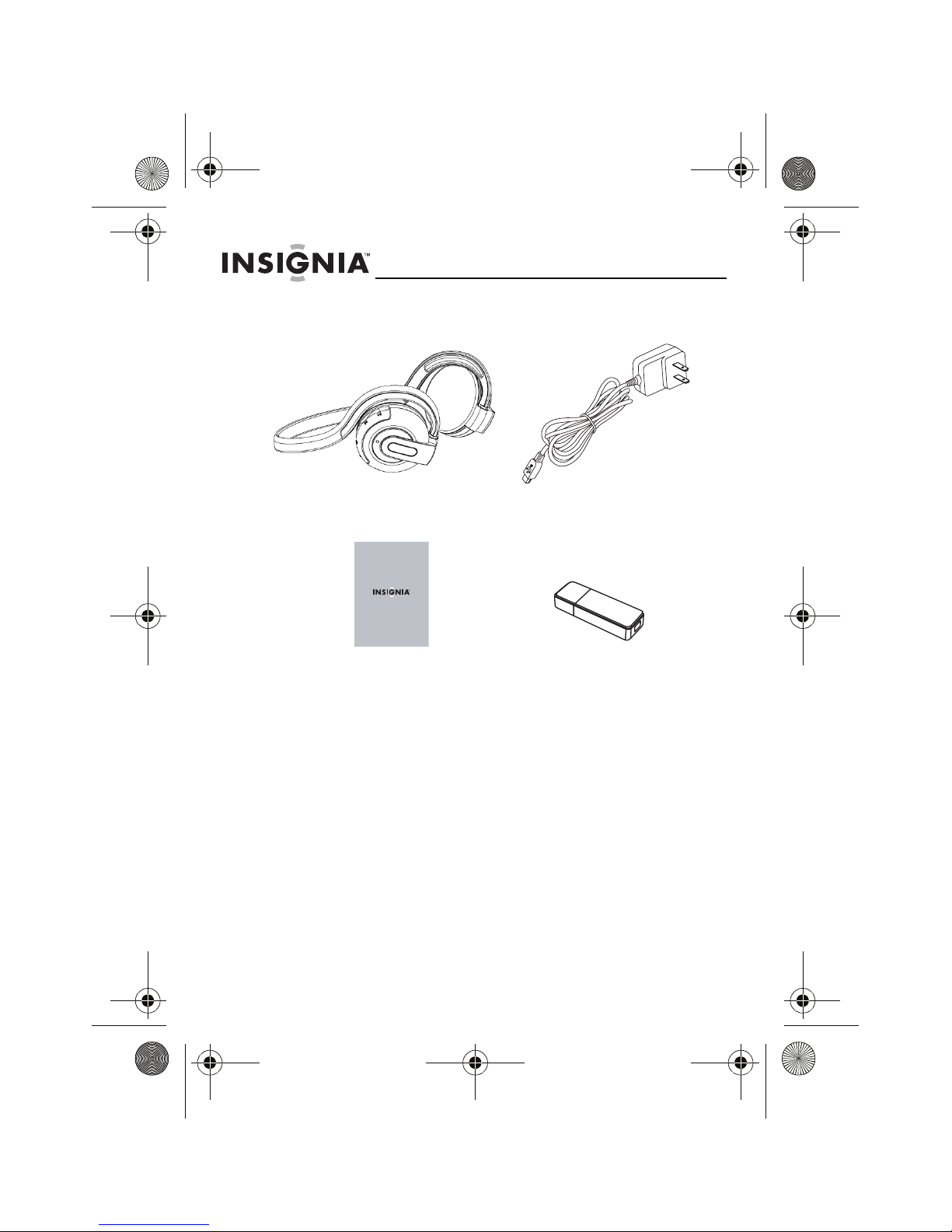

Bluetooth headphones or
headset
AC power adapter
User Guide Adapter (only with
NS-BTHDST headset)
07-324 NS-BTHDP reduced.fm Page 2 Friday, August 3, 2007 1:29 PM

NS-BTHDP/NS-BTHDST
3
www.insignia-products.com

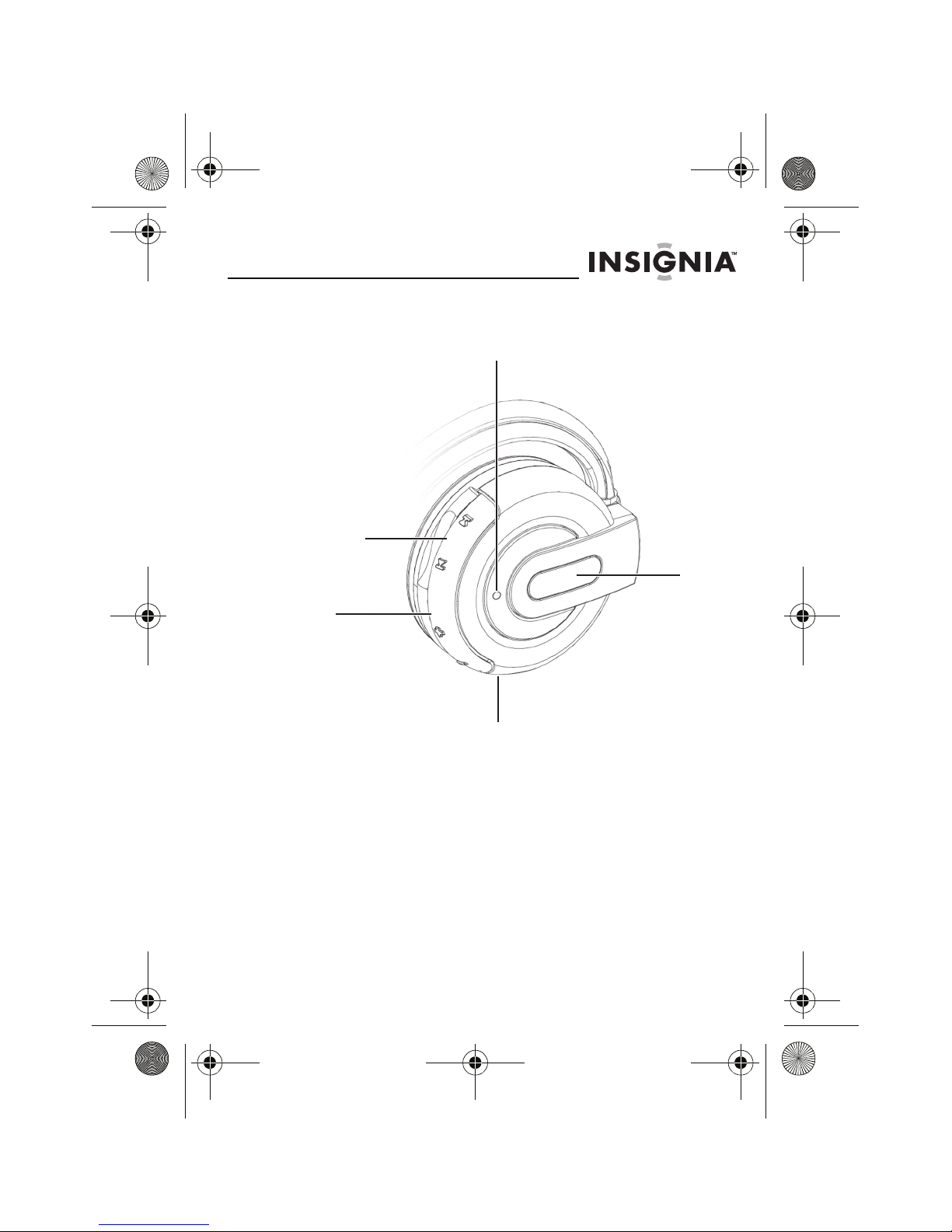

Features
Charger connector
(on bottom)
Volume up/down
buttons
Forward/Backward
buttons
Multifunction button
Indicator
light
07-324 NS-BTHDP reduced.fm Page 3 Friday, August 3, 2007 1:29 PM

4
NS-BTHDP/NS-BTHDST
www.insignia-products.com
Setting up your headset
Charging the headset
Before using the headset for the first time, you must charge it for
about 3.5 hours. When the battery is fully charged, it provides up
to 12 hours of talk time, 10 hours of music playing time, and up to
200 hours of standby time.
To charge the headset:
1Connect the charger cable to the headset.
2Plug the charger into a power outlet. The indicator lights turn
solid red, which indicates they are recharging. When the
battery is fully charged, the red light turns off.
Installing the Bluetooth software
To connect a Bluetooth device to a computer, the computer must
have Bluetooth software (also known as the
WIDCOMM
Bluetooth stack
) installed, and an available USB port.
To install the Bluetooth software:
1Plug the USB Bluetooth adapter into a USB port on your
computer.
2Insert the provided installation CD into the CD/DVD drive.
The software installs to your computer.
Note If the software does not install automatically,
double-click Setup.exe in the bin folder of the
installation CD. The Welcome Screen introduces you
to the installation process.
07-324 NS-BTHDP reduced.fm Page 4 Friday, August 3, 2007 1:29 PM

NS-BTHDP/NS-BTHDST
5
www.insignia-products.com
3Follow the on-screen instructions to complete the software
installation wizard.
4After the wizard finishes, disconnect the adapter, then
reconnect it.
5Click Finish to exit the installation.
6In Windows 2000, a prompt appears that tells you to restart
the computer so the Bluetooth software can be enabled.
Click Yes to restart your computer now, or No to restart later.
Uninstalling the Bluetooth software
To uninstall the Bluetooth software:
1Disconnect the NS-BTHDST USB Bluetooth adapter.
2In Windows Vista, click Start, Control Panel, then click
Programs and Features.
3Or, in Windows XP or Windows 2000, click Start, Settings,
Control Panel, then click Add/Remove Programs.
4In the list of installed programs, click WIDCOMM Bluetooth
Software, then click Uninstall (for Windows Vista) or
Remove (Windows XP or Windows 2000). A confirmation
message appears.
5Click Yes to uninstall or No to cancel. When the program
has been removed, a message asks you to restart the
computer.
6Click Yes to restart your computer now or No to restart later.
Note If the “Bluetooth device not found” message appears,
plug the USB Bluetooth adapter into a USB port on
your computer, then click OK. The
Found New
Hardware Wizard starts installing the components for
the USB Bluetooth adapter.
07-324 NS-BTHDP reduced.fm Page 5 Friday, August 3, 2007 1:29 PM

6
NS-BTHDP/NS-BTHDST
www.insignia-products.com

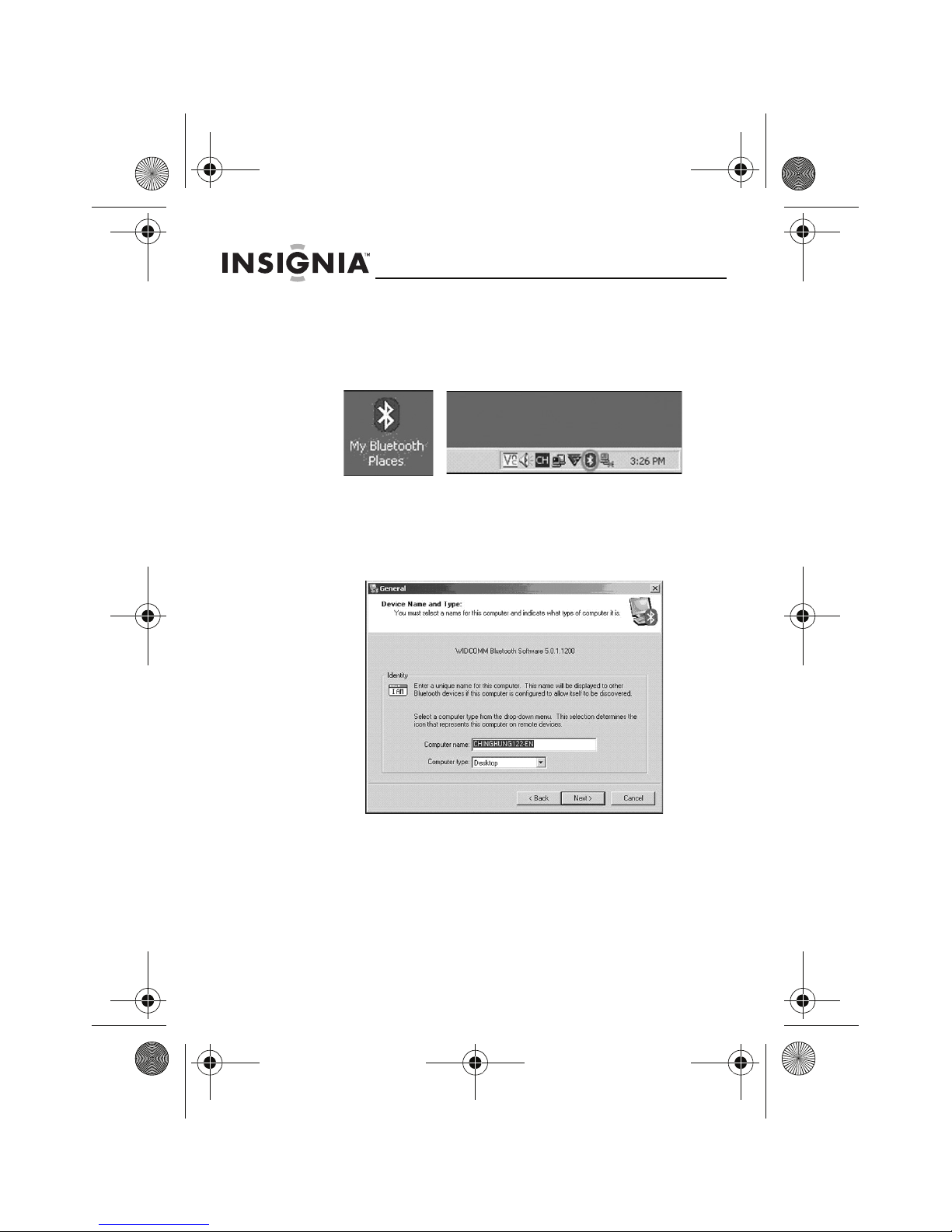

Configuring the Bluetooth software
To configure the Bluetooth software:
1Double-click My Bluetooth Places on the Windows
desktop, or click the Bluetooth icon in the system tray.
The Bluetooth Configuration Wizard starts.
2Click Next.
3Enter a name, then click either Laptop Computer or
Desktop Computer from the drop-down menu for this
computer.
4Click Next, then click Next again.
07-324 NS-BTHDP reduced.fm Page 6 Friday, August 3, 2007 1:29 PM

NS-BTHDP/NS-BTHDST
7
www.insignia-products.com
5Click to select the services that this computer will offer to
other Bluetooth devices, then click Next.
6If you have another Bluetooth device, click Next. Otherwise,
click Skip.
7When the configuration is finished, click Finish.
8Insert the Bluetooth adapter into an available USB port on
your computer, then wait for the adapter’s LED to turn blue
before connecting to any Bluetooth device.
Using your headset
Turning on the headset
To turn on the headset:
• Press the Multifunction button for more than three
seconds. A long, high tone plays, and the blue indicator
light on the right earpiece flashes three times.
To turn off the headset:
• Press and hold the Multifunction button. A long, high
tone plays, and the red indicator light on the right
earpiece turns on for three seconds.
07-324 NS-BTHDP reduced.fm Page 7 Friday, August 3, 2007 1:29 PM

8
NS-BTHDP/NS-BTHDST
www.insignia-products.com
Pairing using the Bluetooth software
Before using Bluetooth for pairing your headset with another
Bluetooth device, make sure that:
• The Bluetooth software is installed and configured as
instructed in “Installing the Bluetooth software” on
page 4.
• The Bluetooth software is running.
• The headset is fully charged.
• The included Bluetooth adapter is plugged into a USB
port on your computer.
• The NS-BTHDP Bluetooth stereo headphones are
turned on.
If the above conditions are met, the headset should be found by
the software and connected automatically. You can check My
Bluetooth Places to check status.
If the headset is not found and connected automatically, you can
double-click the Bluetooth icon in the Windows system tray to
connect your preferred service.
07-324 NS-BTHDP reduced.fm Page 8 Friday, August 3, 2007 1:29 PM

NS-BTHDP/NS-BTHDST
9
www.insignia-products.com
Using the Bluetooth software for the first time
For more information regarding pairing the headset, see “Pairing
the headset and your mobile phone” on page 11.
To use the Bluetooth software for the first time:
1Double-click the My Bluetooth Places icon in the Windows
system tray. The My Bluetooth Places dialog box opens.

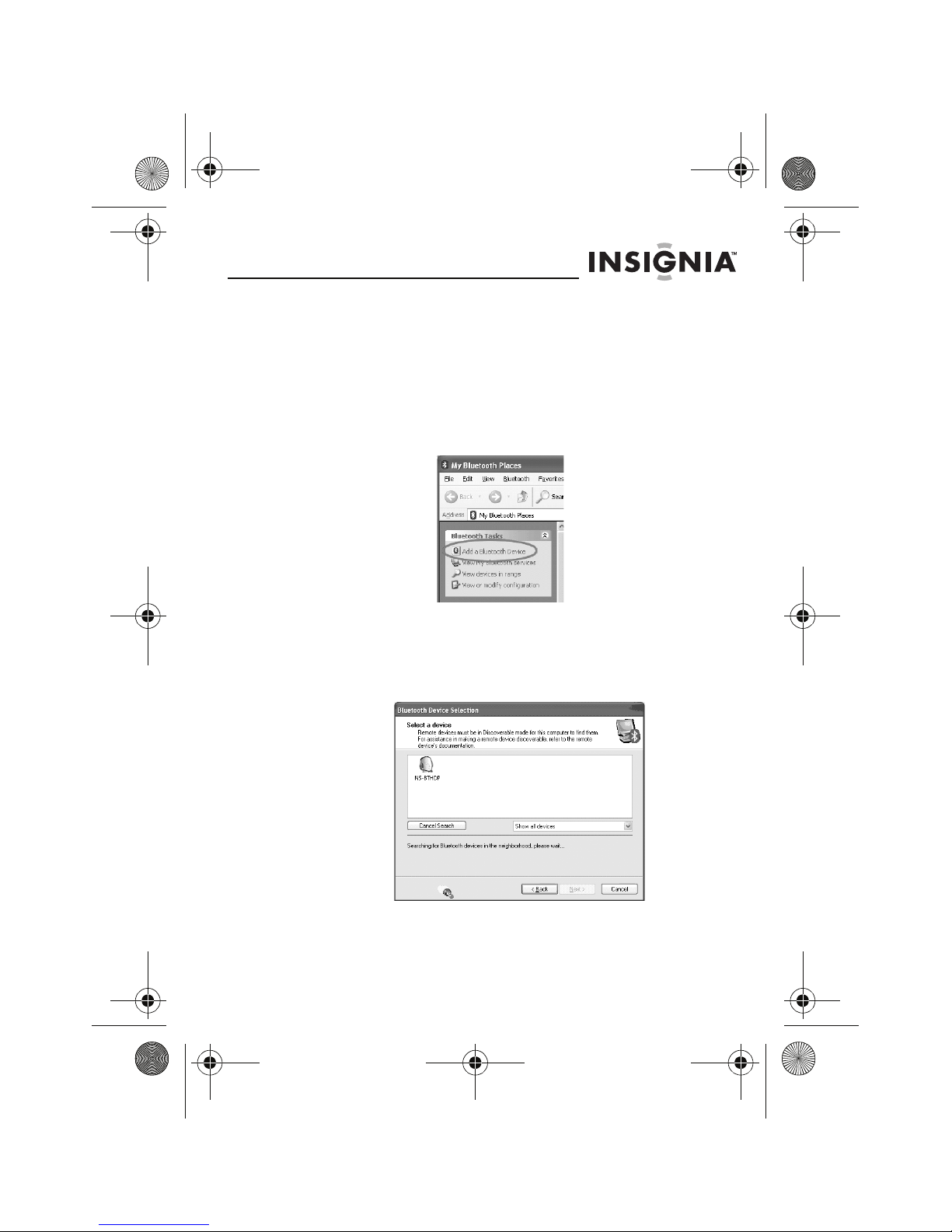

2Click Add a New Bluetooth Device (in the upper-left
corner).
3Press and hold the Multifunction button for more than
seven seconds, until short, low tones are played by the
earpiece and the blue and red lights flash alternately. This
puts the headset into ‘searchable’ mode. When the headset
is “found,” double-click the NS-BTHDP icon, or highlight it
and click Next.
07-324 NS-BTHDP reduced.fm Page 9 Friday, August 3, 2007 1:29 PM

10
NS-BTHDP/NS-BTHDST
www.insignia-products.com

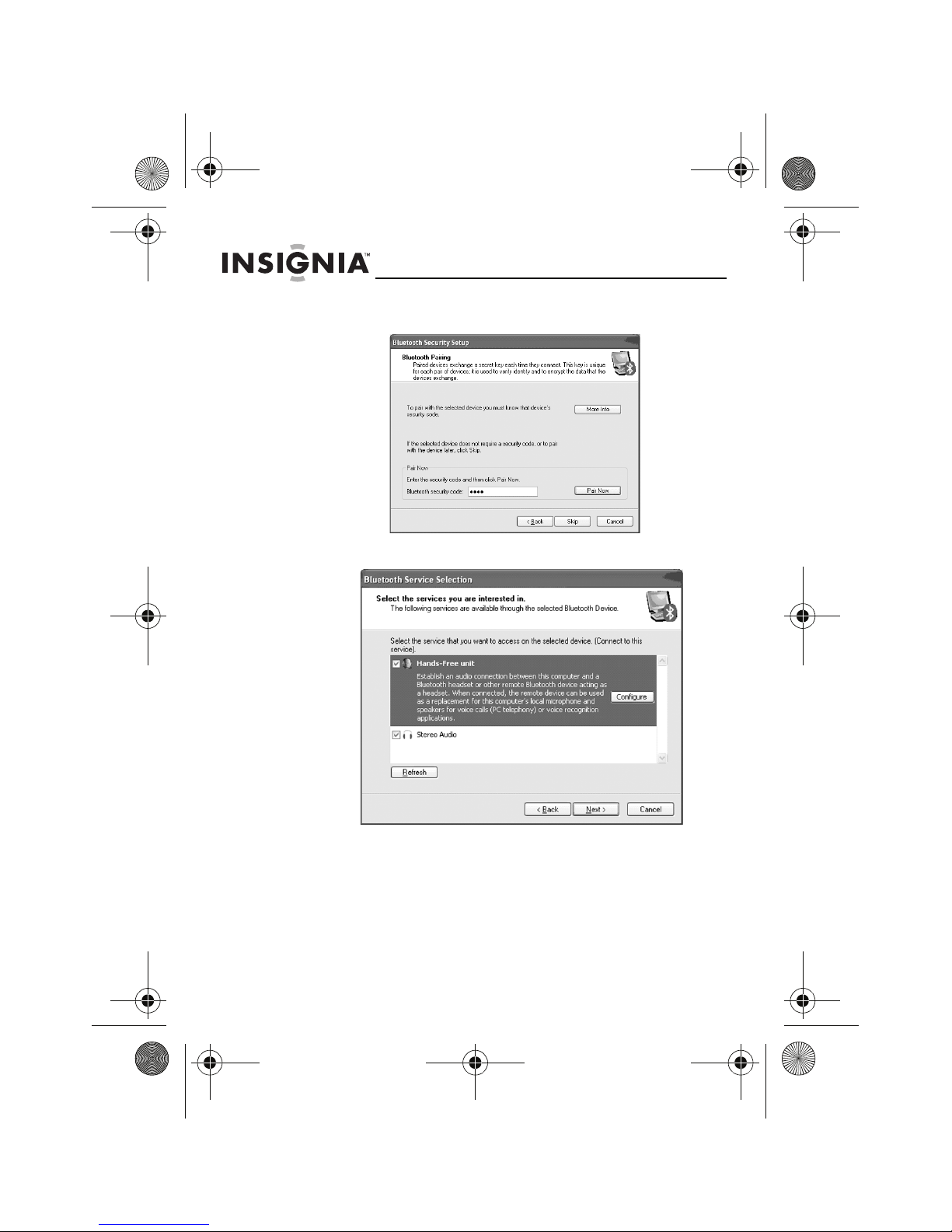

4Enter 0000 (four zeroes) in the Bluetooth security code
field, then click Pair Now.
5Check both services, then click Next.
07-324 NS-BTHDP reduced.fm Page 10 Friday, August 3, 2007 1:29 PM

NS-BTHDP/NS-BTHDST
11
www.insignia-products.com

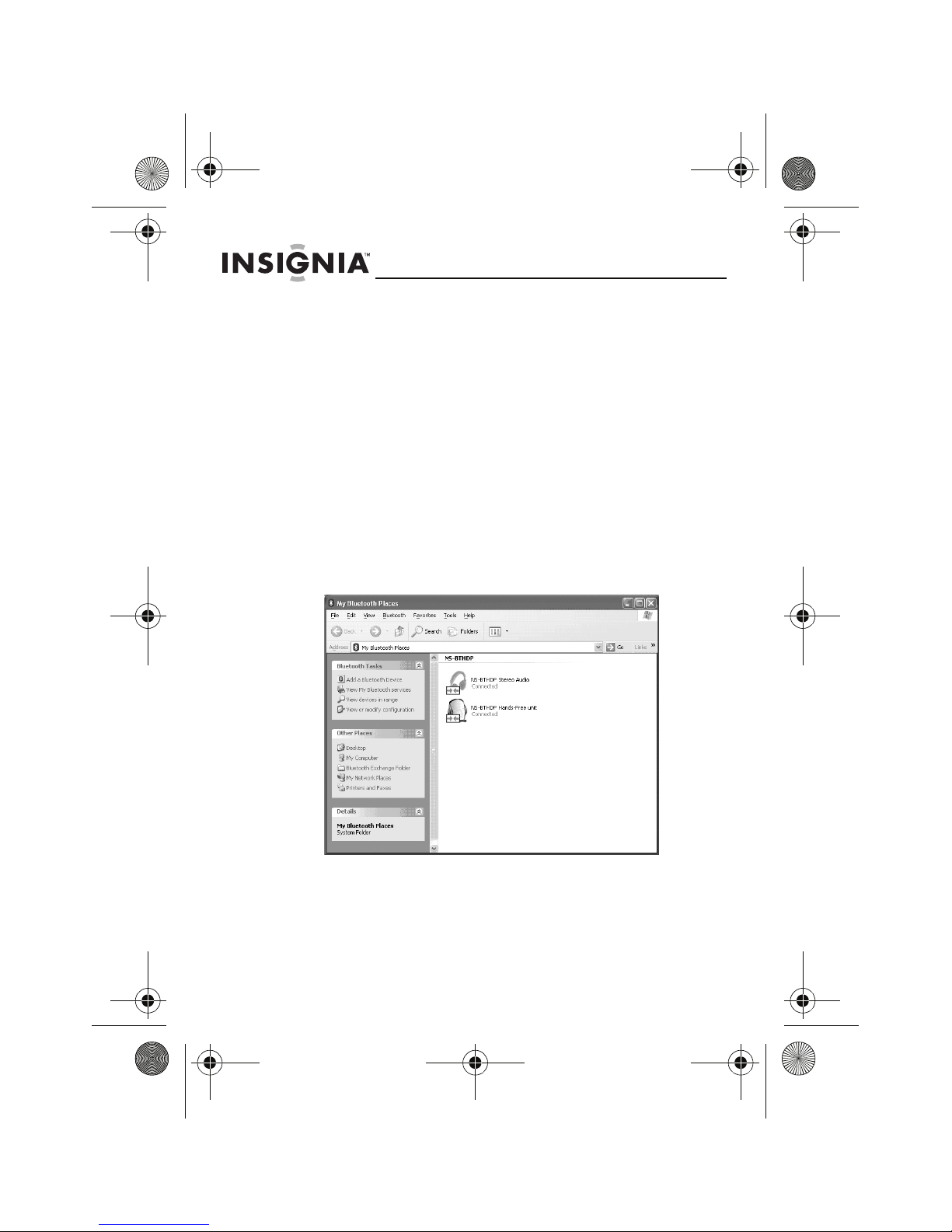

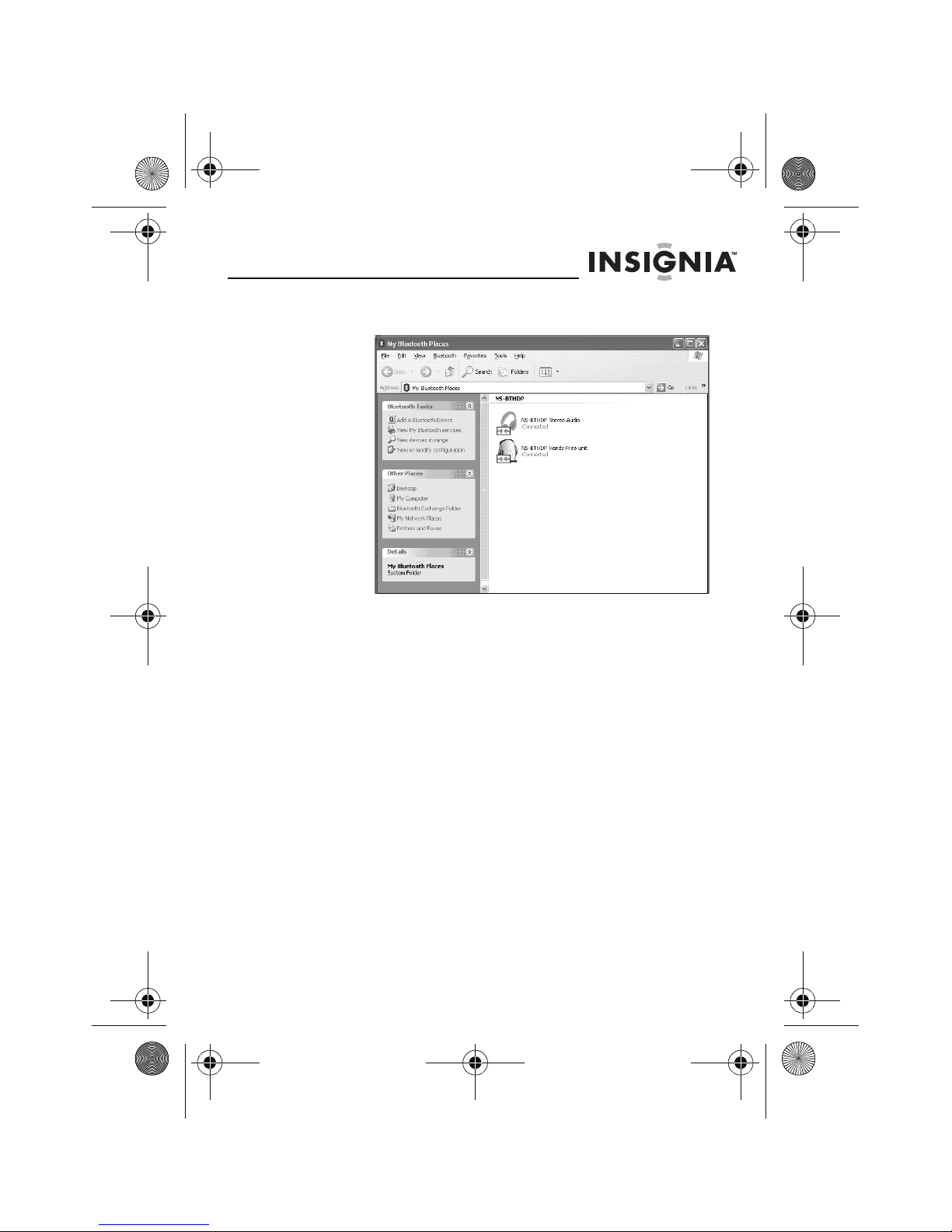

You should be able to see connected services on the My
Bluetooth Places dialog box when pairing has finished.
Pairing the headset and your mobile phone
You must pair your headset with a Bluetooth-enabled phone
before you can use it. Your Insignia Bluetooth headset can be
paired with up to eight compatible phones and other devices.
However, it can be connected to only one phone at a time.
To pair the headset and phone:
1Make sure that the headset is off.
2Press and hold the Multifunction button for more than
seven seconds, until short, low tones from the earpiece, and
the blue and red lights flash alternately.
3Refer to the user guide of the phone or device to set the
device into pairing mode.
4When the phone or device finds the headset, “NS-BTHDST”
or “NS-BTHDP” appear. Accept and confirm with the
keycode 0000 (four zeros).
07-324 NS-BTHDP reduced.fm Page 11 Friday, August 3, 2007 1:29 PM

12
NS-BTHDP/NS-BTHDST
www.insignia-products.com
5After pairing and connection have succeeded, a short, high
tone plays, and the blue indicator light flashes. The headset
is now ready for use.
The Insignia Bluetooth Stereo headset will automatically
reconnect to the last-connected phone / device. If the connection
is failed due to phone / device not found, the headset will
automatically enter into pairing mode.
Pairing with MP3 players and other devices
You will need to pair your headset with Bluetooth-enabled
devices, such as MP3 players, for it to work. Your headset
headset can be paired with up to eight compatible phones or
devices. However, it can only be connected to one phone at a
time.
Pairing the headset with Bluetooth-enabled devices
To pair the headset with other Bluetooth devices:
1Make sure that the headset is off. Press and hold the
Multifunction button for more than seven seconds, until
short, low tones come from the earpiece and the blue and
red lights flash alternately.
2Refer to the user guide of the device to set it into pairing
mode.
3When the device finds the headset, “NS-BTHDST” or
“NS-BTHDP” appear. Accept and confirm the message by
entering the keycode 0000 (four zeros).
4After pairing and connection are finished, a short, high-tone
beep plays, and a blue light flashes. The headset is now
ready for use.
Connecting with two devices simultaneously
It is possible to connect the Insignia Bluetooth Stereo headset to
two devices at the same time, so that you can listen to music and
keep phone connectivity at the same time.
07-324 NS-BTHDP reduced.fm Page 12 Friday, August 3, 2007 1:29 PM

NS-BTHDP/NS-BTHDST
13
www.insignia-products.com
To pair with two devices at the same time:
1Pair with the cell phone first, then keep connecting the
profiles on both ends.
2Disconnect the cells phone’s Bluetooth service from the
headset.
3Pair the Bluetooth headset with an MP3 player or computer,
then let the cellular phone “find” the headset again.
In this scenario, when there is an incoming call, the incoming
call overrides the music. Only when the call is ended will that
music resume.
Resetting
To reset paired devices:
• While your cell phone is on, press and hold the
Forward and Backward buttons together. The indicator
light flashes purple, and all previous saved pairing
profiles are erased.
To reset the hardware:
• Plug the charger into a power outlet, then press the
Volume Up and Volume Down buttons at the same
time. This turns off power to the headset and resets it.
Playing music in stereo
To play music in stereo:
• To start playing music, make sure that your headset is
connected in Advanced Audio profile, then press the
Multifunction button once to play the music.
• To pause playback, press the Multifunction button.
• To skip to the next track, press the Forward button.
• To skip to a previous track, press the Backward button.
• To fast forward*, press and hold the Forward button.
• To rewind*, press and hold the Backward button.
Fast forward and rewind may be unavailable on some cellular
phones. Those features are phone-dependant.
07-324 NS-BTHDP reduced.fm Page 13 Friday, August 3, 2007 1:29 PM

14
NS-BTHDP/NS-BTHDST
www.insignia-products.com
Phone-related features
Answering a call
You will hear a ringing tone from the earpiece when the phone
receives a call. Press the Multifunction button once briefly to
pick up the call. You will hear a brief beep when the call is picked
up.
Ending a call
To end an active call, briefly press the Multifunction button once
to end the call. A high tone plays when the call has ended.
Rejecting a call
Press and hold the Multifunction button for more than
two seconds while a call is ringing. A brief beep plays when the
call is rejected.
Redialing the last dialed number
To redial the last dialed number, press and hold the
Multifunction button. A brief beep plays when the call has
successfully dialed.
Voice dialing (phone-dependant)
Press and hold the Volume Down button for three seconds to
activate voice dialing. A brief beep plays, after which you can
start to using voice dialing. See the phone’s user guide for more
information.
07-324 NS-BTHDP reduced.fm Page 14 Friday, August 3, 2007 1:29 PM

NS-BTHDP/NS-BTHDST
15
www.insignia-products.com
Troubleshooting
Troubleshooting using tones
Tone Meaning
Long, high tone Power on/off
Short, low tone Pairing mode
Long, low tone Connection lost
Short, high tone Connection established
Descending low tones Sound volume out of range (too loud or
reaching the mute)
Ascending tones Incoming call
Long, low tone (repeats
every 30 seconds) Battery low
(30 sec)
07-324 NS-BTHDP reduced.fm Page 15 Friday, August 3, 2007 1:29 PM

16
NS-BTHDP/NS-BTHDST
www.insignia-products.com
Troubleshooting using lights
Light (right
earpiece) Meaning
Flashing blue light (3
times, rapid) Turning on power
Flashing short
(0.2 seconds) blue
lights every second
Power on but not yet connected to a device
Flashing long
(1 second) blue lights
every 2 seconds
Power on and working
Flashing red and blue
lights Pairing mode
Flashing red lights Battery is low
Solid red light for
3 seconds Turning o ff
07-324 NS-BTHDP reduced.fm Page 16 Friday, August 3, 2007 1:29 PM

NS-BTHDP/NS-BTHDST
17
www.insignia-products.com
Specifications
Dimensions (L × W × H) 5.51 × 6.54 × 2.09 inches
(140×166×53mm)
Weight 2.75 oz. (78g)
Bluetooth compliance Bluetooth 1.2 specification with
handsfree profile and headset
profile 1.1, supports Bluetooth 1.2
A2DP, AVRCP, HSP
Paired devices Up to 8 device IDs stored in
memory. One device can be used
at a time. Rapid switching from
cell phone (priority) to other
devices.
Security Encrypted link
Connection Point-to-point
Operating temperature 32°F ~ 131°F (0°C ~ 55°C)
Battery power 3.7V/500 mAh Lithium-Polymer
Talk time Up to 8 hours
Standby time Up to 200 hours (battery
endurances might be shorter in
high temperatures.)
Compliance CE , FCC, BQB, RoHS
07-324 NS-BTHDP reduced.fm Page 17 Friday, August 3, 2007 1:29 PM

18
NS-BTHDP/NS-BTHDST
www.insignia-products.com
07-324 NS-BTHDP reduced.fm Page 18 Friday, August 3, 2007 1:29 PM
