Package contents
• Bluetooth Stereo Turntable
•Turntablemat
• 45 RPM adapter
• RCA audio cable
•ACpowercord
• Two belts (one installed and one spare)
• User Guide
Setting up your turntable
Installing the platter
Note: The belt is preinstalled on the bottom of the metal platter.
Platter
Belt

5
Bluetooth Stereo Turntable
www.insigniaproducts.com
1Make sure that the belt is not twisted, then use your thumb to stretch the belt
until it reaches the round hole in the platter.
2Still holding the belt, flip the platter over, then insert the platter onto the
spindle in the center of your turntable.
3Align the round hole in the platter with the pulley and use your finger to hook
the belt onto the pulley.
4Place the turntable mat on the platter.
Note: Make sure that you place the belt on the metal track and not on the
section with teeth.
Note: When you want to take out the platter from the turntable, remove the
mat first, then grasp the platter and pull it upward. This is especially important if
you are shipping your turntable to prevent the platter from shaking.
Round hole
Belt
Pulley
Belt

6
NS-BTST21
www.insigniaproducts.com
Attaching and adjusting the counterweight
The counterweight on the tone arm adjusts the needle pressure. If the pressure is
too much, sound is distorted. If the pressure is too little, track skipping happens
more frequently.
1Hold the counterweight with the black number ring on the counterweight
towards you, then slightly push the counterweight into the end of tone arm.
When you hear a click, the counterweight has been installed correctly.
2Remove the stylus cover.
3Set the Anti-Skating control to 0(zero).
0
0.5
1
2.5
0
5
5
5
0
0.5
5
0
0.5
1
2.5
Counterweight
Tone arm
0
0.5
1
2.5
Anti-Skating control

7
Bluetooth Stereo Turntable
www.insigniaproducts.com
4Release the tone arm lock, push the lifting rod forward so that the tone arm
leaves the base, then push the tone arm left to the position above the
turntable.
5Turn the counterweight so that the tone arm is horizontal. You can move the
counterweight forward or backward on the tone arm.
6Hold the metal counterweight at the back of the tone arm.
CAUTION: Make sure that the needle does not contact any part of the of your
turntable.
Tone arm
Counterweight
Metal counterweight

8
NS-BTST21
www.insigniaproducts.com

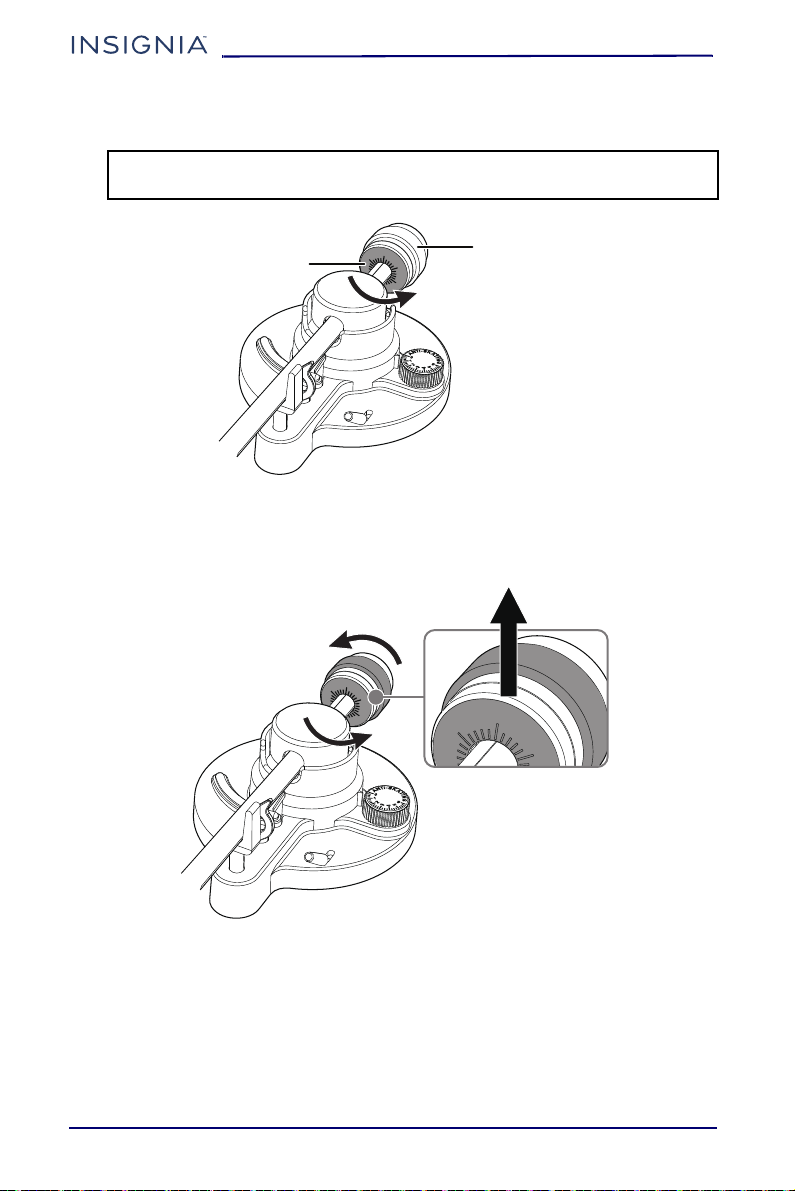

7Hold the metal counterweight to keep it from moving, then carefully rotate
the front black number ring so that 0 is in the 12 o'clock position.
8Hold both the metal counterweight and black number ring together and
rotate them counter-clockwise so that 2.5 on the dial is in the 12 o’clock
position. This adjustment sets the tone arm to 2.5 grams of downward force
(the recommended tracking weight) for this needle.
Note: Do not turn the metal counterweight. The black number ring turns
separately.
0
0.5
1
2.5
Metal counterweight
Black number ring
2
2.5
0
1.5
2.5
0
2.0

9
Bluetooth Stereo Turntable
www.insigniaproducts.com
Features
• Works with both 33 1/3 and 45 RPM (adapter included) 12-inch records to play
a variety of music
• High-quality replaceable ATN3600L stylus are durable enough for everyday
use
• Die-cast aluminum record platter with felt mat supports wobble-free
positioning
• Removable plastic cover protects your vinyl records from dust and debris
• Bluetooth technology with auto connect and memory last audio devices
• 3.5 mm headphone jack lets you listen to music through headphones
• Four vibration-absorbing feet help reduce skipping
• 4.9 ft (1.5 m) power cord allows for flexible placement options
Top view
# ITEM DESCRIPTION
145 RPM adapter Snap into a 45 RPM record so that it fits the spindle.
2Spindle Place a record onto the spindle to play.
3Headshell and
cartridge Generates sound from a playing record.
4Volume Turn to adjust the volume (except for line-in mode).
5Counterweight Turn to adjust the needle pressure.
6Anti-Skating
control
Turn to adjust the inward tracking forces that occur with
certain pick-up when the stylus nears the center of the
record.

10
NS-BTST21
www.insigniaproducts.com
Side view
7Tone arm lifter Push forward and back to raise and lower tone arm.
8Tone arm rest
holder Place the tone arm on this holder with it is not in use.
9Tone arm Holds the stylus that produces sound from the record.
10 RPM selector
switch
Turn to select the record type (33 or 45) or OFF to turn
off your turntable. (The default OFF.)
11 Bluetooth
pairing button
Press and hold for two seconds to start Bluetooth pairing.
When pairing is turned on, press to start searching for
your Bluetooth speakers or headphones. The Bluetooth
indicator blinks red and blue until a link is made. After
you connect to a Bluetooth speaker, your turntable
automatically reconnects to the speaker each time you
turn on your turntable and set it to 33 or 45 RPM.
12 Status indicator
Displays status.
• Solid red indicates the is power on and Bluetooth is
in standby.
• Solid blue indicates Bluetooth is connected.
• Blinking red and blue indicates Bluetooth is in pairing
mode.
• Blinking blue indicates Bluetooth is disconnected or
connecting to the last device.

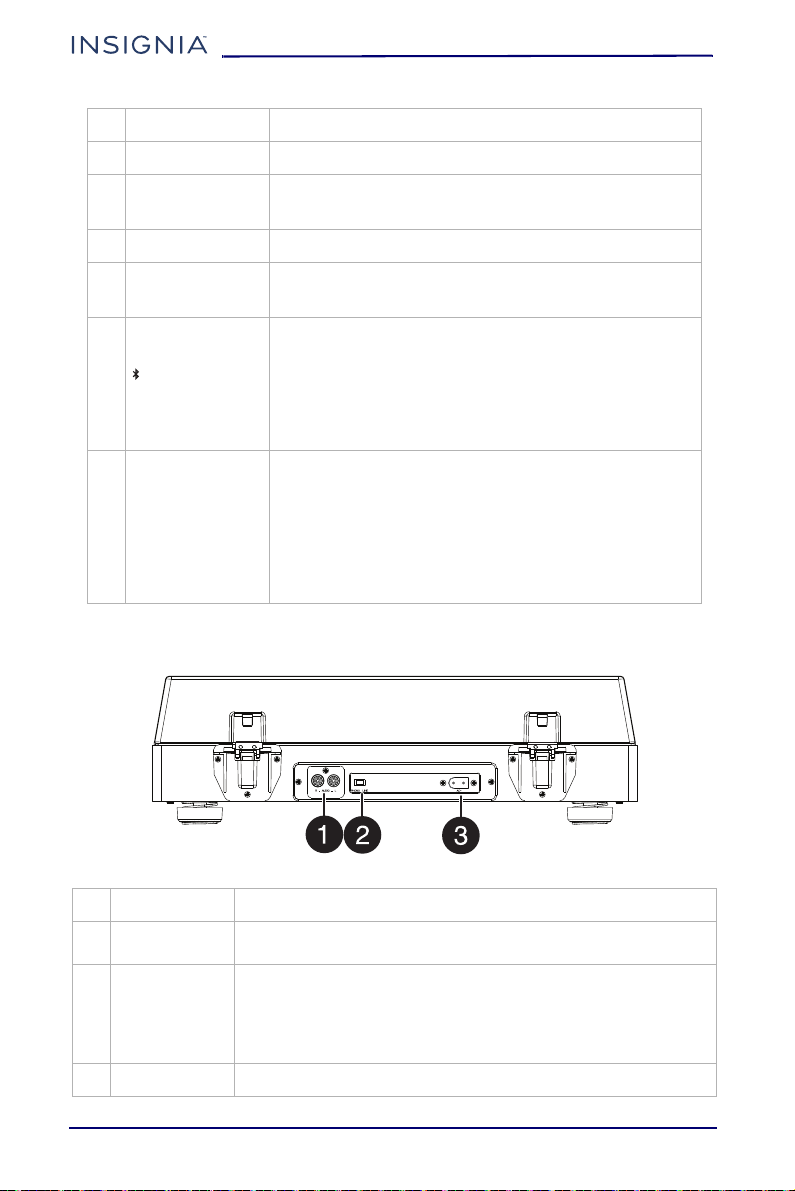

# ITEM DESCRIPTION
1L/R AUDIO out
jacks
Plug the included RCA audio cable into these jacks. Match red to
red and white to white.
2Phono/Line
switch
Toggle to the left to select PHONO IN or toggle to the right to
select LINE IN.
Your turntable has a built-in PHONO equalizer function. You can
use your turntable even if you don't have a PHONO amplifier or
connectible equipment with a built-in PHONO amplifier.
3AC power jack Plug the AC power cord into this jack and into a power outlet.
# ITEM DESCRIPTION
