Insignia NS-24D420NA16 User manual

Your TV has four VESA mounting holes on
the back. If you attach a wall-mount bracket
to the back of your TV, the bracket must be
securely attached, using all four holes. If
you do not use all four mounting holes, your
TV may fall and cause property damage
or personal injury. See the documentation
that came with your wall mount for
complete mounting instructions.
Quick Setup Guide | NS-24D420NA16/NS-24D420MX16
24" 1080p • 60Hz LED TV
2MAKING CONNECTIONS
How do I watch TV (cable, satellite, or antenna) or connect a device such as a DVD or Blu-ray disc player or game console?
FEATURES
1START HERE
How do I attach the stand to my TV? (not for wall mounting)
You’ll need: Soft surface and Phillips screwdriver
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, then click
Support & Service. Enter NS-24D420NA16
or NS-24D420MX16 in the box under
Manual, Firmware, Drivers & Product
Information, then click ► . The
NS-24D420MX16 comes with a printed
manual.
STOP
Do not plug your power adapter in until all
other devices have been connected.
WALL MOUNT
How do I prepare my TV for wall mounting? (not for use with a TV stand)
You’ll need: Soft surface and Phillips screwdriver
!
ACarefully place your TV face-down on a
cushioned, clean surface.
Before using your new product, please read these
instructions to prevent any damage.
A
AUDIO/VIDEO OUT
AUDIO/VIDEO OUT
WHICH CABLES
DO YOU HAVE?
OR
OR
Multi-purpose jacks: You can plug any device that uses HDMI into either HDMI jack.
However, certain devices must be connected to the ARC jack. See the instructions that came
with your device for more information.
Note: Connect the yellow
video cable to the
green VIDEO/Y jack.
HDMI (BEST)
Best video quality
COMPONENT
BETTER
AV (GOOD)
COAXIAL
GOOD
Note: The component and AV jacks are shared. This means you can connect only one component
or AV device at a time. We suggest upgrading to HDMI (BEST)if your device supports it.
AUDIO/VIDEO OUT
AUDIO/VIDEO OUT
B
A
B
CABLE
INCLUDED ACCESSORIES
Remote control and
two AAA batteries
TV stands
M4 screws (14 mm length) (2 pcs.)
Power adapter
AAA
+
AAA
+
Power indicator
Remote control sensor
ACarefully place your TV face-down on a cushioned, clean surface.
BSee instructions that came with the wall-mount bracket for
information about which screws to use and how to correctly hang your TV.
Warning: This apparatus is intended to be supported by a UL Listed wall-mount bracket.
BAlign the screw holes on the TV stands with the holes on the bottom of your TV, then secure
each stand with one of the provided M4 × 14 mm screws.
M4 x 14 mm screw
M4 x 14 mm screw
FACTORY
USE
ONLY
HDMI 1
( ARC )
HDMI 2
USB
AUDIO OUT
MENU
INPUT
VOL
VOL
CH
CH
AV IN
DC IN
(12 V)
COMPONENT IN
ANT / CABLE IN
DIGITAL
OUTPUT
(Coaxial)
L- AUDIO -R
VIDEO / Y PBPR
HDMI 1
( ARC )
HDMI 2
AV IN
DC IN
(12 V)
COMPONENT IN
ANT / CABLE IN
DIGITAL
OUTPUT
(Coaxial)
L- AUDIO -R
VIDEO / Y P B P
R
ANT / CABLE IN
NS-24D420NA16NS-NS-24D420MX16 _15-0620_QSG_V2_ENG_Final.ai 1 7/28/2015 9:20:53 AM

AUDIO OUT
On the Audio menu on your TV, select Digital Audio
Format/Audio Delay, then set Audio Format to PCM.

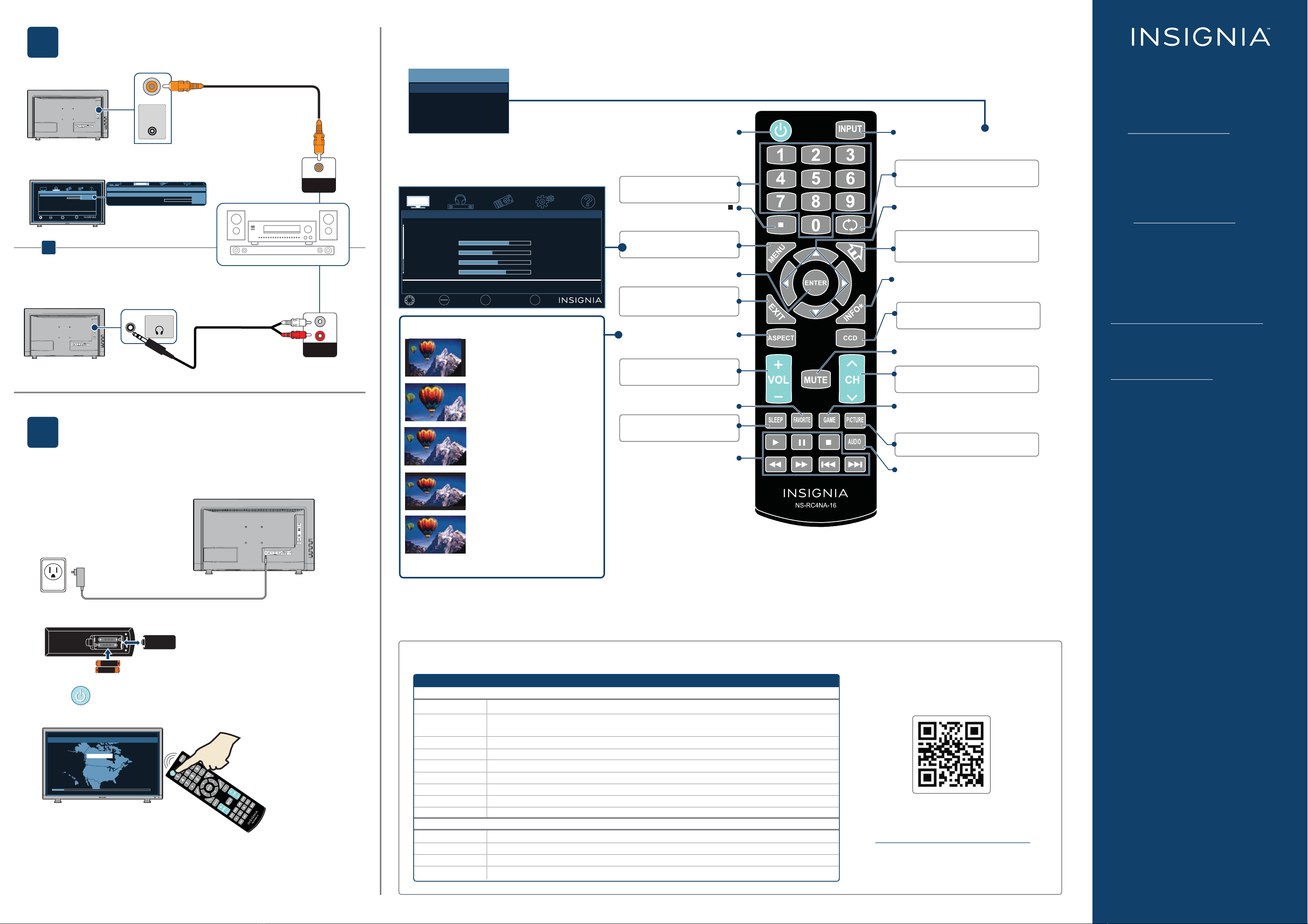

3CONNECTING AUDIO DEVICES
How do I connect my TV to external speakers?
USING YOUR REMOTE CONTROL
I already have a universal remote control. How do I make it control this TV?
4TURNING ON MY TV
When can I turn on my TV?
USING DIGITAL AUDIO
USING ANALOG AUDIO
Note: See the instructions that
came with your speakers for
more information.
For an up-to-date list of codes for other cable
providers and universal remote brands,
scan this QR code or visit
www.insigniaproducts.com/remotecodes
V2 English 15-0620
SOUNDBAR
AUDIO IN
AAA
+
AAA
+
What are my screen-size options?
Cablevision
Charter
507, 523, 567, 577, 586
Comcast
Cox
Direct TV
Dish Network
Time Warner
Tivo
Verizon
068, 069, 078, 096, 100, 164, 168, 229, 026
2002, 1204, 1423, 1517, 0171, 1963, 0463, 1463, 0842, 1326, 167, 415, 424,
450, 456, 461,
10171, 11204, 11326, 11463, 11517, 11641, 11780, 11785, 11892, 11963, 12002
1326, 1463
10171, 11204, 11326, 11517, 11564, 11641, 11963, 12002
720
400, 450, 461, 456, 10463, 1463, 0463
0091
0198, 0490
One for All
Philips
RCA
Sony
0054
0198, 0490
135
068, 069, 078, 096, 100, 164, 168, 229, 026
UNIVERSAL REMOTE TV CODES
UNIVERSAL REMOTE CONTROLS
If you already have a universal remote control that you would like to program to work with your TV and don’t want to use the included Insignia remote control, see the
table for common codes.
OR
NORMAL: Original aspect ratio is
preserved. You might see black bars if the
original content is not widescreen (16:9).
ZOOM: Expands the image to fill the
screen. The top and bottom of the image
may be cropped.
WIDE: Use to watch content that was
recorded in widescreen (16:9).
CINEMA: Stretches the image at the
edges, but keeps a clear image in the
center.
AUTO: Automatically adjusts the image
based on the screen size and the TV
program. Select this option if you don't
know which aspect ratio to choose.
Note: Auto is only available when Aspect
Ratio in the Channels menu is set
to On.
CABLE BOX, SATELLITE BOX, OR OTHER SET-TOP BOX
MOVE PREVIOUS EXIT
EXIT
SELECT
OK
ENTER
MENU
Audio
SETTINGSPICTURE AUDIO CHANNELS HELP
• Digital Audio Format / Audio Delay
Audio Format
Audio Delay
Passes through digital audio sound format.
Pass Thru
PCM
Audio • Digital Audio Format / Audio Delay
Audio Format
Audio Delay
Pass
PCM
Easy Setup • Choose your Menu Language
English
Français
Español
Easy Setup • Choose your Menu Language
English
Français
Español
WHEN YOUR TV IS IN PLACE:
1 Connect the power adapter to the DC IN (12V) jack on the back of your TV.
2 Plug the power adapter into a power outlet.
3Install the remote control batteries.
4Press (power) on your remote control.
5Follow the on-screen instructions.
INPUT SOURCE
TV
HDMI1
HDMI2
Component/AV
USB (Photos)
PICTURE AUDIO CHANNELS SETTINGS HELP
Picture Mode
Advanced Settings
Backlight
Brightness
Contrast
Color
34
50
55
65
MOVE
MOVE
OK
OK
ENTER
ENTER
SELECT
SELECT
PREVIOUS
PREVIOUS
MENU
MENU
EXIT
EXIT
EXIT
EXIT
Energy Savings
ONEYEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
NEED ADDITIONAL HELP?
See your online User Guide! This
comprehensive guide includes everything
from basic how-to steps to more advanced
features. A copy of your User Guide is not
provided in the box but is available online.
Go to www.insigniaproducts.com, then
click Support & Service. Enter
NS-24D420NA16 or NS-24D420MX16
in the box under Manual, Firmware, Drivers
& Product Information, then click ► .
The NS-24D420MX16 comes with a printed
manual.
Check out our Support Community
http://community.insigniaproducts.com/
for helpful information from other Insignia
TV owners.
WE’RE HERE FOR YOU
www.insigniaproducts.com
For customer service, call:
877-467-4289 (U.S./Canada )
01800-926-3000 (México)
U.S. and Canada:
INSIGNIA is a trademark of Best Buy and its affiliated
companies.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
Mexico:
INSIGNIA is a trademark of Best Buy and its affiliated
companies.
Registered in some countries.
Distributed by Best Buy Imports S. DE R.L. DE C.V.
Avenida Santa Fe No. 440 Piso 2 Ofna 202 Y 203 P3 Y P4
Colonia Santa Fe Cuajimalpa, C. P. 05348,
Delegación Cuajimalpa De Morelos,
Mexico, Distrito Federal
©2015 Best Buy. All rights reserved.
Made in China
Game
Adjusts the picture for the ultimate gaming
experience.
INPUT
Opens the INPUT SOURCE list.
Power
Turns your TV on or off.
Numbers
Enter channel numbers.
MENU
Opens the TV menu.
ENTER
Confirms selections or changes.
EXIT
Closes the TV menu.
ASPECT
Changes how the picture is
displayed on the screen.
Volume
Changes the volume.
FAVORITE
Opens the Favorite Channel List.
SLEEP
Sets the sleep timer.
Arrows
Navigate in TV menus.
INFO*
Opens a TV status banner.
CCD
Turns closed captioning on or off.
MUTE
Mutes the sound.
Selects the picture mode.
AUDIO
Selects the audio mode.
Enters a digital sub-channel number
(for example 4.1).
Channel
Changes the TV channels.
Recall
Returns to the previous channel.
Home
Opens the TV menu.
Media Controls
INlink – Control HDMI-CEC
devices connected to your TV.
DIGITAL
OUTPUT
(Coaxial)
DIGITAL
AUDIO IN
