Insignia NS-32E320A13A User manual

Y / VIDEO PB PR L R
Y / VIDEO
P B P R L R
Y / VIDEO PB PR L R
COMPONENT
OUT
AUDIO/VIDEO
OUT
Note: Cable is not provided.
Note: Cables are not provided.
Connect
the yellow
connector to the
green Y/VIDEO jack. Note: Cable is not provided.
CABLE
Note: Cable is not provided.
Front features
Installing the stand
1Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Secure the TV stand to the stand column with the four provided screws.
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the three screws that secure the stand column, then remove the stand column.
3 Secure the stand cover to the back of your TV using the three screws you just removed.
4 Attach the wall-mount bracket to your TV using the mounting holes on the back of
your TV. See the instructions that came with the wall-mount bracket for information
about how to correctly hang your TV.
Connecting a DVD or Blu-ray player, cable box,
satellite receiver, camcorder, or game station
Using an HDMI cable (best)
Using component cables (better)
Using a composite cable (good)
Connecting to an antenna/cable wall jack
Connect a coaxial cable to the ANT/CABLE jack on the back of your TV and
to the antenna/cable wall jack.
Connecting a Home Theater System
Using digital audio
Using analog audio
Connecting power
Plug the AC power cord into the AC IN jack on the back of your TV,
then plug the other end of the cord into a power outlet.
32" 720p LED HDTV
QUICK SETUP GUIDE
NS-32E320A13A
Thank You
for purchasing this ne Insignia television. We hope you
enjoy the quality and reliability of this product for years
to come.
_______________________________
Remote control
and 2 AAA
batteries
WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com, click
Support & Service, enter your model
number in the Product Search eld,
then click Search.
Remote
control sensor
Power
indicator
TV stand
Stand cover
Power cord
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
You can use the HDMI 1/DVI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device’s jack.
Connection type Video qualityCable connector
HDMI video/audio
Best
Component video
and analog audio
Better
Good
OR
OR
This apparatus is intended to be supported by a UL Listed wall mount bracket.
Warning
Composite video
and analog audio
Stand cover
Stand column
T4 (25mm) x 4 screws

Universal remote TV codes
32" 720p LED HDTV IQUICK SETUP GUIDE I NS-32E320A13A
Antenna or
cable TV
(no box)
Blu-ray player/DVD player/VCR Cable or satellite TV box
AV receiver
Game console
or camera
USB ash drive
Computer
OK
ENTER
MENU EXIT
Picture Mode
Brightness
Contrast
Color
Advanced Video
Reset Picture Settings
Energy Savings
46
50
75
MOVE EXIT
PREVIOUS
SELECT
Adjust settings to affect picture quality
Y / VIDEO PB PR L R
OPTICAL
AUDIO IN
Note: Cable is not provided.
Programming your remote control
To program a universal remote control to work with your new Insignia TV, see the table for common codes. If you have problems programming your remote or
need a dierent remote control code, visit www.insigniaproducts.com/remotecodes for the latest remote control code information.
Universal remote TV codes
Universal remote controls Cable/Satellite/Set-top boxes
One for All Philips RCA Sony Cablevision Charter Comcast Cox Direct TV Dish Network Time Warner Tivo Verizon
0054 0198,
0490 135
1326,
1463
0198,
0490
400, 450, 461, 456,
10463, 1463, 0463
0091
068, 069, 078,
096, 100, 164,
168, 229, 026
2002, 1204, 1423, 1517,
0171, 1963, 0463, 1463,
0842, 1326, 167, 415,
424, 450, 456, 461, 507,
523, 567, 577, 586
10171, 11204,
11326, 11517,
11564, 11641,
11963, 12002
720
068, 069,
078, 096,
100, 164,
168, 229,
026
10171, 11204, 11326,
11463, 11517, 11641,
11780, 11785, 11892,
11963, 12002
Nc
AUDIO IN
Note: Cable is not provided.
PICTURE CHANNELS SETTINGS PHOTOS AUDIO
Front features
Installing the stand
1Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Secure the TV stand to the stand column with the four provided screws.
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the three screws that secure the stand column, then remove the stand column.
3 Secure the stand cover to the back of your TV using the three screws you just removed.
4 Attach the wall-mount bracket to your TV using the mounting holes on the back of
your TV. See the instructions that came with the wall-mount bracket for information
about how to correctly hang your TV.
Connecting a DVD or Blu-ray player, cable box,
satellite receiver, camcorder, or game station
Using an HDMI cable (best)
Using component cables (better)
Using a composite cable (good)
Connecting to an antenna/cable wall jack
Connect a coaxial cable to the ANT/CABLE jack on the back of your TV and
to the antenna/cable wall jack.
Connecting a Home Theater System
Using digital audio
Using analog audio
Connecting power
Plug the AC power cord into the AC IN jack on the back of your TV,
then plug the other end of the cord into a power outlet.
One-year limited warranty
Visit www.insigniaproducts.com for details.
Need additional help?
See your Online User Guide! This
comprehensive guide includes everything from
basic how-to steps to more advanced features.
A copy of your User Guide is not provided in
the box but is available online. Go to
www.insigniaproducts.com, click Support
& Service, enter your model number in the
Product Search eld, then click Search.
Check out our online community forum at
www.insigniaproducts.com for helpful
information from other Insignia TV owners.
We’re here for you
www.insigniaproducts.com
For customer service, call:
877-467-4289 (U.S./Canada markets)
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richeld, MN USA 55423-3645
© 2012 BBY Solutions, Inc.
All rights reserved. INSIGNIA is a trademark of BBY Solutions,
Inc. Registered in some countries. All other products and
brand names are trademarks of their respective owners.
ENGLISH 12-0419

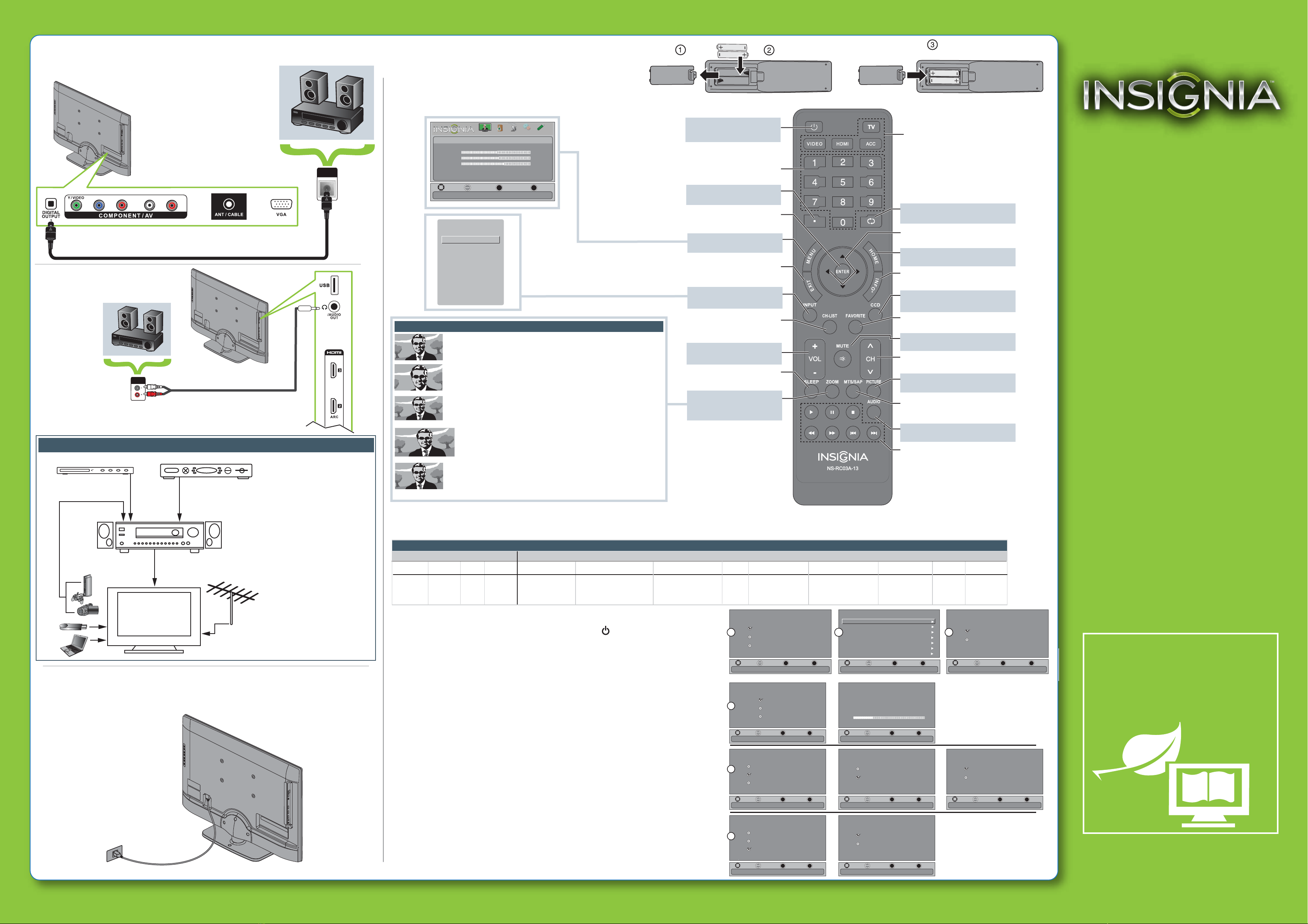

Setting up and using your remote control
1Press the release button on the back of the remote control
to remove the battery compartment cover.
2Insert two AAA batteries into the battery compartment.
Make sure that the + and – symbols on the batteries match
the + and – symbols in the battery compartment.
3Replace the cover.
RECALL
Returns to the previous channel.
Arrows
Navigate in on-screen menus.
HOME
Opens the on-screen menu.
INFO*
Opens a TV status banner.
CCD
Turns closed captioning on or o.
FAVORITE
Opens the Favorite Channel List.
MUTE
Mutes the sound.
Channel
Changes the TV channels.
Selects the video mode.
MTS/SAP
Cycles through mono, stereo, and
secondary audio for analog programs.
AUDIO
Selects the audio mode.
Power
Turns your TV on or o.
Numbers
Enter channel numbers.
.
Enters a digital sub-channel
number (e.g. 4.1).
ENTER
Conrms selections or
changes.
MENU
Opens the on-screen menu.
EXIT
Closes the on-screen menu.
INPUT
Opens the Input Source list.
CH-LIST
Opens the channel list.
Volume
Changes the volume.
SLEEP
Sets the sleep timer.
ZOOM
Changes how the picture
displays on the screen.
Connecting a home theater system with multiple devices
We recommend that you
connect the AV receiver’s
HDMI OUT jack to your TV’s
HDMI 2 (ARC) jack.
In the following situations, the
HDMI cable routes Dolby
Digital audio to the AV
receiver, so you do not need to
connect a separate digital
audio cable:
• When you have a game
console connected to one of
your TV’s HDMI jacks.
• When you watch a program
through an antenna or cable
TV connected to the
ANT/CABLE jack.
INlink Controls
Controls HDMI-CEC devices
connected to your TV.
Normal:
Displays the original 4:3 aspect ratio with vertical black bars on the left
and right hand side of the screen.
Zoom:
Expands the image to ll the screen. The top and bottom of the
image may be cropped.
Wide:
Use this option to view content recorded in a 16:9 (wide-screen) aspect ratio.
Cinema:
Stretches the image at the edges, but keeps a clear image in the center.
Auto:
Automatically adjusts the image based on the screen size and the TV
program. Note: Auto is only available when Auto Zoom in the
CHANNELS menu is be set to On.
Aspect ratio options
WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com, click
Support & Service, enter your model
number in the Product Search eld,
then click Search.
Quick Launch Inputs
Selects another video source
connected to your TV.
INPUT SOURCE
TV
AV
Component
VGA
USB
HDMI1
HDMI2
HDMI3
Turning on your TV for the rst time
1Connect your TV’s power cord to a power outlet, then press (power). The Choose Your Menu
Language screen opens. Press ▲or ▼to highlight a language, then press ENTER.
2Press ◄or ►to select Auto or Manual, then press ENTER. If you select Auto, the date and time
are set automatically from a digital TV signal. If you select Manual, you can manually set the date
and time. Press ENTER.
3Press ▲or ▼to highlight Home Mode or Retail Mode, then press ENTER. If you select Retail
Mode, a message asks you to conrm your selection. Select Yes or No. Retail mode is not an
energy-saving mode.
4Press ▲or ▼to highlight Antenna, Cable, or Satellite Box, then press ENTER.
A. If you select Antenna, your TV scans for available channels. The scan may take several minutes.
B. If you select Cable, a message asks if you have a cable box.
• Select No if no cable box is connected. Your TV scans for available channels.
The scan may take several minutes.
• Select Yes if a cable box is connected. A message asks how you connected the cable box
to your TV:
• Select AV, Component, or HDMI if you connected a cable box to your TV using one of
these cables. Read the message, then press ENTER to close the wizard.
• Select Coaxial if you connected a cable box to your TV using a coaxial cable.
Read the message, then press ENTER to start the channel scan (VHF channels only).
C. If you select Satellite Box, a message asks how you connected the satellite box to your TV:
• Select AV, Component, or HDMI if you connected a satellite box to your TV using one of
these cables. Read the message, then press ENTER to close the wizard.
• Select Coaxial if you connected a satellite box to your TV using a coaxial cable.
Read the message, then press ENTER to start the channel scan (VHF channels only).
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Select if you have a satellite box.
Antenna
Cable
Satellite Box
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Select if you have cable service.
Antenna
Cable
Satellite Box
Choose Your TV Source
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Select Antenna if using an antenna for standard or HD TV.
Antenna
Cable
Satellite Box
Choose Your TV Source
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Reduces total power consumption.
Home Mode
Retail Mode
Choose Your Picture Mode
OK
ENTER
MENU EXIT
If Automatic, options are automatically set by TV source.
MOVE EXIT
PREVIOUS
SELECT
Mode
Time Zone
Daylight Savings
Year
Month
Day
Time
Choose Your Time Setting
Manual
Pacific
On
2011
Jan
1
12:25 AM
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Set menu language to English, Français, or Español.
English
Français
Español
Choose Your Menu Language
3
5A
5B
5C
24
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Select if using an antenna for standard or HD TV.
Channel scan may take 20+ minutes.
Scanning for Channels
Digital Channels0
Analog Channels0
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Yes
Do you have a Cable Box?
Yes
No
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Coaxial
AV, Component, or HDMI
How did you connect the cable box to the TV?
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Coaxial
AV, Component, or HDMI
How did you connect the satellite box to the TV?
Choose Your TV Source
