OWNER MANUAL
NOVA HD UMBRELLA
www.instantshadeumbrellas.com.au

2
www.instantshadeumbrellas.com.au
NOVA HD HEAVY-DUTY
COMMERCIAL UMBRELLA
Congratulations on purchasing your Nova HD umbrella.
The Nova HD is manufactured using the best materials and fabrics and is designed
to give you many years of trouble free use and enjoyment. The following information
is to inform you on how to operate your Nova HD umbrella correctly. Please follow
these instructions as they are designed to assist operation and prolong the life of the
umbrella.

3
www.instantshadeumbrellas.com.au
Once you have erected the umbrella if you nd it is still not completely squared o to
your area, you can always turn the umbrella 90° degrees on the spigot and re-drill a
new spigot hole through the steel spigot inside the umbrella (a good quality 12mm drill
bit and high powered drill will be required).
INSTALLATION INSTRUCTIONS
Your Nova HD umbrella comes fully assembled in the box. Before you can erect and set
up your Nova HD umbrella you will need to install the required base tting which is
either a base plate or inground tting. Prior to xing the base plate or inground tting
please read the following important information.
Alignment of the base tting to face the umbrella in the correct direction
There are 4 x threaded holes in the centre area of the 400mm diameter base plate and
on the top of the inground tting sleeve plate and these are called the threaded spigot
holes.
Before installing your base plate or inground tting, draw an imaginary straight line
through two sets of threaded spigot holes. This will be the direction of one of the
at sides of your umbrella. Use these imaginary lines to square o your base tting
installation. This is of particular relevance when installing square shape umbrellas and
not as important with an octagonal umbrella.

4
www.instantshadeumbrellas.com.au
BASE PLATE INSTALLATION
There are 2 ways to install your base plate depending what you are xing to. Select
which is applicable for your situation.
1 Fixing the base plate to a timber deck:
If you wish to install your Nova HD umbrella onto a timber deck then the following
installation method should be adhered to. Your base plate must be bolted to the frame
of the deck and not only to the deck planking. You need to fasten 2 or 3 “nogs” or
“braces” between the deck joists or bearers that form the structural frame of the deck.
The nogs need to cover the area under the base plate. They must be secured hard up
under the deck planking and between the deck bearers and fastened to the deck frame
with fasteners. The fasteners may be large galvanised nails, Z nails, builders brackets or
similar. The base plate should now be set in the required position and bolted through
the deck planking and the xed braces by using at least 12mm countersunk 150mm
stainless steel bolts and nylocks with a large washer on the underside.
It is recommended to seek the advice of a builder or engineer especially when
installing larger 4m or 5m size Nova HD umbrellas onto a deck or when the umbrella
will be in a high wind zone.
100mm timber nog
Base plate
Spigot
Nylocks and washers
150mm Minimum
existing concrete
Base plate
Spigot
“Bell out” bottom of the hole
600mm approx and ll with concrete
Spigot
Dig hole 700mm deep
and 500mm wide approx
Stainless bolts

5
www.instantshadeumbrellas.com.au
Important: Prior to xing the base plate to the deck or concrete slab please ensure you
have read the paragraph section “Alignment of the base tting...” On page 3.
100mm timber nog
Base plate
Spigot
Nylocks and washers
150mm Minimum
existing concrete
Base plate
Spigot
“Bell out” bottom of the hole
600mm approx and ll with concrete
Spigot
Dig hole 700mm deep
and 500mm wide approx
Stainless bolts
2 Fixing the base plate to a concrete slab:
When installing your umbrellas on a concrete surface x the base plate to the concrete
using 6 galvanised or stainless concrete screw xings. The concrete slab should
be at least 150mm thick. The xings used should be at least 75mm long (100mm
recommended) and 10mm in diameter.

6
www.instantshadeumbrellas.com.au

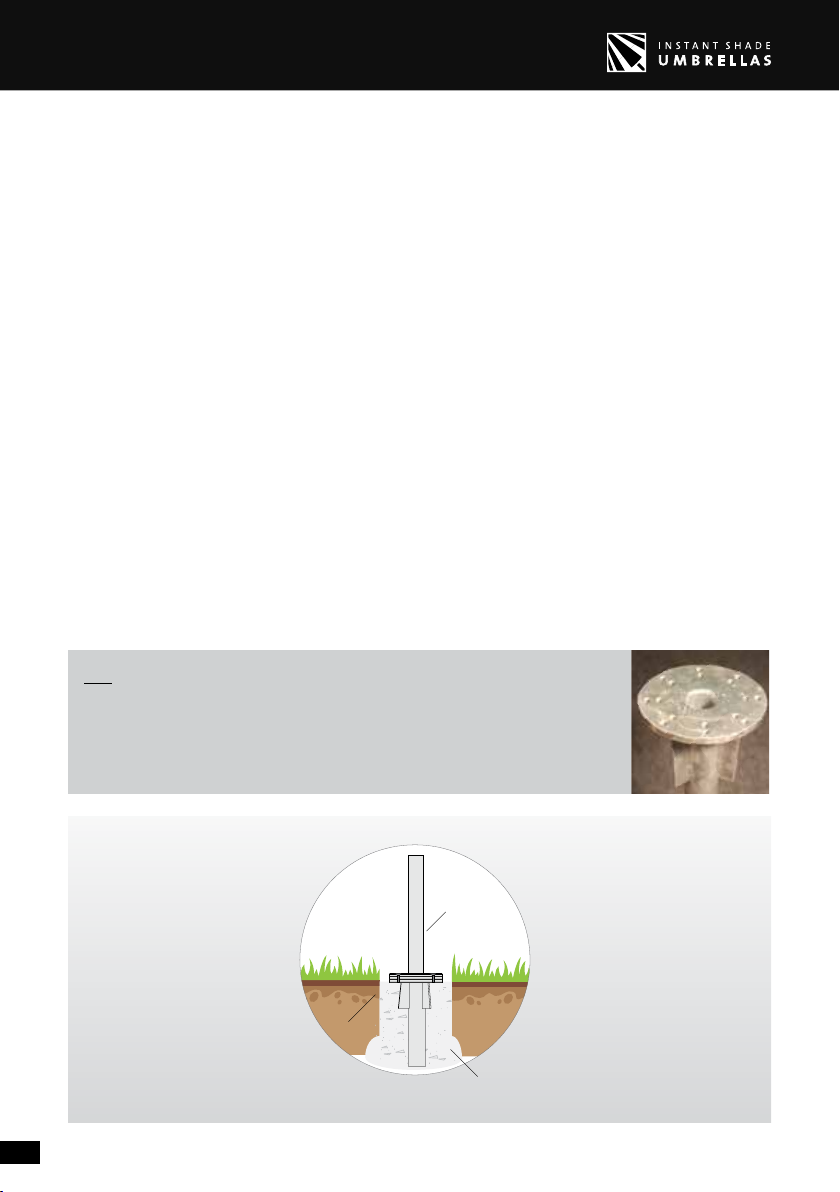

INGROUND INSTALLATION
Fixing into lawn, soil or patio:
When installation is required in soil or lawn etc. then an inground tting must be used.
This is a galvanised steel tting which must be concreted into position. Terrain diers
from thick clay to sand or ne soil so a dierent sized hole must be prepared and a
dierent volume of concrete used to suit. As a guide only a hole 500mm x 500mm x
700mm deep is a minimum requirement for heavy clay soil terrain. Even then a post
hole borer can be used to deepen the centre of the footing. When pouring the concrete
it is advisable to drop a few lengths of reinforcing steel bar into the hole to prevent
the concrete from cracking. Remember that depth of hole is better than width and it is
much easier to make the hole over-size than to try to re-stabilise the inground tting
should it start to move over time. Pavers may need to be removed to facilitate this
inground tting and then cut to suit when replaced.
When setting the inground tting in the concrete you must ensure the tting is 100%
level. Allow adequate time for the concrete to cure before installing the umbrella. This
depends on the cure time of the concrete but is normally about 7 days.
Important: Prior to install the inground please ensure you have read the paragraph section “Alignment of the base
tting...” On page 3.
Tip: To ensure that concrete does not come up the threaded spigot holes
in the inground tting it is advisable to put the supplied spigot bolts into
the required threaded spigot holes (if they do not already have a threaded
guard in the hole). It’s also recommended to apply some tape over the
underside of the holes as a precaution.
100mm timber nog
Base plate
Spigot
Nylocks and washers
150mm Minimum
existing concrete
Base plate
Spigot
“Bell out” bottom of the hole
600mm approx and ll with concrete
Spigot
Dig hole 700mm deep
and 500mm wide approx
Stainless bolts

7
www.instantshadeumbrellas.com.au
Opening the umbrella for the rst time:
When the umbrella is being opened for the rst time, ensure the strap and all packaging
and wrapping material has been removed. There may be some wrapping material on
the canopy arms underneath the fabric canopy - partially open the umbrella and get
in underneath the fabric canopy to remove all this wrapping before fully opening the
umbrella.
Important: The umbrella support arms are tted with PLASTIC SLIDING SPACERS. The
spacers help to keep the arms spread apart when the umbrella is closed. This will make
it easier to open next time is it used and to prevent the arms getting “stuck” down when
trying to open the umbrella. When the umbrella is packaged for shipping the spacers
are not engaged and are located at the lower end of the support arms. Before using the
umbrella for the rst time you must engage the spacers into the pre-drilled locking
holes by sliding each spacer into position up the umbrella arms. A barrell bolt is
supplied to secure each spacer in place.
To erect the Nova HD Umbrella:
1. Attach the hinged spigot to the base plate or inground
tting with the one smaller stainless steel spigot bolt
supplied with your umbrella.
2. Use the hinge to lie the spigot horizontally. Using
several people to assist, hold the umbrella almost
horizontal and then slide the umbrella over the internal
spigot.
3. Secure the umbrella to the spigot by inserting the
supplied locking bolt through the hole in the mast and
spigot, and then tighten up the nut.
4. Lift the umbrella up into a vertical position using the
hinge. Secure the hinged spigot to the base plate using
the four supplied stainless steel spigot bolts and allen
key.
Note: Installation is recommended as a three person operation.
SETTING UP YOUR NOVA HD UMBRELLA
Once you have xed the base tting correctly you can erect the umbrella by following
the below instructions.

8
www.instantshadeumbrellas.com.au
OPERATING YOUR NOVA HD UMBRELLA
To open the Nova HD umbrella:
• If opening the umbrella for the rst time please refer to the section called
“opening the umbrella for the rst time”.
• Remove the strap from the canopy.
• Insert the winder handle into the winder hole on the mast and rotate in a clockwise
direction.
• Continue winding until the canopy is fully open and taut. Never over wind or force
the winder beyond a moderate amount of pressure. Note: the winder handle will
become a little harder to wind as the umbrella nears fully open. This is normal
particularly when the acrylic canvas or PVC canopy is new.
• The winder handle may be removed if desired as a safety and security feature.
To close the Nova HD umbrella:
• Insert the winder handle and rotate in an anti-clockwise direction.
• Pull the canopy out from within the arms to safeguard against “pinching” of the
canvas within the umbrella frame. This is done by pulling the canvas to the outside
of the frame using your hand to pull the excess in each of the 8 sections of frame.
Then fold it left over right etc. Refer to Page 12 .
• Put the canopy strap securely around both the mast and canopy frame.
• If you purchased a protective cover bag (optional) then t over the mast and frame
and zip up.
CARE AND MAINTENANCE
You will get maximum benet from your umbrella when you use it in accordance with
our instructions and in the weather conditions for which it was designed.
General Information:
• Do not leave the umbrella open when unattended, particularly in windy conditions.
• The umbrella should be closed and securely strapped in strong winds and adverse
weather conditions.
• Always secure your umbrella to an appropriate footing/ base.
• Any modications to your umbrella, except those made by an authorised Instant
Shade agent, may invalidate the warranty.
• Make sure the umbrella is dry and clean prior to storing away for extended periods
of time to prevent mould from developing.

9
www.instantshadeumbrellas.com.au
• Be careful when closing the umbrella to ensure that the canopy does not get
caught or “pinched” by the umbrella arms. This is particularly import before storing
the umbrella away for extended periods of time or if the umbrella is to be laid
horizontally for storage. Damage to the fabric caused by “pinching” is not covered
by warranty.
Maintenance instructions for your Nova HD:
• In coastal or metropolitan environments it is benecial to wash of any dirt, pollen
and salt residue from the umbrella frame and fabric using a hose or soft bristle
brush.
• Periodic spraying of silicon spray into the gear box through the winder hole will
assist operation and prolong the life of the winder unit.
• If you have purchased a protective cover bag it is advisable to use it if the umbrella
is not to be used for some time. The umbrella must be dry before being packed in a
cover bag.
• Inspect the installation tting/ base on a regular basis and tighten as necessary.
• Periodically check all the connecting brackets and joints of the umbrella to ensure
that all bolts/ ttings are tight and secure. Tighten any bolts as required.
Care and Cleaning of Acrylic fabric:
• Proper care and clearing should be taken to ensure the life of outdoor fabric. For
regular care and maintenance, excessive dirt should be brushed from the fabric
using a soft brush; the fabric should be then sprayed with water (not exceeding
100°F / 40°C) and air-dried.
• Periodically the fabric should undergo a more thorough cleaning by applying a
gentle non-detergent soap using a soft bristled brush or cloth, thoroughly rinse out
all soap residue with fresh water and then air-dry. Do not use solvents or abrasive
detergents to wash fabric.
• Is it recommended that after thorough cleaning that you apply a fabric protectant
such as “303 Fabric Guard” or “Scotch Guard” to the fabric to restore the original
protective water resistance coating.
• Fabric should never be stored or stowed while wet, always ensure fabric is
thoroughly dried before storing for extended periods of time.
• Any early signs of mould and mildew must be removed immediately.
• For more information visit https://www.instantshadeumbrellas.com.au/files/
Instant_Shade_Cleaning_Guide.pdf

10
www.instantshadeumbrellas.com.au
TWO METHODS FOR STRAPPING
Closing the umbrella overnight:
Your umbrella is supplied with a “Halo” ring for quick and easy strapping of the
umbrella
Step One: Locate the Halo components (ring tube and telescopic rod).
Step Two: Carefully bend the ring tube to form a circle, you may need a second person
to help.
Step Three: Join the two ends together to form a “T” and secure with the provided
screw.
Step Four: Now attach the telescopic pole to the “T” on the Halo and extend the length
of the pole to reach over the umbrella.
Step Five: Use the telescopic pole to lift the Halo over the top of the umbrella and
allow it to drop down where it will settle on the arms.
12

11
www.instantshadeumbrellas.com.au
3
5
4

12
www.instantshadeumbrellas.com.au
Closing the umbrella for long term storgae:
Step One: Stand in front of the umbrella and locate the front four fabric panels.
Step Two: Group the four panels and roll together towards the frame.
Step Three: Fold the remaining panels over the rolled panels one by one, alternating
from left to right until all panels are neatly folded.
Step Four: Secure the folded panels in place with the Velcro strap by wrapping it
around the umbrella tightly. The umbrella is now ready for long term storage.
12
34

13
www.instantshadeumbrellas.com.au
Nova HD
Available Australia Wide
Check our website for a dealer near you
www.instantshadeumbrellas.com.au
Giant Telescopic Heavy Duty Umbrella
Strengthened Extruded
Aluminium Mast
Telescoping Crank System Double Reinforced
Joints
Hinged Spigot
Installation
Canopies are made of water
repellant and UV-resistant 100%
Solution Dyed Premium Acrylic
Canvas (5 year warranty against
fading).
Upgrade to 100% waterproof
650GSM welded PVC also
available.
Canvas
Base and Installation Options
Frames are made of Marine Grade Anodised Aluminium with a 3 year warranty against
mechanical defects.
Frames LED Lights (optional)
Energy efficient
multicoloured LED
lights controlled with
remote or smart phone
app.
Frame Specifications 3m sq 4m sq 5m oct 5m sq 3.5m x 2.5m 3m x 4m
Post (outside diameter x thickness
x length) (mm) 94 x 3.5 x 2712 94 x 3.5 x 2912 94 x 3.5 x 2912 94 x 3.5 x 3032 94 x 3.5 x 2912 94 x 3.5 x 2912
Long arms (mm) 25 x 50 x 2.2 25 x 50 x 2.2 25 x 50 x 2.2 25 x 50 x 2.2 25 x 50 x 2.2 25 x 50 x 2.2
Dimensions of closed umbrella
a: Height (mm) 4005 4180 4190 4460 4320 4320
b: Closed canopy clearance (mm) 1890 1330 1700 915 1760 1830
Dimensions of open umbrella
c: Height (mm) 2850 3080 3080 3160 3110 3060
d: Canopy edge height (mm) 2310 2320 2320 2320 2430 2330
Weight
Umbrella (unboxed) (kg) 85 95 95 110 90 95
Packaging Dimensions
Total Length (inc post) (mm) 4200 x 460 x 460 4400 x 460 x 460 4400 x 460 x 460 4600 x 460 x 460 4400 x 460 x 460 4400 x 460 x 460
Weight (boxed umbrella) (kg) 100 100 110 115 100 100
Wind guidance**
Installed wind rating (km/h) 100 90 90 80 90 90
**The above wind speeds are provided as a guide only. Refer to our website and Product Owner Manual provided with the umbrella for more information. The product warranty does not cover wind damage regardless of wind speed.
*100KM wind rating applies to 3m Square size only
cd
ab
Spigot Base Plate 400mm ø - to bolt
to concrete patio or wooden deck
In Ground Fitting - to be
concreted into ground
Nova HD
Available Australia Wide
Check our website for a dealer near you
www.instantshadeumbrellas.com.au
Giant Telescopic Heavy Duty Umbrella
Strengthened Extruded
Aluminium Mast
Telescoping Crank System Double Reinforced
Joints
Hinged Spigot
Installation
Canopies are made of water
repellant and UV-resistant 100%
Solution Dyed Premium Acrylic
Canvas (5 year warranty against
fading).
Upgrade to 100% waterproof
650GSM welded PVC also
available.
Canvas
Base and Installation Options
Frames are made of Marine Grade Anodised Aluminium with a 3 year warranty against
mechanical defects.
Frames LED Lights (optional)
Energy efficient
multicoloured LED
lights controlled with
remote or smart phone
app.
Frame Specifications 3m sq 4m sq 5m oct 5m sq 3.5m x 2.5m 3m x 4m
Post (outside diameter x thickness
x length) (mm) 94 x 3.5 x 2712 94 x 3.5 x 2912 94 x 3.5 x 2912 94 x 3.5 x 3032 94 x 3.5 x 2912 94 x 3.5 x 2912
Long arms (mm) 25 x 50 x 2.2 25 x 50 x 2.2 25 x 50 x 2.2 25 x 50 x 2.2 25 x 50 x 2.2 25 x 50 x 2.2
Dimensions of closed umbrella
a: Height (mm) 4005 4180 4190 4460 4320 4320
b: Closed canopy clearance (mm) 1890 1330 1700 915 1760 1830
Dimensions of open umbrella
c: Height (mm) 2850 3080 3080 3160 3110 3060
d: Canopy edge height (mm) 2310 2320 2320 2320 2430 2330
Weight
Umbrella (unboxed) (kg) 85 95 95 110 90 95
Packaging Dimensions
Total Length (inc post) (mm) 4200 x 460 x 460 4400 x 460 x 460 4400 x 460 x 460 4600 x 460 x 460 4400 x 460 x 460 4400 x 460 x 460
Weight (boxed umbrella) (kg) 100 100 110 115 100 100
Wind guidance**
Installed wind rating (km/h) 100 90 90 80 90 90
**The above wind speeds are provided as a guide only. Refer to our website and Product Owner Manual provided with the umbrella for more information. The product warranty does not cover wind damage regardless of wind speed.
*100KM wind rating applies to 3m Square size only
cd
ab
Spigot Base Plate 400mm ø - to bolt
to concrete patio or wooden deck
In Ground Fitting - to be
concreted into ground
NOVA HD UMBRELLA RANGE

14
www.instantshadeumbrellas.com.au
NOVA HD PARTS DIAGRAM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18 19
20
21
22
Top Hub
“U”Joint Nut & Bolt
Square Telescopic Tube
Canopy Arm
Strop
Strop Nut & Bolt
Sliding Spacer & Barrel Bolt
Strut
Mast Cap
“U”Joint
Bottom Hub
Spindle Nut
Canopy Bolt & Washer
Arm End Fitting
Spindle
Gear Box
Spindle locking
Winder Handle
22 Gear Box Locking Screw
Mast
Mast Locking Bolt
Acetal Ring
Hinge Spigot
23
Canopy screw bolt and Washer
Nova HD Drawing

15
www.instantshadeumbrellas.com.au

16
www.instantshadeumbrellas.com.au
WARRANTY
Thank you for your purchase from Instant Shade Pty Ltd.
The benets given by this warranty are in addition to all other rights and remedies in respect of the product which the
purchaser has under the Trade Practices Act and similar State and Territory Laws. Nothing in this warranty will exclude,
restrict or modify any conditions, warranty rights or liability implied in this purchase or protected by law where to do so
would render this warranty void.
Warranty Period
• The warranty on the frame is three (3) years for residential and commercial use.
• The warranty against fading of Acrylic canvas is ten (10) years for residential use.
• The warranty against fading of Acrylic canvas is ve (5) years for commercial use.
• The warranty against fading of Polyester canvas is four (4) years for residential & commercial use.
• The warranty against fading of Olen canvas is two (2) years for residential & commercial use.
• The warranty against fading of PVC (vinyl) is three (3) years for residentia & commercial use.
• The warranty against fading on Printing is one (1) year.
FRAME Warranty Conditions - PLEASE READ CAREFULLY
1. The warranty covers manufacturer’s faults and defects only.
2. The frame warranty covers the umbrella frame and mechanics and internal components. It does not include
accessories such as installation ttings.
3. The warranty does not cover damage caused by wind or adverse weather conditions, fair wear and tear, accidents,
misuse, re, ood, hail, earthquakes or other natural disasters, or alterations or repairs by any other than an
authorised agent of Instant Shade Umbrellas.
4. The warranty for all Powder Coat nishes is one (1) year. This warranty includes peeling, aking, bubbling and
signicant fading of the powder coating.
5. The warranty for all umbrella bases and installation ttings/accessories is one (1) year. This warranty covers
manufacturers defects only.
6. RUST DISCLAIMER: Rust is a natural part of the ageing process for steel. Our steel products have rust inhibitors
applied but may require maintenance over time. Early signs of rust should be removed and rust proong agents
such as “Gal-Spray” should be applied periodically. The anti-rust warranty for all steel components is one (1) year.
7. The umbrella must be used with a suitable base with a suitable amount of weight applied, or be correctly installed
with an appropriate installation tting. If installed, this warranty is valid only for installations made by Instant
Shade Umbrellas, or an authorised agent, or if installed by the customer, the installation must be carried out exactly
as required in the instructions that are supplied with the umbrella or available on our website.
8. In the case of installations, the owner is to ascertain position of all underground pipes and electrical wires and
notify installer of any obstacles. Although all care will be taken, no responsibility can be accepted for any damage
during installation.
9. Instant Shade Umbrellas or its authorised agent may oer advice, but accepts no responsibility as to the ultimate
positioning of the umbrella.
10. For rotating umbrellas, this warranty is valid only if the revolving lock is engaged securely at all times, as shown in
the operation guidelines provided.
11. The warranty is valid only if the umbrella is put up and collapsed as per the instructions in the umbrella manual.
12. If the umbrella is to be transported, it must be dismantled and adequately packaged (preferably with canopy and
frame wrapped separately) to avoid damage during transit. If damage is incurred as a result of insecure packing,
this is outside our warranty provision.

17
www.instantshadeumbrellas.com.au
CANVAS Warranty Conditions - PLEASE READ CAREFULLY
1. The canvas warranty is a Limited Manufacturer’s Warranty, which is passed on by Instant Shade Umbrellas.
2. The canvas warranty covers the canopy canvas only. It specically excludes items such as thread, zips, velcro,
webbing and binding used in canopy fabrication. The warranty for these items is one (1) year.
3. The canvas warranty covers fading only. This means the canvas will retain a light-fastness rating of 6-8 on a 1-8
scale (ie. No signicant fading) for the duration of the warranty period. Colours utilising Red and Yellow pigment
(eg. Red, Yellow, Orange, Pink, etc.) will retain a light-fastness rating of 5-7 on a 1-8 scale for the duration of the
warranty period.
4. The warranty does not apply against any deterioration of any kind due to wind or weather related damage, misuse,
burns, negligence, vandalism, perforations or stains due to environmental pollution, and fair wear-and-tear.
5. This canvas warranty extends specically to the replacement of fabric only and excludes the work and installation
of others and also excludes other ttings and hardware. Other costs such as re-making a canopy, dismantling,
transport, re-erection, travelling costs and consequential loss are excluded from this warranty.
6. If the umbrella is to be transported, it must be dismantled and adequately packaged (preferably with canopy and
frame wrapped separately) to avoid damage during transit. If canvas damage is incurred as a result of insecure
packing, this is outside our warranty provision.
7. When closing the umbrella for extended periods of time, the canopy must be folded in such a way as to avoid
“pinching” of the canvas in the umbrella ribs/arms. Wear and tear caused by “pinching” of the fabric by the
umbrella framework is not covered under the warranty.
8. Proper care and cleaning should be taken to ensure the life of outdoor fabrics. For regular care and maintenance,
excessive dirt should be brushed from the fabric using a soft brush; the fabric should then be sprayed with warm
water (not exceeding 100◦F / 40◦C) and air-dried. Periodically the fabric should undergo a more thorough cleaning.
Again, brush fabric with a soft bristled brush, spray with warm water then apply a gentle natural soap, rinse
thoroughly and air-dry.
9. The canvas should never be stored or stowed while wet, always ensure fabric is thoroughly dried before storing for
extended periods.
10. Any early signs of mould and mildew must be removed immediately.
General Warranty Conditions - PLEASE READ CAREFULLY
1. The warranty applies to the original purchaser only. Proof of purchase must be provided.
2. In the case of repairs to the umbrella being required (regardless of whether the repairs are covered under warranty)
the warranty covers the provision of replacement parts only. The cost of labour to install the replacement parts, or
transportation to/from Instant Shade Umbrellas for any repairs is to be paid by the claimant.
3. This warranty is the only express warranty given by Instant Shade Umbrellas. No person has the authority to change
or add to these obligations and liabilities without Instant Shade Umbrellas approval in writing.
4. Instant Shade Umbrellas reserves the right to determine whether or not fault is caused by faulty workmanship or
material or that any part is defective, and should a warrantable fault be determined, will renish, repair or replace
any part or product at its own discretion.

18
www.instantshadeumbrellas.com.au
Instant Shade Pty Ltd
[email protected]om.au
www.instantshadeumbrellas.com.au
