INSTEON 2342-232 User manual

r::.• ···=· , ..• -. -·~-]
~m - bJ
~··coc•c-u• * 1\ J
• - ece r• ••-
~~~~ •o••~n; :1
b•e ... •, u • J
I
'II
1 A l
It, ••
• . . J

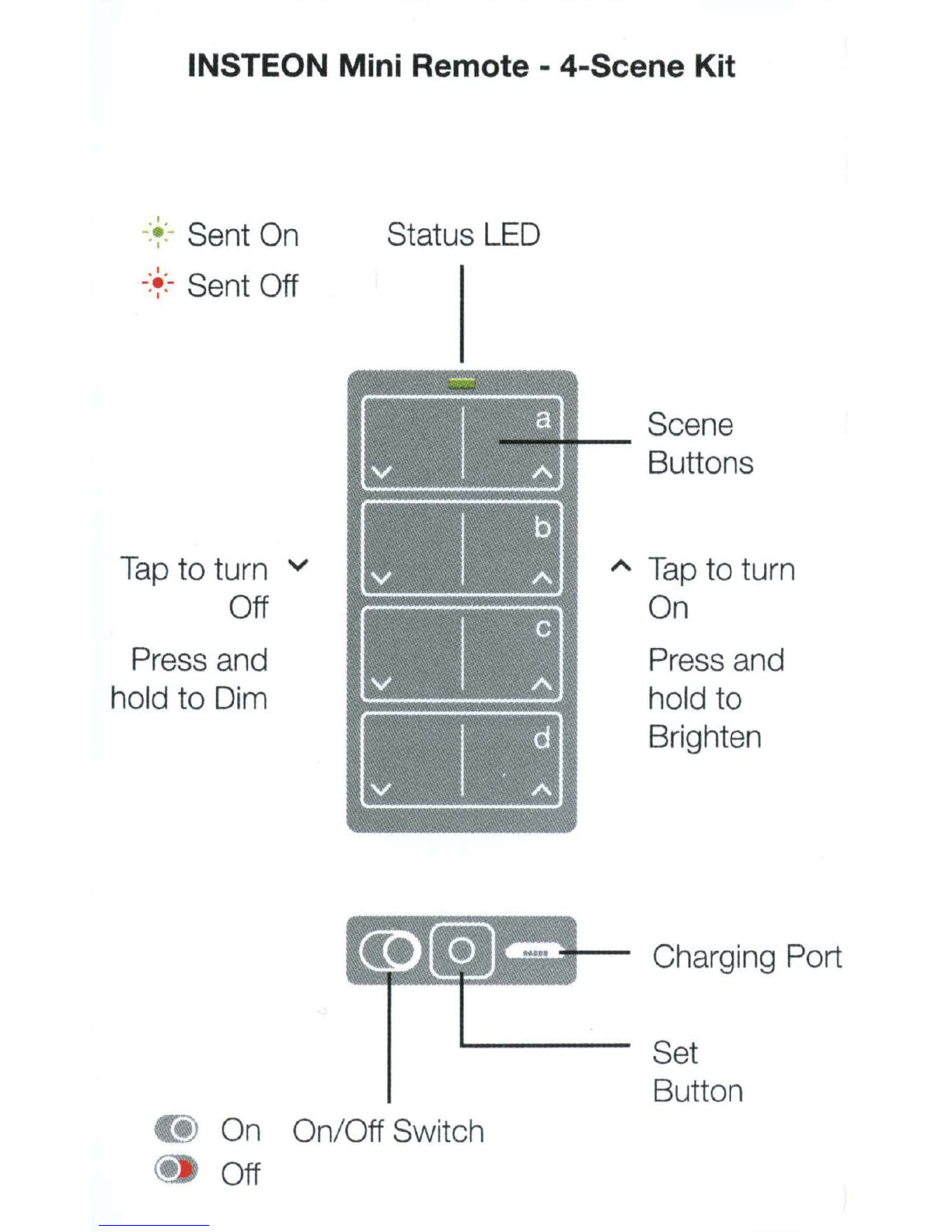

INSTEON Mini Remote -4-Scene Kit
I
-: ~ : - Sent On
I
- : ~ : - Sent Off
Tap to turn v
Off
Press and
hold to
Dim
Status LED
On On /Off Switch
Off
Scene
~
Buttons
A Tap to turn
On
Press and
hold to
Brighten
Charging Port
Set
Button

I

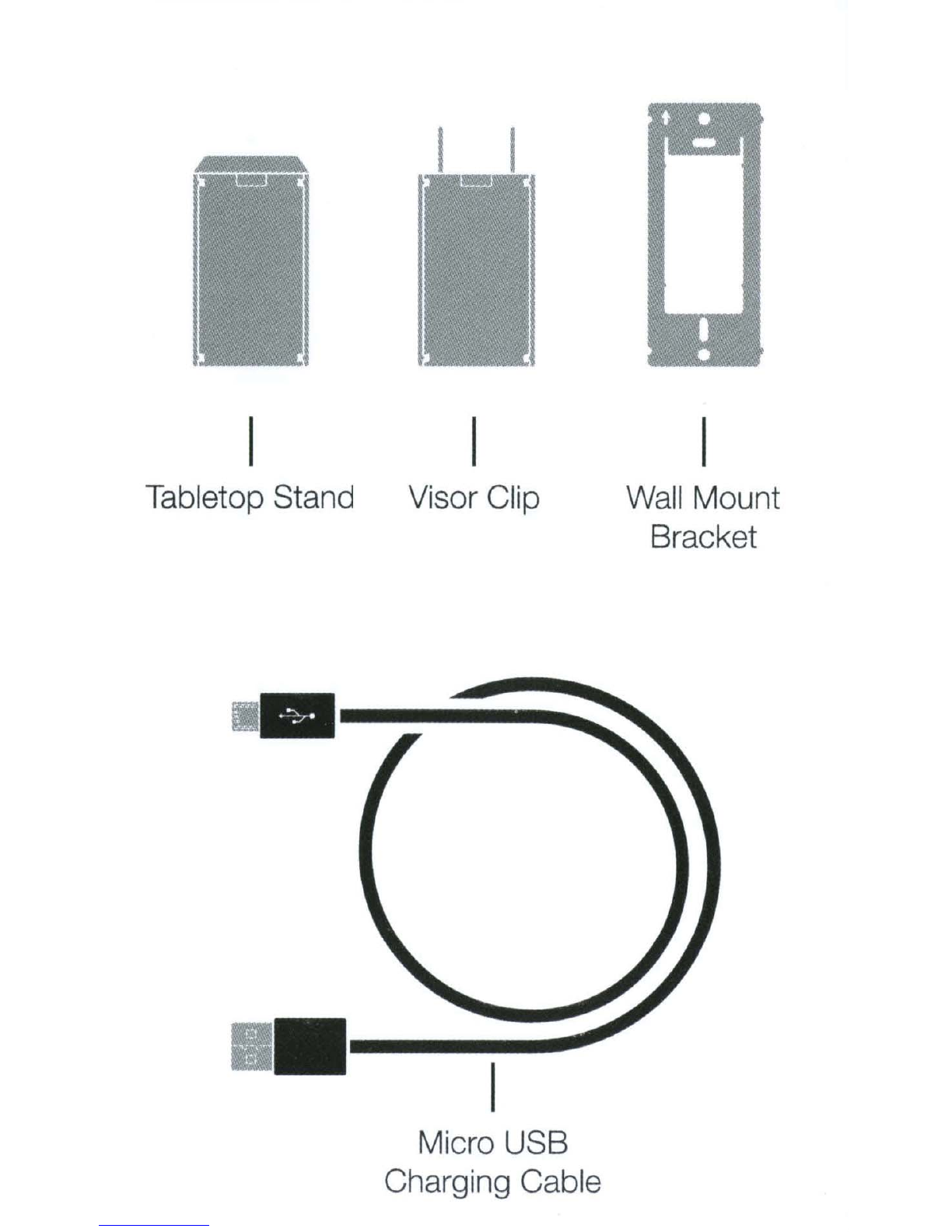

Tabletop Stand Visor Clip
Micro USB
Charging Cable
Wall Mount
Bracket

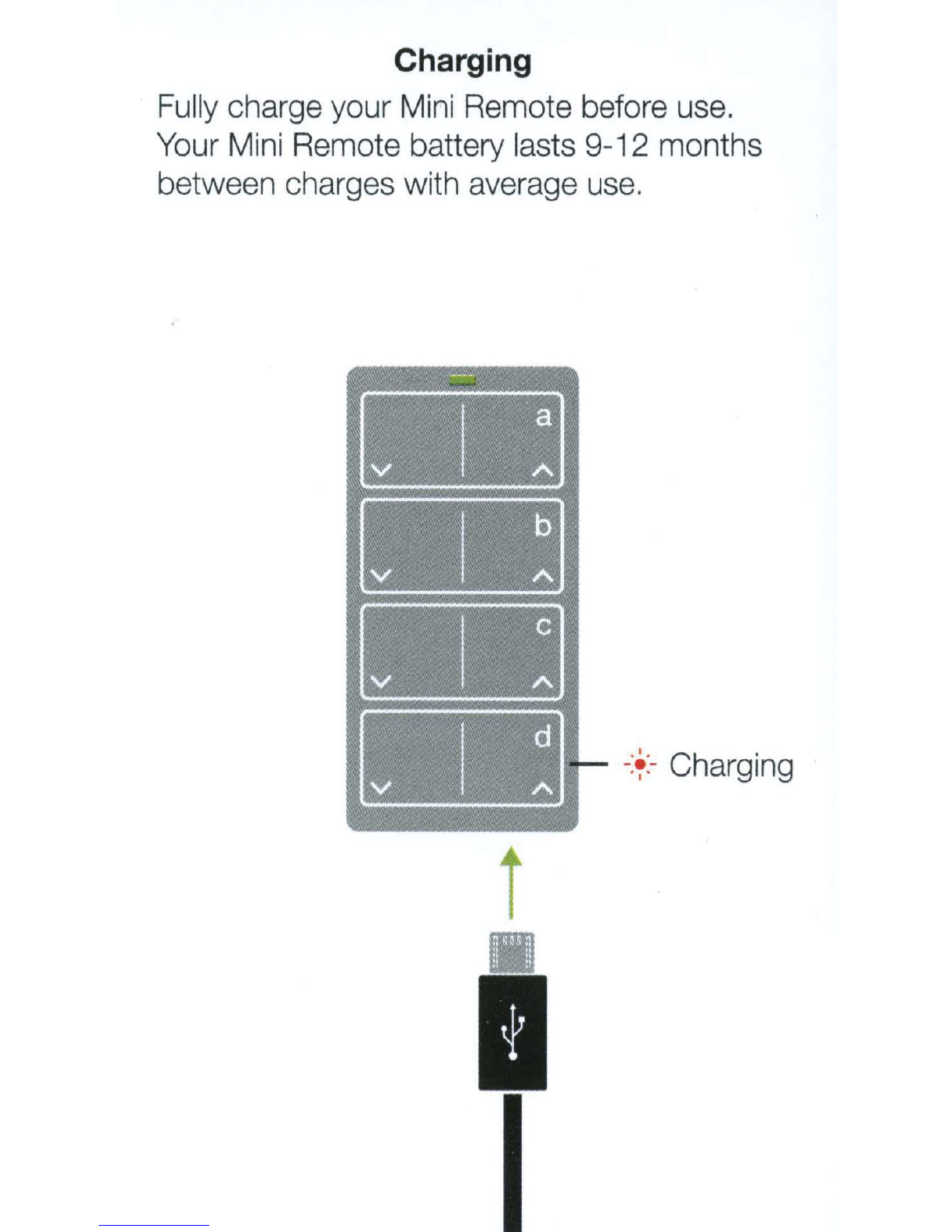

Charging
Fully charge your Mini Remote before use.
Your Mini Remote battery lasts 9-12 months
between charges with average use.
I
.. .......- - : ~ : - Charging
i

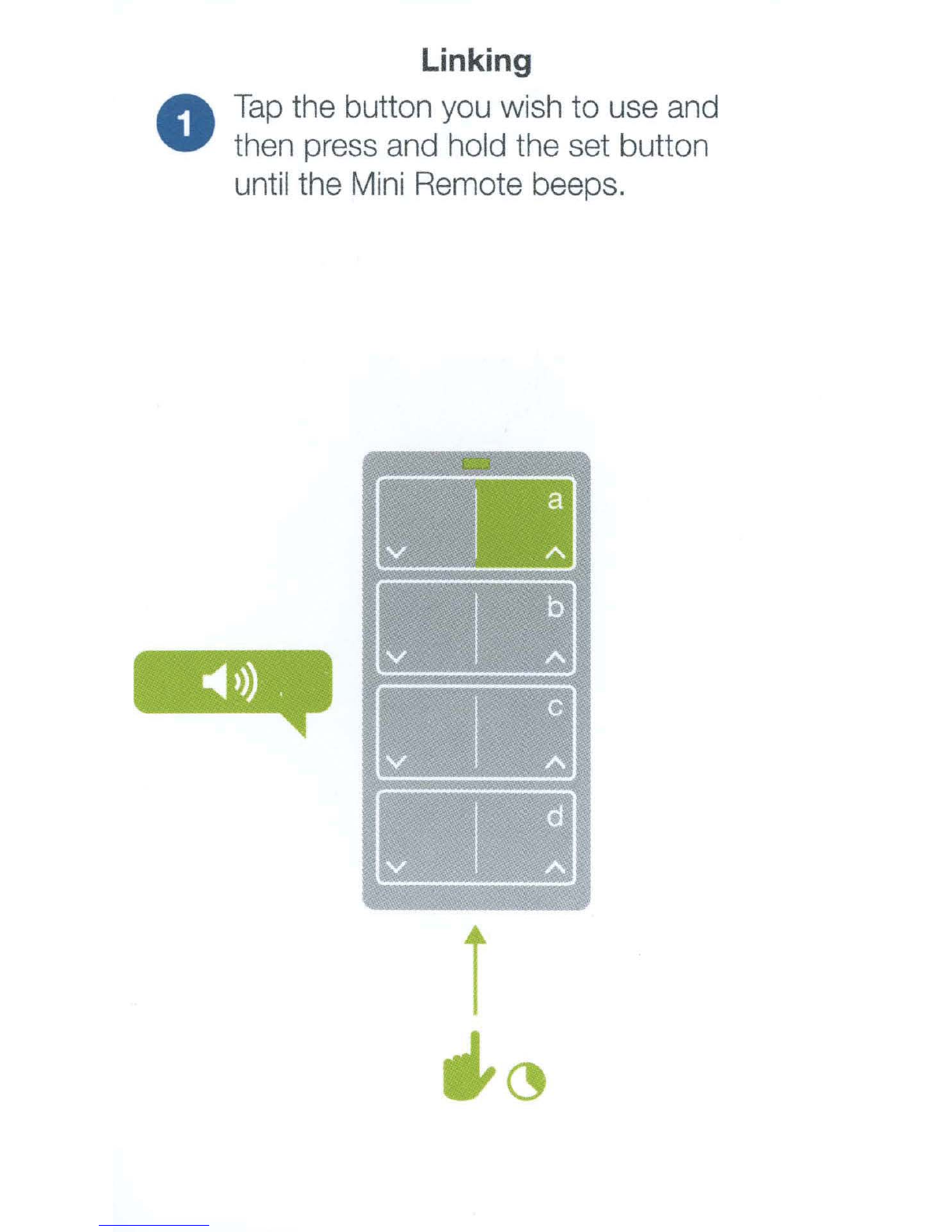

Linking
0
Tap the button you wish to use and
then press and hold the set button
until the Mini Remote beeps.

Make sure the device you wish to
control is ON and then press and hold
its set button until it double-beeps.
I I
-

Your Mini Remote will now control
your INSTEON device.
!
I I
•

Learn More
For the complete Owner's Manual, video
tutorials, product support and more, visit:
insteon.com/support.
Protected u nder U.S. and foreign patents (see www.insteon.com/patents)
©2014 INSTEON RAW-1300 Rev 03.27.14

2342-222/2444A2WH4, 2342-432, 2342-532 Rev. 2/20/2013 8:47 AM / See Owner’s Manual for Warranty Information.
Protected under U.S. and foreign patents (see www.insteon.com/patents)
© Copyright 2013 INSTEON, 16542 Millikan Ave., Irvine, CA 92606, 866-243-8022
Power
Switch
(Left=Off,
Right=On)
Quick Start Guide
INSTEON®Mini Remote – 4 Scene
Model: 2342-232/2444A2WH4 2342-432, 2342-532
Getting Started
Fully charge Mini Remote prior to programming (or anytime the unit is not
responding) using a Type A to Micro-B USB cable (sold separately). The red
Charging LED will turn off once the battery is fully charged (approximately one
hour). Slide the power switch to the ON position.
Note: Mini Remote requires an INSTEON dual-band or RF device to
communicate with other devices on your INSTEON network.
Mini Remote uses a subtle beeper sound to assist setup. It is recommended that
you program the unit in a quiet area.
Make Remote a Controller
Use Remote to control other INSTEON devices
1) Tap up arrow on Mini Remote scene button of choice
2) Press and hold Mini Remote set button until it beeps
Mini Remote LED will start blinking green
3) Turn responder on (or any other state such as on 50% or even off)
4) Press and hold responder set button until it double-beeps
Mini Remote will double-beep and its LED will stop blinking
5) Test by tapping Mini Remote on/off button just programmed
Responder load will respond appropriately
Using Mini Remote
Mini Remote contains four on/off button pairs (a-d). Each pair controls its own scene, sending commands to devices linked
specifically to that on/off button pair. Dimmable responders may behave differently if you tap, double-tap or press and hold a
button to activate/deactivate a scene. Non-dimming responders will only turn full-on or full-off, no matter what method you use.
Tap
Double-tap
Press and hold
Ramp to preset on-level or off
Full-on or full-off instantly
Brighten or dim until released
The Mini Remote Status LED will flash green once for each on/brighten command sent and red once for each off/dim
command sent
Warning: Mini Remote is permanently sealed. Do not attempt to open case. Doing so will damage the remote and void the
warranty.
Owner’s Manual and Tech Support
Visit: http://www.insteon.com/support for complete manual, online tech support and latest product documents.
Call: INSTEON Support Line at 866-243-8022
FCC and IC Warnings
This device complies with FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorise aux deux conditions suivantes: (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radiolectrique subi, mme si le brouillage est susceptible d'en compromettre le fonctionnement.
Set button
Micro-USB
Charging
Jack
Status LED
Charging LED
(inside case)
4 Scene Buttons
(Left=Off/dim,
Right=On/brighten)
Remote
(Controller)
Responder

2342-222/2444A2WH4, 2342-432, 2342-532 Rev. 2/20/2013 8:47 AM / See Owner’s Manual for Warranty Information.
Protected under U.S. and foreign patents (see www.insteon.com/patents)
© Copyright 2013 INSTEON, 16542 Millikan Ave., Irvine, CA 92606, 866-243-8022
Mini Remote Accessories
Wall Mount Bracket
(2444B4)
•Wall mount your Mini Remote anywhere
•Pair the Wall Mount Bracket with any decorator-
style wall plate (sold separately) for the perfect
wireless wall switch solution
•Gang two or more together for more control
•Can be installed adjacent to existing wired-in
switches
•Easily remove Mini Remote for portability or
recharging
Visor Clip
(in 2444BWH kit)
•Control your home from your vehicle.
•Turn lights on when you arrive and off when you
leave
Tabletop Stand
(in 2444BWH kit)
•Perfect for a nightstand, kitchen counter or
coffee table
USB Charging Cable (Type A to Micro-B)
(2444B5)
•Works with Mini Remote and any other
device that uses USB Type A to Micro-B
USB Power Adapter
(2444B6)
•For use with USB Charging Cable and any other
device that charges via USB cable

Page 1 of 16 2342-232/2444A2WH4, 2342-432, 2342-532 Rev: 1/21/2014 7:14 AM
Mini Remote
INSTEON®Remote Control Keypad, 4 Scene
(formerly RemoteLinc 2)
Owners Manual
2342-232, 2444A2WH4 (US)
2342-432 (EU)
2342-532 (AUS/NZ)

Page 2 of 16 2342-232/2444A2WH4, 2342-432, 2342-532 Rev: 1/21/2014 7:14 AM
About Mini Remote .....................................................................................................................................3
Features & Benefits ....................................................................................................................................4
What’s in the Box?.....................................................................................................................................4
Required Accessories................................................................................................................................4
Optional Accessories.................................................................................................................................5
Getting Started ............................................................................................................................................6
Scenes..........................................................................................................................................................6
Make Mini Remote (Button) a Controller...................................................................................................6
Remove Mini Remote (Button) as a Controller..........................................................................................6
Using Mini Remote......................................................................................................................................7
LED Behavior ............................................................................................................................................8
Turn Unit On/Off (Pocket Mode)................................................................................................................8
Stuck Button ..............................................................................................................................................8
Advanced Features.....................................................................................................................................8
Add Multiple Responders to a Scene (Multi-Link).....................................................................................8
Remove Multiple Responders from a Scene (Multi-Unlink) ......................................................................8
Change Button / Scene Configuration (e.g., Change to 8 Button Mode)..................................................9
Turn LED Off (or Back On)......................................................................................................................10
Turn Beeper On During Usage (or Back Off)..........................................................................................10
Beeper Behavior......................................................................................................................................11
LED Behavior During Setup ....................................................................................................................11
Factory Reset ..........................................................................................................................................11
Specifications............................................................................................................................................12
Troubleshooting........................................................................................................................................13
Certification and Warranty.......................................................................................................................14
FCC & Industry Canada Compliance Statement.....................................................................................14
Limited Warranty .....................................................................................................................................15
Limitations............................................................................................................................................16

Page 3 of 16 2342-232/2444A2WH4, 2342-432, 2342-532 Rev: 1/21/2014 7:14 AM
About Mini Remote
Mini Remote is the smallest and most versatile INSTEON remote control in the world. The 4 scene
controller can easily be reconfigured to give you toggle control of up to 8 scenes and/or devices. Mini
Remote can be:
- Handheld (wireless remote)
- Mounted on wall with no trim plate (wireless keypad)
- Mounted on wall in a single-gang Decorator trim plate (wireless keypad, built-in look)
- Mounted on wall in a multi-gang Decorator trim plate (add to the number of controllers in your room
without hiring an electrician and/or tearing out drywall)
- Placed on a Tabletop Stand (sold separately)
- Clipped to your car’s visor with Visor Clip (sold separately)
On/Off button pairs
(Left Off, Right On)
Status LED
Power/Recharging Jack
(Micro-USB, 5VDC)
Set
button
On/Off switch

Page 4 of 16 2342-232/2444A2WH4, 2342-432, 2342-532 Rev: 1/21/2014 7:14 AM
Features & Benefits
•Small, elegant design
•Super-easy setup
•Rechargeable battery included
•Discreet On and Off buttons for 4 scenes
•Can be reconfigured for 8 scene triggers or 8 scene On/Off toggle control
•Can be installed into a single Decorator style opening (requires Wall-Mount Bracket, sold separately)
•Can be used as a table-top controller (requires Tabletop Stand, sold separately)
•Can be used as a visor-mounted remote control for lights, garage door opener etc. (requires Visor Clip,
sold separately)
•LED blinks green when turning a scene On and red when turning a scene Off
•Power switch for disabling buttons (“vacation” or “pocket” mode)
•Stuck Button Mode – saves battery life by going to sleep if button stuck down
•Beeper for setup ease
•Recharges with standard USB charger with via Micro-USB Plug (5VDC)
•9-12 month battery life based on average usage
•Battery charge LED indicator built-in
•All settings stored in stable memory which is maintained even without power
•2 year warranty
What’s in the Box?
•Mini Remote
•Rechargeable battery (pre-installed)
•Quick-Start Guide
Required Accessories
•A micro USB cable for connecting and recharging Mini Remote via USB
port on a computer or USB power adapter.
•If the INSTEON device you intend to control does not receive RF signals
(i.e., power line only), you will need at least one dual-band INSTEON
device to convert the RF signals to power line signals.
Type A to Micro-B cable
(2444B5)

Page 5 of 16 2342-232/2444A2WH4, 2342-432, 2342-532 Rev: 1/21/2014 7:14 AM
Optional Accessories
Visor Clip
(Available in the 2444Bxx kit)
•Control your home from your vehicle
•Turn lights on when you arrive and off as
you leave
Tabletop Stand
(Available in the 2444Bxx kit)
•Perfect for a nightstand, kitchen counter or
coffee table
USB Power Adapter
(2444B6)
•For use with Mini Remote USB Charging
Cable and any other device that charges
via USB cable
Wall Mount Bracket
(2444B4)
•Wall mount your Mini Remote anywhere
•Gang two or more together for more control
•Can be installed adjacent to existing wired-in switches
•Mini Remote can easily be removed for portability or
recharging
•Use with any decorator wall plate
•
Pair the Wall Mount Bracket with any decorator style
wall plate (sold separately) for the perfect wireless
wall switch solution.

Page 6 of 16 2342-232/2444A2WH4, 2342-432, 2342-532 Rev: 1/21/2014 7:14 AM
Getting Started
Fully charge your Mini Remote prior to programming or anytime the unit is not responding. Mini Remote
charges via a USB cable (Type A to Micro-B, sold separately). The red charging LED will turn off once the
battery has been fully charged (approximately 1 hour). To turn on Mini Remote, simply slide the power
switch to the on position.
Note: Mini Remote uses a subtle beeper sound to assist setup. It is recommended that you program the
unit in a quiet area.
Scenes
Scene: One or more INSTEON devices which respond to an INSTEON controller. When the scene is
activated (turned “on”), all devices return to the states they were at when the scene was programmed.
INSTEON scenes let you activate dramatic lighting moods at the touch of a button. For example, you can
set all the lights in a scene to dim to 50% or turn certain lights on while turning others off, all with the tap
of a button on any INSTEON Controller. INSTEON scenes are easy to set up, just follow the directions
below.
Maximum number of scenes in Mini Remote Keypad: 8 (Default is 4)
Scene Control Functions supported; On, Off, Press & hold Bright, Press & hold Dim, Double-tap Fast On
and Double-tap Fast Off.
Make Mini Remote (Button) a Controller
Follow the steps below to control a scene (one or more INSTEON devices).
1) Tap the Mini Remote scene button of choice (on or off buttons will both work)
2) Adjust the scene responder to the “state” you want when the scene is activated from Mini Remote
(e.g., 50%, 25% or even OFF)1
3) Press & hold Mini Remote’s Set button until Mini Remote beeps
Mini Remote’s LED will blink green
4) Press & hold the responder’s Set button until it beeps (or until its LED/load flashes)
Mini Remote will double-beep and its LED will stop blinking
Responder’s LED will stop blinking (it may also double-beep)
5) Confirm that scene addition was successful by tapping on/off on your chosen Mini Remote button
The Responder will toggle between the scene on level and off
6) If you wish to add more responders to Mini Remote, repeat steps 1-5 for each additional scene
responder (or see Add Multiple Responders to a scene)
1If the Responder is a multi-scene device such as a KeypadLinc, tap the scene button you wish to control until its LED is in the desired state (on or off)
Remove Mini Remote (Button) as a Controller
If you are no longer going to use an INSTEON responder that is a scene responder of Mini Remote, it is
very important that you remove its scene membership. Otherwise, Mini Remote will retry every scene
command repetitively, thus creating delays and shortening battery life.

Page 7 of 16 2342-232/2444A2WH4, 2342-432, 2342-532 Rev: 1/21/2014 7:14 AM
1) Tap the Mini Remote scene button of choice (on or off buttons will both work)
The Responder will respond
2) Press & hold the Mini Remote’s Set button until it beeps
Mini Remote’s LED will blink green
3) Press & hold the Mini Remote’s Set button until it beeps again
Mini Remote’s LED will blink red
4) Press & hold the Responder’s Set button until it double-beeps (or LED blinks)
Mini Remote will double-beep and its LED will stop blinking
5) Confirm that Unlinking was successful by tapping the scene button on and off
The Responder will not respond
6) If you wish to remove multiple responders from Mini Remote, repeat steps 1-5 for each additional
responder (or see Remove Multiple Responders from a Scene)
Using Mini Remote
4 Scene Mode (Default)
The On/Off button pairs each control all their scene members as follows:
Button
Side
Icon
Tap
Press & hold
Double-tap
On Right ^ Turn scene on Brighten scene members
until released
Turn scene members full-
bright instantly
Off Left v Turn scene off Dim scene members
until released
Turn scene members off
instantly
8 Scene Toggle Mode
Each button will control all its scene members as follows:
Last Command Sent
Tap
Press & hold
Double-tap
Off or Dim Turn scene on Brighten scene
members until
released
Turn scene
members full-bright
instantly
On or Bright Turn scene off Dim scene members
until released
Turn scene
members off
instantly
8 Scene Non-Toggle Mode (Always On)
Each button will control all its scene members as follows:
Tap
Press & hold
Double-tap
Turn scene on Brighten scene members until
released
Turn scene members full-
bright instantly
Note: Devices in scenes that respond to the scene trigger by turning off do not respond to scene dim and
brighten.Devices in scenes that only support On/Off (such as switches and relays) do not respond to
scene dim and brighten.

Page 8 of 16 2342-232/2444A2WH4, 2342-432, 2342-532 Rev: 1/21/2014 7:14 AM
LED Behavior
Mini Remote has a two-color LED (Green & Red) which momentarily indicates whether an on or an off is
being sent.
LED State
Meaning
Blink Green (Once)
On Sent
Blink Red (Once)
Off Sent
Blink Red (for a few
seconds)
One or more scene members did not acknowledge (note: scene members
may still have heard the scene command and adjusted their settings)
Turn Unit On/Off (Pocket Mode)
The Mini Remote features a power switch located next to the Set button. If you plan on carrying the Mini
Remote in your pocket it is recommended that you turn it off to prevent buttons from accidentally being
pressed. This is also recommended if your Mini Remote will not be in use for long periods of time.
Stuck Button
If a button on Mini Remote is held for more than 4 minutes, the Mini Remote will automatically stop
transmitting to preserve battery life. The Mini Remote will automatically turn back on when the button that
was depressed is no longer being pressed.
Advanced Features
Add Multiple Responders to a Scene (Multi-Link)
1) Tap the Mini Remote scene button of choice (on or off buttons will both work)
2) Press & Hold Set Button for 3 seconds - until you hear a beep
Mini Remote’s LED will blink green
3) Tap Set Button
Mini Remote’s LED will double-blink green
4) Adjust Each Responder you wish to add to scene, then Press & Hold its Set Button until Mini Remote
double-beeps
Mini Remote’s LED will continue to double-blink green
5) When all your devices have been added, tap Mini Remote’s Set Button
Mini Remote will double-beep and its LED will turn off
Remove Multiple Responders from a Scene (Multi-Unlink)
1) Tap the Mini Remote scene button from which you wish to remove the responder (on or off buttons
will both work)
Power Switch
(right On, left Off)

Page 9 of 16 2342-232/2444A2WH4, 2342-432, 2342-532 Rev: 1/21/2014 7:14 AM
2) Press & Hold Set Button for 3 seconds - until you hear a beep
Mini Remote’s LED will blink green
3) Press & Hold Set Button a 2nd time for 3 seconds - until you hear a beep
Mini Remote’s LED will blink red
4) Tap Set Button
Mini Remote’s LED will double-blink red
5) For each Responder you wish to remove from scene, Press & Hold its Set Button until Mini Remote
double-beeps
Mini Remote’s LED will continue to double-blink red
6) When all your devices have been removed, tap Mini Remote’s Set Button
Mini Remote will double-beep and its LED will turn off
Change Button / Scene Configuration (e.g., Change to 8 Button Mode)
1. Press & Hold Set Button for 3 seconds - until you hear a beep
LED will blink green
2. Press & Hold Set Button a 2nd time for 3 seconds - until you hear a beep
LED will blink red
3. Press & Hold Set Button a 3rd time for 3 seconds - until you hear a beep
LED will blink green
4. Press & Hold Set Button a 4th time for 3 seconds - until you hear a beep
LED will blink red
5. Tap Set Button
LED will double-blink red
6. Press the appropriate button for the desired button/scene configuration
Desired Configuration
Button to Press
8 Button Toggle
Bottom Row, Left Side
8 Button Non-Toggle (Always On)
Top Row, Left Side
4 scene (Default)
Top Row, Right Side
Mini Remote will double-beep and its LED will turn off
7. To confirm the configuration, tap the top left button on Mini Remote several times
LED will flash as follows
Flash Pattern
Configuration
Red every tap
4 scene
Green every tap
8 scene Non-Toggle (Always On)
Alternating Green / Red
8 scene Toggle

Page 10 of 16 2342-232/2444A2WH4, 2342-432, 2342-532 Rev: 1/21/2014 7:14 AM
Turn LED Off (or Back On)
1) Press & Hold Set Button for 3 seconds - until you hear a beep
LED will blink green
2) Press & Hold Set Button a 2nd time for 3 seconds - until you hear a beep
LED will blink red
3) Press & Hold Set Button a 3rd time for 3 seconds - until you hear a beep
LED will blink green
4) Press the appropriate button for the desired button/scene configuration
Desired LED Mode
Button to Press
LED Off
Top Row, Left Side
LED On (default)
Top Row, Right Side
Mini Remote will double-beep and its LED will turn off
Turn Beeper On During Usage (or Back Off)
1) Press & Hold Set Button for 3 seconds - until you hear a beep
LED will blink green
2) Press & Hold Set Button a 2nd time for 3 seconds - until you hear a beep
LED will blink red
3) Press & Hold Set Button a 3rd time for 3 seconds - until you hear a beep
LED will blink green
4) Tap Set Button
LED will double-blink green
5) Press the appropriate button for the desired button/scene configuration
Desired Beeper Mode
Button to Press
Off (Default)
Top Row, Left Side
On
Top Row, Right Side
Mini Remote will double-beep and its LED will turn off
